Before attempting to connect or operate this product,

please read these instructions carefully and save this manual for future use.

The model number is abbreviated in some descriptions in this manual.

Operating Instructions

Ceiling Mount Bracket

Model No. WV-Q175

WV-Q175E

CONTENTS

Preface ..........................................................................................................................................3

Precautions ...................................................................................................................................3

Major operating controls and their functions .................................................................................5

Installations ...................................................................................................................................5

Specifications ..............................................................................................................................10

Standard accessories ..................................................................................................................11

• Refer installation work to the dealer.

Installation work requires technique and experiences. Failure to observe this may cause

fire, electric shock, injury, or damage to the product.

• Be sure to consult the dealer.

• Use only the specified camera.

Failure to observe this may cause a fall of an inappropriate camera resulting in injury or

accidents.

• Refer to the catalog or the operating instructions of the camera for supported cameras.

• Select an installation area.

If a selected area is too weak to support the total weight, a fall of the product may occur

resulting in injury.

• Installation work shall be started after sufficient reinforcement.

• The installation area shall have 210 mm {8-1/4 inches} or more space behind the ceil-

ing.

• The thickness of the ceiling board for installation can range from 9 mm to 40 mm {3/8

inches to 1-9/16 inches}.

• Avoid installing this bracket in the locations where salt damage occurs or corrosive

gas is produced.

Otherwise, the mounting portions will deteriorate and accidents such as a fall of the camera

may occur.

• The screws and fixation mechanisms shall be tightened securely.

Failure to observe this may cause a fall of the camera resulting in injury.

• Periodic inspections shall be conducted.

Rust on the metal parts or screws may cause a fall of the product resulting in injury.

• Consult the dealer for the inspections.

210 mm {8-1/4 inches}

or more

Ceiling board: from 9 mm to 40 mm

{3/8 inches to 1-9/16 inches}

Precautions

Preface

This ceiling embedded bracket is exclusively designed to mount a color CCTV camera or a net-

work camera. Refer to the catalog or the operating instructions of the camera for supported

cameras.

This bracket is an embedded type to reduce the exposed portion of the camera body.

• Do not rub the edges of metal parts with your hand.

Failure to observe this may cause injury.

• Make sure that the installation area is strong enough to hold the total weight of the camera

assembly before installation.

• The camera and the ceiling mount bracket should be fixed using the provided fixing

screws, and make sure that the both of them are fixed firmly.

• When the ceiling mount bracket is not necessary anymore, remove from the ceiling.

• Avoid installing in the following locations.

• Locations where it may get wet from rain or water splash (not only outdoor)

• Locations where a chemical agent is used such as a swimming pool

• Locations subject to steam and oil smoke such as a kitchen

• Locations where radiation or x-ray emissions are produced

• Locations where it may be damaged by briny air such as seashores

• Locations where the temperature is not within the ambient temperature of the camera in

use and this product

• Locations subject to vibrations (This product is not designed for on-vehicle use.)

• Locations where the temperature may rapidly change such as the peripheral areas of

the air outlets of air conditioners or doors facing outside. (In case of installing the cam-

era in such locations, the dome cover may become foggy or condensation may be

caused on the cover.)

• The screws and bolts must be tightened with an appropriate tightening torque according to

the material and strength of the installation area. After tightening the screws or bolts, per-

form visual check to ensure tightening is enough and there is no backlash.

Major operating controls and their functions

Roof space

Safety wire angle (Accessory)

Safety wire (Accessory)

* Read the operating instructions of the camera as well.

Installations

Be sure to read "Precautions" before installation. It is recommended to read them while referring

the operating instructions of the camera together.

1. Put Template A (accessory) against the ceiling and make a hole.

qMake 4 holes of 12 mm {1/2 inches} in diameter.

Note: Make these holes so that the

Panasonic logo is directed to the

desired side.

wRemove the center part from the tem-

plate.

eMake a hole of 180 mm {7-1/16 inches}

in diameter.

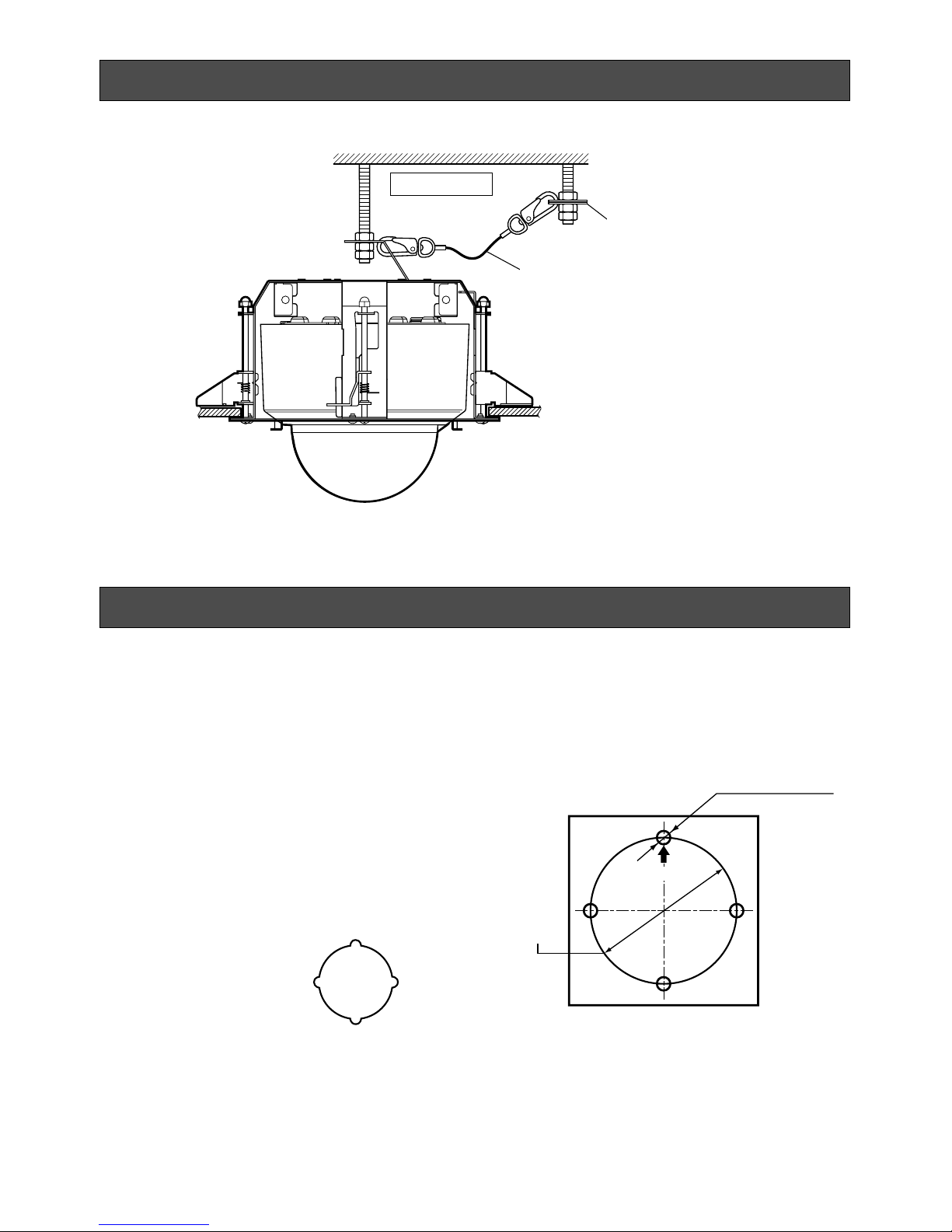

The ceiling holes are

shown in the drawing

at right. →

Important: Make a hole precisely. When the opened hole is bigger or deformed too much, the

ceiling mount bracket cannot be stuck on the ceiling board securely.

Brand logo side

Ceiling face ø12 mm {1/2 inches}

(4 positions)

ø180 mm

{7-1/16 inches}

Template A

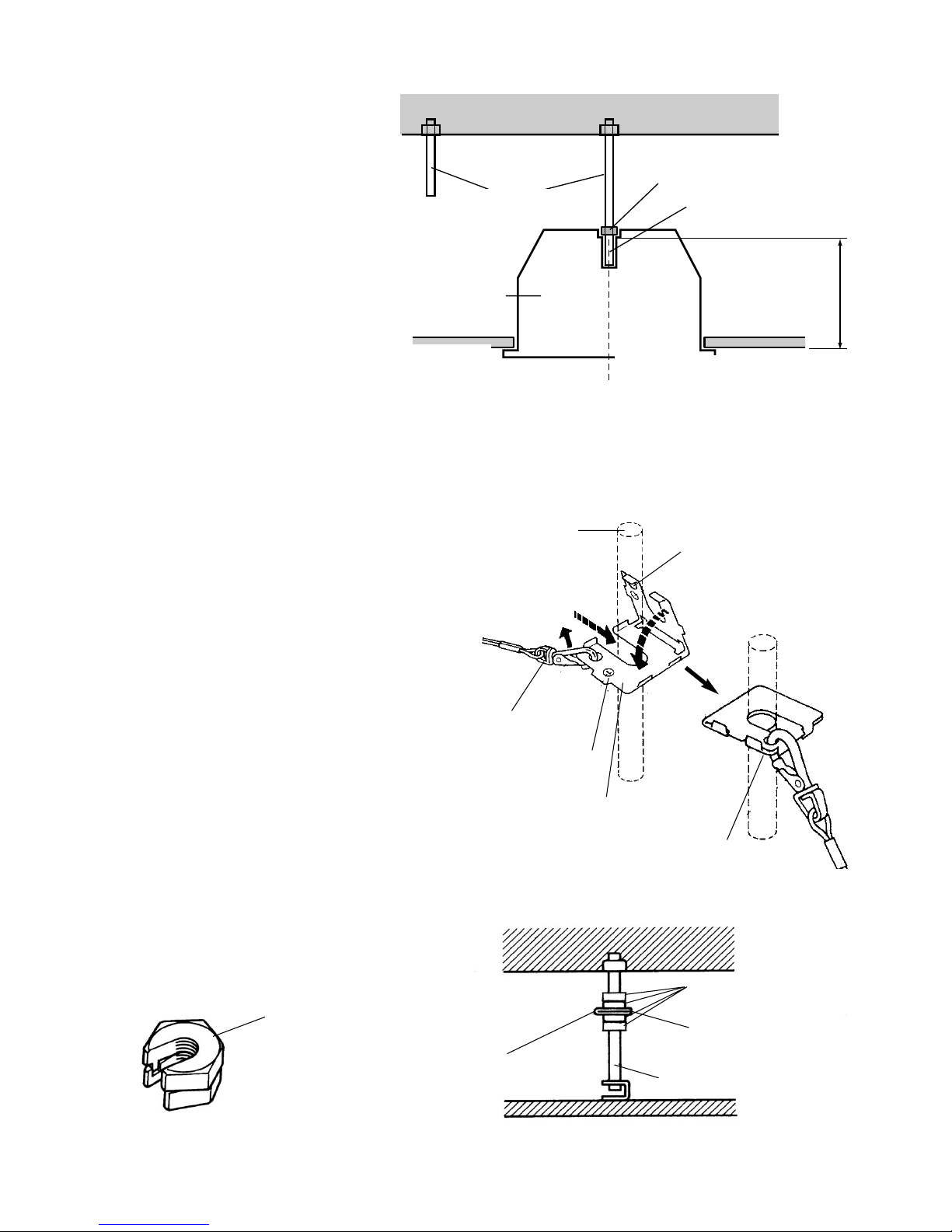

2. Install two anchor bolts (locally procured: M10 recommended) into the concrete ceil-

ing.

qInstall an anchor bolt in the

center of the hole made in the

step 1.

wDetermine the anchor bolt

length by use of Template B

(accessory).

eUse Template B to decide the

nut position, and fix it.

(Mount the nut so that the dis-

tance between the bottom sur-

faces of the nut and ceiling is

adjusted to 134 mm {5-1/4

inches}.)

Note: If there is already an anchor bolt installed, the anchor bolt can be used as a 2nd anchor

bolt. Make sure that the distance between the 1st and 2nd anchor bolts is 1 000 mm {3.28

feet} or less before use.

3. Mount the safety wire angle (accesso-

ry) on the 2nd anchor bolt and con-

nect the safety wire (accessory) to the

angle.

qDisconnect the safety wire from the safe-

ty wire angle.

wEngage the face marked qwith the

anchor bolt.

eBend the face marked w.

rConnect the safety wire to the safety wire

angle again.

Note: To use the anchor bolt that was

already installed, the use of 2 spacer

nuts (locally procured) is helpful.

Anchor bolt

Nut (locally procured)

Template B

Determine the anchor

bolt length

Ceiling board Install the anchor bolt in the center

of the hole

134 mm

{5-1/4 inches}

Upper side

Lower

side

Safety wire

wInsert

qDisconnect

eBend

Mark w

Mark q

rConnect

Safety wire angle

Anchor bolt

Spacer nuts

(locally procured)

Safety wire

Spacer nuts

Safety wire angle

Existing anchor bolt

2nd Anchor bolt

(locally procured) 1st Anchor bolt (locally procured)

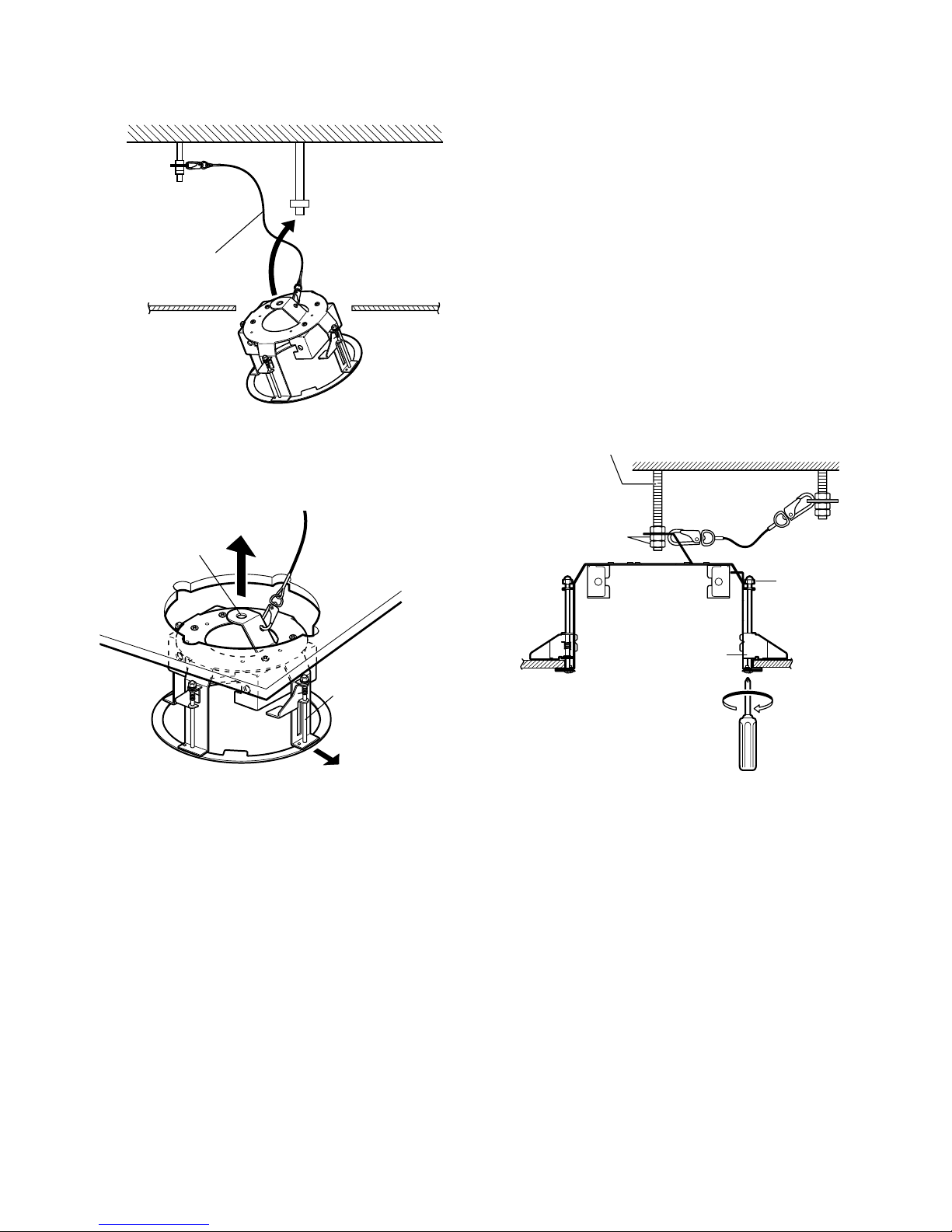

6. Secure the mount bracket to the ceil-

ing board with the ceiling board fixing

screws (4 positions).

Turning the ceiling board fixing screws

clockwise provides ceiling board tighten-

ing between the bottom of the mount

bracket and ceiling board fixing bracket

resulting in mount bracket securing.

(Recommended tightening torque:

0.78 N·m {0.58 lbf·ft})

Important: When securing this bracket

on the ceiling, make sure that the

four ceiling board fixing brackets are

open as shown in the following fig-

ure.

Important: When the ceiling board is the

plasterboard, make sure that no crack

was made on the ceiling board by

clamping.

7. Use double nuts (locally procured) to

secure the mount bracket after insert-

ing the 1st anchor bolt.

4. Connect this mount bracket to the tip

of the safety wire.

5. Insert the 1st anchor bolt into the

mounting hole of the mount bracket.

Note: The Panasonic logo will be direct-

ed to the ceiling board fixing screw

which is secured on the side

described in the illustration.

When inserting the mount bracket

into the ceiling, fit the bracket in the

4 mounting holes of 12 mm {1/2 inch-

es} in diameter on the ceiling.

Safety wire (Accessory)

Roof space

Insert the mount

bracket into the hole

Mount bracket

Direction of the

Panasonic logo

Ceiling board

fixing screw

Mounting hole

1st anchor bolt

Ceiling

board fixing

screw

Ceiling board

fixing bracket

Turn clockwise

Double nuts (locally

procured)

Ceiling board

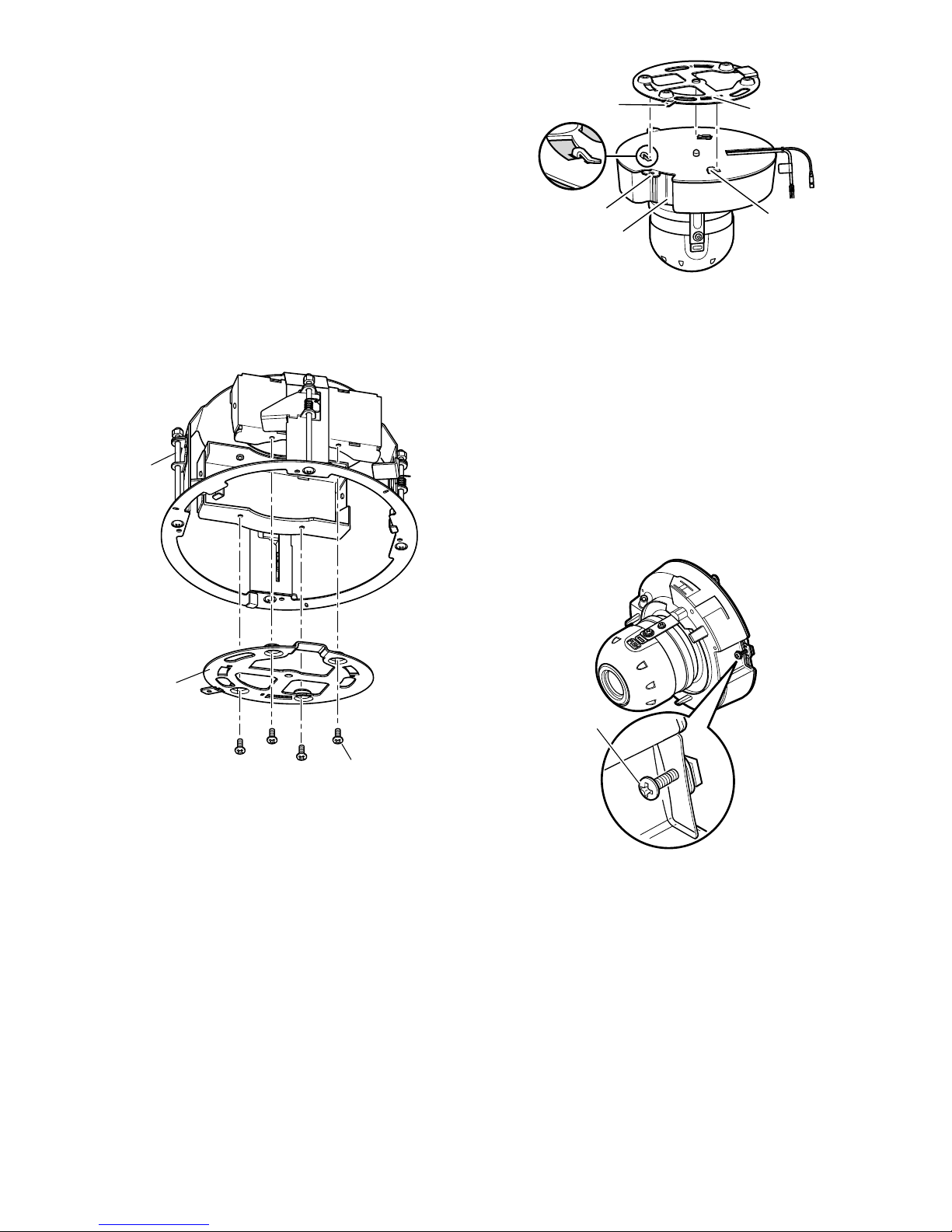

8. Follow the procedure according to the

model of the camera to be installed.

qMount the camera attachment (supplied

with the camera) to this bracket.

Use 4 fixing screws (accessory) to

secure the camera attachment firmly as

shown in the drawing.

(Recommended tightening torque: 0.78

N·m {0.58 lbf·ft})

wConnect the camera cables.

eMount the camera.

a. Align the single rib on the camera

with the protrusion on the camera

attachment.

b. Engage the camera's attachment

mounting hooks with the mounting

holes on the camera attachment,

and then rotate the camera in the

direction of the arrow to secure the

camera to the camera attachment

without any backlash.

Note: When the camera is secured, the

camera attachment protrusion is aligned

with the camera fixing screw hole and

the double rib on the camera.

rSecure the camera to the camera

attachment with the camera fixing

screw.

(Recommended tightening torque:

0.78 N·m {0.58 lbf·ft}).

tAdjust the camera.

Refer to the operating instructions of the

camera.

Mount

bracket

Camera

attachment

Fixing screws

Attachment

mounting hook

Camera

mounting hole

Fixing screw hole

Single rib

Protrusion

Camera fixing screw

Hooks for the

decorative

cover

Projection

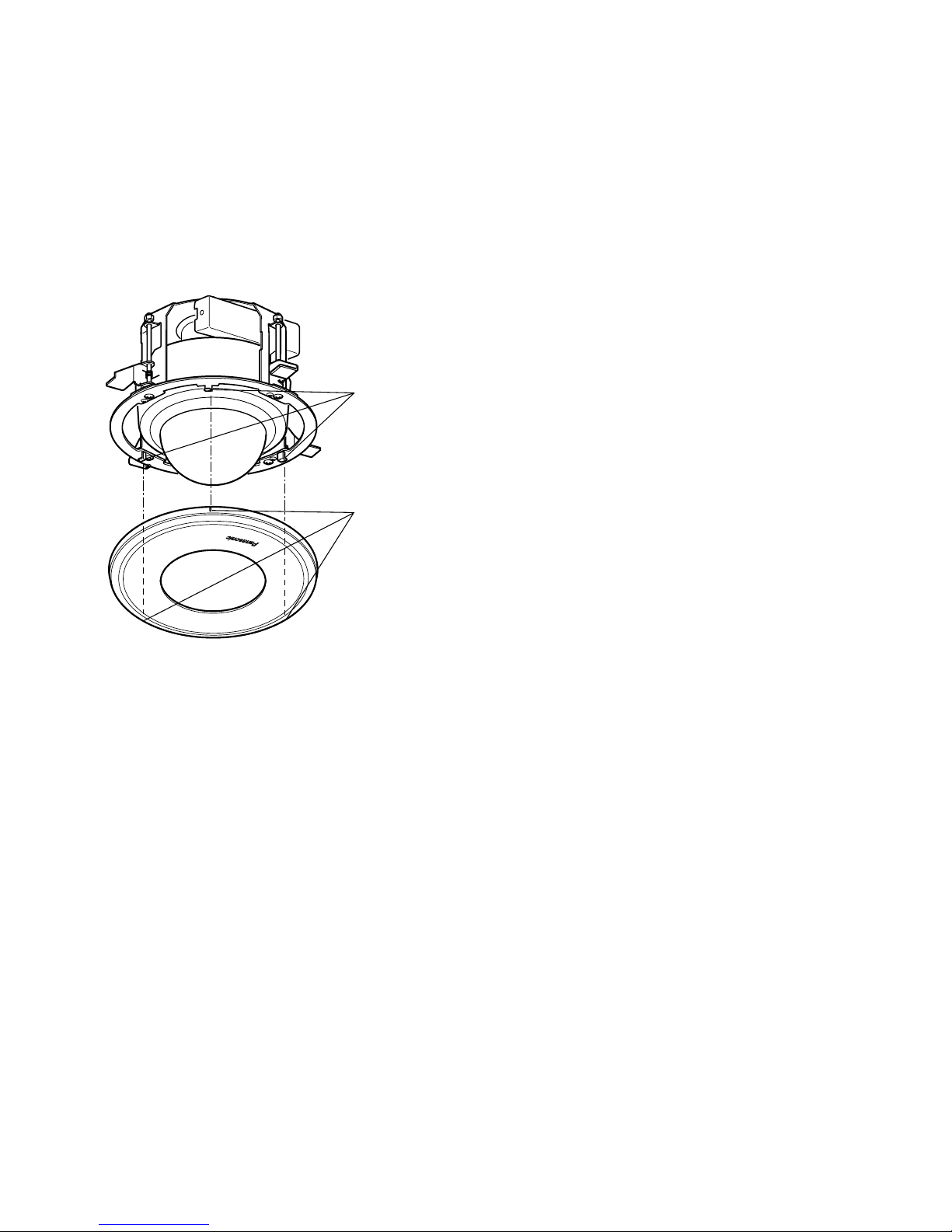

9. Mount the decorative cover on this

mount bracket.

• Mount the decorative cover on the cam-

era mounting plate with engaging the

projections of the decorative cover with

the hooks for the decorative cover.

• Turn the decorative cover clockwise until

the cover clicks while pressing the cover

upward to lock the cover.

Note: Mount the decorative cover on the

mount bracket so that the Panasonic

logo is directed to the side which was

determined when making the mounting

holes.

Specifications

Ambient temperature –10 °C to +50 °C {–14 °F to 122 °F}

Dimensions 204.4 mm {8-1/16 inches} in diameter x 143.4 mm {5-5/8 inches}

in height

Mass Approx. 700 g{1.55 lbs}

Finish Main body: Metal

Decorative cover: ABS plastic

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Panasonic Accessoires pour appareils photo

Panasonic

Panasonic A1 Security Cameras WV-CW4C Manuel utilisateur

Panasonic

Panasonic AW-PB302 Manuel utilisateur

Panasonic

Panasonic WV-VF39 Manuel utilisateur

Panasonic

Panasonic AGVF5P - 1.5" B&W VIEWFINDER Manuel utilisateur

Panasonic

Panasonic POH1000 Instructions d'utilisation et d'installation

Panasonic

Panasonic HHR380A Manuel utilisateur

Panasonic

Panasonic WV7230D - PAN/TILT RMTE CNTRLR Manuel utilisateur

Panasonic

Panasonic AW-LZ17ST66G Manuel utilisateur

Panasonic

Panasonic Varicam AU-VCVF20G Manuel utilisateur

Panasonic

Panasonic LC-R127R2P Manuel utilisateur

Panasonic

Panasonic BB-HGW700A - Network Camera Router Manuel utilisateur

Panasonic

Panasonic AW-CH600 Manuel utilisateur

Panasonic

Panasonic AWPH600P - OUTDOOR PAN/TILT HEAD Manuel utilisateur

Panasonic

Panasonic AG-HCK10 Manuel utilisateur

Panasonic

Panasonic LC-XC1228AP Manuel utilisateur

Panasonic

Panasonic WV7225 - PANA TILT Manuel utilisateur

Panasonic

Panasonic WV-CF5SA Manuel utilisateur

Panasonic

Panasonic WV-CS1S Manuel utilisateur

Panasonic

Panasonic AW-PB504N Manuel utilisateur

Panasonic

Panasonic AGVF5P - 1.5" B&W VIEWFINDER Manuel utilisateur

Panasonic

Panasonic AWPH300 - INDOOR PAN/TILT HEAD Manuel utilisateur

Panasonic

Panasonic WV7230 - CCTV ACCESSORIES Manuel utilisateur

Panasonic

Panasonic HHR150AA Manuel utilisateur

Panasonic

Panasonic AJ-YBX200G Manuel utilisateur

Manuels Accessoires pour appareils photo populaires d'autres marques

Viltrox

Viltrox EF-NEX Instructions d'installation

Calumet

Calumet 7100 Series CK7114 Manuel utilisateur

Ropox

Ropox 4Single Series Manuel utilisateur

Cambo

Cambo Wide DS Digital Series Mode d'emploi

Samsung

Samsung SHG-120 Manuel utilisateur

Ryobi

Ryobi BPL-1820 Manuel d'utilisation

Aegis

Aegis ABL-36020P Manuel utilisateur

Pentax

Pentax Data Back Fc Manuel utilisateur

Fantasea

Fantasea EyeGrabber F Series Manuel utilisateur

Honeywell

Honeywell HDZ20HD Manuel utilisateur

EGO

EGO BA1400T Manuel utilisateur

Sima

Sima SRW-62 Manuel utilisateur

Shape

Shape A7SSMKIT Manuel utilisateur

Slide Kamera

Slide Kamera HST-2 Manuel utilisateur

Power works

Power works 2902613 Manuel utilisateur

SES

SES SE-2047-2 Manuel utilisateur

Olympus

Olympus PT-EP05L Manuel utilisateur

Starlite

Starlite OctoDome nxt Manuel utilisateur
