Operating Instructions

INTERCHANGEABLE LENS FOR DIGITAL CAMERA

Model No. H-FS45150

Before use, please read these instructions completely.

until

2012/9/10

VQT4J90_E.book 1 ページ２０１２年８月２１日　火曜日　午後５時１０分

VQT4J90

Contents

Information for Your Safety..................................... 2

Precautions........................................................... 4

Supplied Accessories ............................................. 5

Attaching/Detaching the Lens................................. 5

Names and Functions of Components ................... 8

Cautions for Use..................................................... 8

Troubleshooting .................................................... 9

Specifications........................................................ 10

Information for Your Safety

Keep the unit as far away as possible from

electromagnetic equipment (such as microwave

ovens, TVs, video games, radio transmitters,

high-voltage lines etc.).

≥Do not use the camera near cell phones because

doing so may result in noise adversely affecting

the pictures and sound.

≥

If the camera is adversely affected by electromagnetic

equipment and stops functioning properly, turn the

camera off and remove the battery and/or the

connected AC adaptor. Then reinsert the battery and/

or reconnect the AC adaptor and turn the camera on.

The lens can be used with a digital camera

compatible with the lens mount standard for the

“Micro Four ThirdsTM System”.

≥It cannot be mounted on the Four ThirdsTM mount

specification camera.

≥The digital camera illustrations in these operating

instructions show DMC-G5 as an example.

≥The appearance and specifications of products

described in this manual may differ from the actual

products you have purchased due to later

enhancements.

≥Micro Four ThirdsTM and Micro Four Thirds Logo

marks are trademarks or registered trademarks of

Olympus Imaging Corporation, in Japan, the

United States, the European Union and other

countries.

≥Four ThirdsTM and Four Thirds Logo marks are

trademarks or registered trademarks of Olympus

Imaging Corporation, in Japan, the United States,

the European Union and other countries.

≥G MICRO SYSTEM is an interchangeable lens

type digital camera system of LUMIX based on a

Micro Four Thirds System standard.

≥Other names of systems and products mentioned

in these instructions are usually the registered

trademarks or trademarks of the manufacturers

who developed the system or product concerned.

VQT4J90_E.book 2 ページ２０１２年８月８日　水曜日　午後４時５０分

VQT4J90

-If you see this symbol-

Information on Disposal for Users of Waste Electrical & Electronic Equipment (private

households)

This symbol on the products and/or accompanying documents means that used

electrical and electronic products should not be mixed with general household waste.

For proper treatment, recovery and recycling, please take these products to

designated collection points, where they will be accepted on a free of charge basis.

Alternatively, in some countries you may be able to return your products to your local

retailer upon the purchase of an equivalent new product.

Disposing of this product correctly will help to save valuable resources and prevent

any potential negative effects on human health and the environment which could

otherwise arise from inappropriate waste handling. Please contact your local authority

for further details of your nearest designated collection point.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for

further information.

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union.

If you wish to discard this product, please contact your local authorities or dealer and ask for the correct

method of disposal.

ENGLISH

VQT4J90_E.book 3 ページ２０１２年８月８日　水曜日　午後４時５０分

VQT4J90

∫Lens Care

≥Sand and dust can damage the lens. Make

sure that no sand or dust gets inside the lens

or the terminals when using the lens on a

beach, etc.

≥This lens is not waterproof. If drops of water

get onto the lens, wipe the lens with a dry

cloth.

≥Do not press the lens with excessive force.

≥When there is dirt (water, oil, and fingerprints, etc.)

on the surface of the lens, the picture may be

affected. Lightly wipe the surface of the lens with a

soft, dry cloth before and after taking pictures.

≥Do not place the lens mount facing downwards.

Do not allow the lens contact points 1to become

dirty.

∫About Condensation (Fogging of the

Lens)

≥Condensation occurs when there are differences

in temperature and humidity as described below.

Condensation can cause the lens to become dirty

and lead to mold and malfunctioning, so exercise

caution in the following situations:

– When the camera is brought indoors from outside

during cold weather

– When the camera is brought into an air-

conditioned car

– When cold air from an air conditioner is directly

blown onto the lens

– In humid places

≥Put the camera into a plastic bag to allow it to

acclimatize to the surrounding temperature in

order to prevent condensation. If condensation

occurs, turn the power off and leave it for about

two hours. Once the camera acclimatizes to the

surrounding temperature the condensation will go

away naturally.

Precautions

VQT4J90_E.book 4 ページ２０１２年８月８日　水曜日　午後４時５０分

VQT4J90

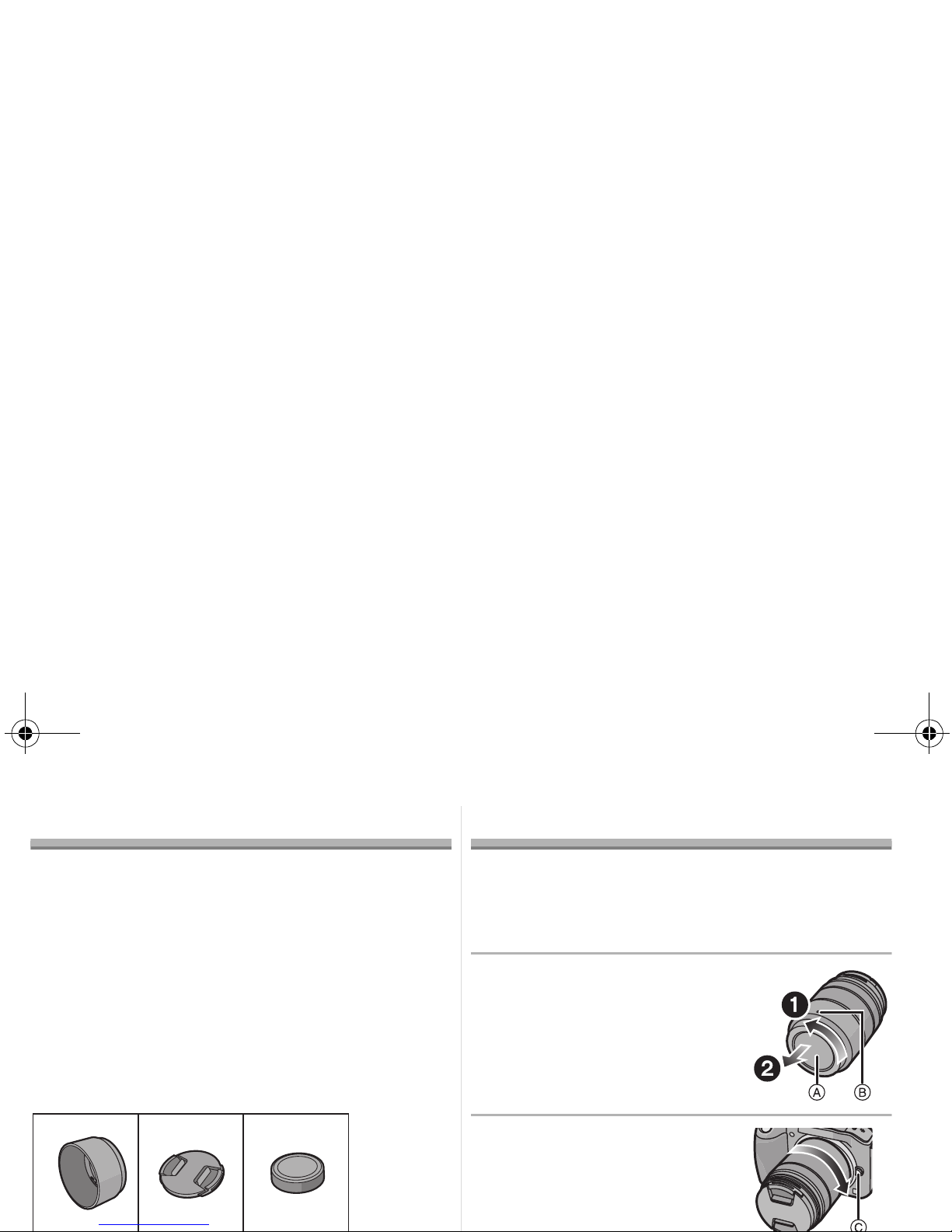

Supplied Accessories

[Inspection to be performed when you unpack

the unit]

When removing the unit from its packing box, check

that the main unit and the supplied accessories are

there and also check their external appearance and

functions to verify that they have not sustained any

damage during distribution and transportation.

If you discover any trouble, contact your vendor

before using the product.

Product numbers correct as of September 2012.

These may be subject to change.

1Lens Hood

2Lens Cap

3Lens Rear Cap

(The lens rear cap and lens cap are attached to

the interchangeable lens at the time of purchase.)

Attaching/Detaching the Lens

≥Refer also to the camera’s operating instructions

for attaching and detaching the lens.

∫Attaching the Lens

≥Check that the camera is turned off.

1 Turn the lens rear cap to

detach it.

A: Lens Rear Cap

2 Align the lens fitting

marks B(red marks) on

the camera body and the

lens and then rotate the

lens in the direction of

the arrow until it clicks.

• Do not press the lens release

button C when you attach a lens.

• Do not try to attach the lens when holding it at an

angle to the camera body as the lens mount may

get scratched.

• Check that the lens is attached correctly.

VYC1090 VYF3201 VFC4605

21 3

VQT4J90_E.book 5 ページ２０１２年８月８日　水曜日　午後４時５０分

VQT4J90

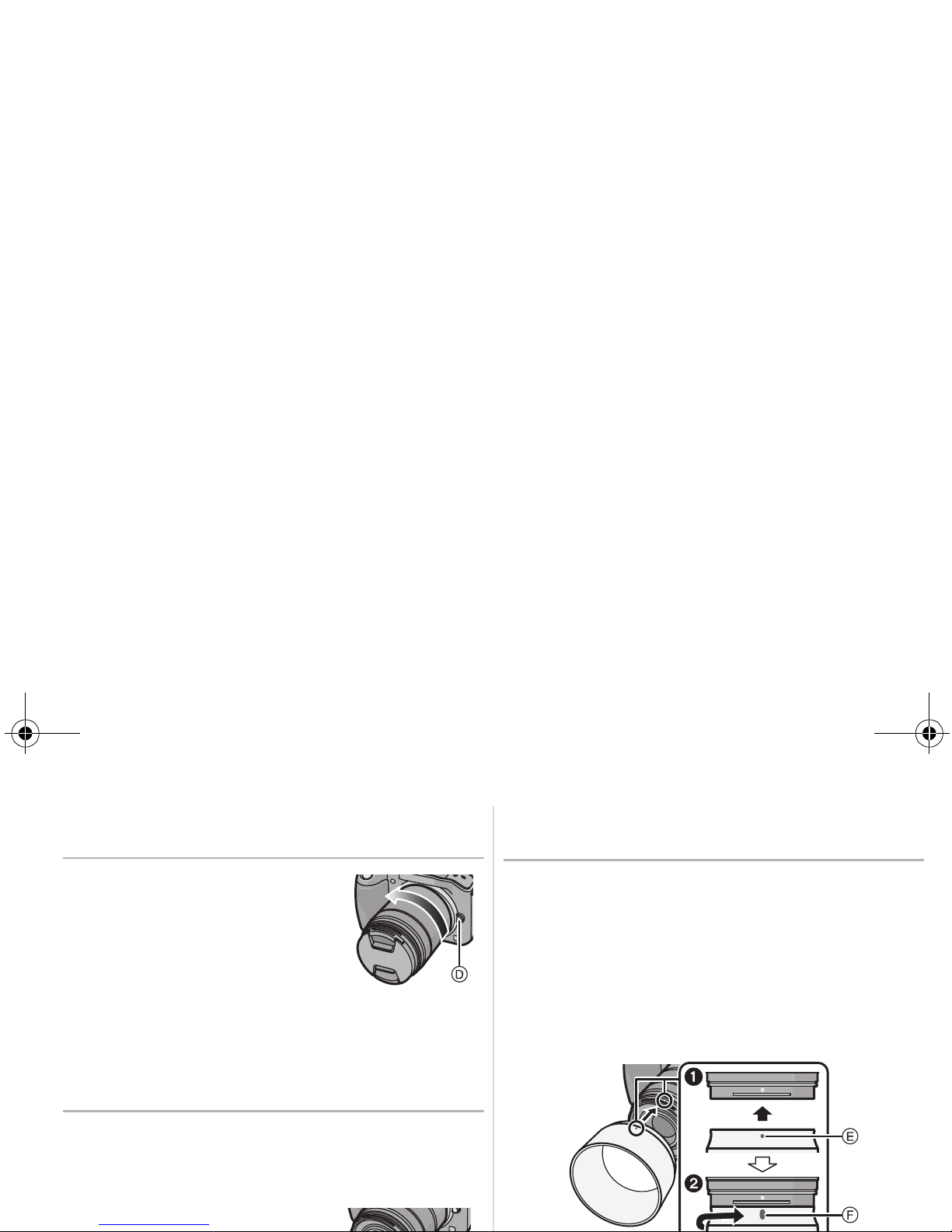

∫Detaching the Lens

≥Check that the camera is turned off.

While pressing on the

lens release button D,

rotate the lens toward the

arrow until it stops and

then remove.

• Attach the lens rear cap so

that the lens contact point does not get

scratched.

• Attach the body cap to the camera so no dirt or

dust will get inside the main unit.

∫Attaching and Detaching the Lens Cap

Pinch the lens cap as shown in the figure

to attach or detach.

≥Be careful not to lose

the lens cap.

∫Attaching the Lens Hood

(Supplied Accessory)

1Align the fitting mark Eon the lens

hood with the mark on the tip of the

lens.

2Turn the lens hood in the direction of

the arrow until it stops, and align the

stop mark Fon the lens hood with

the mark on the tip of the lens.

VQT4J90_E.book 6 ページ２０１２年８月８日　水曜日　午後４時５０分

VQT4J90

∫Temporarily Storing the Lens Hood

1 Turn the lens hood in the direction of the

arrow to detach it.

2 Reverse the lens hood and then attach it

in the same way as shown previously.

≥When taking pictures with

the flash with the lens hood

attached, the lower portion of

the screen may turn dark

(vignetting effect) and the

control of the flash may be

disabled because the photo

flash may be obscured by the lens hood. We

recommend detaching the lens hood.

≥When using the AF assist lamp in the dark, detach

the lens hood.

∫Attaching Filters

≥Vignetting may occur if using 2 or more

MC protectors (optional: DMW-LMC52),

PL filters (optional: DMW-LPL52) or ND filters

(optional: DMW-LND52), or if using thick

protectors and/or filters.

≥The filter may become impossible to remove if

excessively tightened, so please refrain from

tightening it too strongly.

≥It is possible to attach the lens cap with the filter

already attached.

≥You cannot attach a conversion lens or adaptor to

this lens. A filter may be used, but attaching any

other element may cause damage to the lens.

VQT4J90_E.book 7 ページ２０１２年８月８日　水曜日　午後４時５０分

VQT4J90

Names and Functions of

Components

1Lens surface

2Focus ring

Rotate to focus when taking pictures with manual

focus.

3Zoom ring

Rotate the zoom ring when you wish to take large

(tele) or wide (wide angle) pictures. (35 mm film

camera equivalent: 90 mm to 300 mm)

4Contact points

5Lens fitting mark

Note

≥When flash recording with a close subject, the

light of the flash will be blocked by the lens and

part of the picture may be dark. Check the

distance from the subject when recording.

≥

If you zoom after focusing, focusing errors may occur.

After zooming, please perform the focusing again.

Cautions for Use

Take care not to drop or knock the lens. Also

take care not to put a lot of pressure on the lens.

≥

Take care not to drop the bag that you inserted the

lens in as it may strongly shock the lens. The camera

may stop operating normally and pictures may no

longer be recorded. Also, the lens may be damaged.

When using pesticides and other volatile

substances around the camera make sure that

they do not get onto the lens.

≥

If such substances get onto the lens they can

damage the exterior case or cause the paint to peel.

Do not carry the unit when it is still attached to

the camera body.

≥

Under no circumstances should the unit be stored in

any of the following locations since doing so may

cause problems in operation or malfunctioning.

1 2 3 4 5

VQT4J90_E.book 8 ページ２０１２年８月８日　水曜日　午後４時５０分

VQT4J90

– In direct sunlight or on a beach in summer

– In locations with high temperatures and humidity

levels or where the changes in temperature and

humidity are acute

– In locations with high concentrations of sand,

dust or dirt

– Where there is fire

– Near heaters, air conditioners or humidifiers

– Where water may make the unit wet

– Where there is vibration

– Inside a vehicle

≥Refer also to the operating instructions of the

digital camera.

≥When the unit is not going to be used for a

prolonged period, we recommend storing with a

desiccant (silica gel). Failure to do so may result in

performance failure caused by mold, etc. It is

recommended that you check the unit’s operation

prior to use.

≥Do not leave the lens in contact with rubber or

plastic products for extended periods of time.

≥Do not touch the lens contact point. Doing so can

cause failure of the unit.

≥Do not disassemble or alter the unit.

Do not use benzine, thinner, alcohol or other

similar cleaning agents to clean the lens glass or

exterior cabinet.

≥Using solvents can damage the lens or cause the

paint to peel.

≥

Wipe off any dust or fingerprints with a soft, dry cloth.

≥Use a dry, dust cloth to remove dirt and dust on

the zoom ring and the focus ring.

≥Do not use a household detergent or a chemically

treated cloth.

A sound is heard when the camera is turned on

or off.

≥This is the sound of lens or aperture movement

and is not a malfunction.

When this lens is attached to digital camera,

stabilizer function cannot be turned off or

stabilizer function does not work.

≥The Optical Image Stabilizer function of this lens

only works correctly with supported cameras.

When older Panasonic digital cameras (DMC-GF1,

DMC-GH1, DMC-G1) are used, [Stabilizer] in the

[Rec] mode menu cannot be set to [OFF]. It is

recommended to update the firmware of the digital

camera at the following website.

http://panasonic.jp/support/global/cs/dsc/download/

>When using this lens with another make of digital

cameras, the Optical Image Stabilizer function will

not work. (As of September 2012)

For details, contact the respective company.

Troubleshooting

VQT4J90_E.book 9 ページ２０１２年８月２０日　月曜日　午後１２時８分

VQT4J90

Specifications

INTERCHANGEABLE LENS FOR DIGITAL CAMERA

“LUMIX G VARIO 45– 150 mm/F4.0 – 5.6 ASPH./MEGA O.I.S.”

Focal length f=45 mm to 150 mm

(35 mm film camera equivalent: 90 mm to 300 mm)

Aperture type 7 diaphragm blades/circular aperture diaphragm

Aperture range F4.0 (Wide) to F5.6 (Tele)

Minimum aperture value F22

Lens construction 12 elements in 9 groups (2 aspherical lenses, 1 UHR Lens)

In focus distance 0.9 m to ¶ (from the focus distance reference line)

Maximum image magnification 0.17k(35 mm film camera equivalent: 0.35k)

Optical image stabilizer Available

[O.I.S.] switch None (Setting of the [Stabilizer] is done in [Rec] mode menu by

LUMIX digital cameras.)

Mount “Micro Four Thirds Mount”

Angle of view 27x(Wide) to 8.2x(Tele)

Filter diameter 52 mm

Max. diameter Approx. 62 mm

Overall length Approx. 73 mm

(from the tip of the lens to the base side of the lens mount)

Mass Approx. 200 g

VQT4J90_E.book 10 ページ２０１２年８月２０日　月曜日　午後１２時８分

Table des matières

Langues :

Autres manuels Panasonic Accessoires pour appareils photo

Panasonic

Panasonic DMC-G1K - Lumix Digital Camera Manuel utilisateur

Panasonic

Panasonic AG-CVF15G Manuel utilisateur

Panasonic

Panasonic AW-LZ17ST9AG Manuel utilisateur

Panasonic

Panasonic PPDW12 Manuel d'utilisation

Panasonic

Panasonic AWPH300 - INDOOR PAN/TILT HEAD Manuel utilisateur

Panasonic

Panasonic CGR18650CG Manuel utilisateur

Panasonic

Panasonic WV-VF42 Manuel utilisateur

Panasonic

Panasonic BB-HGW700A - Network Camera Router Manuel utilisateur

Panasonic

Panasonic DMW-LMCH58 Manuel utilisateur

Panasonic

Panasonic AJ-YBX200G Manuel utilisateur

Panasonic

Panasonic DC-GH5M Series Manuel utilisateur

Panasonic

Panasonic H-FS1442AE Manuel utilisateur

Panasonic

Panasonic LUMIX DMW-MCTZ7 Manuel utilisateur

Panasonic

Panasonic VW-BTA1 Manuel utilisateur

Panasonic

Panasonic AG-VF5P Manuel utilisateur

Panasonic

Panasonic WV-Q117 Manuel utilisateur

Panasonic

Panasonic DMW-DCC14 Manuel utilisateur

Panasonic

Panasonic VIDEOALARM PODV7CWNS/PODV7CPNS Manuel utilisateur

Panasonic

Panasonic DMW-LVF2PP Manuel utilisateur

Panasonic

Panasonic WV-VF42 Manuel utilisateur

Panasonic

Panasonic WV-NS202 - i-Pro Network Camera Manuel utilisateur

Panasonic

Panasonic LJ-SK56A Manuel utilisateur

Panasonic

Panasonic PUM8 Manuel utilisateur

Panasonic

Panasonic VIDEOALARM PODV7CPNS Manuel utilisateur

Manuels Accessoires pour appareils photo populaires d'autres marques

Viltrox

Viltrox EF-NEX Instructions d'installation

Calumet

Calumet 7100 Series CK7114 Manuel utilisateur

Ropox

Ropox 4Single Series Manuel utilisateur

Cambo

Cambo Wide DS Digital Series Mode d'emploi

Samsung

Samsung SHG-120 Manuel utilisateur

Ryobi

Ryobi BPL-1820 Manuel d'utilisation

Aegis

Aegis ABL-36020P Manuel utilisateur

Pentax

Pentax Data Back Fc Manuel utilisateur

Fantasea

Fantasea EyeGrabber F Series Manuel utilisateur

Honeywell

Honeywell HDZ20HD Manuel utilisateur

EGO

EGO BA1400T Manuel utilisateur

Sima

Sima SRW-62 Manuel utilisateur

Shape

Shape A7SSMKIT Manuel utilisateur

Slide Kamera

Slide Kamera HST-2 Manuel utilisateur

Power works

Power works 2902613 Manuel utilisateur

SES

SES SE-2047-2 Manuel utilisateur

Olympus

Olympus PT-EP05L Manuel utilisateur

Starlite

Starlite OctoDome nxt Manuel utilisateur
