Before use, please read these instructions completely.

VQT2C39-1

Operating Instructions

INTERCHANGEABLE LENS FOR DIGITAL CAMERA

Model No. H-VS014140

H-VS014140E-VQT2C39.book 1 ページ２０１１年２月２２日　火曜日　午前１１時４分

VQT2C39

Contents

Information for Your Safety..................................... 2

Precautions........................................................... 4

Supplied Accessories ............................................. 5

Attaching/Detaching the Lens................................. 5

Names and Functions of Components ................... 8

Cautions for Use..................................................... 9

Troubleshooting .................................................. 10

Specifications........................................................ 11

Information for Your Safety

Keep the unit as far away as possible from

electromagnetic equipment (such as microwave

ovens, TVs, video games, radio transmitters,

high-voltage lines etc.).

≥Do not use the camera near cell phones because

doing so may result in noise adversely affecting

the pictures and sound.

≥If the camera is adversely affected by

electromagnetic equipment and stops functioning

properly, turn the camera off and remove the

battery and/or the connected AC adaptor. Then

reinsert the battery and/or reconnect the AC

adaptor and turn the camera on.

The lens can be used with a digital camera

compatible with the lens mount standard for the

“Micro Four ThirdsTM System”.

≥It cannot be mounted on the Four ThirdsTM mount

specification camera.

≥The digital camera illustrations in these operating

instructions show DMC-GH1 as an example.

≥

The appearance and specifications of products described

in this manual may differ from the actual products you

have purchased due to later enhancements.

≥Four ThirdsTM and Four Thirds Logo marks are

trademarks or registered trademarks of Olympus

Imaging Corporation, in Japan, the United States,

the European Union and other countries.

≥

Micro Four Thirds

and Micro Four Thirds Logo

marks are trademarks or registered trademarks of

Olympus Imaging Corporation, in Japan, the United

States, the European Union and other countries.

≥Other names, company names, and product

names printed in these instructions are

trademarks or registered trademarks of the

companies concerned.

H-VS014140E-VQT2C39.book 2 ページ２００９年３月１２日　木曜日　午後４時３分

VQT2C39

-If you see this symbol-

Information on Disposal for Users of Waste Electrical & Electronic Equipment (private

households)

This symbol on the products and/or accompanying documents means that used

electrical and electronic products should not be mixed with general household waste.

For proper treatment, recovery and recycling, please take these products to

designated collection points, where they will be accepted on a free of charge basis.

Alternatively, in some countries you may be able to return your products to your local

retailer upon the purchase of an equivalent new product.

Disposing of this product correctly will help to save valuable resources and prevent

any potential negative effects on human health and the environment which could

otherwise arise from inappropriate waste handling. Please contact your local authority

for further details of your nearest designated collection point.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for

further information.

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union.

If you wish to discard this product, please contact your local authorities or dealer and ask for the correct

method of disposal.

ENGLISH

H-VS014140E-VQT2C39.book 3 ページ２００９年３月１２日　木曜日　午後４時３分

VQT2C39

∫Lens Care

≥Sand and dust can damage the lens. Make

sure that no sand or dust gets inside the lens

or the terminals when using the lens on a

beach, etc.

≥This lens is not waterproof. If drops of water

get onto the lens, wipe the lens with a dry

cloth.

≥Do not press the lens with excessive force.

≥When there is dirt (water, oil, and fingerprints, etc.)

on the surface of the lens, the picture may be

affected. Lightly wipe the surface of the lens with a

soft, dry cloth before and after taking pictures.

≥Do not place the lens mount facing downwards.

Do not allow the lens contact point 1to become

dirty.

∫About Condensation (Fogging of the

Lens)

≥Condensation occurs when there are differences

in temperature and humidity as described below.

Condensation can cause the lens to become dirty

and lead to mold and malfunctioning, so exercise

caution in the following situations:

– When the camera is brought indoors from outside

during cold weather

– When the camera is brought into an air-

conditioned car

– When cold air from an air conditioner is directly

blown onto the lens

– In humid places

≥Put the camera into a plastic bag to allow it to

acclimatise to the surrounding temperature in

order to prevent condensation. If condensation

occurs, turn the power off and leave it for about

two hours. Once the camera acclimatises to the

surrounding temperature the condensation will go

away naturally.

Precautions

H-VS014140E-VQT2C39.book 4 ページ２００９年３月１２日　木曜日　午後４時３分

VQT2C39

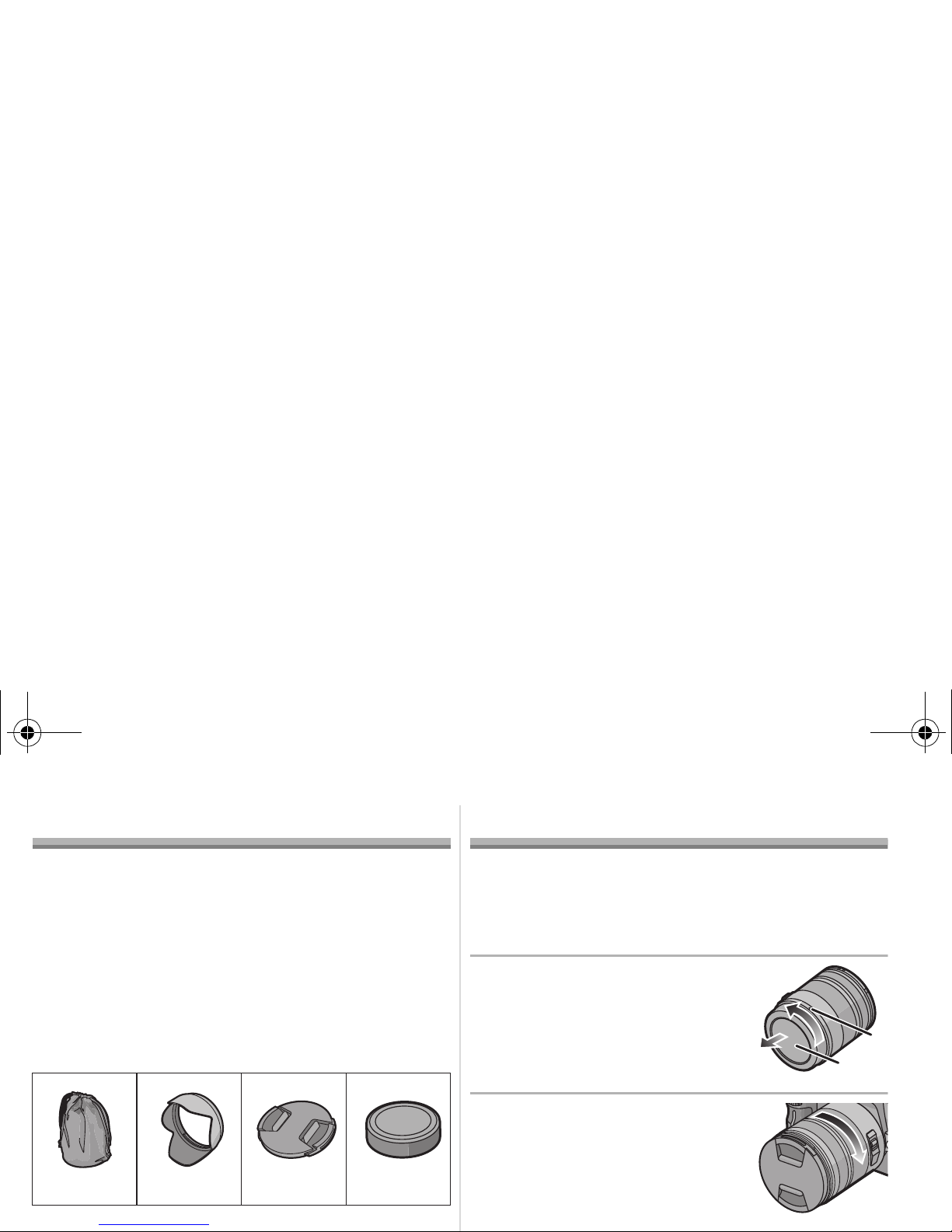

Supplied Accessories

[Inspection to be performed when you unpack

the unit]

When removing the unit from its packing box, check

that the main unit and the supplied accessories are

there and also check their external appearance and

functions to verify that they have not sustained any

damage during distribution and transportation.

If you discover any trouble, contact your vendor

before using the product.

1Lens Storage Bag

2Lens Hood

3Lens Cap

4Lens Rear Cap

(The lens cap and lens rear cap are attached to

the interchangeable lens at the time of

purchase.)

Attaching/Detaching the Lens

≥Refer also to the camera’s operating instructions

for attaching and detaching the lens.

∫Attaching the Lens

≥Check that the camera is turned off.

1 Turn the lens rear cap

to detach it.

A: Lens Rear Cap

2Align the lens fitting

marks B(red marks) on

the camera body and the

lens and then rotate the

lens in the direction of

the arrow until it clicks.

• Do not press the lens release button when you

attach a lens.

• Do not try to attach the lens when holding it at an

angle to the camera body as the lens mount may

get scratched.

• Check that the lens is attached correctly.

VFC4430 VYC0997 VYF3250 VFC4315

312 4











H-VS014140E-VQT2C39.book 5 ページ２００９年３月１２日　木曜日　午後４時３分

VQT2C39

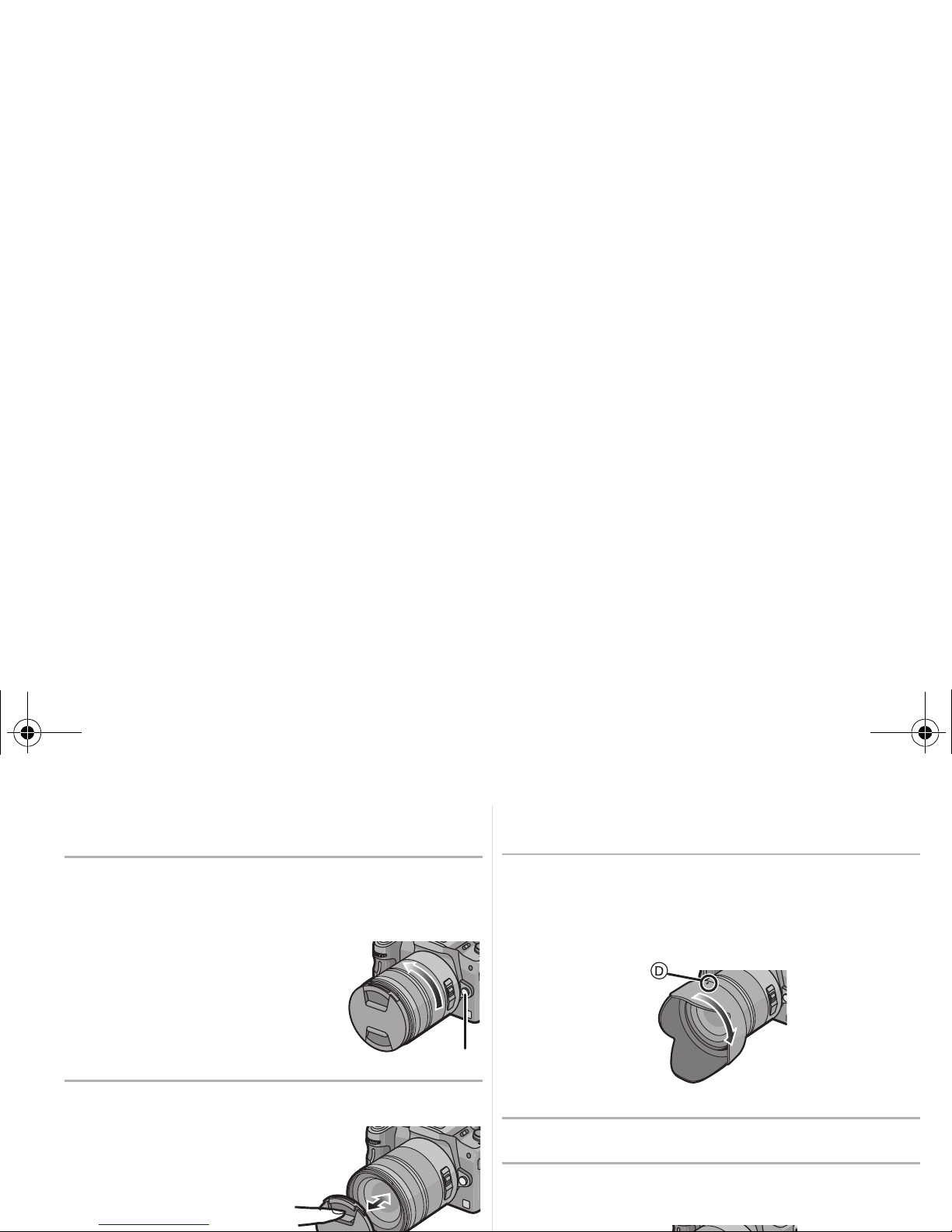

∫Detaching the Lens

≥Check that the camera is turned off.

Press the lens release button Cwhile

turning the lens as far as possible in the

direction of the arrow to detach it.

• Attach the lens rear cap so

that the lens contact point

does not get scratched.

• Attach the body cap to the

camera so no dirt or dust will

get inside the main unit.

∫Attaching and Detaching the Lens Cap

≥Be careful not to lose

the lens cap.

∫Attaching the Lens Hood

(Supplied Accessory)

Insert the lens hood into the lens with the

short sides at the top and bottom, and

turn in the direction of the arrow until it

stops.

D: Fit to the mark

∫Temporarily Storing the Lens Hood

1 Turn the lens hood in the direction of the

arrow to detach it.



H-VS014140E-VQT2C39.book 6 ページ２００９年３月１３日　金曜日　午前１０時１３分

VQT2C39

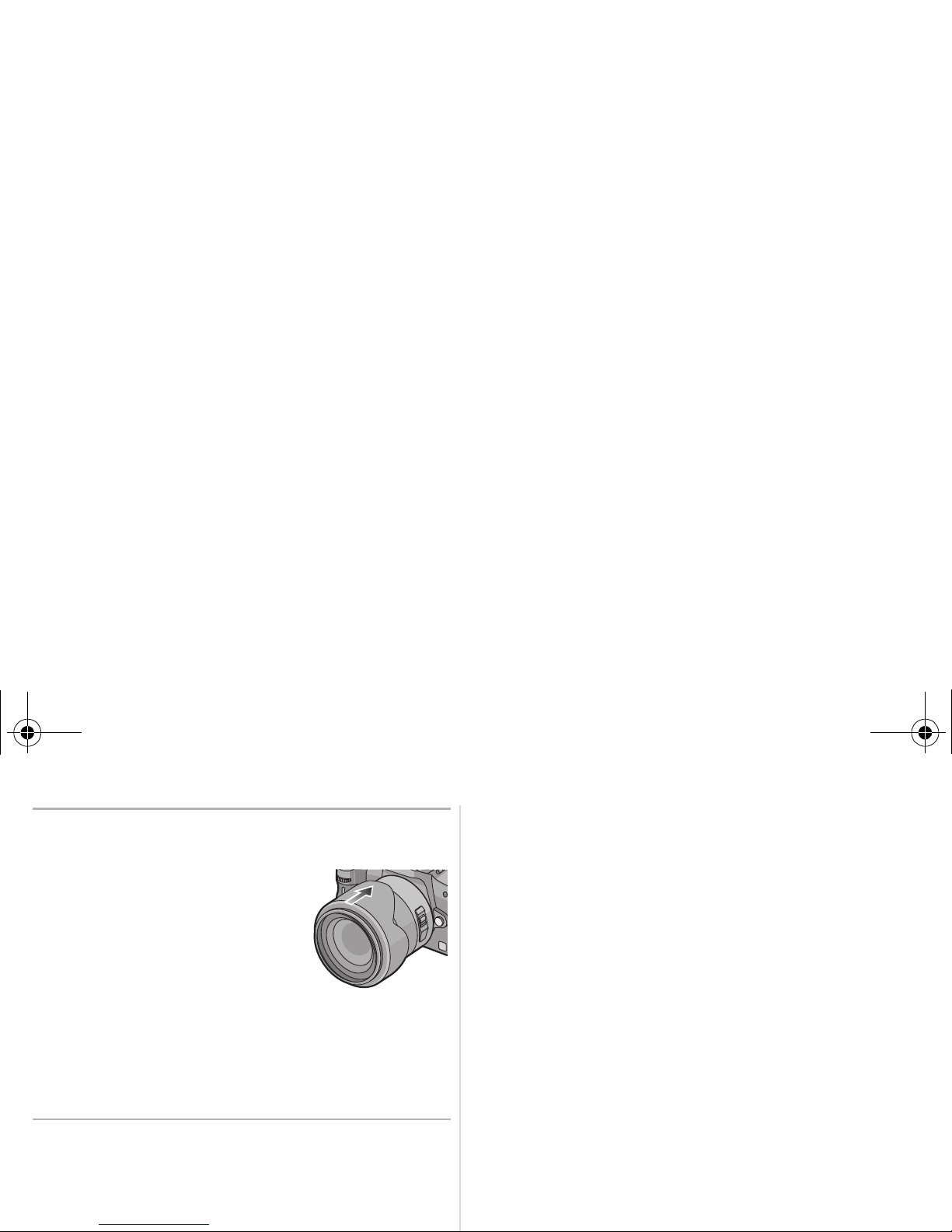

2 Reverse the lens hood and then attach it

in the same way as shown previously.

≥When taking pictures with the

flash with the lens hood

attached, the lower portion of

the screen may turn dark

(vignetting effect) and the

control of the flash may be

disabled because the photo

flash may be obscured by the lens hood. We

recommend detaching the lens hood.

≥When using the AF assist lamp in the dark, detach

the lens hood.

∫Attaching Filters

≥Vignetting may occur if using 2 or more

MC protectors (optional), PL filters (optional) or

ND filters (optional), or if using thick protectors

and/or filters.

H-VS014140E-VQT2C39.book 7 ページ２００９年３月１２日　木曜日　午後４時３分

VQT2C39

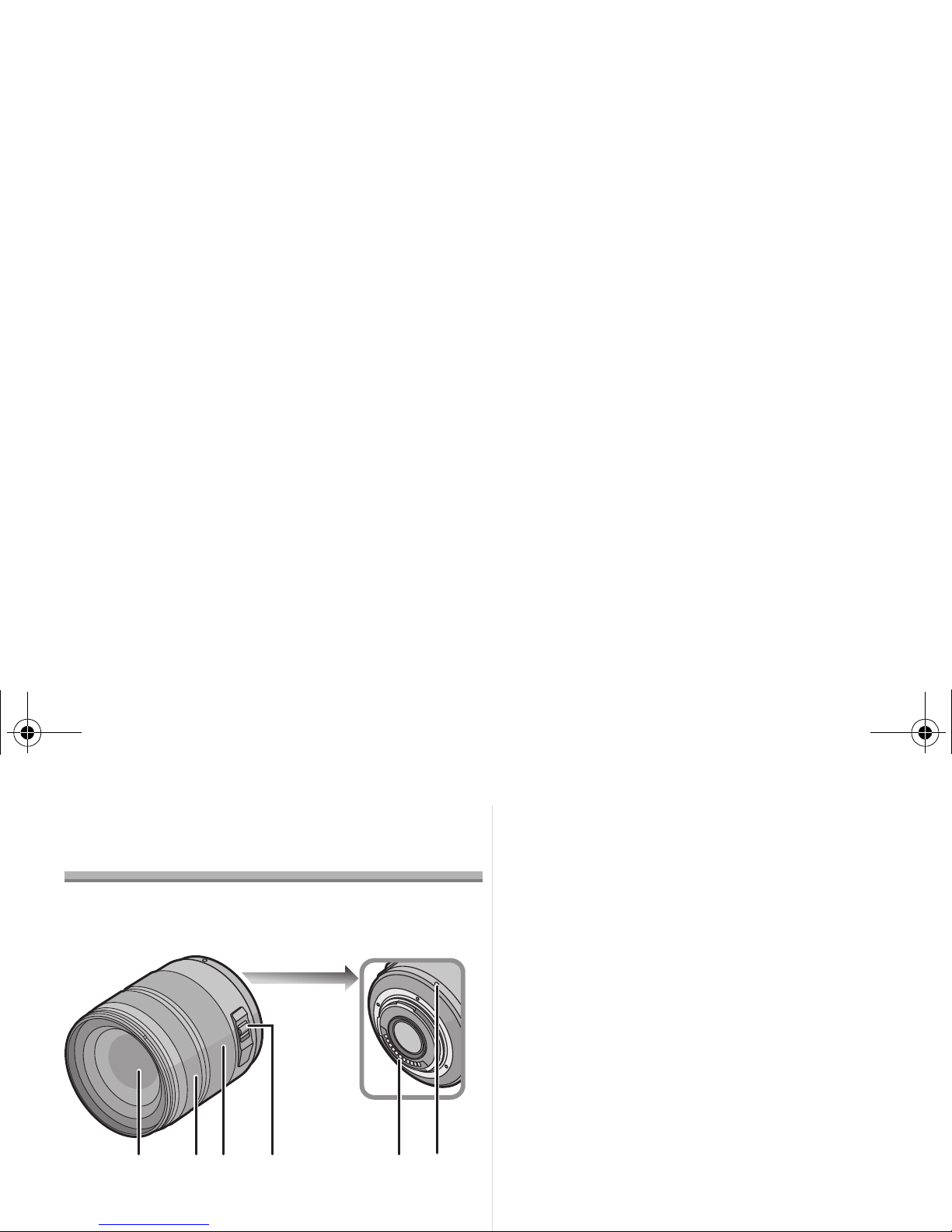

Names and Functions of

Components

∫Lens

1Lens surface

2Focus ring

Rotate to focus when taking pictures with manual

focus.

3Zoom ring

Rotate the zoom ring when you wish to take large

(tele) or wide (wide angle) pictures. (35 mm film

camera equivalent: 28 mm to 280 mm)

4[O.I.S.] switch

When the lens is attached to the camera the

stabilizer function is set to activate if the [O.I.S.]

switch is set to [ON].

≥We recommend setting the [O.I.S.] switch to [OFF]

when using a tripod.

≥The stabilizer function may not be effective in the

following cases.

– When there is a lot of jitter.

– When the zoom magnification is high.

– When using the digital zoom.

– When taking pictures while following a moving

subject.

– When the shutter speed becomes slower to take

pictures indoors or in dark places.

5Contact point

6Lens fitting mark

Note

≥When flash recording with a close subject, the

light of the flash will be blocked by the lens and

part of the picture may be dark. Check the

distance from the subject when recording.

2345

H-VS014140E-VQT2C39.book 8 ページ２００９年３月１２日　木曜日　午後４時３分

VQT2C39

Cautions for Use

∫About the Lens

Take care not to drop or knock the lens. Also

take care not to put a lot of pressure on the lens.

≥Take care not to drop the bag that you inserted the

lens in as it may strongly shock the lens. The

camera may stop operating normally and pictures

may no longer be recorded. Also, the lens may be

damaged.

When using pesticides and other volatile

substances around the camera make sure that

they do not get onto the lens.

≥If such substances get onto the lens they can

damage the exterior case or cause the paint to

peel.

Do not carry the unit when it is still attached to

the camera body.

≥Under no circumstances should the unit be stored

in any of the following locations since doing so

may cause problems in operation or

malfunctioning.

– In direct sunlight or on a beach in summer

– In locations with high temperatures and humidity

levels or where the changes in temperature and

humidity are acute

– In locations with high concentrations of sand,

dust or dirt

– Where there is fire

– Near heaters, air conditioners or humidifiers

– Where water may make the unit wet

– Where there is vibration

– Inside a vehicle

≥Refer also to the operating instructions of the

digital camera.

≥When the unit is not going to be used for a

prolonged period, we recommend storing with a

desiccant (silica gel). Failure to do so may result in

performance failure caused by mold, etc. It is

recommended that you check the unit’s operation

prior to use.

≥

Do not leave the lens in contact with rubber or

plastic products for extended periods of time.

≥Do not touch the lens contact point. Doing so can

cause failure of the unit.

≥Do not disassemble or alter the unit. If the internal

parts require inspection or repair, take the unit to

the vendor.

H-VS014140E-VQT2C39.book 9 ページ２００９年３月１２日　木曜日　午後４時３分

VQT2C39

Do not use benzine, thinner, alcohol or other

similar cleaning agents to clean the lens glass or

exterior cabinet.

≥Using solvents can damage the lens or cause the

paint to peel.

≥Wipe off any dust or fingerprints with a soft, dry

cloth.

≥Use a dry, dust cloth to remove dirt and dust on

the zoom ring and focus ring.

≥Do not use a household detergent or a chemically

treated cloth.

A sound is heard when the camera is turned on

or off.

≥This is the sound of lens or aperture movement

and is not a malfunction.

Troubleshooting

H-VS014140E-VQT2C39.book 10 ページ２００９年３月１２日　木曜日　午後４時３分

Autres manuels pour Lumix H-VS014140

Table des matières

Langues :

Autres manuels Panasonic Accessoires pour appareils photo

Panasonic

Panasonic AW-PB504N Manuel utilisateur

Panasonic

Panasonic WV-Q161 Manuel utilisateur

Panasonic

Panasonic HFS1442A Manuel utilisateur

Panasonic

Panasonic AJ-VF20WBPE Manuel utilisateur

Panasonic

Panasonic WG-PT100 Manuel utilisateur

Panasonic

Panasonic AKHVF931P - VF FOR AKHC930 Manuel utilisateur

Panasonic

Panasonic WV-Q108AE Manuel utilisateur

Panasonic

Panasonic DMW-MCTZ20E Manuel utilisateur

Panasonic

Panasonic WV7110A - MONITOR Manuel utilisateur

Panasonic

Panasonic HHR300CH Manuel utilisateur

Panasonic

Panasonic WV-VF39 Manuel utilisateur

Panasonic

Panasonic AW-PB304 Manuel utilisateur

Panasonic

Panasonic AWPH360N - PAN/TILT HEAD Manuel utilisateur

Panasonic

Panasonic AGVF5P - 1.5" B&W VIEWFINDER Manuel utilisateur

Panasonic

Panasonic DMC-G1K - Lumix Digital Camera Manuel utilisateur

Panasonic

Panasonic AW-PB303 Manuel utilisateur

Panasonic

Panasonic LC-XC1228AP Manuel utilisateur

Panasonic

Panasonic DMW-DCC10 Manuel utilisateur

Panasonic

Panasonic WV-SPN6FRL1 Manuel utilisateur

Panasonic

Panasonic BB-HGW700A - Network Camera Router Manuel utilisateur

Panasonic

Panasonic WV-LXY18C4 Manuel utilisateur

Panasonic

Panasonic VW-BTA1 Manuel utilisateur

Panasonic

Panasonic AJ-CA905G Manuel utilisateur

Panasonic

Panasonic BB-HCA1A-B Manuel utilisateur

Manuels Accessoires pour appareils photo populaires d'autres marques

Viltrox

Viltrox EF-NEX Instructions d'installation

Calumet

Calumet 7100 Series CK7114 Manuel utilisateur

Ropox

Ropox 4Single Series Manuel utilisateur

Cambo

Cambo Wide DS Digital Series Mode d'emploi

Samsung

Samsung SHG-120 Manuel utilisateur

Ryobi

Ryobi BPL-1820 Manuel d'utilisation

Aegis

Aegis ABL-36020P Manuel utilisateur

Pentax

Pentax Data Back Fc Manuel utilisateur

Fantasea

Fantasea EyeGrabber F Series Manuel utilisateur

Honeywell

Honeywell HDZ20HD Manuel utilisateur

EGO

EGO BA1400T Manuel utilisateur

Sima

Sima SRW-62 Manuel utilisateur

Shape

Shape A7SSMKIT Manuel utilisateur

Slide Kamera

Slide Kamera HST-2 Manuel utilisateur

Power works

Power works 2902613 Manuel utilisateur

SES

SES SE-2047-2 Manuel utilisateur

Olympus

Olympus PT-EP05L Manuel utilisateur

Starlite

Starlite OctoDome nxt Manuel utilisateur
