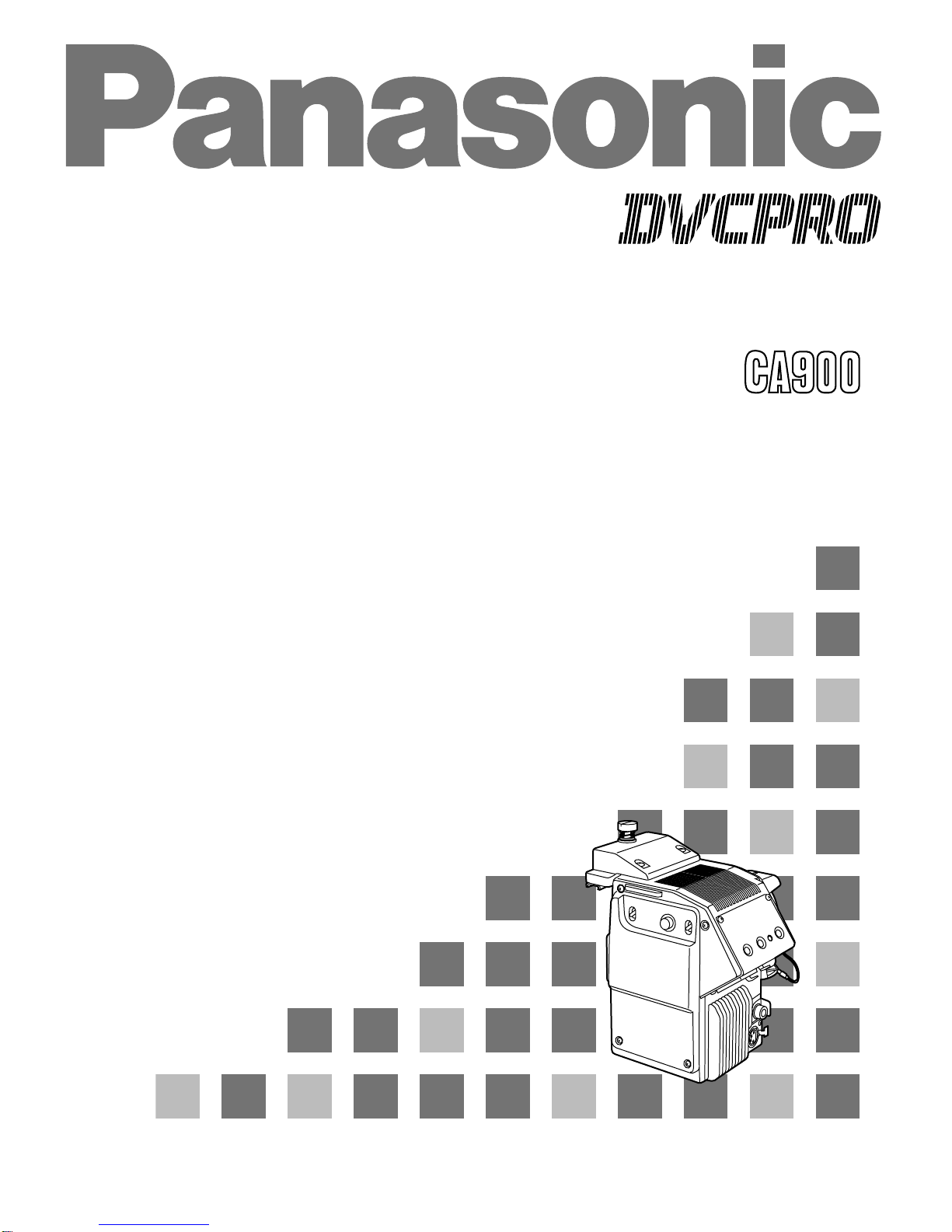

Panasonic AJ-CA900P Manuel utilisateur
AJ- P
Operation Instructions
CAMERA ADAPTER
- 1 -
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER TO SERVICING TO QUALIFIED SERVICE PERSONNEL.
The ightning f ash with arrowhead symbo ,
within an equi atera triang e, is intended to
a ert the user to the presence of uninsu ated
“dangerous vo tage” within the product’s
enc osure that may be of sufficient magnitude
to constitute a risk of e ectric shock to
persons.
The exc amation point within an equi atera
triang e is intended to a ert the user to the
presence of important operating and
maintenance (service) instructions in the
iterature accompanying the appiance.
CAUTION:
TO REDUCE THE RISK OF FIRE OR SHOCK
HAZARD AND ANNO ING INTERFERENCE,
USE THE RECOMMENDED ACCESSORIES
ONL .
WARNING:
TO REDUCE THE RISK OF FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE.
CAUTION:
TO REDUCE THE RISK OF FIRE OR SHOCK
HAZARD, REFER CHANGE OF SWITCH
SETTING INSIDE THE UNIT TO QUALIFIED
SERVICE PERSONNEL.
FCC Note:
This device comp ies with Part 15 of the FCC Ru es.
To assure continued comp iance fo ow the attached
insta ation instructions and do not make any
unauthorized modifications.
This equipment has been tested and found to comp y
with the imits for a c ass A digita device, pursuant to
Part 15 of the FCC Ru es. These imits are designed
to provide reasonab e protection against harmfu
interference when the equipment is operated in a
commercia environment. This equipment generates,
uses, and can radiate radio frequency energy and, if
not insta ed and used in accordance with the
instruction manua , may cause harmfu interference to
radio communications. Operation of this equipment in
a residentia area is ike y to cause harmfu
interference in which case the user wi be required to
correct the interference at his own expense.
Safety precautions
- 2 -
Safety precautions..................................................................... 1
Features .................................................................................... 2
Insta ation ................................................................................. 3
Parts and their functions............................................................ 4
Rear pane ..................................................................................................4
Left side......................................................................................................5
Right side....................................................................................................5
Connectors and signa s............................................................. 6
Se ecting the intercom microphone........................................... 7
Specifications ............................................................................ 8
Contents
The unit has the fo owing features.
≥It enab es high picture qua ity transmission by means of non-compressed wide-band 360 Mbps seria component signas.
≥It uses a tri-axia cab e.
≥It enab es a DVCPRO camera recorder to be operated as a system camera.
≥It enab es transmission up to 2000 meters when three AJ-RP900P Repeaters are used. (*1)
≥It enab es the transmission of the signa s of two audio channe s.
≥It enab es RET 1CH and PROMPT 1CH transmission.
≥It can easi y be insta ed in, or detached from, the camera recorder using the spacer.
≥Its TRIAX connector area can be rotated for easy operation.
≥It comes with RET and PROMPT output connectors (BNC).
≥It comes with a DC 12 V output jack.
Features
*1 The unit’s power supp y is subject to some restrictions. Refer to the Instruction Manua of the repeater when configuring the system.
Thank you very much for purchasing this AJ-CA900P Camera Adapter (referred to throughout these instructions as “the unit”).
The unit is insta ed in a DVCPRO or DVCPRO50 camera recorder to configure a transmission system which uses a tri-axia cab e to
enab e the camera recorder to be operated as a system camera.
Use of non-compressed wide-band 360 Mbps seria component signa s makes high picture qua ity transmission possib e so that the
high picture qua ity of the images shot by the DVCPRO camera recorder are transmitted with their high picture qua ity kept intact.
This serves to expand the range of the DVCPRO camera recorder’s operating formats.
Note:
≥When the unit is connected, external input signals cannot be recorded on tape inside the camera
recorder.“CAM” must be selected as the REC SIGNAL setting on the REC/PB/RET menu of the
camera recorder.
≥When using an external power supply (DC 12 V) for the unit, always turn the main power switch of
the base station (AJ-BS900P) ON before turning the power switch of the camera recorder ON.
- 3 -
Installation
AJ-
Camera
Adapter
MIC LEVEL
INCOM PGM
ON
OFF ON
OFF
PTT
DIGITAL TRIAX
IMPORTANT
NOT TO BE USED AS
A CHARGE ADAPTER
OFFON
MIC LEVEL
INCOM PGM
ON
OF ON
O
P
2. As shown in the figure on the eft, a ign the spacer on the
back of the camera recorder with the guide in the unit, and
push the unit in the direction of the arrow unti it c icks into
p ace.
1. Make sure that the coin screw used to secure the AJ-CA900P connectors is unscrewed (The screw wi be comp ete y
disengaged from the thread.). Mounting the AJ-CA900P with the screw in the c osed position cou d damage the connectors.
3. Screw the coin screw to the c osed position whi e pressing
down on it.
Coin screw
Fo ow the steps be ow to attach the unit to the camera recorder.
<Notes>
The spacer must be mounted on the camera recorder before the unit is attached. For detai s on how to mount the spacer, consu t
your dea er.
Depending on the version of the software being used with the camera recorder, it may be necessary to update it, in which case you
shou d consu t your dea er.
- 4 -
RET 1 RET 2
INCOM
PUSH PUSH
PGM OUT
CALL
RET SW
DC 12V IN
DC OUT
123
4
5
6
7
8
500mA
12V
Parts and their functions
1Return select button (RET1)
This button is used to se ect the return signa generated when the return switch is pressed. This button
se ects RET1.
2Return select button (RET2)
This button is used to se ect the return signa generated when the return switch is pressed. This button
se ects RET2.
3CALL button
This button is used to ca the base station (AJ-BS900P) from the camera adapter. Pressing the CALL button
causes the CALL amp on the AJ-BS900P to ight.
4Return switch jack (RET SW)
This jack connects to RET SW BOX. Supported functions are RET1 and RET2 se ection as we as intercom
PTT (push to ta k) and CALL.
Rear pane
6DC OUT (DC power supply output) jack
This is a DC 12 V output jack. A current up to 500 mA can be output from this jack.
5DC 12V IN (external power supply input) jack
When the unit is operated using an externa power supp y, the AJ-B95 AC adapter (so d separate y) connects
to this jack. It is a so possib e to connect an externa battery to this jack.
When connection is made to this jack, the externa power supp y is se ected automatica y.
7Intercom connector
This connecter is used to connect to an intercom system via the AJ-BS900P for two-way voice connections.
8PGM OUT connector
This is the PGM audio output connector.
- 5 -
Parts and their functions
1Microphone intercom switch (MIC)
Used to switch the intercom ine between the ON, OFF,
and PTT settings. (PTT: Audio transmission continues as
ong as the switch is he d down.)
2Intercom level knob (LEVEL)
This knob is used to adjust the intercom reception vo ume
eve .
3Program level knob (PGM)
This knob is used to adjust the intercom PGM vo ume eve .
4Program line switch
This switch contro s the program ine mu tip exed on the
intercom ine. It has two positions: ON and OFF.
AJ-Camera
Adapter
MIC LEVEL
INCOM PGM
ON
OFF ON
OFF
PTT
DIGITAL TRIAX
1234
Left side
3Triax connector
This connector is used to connect to the base station (AJ-
BS900P) using a triax cab e.
1Prompter video output (PROMPT OUT)
The prompter video signa input to the base station (AJ-
BS900P) is output from this jack.
2Return video output (RET OUT)
The return video signa (either RET1 or RET2) input to the
base station (AJ-BS900P) is output from this jack.
RET-1 or RET-2 is se ected by operating the return se ect
button (see page 4).
PROMPT
OUT
RET OUT
PROMPT
OUT
RET OUT
1
2
3
Right side
- 6 -
Connectors and signals
PGM OUT
1 GND
2 PGM (H)
3 PGM (C)
Manufacturer part number:HA16RM-3P
(Hirose Denki)
2
3
1
RET SW
A RET1
B MIC ON/OFF
C RET2
D TALLY
E GND
F +12V-OUT
G CALL
H GND
Manufacturer part number: PRC07-R8F
(Tajimi Musen)
A
B
C
DE
F
G
H
5
432
1
INCOM
1 GND
2 INCOM TALK (H)
3 GND
4 INCOM RECEIVE (H)
5 PGM / RECEIVE (C)
DC 12V OUT
1 GND
2
3
4 +12V
Matsushita part number: VJS3290
Manufacturer part number:HA16PRH-5S
(Hirose Denki)
Manufacturer part number: HA16PRH-4S
(Hirose Denki)
4
3
21
DC IN
1 GND
2
3
4 +12V
Matsushita part number: VJP2717
Manufacturer part number:
HA16RB-4P(SW)
(Hirose Denki)
123
4
SW
- 7 -
Selecting the intercom microphone
AJ-Camera
Adapter
MIC LEVEL
INCOM PGM
ON
OFF ON
OFF
PTT
DIGITAL TRIAX
1. Remove the four screws from the side of the AJ-CA900P
shown in the figure, and remove the side pane .
2. Refer to the figure on the eft, and set the switch inside the
side pane which was removed.
Screws (4)
Dynamic
microphone
Carbon
microphone
Switch
Proceed as fo ows to se ect the dynamic microphone or carbon microphone as the intercom microphone. Before proceeding with
the work, be abso ute y sure to turn off the power.
CAUTIONS:
These servicing instructions are for use by
qua ified service personne on y. To reduce the
risk of e ectric shock do not perform any
servicing other than that contained in the
operating instructions un ess you are qua ified
to do so.
- 8 -
Specifications
Input: 100 V DC (supplied by AJ-BS900P), 450mA
DC 12V IN (DC 11.5V to 17.0V), 3.2A
Power consumption:40 W (when camera recorder and 1.5" viewfinder are attached)
10 W (AJ-CA900P main unit only)
Externa dimensions (W x H x D): 6-1/8" x 7-7/8" x 6-5/8" (156 x 200 x 168 (mm))
Weight: 12.1bs (2.5 kg) (inc uding spacer)
Operating temperature range: 32 F - 104 F (0°C - 40°C)
Storage temperature range: -4 F - 131 F (-20°C - +55°C)
Operating humidity: 85% or ess
Storage humidity: 0% - 90%
Transfer block
Signa transfer rate: 360 Mbps (AJ-CA900P to AJ-BS900P)
Transfer distance: 300 m with diameter 8.6 mm cab e (Fujikura)
500 m with diameter 14.5 mm cab e (Fujikura)
Video transfer rate
Y signa : 18 MHz samp ing rate, 10-bit
R-Y signa : 9 MHz samp ing rate, 10-bit
B-Y signa : 9 MHz samp ing rate, 10-bit
RET signa : FM modu ation
Prompt signa : FM modu ation
Audio transfer rate
Signa s from camera to base station: 46.875 kHz samp ing rate, 16-bit
Signa s from base station to camera: 11.71875 kHz samp ing rate, 16-bit
Intercom
Microphone se ection: Switchab e between dynamic microphone and carbon microphone
I/O eve : 4- ine/2- ine: 0 dBm (600 Ω, ba anced)
RTS: 1 Vp-p (200 Ω)
PGM: 0 dB (600 Ω, ba anced)
Format: Se ectab e between 4- ine, 2- ine, and RTS
Lines: Base station to camera: 2 ines (ENG, PGM)
Camera to base station: 1 ine (ENG)
S/N ratio: 50 dB or more (base station to camera) (camera to base station)
Distortion: 0.3% or ess
Frequency range: 100 Hz - 12 kHz (± 3 dB) (camera to base station)
100 Hz - 5.5 kHz (± 3 dB) (base station to camera)
Dynamic range: 12 dB
Video system
Te eprompt output (PROMPT): 1 Vp-p (1 Vp-p input to AJ-BS900P)
RET output: 1 Vp-p (1 Vp-p input to AJ-BS900P)
Input connectors: Intercom connector: XLR 5-pin
Externa power supp y input connector: XLR 4-pin
RET SW connector: 8-pin
Output connectors: Te eprompt output connector: BNC VBS, 1 Vp-p, 75 Ω
(PROMPT)
EXT output connector: XLR 4-pin
RET signa output connector: BNC VBS, 1 Vp-p, 75 Ω
(RET)
PGM audio output connector: XLR 3-pin
Indicates safety-re ated items.
PANASONIC BROADCAST & DIGITAL S STEMS COMPAN
DIVISION OF MATSUSHITA ELECTRIC CORPORATION OF AMERICA
Executive Office:
3330 Cahuenga B vd W., Los Ange es, CA 90068 (323) 436-3500
EASTERN ZONE:
One Panasonic Way 4E-7, Secaucus, NJ 07094 (201) 348-7621
Mid-Atlantic/New England:
One Panasonic Way 4E-7, Secaucus, NJ 07094 (201) 348-7621
Southeast Region:
1225 Northbrook Parkway, Ste 1-160, Suwanee, GA 30024 (770) 338-6835
Central Region:
1707 N Randa Road E1-C-1, E gin, IL 60123 (847) 468-5200
WESTERN ZONE:
3330 Cahuenga B vd W., Los Ange es, CA 90068 (323) 436-3500
Dallas Region:
6226 Abington Way, Houston, TX 77008 (713) 802-2726
No. CA/Northwest Region:
5870 Stoneridge, #3, P easanton, CA 94588 (925) 416-5108
Government Marketing Department:
52 West Gude Drive, Rockvi e, MD 20850 (301) 738-3840
Panasonic Canada Inc.
5770 Amb er Drive, Mississauga, Ontario L4W 2T3 (905) 624-5010
Panasonic Sales Company
Division of Matsushita Electric of Puerto Rico Inc.
San Gabrie Industria Park, 65th Infantry Ave., Km. 9.5, Caro ina, Puerto Rico 00630 (787) 750-4300
Table des matières
Langues :
Autres manuels Panasonic Accessoires pour appareils photo
Panasonic
Panasonic AM-2PI Manuel utilisateur
Panasonic
Panasonic WV-7110AE Manuel utilisateur
Panasonic
Panasonic AWRC400N - PAN/TITLT HEAD Manuel utilisateur
Panasonic
Panasonic DMW-LVF1 Manuel utilisateur
Panasonic
Panasonic AWVF80P - ELECTRONIC VIEW FINDER Manuel utilisateur
Panasonic
Panasonic DMW-USBC1 Manuel utilisateur
Panasonic
Panasonic DMW-DCC7 Manuel utilisateur
Panasonic
Panasonic CGR18650AF Manuel utilisateur
Panasonic
Panasonic AJHVF21G - HD EVF - MULTI-LANG Manuel utilisateur
Panasonic
Panasonic AW-PB506AN Manuel utilisateur
Panasonic
Panasonic AWPH300 - INDOOR PAN/TILT HEAD Manuel utilisateur
Panasonic
Panasonic WV-Q167 Manuel utilisateur
Panasonic
Panasonic WV-Q116 Manuel utilisateur
Panasonic
Panasonic AGVF5P - 1.5" B&W VIEWFINDER Manuel utilisateur
Panasonic
Panasonic AG-CVF15G Manuel utilisateur
Panasonic
Panasonic WV-Q160C Manuel utilisateur
Panasonic
Panasonic LJ-SK56A Manuel utilisateur
Panasonic
Panasonic DMW-DCC9 Manuel utilisateur
Panasonic
Panasonic AWPH650N - PAN/TILT HEAD Manuel utilisateur
Panasonic
Panasonic AW-AD700BS Manuel utilisateur
