Panasonic KX-HNA101 Manuel utilisateur

Installation Guide

Home Network System

Smart Plug

Model No. KX-HNA101

Thank you for purchasing a Panasonic product.

This document explains how to install the smart plug properly.

For details about how to use the system, refer to the User’s Guide

(page 9).

Please read this document before using the unit and save it for future

reference.

For assistance, visit our Web site: www.panasonic.com/support

for customers in the U.S.A. or Puerto Rico.

Please register your product: www.panasonic.com/prodreg

Printed in China

Important Information

About this system ......................3

For your safety ...........................3

Important safety instructions ......4

For best performance ................4

Other information .......................5

Setup

Part names and functions ..........6

LED indicator .............................6

Setup overview ..........................6

Connections ...............................7

Registering the smart plug .........8

Wireless communication

range .........................................8

Appendix

Testing the smart plug ...............9

Features available when using the

[Home Network] app ..................9

Accessing the User’s Guide ......9

Specifications ..........................10

Trademarks .............................10

FCC and other information ......11

Customer services ...................13

Warranty (For United States and

Puerto Rico) .............................14

Table of Contents

About this system

RThis system is an auxiliary system; it

is not designed to provide complete

protection from property loss.

Panasonic will not be held

responsible in the event that

property loss occurs while this

system is in operation.

RThis system’s wireless features can

be affected by various conditions

that could interfere with wireless

communications, and as such,

functionality in any or all situations

cannot be guaranteed. Panasonic

will not be held responsible for injury

or damage to property that occurs in

the event of wireless communication

error or failure.

For your safety

To prevent severe injury and loss of life/

property, read this section carefully

before using the product to ensure

proper and safe operation of your

product.

WARNING

Power connection

RUse only the power source marked

on the product.

RDo not overload power outlets. This

can result in the risk of fire or electric

shock.

RCompletely insert the product into

the power outlet. Failure to do so

may cause electric shock and/or

excessive heat resulting in a fire.

RRegularly remove any dust, etc.

from the product by pulling it from

the power outlet, then wiping with a

dry cloth. Accumulated dust may

cause an insulation defect from

moisture, etc. resulting in a fire.

RUnplug the product from power

outlets if it emits smoke, an

abnormal smell, or makes an

unusual noise. These conditions can

cause fire or electric shock. Confirm

that smoke has stopped emitting

and contact us at

www.panasonic.com/contactinfo

RUnplug from power outlets and

never touch the inside of the product

if its casing has been broken open.

Danger of electric shock exists.

RNever touch the plug with wet

hands. Danger of electric shock

exists.

RDo not connect non-specified

devices.

RBefore connecting an electric device

to this product, make sure the

electric device meets the

specifications described on

page 10. Using unspecified

devices may cause fire or smoke.

Installation

RInstall this product in accordance

with the provided instructions.

RTo prevent the risk of fire or

electrical shock, do not expose the

product to rain or any type of

moisture.

RDo not place or use this product

near automatically controlled

devices such as automatic doors

and fire alarms. Radio waves

emitted from this product may cause

such devices to malfunction

resulting in an accident.

RPanasonic will not be held

responsible for damage or injury

For assistance, please visit www.panasonic.com/support 3

Important Information

caused by improper connection,

installation, or usage.

Operating safeguards

RUnplug the product from power

outlets before cleaning. Do not use

liquid or aerosol cleaners.

RDo not disassemble the product.

RNever put metal objects inside the

product. If metal objects enter the

product, turn off the circuit breaker

and contact an authorized service

center.

RUse this product to supply power

only to devices which can be

operated safely remotely. Do not

connect the following.

– Cooking appliances, irons, or

other devices that generate a

large amount of heat. There is a

risk of fire, burns, and injury.

– Power tools, electric machinery,

or other devices that could cause

injury and therefore must be used

under direct, careful observation.

– Heating or cooling devices, or any

type of device which could cause

health risks, particular to the

elderly or to small children, and

therefore should be used only

when usage conditions can be

confirmed.

– Medical devices. This product is

not intended to be used when

providing medical care.

Medical

RConsult the manufacturer of any

personal medical devices, such as

pacemakers or hearing aids, to

determine if they are adequately

shielded from external RF (radio

frequency) energy. DECT features

operate between 1.92 GHz and

1.93 GHz with a peak transmission

power of 115 mW.

RDo not use the product in health

care facilities if any regulations

posted in the area instruct you not to

do so. Hospitals or health care

facilities may be using equipment

that could be sensitive to external

RF energy.

CAUTION

Installation and location

RNever install the product during a

lightning storm.

Important safety

instructions

When using your product, basic safety

precautions should always be followed

to reduce the risk of fire, electric shock,

and injury to persons, including the

following:

1. Do not use this product near water

for example, near a bathtub,

washbowl, kitchen sink, or laundry

tub, in a wet basement or near a

swimming pool.

SAVE THESE INSTRUCTIONS

For best performance

Hub location/avoiding noise

The hub and other compatible

Panasonic devices use radio waves to

communicate with each other.

4For assistance, please visit www.panasonic.com/support

Important Information

RFor maximum coverage and

noise-free communications, place

your hub:

– at a convenient, high, and central

location with no obstructions

between the product and hub in

an indoor environment.

– away from electronic appliances

such as TVs, radios, personal

computers, wireless devices, or

other phones.

– facing away from radio frequency

transmitters, such as external

antennas of mobile phone cell

stations. (Avoid putting the hub

on a bay window or near a

window.)

RIf the reception for a hub location is

not satisfactory, move the hub to

another location for better reception.

Environment

RKeep the product away from

electrical noise generating devices,

such as fluorescent lamps and

motors.

RThe product should be kept free

from excessive smoke, dust, high

temperature, and vibration.

RThe product should not be exposed

to direct sunlight.

RDo not place heavy objects on top of

the product.

RWhen you leave the product unused

for a long period of time, unplug the

product from the power outlet.

RThe product should be kept away

from heat sources such as heaters,

kitchen stoves, etc. It should not be

placed in rooms where the

temperature is less than 0 °C (32 °F)

or greater than 40 °C (104 °F).

Damp basements should also be

avoided.

ROperating the product near electrical

appliances may cause interference.

Move away from the electrical

appliances.

Other information

Routine care

RWipe the outer surface of the

product with a soft moist cloth.

RDo not use benzine, thinner, or any

abrasive powder.

Notice:

For assistance, please visit www.panasonic.com/support 5

Important Information

Part names and

functions

Power plug

M N

Used when registering the smart

plug to the hub.

Power outlet

M N (on/off)

LED indicator

Turns the connected device on

and off. Also serves as the LED

indicator.

LED indicator

You can use the LED indicator to

confirm the smart plug’s status.

Indicator Status

Off No power, smart

plug is off, or LED

indicator is turned

off*1

Green, lit Smart plug is on*1

Green,

blinking

Registration mode

Indicator Status

Red, blinking Smart plug is out of

range of the hub

Red, blinking

quickly

Connected electric

device is drawing

too much current or

wattage*2

*1 You can configure the smart plug

so that its LED indicator does not

light during normal operation. For

more information, refer to the

User’s Guide (page 9).

*2 In this case, the smart plug will

turn off automatically. To turn the

smart plug on again, disconnect it

from the power outlet, disconnect

the connected electric device, and

then connect the smart plug to the

power outlet.

Setup overview

1Initial setup

Make sure you can access the

system using your mobile device.

For details, refer to the System

Setup Guide included with your

hub.

2Connection

Connect the smart plug to the

power outlet and connect the

desired electric device to the smart

plug.

3Registration

Required only if the smart plug

was purchased separately (i.e.,

not as part of a bundle).

4Confirm the usage area

Read the information in this

document to confirm that the

6For assistance, please visit www.panasonic.com/support

Setup

desired usage area is suitable to

proper operation.

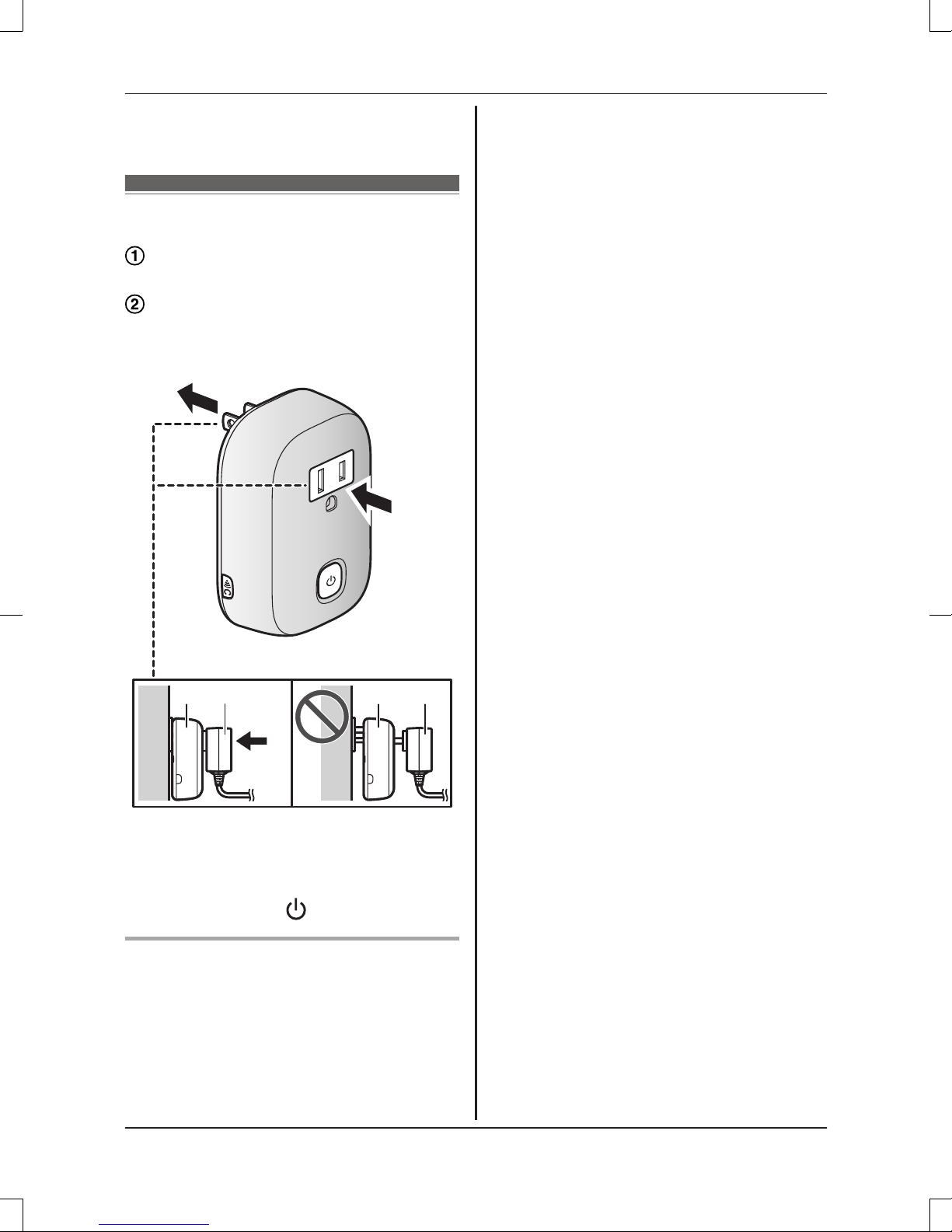

Connections

Firmly insert the smart plug (

)

into the power outlet.

Firmly insert the AC plug of the

desired electric device (

) into

the smart plug.

1 2 1 2

Note:

RYou can turn the power supplied to

the smart plug’s power outlet on and

off by pressing MN.

Note about connections

RThe smart plug should be connected

to a vertically oriented or

floor-mounted AC outlet. Do not

connect the smart plug to a

ceiling-mounted AC outlet, as the

weight of the smart plug may cause

it to become disconnected.

RIf the electric device connected to

the smart plug draws more than

10 A or 1,200 W of power, the smart

plug will turn off automatically.

RIn the event of a power failure, the

smart plug may not turn back on

after power is restored. For this

reason, connecting refrigerators or

other devices that require constant

power supply should not be

connected to the smart plug.

RAfter connecting an electric device

to the smart plug, make sure the

smart plug is firmly connected to the

power outlet.

For assistance, please visit www.panasonic.com/support 7

Setup

Registering the

smart plug

This procedure is not required for

devices that were included as part of

a bundle.

Before you can use the smart plug, it

must be registered to the hub.

If you purchased devices separately

(i.e., not as part of a bundle), you must

You can register each device by using

the registration buttons or the [Home

Network] app.

Using registration buttons

1Hub:

Press and hold M OTHER

DEVICEN until the LED indicator

blinks in green.

2Smart plug:

Press and hold M N until the

LED indicator blinks in green

(page 6).

RWhen registration is complete,

the hub sounds one long beep.

Note:

RTo cancel the registration, press the

registration button on the hub and

on the smart plug.

RIf registration fails, the hub sounds

several short beeps.

Using the app

When you register the smart plug by

using the [Home Network] app, you

can assign a name to your devices and

group them by location. For more

information, refer to the User’s Guide

(page 9).

Wireless

communication

range

The wireless communication range of

each device in the system from the hub

is approximately 50 m (160 feet)

indoors and approximately 300 m

(1,000 feet) outdoors. Wireless

communication may be unreliable

when the following obstacles are

located between the hub and other

devices.

RMetal doors or screens

RWalls containing aluminum-sheet

insulation

RWalls made of concrete or

corrugated iron

RDouble-pane glass windows

RMultiple walls

RWhen using each device on

separate floors or in different

buildings

Note:

RThe LED indicator blinks in red if it is

out of range of the hub. In this case,

confirm all connections, including

those of the hub.

8For assistance, please visit www.panasonic.com/support

Setup

Testing the smart

plug

After you have installed the [Home

Network] app on your mobile device,

you can use your mobile device to turn

the smart plug on and off. For more

information, refer to the User’s Guide

(page 9).

1From the [Home Network] app

home screen, tap [Plug].

2Select the [Individual] tab.

3Tap the desired smart plug icon.

RConfirm that the selected smart

plug turns on and off when you

tap its icon.

Features available

when using the

[Home Network] app

Some of the features that are available

when using the [Home Network] app

are listed below. For more information,

refer to the User’s Guide.

–Remote power on/off

You can turn the electric device on

and off remotely, even when away

from home.

–Sensor integration

You can configure the system to turn

the electric device on when a sensor

is triggered. (Sensor required.)

–Timer on/off

You can configure a timer to turn the

electric device on and off at the

desired times.

–Overcurrent notification

The smart plug can detect the

current supplied to the connected

electric device. If overcurrent is

detected, the smart plug sends a

notification to the [Home Network]

app.

Accessing the User’s

Guide

The User’s Guide is a collection of

online documentation that helps you

get the most out of the [Home

Network] app.

1iPhone®/iPad®

Tap in the app’s home screen.

Android™ devices

Tap or press your mobile

device’s menu button in the app’s

home screen.

2Tap [User’s Guide].

Note:

RYou can also access the User’s

Guide at the web page listed below.

www.panasonic.net/pcc/support/tel/

homenetwork/manual/

For assistance, please visit www.panasonic.com/support 9

Appendix

Specifications

RStandards

DECT 6.0 (Digital Enhanced

Cordless Telecommunications 6.0)

RFrequency range

DECT: 1.92 GHz – 1.93 GHz

RRF transmission power

DECT: 115 mW (max.)

RPower source

120 V AC, 60 Hz

RPower consumption

Standby: 0.5 W

Maximum: 1.1 W

ROperating conditions

0 °C – 40 °C (32 °F – 104 °F)

20% – 80% relative air humidity (dry)

RMaximum wattage

Approx. 1,200 W

RMaximum current

Approx. 10 A

RDimensions

Approx. 94 mm ´ 64 mm ´ 35 mm

(3 11/16 inches ´ 2 17/32 inches ´ 1

3/8 inches), excluding the pins

RMass (weight)

Approx. 140 g (0.31 lb)

Note:

RDesign and specifications are

subject to change without notice.

RThe illustrations in these instructions

may vary slightly from the actual

product.

Trademarks

RiPhone and iPad are registered

trademarks of Apple Inc.

RAndroid is a trademark of Google Inc.

10 For assistance, please visit www.panasonic.com/support

Appendix

Autres manuels pour KX-HNA101

Table des matières

Autres manuels Panasonic Accessoires

Panasonic

Panasonic MA3X701 Manuel utilisateur

Panasonic

Panasonic EX-31A Manuel utilisateur

Panasonic

Panasonic MAZ9xxxH Series Manuel utilisateur

Panasonic

Panasonic MA2DF31 Manuel utilisateur

Panasonic

Panasonic WV-PB5508 Manuel utilisateur

Panasonic

Panasonic PE Series Manuel utilisateur

Panasonic

Panasonic UE-608040 Manuel utilisateur

Panasonic

Panasonic MA4S111 Manuel utilisateur

Panasonic

Panasonic WX-LA20 Manuel utilisateur

Panasonic

Panasonic HL-G1-A-C5 Series Manuel utilisateur

Panasonic

Panasonic MA3SD29F Manuel utilisateur

Panasonic

Panasonic HL-C2 Series Manuel utilisateur

Panasonic

Panasonic MCO-230AIC Manuel utilisateur

Panasonic

Panasonic MA3XD15 Manuel utilisateur

Panasonic

Panasonic MA3S132D Manuel utilisateur

Panasonic

Panasonic EF-S1HS Manuel utilisateur

Panasonic

Panasonic S-Link SL-PCAT Manuel utilisateur

Panasonic

Panasonic WX-LA20 Manuel utilisateur

Panasonic

Panasonic AG-BS300E Manuel utilisateur

Panasonic

Panasonic HL-G1 Series Manuel utilisateur

Panasonic

Panasonic MIR-H163-PA Manuel utilisateur

Panasonic

Panasonic Light Emitting Diodes LNJ024X4ARA1 Manuel utilisateur

Panasonic

Panasonic HL-C2 Series Manuel utilisateur

Panasonic

Panasonic WRT 3367-8 Manuel utilisateur

Manuels Accessoires populaires d'autres marques

Hillco

Hillco 2810 Manuel utilisateur

Siemens

Siemens QSA2700D Manuel de l'opérateur

Contours

Contours ZY024 Manuel utilisateur

Saivod

Saivod VS621 Manuel utilisateur

Virtuox

Virtuox VirtuCLEAN 2.0 Manuel utilisateur

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuel utilisateur

Z-Wave

Z-Wave HSD-200Z Manuel utilisateur

turck

turck FMX-IM-2UPLI63FX Manuel utilisateur

Decagon Devices

Decagon Devices 10HS Manuel utilisateur

UPPAbaby

UPPAbaby Cup Holder Manuel utilisateur

Elko

Elko SmartSensor Leakage Wireless Manuel utilisateur

Grizzly

Grizzly H8371 Manuel utilisateur

IFM Electronic

IFM Electronic Efector 250 Series Guide de référence

DigiDesign

DigiDesign 888/24 I/O Manuel utilisateur

PROZIS

PROZIS QUAY Manuel utilisateur

patagonia

patagonia PSI Vest Manuel utilisateur

SFC Energy

SFC Energy EFOY GO! Manuel utilisateur

Axminster

Axminster Tooling Stylus Tip Ballpoint Pen Kit Manuel utilisateur
