Service Manual

Heated Incubator

MIR-H163

Panasonic Healthcare Co., Ltd.

Biomedical Division

MIR-H263

SM9910316

Effective models

This service manual is effective for following models.

Model name

Voltage

Frequency

Plug Type

MIR-H163-PA

115V

60Hz

MIR-H163-PC

220V

50Hz

G3L

MIR-H163-PE

230/240V

50Hz

MIR-H163-PK

220V

50/60Hz

MIR-H163-PT

110V

60Hz

Model name

Voltage

Frequency

Plug Type

MIR-H263-PA

115V

60Hz

MIR-H263-PC

220V

50Hz

G3L

MIR-H263-PE

230/240V

50Hz

MIR-H263-PK

220V

50/60Hz

MIR-H263-PT

110V

60Hz

MIR-H263-PR

220V

60Hz

Contents

Page

Feature and Caution

------------------------------------------------

Specifications

------------------------------------------------

- Structural specifications

- Control specifications

- Performance specifications

Dimensions

------------------------------------------------

Wiring Diagram

------------------------------------------------

Circuit Diagram

------------------------------------------------

Control specifications

------------------------------------------------

Test Data

------------------------------------------------

- Temperature Control Specification

- Temperature Accuracy

- Temperature Fluctuation Range

- Temperature Distribution

Instruction manual

------------------------------------------------

Features

1. Chamber Temperature Adjustment

It is capable of cultivating the bacteria that prefer from medium temperature to high

temperature.

- Constant temperature environment by microcomputer PID control + air jacket (natural

convection)

- Achieve constant temperature environment with high accuracy that temperature

fluctuation is within ±0.2℃(set temp. 37℃, center in chamber)

- Temperature setting range: room temperature +5℃~80℃(ambient temperature 20℃)

2. Alarm and Safety Function

- Temperature alarm: when the temperature deviated ±2.5℃from set value

(Lamp, Buzzer)

- Overheat Protection: the heater is OFF when the temperature exceeds the upper limit.

- Overcurrent breaker combined power switch

- Key lock switch

- Memory backup: store the settings even after the power supply is OFF

- Self-diagnosis function: display errors and shutdown when any abnormality is detected,

such as sensors, etc.

3. Usability

- Microcomputer timer function: auto start, auto stop and set time announcement

- Stainless for whole interior with excellent chemical resistance and durability

- Latch integrated door handle that makes door opening easier by one hand

* Above features follow the previous models MIR-162/262 and there is no change.

Caution

* Parts replacement and option unit installation must be done by trained serviceman.

* Serviceman must refer to the section “Electric parts”and “Cooling unit parts”

about the parts for those operation.

-1-

Specifications

■Structural Specifications

Product Name

Heated Incubator

Model

MIR-H163

MIR-H263

External dimensions

W580 mm x D595 mm x H820 mm

W730 mm x D645 mm x H870 mm

Internal dimensions

W450 mm x D460 mm x H450 mm

W600 mm x D510 mm x H500 mm

Effective capacity

93 L

153 L

Exterior

Painted steel

Interior

Stainless steel plate (SUS 304)

Outer door

Painted steel

Inner door

Tempered glass

Shelf

2 shelves,

Stainless steel wire with frame,

W415mm x D425mm,

Maximum load: 15kg, Multistage adjustable

3 shelves,

Stainless steel wire with frame,

W565mm x D475mm,

Maximum load: 15kg, Multistage adjustable

Insulation

Glass wool

Heater

200W

300W

Timer

Auto start, Auto stop, Operation time announcement 00：00～99：99 (H:M)

Temperature sensor

Thermistor

Power supply switch

Over current breaker: 10A

Weight

50 kg

67 kg

Accessories

2 stainless shelves

3 stainless shelves

Options

Stand: MCO-50T

Stand: MKD-300T

Double stack stand: MKD-150T

Country of origin

Indonesia

■Functions

Model

MIR-H163

MIR-H263

Temperature

Setting range

Room temperature +5℃~80℃(set in unit of 0.1℃)

Distribution

Within ±1℃(set temp.: 37℃, AT: 20℃, no load)

Fluctuating

range

±0.2℃(set: less than ~60℃, AT: 20℃, no load)

±0.5℃(set: 60℃~80℃, AT: 20℃, no load)

Control

Microcomputer PID control + Air jacket (natural convection)

Display

Digital display (set in unit of 0.1℃)

Timer function

■Delay timer (auto start)

Start operation after set time passed from pressing start key

■Timer mode

- Normal mode (auto stop): Heater is OFF after set time passed

- Timer mode C: Buzzer sound come out after set time passed, but it

continues normal operation

Memory backup

Operation program backup (non-volatile memory)

-2-

■Alarm/Safety Functions

Types

Condition

Display

Buzzer

Action Taken

Auto set

upper/lower

limit alarm

Temp. deviated ±2.5℃from set

value

Alarm lamp lighting

Temp. display

blinking

After 3sec.

intermittently

――

Auto return

No key operation for about

45 sec. in each setting mode

Display current value

――

Finish

setting mode

Key lock switch

Key lock becomes ON

―――

――

Not accept any

key input except

call key

Temp. sensor

abnormal

Temp. sensor open or short circuit

Alarm lamp lighting

E01 blinking

Intermittently

Stop operation

Triac abnormal

Triac open circuit

Alarm lamp lighting

E02 blinking

Intermittently

Stop operation

Triac short circuit

Alarm lamp lighting

E03 blinking

Intermittently

Stop operation

Relay

abnormal,

etc.

Relay short circuit

Alarm lamp lighting

E04 blinking

Intermittently

Stop operation

Relay open circuit, heater short

circuit or temp. around PCB is

65℃or more

Alarm lamp lighting

E05 blinking

Intermittently

Stop operation

Overheat

protection

During

OFF

Abnormal heating is

detected, safety

circuit operates by

independent temp.

sensor

Display no change

Continuously

Stop operation

forcibly by

external circuit

During

Alarm lamp lighting

E05 blinking

Continuously

(Intermittently

when temp.

drops)

Stop operation

forcibly by

external circuit

●Buzzer sound during overheat protection cannot be stopped by buzzer stop key (BZ). Turn off the main switch.

■Performance Specification

Product Name

Heated Incubator

Model

MIR-H163

MIR-H263

Temperature control

range

Room temp. +5℃~60℃(AT: 0℃~ less than 20℃, no load)

Room temp. +5℃~80℃(AT: 20℃~35℃, no load)

Temperature distribution

±1℃(set: 37℃, AT: 20℃, no load)

Temperature fluctuation

range

±0.2℃(set: less than 60℃, AT: 20℃, no load)

±0.5℃(set: 60℃~80℃, AT: 20℃, no load)

Maximum current

2.0 A

3.0 A

Maximum power

consumption

200 W

300 W

Maximum heat

discharge

720 kJ/h

1080 kJ/h

Applicable environment

condition

Temperature: 0℃~35℃, Humidity: 80%R.H. or less

- Each data is measured based on our standards.

- Specification can be changed for improvement without notification.

-3-

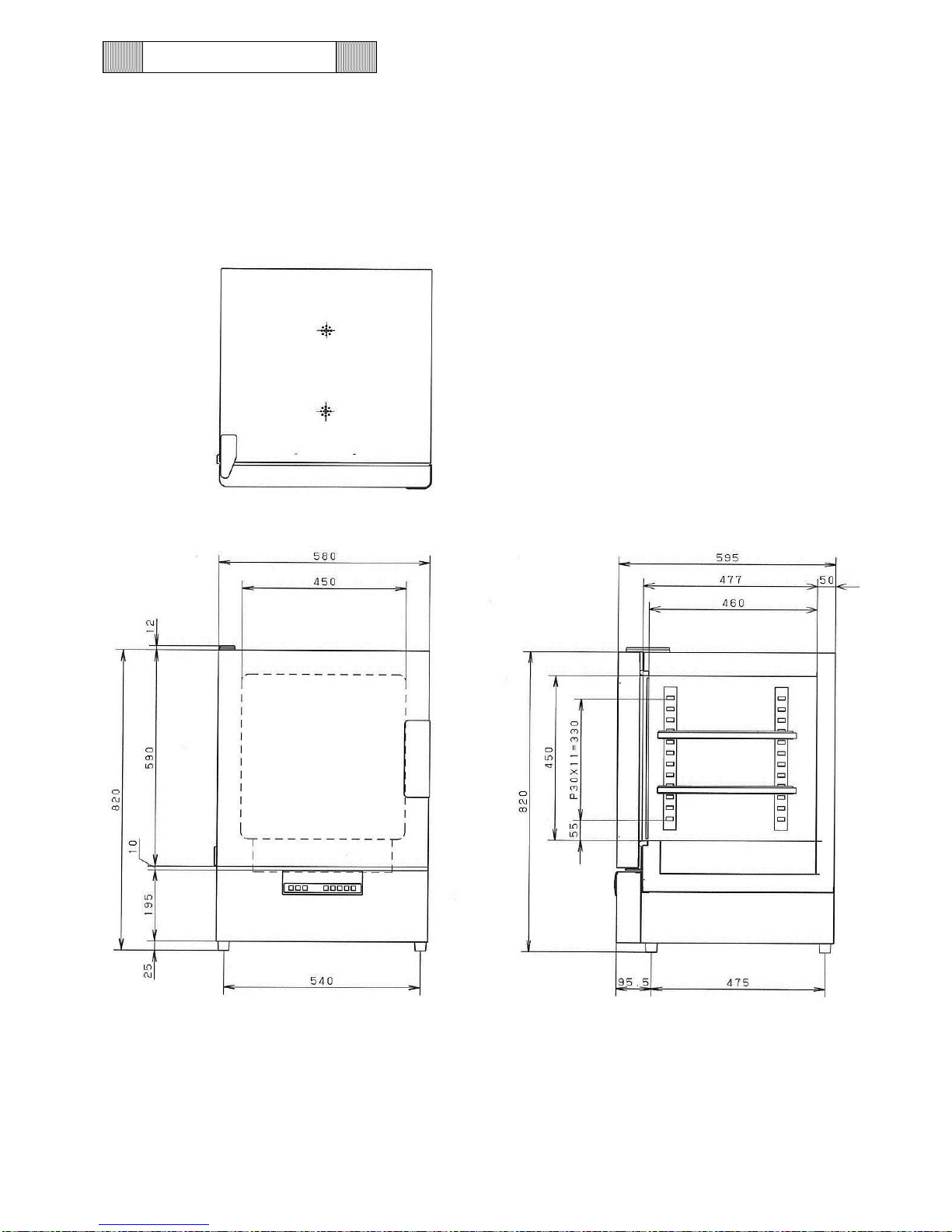

Dimensions

MIR-H163

-4-

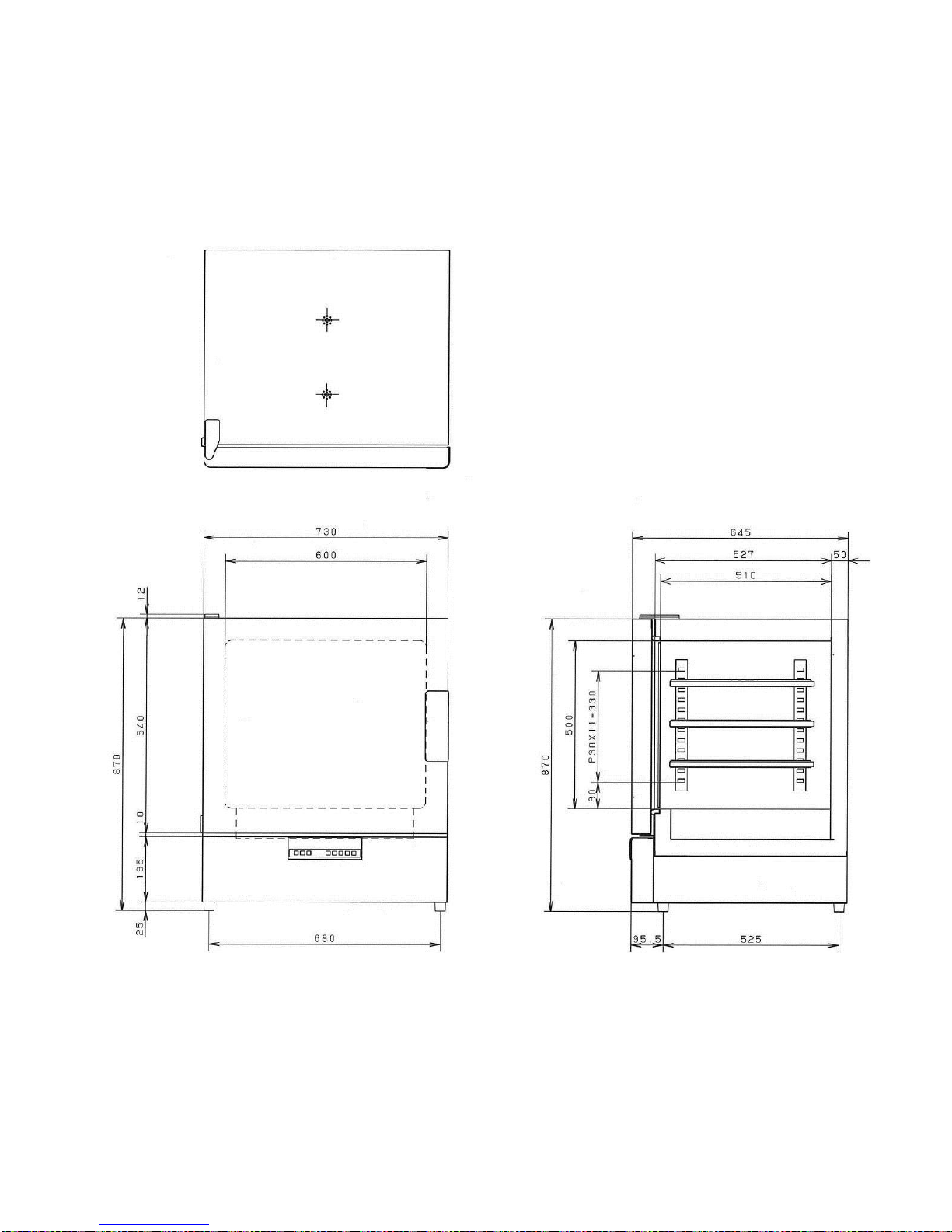

MIR-H263

-5-

MIR-H163/H263

Wiring Diagram

-6-

MIR-H163/H263

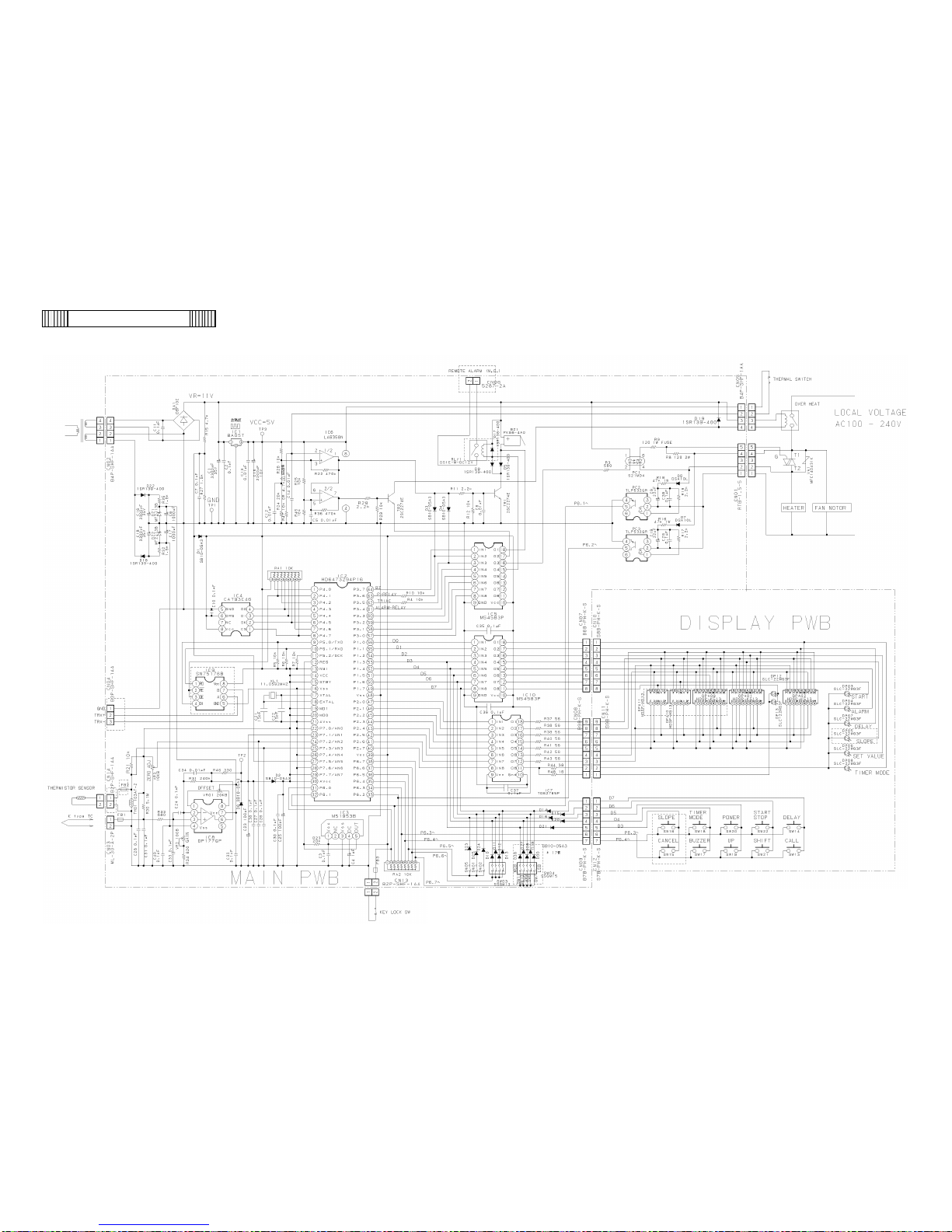

Circuit Diagram

-7-
