Pakedge B-WX-1 Manuel utilisateur
INSTALLATION GUIDE
B-WX-1
WX-1 In-Ceiling/In-Wall Bracket
22
Package contents
• B-WX-1 In-Ceiling/In-Wall Bracket
• Installation Guide
• Installation screws
B-WX-1
The B-WX-1 In-Ceiling/In-Wall Bracket is designed to mount the WX-1 directly into any wall or
ceiling.
Important: Read all instructions before attempting to install the bracket.
33
B-WX-1 mounting
To install the bracket:

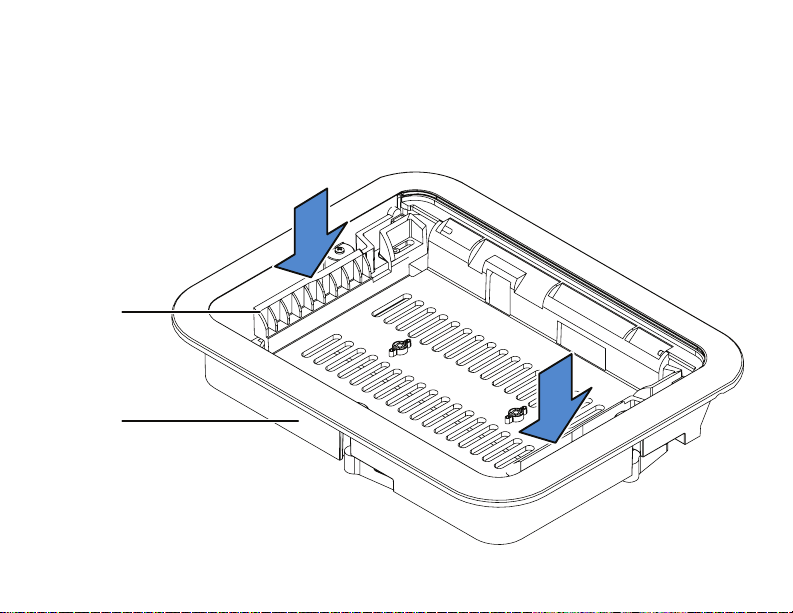

1 Press down on the AP bracket to release the AP bracket from the push latches on the
in-ceiling bracket.
AP bracket
In-ceiling
bracket
44
2 Swing the AP bracket out from the in-ceiling bracket.
55

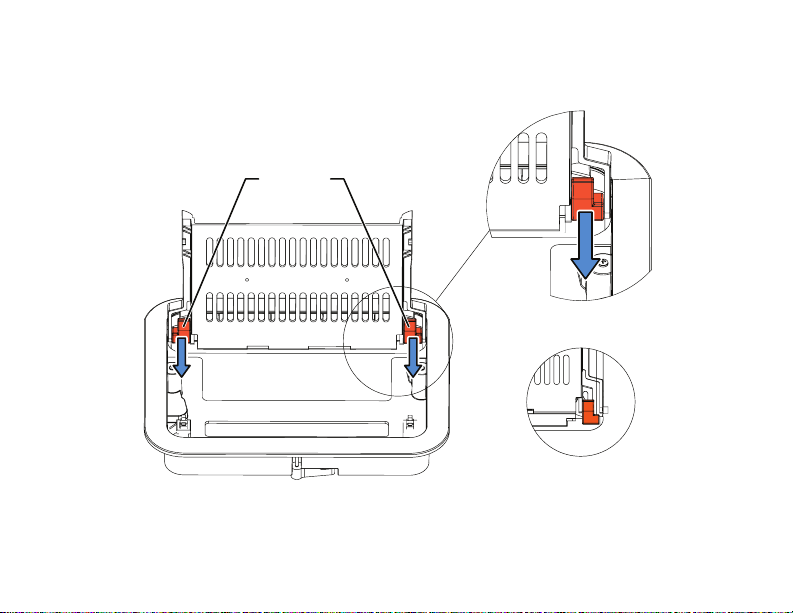

3 Slide both hinge arm locks towards the inside of the in-ceiling bracket to the open position.
Hinge arm
locks
Hinge arm lock
open position
66

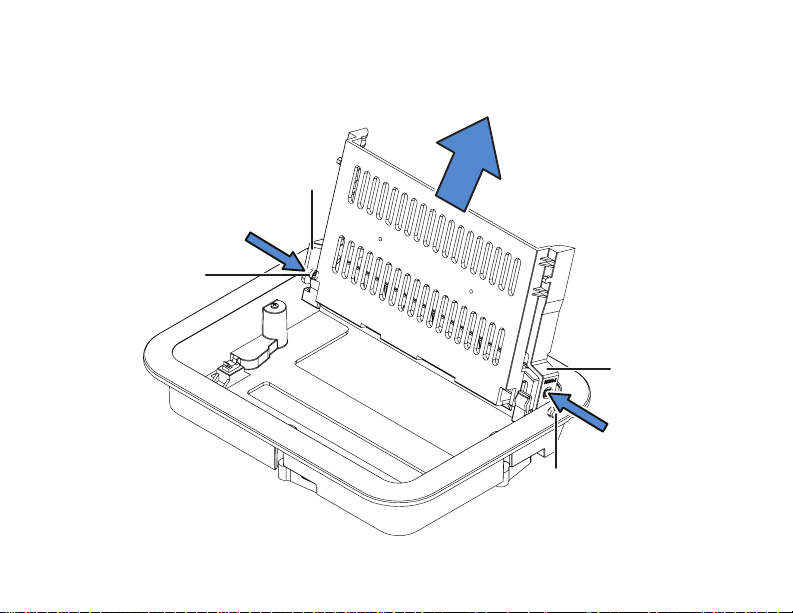

4 Press the hinge arms towards the center of the AP bracket to release the hinge pins from
the hinge mounting holes on the in-ceiling bracket. While holding the hinge arms inward,
slide the AP bracket out from the In-ceiling bracket.
1
1
2
Hinge arm
Hinge arm
Hinge
pin/hole
Hinge
pin/hole
77

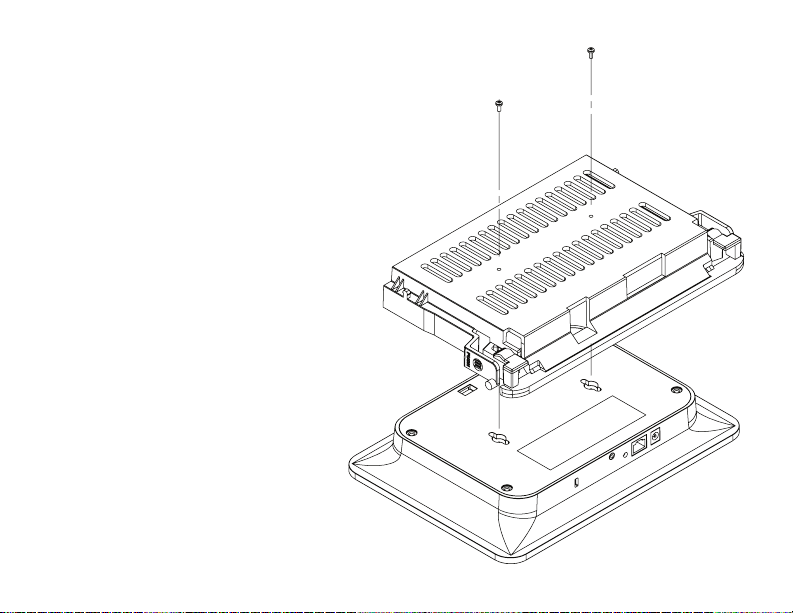

5 Place the WX-1 into the AP bracket
as shown, then secure it with the
provided screws.
Note: Install the AP bracket such
that the LAN/Reset/DC/Kensington
lock ports are aligned with their
respective labels on the AP bracket.
88

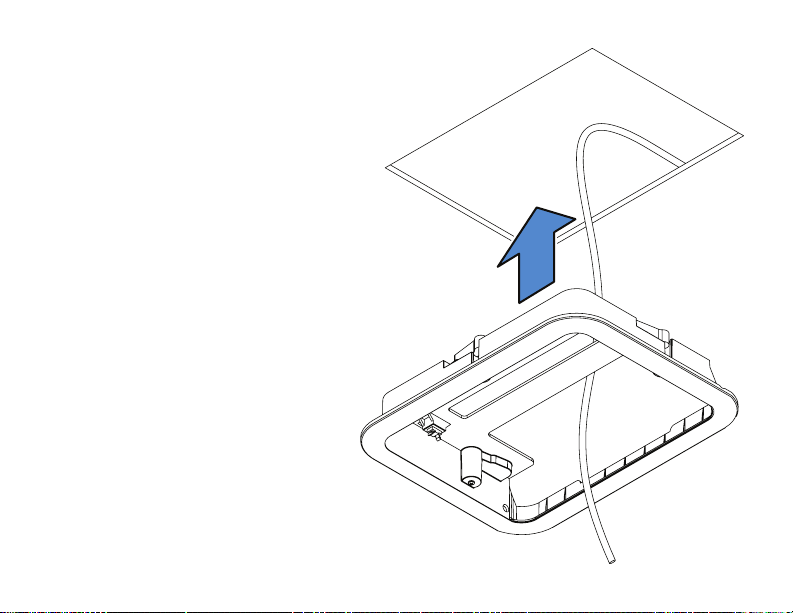

6 Using the supplied template, cut a
10 1/4” x 7 5/8” rectangle at the
desired mounting location for your
WX-1.
7 Route an in-wall Ethernet cable
through the opening of the in-ceiling
bracket, then insert the in-ceiling
bracket into the cutout.
99
8 Use a Phillips screwdriver to tighten the mounting ears.
Note: Do not use excessive force when tightening the mounting ears, or the mounting ear
threads may become stripped.
1010
9 Plug an Ethernet cable into the WX-1, then press the hinge arms towards the center of the
AP bracket.
10 While holding the hinge
arms inward, insert the AP
bracket/WX-1 assembly into the
in-ceiling bracket.

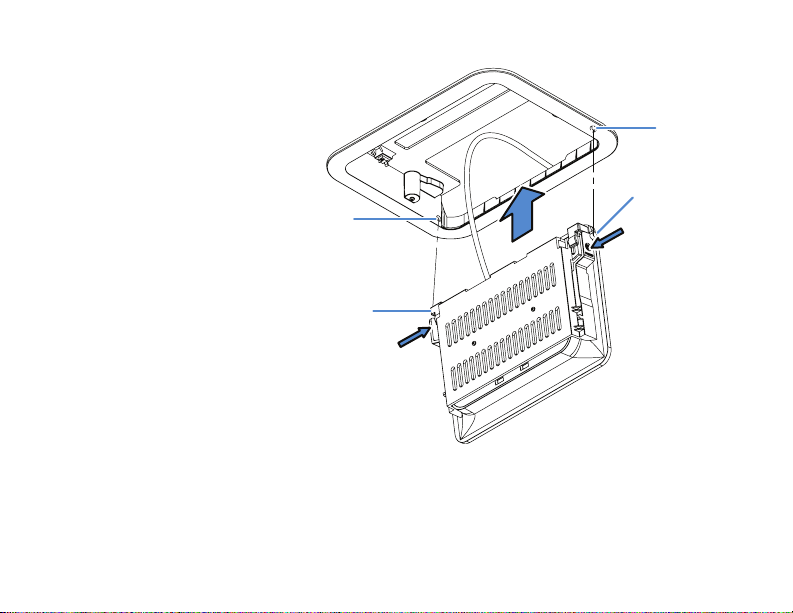

11 Align the hinge pins on the hinge arms
with the hinge mounting holes on the in-ceiling bracket, then release the hinge arms.
Make sure that the hinge pins are fully inserted into the hinge mounting holes and the AP
bracket/WX-1 assembly is able to swing freely.
1
1
2
Hinge
mounting
hole
Hinge mounting hole
Hinge pin
Hinge pin
