PacLights FALC/2 Series Manuel utilisateur

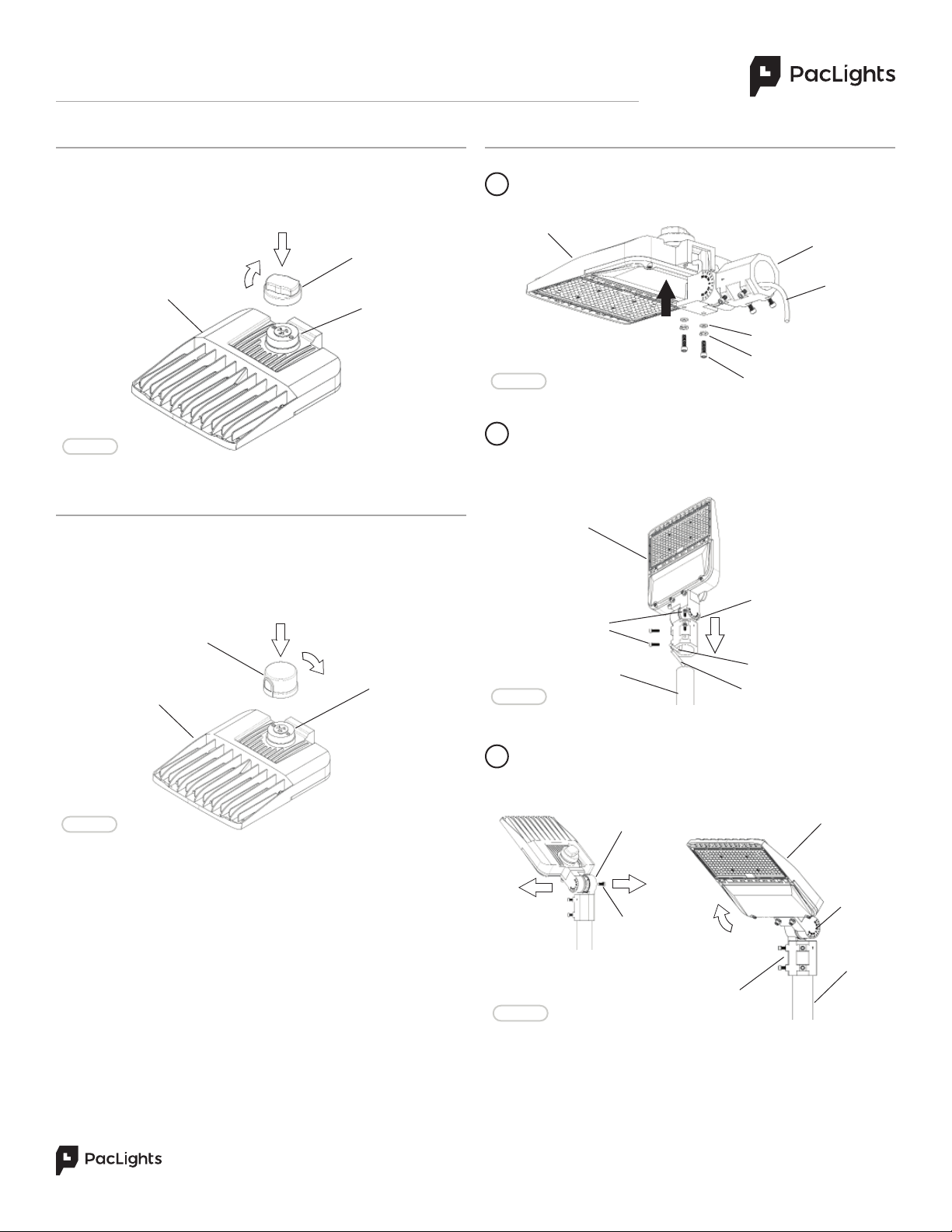

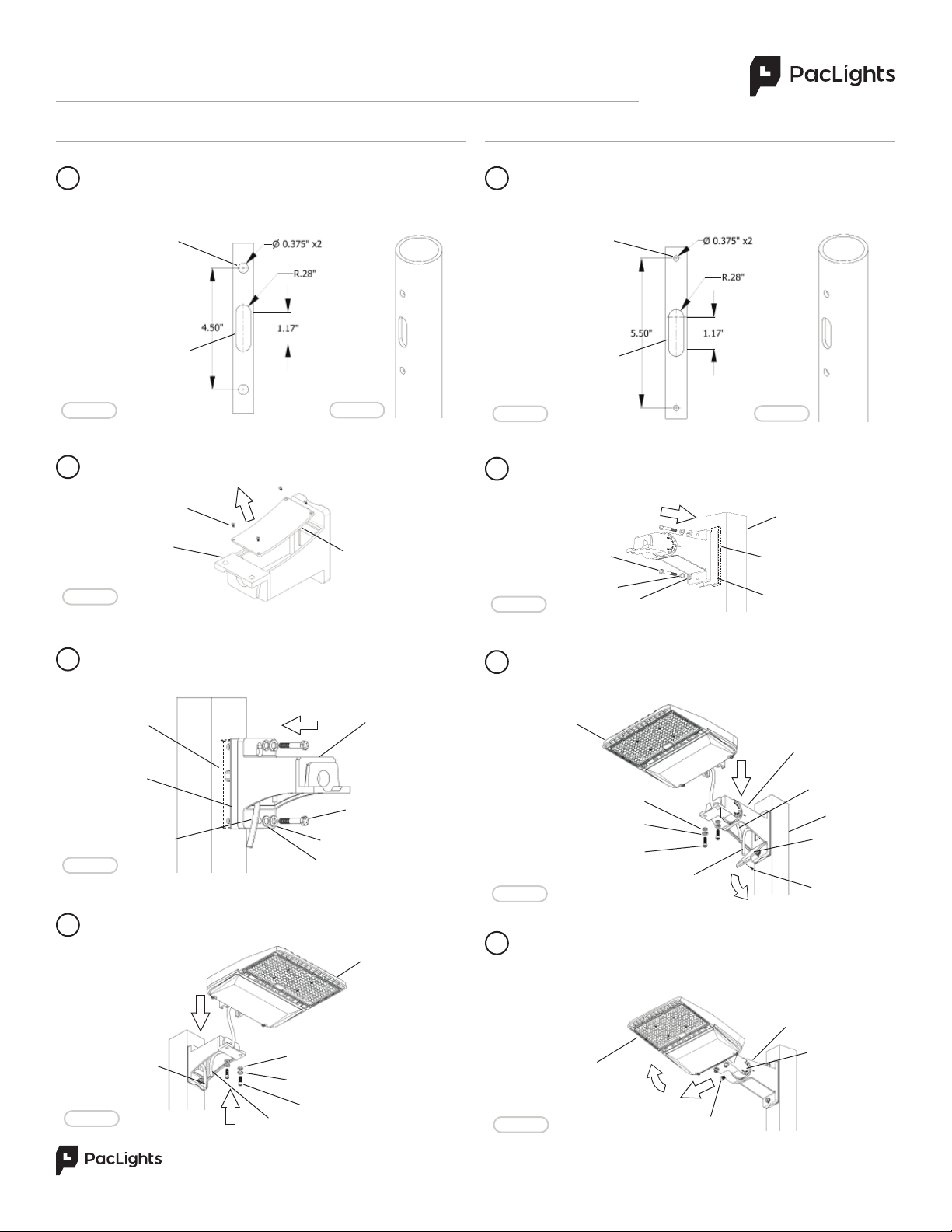

INSTALLATION GUIDE FALC/2 Series LED Area Light

Need help? (800) 988 -6386 Email: CS@PacLights.com Website: www.PacLights.com

PL-INST-FALC/2-v0

IMPORTANT

READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.

PacLights ﬁxtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is required for safety.

THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR

WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.

WARNINGS:

• Make certain power is OFF before installing or maintaining ﬁxture. No user serviceable parts inside.

• To prevent wiring damage or abrasion, do not expose wiring to edges of sharp objects.

CAUTION:

• For proper weatherproof function all gaskets must be seated properly and all screws inserted and tightened ﬁrmly. Apply weatherproof silicone

sealant around the edge of the Back Box and/or Junction Box. This is especially important with an uneven wall surface. Silicone all plugs and

unused conduit entries.

FALC/2-150 FALC/2-240 FALC/2-310

Connect the ACL and the ACN from the FALC/2 Fixture to the conduit with the AC power Supply Cable. Follow the Wiring Diagram provided.

AC POWER SUPPLY

FALC/2 DRIVER

GRAY (-)

PURPLE (+)

HOT [BLACK]

NEUTRAL [WHITE]

GROUND [GREEN]

WIRING DIAGRAM

DIM

INPUT

FIG. 2

The Lumen output of the FALC/2 ﬁxture can be adjusted simply by

moving the Switch to the desired Wattage (Fig. 2).

WATTAGE

SWITCH

FIELD-ADJUSTABLE LUMEN OUTPUT/WATTAGE

The Wattage can be adjusted with the Wattage Switch located

inside of the FALC/2 ﬁxture. The FALC/2-150 can be adjusted to

80/100/120/150W, the FALC/2-240 to 170/200/220/240W, and

the FALC/2-310 to 240/260/280/310W. Remove the Driver Cover

Screws (2) and open the Driver Cover to adjust the Wattage (Fig. 1).

FIG. 1

SCREWS

SURGE

PROTECTOR

DRIVER

COVER

WATTAGE

SWITCH

FALC/2 FIXTURE

INSTALLATION GUIDE FALC/2 Series LED Area Light

Need help? (800) 988 -6386 Email: CS@PacLights.com Website: www.PacLights.com

PL-INST-FALC/2-v0

The Slipﬁtter can be mounted easily to the FALC/2 ﬁxture (Fig. 5).

Carefully slide the Fixture Cable through the Slipﬁtter and fasten the

Slipﬁtter to the FALC/2 ﬁxture.

OPTIONAL SLIPFITTER MOUNT

FIG. 5

FIG. 7

FIXTURE

CABLE

FIG. 6

WASHERS

BOLTS

SLIPFITTER

The FALC/2 ﬁxture can be rotated upward by adjusting the Slipﬁtter

angle. Loosen the Bolt or remove if necessary. Set the Angle on the

side of the Slipﬁtter, then fasten the Bolt to secure the Slipﬁtter in

place (Fig. 7).

POLE

BOLTS

POWER CABLE

LOCK WASHERS

FALC/2 FIXTURE

The Slipﬁtter (inside diameter 2 3/8”) can be mounted to ﬁt 2”

Nominal Round Poles. Loosen the Slipﬁtter Bolts or remove if

needed. Attach the Power Cable to the Fixture Cable and install the

FALC/2 ﬁxture with the Slipﬁtter onto the Pole (Fig. 6). Tighten the

bolts to secure the Slipﬁtter to the Pole.

FIXTURE CABLE

FALC/2 FIXTURE

SLIPFITTER

POLE

SLIPFITTER

BOLT

OPTIONAL PHOTOCONTROL

FIG. 4

The Photocontrol can be installed easily on all FALC/2 Receptacles by

carefully aligning and pressing down the plug into the socket and twisting

CW (Fig. 4). Note: If the Photocontrol is not included this step can be

skipped. If the Photocontrol is included prior to ﬁeld installation the Initial

Set-Up can be skipped.

PHOTOCONTROL

RECEPTACLE

FALC/2 INITIAL SET-UP

FIG. 3

Install the Shorting Cap on the NEMA 7-pin twist-lock Receptacle by

carefully aligning and pressing down the plug into the socket and twisting

CW (Fig. 3). Note: If the Photocontrol is provided see the following for

instructions.

SHORTING CAP

FALC/2 FIXTURE RECEPTACLE

FALC/2 FIXTURE

ANGLES

INSTALLATION GUIDE FALC/2 Series LED Area Light

Need help? (800) 988 -6386 Email: CS@PacLights.com Website: www.PacLights.com

PL-INST-FALC/2-v0

FIG. 12

4Install the FALC/2 to the Arm Mount. Attach the ﬁxture Cable to the

Power Cable (Fig. 12). Replace the Cover. Refer to Fig 10.

FIG. 10

GASKET

FALC/2 FIXTURE

FIG. 11

OPTIONAL ARM MOUNT

The FALC/2 Arm Mount can be used on either a Round or Square

Pole. The drilling template for both the Round and Square Poles is

shown below (Fig. 8). Drill holes on the Pole by following the drilling

template to mount the FALC/2 to the desired height (Fig. 9).

FIG. 8

SCREWS

Remove the Screws and the Cover from the Arm Mount prior to

installation (Fig. 10).

FIG. 9

COVER

ARM MOUNT

Ø 0.375” Clearance

holes on pole to align

with Locking Plate

hole locations

Ø 0.56”x 1.17” Slot to

run Power Supply Cable

through the Pole into

the Arm Mount

Install the Arm Mount to the Pole with the Gasket. Place the Locking

Plate inside the Pole and carefully place the Power Cable through the

Arm Mount. Fasten the Bolts and hardware (Fig. 11).

ARM MOUNT

WASHERS

LOCK WASHERS

BOLT

CABLE

POWER CABLE

LOCKING PLATE

WASHERS

LOCK WASHERS

BOLT

POWER CABLE

OPTIONAL ADJUSTABLE ARM MOUNT

The FALC/2 Adjustable Arm Mount can be used on either a Round

or Square Pole. The drilling template for both the Round and Square

Poles shown below (Fig. 13). Drill holes on the Pole by following the

drilling template to mount the FALC/2 to the desired height (Fig. 14).

FIG. 13

Install the Adjustable Arm Mount to the Pole with the Gasket. Place

the Locking Plate inside the Pole and carefully place the Power Cable

through the Adjustable Arm Mount. Fasten the Bolts and hardware

(Fig. 15).

FIG. 14

Ø 0.375” Clearance

holes on pole to align

with Locking Plate

hole locations

Ø 0.56”x 1.17” Slot to

run Power Supply Cable

through the Pole into the

Adjustable Arm Mount

FIG. 15

SCREW

COVER

ADJUSTABLE

ARM MOUNT

WASHER

LOCK WASHER

BOLT

GASKET

LOCKING PLATE

POLE

Install the FALC/2 ﬁxture to the Adjustable Arm Mount. Open the

Cover by removing the Screw. Carefully place the ﬁxture Cable

through the Adjustable Arm Mount and attach to the Power Cable

(Fig. 16). Close the Cover and fasten the Screw when done.

FIG. 16

FALC/2 FIXTURE

POWER CABLE

CABLE

BOLT

WASHER

LOCK WASHER POLE

4The FALC/2 ﬁxture can be rotated upward by adjusting the Adjustable

Arm Mount angle. Loosen the Bolt or remove if necessary. Set the

Angle on the side of the Adjustable Arm Mount, then fasten the Bolt

to secure the Adjustable Arm Mount in place (Fig. 17).

FALC/2 FIXTURE

ADJUSTABLE

ARM MOUNT

BOLT

FIG. 17

ANGLES

INSTALLATION GUIDE FALC/2 Series LED Area Light

Need help? (800) 988 -6386 Email: CS@PacLights.com Website: www.PacLights.com

PL-INST-FALC/2-v0

FIG. 21

OPTIONAL TRUNNION MOUNT

The drilling template for the FALC/2 Trunnion Mount is shown below

(Fig. 18).

FIG. 18

FIG. 19

Install the Trunnion Mount to the Surface/Wall while placing

the Power Cable through the Trunnion Mount. Mount with the

appropraite hardware (Fig. 19).

POWER CABLE SURFACE/WALL

TRUNNION

MOUNT

BOLT

WASHER

LOCK WASHER

Install the FALC/2 ﬁxture to the Trunnion Mount. Slide the ﬁxture

Cable carefully through the Trunnion Mount. Attach the Fixture

Cable to the Power Cable (Fig. 20).

FIG. 20 POWER CABLE

TRUNNION

MOUNT

BOLT

WASHER

LOCK WASHER

FALC/2 FIXTURE

CABLE

SURFACE/WALL

4The FALC/2 ﬁxture can be rotated upward by adjusting the Trunnion

Mount angle. Remove the smaller Screws and Nuts and loosen larger

ones at each side. Rotate to set the angle, then fasten the all the

Screws and Nuts to secure the Trunnion Mount in place (Fig. 21).

SCREWS

NUTS

FALC/2 FIXTURE

LOCK WASHER

OPTIONAL HALF GLARE SHIELD

The FALC/2 Half Glare Shield can help to limit light trespass. Align the Half

Glare Shield to the holes near the FALC/2 Lens Base and fasten with the

Screws (Fig. 22).

FIG. 22

SCREWS

FALC/2 FIXTURE

HALF GLARE

SHIELD

OPTIONAL FULL GLARE SHIELD

The FALC/2 Full Glare Shield can help to limit light trespass. Align the Full

Glare Shield to the holes near the FALC/2 Lens Base and fasten with the

Screws (Fig. 23).

FIG. 23

FALC/2 FIXTURE

FULL GLARE

SHIELD

SCREWS

LENS

SURFACE/WALL
