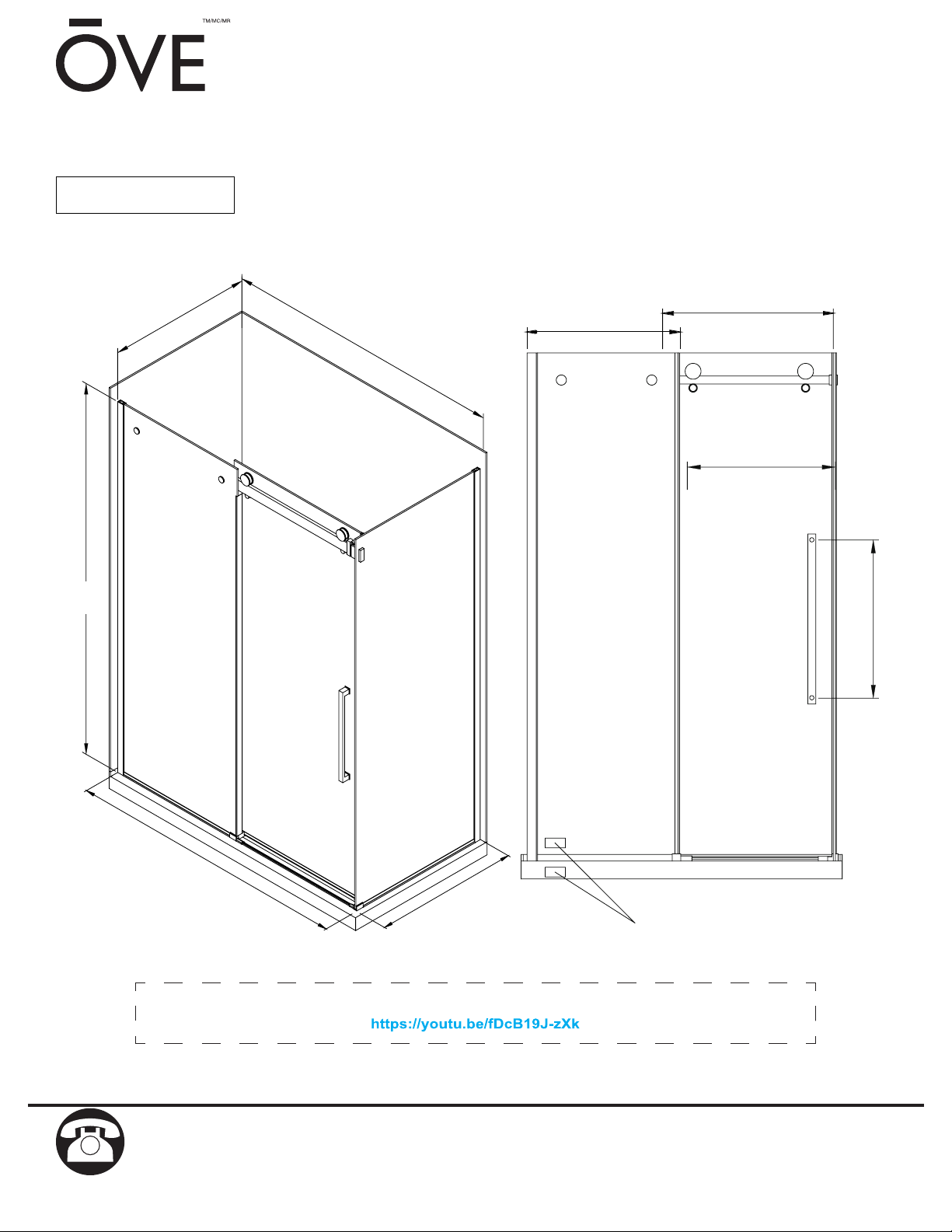

OVE BEL 32 Manuel utilisateur

BEL 32

MODEL #BEL-SP32

ITEM #0665827

32”

[813]

Opening

18 1/2” / 24 7/16”

[470] / [620]

22 7/16”

[570]

CSA Markings

78 3/4”

[2000]

Wall-to-Wall

46 3/16” / 58 3/16”

[1173] / [1478]

Rough-in

48” / 60”

[1219] / [1524]

Wall-to-Wall

30 5/16”

[770]

22 9/16” / 28 7/8”

[573] / [733]

25 3/8” / 31 1/2”

[645] / [800]

Measures: inch [millimeter]

Glass panel only

2017-04-28

An installation video guide can be found on our Youtube channel.

2800 Etienne Lenoir, Laval

Québec H7R 0A3 Canada

Purchase date: _________________________ Product Tracking Reference: ________________________

Questions, problems, missing parts?

Before returning to your retailer, call our customer service department at

1-866-839-2888, 9 a.m. - 5 p.m., EST, Monday - Friday

CAUTION

Please carefully read the following important safety information before handling or installing this shower. There

is a risk of serious injury while handling this product. To minimize these risks, please note:

• Always wear safety glasses and gloves while handling.

• Always read and follow all the steps in the installation instructions.

• Inspect all contents and glass for damage before installation.

• Extreme caution should be taken while handling the glass during installation as the tempered glass may

shatter if in contact with a hard surface.

• Handle the tempered glass with caution! Improperly handling the glass can cause it to break suddenly in

small pieces (never in pointed fragments).

• Always take all precautions not to touch the tempered glass with any tools during the installation, or after

installed.

• Do not cut or modify the tempered glass as it will shatter if cut.

• Carefully remove product from packaging and keep packaging until installation is complete.

• Inspect all parts for damage; if there is damage to the unit prior to installation, please contact customer

service at the number provided in this guide.

• Installtheshoweronaoorthatislevelandabletoaccommodatetheweightoftheunitandanoccupant.

• Consult local building codes and compliance standards prior to installation and ensure conformity.

• Afterinstallation,andfromtimetotime,checktheglassfortandnishtoensurethatnothinghascome

loose since installation.

• Keep this installation manual for future reference.

NOTICE

• Anymodicationoralterationfromwhatisspeciedinthisinstructionmanualwillvoidanyandallwarranty

on this product.

• The distributor is not responsible for any damage to the unit or personal property caused by improper

installation. If you disregard instructional warnings, you will void your warranty and possibly deal with water

damage.

• Consult www.ovedecors.com for any additional information or question on this product’s installation.

PREPARATION

You will need at least two people to install this unit properly.

Before beginning assembly of product, make sure all parts are present. Compare parts with package contents

list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product.

Estimated Assembly Time: Shower (60 min).

SAFETY INFORMATION

TABLE OF CONTENT

PACKAGE CONTENT.......................................................................................................................................... 5

HARDWARE CONTENT...................................................................................................................................... 6

TOOLS REQUIRED............................................................................................................................................. 6

SHOWER REVERSIBILITY.................................................................................................................................. 7

BASE INSTALLATION GUIDELINES (OPTIONAL)............................................................................................ 8

WALL TRACK INSTALLATION........................................................................................................................... 9

RETURN PANEL INSTALLATION.................................................................................................................... 10

SEALING............................................................................................................................................................11

LIMITED PRODUCT WARRANTY......................................................................................................................12

CARE AND MAINTENANCE..............................................................................................................................12

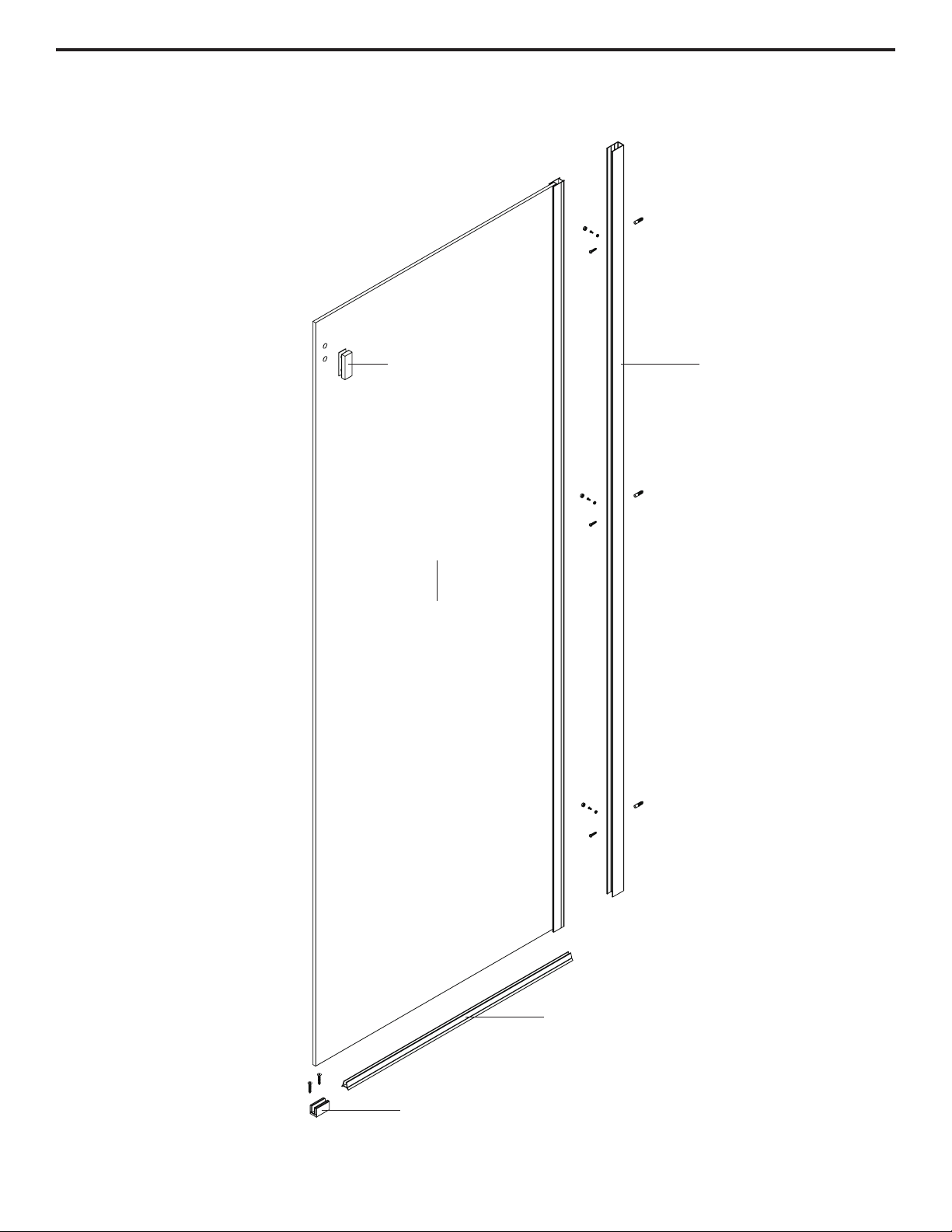

PACKAGE CONTENT

PART# DESCRIPTION QTY CODE

B Aluminum wall track 1 99STR3107-WM

N Fixed panel’s bottom seal strip 1 99SRU0060

S Return panel’s clamp 1 99SGC1042-WM

V Support bar’s anchor 1 99SGC1039-WM

W Return panel 1 99SG30007-WM

X Hardware content 1 99SHW0105-WM

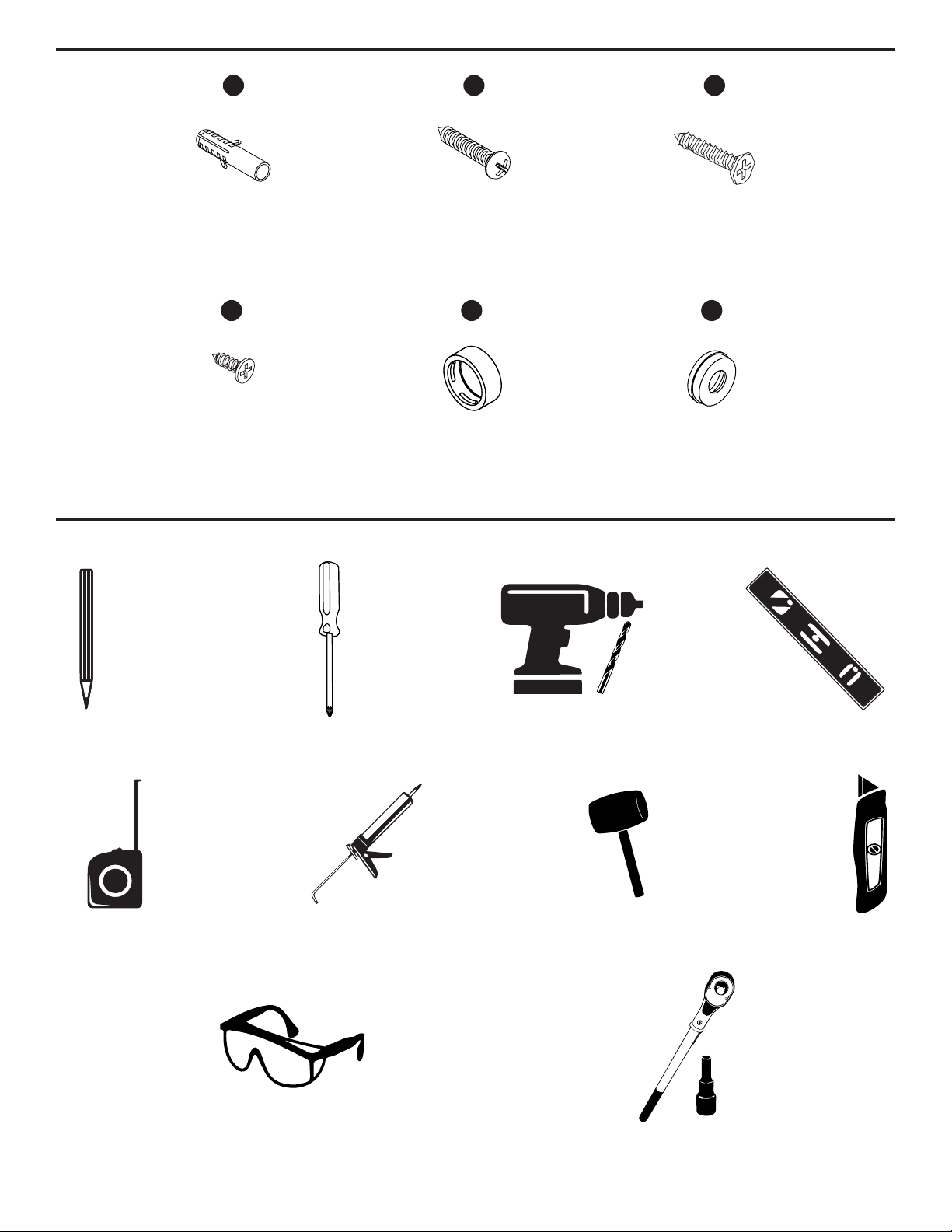

HARDWARE CONTENT

FFEE

AA BB

Screw

ST5x25mm

2+1

Wall Anchor

ø8x30mm

3+1

Cap

Fitting

TOOLS REQUIRED

Pencil Screwdriver Drill with ceramic tile bits

ø4mm (3/16in) & ø8mm (5/16in) Level

Measuring Tape Silicone Rubber mallet Cutter

Safety glasses

Screw

ST5x30mm

3+1

Screw

ST4x12mm

3+1

5mm Bit socket

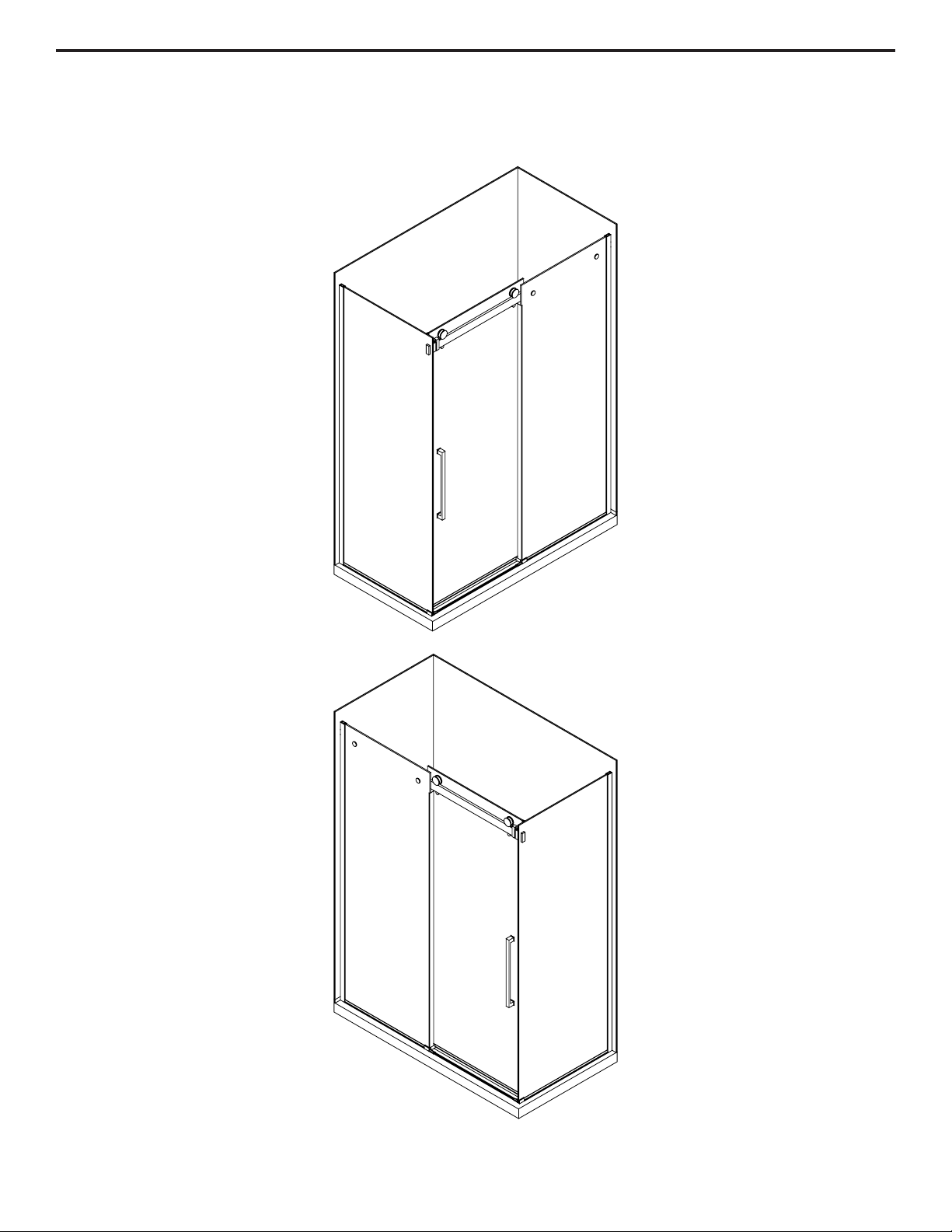

• This instruction is drawn up for an opening from right to left (see illustration B).

• For an installation from left to right (see illustration A), use the same instructions, but switch around the

panels: mirror effect.

SHOWER REVERSIBILITY

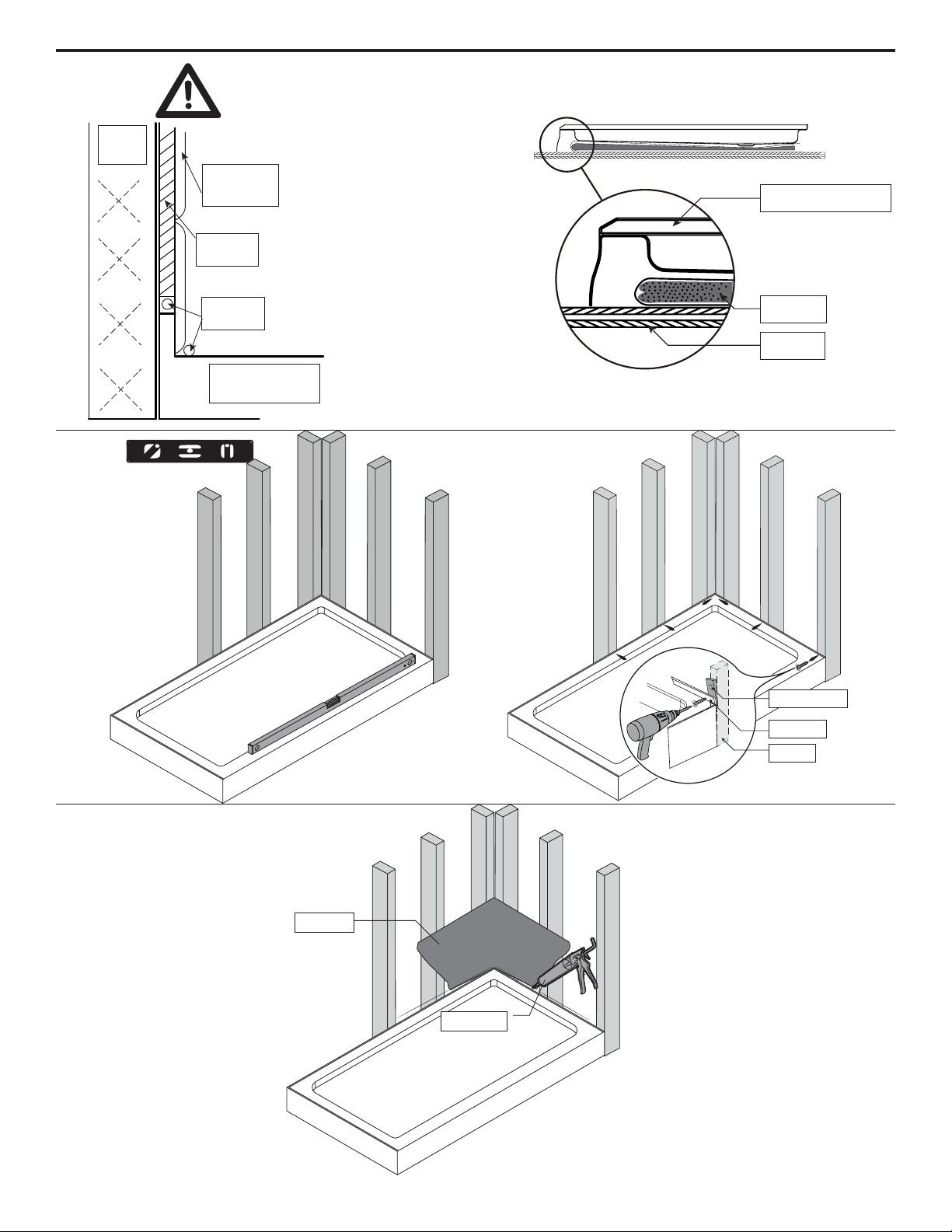

BASE INSTALLATION GUIDELINES (OPTIONAL)

1 2

Tile Wall

Studs

Drywall

Silicone

Shower Base

Cement

Floor

Wood shim

Flange

Stud

Drywall

Silicone

Flange

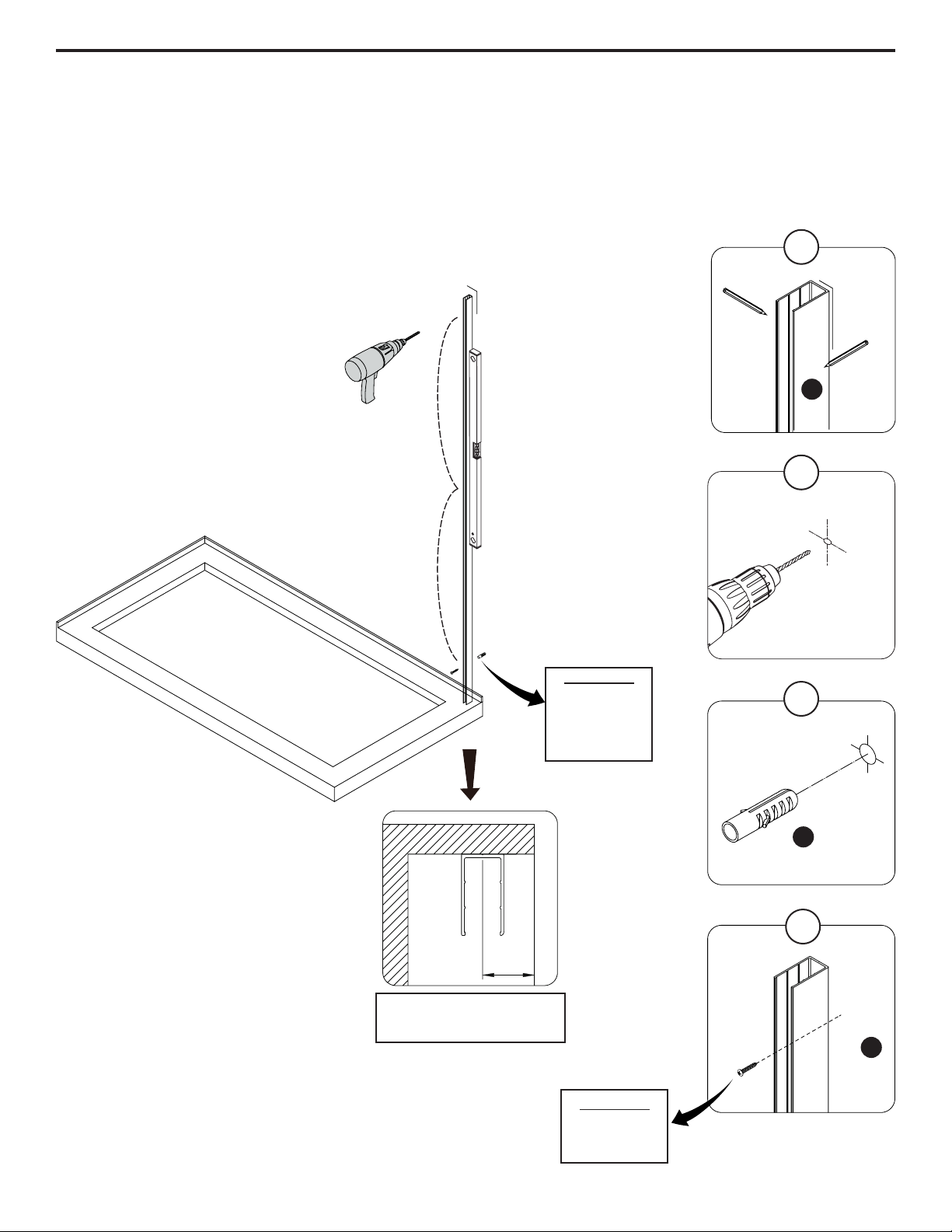

1. Ensure the base and walls are leveled. Place the metal track (B) approximately as “C” from the edge of the

base to the center of the metal track. Ensure the metal track (B) is leveled, then mark the holes clearly on the

wall.

2.RemovetrackanddrillpilotholesinthemarkedlocationswithaΦ8mm(5/16in)drillbit.

3.Insertthewallanchors(AA)usingarubbermalletuntilthewallanchorsareushwiththewall.

4. Replace and secure the metal track (B) with screws (BB). Do not overtighten.

WALL TRACK INSTALLATION

Φ8mm

5/16in

Helpful Hint

Do not overtighten!

This may crack the

acrylic or tile walls.

Helpful Hint

Make sure there

is a support stud

located behind the

drywall, behind the

tracks!

C=32 for Bel 48

C=23 for Bel 60

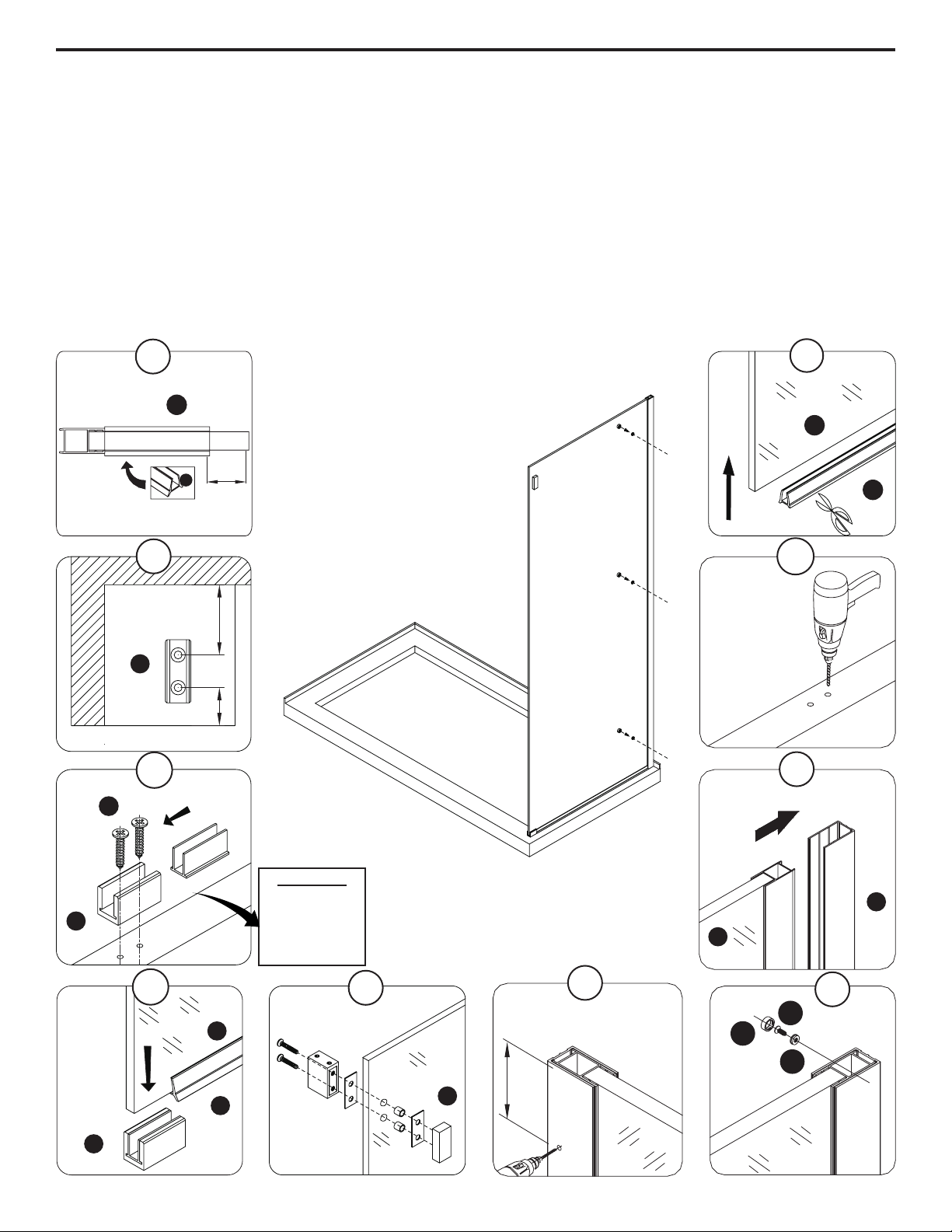

1-2. Insertthexedpanel’sbottomsealstrip(N)atthebaseofthereturn panel (W). Cut the surplus part with a cutter to

size, about 40mm from the panel’s edge.

3. Place the return panel’s clamp (S) on the base.

4. Mark the positions of holes of the return panel’s clamp (S) with a pencil, and drill pilot holes with a ø4mm (3/16in) drill bit.

5. Fix the return panel’s clamp (S) with the screw (CC). Ensure the plastic gasket in the guide is in place as it protects the

xedglasspanel.

6-7 Place the return panel (W) into the wall track (B) and the return panel’s clamp (S).

Note: The wall track (B) allows you to adjust the position of the xed glass panel (W). Adjusting the depth and/or

giving the xed glass panel a slight angle allows for precise alignment with the door.

8. Install the support anchor (V) to the return panel (W).

9. Drill the return panel(W)withΦ3mm(1/8in)in3places.

10. Securethewalltrack(B)usingscrews(DD),ttings(FF)andcaps(EE).

RETURN PANEL INSTALLATION

40mm

Φ4mm

3/16in

Helpful Hint

Add a drop of

silicone in the

holes before

inserting the

screws

30mm 739mm

100mm

Φ3mm

1/8in
