OVE CAICOS Manuel utilisateur
1OVE 2014-05-05 2800 Etienne Lenoir, Laval
Québec H7R 0A3 Canada
Purchase date: _________________________ Product Tracking Reference: ________________________
Questions, problems, missing parts?
Before returning to your retailer, call our customer service department at
1-866-839-2888, 9 a.m. - 5 p.m., EST, Monday - Friday
CAICOS
2
TABLE OF CONTENT
PACKAGE CONTENT.......................................................................................................................................... 4
HARDWARE CONTENT...................................................................................................................................... 5
TOOLS REQUIRED............................................................................................................................................. 5
SAFETY INFORMATION..................................................................................................................................... 6
PREPARATION.................................................................................................................................................... 6
THIS SHOWER IS NOTREVERSIBILITY............................................................................................................. 7
BASE AND ACRYLIC WALL INSTALLATION (OPTIONAL).............................................................................. 8
WALL TRACKS INSTALLATION.........................................................................................................................9
FIXED PANELS INSTALLATION...................................................................................................................... 10
SUPPORT BAR INSTALLATION....................................................................................................................... 12
DOOR PANEL INSTALLATION......................................................................................................................... 13
HANDLE INSTALLATION & SEALING..............................................................................................................14
CARE AND MAINTENANCE............................................................................................................................. 15
LIMITED 5 YEARS WARRANTY........................................................................................................................ 15
3

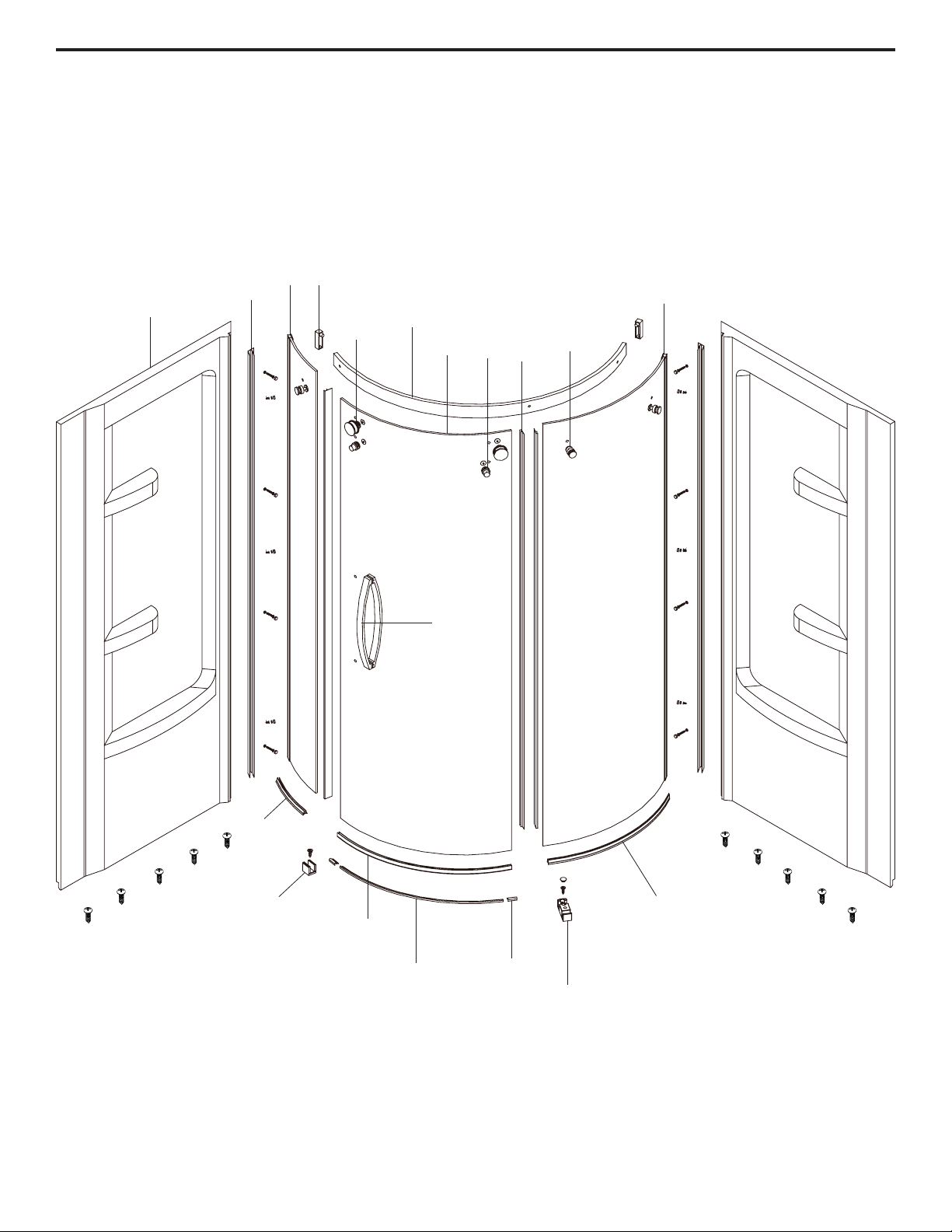

PACKAGE CONTENT
BD
F
H
I
M
T
UQ
O
N
G
C
J
L
K
R
E
P
4
PACKAGE CONTENT
PART# DESCRIPTION QTY CODE
BWall tracks for xed panel 299STR0026-WM
CFixed glass panel (Small) 199SG10019-WM
DRoller stoppers 299SDS0006-WM
EAcrylic walls 2 29SAP-081340-001WM
FSupport bar 199SGS0016-WM
GFixed panel’s brackets 399SGC3107-WM
HDoor rollers 299SWE3103-WM
IAnti-jump pegs 299SWE3107-WM
JDoor panel 199SGD0022-WM
KFixed glass panel (Large) 199SG10020-WM
LFixed panel’s bottom seal strip (Long) 199SRU0078-WM
MDoor handle 199SHA1024-WM
NFixed panel’s bottom seal strip (Short) 199SRU0079
ODoor panel’s bottom seal strip 199SRU0080
PGlass panels’ vertical seal strips 399SRU0081
QSliding door guide (with its rubber tting) 199SGC0017-WM
RFixed glass panel’s support bracket 199SGC0018-WM
TDecorative end caps 299SHW0043-WM
UDecorative aluminum track 199STR0027-WM
5

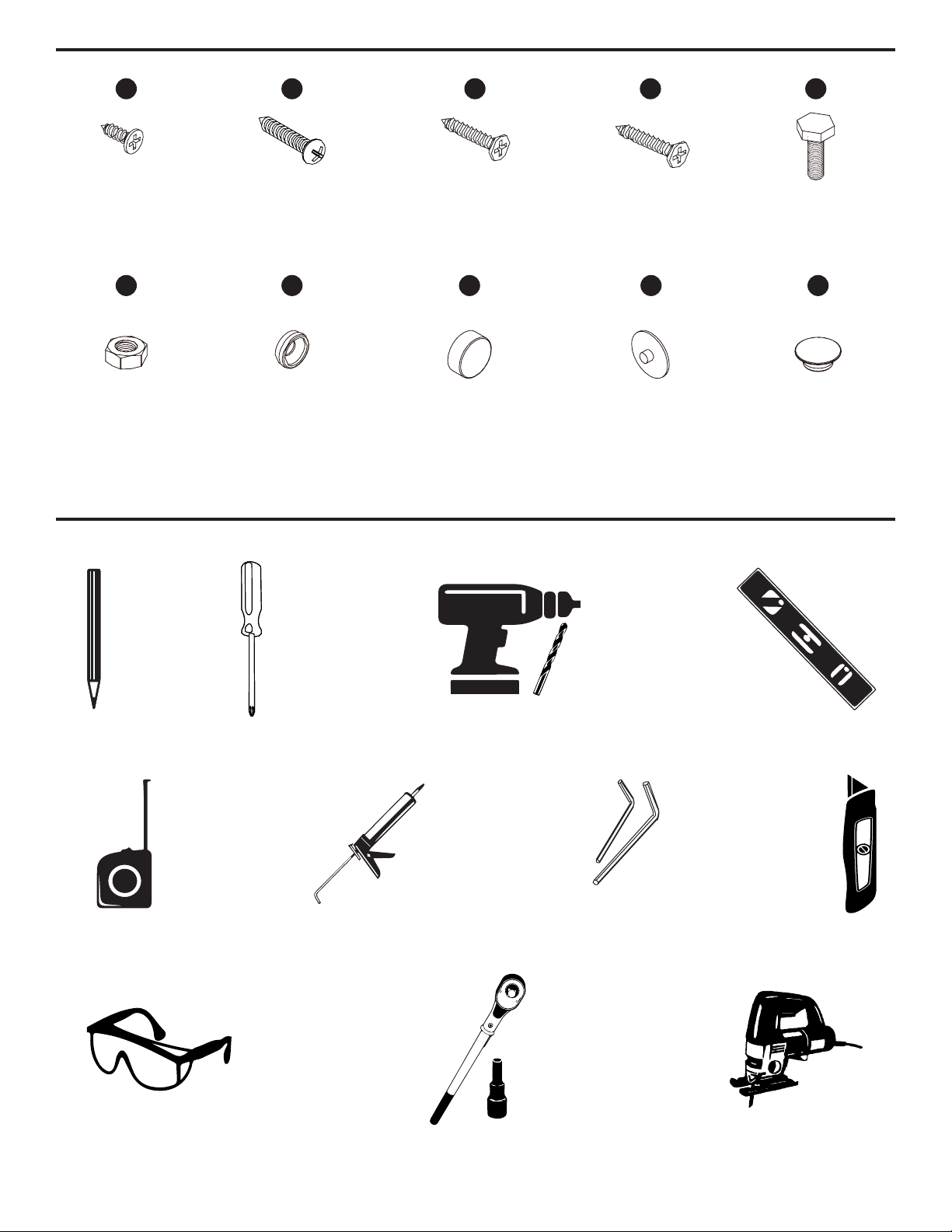

HARDWARE CONTENT
TOOLS REQUIRED
Pencil Screwdriver Level
Measuring Tape Silicone Cutter
Safety glasses
Allen key
2.5mm & 5mm
Ratchet
5mm Bit socket
Drill with ceramic tile bits
ø3mm (1/8”)
FF
EEDD
CC
BBAA
Cap
14+2 extra
GG
Clip
1x
Screw
ST4x12mm
6+2 extra
HH II
Screw
ST4x15mm
10+2 extra
JJ
Screw
ST4x20mm
2+1 extra
Screw
ST4x25mm
8+2 extra
Bolt
M6x20mm
5+1 extra
Nut
M6
5+1 extra
Fitting
14+2 extra
Cap
4x
Box saw
6
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate
or install the product.
• Handle the tempered glass with caution! Improperly handling the glass can cause it
to break suddenly in small pieces (never in pointed fragments).
• You will need at least two people to install this unit properly.
WARNING
• Distributor is not responsible for any damage to the unit or personal property caused
by improper installation. If you disregard instructional warnings, you will void your
warranty and possibly deal with water damage.
CAUTION
• Carefully remove product from packaging and keep packaging until installation is
complete.
• Inspect all parts for damage; if there is damage to the unit prior to installation,
please contact customer service at the number provided in this guide.
• Install the shower on a oor that is level and able to accommodate the weight of the
unit and an occupant.
• Please, consult local building codes and compliance standards prior to installation
and ensure conformity.
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare
parts with package contents list and hardware contents list. If any part is missing or
damaged, do not attempt to assemble the product.
Estimated Assembly Time: Shower (60 min).
7

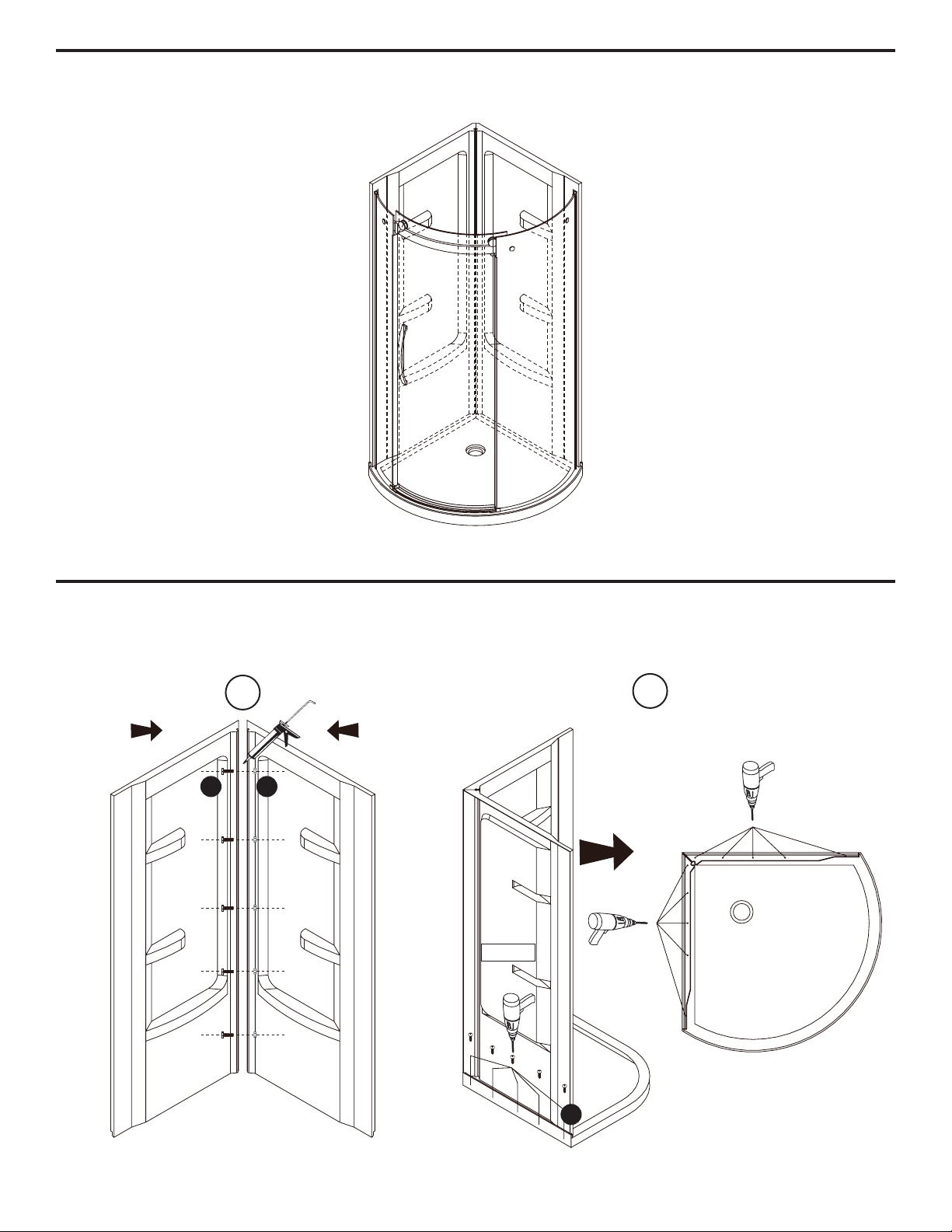

• This instruction is drawn up for an opening from left to right.
• Note that this shower is not reversible.
THIS SHOWER IS NOT REVERSIBLE
BASE AND ACRYLIC WALL INSTALLATION (OPTIONAL)
1
EE FF
2
Φ 3mm
BB
1. Using silicone, install the 2 acrylic walls (E) together. Secure the 2 walls with bolt (EE) and nut (FF).
2. Place the acrylic wall on the base, drill holes through the bottom of the wall into the base with a Φ3mm drill
bit and secure with screw (BB).
8

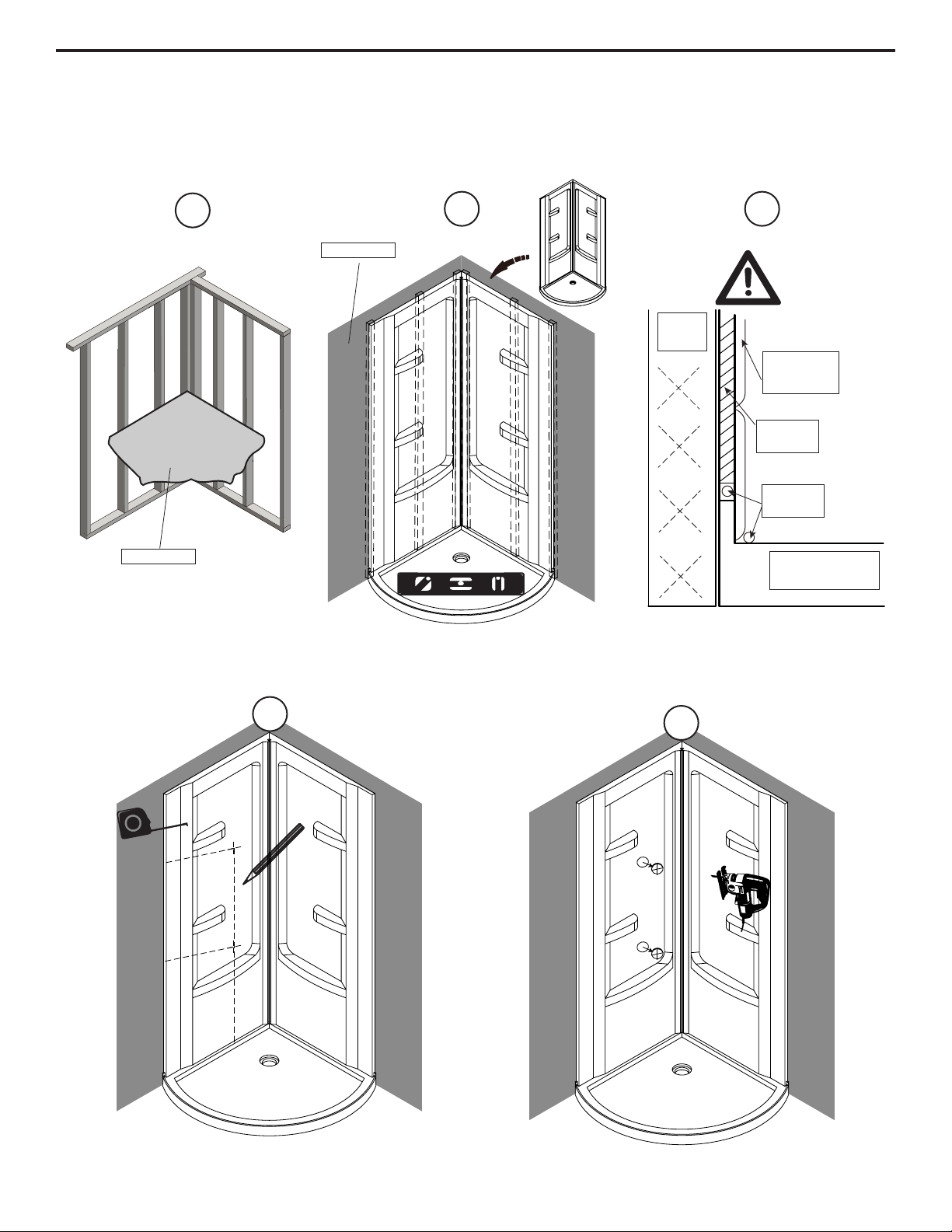

1-3. Place the acrylic wall and the base on the wall and level it.
4-5. Measure the position of the tap handle and the shower head, make the hole using a box saw.
BASE AND ACRYLIC WALL INSTALLATION (OPTIONAL)
12
Acrylic or
tile wall
Studs
Drywall
Silicone
Shower Base
Flange
3
Drywall
Drywall
45
9

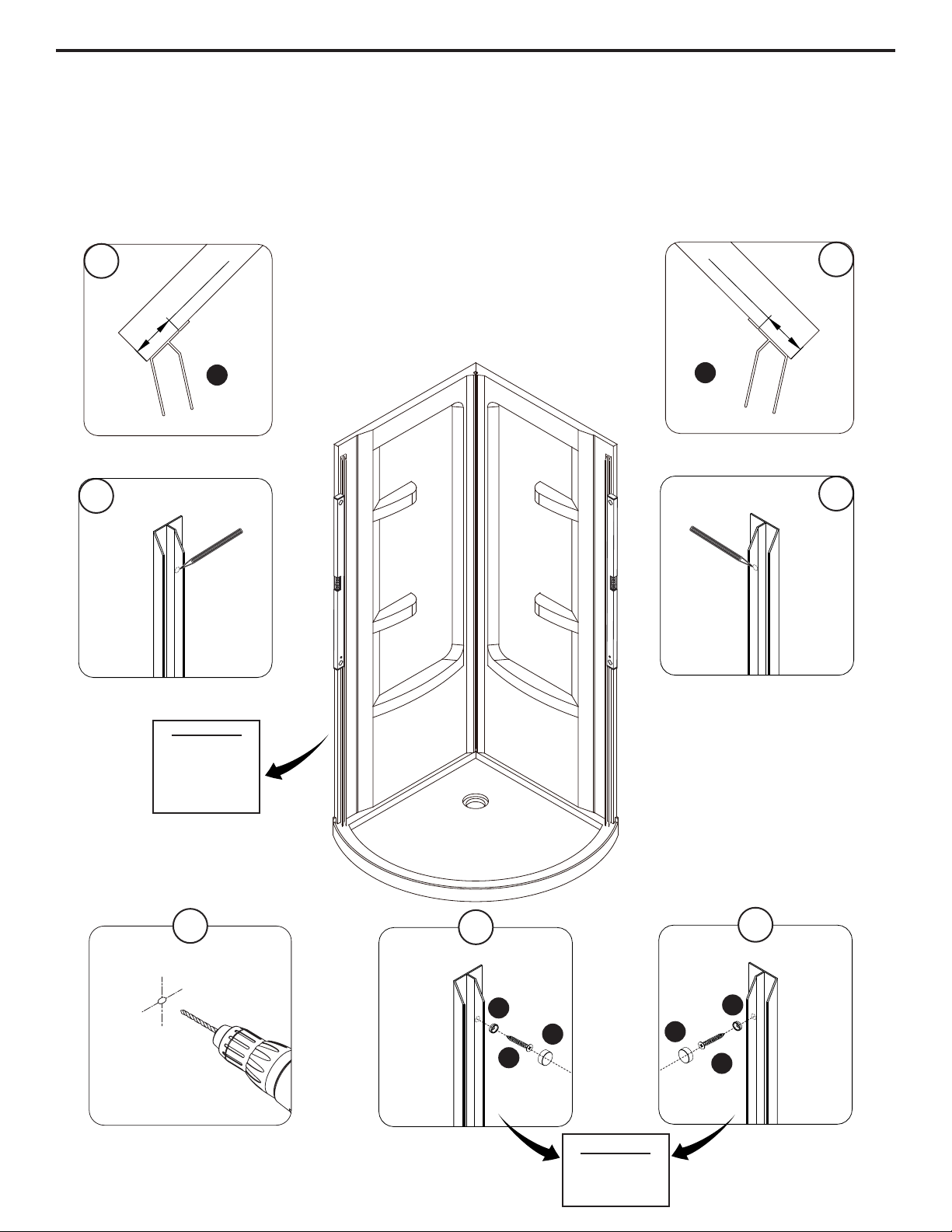

1-2. Ensure the base and wall are leveled. Place 2 metal tracks (B) approximately 25mm (1") from the edge of
the acrylic wall to the center of the holes of the metal track.
3-4. Mark the holes clearly on the wall.
5. Remove tracks and drill pilot holes in the marked locations with a Φ3mm drill bit.
6-7. Replace and secure the metal tracks (B) with screw (DD), tting (GG) and cap (HH). Do not overtighten.
WALL TRACKS INSTALLATION
3
25mm
DD
GG
2
B
1
4
25mm
Φ 3mm
B
567
HH
GG
DD
HH
Helpful Hint
Do not overtighten!
This may crack the
acrylic walls.
Helpful Hint
Make sure there
is a support stud
located behind the
drywall, behind the
tracks!
10

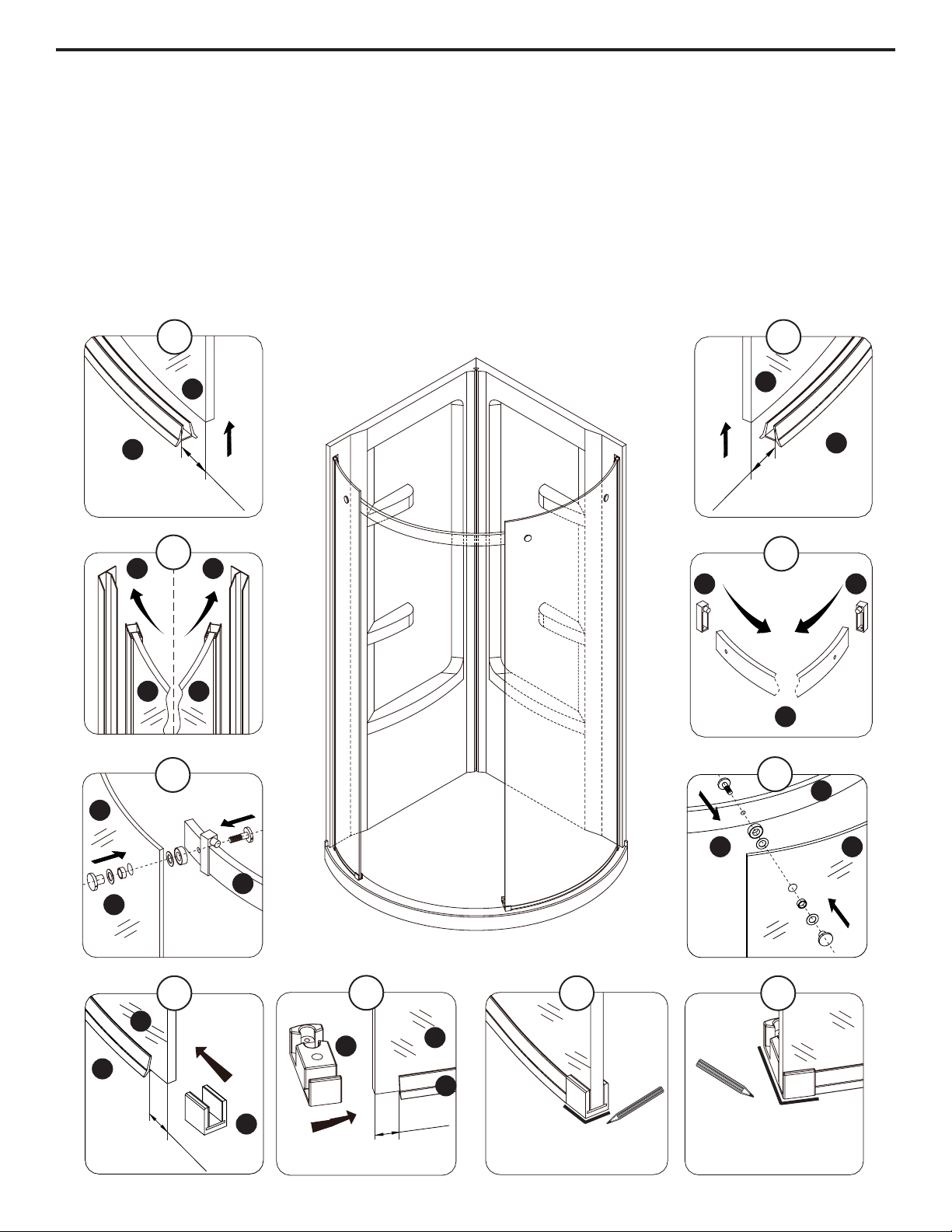

1-2. Insert the xed panel’s bottom seal strips (N and L) at the base of the xed glass panels (C and K). Cut the
surplus part with a cutter.
3. Insert the xed glass panels (C and K) into the metal tracks (B). Do not fully tighten it as further adjustments may be
required.
4. Slide the 2 stoppers (D) onto the support bar (F).
5-6. Loosely mount the support bar (F) onto the xed glass panels (C and K) using the brackets (G) and level it.
7-8. Smoothly slide the xed panel’s support bracket (R) at the bottom of the xed panel (C) and the guide (Q) at the
bottom of the xed glass panel (K) both without securing. Ensure that the plastic gaskets are in the bracket (R) and the
guide (Q) as these protect the glass panels.
9-10. Mark the positions of the support bracket (R) and the guide (Q).
FIXED PANELS INSTALLATION
25mm
N
C
25mm
K
L
B
C
B
K
D D
F
C
G
G
F
K
25mm
R
N
C
25mm
K
Q
34
F
56
78910
L
1 2
