OVE MELBA 32 Manuel utilisateur

MELBA 32

Opening

470 / 620

[18 1/2 / 24 7/16]

500

[19 11/16]

CSA Markings

2000

[78 3/4]

Measures: millimeter [inch]

2000

[78 3/4]

1219 / 1524

[48] / [60]

813

[32]

MODEL #MELBA-SP32

ITEM #0665837

2017-04-28

An installation video guide can be found on our Youtube channel.

2800 Etienne Lenoir, Laval

Québec H7R 0A3 Canada

Purchase date: _________________________ Product Tracking Reference: ________________________

Questions, problems, missing parts?

Before returning to your retailer, call our customer service department at

1-866-839-2888, 9 a.m. - 5 p.m., EST, Monday - Friday

CAUTION

Please carefully read the following important safety information before handling or installing this shower. There

is a risk of serious injury while handling this product. To minimize these risks, please note:

• Always wear safety glasses and gloves while handling.

• Always read and follow all the steps in the installation instructions.

• Inspect all contents and glass for damage before installation.

• Extreme caution should be taken while handling the glass during installation as the tempered glass may

shatter if in contact with a hard surface.

• Handle the tempered glass with caution! Improperly handling the glass can cause it to break suddenly in

small pieces (never in pointed fragments).

• Always take all precautions not to touch the tempered glass with any tools during the installation, or after

installed.

• Do not cut or modify the tempered glass as it will shatter if cut.

• Carefully remove product from packaging and keep packaging until installation is complete.

• Inspect all parts for damage; if there is damage to the unit prior to installation, please contact customer

service at the number provided in this guide.

• Installtheshoweronaoorthatislevelandabletoaccommodatetheweightoftheunitandanoccupant.

• Consult local building codes and compliance standards prior to installation and ensure conformity.

• Afterinstallation,andfromtimetotime,checktheglassfortandnishtoensurethatnothinghascome

loose since installation.

• Keep this installation manual for future reference.

NOTICE

• Anymodicationoralterationfromwhatisspeciedinthisinstructionmanualwillvoidanyandallwarranty

on this product.

• The distributor is not responsible for any damage to the unit or personal property caused by improper

installation. If you disregard instructional warnings, you will void your warranty and possibly deal with water

damage.

• Consult www.ovedecors.com for any additional information or question on this product’s installation.

PREPARATION

You will need at least two people to install this unit properly.

Before beginning assembly of product, make sure all parts are present. Compare parts with package contents

list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product.

Estimated Assembly Time: Shower (60 min).

SAFETY INFORMATION

TABLE OF CONTENT

PACKAGE CONTENT.......................................................................................................................................... 5

HARDWARE CONTENT...................................................................................................................................... 6

TOOLS REQUIRED............................................................................................................................................. 6

SHOWER REVERSIBILITY.................................................................................................................................. 7

WALL TO WALL MEASURES............................................................................................................................. 7

BASE INSTALLATION GUIDELINES (OPTIONAL)............................................................................................ 8

SHOWER FRAME INSTALLATION......................................................................................................................9

WALL TRACK INSTALLATION..........................................................................................................................10

DOOR INSTALLATION.......................................................................................................................................13

HANDLE INSTALLATION & SEALING.............................................................................................................. 15

LIMITED PRODUCT WARRANTY......................................................................................................................16

CARE AND MAINTENANCE..............................................................................................................................16

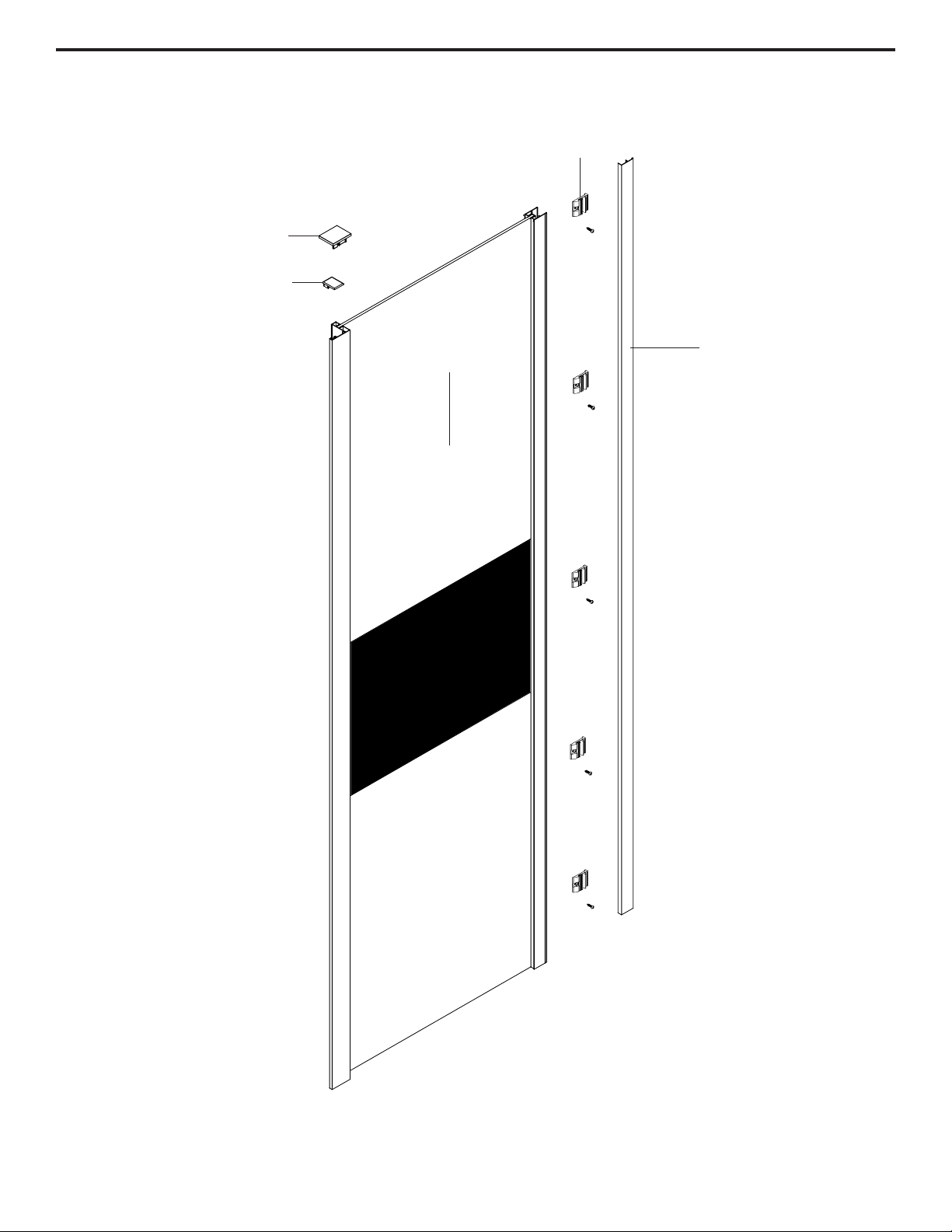

PACKAGE CONTENT

PART# DESCRIPTION QTY CODE

DReturn panel 199SG36002-WM

FAluminum cover 199STR3602-WM

IClamp 599SGC3601-WM

NDecorative cap (inner) 199SDS3602-WM

RDecorative cap (corner) 299SDS3603-WM

SHardware content 199SHW0066-WM

HARDWARE CONTENT

TOOLS REQUIRED

Pencil Screwdriver Level

Measuring Tape Silicone Rubber mallet Cutter

Safety glasses Ratchet

5mm Bit socket

Drill with ceramic tile bit

ø3mm (1/8 in) & ø8mm (5/16 in)

Screw

ST4x10mm

5+1

Ladder

• This instruction is drawn up for an opening from right to left (see illustration B).

• For an installation from left to right (see illustration A), use the same instructions, but switch around the

panels: mirror effect.

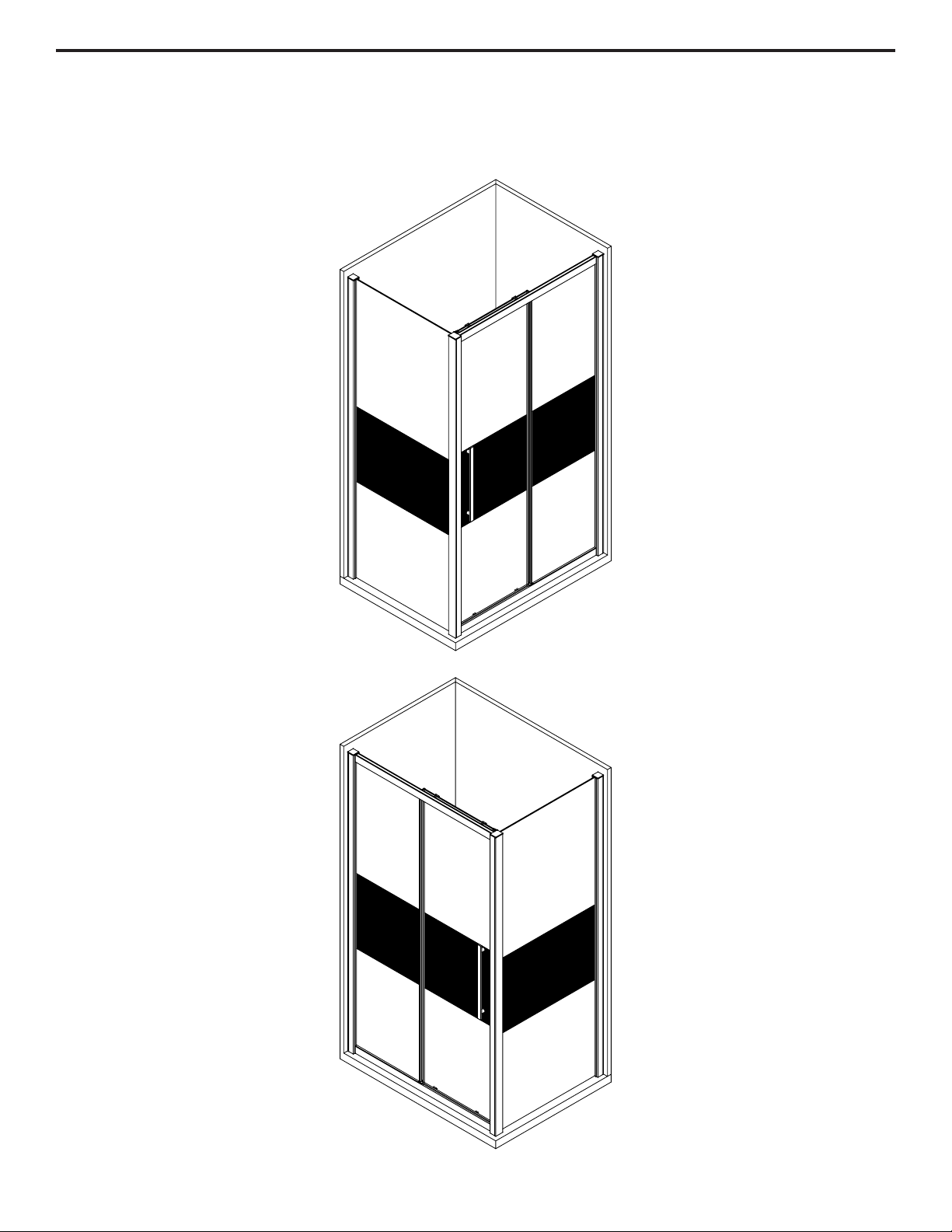

SHOWER REVERSIBILITY

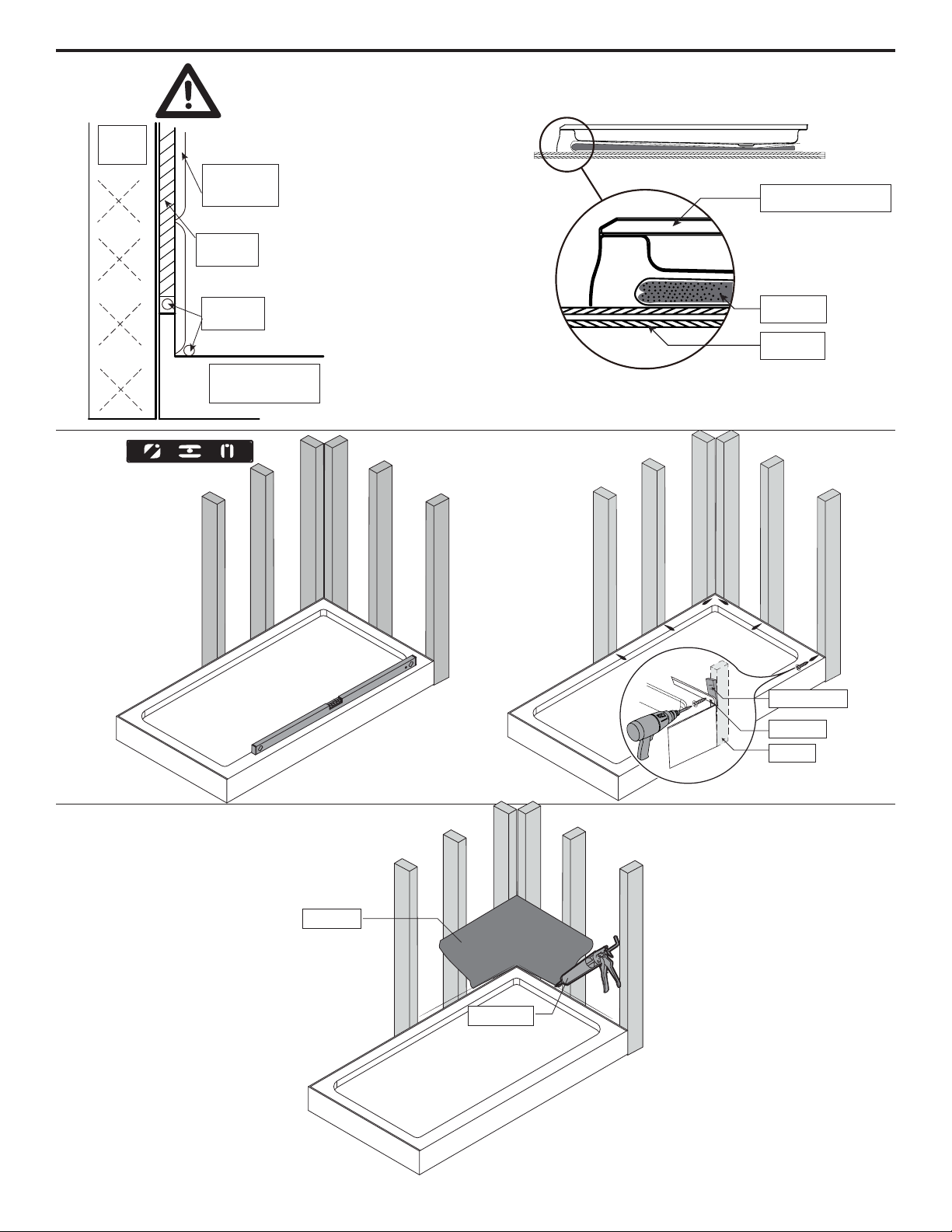

BASE INSTALLATION GUIDELINES (OPTIONAL)

1 2

Tile wall

Studs

Drywall

Silicone

Shower Base

Cement

Floor

Wood shim

Flange

Stud

Flange

Drywall

Silicone

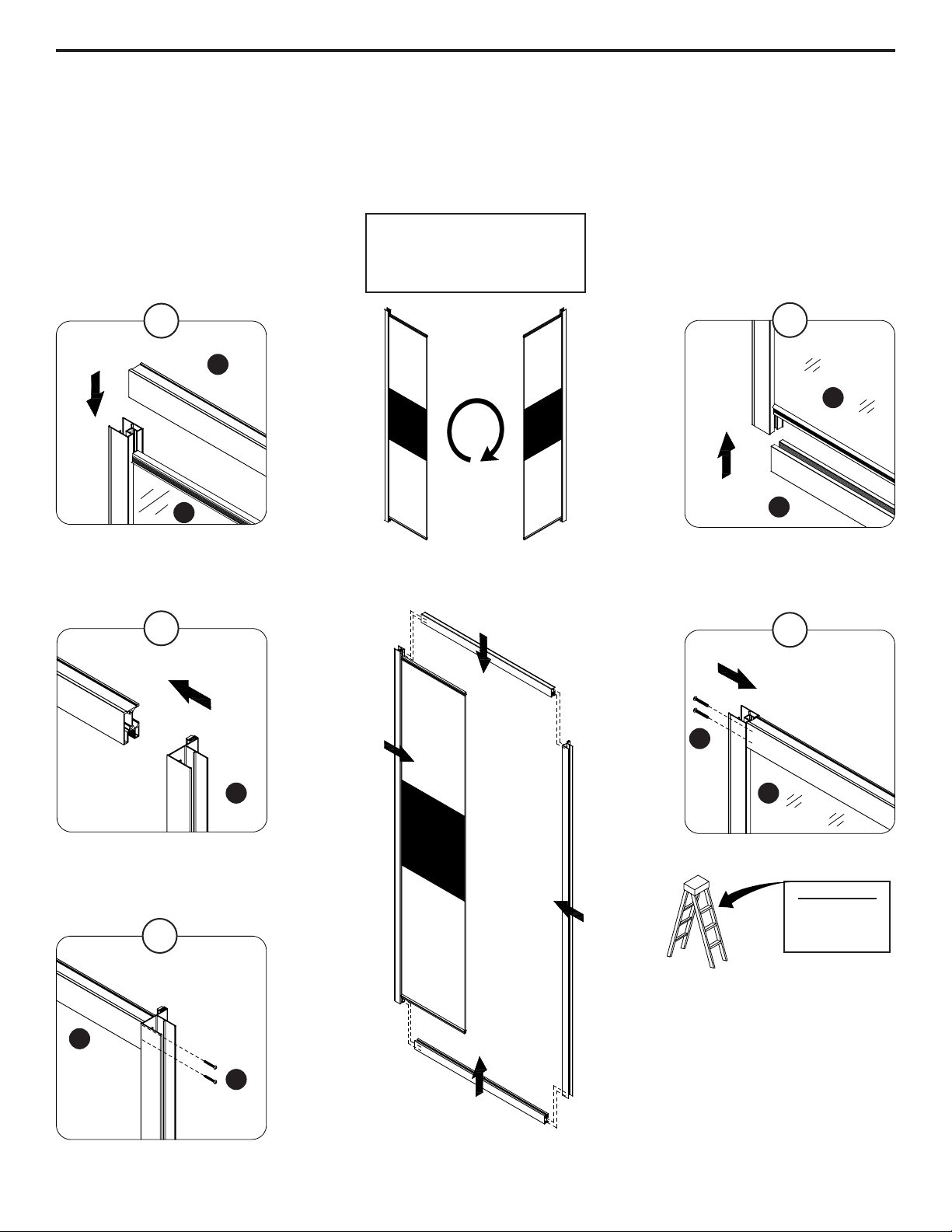

1-3.Placetheslidingbars(L)onthexedpanel(B)andthemagnetictrack(G).

4-5. Install the sliding bars (L) using screws (DD).

SHOWER FRAME INSTALLATION

Helpful Hint

Use a ladder

to facilitate the

installation.

Note:Rotatethexedpanel

when install it on the right side,

keep the silk screen outside.

1-2. Placethe2aluminumtracks(E)onthexedpanel(B)andthereturnpanel(D).

3. Place the return panel (D) onto the shower frame.

4. Place the whole shower frame onto the base.

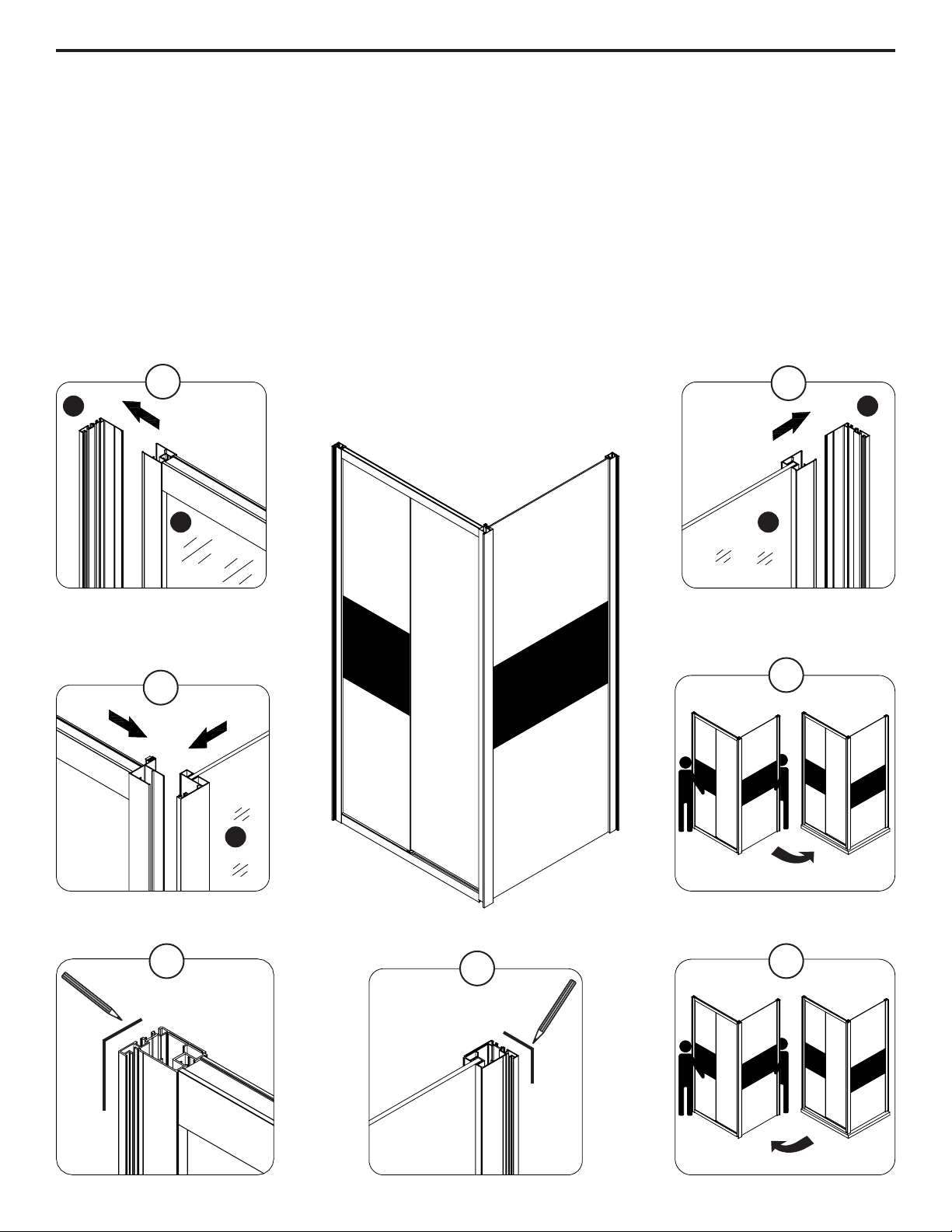

5-6. Mark the position of the wall tracks (E) on the wall.

7. Remove the shower frame.

WALL TRACK INSTALLATION

E E
