OTS FTD100 Manuel utilisateur
1
Quick Installation Guide
FTD100 / version 2.0
OT Systems Ltd. | www.ot-systems.com

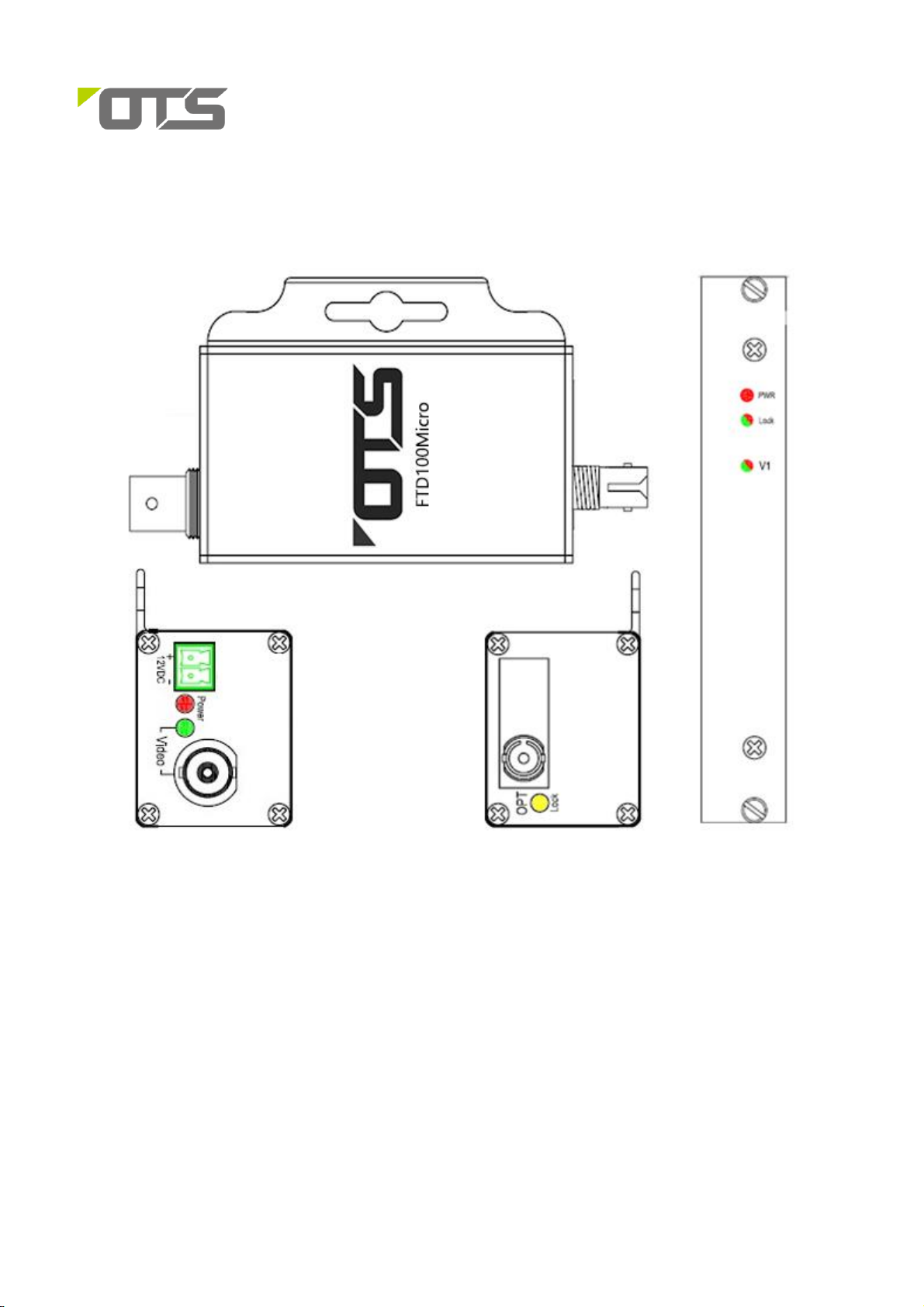

FTD100
Card Module 8-bit Digital 1-ch Video
Safety Instructions
Please be familiar with all information in this quick installation guide and product
manual before installation and operation.
Note 1: Each product contains a Class 1 laser or LED fiber optic emitter.The following safety precautions
apply.
Warning: Do not disconnect the fiber optic connector while the unit is powered up. Exposure to Class I
invisible optical radiation is possible when the internal fiber optic connector is disconnected while the unit
is powered up.
2
Quick Installation Guide
FTD100 / version 2.0
OT Systems Ltd. | www.ot-systems.com
Caution: Any access to the controls, adjustments, or performing operations, which are otherthanthose
facilitated and/or specified may result in hazardous radiation exposure.Permanent eye damage or other
bodily injuries may be resulted from such exposure even for only seconds.
Note 2: This assembly contains parts sensitive to damage by electrostatic discharge (ESD). ESD
precautionary procedures should be applied in the course of touching, removing or inserting parts or
assemblies.
Cable Connection Diagram
FTD100Micro-SST(SMT) FTD100-SSR(SMR)
3
Quick Installation Guide
FTD100 / version 2.0
OT Systems Ltd. | www.ot-systems.com
4
Quick Installation Guide
FTD100 / version 2.0
OT Systems Ltd. | www.ot-systems.com
Operational Guides
LED
COLOR
Descriptions
PWR
Red
Power
Illuminated when power is supplied to the transmitter.
LCK
Green
Fiber Optical
Link Status
Illuminated when an optical link has been set up
between the Transmitter and Receiver.
Red
Illuminated when an optical link hasn’t been set up
between the Transmitter and Receiver.
V1
Green
Video
Illuminated when video signals are received.
Video
Un-illuminated when video signals aren’t received.
Signal Ports:
OPT -
ST Optical Connector for Optic-fiber cable connection.
Manual Earth Green manual is available on our website www.ot-systems.com
