OTICON CHILI FITTING GUIDE

The Complete Guide to Fitting Oticon Chili using Genie 2010.2

This manual is made to help you achieve success

with Chili super power instruments

Reading this Manual

Genie 2010.2 or a later version must be used to program

Chili instruments.

The Quick Fit Guide takes you through an overview of the

instrument programming step by step.

For more detailed information on the individual fitting steps

and options please refer to the sections: ‘Connecting Chili to

Genie’ and ‘Programming Chili’.

The Programming section also includes a description of how

the ConnectLine applications are programmed, and later the

ConnectLine concept is explained.

The last section of this manual covers miscellaneous

service and maintenance instructions.

Table of Contents

Introducing the Chili

Connecting Chili to Genie

Programming Chili

ConnectLine Concept

Service and Maintenance

4OTICON CHILI FITTING GUIDE 5

Fitting flow for severe and profound hearing losses

It is just as easy and quick to fit Chili super power instruments

as other Oticon hearing instruments. To meet the special

requirements of SP hearing instruments – and users – the Chili

Fitting screen includes specific tools like the Overall Loudness

Trimmer, as well as the recommended fitting flow varies a little

from that of our other products. Use this Quick Fit Guide to get

an overview of the fitting flow.

Chili is programmed using programming shoes and Oticon

programming cable #3 (right and left).

You can also use nEARcom without cables to fit Chili instru-

ments.

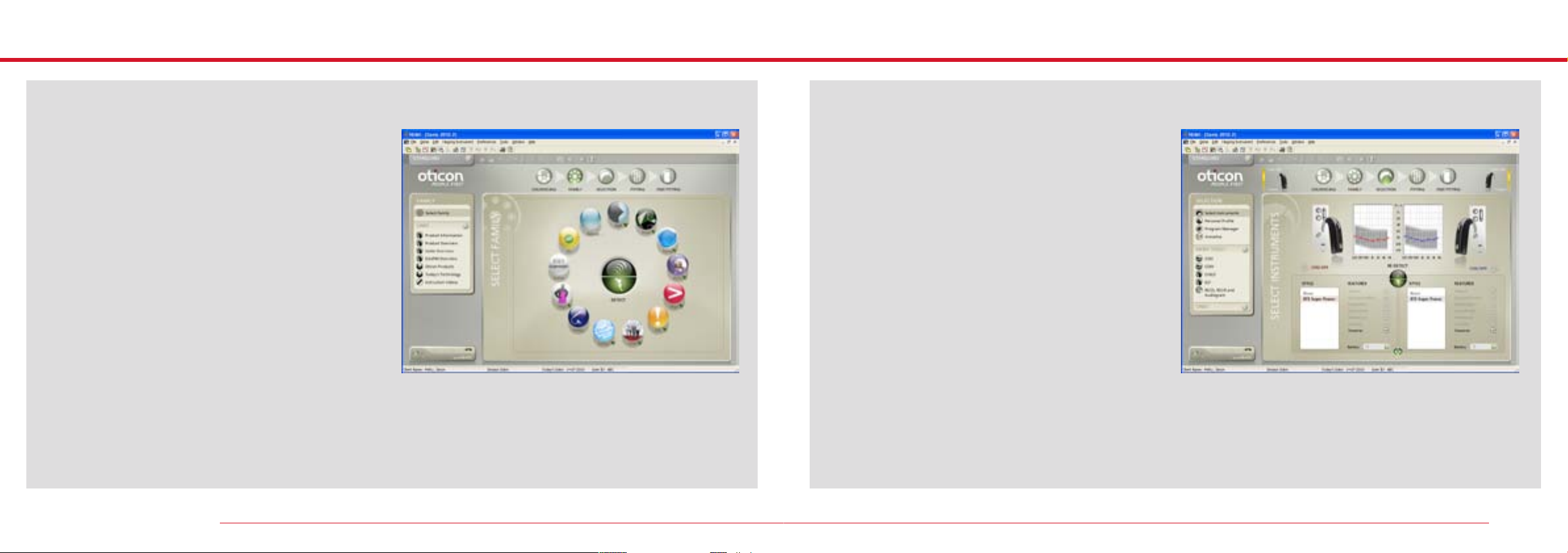

Navigating in Genie

Horizontal navigation: Organizer

Use the Organizer to navigate through the fitting flow.

Vertical navigation: Task Pane

In each organizer step there is a Task Pane providing access to

tools and links related to where you are in the fitting process.

Quick Fit Guide

6OTICON CHILI FITTING GUIDE 7

FAMILY

Detect instrument

Click Detect to detect connected instruments.

Click Continue to go to Selection.

Note: Make sure the instrument volume control is set to a

position between step 1 and 4 during detection (and not in

stand-by mode).

SELECTION

Personal profile

Check Age

Complete Hearing Instrument Experience

Answer the Auditory Resolution Question

Acoustics

Verify that the settings of Vent, Hook and Tubing is equal to

the actual earmould vent, hook and tubing/insert.

8OTICON CHILI FITTING GUIDE 9

FITTING

Feedback Manager

Run feedback measurement to establish feedback limits.

Overall Loudness Trimmer

Use the Overall Loudness Trimmer to quickly adjust gain and

MPO and hereby get a quick acceptance of loudness.

MPO

Evaluate the MPO and reshape according to your client’s needs

(if necessary).

Click on MPO and make any changes using +/-

To make the correction binaurally press the link button.

Program Manager (telephone options etc.)

By default, one program is available: P1 General (M)

To add extra programs: click and select additional program

from the options menu.

END FITTING

Buttons and Indicators

Configure the program button and demonstrate the beep

indicators.

Save, Program and Exit

Click Save, Program and Exit before disconnecting the hearing

instruments.

Contents

Introducing the Chili Family 12

Chili Style 13

The Chili Fitting Range 14

Connecting Chili to Genie 18

nEARcom 19

Programming Chili 21

Structure in Genie 21

Family Step 22

Selection Step 23

Fitting Step 25

End Fitting Step 37

ConnectLine Concept 46

Streamer and Mobile Phones 51

Streamer and the TV Adapter 54

Streamer and the Phone Adapter 56

Audio Streaming 58

Streamer Firmware Upgrade Tool 61

How amd when to upgrade Streamer 61

Service and Maintenance 63

12 OTICON CHILI FITTING GUIDE 13

Introducing the Oticon Chili Family

Oticon Chili is a super power instrument for people with

greater hearing loss, ranging from moderately-severe to

profound. Oticon Chili is powered by the RISE 2 wireless

platform.

Oticon Chili introduces new and advanced approaches to

processing of speech signals, noise reduction and directional-

ity that are designed to give the user a better ability to follow

conversations in noise.

Audiology

Oticon Chili introduces Speech Guard in the super power

category, consequently offering a unique ability to achieve

maximal audibility and preserve vital speech information for

the individual. Speech Guard works to maintain signal fidelity

to improve the ability to follow speech even in complex

environments.

Oticon Chili also manages noise and sudden loud sounds

in a way well suited for people with a greater hearing loss.

The effective combination of the unique Spatial Noise

Management and the Split Directionality system intelligently

secure that clear, natural speech can be delivered at audible

and comfortable levels even in demanding situations.

DSEsp – Oticon’s proprietary super power rationale – is

designed to provide optimal loudness levels for varying speech

inputs across frequencies and thereby providing the desirable

amplification and the maximum clarity for severe to profound

hearing losses.

Connectivity

ConnectLine is an embedded part of Oticon Chili and offers the

users intuitive wireless access to modern entertainment and

communication appliances like phone, mobile and TV.

Design

Oticon Chili is a discrete BTE 13 available in 7 colours. A

completely new construction method leads to outstanding

robustness and resistance to tear and wear. Oticon Chili is

designed with double protection – inside out – to protect the

instrument from moisture, sweat, dirt and shocks.

14 OTICON CHILI FITTING GUIDE 15

Chili Style

• Slim, elegant design for discreet comfort

• Dual microphone system for advanced directionality options

• Transparent hook in two sizes

• Optional damping element

• Build in Telecoil

• 13 size battery

• Connector for DAI and FM

• Program button with mute option and wireless coordination

• Volume control with level indicator, end stop and mute option

• Water repellent nano coating to prevent moisture from

entering the instrument

• Internal permanent sealing to protect electronic parts

Chili SP9 Chili SP7 Chili SP5

Speech Guard –

Spatial Noise Management – –

Binaural DFC2

Binaural Processing – –

Binaural Synchronisation – –

Binaural Coordination

My Voice – –

Adaptive Directionality Multi-band Multi-band Single-band

Automatic DIR Tri-mode Tri-mode Dual-mode

Noise Management TriState TriState Modulation

Power Bass (streaming) – –

Music Widening (streaming) – –

Chili SP9 Chili SP7 Chili SP5

Fitting Options

Streamer and ConnectLine enabled

nEARcom Cordless enabled

Overall Loudness Trimmer

In-situ Audiometry

DSEsp rationale

DSL v 5.0a m[i/o]

NAL RP linear rationale

NAL- NL1 rationale

Fitting bands 9 8 6

Identities 4 4 1

Memory (datalogging)

AutoPhone program

Bandwidth 6,5 kHz 6,5 kHz 6,5 kHz

Analogue Volume Control with mute

DAI and FM options

T-coil

Program button

16 OTICON CHILI FITTING GUIDE 17

Canal, Canal lock and Half shell should only be used with sound

tube through (insert is not recommended).

Skeleton and Full shell can be used with tube through or insert

at your preference.

Soft material could be used for tighter seal (beware though,

soft moulds are usually a bit oversized and they insulate more,

thus less comfortable for many of users).

It is important to inspect the ear properly to find the optimal

mould for each individual user (for comfort and no acoustical

feedback).

A correctly made impression is fundamental for an optimal ear

mould.

Canal

Canal lock

Canal shell

Skeleton

Full shell

Fitting Range

The Chili Fitting Range

Custom Moulds

Half shell

18 OTICON CHILI FITTING GUIDE 19

Connecting the Programming Shoe

1. Open the battery door on the instrument and slide the

programming shoe into the guide as shown. (Make sure the

battery is fresh).

2. Close the battery door and attach the HI-PRO or

NOAHlink cable.

Connecting Chili to Genie

nEARcom

Cordless programming

Wired programming

For greater flexibility and comfort use nEARcom without

cables to fit Chili instruments.

Detect the instruments

1. Switch on the instruments using fresh batteries.

2. Lay nEARcom on the table and place the instruments

in the middle of the neck loop.

3. Click Detect for cordless programming.

Note: make sure the instrument volume control is set to a

position between step 1 and 4 during detection.
