iConverter®5-Module Power Chassis
User Manual
Product Overview
The iConverter 1U (1.75 inch) 5-Module Power Chassis is powered by up to two (2) hot-
swappable and redundant universal AC or DC power supplies and can accommodate
up to 5 iConverter modules. It is ideal for enterprise Local Area Network (LAN) or
Metropolitan Area Network (MAN) applications where managed media converters with
high density and small rack-footprint are important.

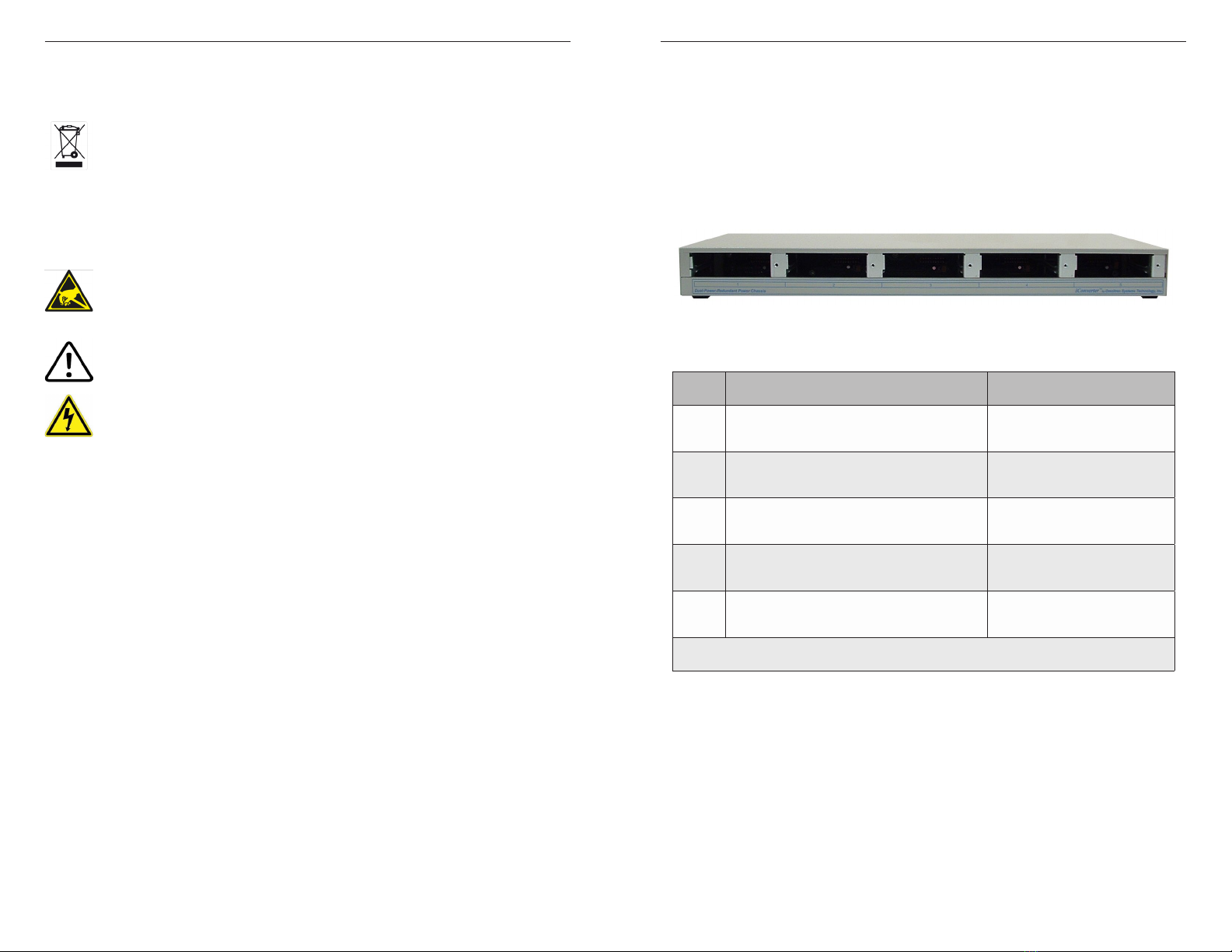

iConverter 5-Module Chassis (Shown without modules installed)
This User Manual describes the following models:
Model
Number Model Type Power Description
8220-x 5-Module Chassis with
33 watt AC Power Supply
IEC 320 Socket,
100 to 240VAC, 50/60Hz,
0.5A @ 120VAC,
8221-x 5-Module Chassis with
66 watt High Airow AC Power Supply
IEC 320 Socket,
100 to 240VAC, 50/60Hz,
1.5A @ 120VAC,
8225-x 5-Module Chassis with
33 watt 48 VDC Power Supply
Direct DC 3-Pin Terminal,
+/- 36 to 60VDC,
0.7A @ 48VDC
8226-x 5-Module Chassis with
33 watt 24 VDC Power Supply
Direct DC 3-Pin Terminal,
+/- 18 to 36VDC,
1.4A @ 24VDC
8227-x 5-Module Chassis with
66 watt High Airow 48 VDC Power Supply
Direct DC 3-Pin Terminal,
+/- 36 to 60VDC
2.0A @ 48VDC
x indicates the number of power supplies installed in the chassis (x = 1 or 2).
For a spare power supply (no chassis), x = 9
Use the Power Calculator to verify the iConverter chassis power supplies will meet the
requirements of the installation.
Depending on the installed model type and the number of modules installed, the High
Airow power supply may be required. See Application Notes for XG+ / XGT+ and
GM4.
High Airow power supplies (66W) cannot be installed in the same chassis with other
types of power supplies.
Mechanical Description
The iConverter 5-Module chassis consists of two AC or DC power supplies. As can be
seen from the model table on the previous page, the 5-Module chassis models have
been pre-congured with two power supplies. The power supplies provide power to
the chassis’ 5 backplane connectors.
040-08220-001N 9/22
Page 5
Backplane Architecture
The chassis features 5 module slots numbered 1 (left-most positioned slot) through 5
(right-most positioned slot).
Backplane A and Backplane B provide Ethernet connectivity between adjacent slots.

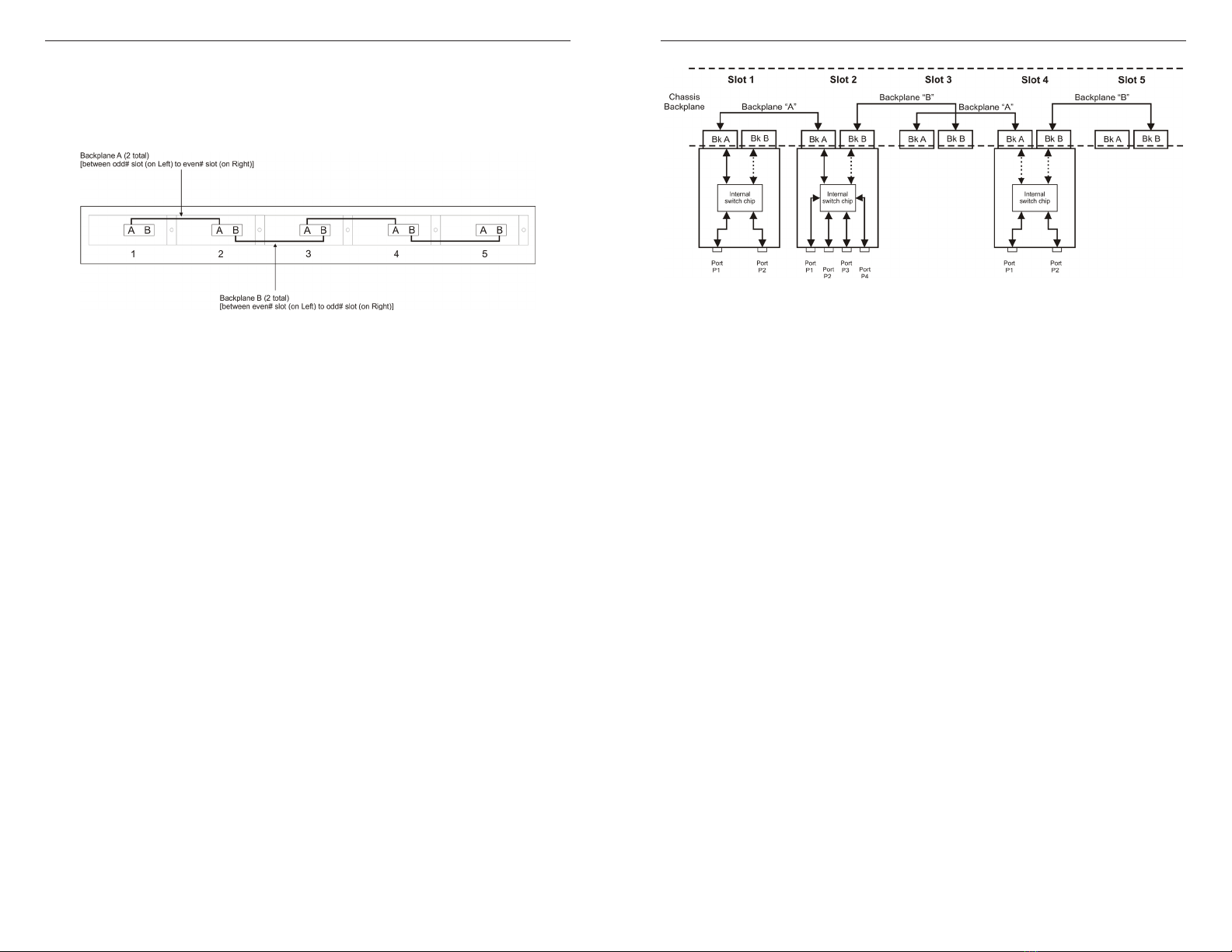

iConverter 5-Module Chassis Backplane Architecture
The gure above depicts the backplane architecture of the chassis showing Backplane
A and Backplane B connectivity.
Backplane A connects odd numbered slots on the left to even numbered slots on the
right (i.e. 1-2, 3-4).
Backplane B connects even numbered slots on the left to odd numbered slots on the
right (i.e. 2-3, 4-5).
When modules with Backplane capabilities are inserted into adjacent chassis slots,
they can connect to each other via the Ethernet backplanes when enabled, creating a
exible network architectures.
This chassis architecture facilitates a variety of applications including unmanaged, in-
band managed and multi-port congurations.
Application Example
The gure below illustrates the connectivity of Backplane A and Backplane B when
multiple modules are installed in the chassis. Modules supporting backplane connectivity
(such as the iConverter 10/100M2 and iConverter 4TxVT) can be connected via the
appropriate backplane creating a multi-port device. The gure show a iConverter
10/100M2 module is installed in slot 1 and a iConverter 4TxVT module is installed in
slot 2. Both modules have Backplane A enabled. Utilizing the Ethernet backplane
between the slots, a 5+1 switch (5 RJ-45 ports and 1 ber port) is created.
Page 6
Backplane Connectivity
Unpacking, Visual Inspection and Inventory
Review the contents. The following items should be included:
• iConverter 5-Module Power Chassis
• 2 Rack mounting “L” brackets and 8 screws
• 1 installed power supply: 8220-1 (AC) / 8225-1 (48VDC) / 8226-1 (24VDC)
• 2 installed power supplies: 8220-2 (AC) / 8221-2 (AC) / 8225-2 (48VDC) /
8226-2 (24VDC) / 8227-2 (48VDC)
• One power cord for each AC Power supply
• User Manual
Inspect equipment and immediately report any damage or discrepancies to Omnitron
at 949-250-6510. If equipment is damaged, do not apply power to the equipment.
Rack Mounting and Grounding the Chassis
Prepare the chassis for proper grounding to the ofce equipment.
The chassis is suitable for installation as part of the Common Bonding Network (CBN)
per GR-1089-CORE, Issue 4 (sec 9.3).
Verify the rack is properly grounded to Earth ground.
When rack mounting the chassis to a 19” standard rack, rst attach the two enclosed
“L” shaped rack mounting brackets to the chassis using the enclosed screws.
Mount and attach the chassis (after the mounting brackets are installed) to the rack
using the appropriate rack mounting screws (not provided).
The operating temperature of this equipment is 0 to 50 degrees C or -40 to 60 degrees
C depending on the model number. If installed in a closed or multi-unit rack assembly,
the operating ambient temperature of the rack must not exceed the maximum rated
temperature for the chassis used.
Installation of the equipment should be such that the air ow in the front and back of
the unit is not compromised or restricted.
Installing this equipment into a rack in such a way as to make it unstable may cause
injury or death. Always make sure that the rack you are installing this equipment into
Page 7
is properly secured, stable, balanced and designed to carry the weight and weight
distribution of this equipment.
Never use this equipment to carry any weight except its own. Never use it as a shelf
to support the weight of other equipment.
Installing Modules
Carefully slide the modules into an open slot in the chassis. Align the modules with the
installation guides and ensure that the modules are rmly seated against the backplane.
Secure the modules by fastening the front panel thumbscrew (push in and turn clockwise
to tighten) to the chassis front.
AC Powered Chassis Site Preparation and Cabling
Power source should be available within 5 ft. of the chassis and installed per the National
Electrical Code, ANSI/NFPA-70.
The 8220-1 AC power supply requires 100-240VAC, 50/60Hz @ 0.5 Amps and the
8221-2 power supplies require 100-240VAC, 50/60Hz @ 3.0 Amps (1.5 Amps each).
Appropriate overloading protection should be provided on all AC power source outlets
utilized.
Attach the AC power cords (provided for each Power Supply) to the back of each Power
Supply. Connect the AC power cords to the AC outlets and switch the outlets ON.
The fans should immediately begin to run and any installed iConverter modules will
illuminate the power LED.
WARNING
High Airow power supplies (66W) cannot be installed
in the same chassis with other types of power supplies.
WARNING!!!
NEVER ATTEMPT TO OPEN THE CHASSIS OR SERVICE THE
POWER SUPPLYORFAN MODULE. OPENING THE CHASSIS
MAY CAUSE SERIOUS INJURYOR DEATH.
THERE ARE NO USER REPLACEABLE OR SERVICEABLE
PARTS IN THIS UNIT.

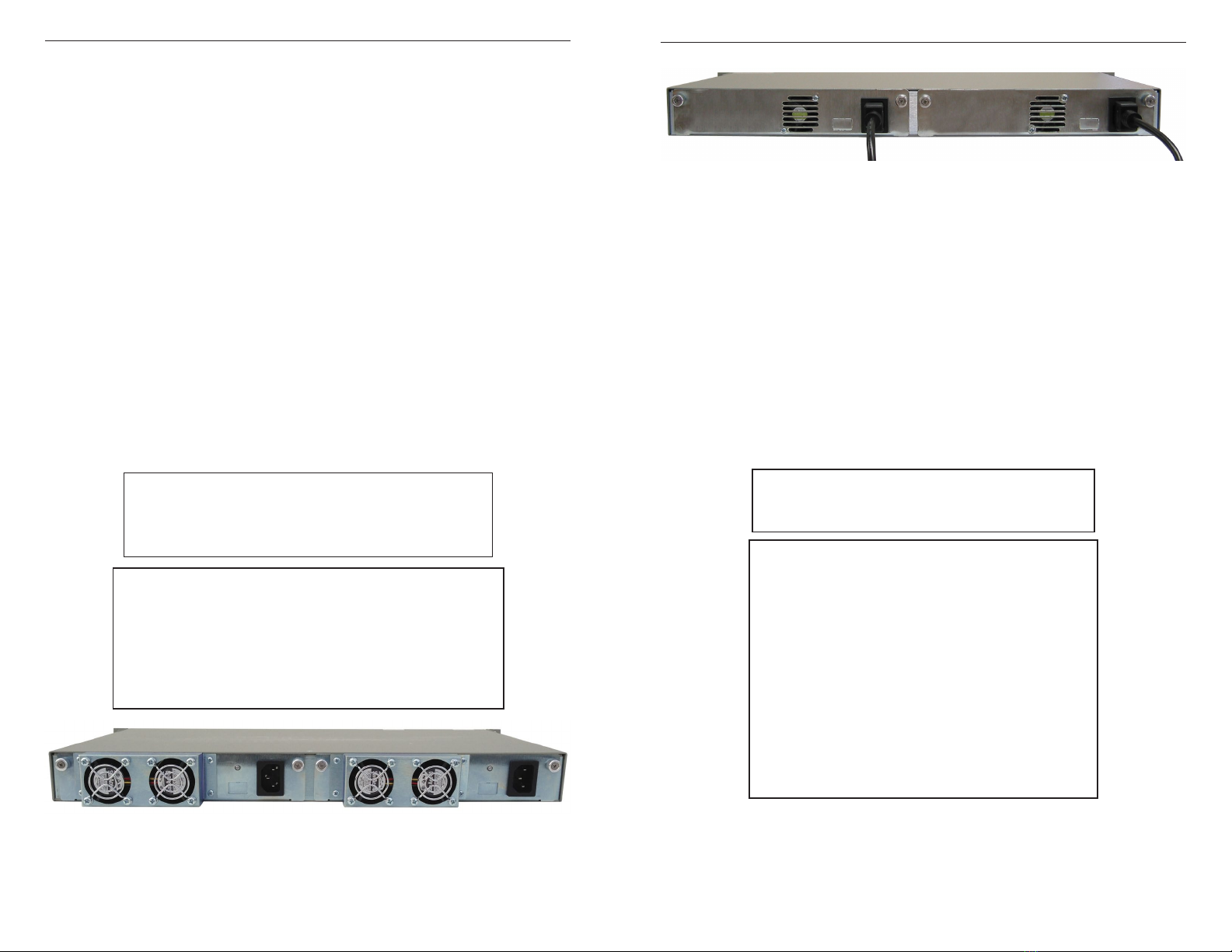

iConverter 5-Module Chassis with Installed
High Flow (66 Watt) AC Power Supplies
Page 8

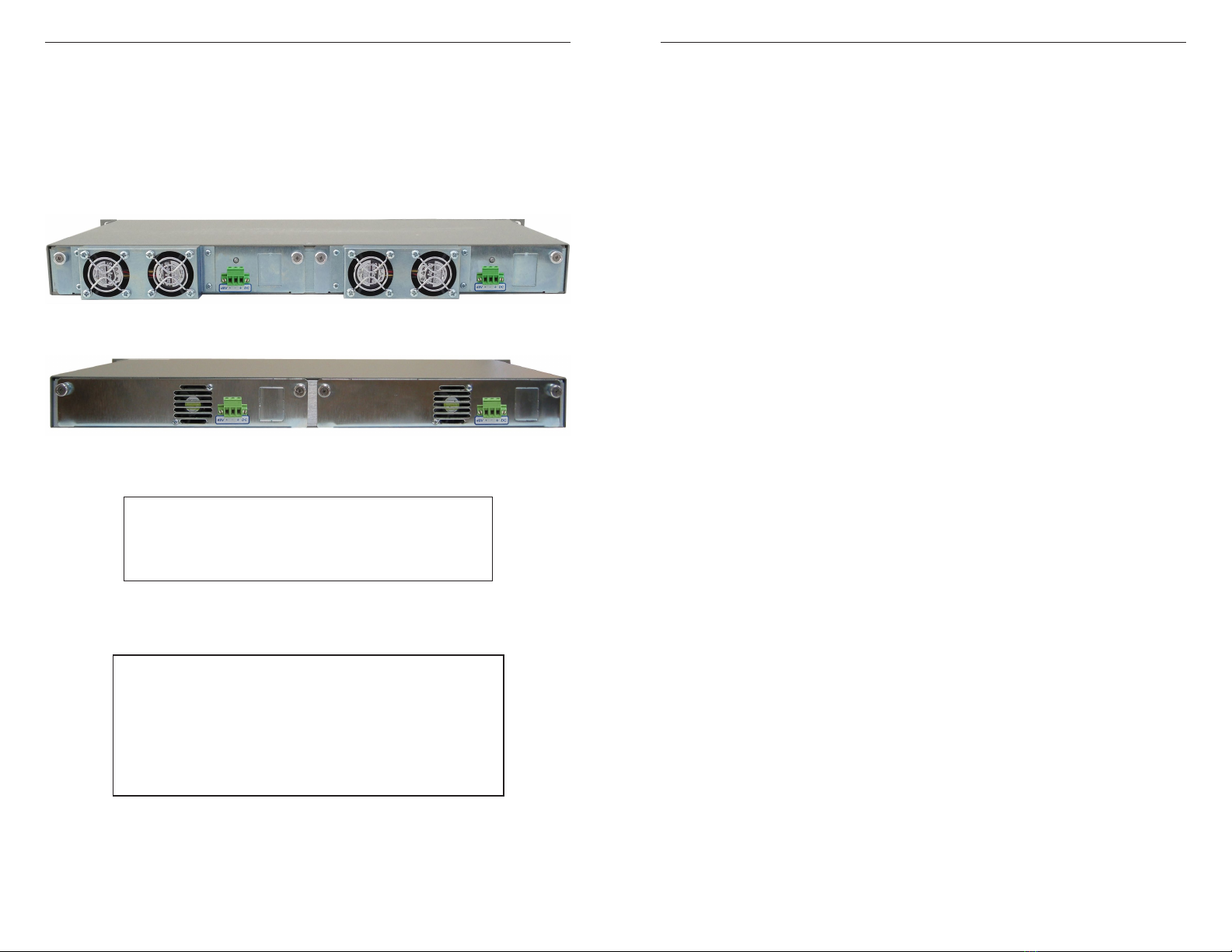

iConverter 5-Module Chassis with Installed
33 Watt AC Power Supplies
DC Powered Chassis Site Preparation and Cabling
The over current protection for the connection with centralized DC shall be provided in
the building installation and shall be a UL listed breaker rated at 20 Amps, and installed
per the National Electrical Code, ANSI/NFPA-70.
The 8225-1 requires 36-60VDC @ 0.7 Amps and the 8227-2 requires 36-60VDC @
4 Amps (2 Amps each). The 8226-1 requires 18-36VDC @ 1.4Amps. Appropriate
overloading protection should be provided on all DC power source outlets utilized.
Appropriate overloading protection should be provided on all DC power source outlets
utilized.
NOTE: The DC power battery return (BR) terminal or positive terminal must be
grounded at the source end (power feed or DC mains power end). The DC power
BR input terminal is not connected to the equipment frame (chassis), so it is
congured as DC-I according to the GR-1089-CORE, Issue 4 (sec 9.8.3) denitions.
WARNING: OnlyaDC power source that complies with
safety extra low voltage (SELV) requirements can be
connected to the DC-input power supply.
WARNING REGARDING EARTHING GROUND:
o
o
o
o
This equipment shall be connected to the DC supply
system earthing electrode conductor or to a bonding
jumper from an earthing terminal bar or bus to which the
DC supply system earthing electrode is connected.
This equipment shall be located in the same immediate
area (such as adjacent cabinets) as any other equipment
that has a connection between the earthed conductor of
the same DC supply circuit and the earthing conductor,
and also the point of earthing of the DC system. The DC
system shall not be earthed elsewhere.
The DC supply source is to be located within the same
premises as this equipment.
There shall be no switching or disconnecting devices in
the earthed circuit conductor between the DC source and
the earthing electrode conductor.
Locate the DC circuit breaker and switch the circuit breaker to the OFF position.
Prepare a power cable using a three conductor insulated wire (not supplied) with 12AWG
to 14AWG thickness. Cut the power cable to the length required.
Strip approximately 3/8 of an inch of insulation from the power cable wires.
Page 10
Hot Removal of AC Power Supply
Determine which power supply is faulty by observing the status LEDs on the iConverter
NMM2 or viewing the status from the network management software.
Power Supply 1 (PS1) refers to the power supply on the right (as viewed from the front).
Power Supply 2 (PS2) refers to the power supply in the middle.
LED being ON indicates that the power supply is supplying power. LED being OFF
indicates that the power supply is not present. Blinking LED indicates that a power
supply is installed but does not supply power because it is not properly connected to
a power source or because it is faulty.
Once you determine that your AC plug is connected properly to an AC wall outlet, and
the power supply LED is still not ON, determine which is the failing power supply unit
and proceed to the next step.
Remove the AC power cord of the faulty power supply from the wall outlet.
Remove the AC power cord of the faulty power supply from the power supply unit.
Using a screwdriver, loosen the 2 thumb screws securing the power supply to the main
chassis.
Remove the failing power supply.
Hot Installation of AC Power Supply
Unpack the power supply carefully. Inspect for any damage. If any damage is observed,
do not use the power supply and call 949-250-6510 to report the damage immediately
and request a replacement unit.
Align the guide rails on the chassis with the rails on the bottom of the power supply;
Slide the power supply in, ensuring that the power supply is seated rmly against the
backplane and tighten the thumb screws securely with a screwdriver.
Plug the AC cord to the back of the power supply.
Plug the AC cord to the AC wall outlet.
Watch and listen to the fan in the rear of the power supply to ensure it is powered.
Save the packing material of the new power supply for return shipment of the faulty
power supply or for future reuse.
Hot Removal of DC Power Supply
Determine which power supply is faulty by observing the status of the LEDs in the
iConverter NMM2 or viewing the status from the network management software.
Power Supply 1 (PS1) refers to the power supply on the right (as viewed from the front).
Power Supply 2 (PS2) refers to the power supply in the middle.
LED being ON indicates that the power supply supplies power. LED being OFF indicates
that the power supply is not present. Blinking LED indicates that a power supply is
installed but does not supply power because it is not properly connected to a power
source or because it is faulty.
Once you determine that your DC source is connected properly, and the power supply
LED is still not ON, determine which is the failing power supply unit and proceed to
the next step.
Page 9
Connect the ground wire to the ground terminal on the chassis by fastening the stripped
end to the DC power connector (ground).
Connect the power cables to the chassis by fastening the stripped ends to the DC
power connector.
WARNING: Note the wire colors used in making the positive, negative and ground
connections. Use the same color assignment for the connection at the circuit breaker.
Connect the power wires to the circuit breaker and switch the circuit breaker ON.
iConverter 5-Module Chassis with Installed
High Flow (66 Watt) DC Power Supplies
iConverter 5-Module Chassis with Installed
33 Watt DC Power Supplies
WARNING
High Airow power supplies (66W) cannot be installed
in the same chassis with other types of power supplies.
Power Supply Replacement
To remove power from the chassis, remove power cord from all power supplies.
WARNING!!!
NEVER ATTEMPT TO OPEN THE CHASSIS OR SERVICE THE
POWER SUPPLYORFAN MODULE. OPENING THE CHASSIS
MAY CAUSE SERIOUS INJURYOR DEATH.
THERE ARE NO USER REPLACEABLE OR SERVICEABLE
PARTS IN THIS UNIT.
The power supplies are hot swappable and can be replaced without shutting the chassis
down. However, when removing and replacing a power supply unit, the following
steps must be strictly followed in order to prevent serious injury or death or serious
damage to your equipment. Removal of power supplies or cards will result in access
to hazardous electricity.
Page 11
Locate the DC circuit breaker, and switch the circuit breaker to the OFF position.
Remove the DC power cables of the faulty power supply from the iConverter power
supply unit.
Using a screwdriver, loosen the 2 thumb screws securing the power supply to the main
chassis.
Remove the failing power supply.
Hot Installation of DC Power Supply
Unpack the power supply carefully. Inspect for any damage. If any damage is observed,
do not use the power supply and call 949-250-6510 to report the damage immediately
and request a replacement unit.
Align the guide rails on the chassis with the rails on the bottom of the power supply;
slide in the power supply ensuring that the power supply is seated rmly against the
backplane and tighten the thumb screws securely with a screwdriver.
Locate the DC circuit breaker and make sure that the switch is in the OFF position.
Reconnect the DC power source to the iConverter power supply.
Locate the DC circuit breaker and switch the circuit breaker to the ON position.
Watch and listen to the fan in the rear of the power supply to ensure it is powered.
Save the packing material of the new power supply for return shipment of the faulty
power supply or for future reuse.
Page 12
Specications
5-Module Chassis Common Specications
Model Number All Models
Module
Capacity 5
Power Supply
Capacity 1 or 2 Hot-Swappable Power Supplies
Regulatory
Compliances UL, CE, FCC Class A, NEBS Level 3, RoHS, WEEE, REACH
Dimensions
W x D x H 17.5” x 9.0” x 1.75” (444.5 mm x 228.6 mm x 44.5 mm)
Weight 1 Power Supply
7.5 lbs (3.40 kg)
2 Power Supplies
9.0 lbs (4.08 kg)
Temperature
Commercial: 0 to 50°C
Wide: -40 to 60°C
Extended: -40 to 75°C (DC models only)
Storage: - 40 to 80°C
Humidity 5 to 95% (non-condensing)
Altitude -100m to 4,000m
Warranty Lifetime warranty with 24/7/365 free Technical Support
AC Power Specications
Description 5-Module AC 5-Module AC
High Airow
Model Number 8220-x 8221-x
Input Power
Requirements
(typical)
100 to 240VAC
50/60Hz
0.5A @ 120VAC
100 to 240VAC
50/60Hz
1.5A @ 120VAC
Output Power 33 watts
10A @ 3.3VDC
66 watts
20A @ 3.3VDC
Power
Connector IEC 320 Socket IEC 320 Socket
MTBF (hrs) 1 Power Supply: 43,000
2 Power Supplies: 173,000 2 Power Supplies: 90,000
DC Power Specications
Description 5-Module 24VDC 5-Module 48VDC 5-Module 48VDC
High Airow
Model Number 8226-x 8225-x 8227-x
Input Power
Requirements
(typical)
+/- 18 to 36VDC
1.4A @ 24VDC
+/- 36 to 60VDC
0.7A @ 48VDC
+/- 36 to 60VDC
2.0A @ 48VDC
Output Power 33 watts
10A @ 3.3VDC
33 watts
10A @ 3.3VDC
66 watts
20A @ 3.3VDC
Power
Connector 3-Pin Terminal (Isolated) 3-Pin Terminal (Isolated) 3-Pin Terminal (Isolated)
MTBF (hrs) 1 Power Supply: 43,000
2 Power Supplies: 173,000 2 Power Supplies: 90,000
Ce manuel convient aux modèles suivants
4
Table des matières
Autres manuels OST Unité de contrôle
Manuels Unité de contrôle populaires d'autres marques
Festo
Festo Compact Performance CP-FB6-E Manuel de la liste des pièces
Elo TouchSystems
Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur
JS Automation
JS Automation MPC3034A Manuel utilisateur
JAUDT
JAUDT SW GII 6406 Series Guide rapide
Spektrum
Spektrum Air Module System Manuel utilisateur
BOC Edwards
BOC Edwards Q Series Manuel utilisateur
