Orion STAND UNIT Manuel utilisateur

• 2011.10.06

Thank you for purchasing our MAIN FRAME.

Please read through this user's manual for safety before installing this product.

This product is manufactured for Multi LCD model only.

USER MANUAL

STAND UNIT | WALL UNIT

Address: 257-6, Gongdan-dong, Gumi-si, Gyeongsangbuk-do, Korea

Tel : +82-2-6678-8533, Fax: +82-2-6678-8599

ORION CO.,LTD.

www.oriondisplay.net

MAIN FRAME

Contents

ACCESSORY .............................................................................2

OPTIONAL ..................................................................................2

STAND UNIT ..............................................................................3

1. Safety Precaution .........................................................................4

2. Installing the stand (3*3) ..............................................................6

3. Installing the MLCD ....................................................................16

4. Adjust the MLCD gap with the Adjuster. .........................................19

5. Setting MLCD ID configuration and Connection (3X3).......................20

WALL UNIT ...............................................................................21

1. Safety Precaution .......................................................................22

2. Checking the location for installation. ............................................24

3. Fixing Anchor and Bolt ................................................................25

4. Installing the Wall Bracket (3 X 3) .................................................26

5. Installing the MLCD ....................................................................37

6. Adjust the MLCD gap with the Adjuster. .........................................41

SPECIFICATION.....................................................................42

- 1 -

Innitely Expandable MLCD

STAND UNIT

This manual describes the installation case for 3X3 sets.¿

There are 4 different types of stand. Please select a stand type as you need.¿

MAIN FRAME Accessories¿

STAND UNITACCESSORY

In case of NX3, NX4, or NX5 set formations, there is no stand bracket for the¿

top line of main frames.

However, it is designed to rmly fasten the main frames of the top line to the

main frames of the next line.

N x 2

850.0

90 1682.0

1771.0

600.0

407.3 172.7

1164.3

850.0

2267.7

2853.4

3439.1

3528.1

950.0 1000.0

407.3 172.7

600.0 1746.4

600.0 2328.5

600.0 2910.6

N x 3 N x 4 N x 5

507.3 172.7 557.3 172.7

STAND BRACKET

MAIN FRAME

STAND FOOT

WALL BRACKET UNIT

BOLT M6*70 + NUT M6 4EA

BOLT M6*45 +

NUT M6 2EA

둥근머리 BOLT M5*30L 4EA

PEG 4EA

Y-AXIS LINK 1EA

(Main frame link)

조립용 TOOL SET 1SET

8mm 5mm 2.5mm 10mm

ANCHOR BOLT 3/8" 4EAWALL BRACKET 2EA

ADJUSTER

M10*50 2EA BOLT M6*12 2EA

FIX BRACKET 1EA

SPANNER 1EA

Screen Size (mm)

OLm-4610 OLm-4650

1 X 1 1025.7 x 579.9 1025.7 x 579.9

2 X 2 2051.4 x 1159.8 2051.4 x 1159.8

3 X 3 3077.1 x 1739.7 3077.1 x 1739.7

4 X 4 4102.8 x 2319.6 4102.8 x 2319.6

5 X 5 5128.5 x 2899.5 5128.5 x 2899.5

OPTIONAL

FIX BRACKET UNIT

(FIX BRACKET + EXTENSION BRACKET)

ROUND HEADED

BOLT M5*30L 4EA

WRENCH

ALLEN WRENCH

TOOL SET 1SET

USER MANUAL 1EA

MAIN FRAME 1EA

STAND FOOT STAND SUPPORT

6mm

BOLT M8*15 4EA

NUT M8 4EA

(MAIN FRAME LINK)

- 2 -

www.oriondisplay.net

- 3 -

Innitely Expandable MLCD

STAND UNIT

Safety Precaution1.

Please read and understand this manual fully before installation.¿

Please hand over this manual to customers after installation and ask to¿

read and keep this manual for future use.

Please keep all the cautions and warnings for proper use of the product and prevent possibleÚ

accident or hazard.

You can nd “CAUTION” and “WARNING” signs in this manual. Each sign has following meaning.Ú

If the user does not comply with this instruction, serious injuries or

death can be caused.

If the user does not comply with this instruction, minor injuries or

product damage can be caused.

WARNING

CAUTION

Installation must be done by the skilled persons

designated by sales agent or dealership.

Installation work can be very dangerous for inexperienced

person.

It may cause serious injury or even death.

Do not install at unstable locations that cannot

withstand product weight.

In case of weak ﬂoor or ground, product may fall and cause

injuries.

If you need to move or replace the product,

please contact with skilled persons designated

by sales agent or dealership

If users move or install the product without proper skill and

experience, it may cause safety problem.

Do not hang on the product and avoid severe

impact to the product.

Product may fall and cause injuries.

Please install as described in this manual.

Improper installation may cause serious injury or product

damage.

Installation of this product needs 3 or more

people.

3 or more people need to work together to avoid personal injury

or product damage.

Use enclosed accessories.

Improper accessories may not withstand the weight of the

product. It may cause safety problems.

Install on the even ground or ﬂoor.

Product installed on uneven places such as inclined places or

stairways may fall and cause personal injury or product damage.

Do not use heaters or humidiﬁers at the place of

installation.

Heat or vapor may cause ﬁre, electric shock or malfunction.

Do not install the product near to sprinkler, ﬁre

detector, high-voltage cable, power source, or

places of vibration or impact.

Make sure to disconnect before installation.

If you install the product while the power cord is still connected,

it may cause electric shock or ﬁre.

Use working gloves when you install.

Wear working gloves to avoid any injury.

- 4 -

www.oriondisplay.net

- 5 -

Innitely Expandable MLCD

STAND UNIT

Installing the stand (3*3)2.

Connect the Foot Stand and Stand Support together.1

When assembling, put the Foot Stand down to prevent it from falling.•

Attach the Stand Support to the upper and lower parts of the Foot Stand•

After assembling, check if it would stand on its own.•

Hook the main Frame to the lower part of the Stand.2

Assemble the Main Frame from the lower to the upper part.•

Insert the M6*70 bolt to the Main Frame and Stand Hook.•

If the M6*70 bolt was not inserted, the Main Frame would fall or be damaged.•

STAND FOOT

STAND SUPPORT

M8 NUT

M8*12L

Top

Bottom

M6*70

After inserting M8 NUT, apply

the M8*12 bolt with the enclosed

6mm allen wrench.

※It is more convenient to distinguish top

and bottom, if you put the main frame as

shown in the gure to use the holes as

indicators.

- 6 -

www.oriondisplay.net

- 7 -

Innitely Expandable MLCD

STAND UNIT

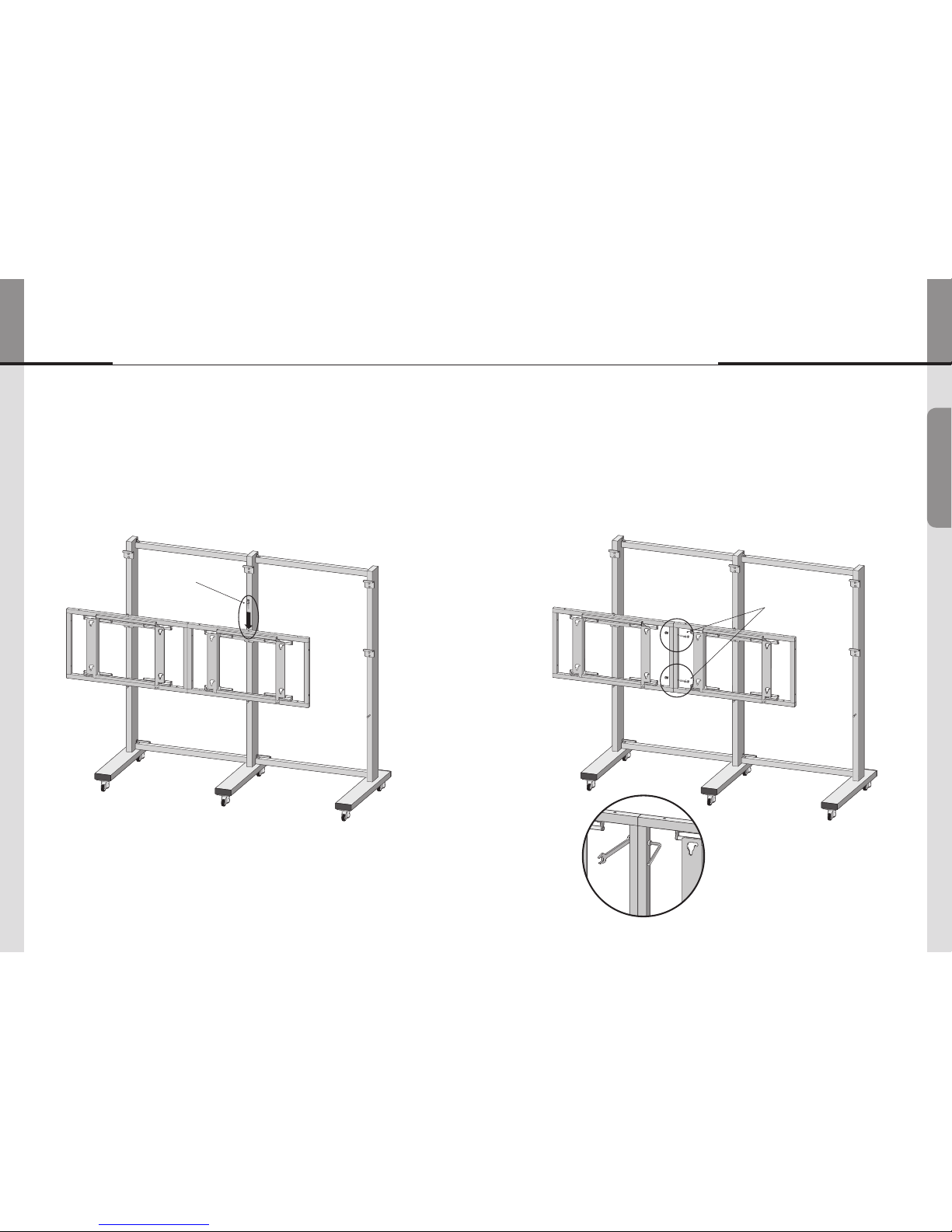

Assemble the two Main Frames.4

Assemble the two Main Frames at the upper and lower parts with the M6*70 bolt using the•

enclosed wrench and 5mm allen wrench.

Hook the 2nd main Frame at the lower hook of the center3

frame.

I nsert the M6*70 bolt to the Main Frame and Stand Hook.•

I f the M6*70 bolt was not inserted, the Main Frame would fall or be damaged.•

M6*70

Assemble the gure

using the enclosed

wrench and 5mm

allen wrench.

- 8 -

www.oriondisplay.net

- 9 -

Innitely Expandable MLCD

STAND UNIT

Remove the M6*70 bolt.6

Remove the M6*70 bolts inserted at the 1st and 2nd Main Frames.•

Hook the 3rd Main Frame at the bottom row to the Stand5

Hook.

Hook the Main Frame to the Stand Hook and assemble using a wrench and 5mm allen wrench.•

Make sure that the Main Frame is securely assembled when working.•

M6*70

Assemble the gure using the

enclosed wrench and 5mm

allen wrench.

- 10 -

www.oriondisplay.net

- 11 -

Innitely Expandable MLCD

STAND UNIT

Assemble the middle Main Frame at the 2nd row.8

Hook the Main Frame at the 2nd row to the upper Hook.•

Repeat the work indicated in Step No. 7 to assemble the upper and lower Main Frames and then•

assemble with the adjacent Main Frame with M6*70 bolts.

Repeat this process to assemble the Main Frame at the 3rd row.•

Assemble the Main Frame at the 2nd row.7

Hook the Main Frame at the 2nd row to the upper Stand Hook.•

Assemble the Main Frame at the 1st row and Main Frame at the 2nd Row with the M6*70 bolts.•

M6*70

Assemble the gure using the

enclosed wrench and 5mm

allen wrench.

Assemble the gure using the

enclosed wrench and 5mm

allen wrench.

- 12 -

www.oriondisplay.net

- 13 -

Innitely Expandable MLCD

STAND UNIT

Fix both rows at the vertical axis as "Y-Axis Link" based10

on the right side.

Fix both rows at the vertical axis as "Y-Axis Link" to the right side of the Main Frame bracket for the•

simultaneous movement of the vertical axis.

Remove the supporting plate of both Main Frames at the9

vertical axis.

Once the supporting plate of both Main Frames at the vertical axis is removed, the brackets will•

move from side to side. Move the vertical axis at both sides to install the MLCD.

Do not remove the supporting plate of the supporting axis.•

󰄪󰄫

Fixed Center Column

M6*12

Remove the screws of the supporting plate

with a 5mm allen wrench. Then, remove the

plate completely from the Main Frame.

Connect the Main Frame and Y-Axis Link

with M6*12 bolts using a 5mm allen wrench.

- 14 -

www.oriondisplay.net

- 15 -

Innitely Expandable MLCD

STAND UNIT

Installing the MLCD3.

Attach the PEG and Guide Pin to the MLCD.1

Assemble the four PEGs at the back of MLCD.•

Install the Guide Pins where MLCD touches.•

Install the MLCD from the lower part of the middle set.2

Insert the PEGs in the PEG holes.•

Put the set down slowly. The panels can be damaged by impact.•

Install the MLCD from the bottom of both sides after completing the installation at the lower middle•

part.

If you need to detach a MLCD set in the lower line, move

the set in the upper line to position "C". Remove guide

pins from the set in the lower line, move it to position "A"

and detach from the main frame.

Fasten 4 PEGs in the back of

MLCD with M5*30 bolts.

PEG

M5*30

FAN STB PWRON

VIDEO

DVI-D

RS-232C

LAN

SVC

IDSELECT

PDP

Madein Korea

CAUTION

• Model Name : OLM-4610

• Voltage : AC~100 - 240V

• Current : Max. 3A

• Frequency : 50/60Hz

• Serial No :

MLCD

FAN STB PWR ON

VIDEO

DVI-D

RS-232C

LAN

SVC

ID SELECT

PDP

Made in Korea

CAUTION

• Model Name : OLM-4610

• Voltage : AC~100 - 240V

• Current : Max. 3A

• Frequency : 50/60Hz

• Serial No :

MLCD

Guide Pin

There is a hole for the

installation of the

Guide

Pin at the upper part

and the sides.

- 16 -

www.oriondisplay.net

- 17 -

Innitely Expandable MLCD

STAND UNIT

Ce manuel convient aux modèles suivants

Table des matières

Manuels Support et étagère populaires d'autres marques

Salamander

Salamander Acadia AC/W/L400/WH Manuel utilisateur

Fohhn

Fohhn VAT-09 Guide de l'utilisateur

ricoo

ricoo FS0522 Manuel utilisateur

AMSOIL

AMSOIL BMK-22 Guide rapide

Kargo Master

Kargo Master 48220 Manuel utilisateur

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Manuel utilisateur

ricoo

ricoo S1222 Manuel utilisateur

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Manuel utilisateur

VidaBox

VidaBox VB MNT FFS2 Manuel utilisateur

Welch Allyn

Welch Allyn 48960 Manuel utilisateur

Arkon

Arkon CM035-ST-2 Manuel utilisateur

PROEL

PROEL PLWIN60C Manuel utilisateur

Agilent Technologies

Agilent Technologies E2609B Manuel utilisateur

Mustang

Mustang MV-ARM4 Manuel utilisateur

Mounting Solutions

Mounting Solutions WRM-320 Manuel utilisateur

Pyle

Pyle PMKSPAD1 Manuel utilisateur

ShelterIt

ShelterIt 21208 Manuel utilisateur

SPL

SPL RackPack?4 1040 Manuel utilisateur
