Oregon Scientific RMR232PHU Manuel utilisateur

Digital In-Out Thermometer

with RF Clock & Photo Frame

MODEL: RMR232PHN/RMR232PHU (UK Version)

USER'S MANUAL

INTRODUCTION

Congratulations on your purchase of the RMR232PHN/

RMR232PHU,anIn-OutThermometerwithRadio-ControlledClock

and a Photo Frame attached.

The basic package comes with the following:

-- Main unit (RMR232PHN/RMR232PHU).

-- Remote thermo sensor unit

-- Blue and metallic grey exchangeable front key panels.

The main unit shows the indoor temperature, calendar clock and

temperatures collected and transmitted by the remote unit.

The main unit is also capable of keeping track of the maximum and

minimum temperature measured. No wire installation is required

and the RMR232PHN/RMR232PHU operates at 433MHz.

As for the calendar clock, it is radio-controlled. It automatically

synchronizes its current time and date when it is brought within an

approximate 1500km radius of the radio signal generated from

Frankfurt, Germany (DCF77). (MSF 60 for UK Version)

You can also set the calendar clock manually when it is off range.

Other features include five-language display and two-minute

crescendo daily alarm.

MAIN FEATURES: MAIN UNIT

NLMOO

A THREE-LINE DISPLAY

Facilitates easy reading of remote and indoor temperatures and

calendar clock

B RADIO RECEPTION SIGNAL

Indicates the condition of radio reception

C MEMORY [MEM] BUTTON

Recalls the maximum or minmum temperature of main and

remote unit

DUP[ ] BUTTON

Advances the value of a setting

E [ MODE/SET ] BUTTON

Toggles the display modes and confirms entry while setting

the values for display

F DOWN [ ] BUTTON

Decreases the value of a setting

G ALARM [ ] BUTTON

Displays the alarm time or sets the alarm status

H FRONT PANEL

Exchangeable front panel with clip-on design

I [ UNLOCK ] BUTTON

Unlock the photo frame drawer

J PHOTO FRAME DRAWER

Holds photo in position.

K PHOTO FRAME COVER

Protects photo from finger prints and other damages

L [ RESET ] BUTTON

Returns all settings to default values

°C/°F ] BUTTON

Selects between degree Centigrade (°C) and Fahrenheit (°F)

N BATTERY COMPARTMENTS

Accommodates two UM3 or “AA” size 1.5V alkaline batteries

O TABLE STAND

For standing the main unit on a flat surface

P WALL-MOUNT RECESSED HOLE

For mounting the main unit on a wall

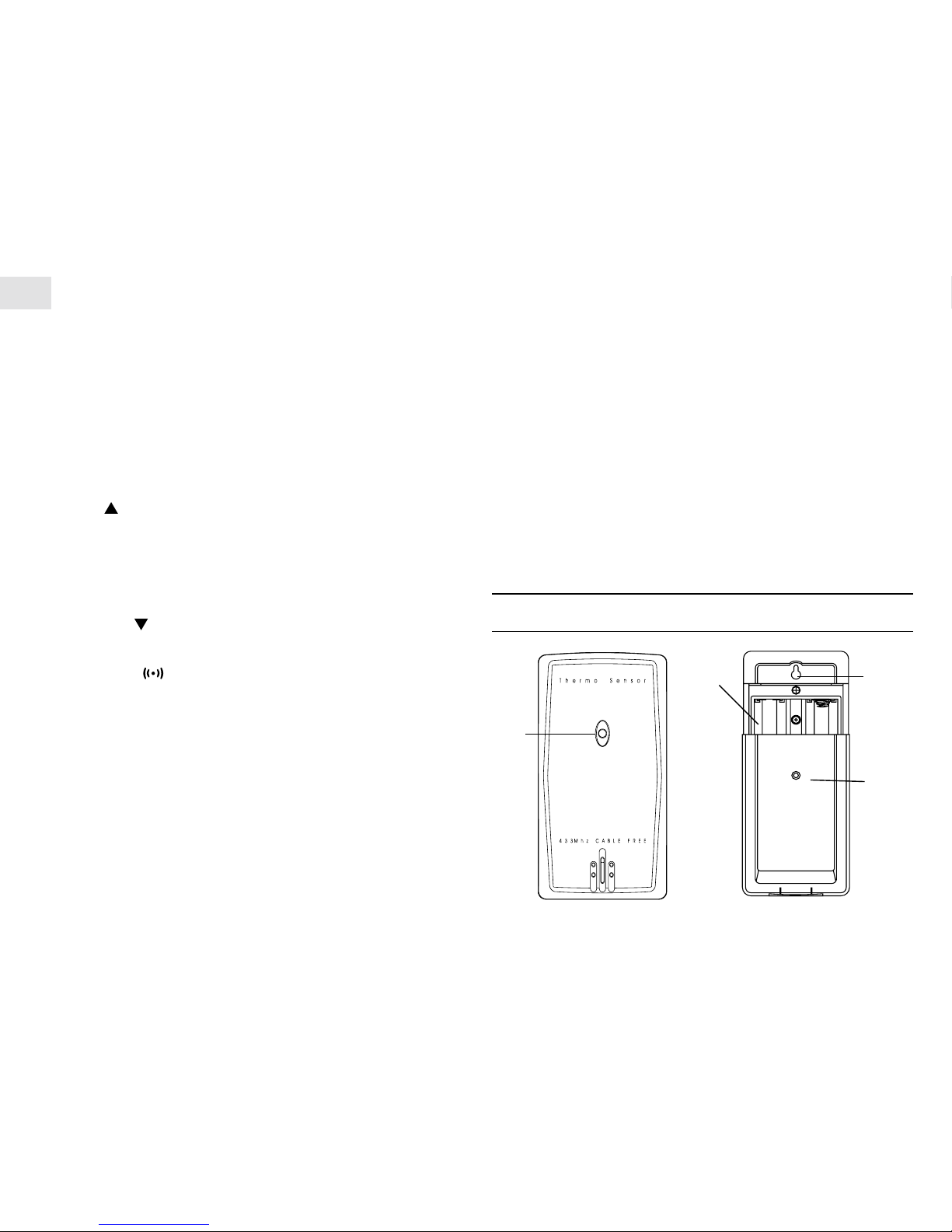

MAIN FEATURES: REMOTE UNIT

A LED INDICATOR

Flashes when the remote unit transmits a reading

B BATTERY COMPARTMENT

Accommodates two UM-3 or AA-size 1.5V batteries

C BATTERY DOOR

D WALL-MOUNT RECESSED HOLE

Supports the remote until in wall-mounting

BEFORE YOU BEGIN

For best operation,

1. Insert batteries for remote units before doing so for the main

unit.

2. Place the main unit as close as possible next to the remote unit,

reset the main unit after installing batteries. This will ensure

easier synchronization between the transmission and reception

of signals.

3. Position the remote unit and main unit within effective

transmission range, which, in usual circumstances, is 20 to 30

meters.

Note that the effective range is vastly affected by the building

materials and where the main and remote units are positioned. Try

various set-ups for best result.

Though the remote units are weather proof, they should be placed

away from direct sunlight, rain or snow.

BATTERYINSTALLATION: MAIN UNIT

1. Slide open the battery compartment door.

2. Install 2 alkaline batteries (UM3 or “AA” size 1.5V) strictly

according to the polarities shown.

3. Press the [RESET] button.

4. Replace the battery compartment door.

BATTERYINSTALLATION: REMOTE UNIT

1. Remove the screws on the battery compartment.

2. Lift and open the photo frame cover.

3. Align and place the photo on the velvet surface.

4. Close the photo frame cover and replace it back to the main

unit.

2. Install 2 alkaline batteries (MU-3 or “AA” size 1.5 V) strictly

according to the polarities shown.

3. Replace the battery compartment door and secure its screws.

LOW BATTERY WARNING

When it is time to replace batteries, the respective low-battery

indicator will show up on the indoor or outdoor temperature display.

HOW TO INSERT A PHOTO

1. Push the [UNLOCK] button to unlock and take out the photo

frame drawer.

Wall-mount Table Stand

HOW TO EXCHANGE FRONT KEY PANEL

The package comes with one grey and one blue exchangeable front

panels.

COMPATIBLE PHOTO SIZES

Three different standard sizes of photo can be placed in the photo

frame:

- 8 x12 cm (3.15” x 4.72” )

- 9 x13 cm (3.54” x 5.12” )

- 10 x15 cm (3.94” x 5.9” )

HOW TO USE THE TABLE STAND OR

WALL MOUNTING

The main unit has a table stand which can support the unit on a flat

surface. Or you can mount the unit on a wall using the recessed

screw hole.

As for the remote unit, you can place it on a flat surface or mount

the unit on a wall using the recessed screw hole.

Main unit

Wall-mount Table Stand

HOW TO CHECK REMOTE AND INDOOR

TEMPERATURES

The indoor temperature is shown on the second line of the display.

The outdoor temperature is shown on the top line of the display.

The kinetic wave display on the outdoor temperature indicates if

the reception of the remote unit is in good order.

If no readings are received from the remote unit for more than four

minutes, blanks “ ” will be displayed until further readings are

successfully searched. Check if the remote unit is sound and secure.

You can wait for a little while or press [ ] and [ ] simultaneously

to enforce an immediate search.

If the temperature goes above or below than the temperature

measuring range of the main unit or the remote unit (stated in

specification), the display will show “HHH” or “LLL”.

HOW TO READ THE KINETIC WAVE

DISPLAY

The kinetic wave display shows the signal receiving status of the

main unit. There are three possible forms:

THE RESET BUTTON

This button is only used when the unit is operating in an unfavorable

way or malfunctioning. Use a blunt stylus to hold down the button.

All settings will return to their default values.

GETTING STARTED

Once batteries are in place for the remote unit, they will start

transmitting temperature readings at 78-second intervals.

The main unit will also start searching for signals for about four

minutes once batteries are installed. Upon successful reception, the

outdoor temperature will be displayed on the top line and the indoor

temperature on the second line. The main unit will automatically

update its readings at about 78-second intervals.

If no signals are received, blanks " " will be displayed and the

kinetic wave icon will show “ “. Press [ ] and [ ]

simultaneously to enforce another search for about 4 minutes. This

is useful in synchronizing the transmission and reception of the

remote and main units.

MAXIMUM AND MINIMUM

TEMPERATURES

The maximum and minimum recorded indoor and outdoor

temperatures will be automatically stored in memory. To display

them, press [ MEM ] once to display the maximum temperature

and again the minimum temperature. The respective indicators,

[ MAX or MIN ] will be displayed.

To clear the memory, hold down [ MEM ] for two seconds. The

maximum and minimum temperatures will be erased. If you press

[ MEM ] now, the maximum and minimum temperatures will have

the same values as the current ones until different readings are

recorded.

DISCONNECTED SIGNALS

If without obvious reasons the display of the outdoor temperature

goes blank, press [ ] and [ ] to enforce an immediate search.

If that fails, check:

1. The remote unit is still in place.

2. The batteries of both the remote unit and main unit. Replace as

necessary.

Note:When the temperature falls below freezing point, the batteries

of outdoor units will freeze, lowering their voltage supply

and the effective range.

3. The transmission is within range and path is clear of obstacles

and interference. Shorten the distance when necessary.

TRANSMISSION COLLISION

Signals from other household devices, such as door bells, home

security systems and entry controls, may interfere with those of this

product and cause temporarily reception failure. This is normal and

does not affect the general performance of the product. The

transmissionand reception of temperature readingswill resume once

the interference recedes.

NOTE ON °C AND °F

The unit of temperature display can be selected by pressing °C / °F

button repeatedly.

Temperature readings are

securely registered.

The unit is in searching mode.

No signals.

CALENDAR CLOCK DISPLAY MODES

The clock and the calendar share the same section of the display.

The calendar is displayed in a day-month format.

CLOCK MODE

CALENDAR MODE

Each press on the [ MODE ] button will toggle the display between

clock and calendar mode.

ABOUT RADIO RECEPTION

The RMR232PHN/RMR232PHU is designed to automatically

synchronize its calendar clock once it is brought within range of the

Frankfurt DCF77 radio signal.(MSF for UK Version)

When the RMR232PHN/RMR232PHU is within range, its radio-

control mechanism will override all manual settings unless auto-

reception of radio signal has been deactivated.

When the unit is receiving radio signal, the radio reception signal

will start to blink. A complete reception generally takes about 2 to

10 minutes, depending on the strength of the radio signal.

When the reception is complete, the radio reception signal will stop

blinking. The strength of the reception for the last full hour will be

indicated.

For better reception, place the clock away from metal objects and

electrical appliances to minimize interference.

If you wish to disable the auto-reception feature, press the [ ]

button for two seconds. The radio reception signal will disappear.

The unit will not respond to radio signals.

To enable the feature again, press the [ ] button for two seconds.

The radio reception signal will start blinking to initiate reception

automatically.

- Strong

- Weak

- No Reception

- Receiving

HOW TO SETAND ARM THE ALARM

This unit is equipped with a Daily Crescendo Alarm. To set the

alarm,

1. Press [ ] once to display alarmtime. Ifthe alarm is deactivated,

the time will be displayed as [ -:-- ].

2. Press [ ] for two seconds. The hour digits will blink.

3. Enter the hour using [ ] or [ ] .

4. Press [ ]. The minute digits will blink.

5. Enter the minutes using [ ] or [ ] .

6. Press [ ] to exit.

The alarm icon will be displayed indicating the alarm is now

armed. You can arm or disarm an alarm by pressing the []

button repeatedly. Press [ MODE/SET ] to return to clock display

mode.

Whan an alarm is armed, it will go off at the set time.

HOW TO STOPAN ALARM

When the alarm goes off, press any key on the unit to stop the alarm

sound.

HOW TO SET THE CALENDAR CLOCK

MANUALLY

To set the clock manually, hold [ MODE/SET ] for two seconds in

clock display mode. The 12-hr or 24-hr display will blink. Use

[ ] or [ ] to select 12 hour or 24 hour format.

Press [ MODE/SET ] to confirm. Repeat the same procedure to set

the hour, minutes, year, month, day and display language. During

the setting, press and hold [ ] or [ ] will increase or decrease

the value rapidly.

Note that the date is displayed in DAY-MONTH format. For display

language,youcanchooseamong English (E),German(D), French(F),

Italian (I) and Spanish (S) .

If there is an item you do not wish to change, simply press [MODE/

SET ]to bypass the item.

When you are done, press [ MODE/SET ] to exit. The display will

return to the clock mode.

Monday Tuesday Wed. Thursday Friday Saturday Sunday

Day-of-the-week

Language

English

German

French

Italian

Spanish

PRECAUTIONS

This product is engineered to give you years of satisfactory service

if you handle it carefully. Here are a few precautions:

1. Do not immerse the unit in water.

2. Do not clean the unit with abrasive or corrosive materials. They

may scratch the plastic parts and corrode the electronic circuit.

3. Do not subject the unit to excessive force, shock, dust,

temperatureorhumidity, which may resultinmalfunction, shorter

electronic life span, damaged battery and distorted parts.

4. Do not tamper with the unit's internal components. Doing so will

invalidate the warranty on the unit and may cause unnecessary

damage. The unit contains no user-serviceable parts.

5. Only use fresh batteries as specified in the user's manual. Do not

mix new and old batteries as the old ones may leak.

6. Always read the user's manual thoroughly before operating the

unit.

7. Note:No rechargeable batteries should be used in this product.

Only use the type of battery as specified.

SPECIFICATIONS

Temperature Measurement

Main unit

Indoor Temperature measurement

Proposed operating range : -5.0°C to +50.0°C

(23.0°F to 122.0°F)

Temperature resolution : 0.1°C

(0.2°F)

Remote unit

Proposed operating range : -20.0°C to +60.0°C

(-4.0°F to 140.°F)

Temperature resolution : 0.1°C

(0.2°F)

RF Transmission Frequency : 433 MHz

No. of Remote unit : 1

RF Transmission Range : Maximum 30 meters

Radio Controlled Clock

Main time set and synchronized by Radio Signal DCF77 for

Continental/ Central Europe (MSF for UK)

12/24 h display with hh : mm

Date Format : Day : Month

Day of week selectable in 5 language (E, F, D, I,S)

2-minute crescendo alarm

Power

Main unit : use 2 pcs UM3 or ”AA”

1.5V alkaline battery

Remote sensing unit : use 2 pcs UM-3 or “AA”

1.5V alkaline battery

Weight

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Oregon Scientific Thermomètre

Oregon Scientific

Oregon Scientific RMR683HG Manuel utilisateur

Oregon Scientific

Oregon Scientific AW133 Manuel utilisateur

Oregon Scientific

Oregon Scientific MTR102 Manuel utilisateur

Oregon Scientific

Oregon Scientific JTR-168LR Manuel utilisateur

Oregon Scientific

Oregon Scientific MTR101 Manuel utilisateur

Oregon Scientific

Oregon Scientific EM-913 R Manuel utilisateur

Oregon Scientific

Oregon Scientific RMR182 Manuel utilisateur

Oregon Scientific

Oregon Scientific RMR683HGA Manuel utilisateur

Oregon Scientific

Oregon Scientific EMR899HGN Manuel utilisateur

Oregon Scientific

Oregon Scientific RMR802 Manuel utilisateur

Oregon Scientific

Oregon Scientific RMR803A Manuel utilisateur

Oregon Scientific

Oregon Scientific RMR382 Manuel utilisateur

Oregon Scientific

Oregon Scientific RMR262 Manuel utilisateur

Oregon Scientific

Oregon Scientific RAR232 Manuel utilisateur

Oregon Scientific

Oregon Scientific FT101 Manuel utilisateur

Oregon Scientific

Oregon Scientific AW129 Manuel utilisateur

Oregon Scientific

Oregon Scientific EMR812HGN Manuel utilisateur

Oregon Scientific

Oregon Scientific RAR681 Manuel utilisateur

Oregon Scientific

Oregon Scientific RAR621 Manuel utilisateur

Oregon Scientific

Oregon Scientific THT328 Manuel utilisateur

Oregon Scientific

Oregon Scientific RGR126 Manuel utilisateur

Oregon Scientific

Oregon Scientific SL102 Manuel utilisateur

Oregon Scientific

Oregon Scientific THN122N Manuel utilisateur

Oregon Scientific

Oregon Scientific AW129 Manuel utilisateur

Manuels Thermomètre populaires d'autres marques

Delton

Delton 981A Manuel utilisateur

Baker

Baker MM2P Manuel utilisateur

Tarmo

Tarmo 320281 Manuel utilisateur

Citizen

Citizen CTD 504 Manuel utilisateur

TFA

TFA 14.1500 Manuel utilisateur

Vive

Vive DMD1010 Manuel utilisateur

Gotemp

Gotemp THB4002 Manuel utilisateur

GREISINGER

GREISINGER G 1202 Manuel utilisateur

Amprobe

Amprobe TMD-53W Manuel utilisateur

Trotec

Trotec BP10 Manuel utilisateur

Radiance instruments

Radiance instruments RT616 Series Manuel utilisateur

Eurolec

Eurolec IR151 Manuel utilisateur

Scaneo

Scaneo TS42B Manuel utilisateur

Sper scientific

Sper scientific 800043 Manuel utilisateur

Microlife

Microlife NC 200 Mode d’emploi

Motorola

Motorola MBP69SN Guide de configuration

The MeatStick

The MeatStick The MeatStick Manuel utilisateur

Hama

Hama TH35-A Manuel utilisateur
