5.0 Mega Pixels Digital Camera (DS9541)

Quick Start Guide

Contents

5.0 Mega pixels resolution sensor

Video clips

Audio record

Web camera

Built-in Microphone Voice recorder

Built-in flash Light

TV output

2.0" LTPS real color display

Internal 16 MB flash memory and SD card support

Driver free for Windows XP/Vista and MAC 9.x and X.x

Macro mode

Sensor 5.0 Mega pixel CMOS sensor

12.0 Mega pixels: (4032x3024)

(Hardware Interpolation)

8.0 Mega pixels: (3264x2448)

(Hardware Interpolation)

5.0 Mega pixels: (2560x1920)

3.1 Mega pixels: (2048x1536)

1.3 Mega pixels: (1280x960)

Image resolution

300K pixels: (640x480)

Lens F/2.8 f=8.5mm

Focus range 0.5m. ~ Infinity

Macro mode 11cm –18cm

Digital zoom 8x

Flash strobe Built-in (Auto/force/off)

LCD display2.0" real color LTPS TFT

White balance Auto/Daylight/cloudy/Tungsten/Fluoresce

Video mode 30fps@QVGA &20fps@VGA

Built-in memory 16MB Flash memory

Get to know your camera

Features

Specifications

VGA: (640 x 480) --138 Pictures

1.3M: (1280 x 960) -- 54Pictures

3.1M: (2048 x 1536) -- 28 Pictures

5.0M: (2560 x 1920) -- 21 Pictures

8.0M: (3264 x 2448) -- 14 Pictures

Picture Capacity in 16M memory

(The quantity of pictures varies and

depends on the complexity of the

scene)

12M: (4032 x 3024) --3 Pictures

External memorycard SD card supports upto 2GB

File format Picture: JPEG, Video: AVI, Voice: WAV

Self timer 2/10/10+2 seconds

PC interface USB 1.1

TV-out NTSC/PAL

Power source 2xAAA alkaline batteries.

(Rechargeable battery is not recommended)

Windows XP/Vista or aboveOperating System Mac 9.x or X.x

CPU Pentium II or above

RAM At least 64MB

Interface USB port

CD 4x speed CD ROM or above

1- Strap hook Hook for attaching the wrist strap to the camera.

2- Shutter Press this button to take photographs or to start/stop

recording a short video clip.

System requirement

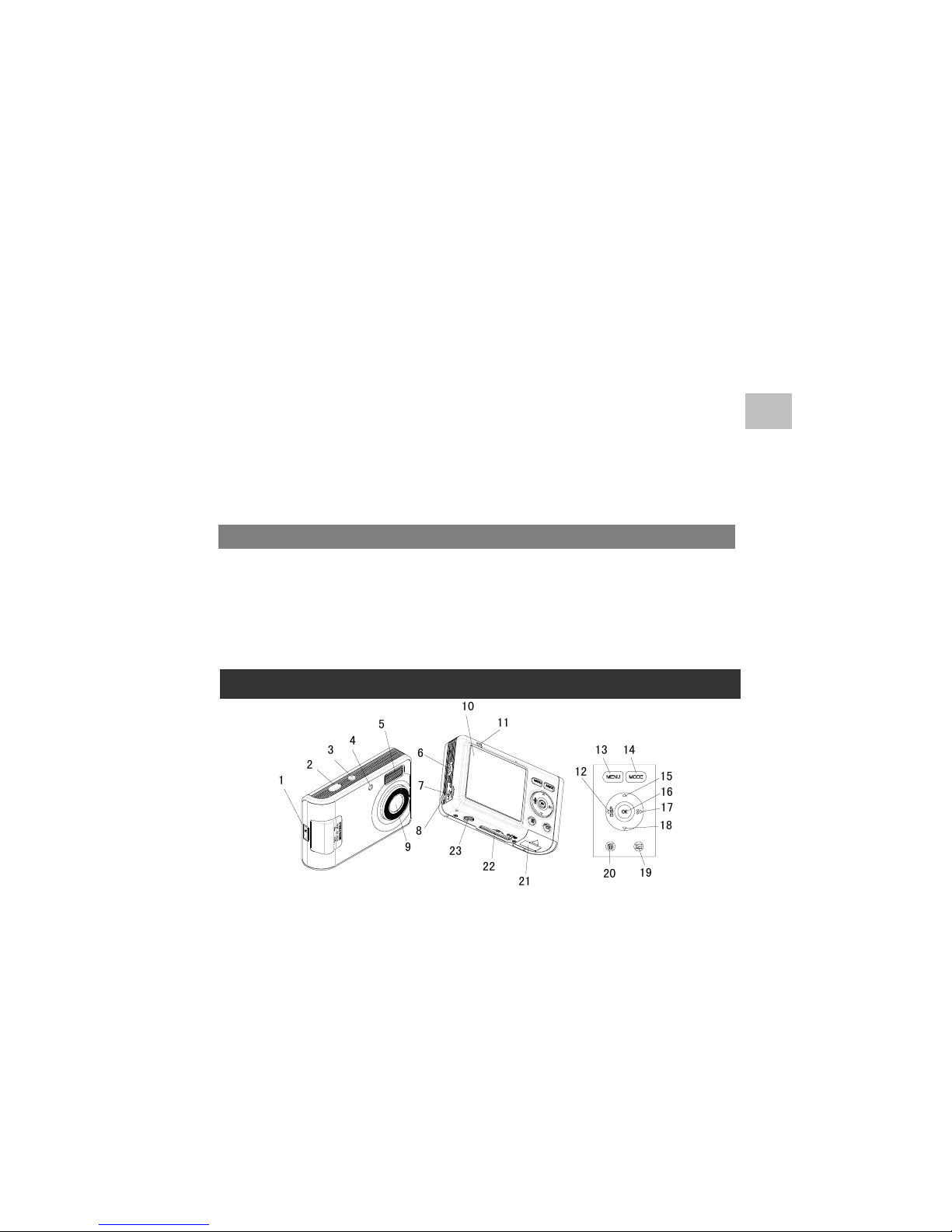

Functional parts

3- Power

on/off button Press this button to turn on, press again to turn off.

4- Self-timer

indicator Blinking when the self-timer function is operating.

5- Flash light Use the built-in flash to give the subject extra lighting if it is

in dark surroundings (the best flash distance is

recommended within 1.5m.).

6- Macro switch Macro mode: Select this mode to take close-up

photographs (distance 11cm - 18cm).

Normal mode: Select this mode to take photographs from

0.5m - infinity

7- USB interface Via this connection, you can download photographs and

video clips to a computer.

8- AV port For television connection.

9- Lens Records the image to be taken.

Note: Keep the lens clean. Dirt and fingerprints will affect

the quality of the picture.

10- LCD screen Display photographs, video clips, camera setting and menu.

11- Busy LED When the indicator is lit, the camera is busy.

12- Left/ display For menu LEFT selection, and LCD display on / off.

13- Menu For camera setting.

14- Mode Press it to select different mode.

15- UP UP & Digital zoom in

16- OK Press it to confirm changes.

17- Right/flashlight For menu right selection, and selection of flash light mode.

18- Down Down & Digital zoom out

19- Playback Press it to enter playback mode.

20- Delete Press it to delete the photo in playback mode.

21- Battery door 2xAAA alkaline batteries

22- SD card slot SD card slot.

23- Tripod

connector To fix the camera on tripod.

12M pixel resolution 4032 x 3024

8.0M pixel resolution 3264 x 2448

Size

5.0M pixel resolution 2560 x 1920

Details for camera setting

SET-Capture

3.1M pixel resolution 2048 x 1536

1.3M pixel resolution 1280 x 960

VGA resolution 640 x 480

Quality Fine(Default)/Standard/

Economy Picture quality set

Scene

mode Auto(Default)/Sport/Night/

Portrait/Landscape/Backlight Scene set

Exposure

value +/-2, +/-5/3, +/-4/3,

+/-2/3,+/-1/3 +/-1, 0(Default) Level of exposure

Auto (Default) Automatic white balance

Daylight Whitebalance selected for daylight

surrounding

Cloudy White balance selected for cloudy

surrounding

Tungsten White balance selected for

tungsten lighting

White

balance

Fluorescent White balance selected for

fluorescent surrounding

ISO Auto(Default)/100/200 Sensitivity select

Color Standard (Default) / Vivid /

Sepia / Monochrome Color setting

Saturation Normal(Default) / High / Low Saturation setting

Sharpness Normal(Default) / Hard /Soft Sharpness setting

2s Set the delay time at 2s to take a


10s Set the delay time at 10s to take a


Self timer

10+2s Set the delay time at 10s to take a

picture, and then every 2s to take

pictures automatically.

Date Input Off(Default)/Set DD,MM,YYYY

Time

Stamp Off(Default)/Date Only/Date

& Time Show the date and / or time on the

pictures

Continuous

shoot Continuous shoot Can continuously shoot up to 3

pictures within 10 seconds.

Format Execute/cancel Format the memory card.

Language English(Default)/T-Chinese/

S-Chinese/French/German/

Italian/Spanish/Portuguese

Select display language

Auto power

off 1/3/5 min and Off Auto power off in1min, 3min

(default) or 5 min if no operation

Sys. Reset Execute/cancel Restore default setting

50Hz Main European electricity frequencyLight-

Frequency

(Flicker) 60Hz Main American electricity

frequency

NTSC American and Japanese video formatTV- Out PAL European video format.

PC Cam Work as a web camera.USB Disk Drive Act as a portable disk.

Note: The camera will remain the last setting when it is turned off.

-Setu

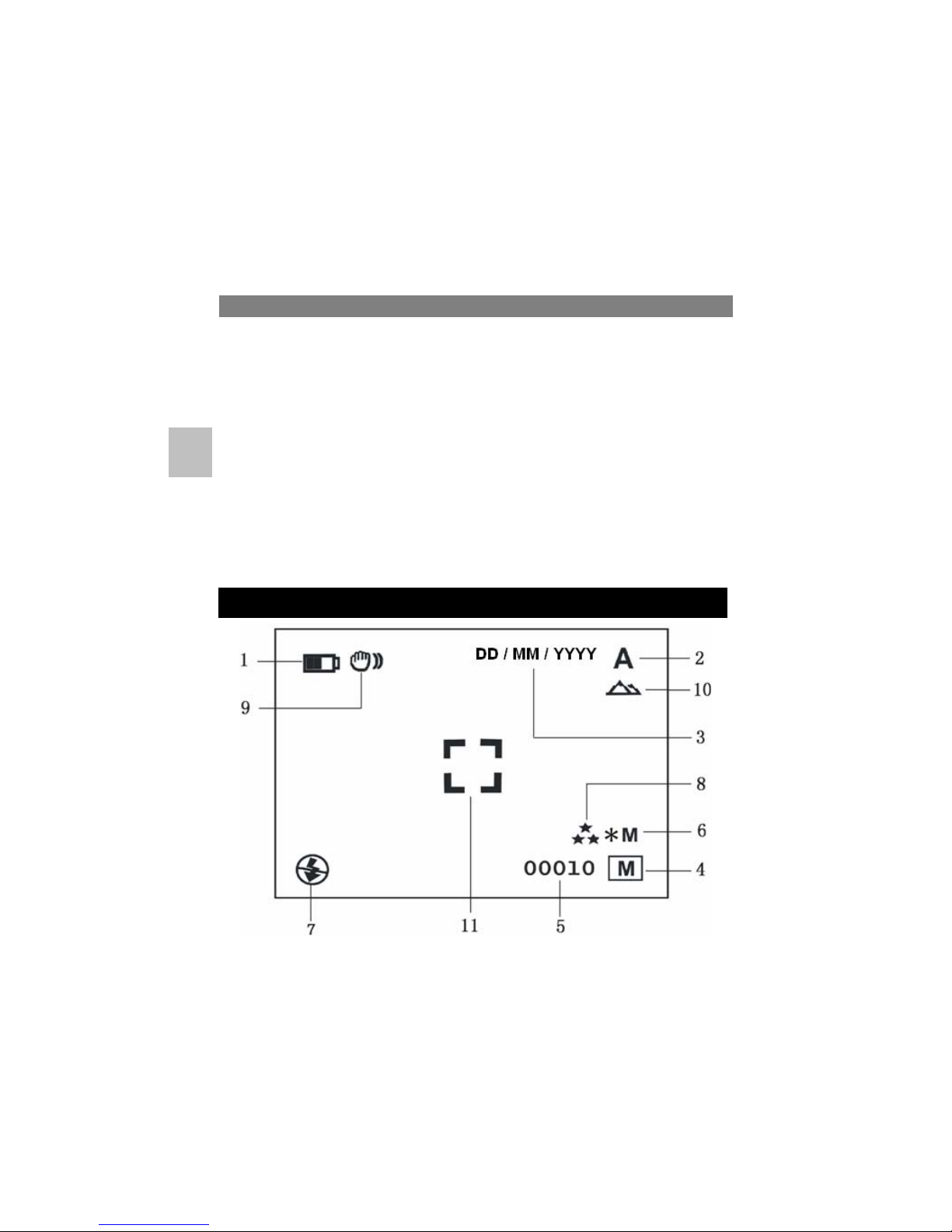

Explanation of the status icons

1- Battery indicator The batteries are full.

The batteries are empty.

2- Recording mode

Setting for photographs taking

Setting for videos capture

3- Date stamp Displays the date day/month/year

4- Memory or SD card

indicator Indicates memory or SD card

:Pictures stored in built-in memory

:Pictures stored in SD card

5- Photo / Video counter Photo mode :No. of balance picture can be

taken;

Video mode: Balance of recording time in

second;

Playback mode: The No. of pictures or video

clips

6- Selected Resolution

12M= 4032 x 3024;

8M= 3264 x 2448;

5M=2560 x 1920;

3.1M = 2048 x 1536;

1.3M=1280 x 960;

VGA=640 x 480;

7- Flash indicator : Force flash.

: Auto Flash: The camera determines if

the flash must be used or not.

: No Flash: The flash is turned off.

8- Picture quality The quality is fine (Default).

The quality is standard.

The quality is economy.

9- Brightness Alert Alert user to hold the camera steadily.

Function Description

10- Normal / Macro

mode indicator Normal mode (0.5m – infinity)

Macro mode (11cm –18cm)

11- View center

1. Openthebatterydoor.

2. Insert 2 AAA alkaline batteries into the camera.

3. Turn on the camera.

Press the POWER button to turn it on (press it again to turn off).

This camera has built-in internal memory. This memory can be extended with a

SD memory card.

Follow the instructions given below to insert the optional SD memory card into the

camera.

1. Turn off the camera first.

2. Insert the SD card into the camera.

Note: There is only one right direction to insert the SD memory card into the slot.

Do not force the card into the slot, or else it may damage both the camera

and the SD memory card.

Note: The SD memory card must be formatted before taking photographs. See

the following sections for more information.

1. Press Menu button

2. Select Setup setting by right key.

3. Press OK to confirm and select by up or down key.

4. Press OK to format the card or memory.

The camera can be set to different resolutions.

1. Press MENU to set proper resolution.

Resolution: VGA（640 x 480）1.3M（1280 x 960）3.1M (2048 x 1536),

5M (2560 x 1920), 8M (3264 x 2448), 12M (4032 x 3024)

Using the camera

Installing the batteries

Inserting a memory card

Formatting the memory or SD card

Setting the resolution

2. Six different resolutions will be displayed. Select the desired resolution by

using the or buttons and then press the OK button to confirm the

selection.

1. Turn on the camera by pressing the ON/OFF button.

2. Press MODE to set the camera to photo mode ( ).

3. Depending on the distance to the object being photographed, use Macro

switch to adjust the distance. Select the flower symbol ( ) if you wish to

take a close-up photograph (11cm –18cm).

If you wish to take photograph of surroundings or people (0.5m - infinity),

set the Macro switch to Normal mode ( ).

4. If you are not sure if there is enough lighting, turn the automatic flash ( )

on by pressing the flash button. (If the battery power is too low, the flash

won’t be activated).

5. Use the LCD screen to aim the object you wish to photograph.

6. Press Shutter button and hold the camera steadily for 2 to 3 sec, until the

LCD display turn on again.

Caution: 1) Taking picture for fast-moving object is not recommended.

2) Image may be distorted when taking picture in a moving vehicle.

The camera can zoom in up to 8 times.

1. Zoom in by pressing the or button, a number will appear on the

display. 8.0 is the maximum zoom.

2. You can zoom in by pressing the UP or DOWN button.

You can use the self-timer function when you wish to take a photograph for

yourself or when you wish to photograph for an object where the camera must be

as still as possible, for example on the stand.

1. Set the camera to photo mode.

2. Press the MENU button. The quick menu will appear.

3. Press

to self-timer mode, press OK and or to set the delay time:

2seconds / 10 seconds / 10+2seconds or off.

4. Press the OK button to confirm. The self-timer function is now ready for use.

Taking photographs

Zoom in and out

Taking photographs using sel

-timer function

Table des matières

Langues :

Autres manuels Oregon Scientific Appareil photo numérique

Oregon Scientific

Oregon Scientific PV100B Manuel utilisateur

Oregon Scientific

Oregon Scientific DS8228 Manuel utilisateur

Oregon Scientific

Oregon Scientific DS9320-15 Manuel utilisateur

Oregon Scientific

Oregon Scientific DS3888 Manuel utilisateur

Oregon Scientific

Oregon Scientific DS8118 Manuel utilisateur

Oregon Scientific

Oregon Scientific DS3838 Manuel utilisateur

Oregon Scientific

Oregon Scientific DS6868 Guide de démarrage rapide

Oregon Scientific

Oregon Scientific GPS-ATC9K Manuel utilisateur

Oregon Scientific

Oregon Scientific DS8238 Manuel utilisateur

Oregon Scientific

Oregon Scientific DS6688 Manuel utilisateur

Oregon Scientific

Oregon Scientific DS6888 Manuel utilisateur

Oregon Scientific

Oregon Scientific DS6628 Manuel utilisateur

Oregon Scientific

Oregon Scientific DS3888 Manuel utilisateur

Oregon Scientific

Oregon Scientific DS8118 Manuel utilisateur

Oregon Scientific

Oregon Scientific DS3868 Manuel utilisateur

Oregon Scientific

Oregon Scientific DS9810 Manuel utilisateur

Oregon Scientific

Oregon Scientific DS6639 Manuel utilisateur

Oregon Scientific

Oregon Scientific DS6638 Manuel utilisateur

Oregon Scientific

Oregon Scientific DS8238 Manuel utilisateur

Oregon Scientific

Oregon Scientific DS6300 Manuel utilisateur

Oregon Scientific

Oregon Scientific ATC-1000 Manuel utilisateur

Oregon Scientific

Oregon Scientific DS9300 Manuel utilisateur

Oregon Scientific

Oregon Scientific ATC-2K Manuel utilisateur

Oregon Scientific

Oregon Scientific DS-3899 Manuel utilisateur

Manuels Appareil photo numérique populaires d'autres marques

Mercury

Mercury 350K Manuel utilisateur

Pentax

Pentax Optio LS 465 Manuel utilisateur

Sanyo

Sanyo VPC-S1085 Manuel utilisateur

GE SMART A1255 Manuel utilisateur

Point Grey

Point Grey Gazelle Manuel utilisateur

Nikon

Nikon COOLPIX A Manuel utilisateur

Pentax

Pentax P-5 Manuel utilisateur

BlazeVideo

BlazeVideo A280 Manuel utilisateur

Sony

Sony MCA-20 Manuel utilisateur

Sony

Sony Alpha DSLR-A290 Manuel utilisateur

ATIK Cameras

ATIK Cameras One Manuel utilisateur

CohuHD Costar

CohuHD Costar 3930 Series Manuel utilisateur

Leica

Leica M10-R Manuel utilisateur

FujiFilm

FujiFilm FinePix A700 Manuel utilisateur

Lorex

Lorex LNZ81P25 Series Manuel utilisateur

GE J1470S Manuel utilisateur

Sony

Sony A6700 Guide de l'utilisateur

Canon

Canon EOS ELAN7 Manuel utilisateur
