Oregon Scientific DS9300 Manuel utilisateur

WelcomeWelcome

Welcome

Thank you for purchasing the product. We strongly recommend that

you read this user’s manual before operating the camera. Keep the

manual handy for quick reference. You are on your way to

experiencing a digital camera like no other. This easy-to-follow user’s

manual shows you how to use your new camera like a pro, whether

you want to:

• download photos to your computer,

• preview and take images via the television.

• create a mini movie using the live video feature.

Before using the camera, please ensure that you:

• Read and understand the user’s manual.

• Check the contents to make sure that all of the components are

included.

• Check that your camera is recording the images correctly by

taking a number of test shots.

• If your camera is used for a prolonged period, the camera body

may become warm. Please be aware of this and take care when

operating the camera.

9300 Eng Manl(i-v 25/3/03, 3:16 AM3

Table of ContentsTable of Contents

Table of Contents

CHAPTER 1: Components Guide

The Camera Kit ..................................................................................... 1

Index of Controls (Front / Left / Back / Up / Bottom View) .................... 2

On Screen Display (OSD) .................................................................... 7

CHAPTER 2: Getting Started

Attaching the Strap ............................................................................... 9

Turning the Power On/Off ..................................................................... 9

Installing the Batteries ......................................................................... 10

Inserting / Removing a Security Digital Card ...................................... 11

The Memory Priority ............................................................................ 12

Setting the Language ( ) ................................................................... 12

CHAPTER 3: Basic Photography

Taking Pictures (Auto Focus) .............................................................. 13

Adjust the zoom

Press the shutter button

Taking Pictures (Manual Focus) .......................................................... 15

Switching the LCD Monitor Display Information ( ) ......................... 16

Using the Flash ( /

/ ) ............................................................... 17

Using the Self-Timer ( ) .................................................................... 17

Using the Macro ( ) ........................................................................... 18

Adjusting the Exposure Compensation ............................................... 18

9300 Eng Manl(i-v 25/3/03, 3:16 AM4

Table of ContentsTable of Contents

Table of Contents

CHAPTER 4: Advanced Features Photography

Capture Mode ( / / ) ............................................................... 19

Scene Mode ( / / / / / ) ......................................... 20

Delete Mode ( / ) ......................................................................... 22

Resolution ( ) ................................................................................... 24

Compression Ratio ( S/ / ) .......................................................... 24

Exposure Time (E) ............................................................................ 25

Sharpness / Softness ( ) .................................................................. 25

Light Metering Mode ( ) ................................................................... 26

Communication Setting ( ) ................................................................ 27

Setting the ISO (

ISO

) ............................................................................ 27

Beeper On/Off ( / ) ..................................................................... 28

Auto Power Off ( ) ............................................................................. 28

Monitor Brightness ( ) ..................................................................... 29

Setting the Date and Time ( ) .......................................................... 29

Setting the TV System ( ) ................................................................. 30

Reset Definition (

RREESSEETT

) .......................................................................... 30

Setting the Focus before Using the Self-Timer ( ) ........................... 31

Assist Focus ( ) ................................................................................ 31

CHAPTER 5: Viewing the Images

Switching between Capture and Replay Mode ................................... 32

Multi-Image Replay( ) ...................................................................... 32

Auto Playback ..................................................................................... 33

The Zoom in the Replay Mode ............................................................ 33

Erasing the Single Image .................................................................... 34

Protecting Images( ) ....................................................................... 34

Playing Back Movies ........................................................................... 35

9300 Eng Manl(i-v 25/3/03, 3:16 AM5

Table of ContentsTable of Contents

Table of Contents

CHAPTER 6: Capturing / Replaying with a TV Monitor

Connecting the Camera with a TV Monitor ......................................... 36

Capturing the Images with a TV Monitor ............................................. 36

Replaying the Images with a TV Monitor ............................................ 37

CHAPTER 7: Installing the USB DISK Driver

For Windows 98 only .......................................................................... 38

CHAPTER 8: Download Images via USB DISK ......... 40

CHAPTER 9: Appendix

Troubleshooting .................................................................................. 42

Additional Information ......................................................................... 45

9300 Eng Manl(i-v 25/3/03, 3:16 AM6

1. Components Guide1. Components Guide

1. Components Guide

The Camera Kit

The camera kit includes:

1. The camera

2. AA alkaline batteries (x2)

3. Camera strap

4. Mini USB cable

5. User’s manual

6. CD

7. Video cable

8. Quick start guide

This is not your traditional camera. This is a digital camera that allows

you to take pictures without the use of film. With this camera, going

digital is just the beginning. Before going into creating fun projects

with the camera, familiarize yourself with the cameras features and

functions.

9300 Eng Manl(1-49p 25/3/03, 3:14 AM1

Index of ControlsIndex of Controls

Index of Controls

(Front/Left/Back/ p/Bottom View)(Front/Left/Back/ p/Bottom View)

(Front/Left/Back/ p/Bottom View)

Front ViewFront View

Front View

9300 Eng Manl(1-49p 25/3/03, 3:14 AM2

Index of ControlsIndex of Controls

Index of Controls

(Front/Left/Back/ p/Bottom View)(Front/Left/Back/ p/Bottom View)

(Front/Left/Back/ p/Bottom View)

Left ViewLeft View

Left View

Strap Eyelet

SD Card Slot / Battery Cover

SD Card Slot

Battery Slot

9300 Eng Manl(1-49p 25/3/03, 3:14 AM3

EV OK

)

FLASH BUSY

/ MF

ZOOM

Index of ControlsIndex of Controls

Index of Controls

(Front/Left/Back/ p/Bottom View)(Front/Left/Back/ p/Bottom View)

(Front/Left/Back/ p/Bottom View)

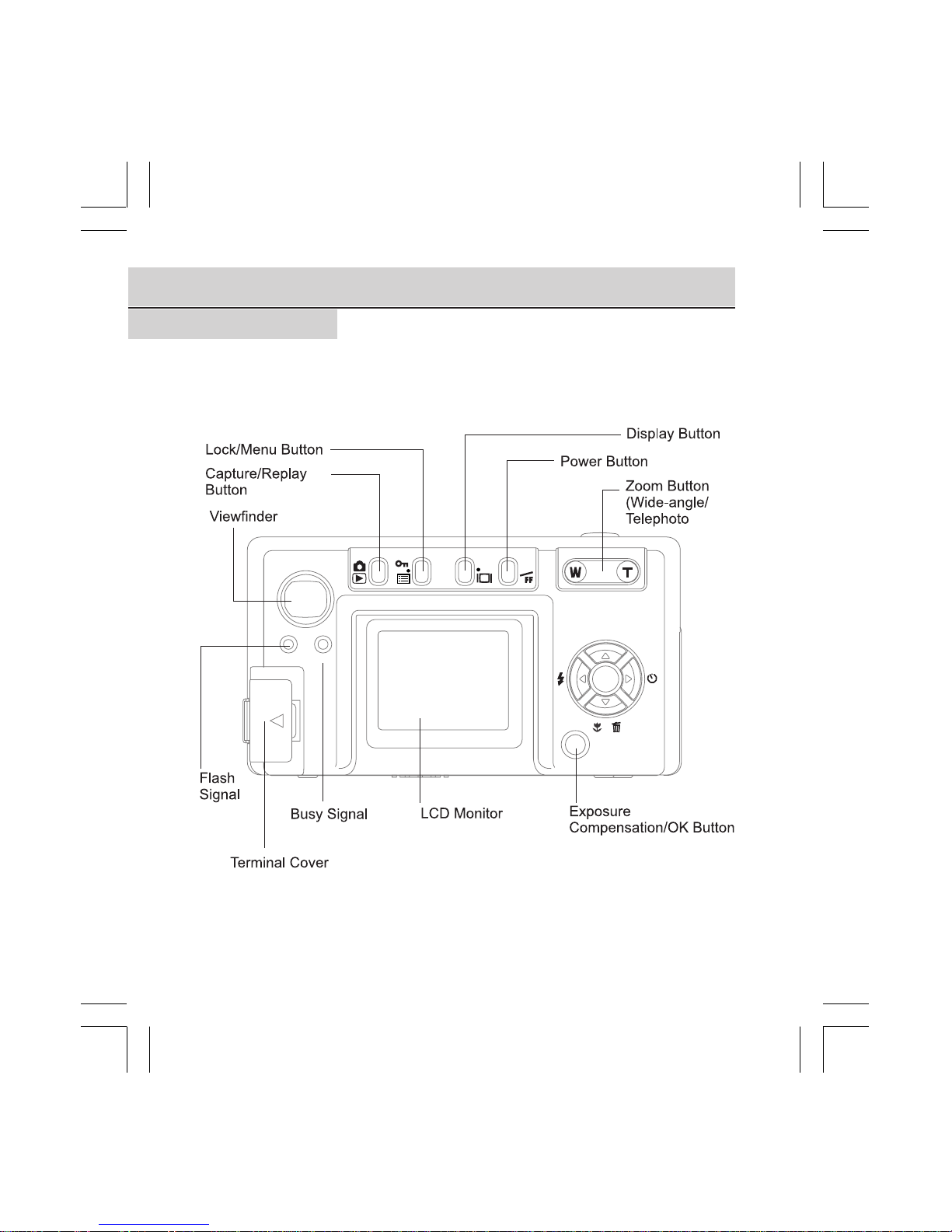

Back ViewBack View

Back View

9300 Eng Manl(1-49p 25/3/03, 3:14 AM4

/Zoom/Manual Fo us

Button

/Ma ro/Erase

Button

Self-Timer

Button

Flash

Terminal Cover

Video Out

Terminal

USB

Terminal

/ MF

ZOOM

/ MF

ZOOM

Index of Controls Index of Controls

Index of Controls (Front/Left/Back/ p/Bottom View)(Front/Left/Back/ p/Bottom View)

(Front/Left/Back/ p/Bottom View)(Front/Left/Back/ p/Bottom View)

(Front/Left/Back/ p/Bottom View)

9300 Eng Manl(1-49p 25/3/03, 3:14 AM5
