RADIO-CONTROLLED

PROJECTION CLOCK

MODELNO.:RM868PA

USER’SMANUAL

SECTION 1 INTRODUCTION

Congratulations on your purchasing the RM868PA Radio-

controlled Projection Clock.

The Projection Clock is a compact, easy-to-handle device. It is

designed to automatically synchronize its current time and date

when brought within range of the U.S. Atomic Clock.

The Projection Clock also comes with features such as clock

projection, multilingual day-of-the-week display, back-light, dual

analog and digital displays of time and daily alarm with 8-minute

snooze function.

DISPLAY BUTTONS

A DIGITAL CLOCK DISPLAY

B ANALOG CLOCK DISPLAY

CONTROL BUTTONS

C [MODE/SET] BUTTON

Changes the display mode or holds to enter the setting routine

D [ALARM] BUTTON

Sets the daily alarm function

ZONE] BUTTON

Selectsamongthe4U.S.time-zones:Pacific,Mountains,Central

or Eastern

F[ ] BUTTONS

Change the value of a setting

SNOOZE ] BUTTON

Activates the snooze function or turns on the back-light and

clock projection

H [RESET] BUTTON

Returns all settings to default values

I [PROJECTIONON] BUTTON

Used with power adapter to enable continuous projection

J[ ] [IMAGEROTATION] KNOB

90º (left or right) image rotation

K [180ºROTATION] BUTTON

Flips the projected image horizontally

L [FOCUS] KNOB

Adjusts the focus of clock projection

M 3VDCJACK

For AC power adapter installation

N WALL-MOUNT HOLE

O PROJECTOR

POWER

This unit can be operated by batteries or AC power alone as well as

both together.

Battery Installation:

TheunitusestwoAA-sized(UM-3)1.5Vbatterieswhichisinstalled

inthefactoryforyou. Pleaseremove the plastic cover before usage.

Should you need to change the battery,

1. Remove the battery compartment door.

2. Insert two AA-sized (UM-3) 1.5V batteries as shown.

3. Press[RESET].

4. Replace the battery compartment door.

To install the adapter:

1. Insert adapter into jack at the bottom of the unit.

2. Plug the adapter into an electrical wall outlet.

Note: Make sure the voltage is correct.

When the power level of the installed batteries is low or when only

AC adapter is connected, the low battery indicator [ ] will light

up. In this case, replace or install with new batteries .

HOW TO ACTIVATE THE BACK-LIGHT

Press [ SNOOZE ] to turn on the back-light for 5 seconds.

HOW TO USE THE CLOCK PROJECTION

Theclockprojectionmakesiteasier for you to read the Current time

or Alarm time with alarm-on/off status at night. To use the feature,

1. Press [ SNOOZE ] to turn on the projection for 5 seconds. The

current time with alarm-on/off status ( [ ] on or off) will be

projected onto the surface the lens is facing.

2. To change to view the preset alarm time with its on/off status,

press [ SNOOZE ] when projection is already on.

3. Adjust the projected image as below.

Current Time &

Alarm-on/off Status Alarm Time &

Alarm-on/off Status

Note: Make sure the [ PROJECTION ON ] switch is switched to the

back.

HOW TO USE THE PROJECTOR

WITH POWER ADAPTER

RM868PA comes with an AC power adapter. Use of the AC power

adapter is required for continuous projection.

Once the power adapter is in place, you can select to turn on the

projector for longer time (such as throughout the night) by sliding

the [ PROJECTION ON ] switch on. To turn off the projector, slide

the switch back.

If you have press [ SNOOZE ] to change the projected image to

Alarm time with its on/off status when projection is on, please note

that the projected image will automatically after 10 seconds return

to Current time with Alarm-on/off status.

Note that this switch can only be used with the power

adapter installed. For momentary projection, use the

[

SNOOZE

SECTION 2 THECALENDARCLOCK

DIGITAL & ANALOG DISPLAY MODES

Press [MODE/SET] to display the following in sequence:

Digital Analog

1) Current Time with Second

------------------------------------

Calendar

ProjectorFeatures

Feature Effect Instructions

Rotatesthe Tilt swivel projector to alter

Projector projection 180° the direction of projection

FOCUS Focusesprojection Rotate to focus projection

Knob

[ ] IMAGE Rotatesprojection Rotation of projection allows

ROTATION user to place clock in

knob convenientposition

180° Horizontally flips Flipsan image tomaintain

ROTATION the projection 180° an upright position

button

2) Current Time with Weekday

------------------------------------

Calendar

3) Current Time with Weekday

------------------------------------

2nd zone-time

4) 2nd zone-time with Weekday

------------------------------------

2nd zone-time Calendar

To display the alarm clock and details, press [ALARM]. The daily

alarm time will appear in the lower line of the digital display as well

as the analog display.

ABOUT RADIO RECEPTION

When the unit is within range of its respective radio signals, its

radio-control mechanism will override all manual settings unless

radio reception is deactivated.

After battery installation, the unit will start to search for radio

signal automatically. Auto-synchronization with the U.S. Atomic

Clock can take up to 72 hours . When it is receiving radio signal, the

radio-reception icon will start to blink. A complete reception

generally takes about 2 to 10 minutes, depending on the strength

of the radio signal. After that, the periodical scanning will only

take a few seconds.

The antenna icon indicates the quality of reception.

STRONG

WEAK

NORECEPTION

RECEIVING

When the reception is complete, the radio-reception icon will

appear as [ ] and the received radio-controlled time will be

displayed accordingly.

Interference

Receptioncanbeaffectedbyanumberoffactors.Forbestreception,

place the device away from metal objects and electrical appliances.

Note: Interference from sources such as television sets can affect

the signal. It is unlikely that you will want or need to manually set

the Projection Alarm Clock. Should the need or desire to manually

set the clock arise, please see section: How To Set The Clock &

Calendar Manually .

HOW TO ENABLE OR DISABLE

AUTO-RECEPTION

If you wish to disable the auto-reception of radio signal feature

while the unit is within range, press and hold [ ZONE ] button for

2 seconds. The radio-reception icon on the display screen will

disappear and the unit will NOT respond to radio signals.

To enable the feature again, press and hold [ ] for 2 seconds. The

radio-reception icon will be shown again and it will start blinking

to initiate reception automatically.

HOW TO SET THE CLOCK &

CALENDAR MANUALLY

1. Press and hold [MODE/SET] for 2 seconds.

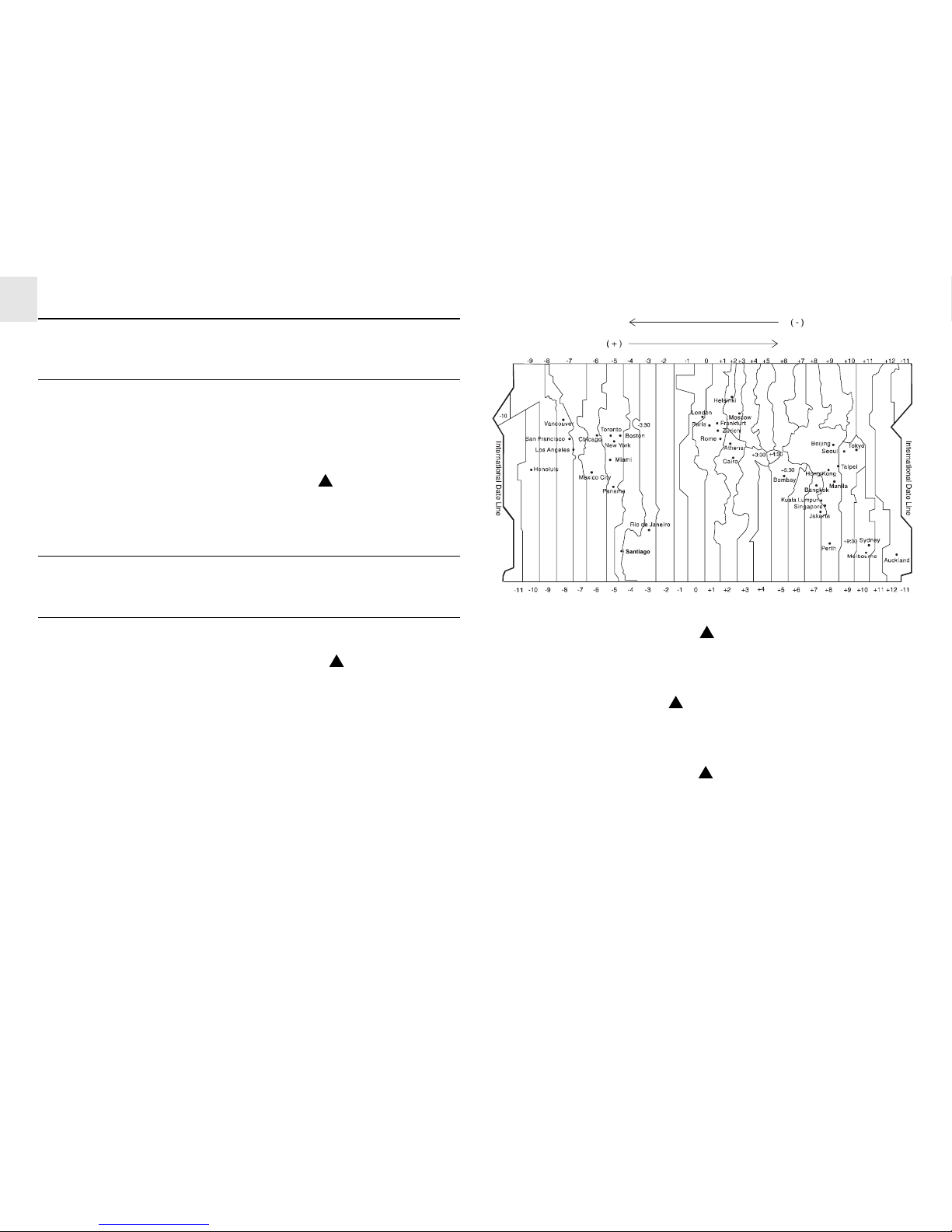

2. Enter the 2nd time-zone offset hour using [ ] . You can select

between + 23 and - 23 hours. Hold down the button to rapidly

increase or decrease the value. Press [MODE/SET] .

3. Entertheclockformatusing [ ].Youcanselect12-houror24-

hour display.

4. Press[MODE/SET].

5. Enter the hours using [ ] . The hand of hour on the analog

display will be adjusted simultaneously.

6. Press[MODE/SET].

7. Enter the minutes using [ ] . The hand of minutes on

the analog display will be adjusted simultaneously.

8. Press[MODE/SET].

9. Follow the same pattern to set the year, date format (month-day

or day-month), month, day, and display language (English [E],

German[D],French[F],Italian[I]orSpanish[S])forday-of-the-

week.

Day-of-the-week

Language Monday Tuesday Wed. Thursday Friday Saturday Sunday

English

German

French

Italian

Spanish

10.Press[MODE/SET] to save the changes andexit. If changes are

made during the process, the seconds will reset and start from

zero.

The unit will also save all changes and return to normal display

automatically after the unit has been left idle for a minute.

Todisplaythe4U.S.zone-times:Pacific(P),Mountain(M),Central

ABOUT THE ALARM

This unit is equipped with a daily alarm function.

To set the alarm,

1. Press [ALARM] to change both the digital and analog display

to the alarm-time display mode.

2. Press and hold [ALARM] for 2 seconds.

3. Use [ ] to enter the hours. The hand of hour on the analog

display will be adjusted simultaneously.

4. Press[ALARM].

5. Use [ ] to enter the minutes. The hand of minutes on

the analog display will be adjusted simultaneously.

6. Press[ALARM].

The alarm will be automatically activated. The [ ] icon will

appear. To activate or deactivate the alarm, press [ ] when the

alarm time is displayed.

HOW TO USE THE DAILY ALARM

An alarm will go off for 2 minutes in two-step crescendo patterns if

undisturbed. The [ ] icon will flash, the back-light and the clock

projection will be activated for 5 seconds. To mute the alarm, press

any key. Pressing [ SNOOZE ] will activate the snooze function.

SNOOZE FUNCTION

When the snooze function is activated, the alarm will be muted

temporarily and set off again after 8 minutes. To disable the snooze

function,press[ALARM].

SECTION 3

ADDITIONAL INFORMATION

THE RESET BUTTON

The [RESET] button is used to enhance synchronization of signals

after battery replacement or when the unit is operating in an

unfavorable way or malfunctioning. Use a blunt stylus to hold

down the button. All settings will return to their default values.

WALL-MOUNT OR TABLE-STANDING

This unit is designed specially so that you can adjust the angles of

the different parts to facilitate table-standing or wall-mounting.

Wall-Mount Table-Stand

NOTES ON BACKLIGHT

- The EL panel that provides illumination will lose power after

extensive usage.

- The unit may emit an audible sound whenever the display is

illuminated by the EL or HiGlo backlight. This is due to

vibration of the EL panel used for illumination and does not

indicate malfunction of the unit.

PRECAUTIONS

This unit is engineered to give you years of satisfactory service if

handled carefully.

1. Do not immerse the unit in water.

2. Do not clean the unit with abrasive or corrosive materials.

3. Do not subject the unit to snow or excessive force, shock, dust,

temperature or humidity.

4. Do not tamper with the unit’s internal components.

5. Do not mix new and old batteries or batteries of different

specifications.

SPECIFICATIONS

Radio Control : Auto Synchronization of current

time and date

Calendar : Day-of-Week in English / German /

Franch / Italian / Spanish

Month / Day or Day / Month format

Clock Time : 12 / 24-hour format

Accuracy : +/- 0.5 second / day

(when RF is disabled)

Alarm : 2-minute crescendo alarm with

8-minute snooze function

Power : 2 pcs of UM-3 or AA-size batteries

PowerAdapter : 3VDC

Weight : 200 g (7.05 ounces) (without battery)

Dimensions (mm) : 135 x 152 x 26 mm

(5.31 x 5.98 x 1.02 inches) ( H x W x D )

CAUTION

— The content of this manual is subject to change without

further notice.

— Due to printing limitation, the displays shown in this

manual may differ from the actual display.

— The contents of this manual may not be reproduced

without the permission of the manufacturer.

CUSTOMER ASSISTANCE

Should you require assistance regarding this product and its

operation, please contact our customer care department at

800-853-8883 or via email at [email protected].

WARRANTY

This product is warranted to be free of manufacturing defects for a

period of 90 days from date of retail purchase. Defective product

should be directed to the place of retail purchase for exchange.

Should this not be possible, contact our customer care department

for assistance and a return material authorization. No returns may

be made without a return authorization. Please retain your retail

receipt as you may be asked to provide a copy of it for proof of date

purchased.

This warranty does not cover product subjected to abuse, misuse,

accidental damage or tampering. Upon return of the defective

product, Oregon Scientific will at its discretion, replace the product

with either a new or a tested reconditioned product. Should the

product be out of warranty, the consumer may purchase directly

from Oregon Scientific a replacement at reasonable cost plus

shipping and handling.

Table des matières

Autres manuels Oregon Scientific Horloge

Oregon Scientific

Oregon Scientific TW223 Manuel utilisateur

Oregon Scientific

Oregon Scientific RM313PNA Manuel utilisateur

Oregon Scientific

Oregon Scientific RMR613HGA Manuel utilisateur

Oregon Scientific

Oregon Scientific 983U Manuel utilisateur

Oregon Scientific

Oregon Scientific RM926 Manuel utilisateur

Oregon Scientific

Oregon Scientific IWA-80055 Manuel utilisateur

Oregon Scientific

Oregon Scientific FAT101 Indianapolis Manuel utilisateur

Oregon Scientific

Oregon Scientific RM968 Manuel utilisateur

Oregon Scientific

Oregon Scientific FSP-301 Manuel utilisateur

Oregon Scientific

Oregon Scientific CIR100 Manuel utilisateur

Oregon Scientific

Oregon Scientific RM303P Manuel utilisateur

Oregon Scientific

Oregon Scientific RAR601 Manuel utilisateur

Oregon Scientific

Oregon Scientific RM982A Manuel utilisateur

Oregon Scientific

Oregon Scientific BAR223P Manuel utilisateur

Oregon Scientific

Oregon Scientific RM826A Manuel utilisateur

Oregon Scientific

Oregon Scientific PROJI RM338PX Manuel utilisateur

Oregon Scientific

Oregon Scientific BAR223P Manuel utilisateur

Oregon Scientific

Oregon Scientific BAR368P Manuel utilisateur

Oregon Scientific

Oregon Scientific RM622PA Manuel utilisateur

Oregon Scientific

Oregon Scientific RM802 Manuel utilisateur

Oregon Scientific

Oregon Scientific BAR623PA Manuel utilisateur

Oregon Scientific

Oregon Scientific RRM612P Manuel utilisateur

Oregon Scientific

Oregon Scientific PRYSMA G RRM222P Instructions d'installation

Oregon Scientific

Oregon Scientific RRA320PNX Manuel utilisateur

Manuels Horloge populaires d'autres marques

Silicon Laboratories

Silicon Laboratories SI5324 Manuel utilisateur

Heathkit

Heathkit GC-1005 Manuel utilisateur

Andrew O'Malley

Andrew O'Malley DOTKLOK Manuel utilisateur

ALGE-Timing

ALGE-Timing ASC3 Manuel utilisateur

Bodet

Bodet Profil 960 Manuel utilisateur

Nixie Clock

Nixie Clock Divergence Meter Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-8256-AL Manuel utilisateur

Mini Gadgets

Mini Gadgets MCPro Manuel utilisateur

Casio

Casio TMR-200 Manuel utilisateur

Progetti

Progetti ILTEMPOSTRINGE Manuel

BVItech

BVItech BV-101 Manuel utilisateur

Progetti

Progetti KALIMERO Manuel

La Crosse Technology

La Crosse Technology WT-3141b Manuel

La Crosse Technology

La Crosse Technology W86531 Manuel utilisateur

Sharp

Sharp SPC900 Manuel utilisateur

La Crosse Technology

La Crosse Technology 404-50447 Manuel utilisateur

Datexx

Datexx DF0063 Manuel utilisateur

LG LEC-005 Manuel utilisateur
