Opvimus UMX-ETH+ Manuel utilisateur

9I012M May 2018 V4.3.000

UMX-ETH+ version 4.3.000 EN

Expansion IP card

for UMX-03/0 audio matrix

UMX-ETH+

Table of contents

1. INTRODUCTION ......................................................................................................................................4

2. ELEMENTS ..............................................................................................................................................4

3. PLACEMENT OF THE BATTERY .................................................................................................................5

4. INSERTING THE CARD..............................................................................................................................6

5. COMMISSIONING THE UNIT ....................................................................................................................7

5.1. Configuration of the UMX-ETH+ network addresses .............................................................................7

6. OPTIMAX2 SYSTEM NETWORK SPECIFICATIONS.......................................................................................8

7. TECHNICAL SPECIFICATIONS..................................................................................................................10

8. SOFTWARE AND FIRMWARE VERSIONS .................................................................................................10

9. DOCUMENT VERSION TRACKING...........................................................................................................10

10. GUARANTEE .........................................................................................................................................11

WARNING. This is a Class A unit. In a domestic environment this unit may cause radio interferences. In this case the user

must take the necessary precautions.

UMX-ETH+ version 4.3.000 EN

Expansion IP card

for UMX-03/0 audio matrix

UMX-ETH+

1. INTRODUCTION

This is an additional IP interface for the Optimax2 System.

This general purpose card can be used for dedicated and specific functions in one installation:

•Interface to third party systems

•Interface to train signalling systems.

•Gateway.

•Customized integrations with passenger information systems.

Characteristics:

•Digital audio by means of Ethernet connection.

•Dual Ethernet connection for installations with redundant network systems. The connection is constantly monitored and

switches automatically when required.

•LEDs indicators (LINK/ACT, 10/100Mbps) for each Ethernet connection.

•Fail relay.

•Configuration of the IP address in Flash memory via software and web page.

•Constant notification (IP) of the status of the equipment via a Heart Beat signal.

•Monitoring of the operation of the equipment using software and/or basic TELNET or SSH (Secure Shell) functions.

•Each card occupies one position on the bus of a UMX-03/0.

•Files download by means of FTP or FTP-S.

2. ELEMENTS

1) ETH A Connector.

Is used to connect the unit to the IP network.

(1a) LINK/ACTIVITY indicator (green LED):

When illuminated it indicates a network connection. When

flashing it indicates that data is being sent or received.

(1b) SPEED indicator (yellow LED):

Speed of the network. Indicates a speed of 100 Mbps when

illuminated. The light extinguished indicates a network speed of

10 Mbps (it is highly recommended to use a transmission speed

of 100 Mbps).

2) ETH B Connector.

Is used in a redundant network as a secondary connection to the IP

network.

3) CONSOLE Mini USB connector. For system monitoring functions. Use

by qualified personnel only.

4) Reset to factory default IP address push button (10.1.1.1).

5) FAIL relay (when configured).

Fail relay. Switches when a system alarm is detected.

Maximum DC charge current: 150 mA

Maximum DC or AC peak charge voltage: 350 V

Figure 1

UMX-ETH+ version 4.3.000 EN

Expansion IP card

for UMX-03/0 audio matrix

UMX-ETH+

Handling batteries properly:

•Warning! Improper use of battery may lead to explosion. Replace the batteries with the same or equivalent type only.

•Batteries may endanger life if swallowed. If a battery is swallowed, seek medical assistance immediately.

•Before inserting the batteries, check whether the contacts in the device and batteries are clean and, if necessary, clean

them.

•Only use new batteries.

•Do not use rechargeable batteries

•Never try to recharge normal batteries. There is a risk of explosion!

•Never expose batteries to heat sources (e.g. radiators) or direct sunlight. There is an increased risk of leakage!

•Never short-circuit the batteries.

•Never throw batteries into a fire.

•Do not disassemble or deform batteries.

•If the equipment is not going to be used for long periods, remove the battery.

•Remove leaking batteries from the device immediately. If battery acid leaks out it is essential to avoid contact with the skin,

eyes and mucous membranes! If the acid does come into contact with skin, immediately rinse the affected areas with plen-

ty of clear water and consult a doctor immediately. There is a risk of acid poisoning and acid burns!

•Remove exhausted rechargeable battery from the device immediately! There is an increased risk of leakage

•Do not throw used batteries into the household waste. The batteries must be deposited in a collection point for used bat-

teries.

3. PLACEMENT OF THE BATTERY

The equipment incorporates an RTC (Real-time clock) whose function is to maintain the current time. To keep the RTC powered

even if the equipment is turned off, we must place a 3V lithium battery type CR2032 supplied with the equipment.

It is advisable to replace the equipment battery at least every 5 years.

Battery placement procedure:

Insert the battery respecting the polarity

indicated in the figure 2.

Figure 2

UMX-ETH+ version 4.3.000 EN

Expansion IP card

for UMX-03/0 audio matrix

UMX-ETH+

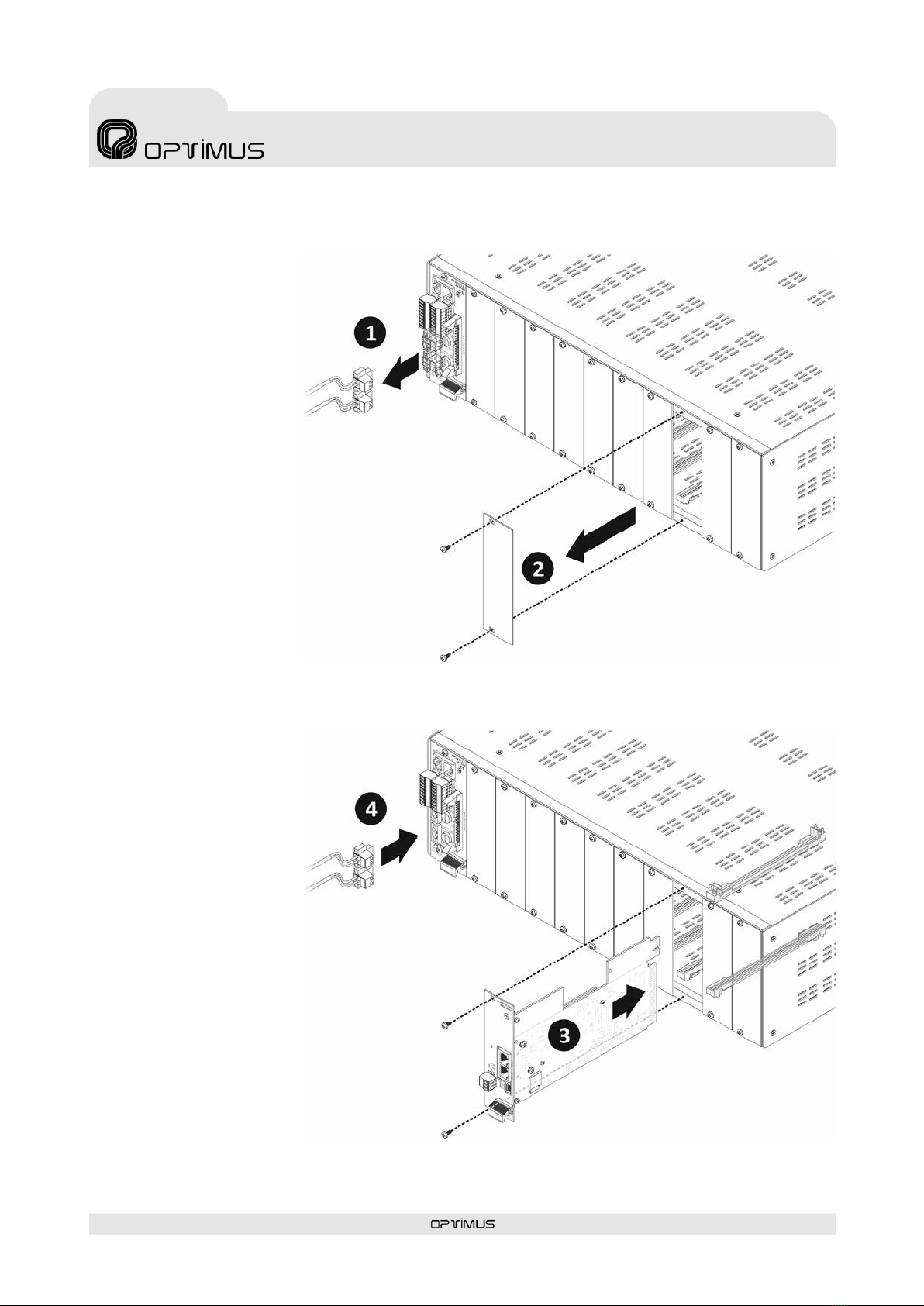

4. INSERTING THE CARD

The card occupies one slot on the

matrix.

To insert the card proceed as

follows:

1) Disconnect the power supply

to the unit (POWER SUPPLY 1

and POWER SUPPLY 2 strips).

2) Remove the rear blank plate

for the slot where the card is

to be inserted.

3) Insert the card by fitting it

into the slot guides and

fasten it by means of the

fastening screws.

4) Reconnect the power.

Figure 5

Figure 3

Figure 4

UMX-ETH+ version 4.3.000 EN

Expansion IP card

for UMX-03/0 audio matrix

UMX-ETH+

5. COMMISSIONING THE UNIT

To commission the UMX-ETH+ card we must send configurations to it via an Ethernet connection. Accomplishing this requires a PC

equipped with a network card and connected to the unit through a switch or directly using a network cable. The PC must have the

PA Manager 4.3 software installed.

1. Place the card in the UMX-03/0 audio matrix.

2. Connect the devices to the network (PC and UMX-ETH+).

2. Power the devices (UMX-03/0).

3. Via the PA Manager software, configure the parameters of the UMX-ETH+.

4. Connect the equipment: In the structure of the installation, right click with the mouse on the UMX-ETH+ card and select

Connect Equipment.

5. Open the File menu and select Save.

6. Send the settings to the UMX-ETH+. In the structure of the installation, right click with the mouse on the UMX-ETH+ card and

select the option Send Configurations.

5.1.Configuration of the UMX-ETH+ network addresses

To change the unit's network settings by default, carry out the following:

1. From the PC, open a browser, enter the IP address for the UMX-ETH+ card and press INTRO. By default the IP address is

10.1.1.1. Warning: The range of IP addresses for the unit and the PC must match. Otherwise, the network settings of the PC

must be changed first in order to place it within the range of the unit (for example, the PC could have an IP address of

10.1.100.152).

2. Enter the user name optimax, the password 1933 and click on the Login button. This is the default password. For security, from

PA Manager 4.3 software it must be changed by installer.

3. Click on Network.

4. Modify the network parameters as desired (IP, Netmask and Gateway) and click on the Change Network Settings button to

apply the changes.

The equipment will reboot automatically.

ATTENTION

To send configurations to the unit requires having the unit and the PC within the same IP address range. The unit's net-

work addresses and those set via the configuration software must match.

By default, the network configurations of the unit are the following:

IP ADDRESS: 10.1.1.1

NETMASK: 255.0.0.0

GATETEWAY: 0.0.0.0 (without Gateway)

If you wish to assign a different network address to the equipment, other than the one established by default, refer to the

following section 5.1. Configuration of the UMX-ETH+ network addresses.

UMX-ETH+ version 4.3.000 EN

Expansion IP card

for UMX-03/0 audio matrix

UMX-ETH+

6. OPTIMAX2 SYSTEM NETWORK SPECIFICATIONS

OPTIMAX2 public address system supports audio and control data Communications through Ethernet and IP.

Since it works on levels 3 and 4 of the OSI scale, OPTIMAX2 protocol supports Communications through routers (IP protocol) by

means of the configurations of the gateways and subnetwork masks. Thanks to these features, OPTIMAX2 system can work on both

LANs and WANs.

The protocols used by the OPTIMAX2 system allow working without problems in networks where the different public address sys-

tems are located in different VLANs.

Communications it uses are:

TCP/IP for control communications between different equipments.

UDP Unicast for the audio broadcasting from a local IP microphone to a local Optimax2 matrix (point to point communica-

tion).

UDP Multicast for the audio broadcasting from a global IP microphone to the Optimax 2 matrixes (point to multipoint

communication).

VoIP: OPTIMAX2 matrix allows to work also like a receiving VoIP terminal (one call each time) as following standards:

-Call establishing according to SIP RFC 3261

-For zones selection --> DTMF through SIP INFO or RFC 2833

-Supports calls “Peer to Peer” or through Proxy server

-RTP audio (Unicast/Multicast)

-Supported audio codecs in VoIP calls:

G711 (ulaw + alaw)

G722

L16 (16 bits/44.1KHz)

For a properly operation as a VoIP terminal, network has to be configured according to the defined specifications for IP te-

lephony.

Ports for the standard communication services used in the OPTIMAX2 system:

Protocol Multicast address Port Others

TELNET TCP (unicast) 23

TFTP UDP (unicast) 69 Optional

SMB

TCP (unicast)

UDP (unicast)

Between 135 and 139, and 445

Optional

FTP TCP (unicast) 21

Ports for the SECURE communication services used in the OPTIMAX2 system:

Protocol Multicast address Port Others

SSH TCP (unicast) 22

TFTP UDP (unicast) 69 Optional

SMB

TCP (unicast)

UDP (unicast)

Between 135 and 139, and 445

Optional

FTPS TCP (unicast) 990

UMX-ETH+ version 4.3.000 EN

Expansion IP card

for UMX-03/0 audio matrix

UMX-ETH+

For operating with OPTIMAX2 protocol, the following parameters must be met:

Protocol Multicast address Port Others

Control TCP (unicast) 10102, 10103

Local audio UDP (unicast) Between 1025 and 65536

Global audio UDP (multicast) Between 239.0.0.0

and 239.255.255.255 Between 1025 and 65536

Pre-set Multicast addresses

(static) for each global

emitter.

Configuration UDP (unicast) 10001 Configurations from the PC

Integration XML TCP (unicast) 27000

Direct integration with the

equipment (optional)

Integration JSON TCP (unicast) 28000

Integration SNMP UDP (unicast)

161

162 (TRAPS)

Integration SIP UDP (unicast)

5060 (Control)

5078 (RTP Audio)

Specifications of the local network (LAN)

-Bandwidth: 1 Mb for each audio channel.

-Number of audio channels:

oUp to 4 global channels (from the control centre to the satellites)

oUp to 1 local channel (internal to the satellite, do not use bandwidth from the backbone)

Specifications of the Switch/Router for LAN and WAN networks

-Protocols:

oTCP/IP For control/signalling/monitoring status

oUDP Unicast for Local Audio

oUDP Multicast for Global Audio

-Multicast snooping:

oMulticast filtering

oIGMP v2

-For large installations:

oMulticast Routing (Spanning Tree)

oCapable to handle TOS (Type Of Service)

Network protocol stack

(*) Multicast addresses and reserved ports

UMX-ETH+ version 4.3.000 EN

Expansion IP card

for UMX-03/0 audio matrix

UMX-ETH+

7. TECHNICAL SPECIFICATIONS

Ethernet communication 2 Ethernet connections (RJ45) A and B for redundant installations. IP Layer 3 &

Layer 2 Network.

Indicators LINK/ACT and SPEED LED indicators for each RJ45 connector

Internal SD memory 16 GB

Output contacts 1 FAIL relay. Max. DC charge current: 150 mA. Max. DC or AC peak charge voltage:

350V.

Power supply Through the UMX-03/0

Consumption 300 mA

8. SOFTWARE AND FIRMWARE VERSIONS

The functionalities described in this user manual are valid for software and firmware versions that are the same or later versions of:

UMX-ETH+ Firmware Application version 4.3

UMX-03/0 Firmware Application version 4.3

Linux version 2.6.35.14

PA Manager software Version 4.3

Optimax flasher tool Version 4.3

9. DOCUMENT VERSION TRACKING

Reference system Type of Document Confidentiality N/A

OPTIMAX2 Installation and operation guide

Rev Date Modifications Content Written by:

4.3.000 May 2018 1st Version R+D Department

Approved By Function Date

Ferran Gironès i Puig R+D Director 05/2018

Table des matières

Autres manuels Opvimus Matériel informatique

Opvimus

Opvimus UMX-2SA Manuel utilisateur

Manuels Matériel informatique populaires d'autres marques

EMC2

EMC2 VNX Series Manuel du propriétaire

Panasonic

Panasonic DV0PM20105 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuel utilisateur

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuel utilisateur

Raidon

Raidon iT2300 Manuel utilisateur

National Instruments

National Instruments PXI-8186 Manuel utilisateur

Hauppauge

Hauppauge WinTV-HVR-2250 Manuel utilisateur

Kontron

Kontron CP6002 Manuel utilisateur

Manhattan

Manhattan 702843 Manuel utilisateur

Aphex

Aphex 230 Manuel utilisateur

AMD

AMD Phenom II Manuel d'exploitation

Intel

Intel NUC 12 Pro Manuel utilisateur

dbx

dbx Zone Pro 1260 Manuel utilisateur

Galaxy

Galaxy GHDX2-2430S-24F4D Manuel utilisateur

Intel

Intel AXXRMFBU4 Manuel utilisateur

Kontron

Kontron DIMM-PC/MD Manuel utilisateur

ST X-NUCLEO-SAFEA1B Mode d'emploi

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuel utilisateur
