OPTO-EDU A16.1098 Manuel utilisateur

A16.1098

Full Motorized Inverted Fluorescent Microscope,

Full Auto, Semi-APO, BF+PH+FL, DF/PL/DIC

Instruction Manual

This instruction manual is applied toA16.1098 research inverted biological microscope. In order to

ensure safety, give full play to the best performance of the instrument and make you fully familiar with

the use of this microscope, we suggest that you read this manual thoroughly and carefully before

operating the microscope, and put the manual close to the workbench.

A16.1098

Our company provide you with the most secure and reliable

instruments.However,incorrect usage and ignorance of notices in the instruction may

result in damage of body and property.Please read it carefully to ensure the validity of

the ways you use before you operate it.Moreover ,please put it in a place where it is

convenient to read it anytime for real-time enquiry.

Safety instructions in this manual are marked with the following symbols to

highlight their importance. Please always follow the instructions with these symbols.

Meanings of the symbols on the product

Symbol

Description

Protect conductor terminals.

Caution for heat！Remind you of followings：

Lamphouse and the periphery of lamp will become hot

in using.Don’t touch lamphouse and the periphery of

lamp while the lamp is on or off within 30

minutes .Although turned off ,it and its periphery are still

hot.When replacing a lamp,wait until the lamp the

periphery of lamp become sufficiently cold.

This sign appears on nameplate of electric

appliance to warn you to confirm the input voltage being

in accordance with the supply voltage at you end.

—

Turn the power on.Switch the button to adjust the

field brightness.

Turn off the power.

UV Radiation.

Turn the power off before performing the device.

Symbol

Description

Warming

Disregarding instructions marked with this symbol may

lead to serious injury or death.

Caution

Disregarding instructions marked with this symbol may

lead to injury or property damage.

Content A16.1098

Safety precaution ....................................................................................4

Chapter 1. Structures and Names .........................................................................7

Chapter 2. Purpose and configuration diagram .................................................9

Chapter 3.Installation ...............................................................................................10

3.1 Trinocular viewing head tubes ......................................................12

3.2 Eyepieces and Centering telescope ................................................12

3.3 Eyepieces with cross hair....................................................13

3.4 Transmission light stand .......................................................................13

3.5 Objectives ...................................................... ..................................13

3.6 Electric platform .............................................................................14

3.7 General support plate .............................................................................15

3.8 Electric condenser ..............................................................................17

3.9 Mercury lamphouse ...........................................................................17

3.10 Multi-function modes .............................................................................18

3.11 Power connection ..............................................................................18

Chapter 4. Function introduction...........................................................................19

4.1 Host key function ..................................................................................19

4.2 Focusing handwheel,Brightness adjustment handwheel ........................20

4.3 Magnification switching ...............................................................................20

4.4 Mediate multiplier nosepiece.................................................................21

4.5 Trinocular viewing tube ...............................................................................21

4.6 DIC ....................................................................................................22

4.7 Reflection field aperture and color filter ..............................23

4.8 Transmission field of view and aperture dia phragm ..................24

4.9 Joystick controller ...............................................................................24

4.10 Electric condenser ..................................................................26

Content A16.1098

Chapter 5. Usage and Adjustment..........................................................27

5.1 Turn on the power .....................................................................27

5.2 Adjust light intensity and switch up and down lights …….……..………..28

5.3 Light path switching ...............................................................................28

5.4 Specimen placement and platform adjustment .......................................28

5.5 Objectives focusing and switching ..................................................29

5.6 Pupillary distance adjustment ...................................................................30

5.7 Visual adjustment .............................................................................31

5.8 Electric condenser adjustment ...................................................31

Chapter 6. Objectives ........................................................................32

6.1 Reflective observation .................................................................32

6.2 Transmission observation ..........................................................33

6.3 Transmission phase contrast observation ..................................................34

6.4 DIC observation ..................................................................................36

Chapter 7. Technical specifications .............................................................37

Chapter 8. Troubleshooting list ....................................................................39

8.1 Optical part.............................................................................................39

8.2 Electric part ............................................................................42

8.3 Viewing tubes ...............................................................................42

8.4 Microscope images ...............................................................................42

Safety Precaution A16.1098

1、Avoid storing microscope under direct sunlight or in hot location.Store it on a

slash-,dust-,and vibration-free location.Ensure it on a flat, level and suitably

sturdy desk or table.(Weighs about 29.5KGS)

2、Please squeeze the carrying handle when you need to move

microscope.Microscope only can be moved when there is a gap between it and

workbench.

3、Please immediately unplug the power cord and wipe off spills and water if

chemical solutions or spills liquid onto a specimen preparation plate ,objectives

or observation tubes. Or it will damage the instrument.

4、 At working time,the lamp house will be very hot.you should ensure that

there is enough heat dissipation space around the lamphouse,or the the

instrument will be damaged because of heat accumulation.

X 5、Please ensure that you have connected to the correct power supply before

turning on the supply of lamphouse.

★The fuse should be one that can properly fuse the current rather

than a temporary fuse to avoid power failure.

handle

lamp house

Safety Precaytions A16.1098

6、Connect power cord correctly and ensure that the microscope is

grounded to avoid lightning strike.

7、Use the specific power cord provided by our company.

8、 Mercury lamps emit ultraviolet light which may cause injures to

eyes and skin.Don’t stare at or expose your skin to the light.You’d

better take some protected measures when operating microscopes.

9、The instruments should be stored in sheltered place without acid

Gas,alkali,organic solvents or other harmful substances surrounding.

★For security,the instrument is equipped with three foot plug which

protect the grounding.Please don’t use any adapter plugs which May

lower the security level.

★Don’t put the instrument in the place where it is difficult to cut off

the power.

★The protection our corporate provided will be damaged if you don’t

operate it according to the methods specified.

10、Gently wipe the glass parts with gauze. If you want to remove

fingerprints and oil stains, wipe with a very small amount (3:7) of

ethanol ether mixture or xylene display gauze.

★Ether and alcohol are extremely flammable. Be careful not to put

these chemicals close to open fire and possible spark sources, such as

switching operation of electronic equipment. Try to use these

chemicals in a well ventilated room.

11、Don’t use organic solvents to wipe the non optical parts of the

microscope. If you want to clean these parts, wipe them with a soft

lint free cloth dipped in a small amount of neutral detergent.

12、Don’t disassemble any part of the microscope. This will affect the

Safety Precaytions A16.1098

function of the microscope or reduce the performance of the

microscope.

13、If the objectives is not installed, be sure to cover the dust cover of

the objective lens to prevent dust and spilled tissue culture medium

from entering the system.

14、When the microscope is not in use, it shall be covered with a dust

cover. Before covering the dust cover, be sure to wait for the lamp

holder to cool sufficiently.

15、The inspection and parts replacement of this product must be carried

out and accessories provided by the company and its designated

agency.

Chapter 1.Structures and Names A16.1098

1、Transmitted light field diaphragm

2、Filter stand

3、Eyepiece

4、Trinocular viewing head tube

5、Brightness adjustment knob

6、Transmission light room switch

7、Reflection illumination shutter switch

8、Objectives reverse key

9、Objectives forward key

10、Right coarse&fine adjustment focus knob

11、Mediate multiplier nosepiece

12、Right camera port

13、Electric multifunction module cover plate

14、Control box

15、Power switch

16、Reflecting field diaphragm

17、Reflecting aperture diaphragm

18、Triple filter plate

19、Mercury lamp house

20、Electric platform X-direction moving knob

21、Electric converter

22、Electric platform

23、Electric condenser

24、Transmission lighting support

25、10W LED light box

26、Joystick controller

26、

Chapter 1.Structures and Names A16.1098

1、Condenser lifting hand wheel

2、Condenser centering screw

3、Rotate the hand wheel when the

electric platform moves in Y direction

4、Left camera port

5、Left coarse&fine adjustment focus knob

6、Condenser reverse key

7、Condenser forward key

8、Multifunction module reverse key

9、Multifunction module forward key

10、Brightness adjustment knob

1、XY-axis control socket (control box)

2、Power socket

3、USB interface

4、Rocker socket

5、Z-axis control socket (control box)）

6、Rear handling handle

7、LED lamp socket

8、Z-axis control socket (rack)

9、Condenser socket

10、XY-axis control socket (platform)

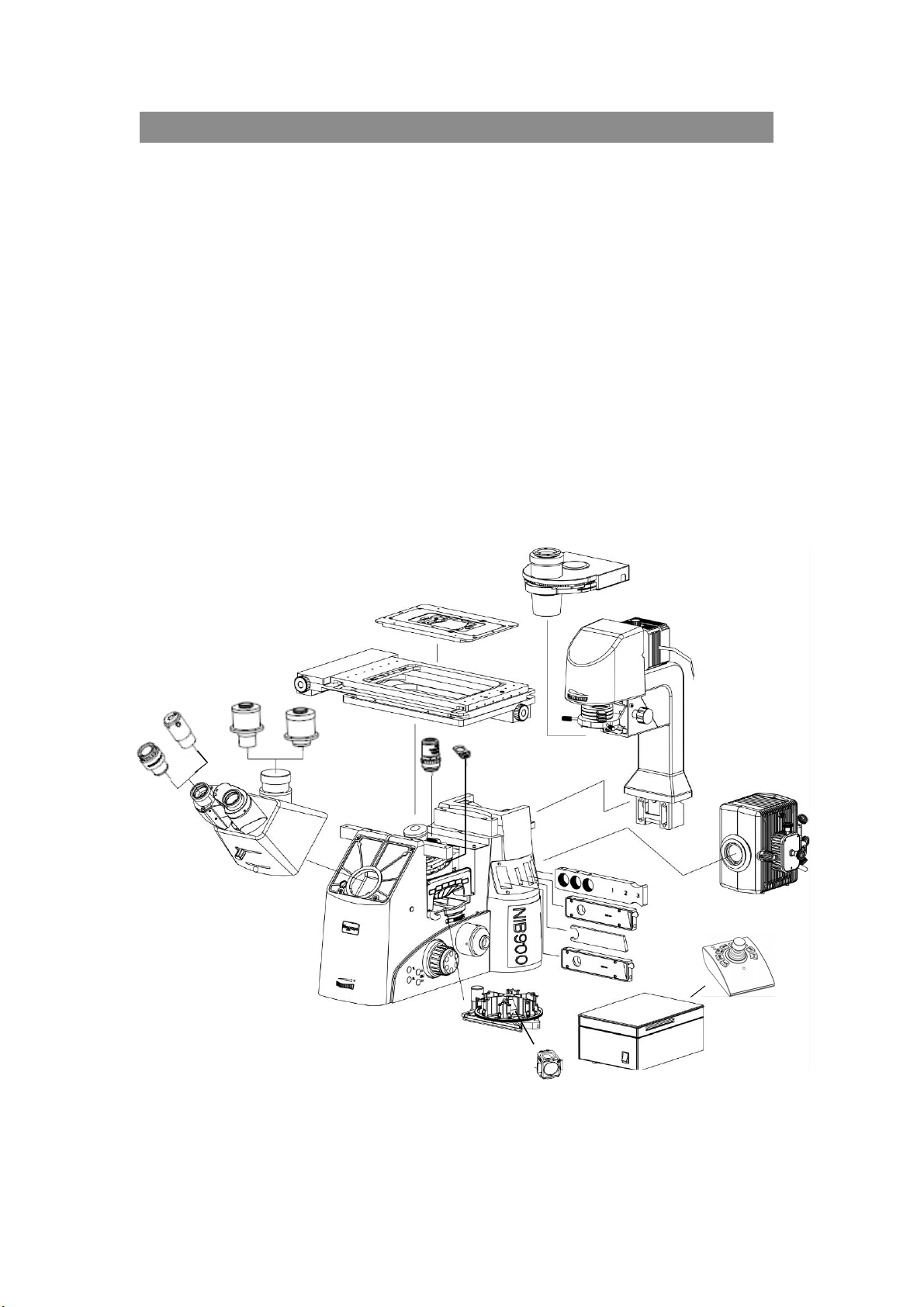

Chapter 2. Purpose and configuration diagram A16.1098

XD-2

Inverted Biological Microscope A16.1098 is mainly used to research

the cell culture,tissue culture and sediment deposition in the culture plate

and culture dish under transmitted light and reflected light.

It can be used in observation under bright field,dark field,phase

contrast,DIC,polarization,fluorescent.Mainly applications:Research on

human blood and tissues samples,observation on the connect,moving and

growth between cells,drug reflection ,minimally invasive,in vitro

fertilization,toxicity experiment,digital recording,automatic continuous

time point observation,single molecule detection,etc.

Table des matières

Autres manuels OPTO-EDU Microscope

OPTO-EDU

OPTO-EDU A15.1091 Manuel utilisateur

OPTO-EDU

OPTO-EDU A17.1091 Manuel utilisateur

OPTO-EDU

OPTO-EDU A23.3645 Series Manuel utilisateur

OPTO-EDU

OPTO-EDU A12.1010 Manuel utilisateur

OPTO-EDU

OPTO-EDU A34.5017 Manuel utilisateur

OPTO-EDU

OPTO-EDU A14.1065 Manuel utilisateur

OPTO-EDU

OPTO-EDU A15.1016 Manuel utilisateur

OPTO-EDU

OPTO-EDU A24.1001 Manuel utilisateur

OPTO-EDU

OPTO-EDU A12.1095 Manuel utilisateur

OPTO-EDU

OPTO-EDU A13.2604-B Manuel utilisateur

OPTO-EDU

OPTO-EDU A10.1018 Manuel utilisateur

OPTO-EDU

OPTO-EDU A12.0910 Manuel utilisateur

OPTO-EDU

OPTO-EDU A23.1502 Series Manuel utilisateur

OPTO-EDU

OPTO-EDU A13.1005-B Manuel utilisateur

OPTO-EDU

OPTO-EDU A63.7080 Manuel utilisateur

OPTO-EDU

OPTO-EDU A15.2601-T Manuel utilisateur

OPTO-EDU

OPTO-EDU A14.1063 Manuel utilisateur

OPTO-EDU

OPTO-EDU A11.1323 Manuel utilisateur

OPTO-EDU

OPTO-EDU A12.1061 Manuel utilisateur

OPTO-EDU

OPTO-EDU A18.1831 Manuel utilisateur

OPTO-EDU

OPTO-EDU A11.1303 Series Manuel utilisateur

OPTO-EDU

OPTO-EDU A22.1201 Manuel utilisateur

OPTO-EDU

OPTO-EDU A23.3645N Series Manuel utilisateur

OPTO-EDU

OPTO-EDU A12.0911 Manuel utilisateur

Manuels Microscope populaires d'autres marques

Thermo Scientific

Thermo Scientific Nicolet iN10 Mode d’emploi

National

National DC3-163 Manuel utilisateur

KERN Optics

KERN Optics OPE-1 Manuel utilisateur

OPTIKA MICROSCOPES

OPTIKA MICROSCOPES B-150D Manuel utilisateur

Prior

Prior Lux POL Manuel utilisateur

Opitec

Opitec Smartscoop 115615 Manuel utilisateur

KERN

KERN OPO-1 Manuel utilisateur

Topcon

Topcon SP-1P Manuel utilisateur

Motic

Motic PA43 Manuel utilisateur

Leica

Leica DVM5000 Guide de l'utilisateur

MshOt

MshOt MZ62 Manuel utilisateur

KERN Optics

KERN Optics OZR-5 Manuel utilisateur

VWR

VWR VisiScope 384 Series Manuel utilisateur

Nikon

Nikon ECLIPSE E200 POL Manuel utilisateur

Leica

Leica DI C800 Manuel

ThermoFisher Scientific

ThermoFisher Scientific Continuµm Manuel utilisateur

ThermoFisher Scientific

ThermoFisher Scientific Continuµm Manuel utilisateur

Olympus

Olympus SZ61 Manuel utilisateur
