OpenVox WGW1002 Manuel utilisateur

www.openvox.cn 1 /6

VoxStack provides 2 working modes: Stand-alone and Cluster.

 Stand-alone: A single IP address manages one GSM modules (4 ports).

 Cluster: A single IP address manages up to 5 GSM modules (up to 20 ports).

Default IP: 172.16.99.1

User Name: admin

Password: admin

There are two RJ45 Network ports, ETH1 and ETH2. If you choose ETH1, you can access Board 1 only, and

access other boards with the same IP address, dierent port numbers. This will help to avoid IP conict. If

you choose ETH2, you can access dierent Boards with dierent IP addresses. But there is only one RJ45

Network port on WGW1002.

Stack Num IP Username Password

1172.16.99.1 admin admin

2172.16.99.2 admin admin

3172.16.99.3 admin admin

4172.16.99.4 admin admin

5172.16.99.5 admin admin

This document applies to OpenVox GSM Gateway WGW1002,VS-GW1202-4/8G and VS-GW1600 series.

www.openvox.cn 2 /6

Step 1. Set Network Parameters in Web

If your system topology like the figure described, please enter the gateway default IP address

In your browser to login web, and click “NETWORK—>LAN Settings” to set network

parameters such as IP.

Save your changes. Please type in your DNS server in “DNS Server Address”.

Please select “SIP—>SIP Endpoints—>Add New SIP Endpoint” to set SIP trunk. The

following figure shows detail information about how to set it.

About other parameters in SIP, please set by your requirements for there is no need to set

them in simple calls.

Step 2. Create a SIP Endpoint in Web

www.openvox.cn 3 /6

Step 3. Set Routing Rules in Web

Click “ROUTING—> Call Routing Rules—> New Call Routing Rule” to set outbound and

inbound routing rules like the following:

Save the inbound call routing rules, please set the outbound rules as introduced. In order to

make all calls successfully, please enable and set failover function in advanced routing rule

like that:

Please save all your changes to make effect.

Please select “VOIP/PSTN Gateways—> Add Gateway” to create a SIP trunk:

Step4. Create a SIP Trunk in 3CX web

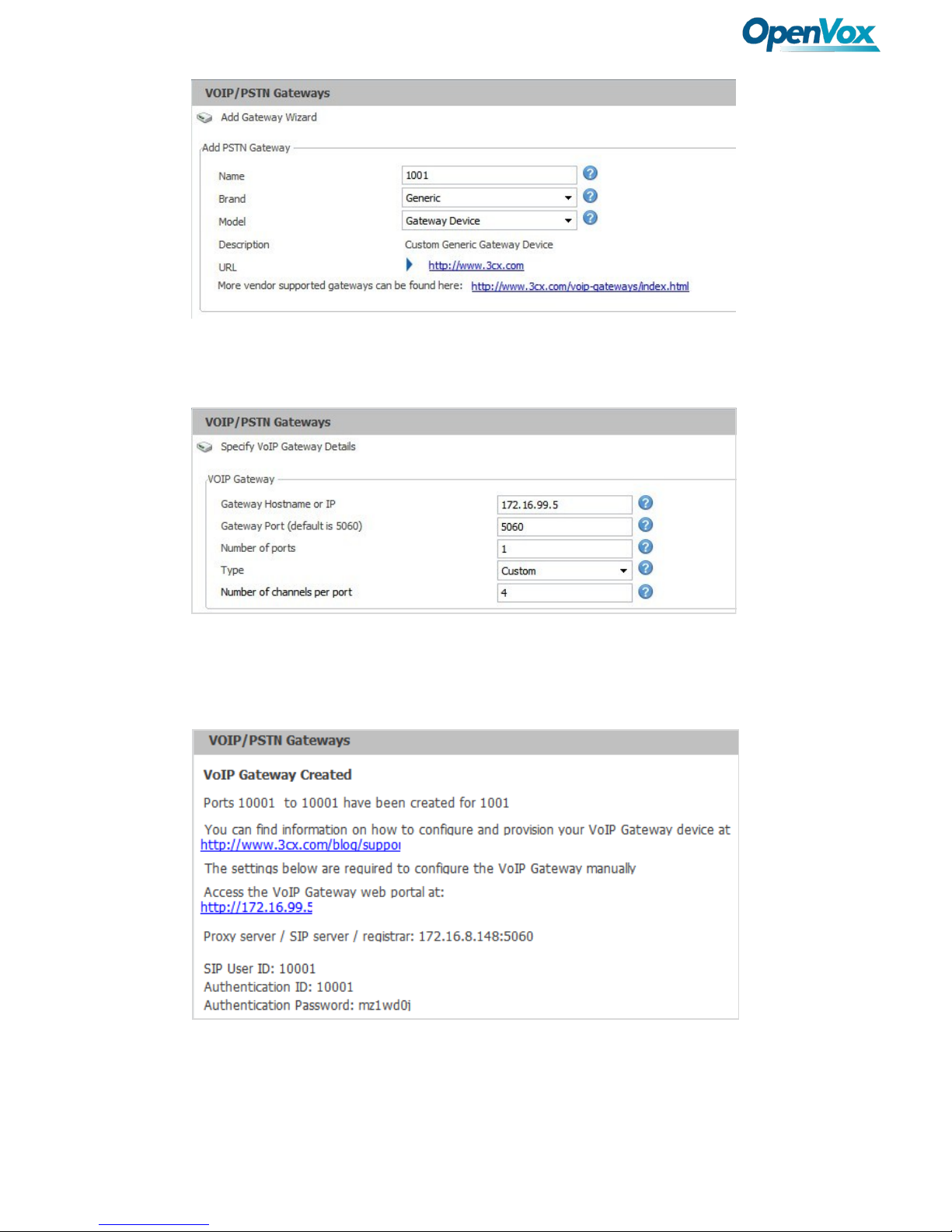

www.openvox.cn 4 /6

After that, please click the next button to the following page :

About other options, you can set or skip by your requirements until go to the following web

which means SIP trunk is registered.

www.openvox.cn 5 /6

Click Inbound Rules—>Add DID to set inbound rules

Click Outbound Rules—>Add Outbound to set outbound rules

Step 5. Dial rules in 3CX web

www.openvox.cn 6 /6

Step 6. Register a SIP extension by software

Taking advantage of SIP software such as Xlite, eyeBeam to register a SIP extension(301).

After all above steps, you can try to make calls and send SMS.

Front Panel

SIM Slot

Reset

SIM Card

Reset

ETH1

ETH2

ACT2

ACT1

PWR

+12V

LED Indicator Color Status

○

3Network Status LED Green and Flash Network Connected

○

4Signal Status LED

Green and Flash Module Initiating

Red and Flash No SIM Card

Red and No-flash Worst Signal Quality

Yellow and No-flash Medium Signal Quality

Green and No-flash Best Signal Quality

○

5Call Status LED

Flash (0.25s) Communicating

Blind Normal

○

7Running Status LED Green and Flash(0.5s) Work Normally

○

8Power Indicator Always Green Supply Power

During reset, all LED indicators flash.
