OPEL Insignia

Infotainment Manual

Touch R700 / Navi 900 .................. 5

R300 Color / R400 Color ........... 103

Contents

Introduction .................................... 6

Basic operation ............................ 14

Radio ........................................... 47

CD Player .................................... 52

External devices .......................... 55

Navigation .................................... 62

Speech recognition ...................... 80

Phone .......................................... 86

Frequently asked questions ......... 95

Index ............................................ 98

Touch R700 / Navi 900

6 Introduction

Introduction

General information ....................... 6

Theft-deterrent feature ................... 7

Control elements overview ............ 8

Usage .......................................... 12

General information

The Infotainment system provides

you with state-of-the-art in-car

infotainment.

Using the FM, AM or DAB radio

functions, you can register a great

number of stations on various

favourites pages.

You can even register music tracks,

telephone numbers, destination

addresses or tone settings on the

favourites pages.

You can connect external data

storage devices, e.g. iPod, USB

devices, or other auxiliary devices to

the Infotainment system as further

audio sources; either via a cable or

via Bluetooth.

The navigation system with dynamic

route planning will reliably guide you

to your destination, and, if desired,

automatically avoid traffic jams or

other traffic problems.

In addition, the Infotainment system is

equipped with a Phone portal that

allows comfortable and safe use of

your mobile phone in the vehicle.

Optionally, the Infotainment system

can be operated using controls on the

steering wheel, a touch pad between

the front seats, or via the speech

recognition system.

The well-thought-out design of the

control elements, the touch screen

and the clear displays enable you to

control the system easily and

intuitively.

Note

This manual describes all options

and features available for the

various Infotainment systems.

Certain descriptions, including those

for display and menu functions, may

not apply to your vehicle due to

model variant, country

specifications, special equipment or

accessories.

Introduction 7

Important information on

operation and traffic safety

9Warning

Drive safely at all times when

using the Infotainment system.

If in doubt, stop the vehicle before

operating the Infotainment

system.

9Warning

The usage of the navigation

system does not release the driver

from the responsibility for a

correct, vigilant attitude in road

traffic. The related traffic

regulations must always be

followed.

Only make entries (e.g.

addresses) with the vehicle

stationary.

If a navigation instruction

contradicts traffic regulations, the

traffic regulations always apply.

9Warning

In some areas one-way streets

and other roads and entrances

(e.g. pedestrian zones) that you

are not allowed to turn into are not

marked on the map. In such areas

the Infotainment system may

issue a warning that must be

accepted. Here you must pay

particular attention to one-way

streets, roads and entrances that

you are not allowed to drive into.

Radio reception

Radio reception may be disrupted by

static, noise, distortion or loss of

reception due to:

■ changes in distance from the

transmitter,

■ multi-path reception due to

reflection,

■ shadowing.

Theft-deterrent feature

The Infotainment system is equipped

with an electronic security system for

the purpose of theft deterrence.

The Infotainment system therefore

functions only in your vehicle and is

worthless to a thief.

8 Introduction

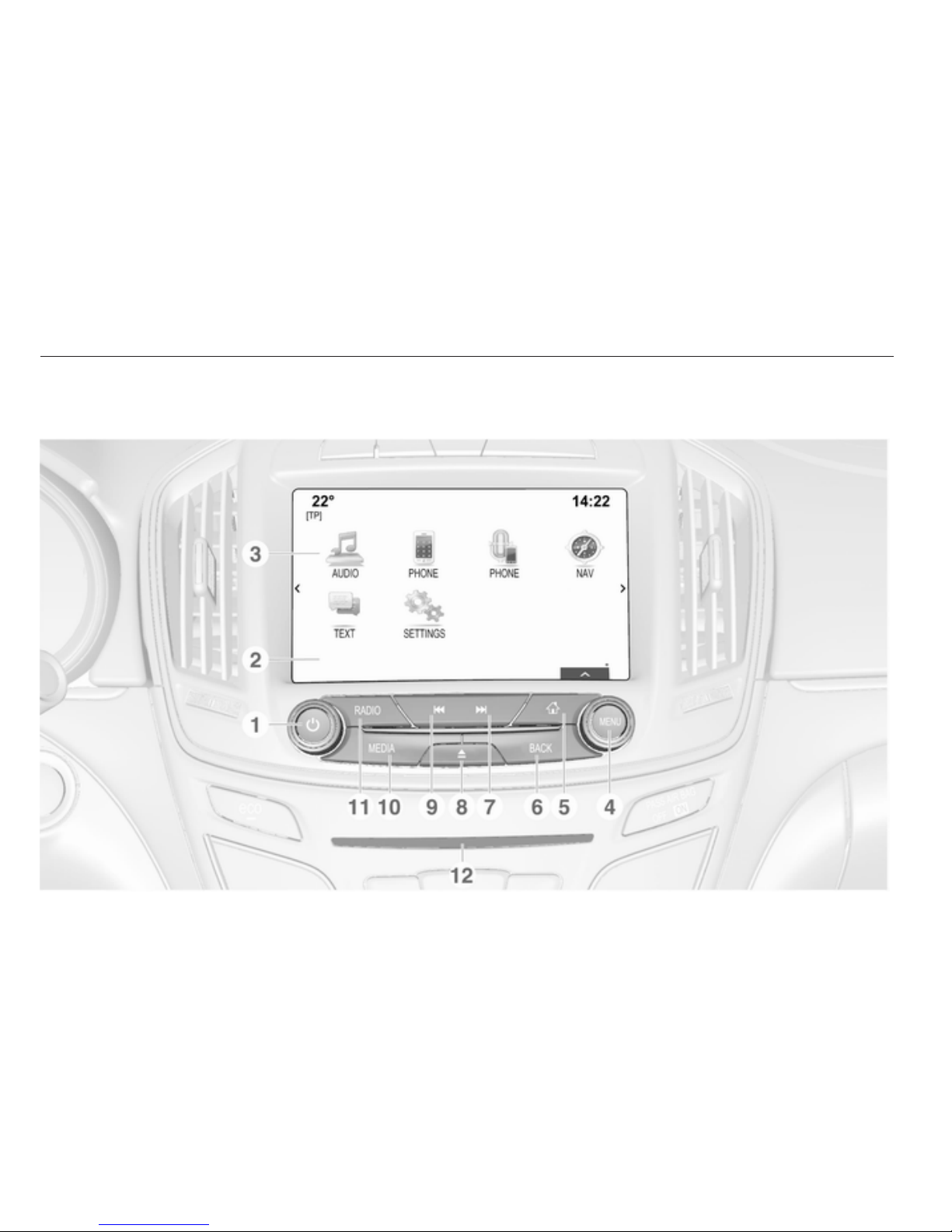

Control elements overview

Centre display with controls

Introduction 9

1X knob .................................. 12

If switched off: short press:

switch power on

If switched on: short press:

mute system; long press:

switch power off

Turn: adjust volume

2Display/touch screen ............. 14

3Home screen

(configurable) ........................ 21

4 MENU knob ........................... 15

Turn: mark screen buttons

or menu items; set

numeric values

Press: select/activate a

marked screen button or

menu item; confirm set

value; switch to different

setting option; open

application-specific menu

(if available)

5; button ............................... 15

Press: display Home screen

6 BACK button ......................... 15

Press: return to previous

screen/menu

7v button

Radio: short press: skip to

next station; long press:

seek up ................................. 47

CD player / External

devices: short press: skip

to next track; long press:

fast forward ........................... 53

8d button (if CD player equipped)

Press: eject disc .................... 53

TONE button (if no CD

player equipped)

Press: display tone

settings menu ........................ 41

9t button

Radio: short press: skip to

previous station; long

press: seek down .................. 47

CD player / External

devices: short press: skip

to previous track; long

press: fast rewind .................. 53

10 MEDIA button ........................ 12

Press: activate CD player

or external device

11 RADIO button ........................ 47

Press: activate radio or

change waveband

12 CD slot .................................. 53

10 Introduction

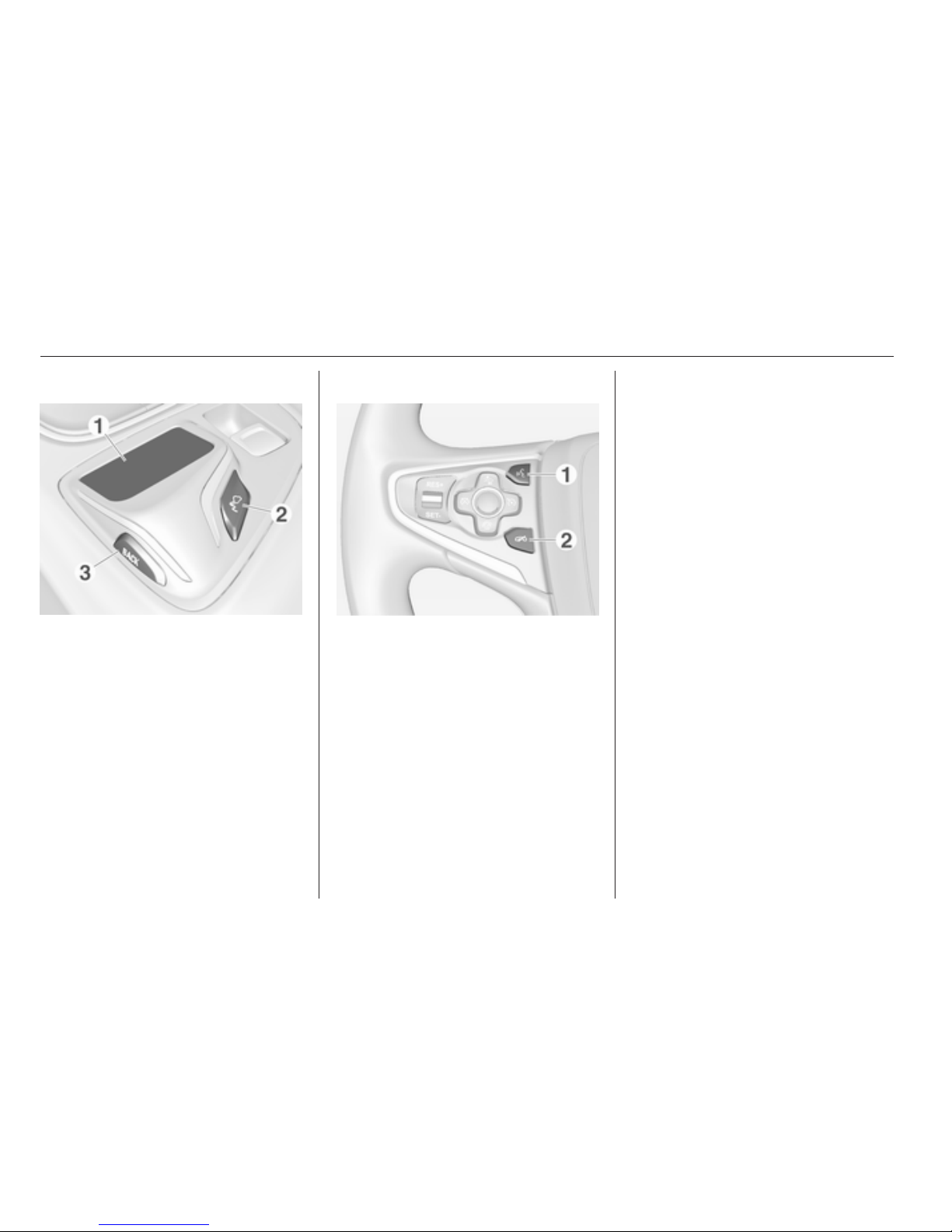

Touch pad

1Touch sensitive area

Operate the menus on the

centre display using multi-

touch gestures ...................... 15

2h button

Press: activate/deactivate

character recognition ............ 24

3 BACK button ......................... 21

Press: return to previous

screen/menu

Long press: return to

Home screen

Left-hand steering wheel control

1s button

Press: take phone call .......... 90

or activate speech

recognition ............................ 80

or interrupt a prompt and

speak directly ........................ 80

2n button

Press: end/decline call .......... 90

or deactivate speech

recognition ............................ 80

or activate/deactivate

mute function ........................ 12
