The connection card has three fuses. 1 AT fuse
protects the entire unit. The 63 mAT protects
just the electronics and the 2.5 A protects the
dampers (actuators). 2.5 A has now been
replaced with 4 AT.
Jumpers.
Jumper settings are used to specify the number
of connected dampers (groups). There are two
jumpers for each group. Group 1 must always
be connected, so there are no jumpers for this
group. The jumpers are inserted ”vertically” so
that the upper and lower pins are shorted by
the jumper. Jumpers are supplied in the plastic
bags provided. If the jumpers are set
incorrectly, either the control and monitoring
unit generates an alarm or the function test will
not detect dampers with no jumpers set.
Jumper X
Jumper X must always be set to ON.
Connections
230V 50Hz connected between terminals 2 and
3.
Expansion unit Control Panel
SUSB.
Terminal 17 to Terminal 20
Terminal 20 to Terminal M at SPJ1
Terminal 21 to Terminal 21
Terminal 22 to Terminal 22
Terminal 18 To next expansion
unit terminal 20
Actuator connection.
The dampers are connected using 4 wires as
with the SUSB.
Fuses
Jumper X. See
text.

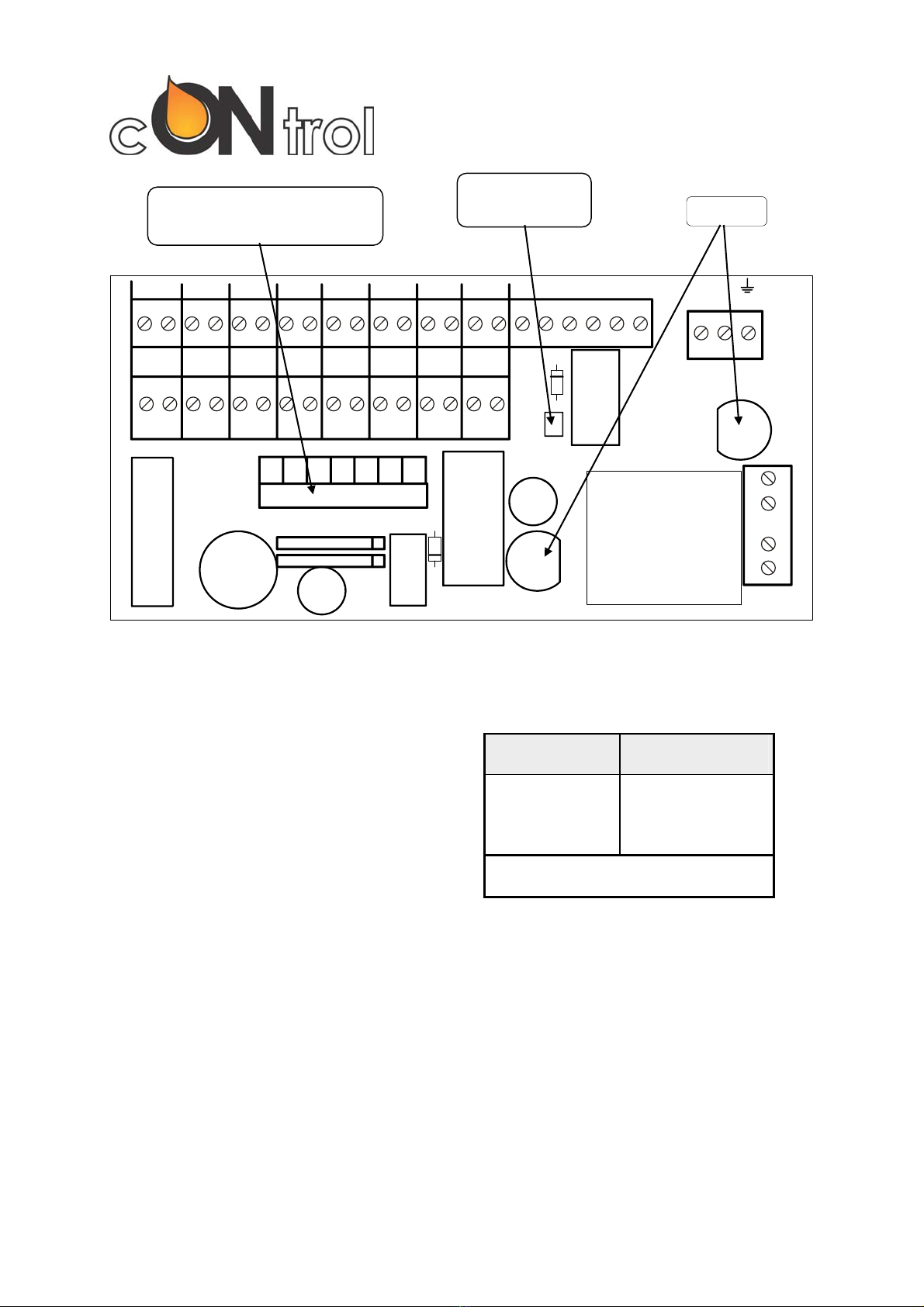

Jumper panel to program the
number of dampers.
