INSTRUCTION MANUAL

PLAY70

INTERACTIVE TV MOUNT

Reduce.Reuse.Recycle

CAUTION!

MAXIMUM SCREEN SIZE

CAUTION!

MAXIMUM WEIGHT CAPACITY

70 LBS

31.8 KG

60+”

NEED HELP? PLEASE CALL

DISCLAIMER - WARNING INFORMATION

Disclaimer – OmniMount Systems, Inc. has extended every effort to ensure to accuracy and completeness of this manual. However, OmniMount Systems, Inc. does not

claim that the information covers all installation or operational variables. The information contained in this document is subject to change without notice or obligation of

any kind. Regarding the information contained herein, OmniMount Systems, Inc. makes no representation of warranty, expressed or implied, and assumes no responsibility

for accuracy, sufﬁciency, or completeness of the information contained in this document.

Wall Mounts

WARNING: FAILURE TO READ, THOROUGHLY UNDERSTAND, AND FOLLOW ALL INSTRUCTIONS CAN RESULT IN SERIOUS PERSONAL INJURY, DAMAGE TO PERSONAL

PROPERTY, OR VOIDING OF FACTORY WARRANTY!

It is the responsibility of the installer to ensure all components are properly assembled and installed using the instructions provided. If you do not understand these in-

structions or have any questions or concerns, please contact customer service at 1-800-668-6848 or [email protected].

Do not attempt to install or assemble this product if the product or hardware is damaged or missing. In the event that replacement parts or hardware are needed, please

contact Customer Service at 1-800-668-6848 or [email protected]. International customers needing assistance should contact the Dealer from which they purchased

the product.

The included hardware is designed for use on vertical walls constructed of wood studs or solid concrete. A wood stud wall is deﬁned as consisting of a minimum of

2x4 wooden studs (2” wide by 4” deep) with a maximum of 5/8” drywall. The included hardware is not designed for use with metal studs or cinderblock walls. If you’re

uncertain about the construction of your wall, then please consult a qualiﬁed contractor or installer for assistance. For a safe installation, the wall you are mounting to must

support 4 times the weight of the total load. If not, then the surface must be reinforced to meet this standard. The installer is responsible for verifying that the wall structure

and hardware used in any installation method will safely support the total load.

PN:888-45-254-W-01 revF 05/15 7 of 25

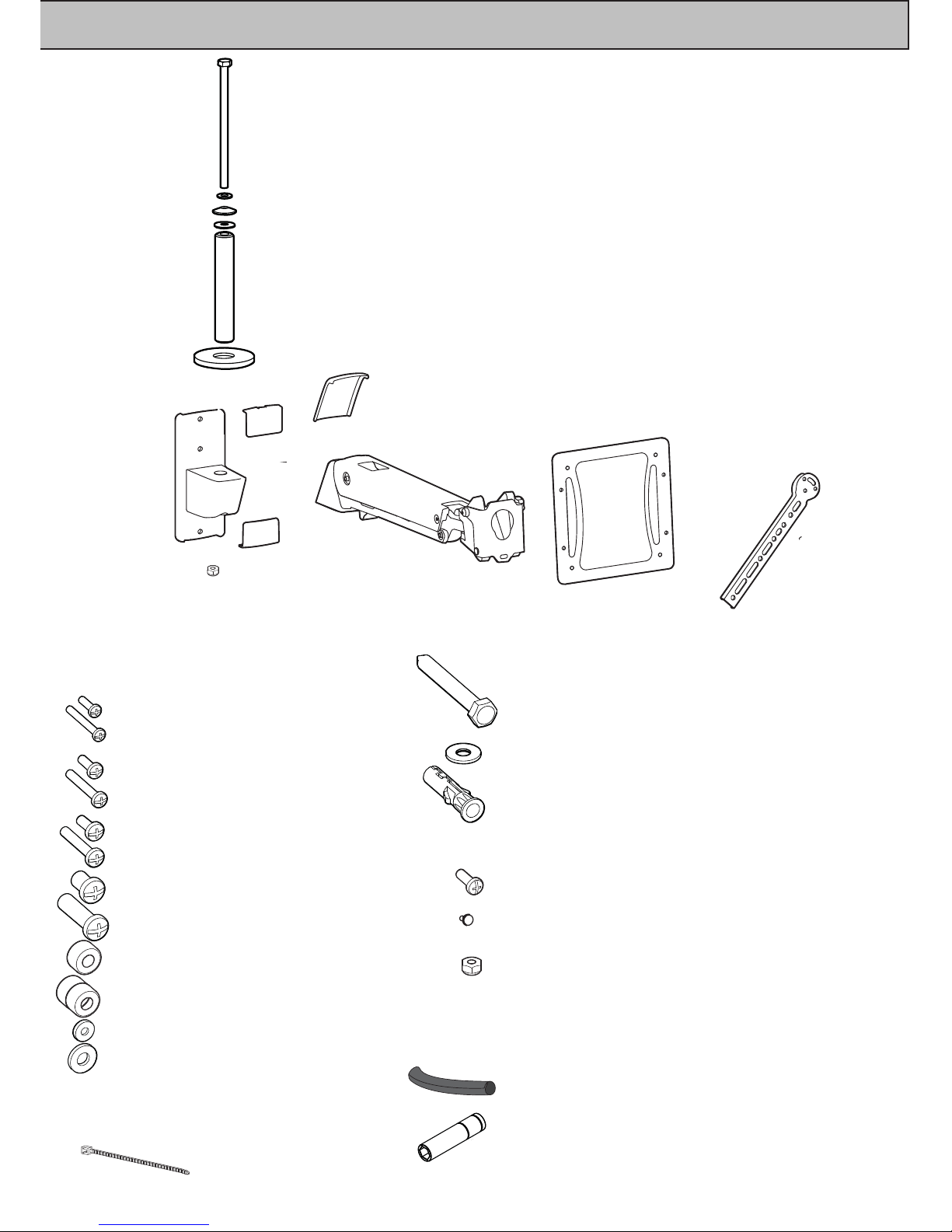

CONTENTS

Wall Kit ST8x3 697-688-00

Part Quantity Description

W-A 3 Lag Bolt

W-B 3 Round Washers

W-C 3 Wall Anchor

Specialty Hardware kit 697-640-00

Part Quantity Description

P-A 1 Philips Screw

P-B 4 Round Head Screws

P-C 8 Nuts

Screws/Hardware For Flat Panel 697-613-00

Part Quantity Description

M-A 4 Philips screws M4 x 15mm

M-B 4 Philips screws M4 x 30mm

M-C 4 Philips screws M5 x 15mm

M-D 4 Philips screws M5 x 30mm

M-E 4 Philips screws M6 x 15mm

M-F 4 Philips screws M6 x 30mm

M-G 4 Philips screws M8 x 15mm

M-H 4 Philips screws M8 x 30mm

M-I 4 Round spacers M6-M8 x 5mm

M-J 4 Round spacers M6-M8 x 10mm

M-K 4 Round washers M4-M5

M-L 4 Round washers M6-M8

CONTENTS

Part Quantity Description

11 Wall Plate

21 Arm/Wall Plate Hardware

32 Wall Plate Covers

41 Rear Arm Cover

51 CFT Arm

61 200x200 VESA Monitor Plate

74 Spider Adapters

Cable Wrap Kit 697-701

Part Quantity Description

P-D 1 Cable Wrap

BOP 699-633

Part Quantity Description

P-L 2 Zip Ties

P-J

P-Q

10mm

8mm

P-F

P-K

P-I

P-H

P-G

P-M

PN:888-45-254-W-01 revF 05/15

8 of 25

CAUTION!

MAXIMUM SCREEN SIZE

CAUTION!

MAXIMUM WEIGHT CAPACITY

70 LBS

31.8 KG

60+”

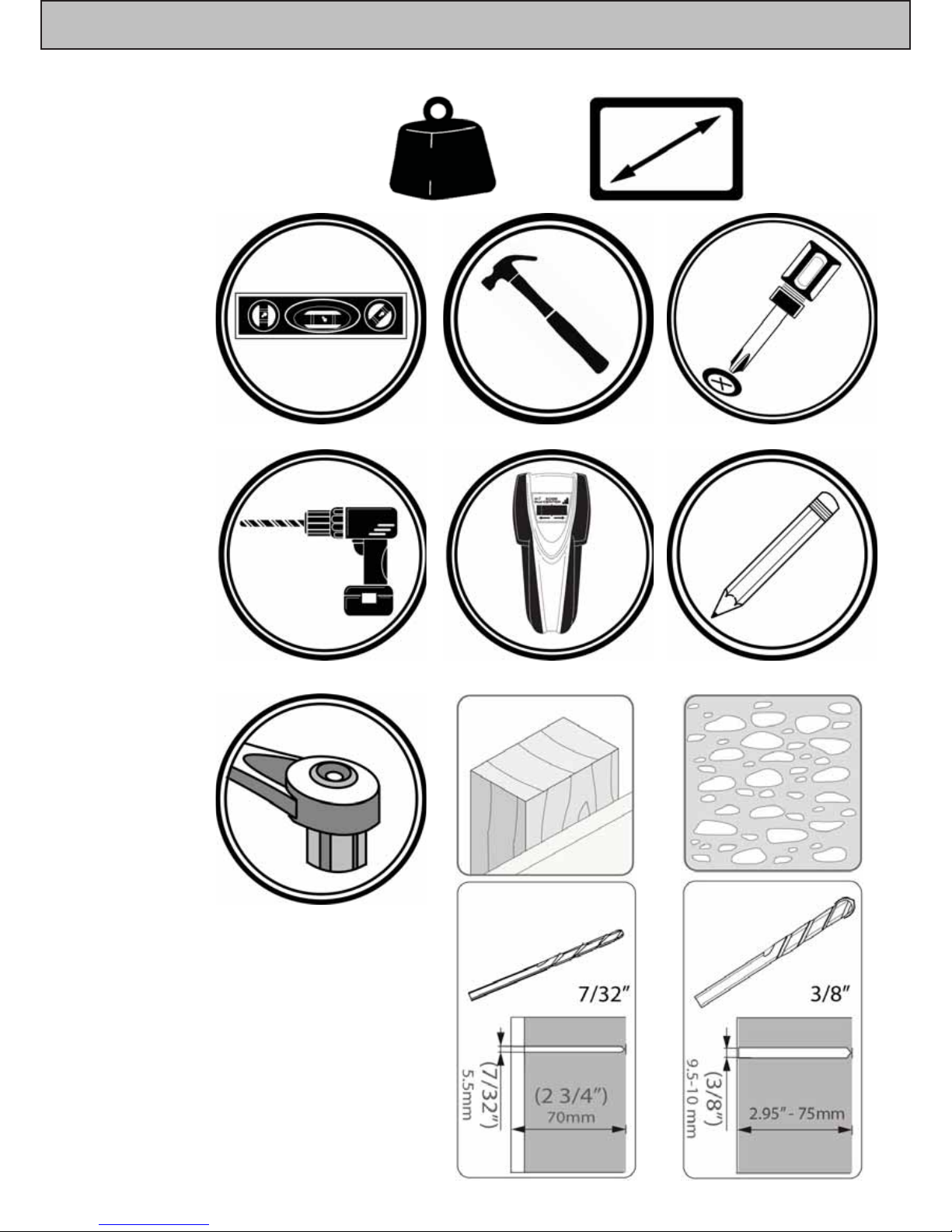

Tools Needed

13mm and 8mm

PN:888-45-254-W-01 revF 05/15 9 of 25

STEP 1 - Placement of Arm on the Wall

INSTRUCTIONS

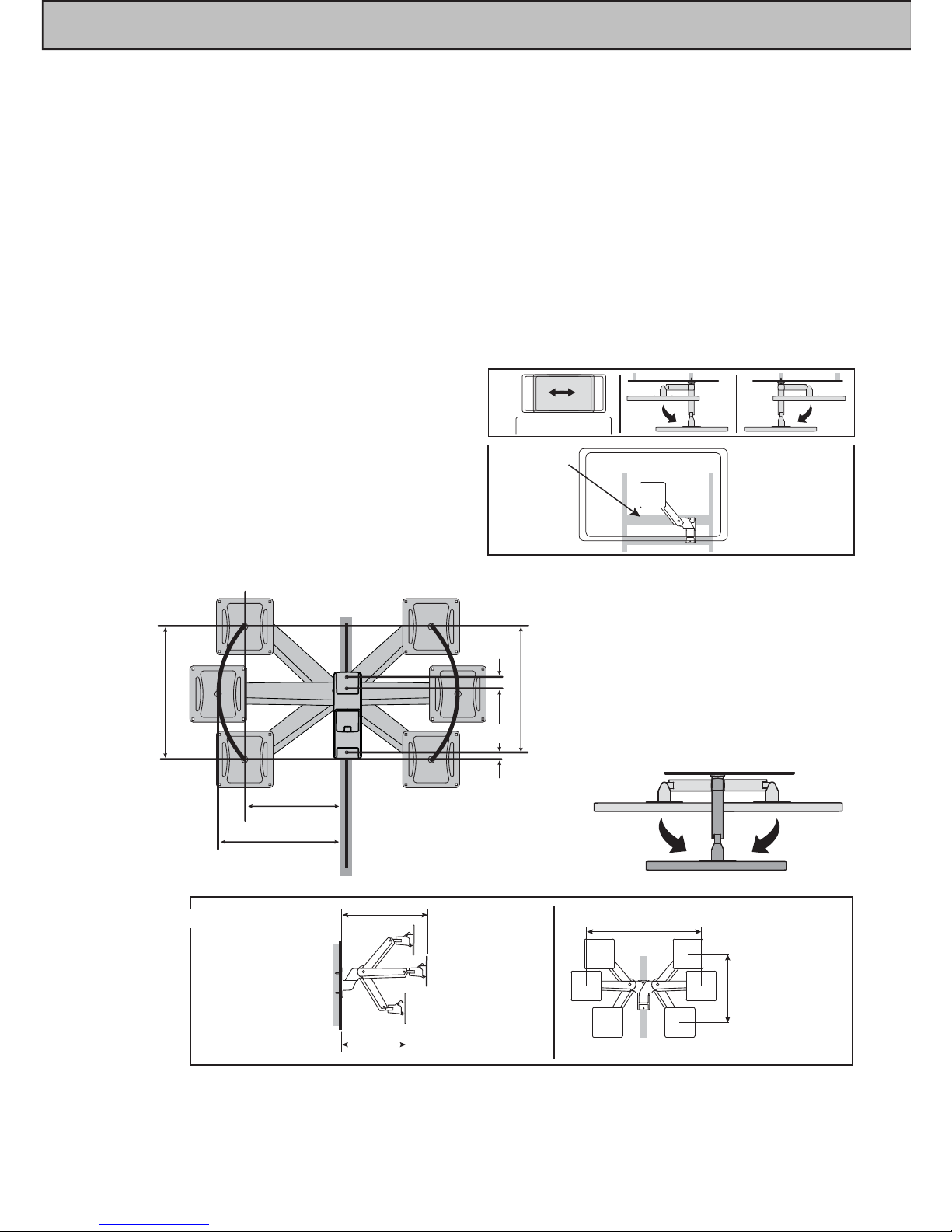

RANGE OF MOTION

SPACE REQUIREMENTS

front

side

top top

Horizontal Studs

Distance from the Wall

If there is no available stud for

desired TV location, you may

want to insert horizontal studs

into your wall at the desired

mounting location.

28.8” (731 mm) +

Thickness of TV

25.2” (640 mm) + Thickness

of TV

Horizontal Space Requirements

40.49” (1028 mm) + Width of TV*

Vertical Space

Requirements

20.49” (520 mm) + Height

of TV*

*Space requirement dimensions assume mounting holes are centered on the TV.

1. MOUNTING CONSIDERATIONS:

• Wall Mount Bracket MUST be attached to a stud or solid concrete. DO NOT attach this product to hollow wall or any other conguration.

• Make sure Arm will have desired unobstructed range of motion: up-down, side-to-side, in-out (see section RANGE OF MOTION).

• Make sure cables will reach their destinations with enough remaining slack to allow Arm full range of motion.

• Use the RANGE OF MOTION section to familiarize yourself with the movements of this product. Take into account that the TV will change

location from Side-to-Side when pulled out from the wall.

• Use the SPACE REQUIREMENTS section for maximum measurements of this products full range of motion.

• If there is no available stud for desired TV location, you may want to insert horizontal studs into your wall at the desired mounting

location (see “Horizontal Studs”image below).

2. CHOOSE YOUR DESIRED TV LOCATIONS:

Choose your desired TV locations when stowed and extended. Note the TV will move side-to-side when pushing it into and pulling it

out from the wall as well as lifting it up and lowering it down. This step requires an understanding of this products Range of Motion (see

section RANGE OF MOTION).

19.16”

(487mm)

20.4”

(518mm)

16.83”

(428mm)

20.13”

(511mm)

.98”

(25mm)

1.38”

(35mm)

10.63”

(270mm)

Front view with arm pushed back against the wall.

Top view showing range of motion when pulled out from

the wall.

PN:888-45-254-W-01 revF 05/15

10 of 25

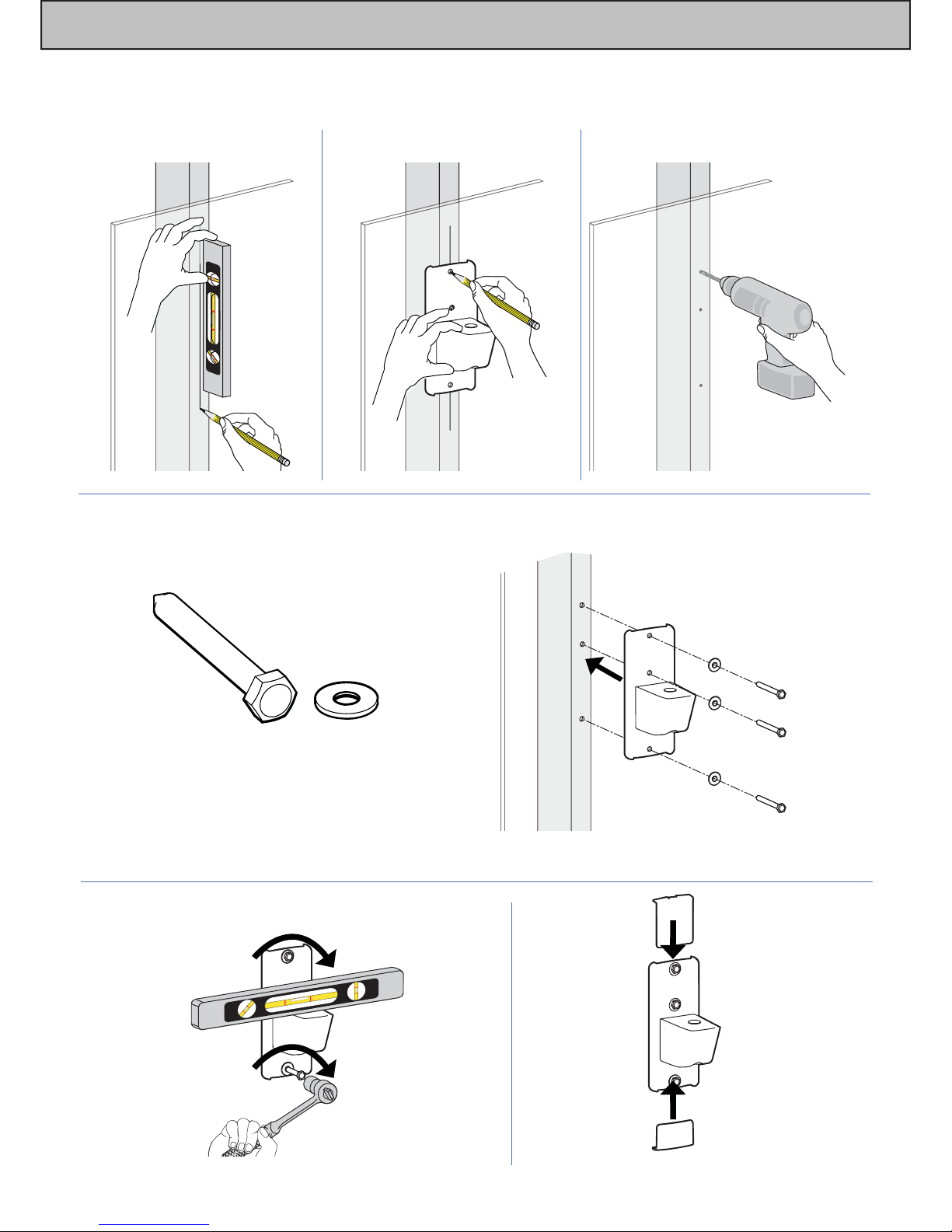

STEP 2 - Wood Stud Installation

Wood Stud Mount

W-A

W-B

7/32 x 2.75"

5.5mm x 70mm

PN:888-45-254-W-01 revF 05/15 11 of 25

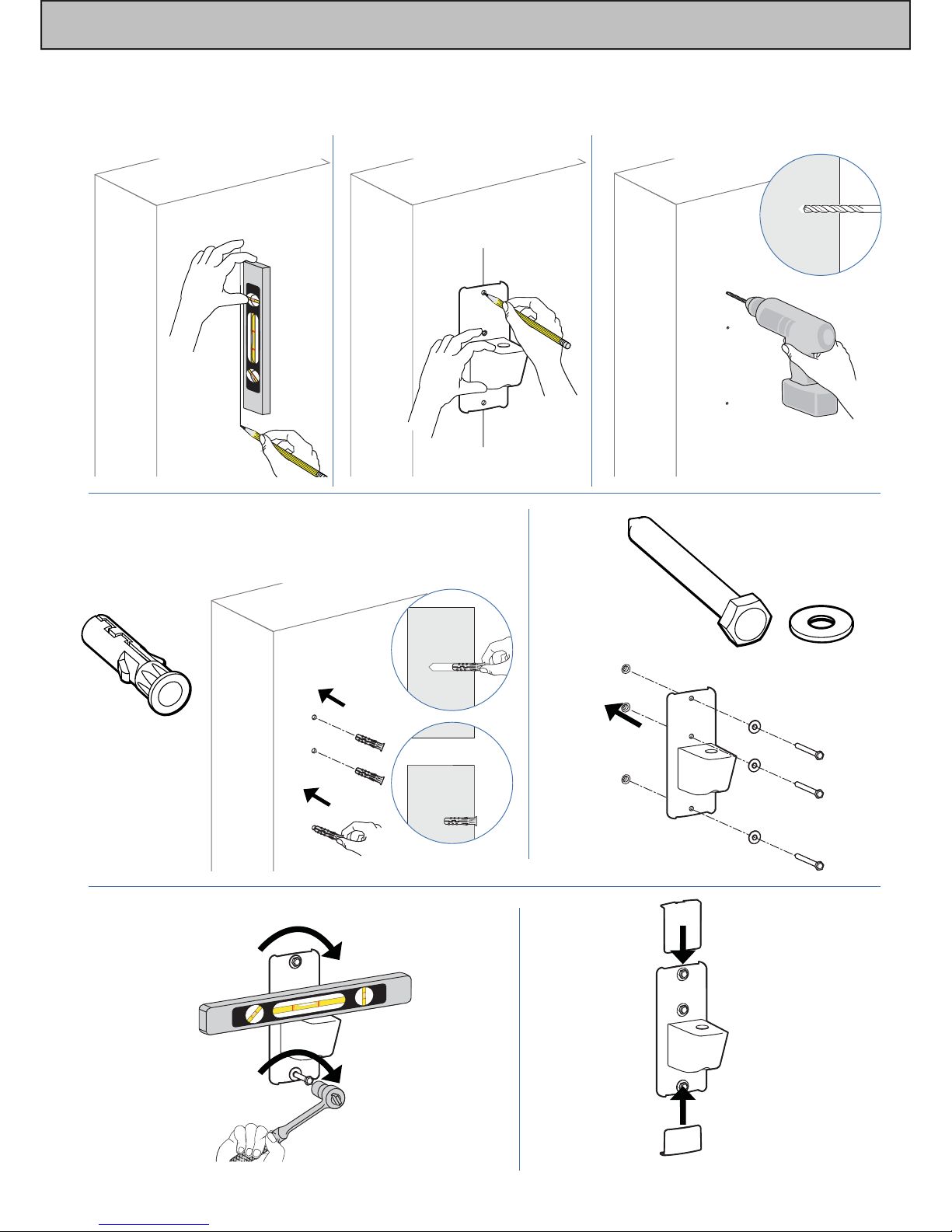

STEP 2 - Solid Wall Installation

Solid Wall Mount

1abc

W-A

W-B

W-C

3/8 x 2.75"

9.5 - 10mm x 70mm

PN:888-45-254-W-01 revF 05/15

12 of 25

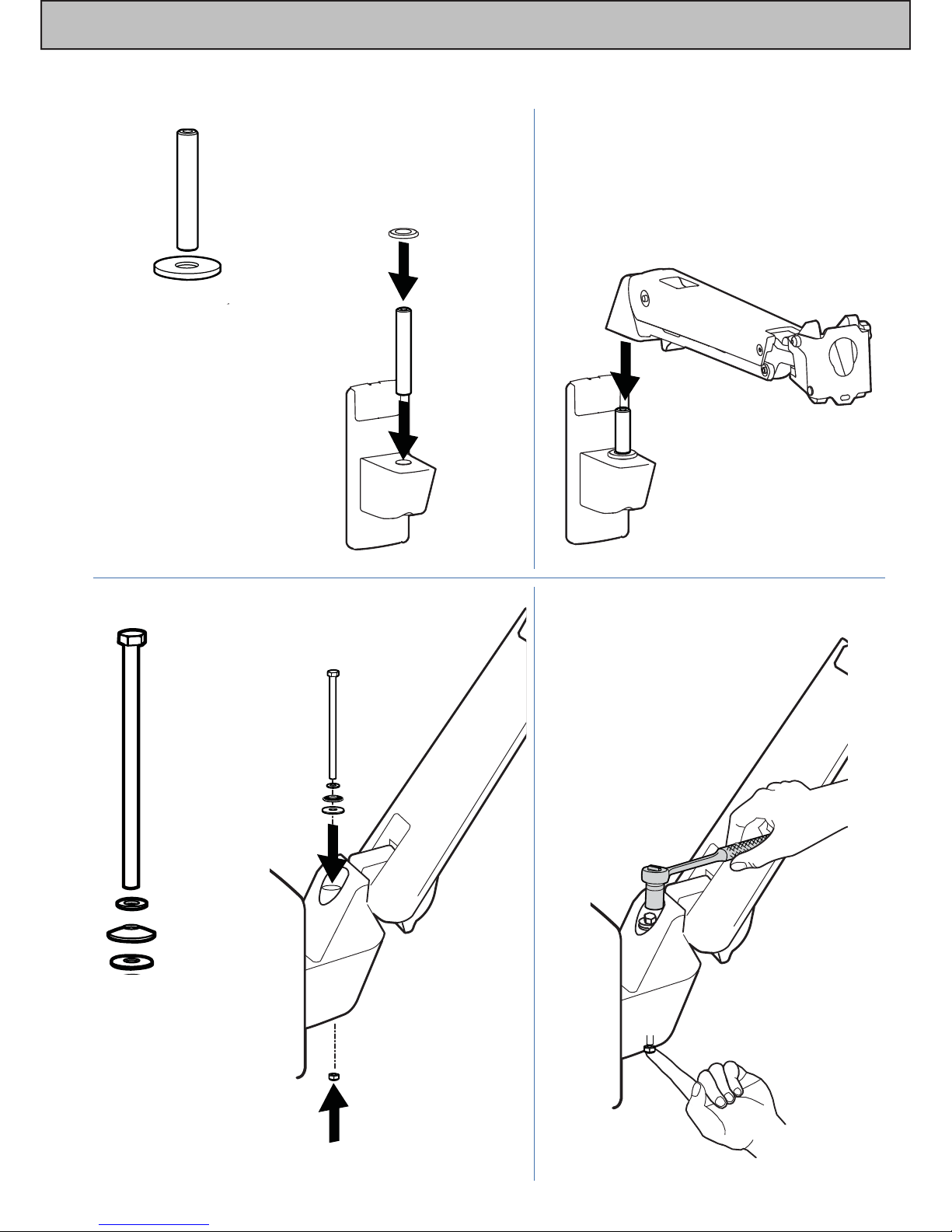

STEP 3

3ab

P-F

P-J

P-K

P-I

16mm Bearing

P-G

25mm Washer

P-M

P-F

65mm Washer

P-M

P-H

Spring Disc

NOTE: Part# P-H must

be concave face down for

proper assembly.

PN:888-45-254-W-01 revF 05/15 13 of 25

STEP 4

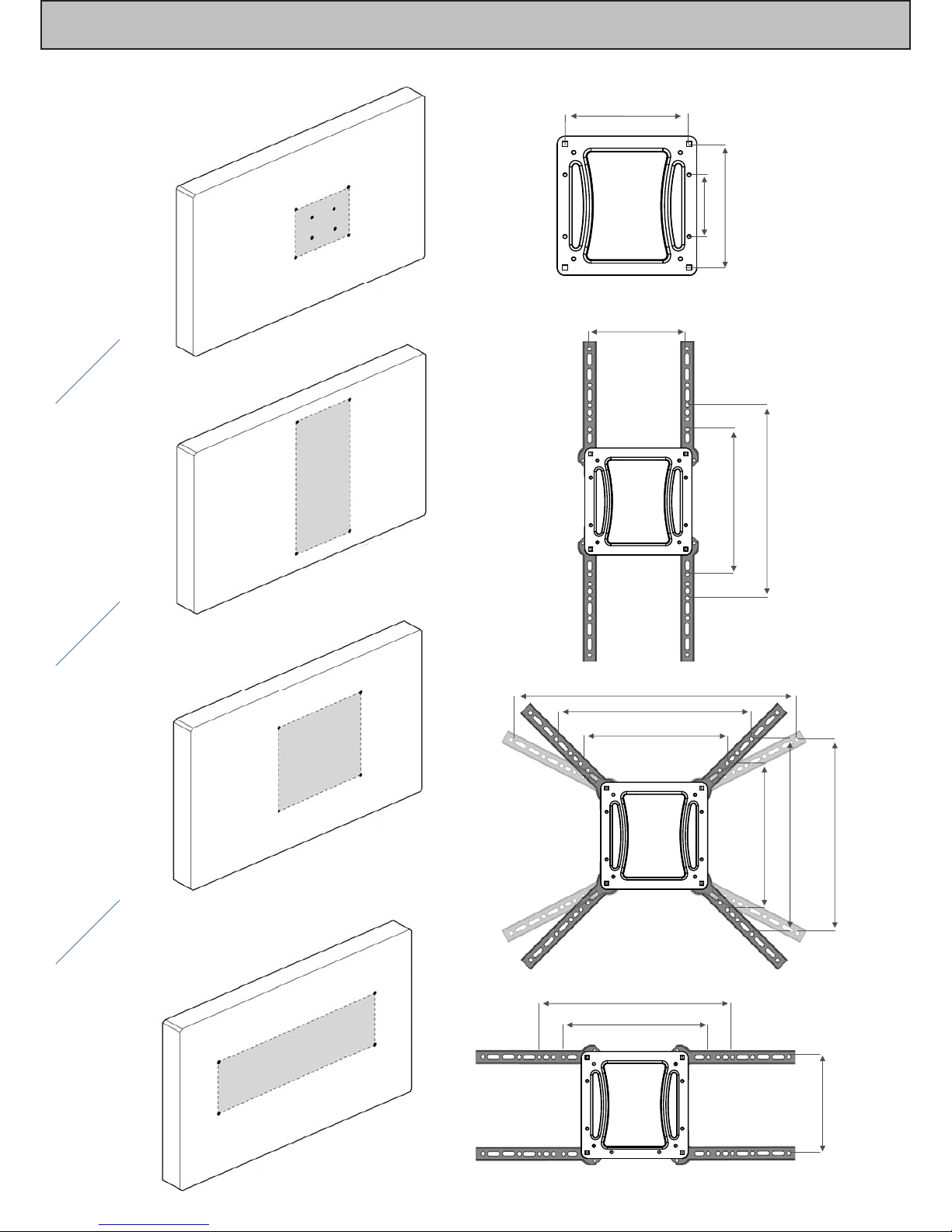

100 x 200

200 x 200

200 x 300

200 x 400

300 x 300

300 x 400

400 x 400

600 x 400

300 x 200

400 x 200

200mm (7-7/8”)

400mm (15-3/4”)

300mm (11-13/16”)

600mm (23-5/8”)

100mm (3-15/16”)

200mm (7-7/8”)

400mm (15-3/4”)

300mm (11-13/16”)

400mm (15-3/4”)

300mm (11-13/16”)

400mm (15-3/4”)

300mm (11-13/16”)

200mm (7-7/8”)

PN:888-45-254-W-01 revF 05/15

14 of 25

100 x 200

200 x 200

200mm (7-7/8”)

100mm (3-15/16”)

200mm (7-7/8”)

M-A M-B

M-C

M-D

M-E

M-F

M-G M-H

M-K

M-L

M-I

M-J

WARNING! PLEASE SELECT THE PROPER SCREW LENGTH FOR YOUR FLAT PANEL

BY HAND TIGHTENING TO CHECK YOUR FLAT PANELS THREAD DEPTH.

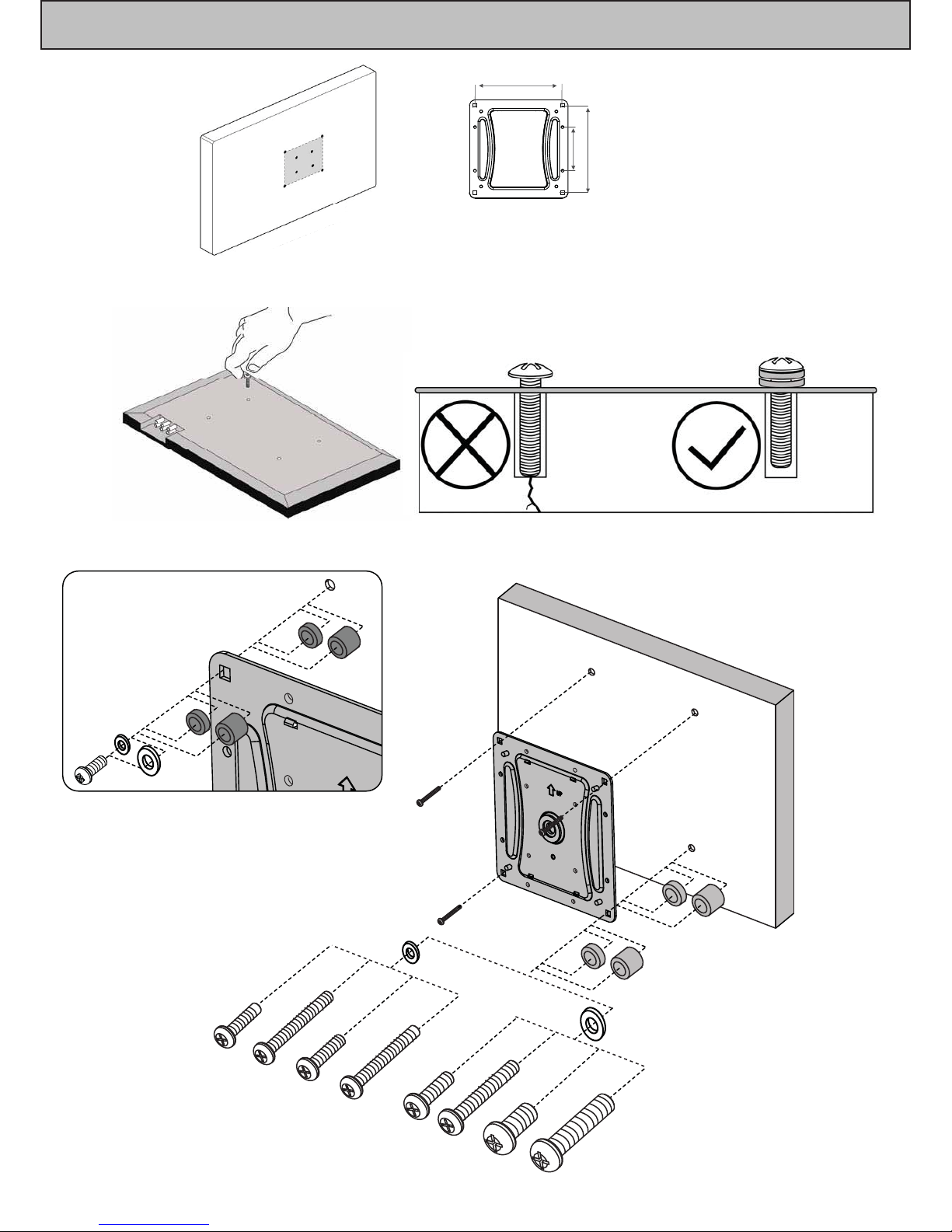

STEP 5-A - Monitor Installation
