Product Information SheetProduct Information Sheet

800.MOUNT.IT (800.668.6848)

Product Information Sheet

03252010

BENEFITS

• Uniquely designed to be used as a ﬂ at panel ﬂ oor

stand, or separate video table and mount

• Includes interchangeable inserts for four color

options (High gloss black, Cherry,

Brushed stainless steel, Walnut)

• Pans 30° left and right to adjust viewing angle

(when used as ﬂ at panel ﬂ oor stand)

• Low 1.5” mounting proﬁ le (when used

as separate wall mount)

• Includes universal adapter for greater panel compatibility

• Lift n Lock™ allows you to easily attach

your ﬂ at panel to the mount

• Open area shelves accommodate multiple components

• Neatly route and organize wires through

cable management post

• Locking system secures panel to mount

• Plastic feet protect ﬂ oors

• Easy to assemble

SPECIFICATIONS

• Accommodates most 42”- 55” ﬂ at panels

up to 125 lbs (56.7 kg)

• 8 mm tempered glass top shelf supports

up to 125 lbs (56.7 kg)

• Two 6 mm tempered glass component

shelves supports up to 50 lbs (22.7 kg)

• Universal and VESA compliant: 75x75 to 400X600

• Dimensions: 50”w x 52.8”h x 20”d

(1270mm x 1341mm x 508mm)

• Warranty: 5 years

• Color: Black with black glass

Elements 503FP

The Core Collection is OmniMount’s tried and true furniture collection made up of two

diﬀ erent series of steel and glass A/V furniture. With clean lines, black glass and various

high-gloss ﬁ nishes, these pieces blend seamlessly into any environment. The Elements Series

has an all-in-one design and exclusive interchangeable color inserts that reinvents A/V furniture

with an adaptable approach to displaying ﬂ at panels and components. Ideal for A/V enthusiasts

looking for extreme décor ﬂ exibility, the Elements 503FP can display large to extra large ﬂ at

panels in three diﬀ erent conﬁ gurations and comes with four interchangeable color panel options.

Elements 503FP

Elements 403FP

The Elements Series

With interchangeable color inserts, the Elements

503FP can change its look as easily as you do

Elements 403FP pictured here

800.MOUNT.IT (800.668.6848)

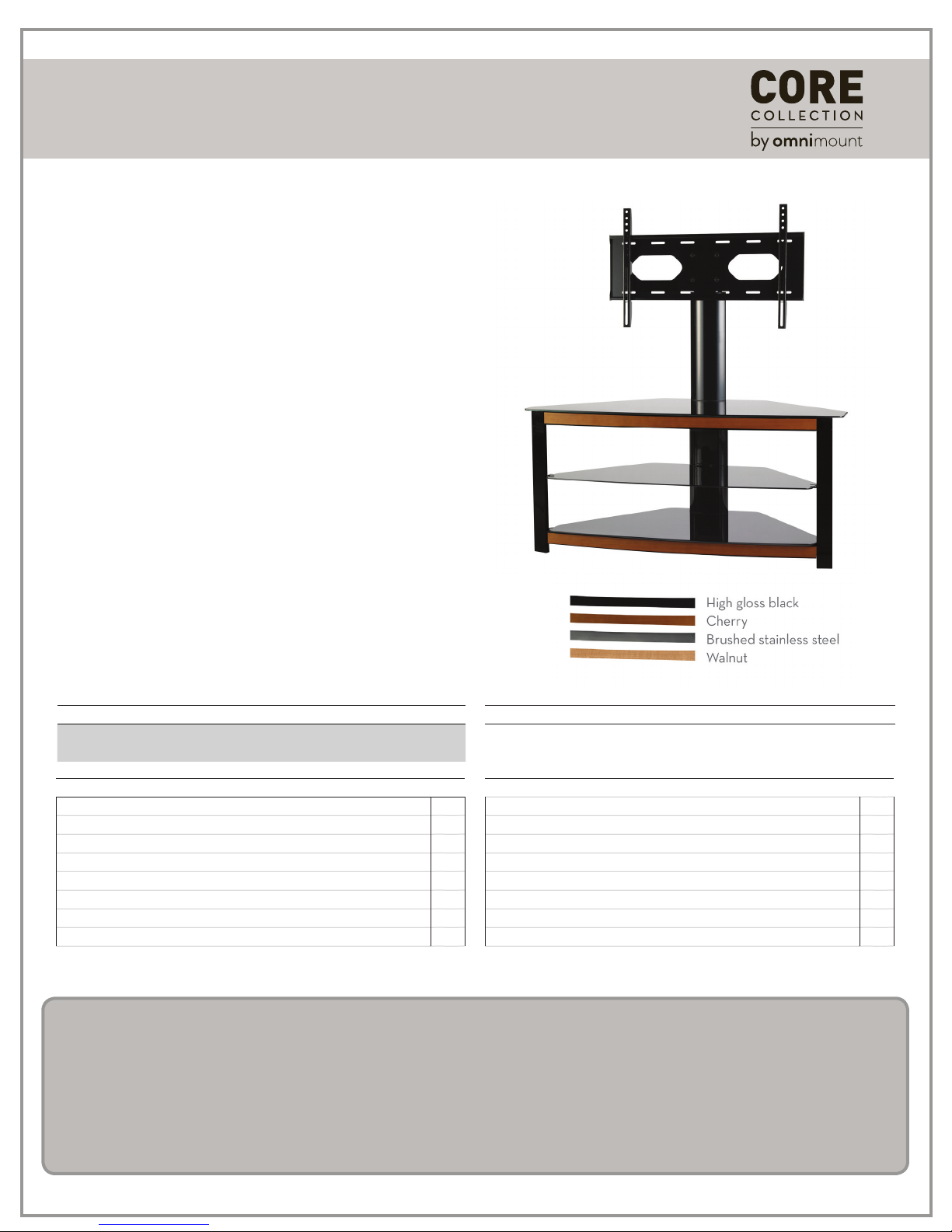

Technical Data Sheet

03252010

The Core Collection is OmniMount’s tried and true furniture collection made up of two diﬀ erent series of

steel and glass A/V furniture. With clean lines, black glass and various high-gloss ﬁ nishes, these pieces blend

seamlessly into any environment. The Elements Series has an all-in-one design and exclusive interchangeable

color inserts that reinvents A/V furniture with an adaptable approach to displaying ﬂ at panels and components.

Ideal for A/V enthusiasts looking for extreme décor ﬂ exibility, the Elements 503FP can display large to extra

large ﬂ at panels in three diﬀ erent conﬁ gurations and comes with four interchangeable color panel options.

Elements 503FP

BENEFITS

• Uniquely designed to be used as a ﬂ at panel ﬂ oor

stand, or separate video table and mount

• Includes interchangeable inserts for four color

options (High gloss black, Cherry, Brushed stainless steel, Walnut)

• Pans 30° left and right to adjust viewing

angle (when used as ﬂ at panel ﬂ oor stand)

• Low 1.5” mounting proﬁ le (when used as separate wall mount)

• Includes universal adapter for greater panel compatibility

• Lift n Lock™ allows you to easily attach

your ﬂ at panel to the mount

• Open area shelves accommodate multiple components

• Neatly route and organize wires through cable management post

• Locking system secures panel to mount

• Plastic feet protect ﬂ oors

• Easy to assemble

SPECIFICATIONS

• Accommodates most 42”- 55” ﬂ at panels up to 125 lbs (56.7 kg)

• 8 mm tempered glass top shelf supports up to 110 lbs (50 kg)

• Two 6 mm tempered glass component shelves supports

up to 50 lbs (22.7 kg)

• Universal and VESA compliant: 75x75 to 400X600

• Dimensions: 50”w x 52.8”h x 20”d (1270mm x 1341mm x 508mm)

• Warranty: 5 years

• Color: Black with black glass

Color Stock Code Packaging UPC

Americas BLK 1004680-1 728901024634

International BLK NA NA

Dimensions WxDxH inches (mm) Wt lbs (kg)

Product Box 25.4 x 55 x 6.7 (645x1397x170) 110.2 (50)

Box Contents Qty

Vertical rail 2

Mount plate 1

Swivel head 1

Column cap 1

Cable management column 3

Column base 1

Top shelf support 2

Middle shelf bracket 2

Box Contents Qty

Base shelf support 2

Front frame horizontal rail 2

Front frame horizontal inserts 8

Glass shelves 3

Complete furniture assembly hardware kit 1

Complete panel mounting hardware kit 1

Complete panel attachment hardware kit 1

Instruction manual 1

inches (mm)

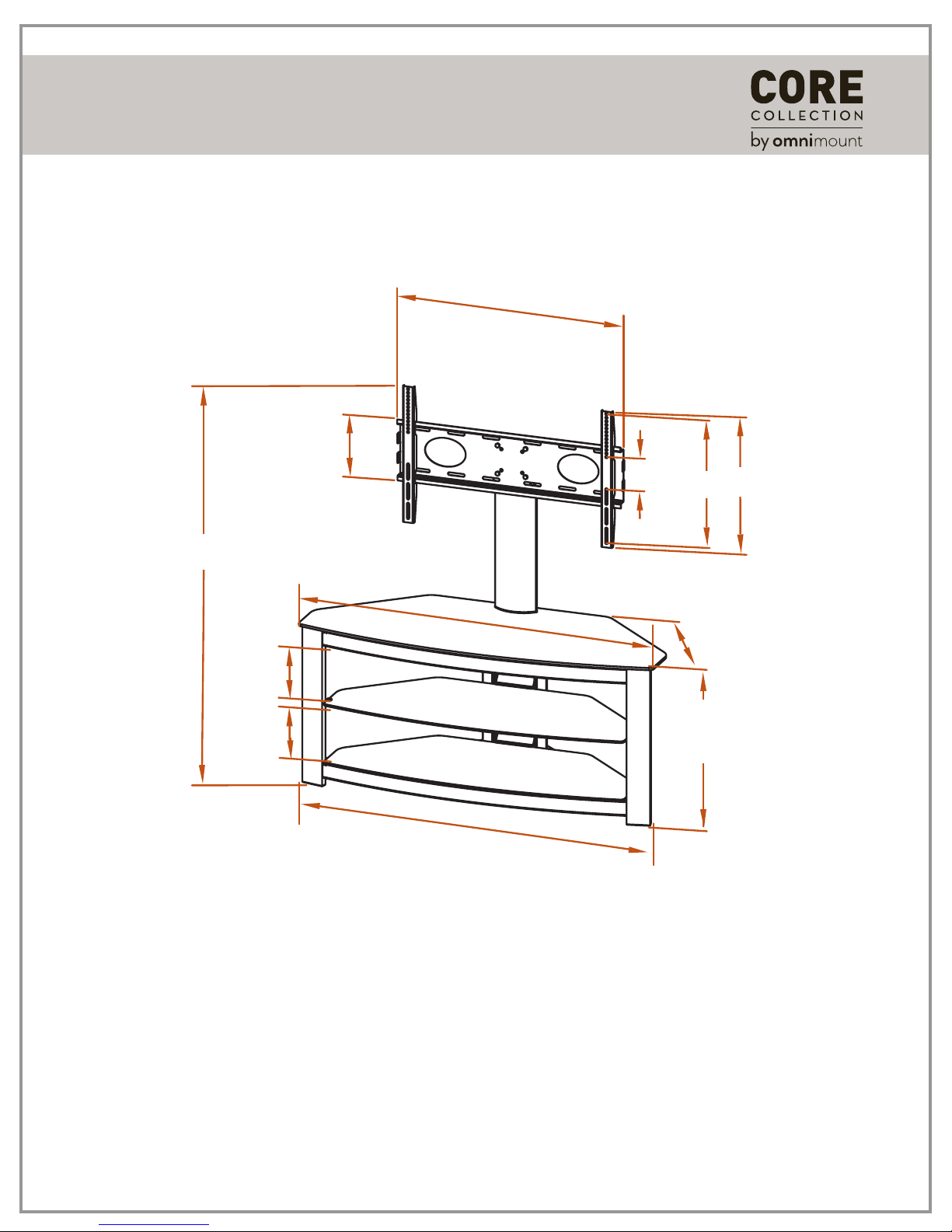

Line Drawing

03252010 800.MOUNT.IT (800.668.6848)

Elements 503FP

49.3 (1251)

22.3

(566)

(508)

31.7 (804)

(203)

10.6 (268)

7.9

(201)

52.8

(1341)

50 (1270)

(468)

(483)

2.1

(53)
