Olympus Stylus TG-Tracker Manuel utilisateur

Thank you for purchasing an Olympus digital camera. Before you start to

use your new camera, please read these instructions carefully to enjoy

optimum performance and a longer service life. Keep this manual in a safe

place for future reference.

We recommend that you take test shots to get accustomed to your camera

before taking important photographs.

The screen and camera illustrations shown in this manual were produced

during the development stages and may differ from the actual product.

Instruction Manual

DIGITAL CAMERA

STYLUS

TG-TRACKER

Unpack the box contents

The following items are included with the camera.

If anything is missing or damaged, contact the dealer from whom you

purchased the camera.

Digital camera

Strap Lithium Ion Battery

(LI-92B) USB-AC adapter

(F-5AC)

CD-ROM

(Instruction

manual/

Computer

software)

Lens

protector

(LP-T01)

Underwater lens

protector

(UP-T01) USB cable

(CB-USB10)

Joint screw

(JS-T01) Mount coupling

(MC-T01) Steady grip

(SG-T01)

Other accessories not shown: Warranty card

Contents may vary depending on purchase location.

• When using the camera underwater, be sure to attach the underwater lens

protector (P. 60) and select [ ] (underwater wide-angle) or [ ]

(underwater flipped wide-angle) for [Field of View] (P. 27, 31, 32).

Attaching the camera strap

• Pull the strap tight so that it does not come loose.

Names of parts

10 11

12 23

11 21

1716 18 19 20

14 15

7 98

1Headlamp

2Lens

3Lens protector

4 Strap eyelet

5Battery/card

compartment/

connector cover

6Battery/card

compartment/

connector cover latch

7HDMI micro

connector

8Micro-USB connector

9Card slot

0Power switch (ON/

OFF/LOG)

aStereo microphone

bLens latch

cWi-Fi antenna

dSpeaker

eTripod socket

fIndicator lamp

gR(record) button

hbutton

iOK/MODE button

jGPS antenna

kM(Left)/Wi-Fi

button

lN(Right)/INFO/

Y(headlamp) button

mMonitor

nPressure adjustment

hole*

*Do not stick pointed objects like a pin into the hole.

• You can adjust the angle of the monitor.

• Strong vibrations may cause the monitor to

open.

Preparations for shooting

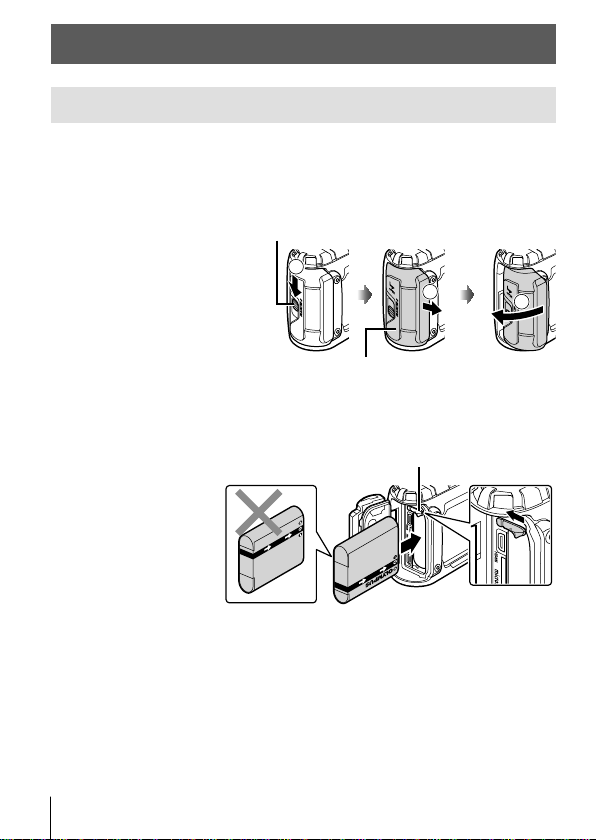

Inserting and removing the battery and card

Keeping the battery/card compartment/connector cover latch

pressed (1), open the battery/card compartment/connector

cover (2, 3).

• When opening or

closing the battery/card

compartment/connector

cover, be sure the power

switch is in the OFF

position.

Battery/card compartment/

connector cover

Battery/card compartment/

connector cover latch

Insert the battery while sliding the battery lock knob in the

direction of the arrow.

• Insert the battery

as illustrated

with the m

mark toward

the battery lock

knob.

Battery lock knob

• If you insert the battery in the wrong direction, the camera is not turned

on. Be sure to insert it in the correct direction.

• Slide the battery lock knob in the direction of the arrow to unlock, and

then remove the battery.

Insert the card straight until it clicks into place.

• Do not touch the metallic parts

of the card directly.

• Always use the specified cards

with this camera. Do not insert

other types of memory cards.

Cards compatible with this camera

microSD/microSDHC/microSDXC card (commercially available) (for

compatibility card details, visit the Olympus website.)

• g“Using the card” (P. 58)

To remove the card

• Before removing cards, rotate the power switch to OFF and confirm that

the indicator lamp (amber) is off.

• Press the card in

until it clicks and

comes out slightly,

then remove the

card.

Follow Steps 1, 2and 3to close the battery/card compartment/

connector cover.

• When using the camera, be sure to close the battery/card compartment/

connector cover.

• Securely latch the cover by sliding the battery/card compartment/

connector cover latch until it completely covers the red label.

• Read “Important information about water and shock resistant features” (P. 62)

before using the camera under water.

Charging the battery

Check that the battery is in the camera, and connect the USB

cable and USB-AC adapter.

• The battery is not fully charged at shipment. Before use, be sure to

charge the battery until the indicator lamp turns off (up to 3.5 hours).

AC outlet

Battery/card

compartment/

connector cover

USB cable (supplied)

Micro-USB connector Indicator lamp

(amber)

On: Charging

Off: Charged

For charging the battery abroad, see “Using your charger and USB-AC adapter

abroad” (P. 57).

• Never use any cable other than supplied or Olympus-designated USB cable.

This may cause smoking or burning.

• The included F-5AC USB-AC adapter (hereafter referred to as USB-AC

adapter) differs depending on the region where you purchased the camera.

If you received a plug-in type USB-AC adapter, plug it directly into AC outlet.

• Be sure the power switch is in the OFF position during charging.

• For details on the battery, see “SAFETY PRECAUTIONS” (P. 65). For details

on the USB-AC adapter, see “SAFETY PRECAUTIONS” (P. 65).

• If the indicator lamp does not light, reconnect the USB cable and USB-AC

adapter to the camera.

When to charge the batteries

Charge the battery when the

error message shown on the right

appears.

Error messageFlashes in red

17 : 30 Battery Empty

Turning on the camera

The camera can only be used with a card inserted. Insert a card

in the camera.

• g“Using the card” (P. 58)

Rotate the power switch to ON.

• If the camera does not turn on when the power

switch is in the ON position, check that the

battery is in the correct orientation.

g“Inserting and removing the battery and

card” (P. 4)

Setting the clock

The camera will prompt you to set the clock when first turned on. Pictures

can not be taken until the clock is set. For information on changing the time

zone or resetting the clock, see [Date] (P. 37).

Use Mor Nto choose the year

([Y]) and press OK to select.

Date

:Back

:Set

2016 --

.. :-- -- --

YMDTime

Using Mor Nand pressing OK as described in Step 1, set

the month ([M]), day ([D]), and hours and minutes ([Time]).

Use Mor Nto select a time zone

and press OK.

World Time

:Back

:Set

UTC+09:00 (10:38)

Seoul

Tokyo

Viewing the shooting mode

The monitor turns on when the power switch is rotated to ON. The shooting

mode is shown by an icon in the top left corner of the display.

A: VIDEO (movie) mode ...................(P. 10)

l: Displayed when [On] is selected for

[Loop] in the VIDEO menu (P. 27).

j: Displayed when [Continuous] is

selected for [Drive] in the PHOTO

menu (P. 30).

z: PHOTO (photography) mode .......(P. 12)

L: TIME LAPSE

(time-lapse movie) mode .............(P. 14)

Shooting setting icons

Settings selected in the menus and elsewhere are shown by icons at the

top of the shooting display.

w: [WB] ...............................(P. 27, 30, 32)

F: [Field of View] .................(P. 27, 31, 32)

o: [IS] ...............................................(P. 29)

Y: [Timer] ..........................................(P. 31)

w: [Wi-Fi] .........................................(P. 36)

F: [+/-] ...................................(P. 27, 30, 32)

Recording movies

Rotate the power switch to ON.

• While the power switch is in the ON position, the camera will log GPS

and other sensor data, including position and altitude. Log recording

continues during shooting.

Check the mode. VIDEO (movie) mode

Press the R(record) button to

start recording.

• Sound will be recorded with movie

footage shot with [30 fps] or [60

fps] selected for [fps] in the VIDEO

menu (P. 28). Be careful not to cover

the microphone.

• When using a camera with a CMOS

image sensor, moving objects may

appear distorted due to the rolling

shutter phenomenon. This is a

physical phenomenon whereby

distortion occurs in the filmed image

when shooting a fast-moving subject

or due to camera shaking.

• Chapter marking can be added by

pressing OK during movie recording.

Movies can have up to 200 chapters.

17 : 30

REC

Recording time

Press the Rbutton again to stop recording.
