DIGITAL CAMERA

FE-5020/X-935

FE-4010/X-930

●Thank you for purchasing an Olympus digital camera. Before you start to

use your new camera, please read these instructions carefully to enjoy

optimum performance and a longer service life. Keep this manual in a

safe place for future reference.

●We recommend that you take test shots to get accustomed to your

camera before taking important photographs.

●In the interest of continually improving our products, Olympus reserves

the right to update or modify information contained in this manual.

●The screen and camera illustrations shown in this manual were produced

during the development stages and may differ from the actual product.

Unless otherwise speciﬁed, the explanation about these illustrations is

provided for FE-5020/X-935.

Instruction Manual

Contents

Step 5

Printing

“Direct printing (PictBridge)” (p. 35)

“Print Reservations (DPOF)” (p. 38)

Step 4

How to Use the Camera

“Three Types of Setting Operations” (p. 3)

Step 3

Shooting and Playing Back Images

“Shooting, Playback, and Erasing” (p. 14)

Step 2

Preparing the Camera

“Preparing the Camera” (p. 10)

Names of Parts .............................. 6

Preparing the Camera ................. 10

Shooting, Playback, and

Erasing ......................................... 14

Using Shooting Modes................ 17

Using Shooting Functions.......... 19

Using Playback Features ............ 22

Menus for Shooting Functions... 23

Menus for Playback, Editing, and

Printing Functions....................... 28

Menus for Other Camera

Settings ........................................ 31

Printing ......................................... 35

Using OLYMPUS Master 2........... 40

Usage Tips ................................... 42

Appendix ...................................... 46

Index ............................................. 61

Step 1

Checking the contents of the box

Other accessories not shown: Instruction Manual (this manual), OLYMPUS Master 2, warranty card.

Contents may vary depending on purchase location.

Digital camera

Strap LI-42B Lithium Ion Battery LI-41C Battery Charger

USB cable AV cable microSD Attachment

Buttons in use

1Press the mbutton.

This example describes how to use the

menus to set the [POWER SAVE].

CAMERA MENU

EXIT SET

Shooting mode top menu

2Use klmn to select the desired

menu, and press the Bbutton.

Pressing and

holding the E

button displays

an explanation

(menu guide)

of the selected

option.

BACKUP

SETUP

SET

ENGLISH

PIXEL MAPPING

MEMORY FORMAT

EXIT

Submenu 1

●

Please read “Menu Settings” (p. 23 to 34) while referring to this page.

mbutton Arrow pad

Bbutton

3Use kl to select the desired

Submenu 1, and press the Bbutton.

SETUP

EXIT SET

POWER SAVE OFF

NTSCVIDEO OUT

SETUP

SET

BACK

POWER SAVE OFF

NTSCVIDEO OUT

POWER SAVE

OFF

Page tab Submenu 2

To quickly move to the desired submenu,

press mto highlight the page tab, and then

use kl to move the page. Press nto

return to the submenu.

Some menus include submenus that

appear by pressing the Bbutton.

4Use kl to select Submenu 2,

and press the Bbutton.

Once a setting is selected, the display

returns to the previous screen.

There may

be additional

operations.

“Menu Settings”

(p. 23 to 34)

SETUP

EXIT SET

POWER SAVE ON

NTSCVIDEO OUT

5Press the mbutton to complete

the setting.

●

Three Types of Setting Operations

Ebutton

Using the Menu

Various camera settings can be accessed through the

menus, including functions used during shooting and

playback and the date/time and screen display.

There may be menus that are unavailable depending

on other related settings or the smode (p. 17).

Using the Direct Buttons

Frequently used shooting functions can be accessed using the

direct buttons.

Shutter button (p. 14)

Kbutton (shooting/switching shooting modes)

(p. 17, 18)

qbutton (playback) (p. 15)

Zoom buttons (p. 19)

Fbutton (exposure compensation) (p. 20)

&button (macro) (p. 20)

#button (ﬂash) (p. 19)

Ybutton (self-timer) (p. 21)

g/Ebutton (changing information display/

menu guide) (p. 21, 22/p. 17)

/Dbutton (backlight boost/erase)

(p. 21/p. 16, 30)

Using the FUNC Menu (p. 21)

Frequently used shooting menu functions can be set with less

steps using the FUNC menu.

Bbutton (p. 21)

Arrow pad

Bbutton

Buttons in use

1GSLIDESHOW............... p. 28

2HPERFECT FIX ............. p. 28

3IEDIT

Q(Resize) ................ p. 28

P(Crop) .................... p. 28

INDEX ......................... p. 29

Menus for Playback, Editing, and Printing Functions

In playback mode, settings can be adjusted.

EXIT SET

PLAYBACK MENU

Playback mode top menu

4JPLAYBACK MENU

0(Protect) ............... p. 29

y(Rotate) .................. p. 29

R(Add sound to still

images)........................ p. 29

5KERASE ........................ p. 30

6LPRINT ORDER............ p. 30

7ESETUP*

*Same as “Menus for

Shooting Functions”

8FSILENT MODE ............ p. 34

1AIMAGE QUALITY ........ p. 23

2BCAMERA MENU

WB............................... p. 24

ISO .............................. p. 24

FINE ZOOM ................ p. 25

DIS MOVIE MODE...... p. 25

R(Still images/

movies)........................ p. 25

PANORAMA ................ p. 26

AF MODE.................... p. 26

3CSWITCH SHOOTING

MODES

P................................. p. 14

G............................. p. 17

h.............................. p. 18

s............................ p. 17

MOVIE......................... p. 18

4QMAGIC FILTER ........... p. 27

5DRESET ........................ p. 27

6ESETUP

MEMORY FORMAT/

FORMAT ..................... p. 31

BACKUP...................... p. 31

W(Language)........ p. 31

PIXEL MAPPING......... p. 31

K/q......................... p. 31

SAVE SETTINGS ........ p. 32

PW ON SETUP ........... p. 32

MENU COLOR............ p. 32

SOUND SETTINGS .... p. 33

s(Monitor) ............... p. 33

X(Date/time)............ p. 33

VIDEO OUT................. p. 34

POWER SAVE ............ p. 34

7FSILENT MODE ............ p. 34

Menu Index

Menus for Shooting Functions

In shooting mode, settings can be adjusted.

EXIT SET

CAMERA MENU

Shooting mode top menu

Names of Parts

1Strap eyelet................................. p. 10

2Multi-connector ............... p. 34, 35, 40

3Battery/card

compartment cover ..................... p. 11

4Battery/card

compartment lock*1 ..................... p. 11

*1 Available in the FE-5020/X-935 only.

Camera unit

5Self-timer lamp............................ p. 21

6Flash ........................................... p. 19

7Lens ......................................p. 46, 59

8Microphone ...........................p. 25, 29

9Tripod socket

10 Speaker

FE-4010/X-930

1nbutton ............................p. 13

2 g/Ebutton

(changing information display/

menu guide)................. p. 21, 22/p. 17

3 Monitor.................................. p. 14, 42

4 mbutton................................. p. 3

5 /Dbutton (backlight boost/

erase)........................... p. 21/p. 16, 30

6Shutter button ............................. p. 14

7 Zoom buttons.............................. p. 19

8 Card access lamp .......................p. 47

9 Kbutton (shooting/

switching shooting modes) ... p. 17, 18

10 qbutton (playback) ..................p. 15

11 Bbutton (OK/FUNC).............. p. 3, 21

12 Arrow pad ............................... p. 3, 12

Fbutton (exposure compensation)

...............................................p. 20

&button (macro) ...................p. 20

Ybutton (self-timer) ..............p. 21

#button (ﬂash)...................... p. 19

Monitor

Shooting mode display

+2.0 1/30 F3.3

ISO

400

ORM

11131415 1012

2 5 63

+2.0

00:34

QVGA

11 101215

2 5 63

12M

Still image Movie

1 Shooting mode............................ p. 14

2 Flash mode .................................p. 19

3 Silent mode................................. p. 34

4Digital image stabilization ........... p. 25

5 Macro/super macro..................... p. 20

6 Battery check ..............................p. 10

7 Flash standby/camera shake

warning/ﬂash charge............. p. 19, 42

8 AF target mark ............................p. 14

9 Recording with sound ................. p. 25

10 Number of storable still pictures/

remaining recording time ... p. 14/p. 18

11 Current memory.......................... p. 47

12 Self-timer ....................................p. 21

13 Aperture value ............................ p. 14

14 Shutter speed ............................. p. 14

15 Exposure compensation ............. p. 20

16 Compression/frame rate ............. p. 23

17 Image size .................................. p. 23

18 ISO.............................................. p. 24

19 White balance .............................p. 24

Playback mode display

2009.10.26 12:30 4

+2.0

F3.3

100-0004

ORM

1/1000

ISO 4

34 51

121314

2009.10.26 12:30

100-0004

00:14

00:34

QVGA

34 51

1213

Still image Movie

1 Silent mode................................. p. 34

2 Print reservation/

number of prints................. p. 38/p. 37

3 Adding sound.............................. p. 29

4 Protect ........................................p. 29

5 Battery check ..............................p. 10

6 Aperture value ............................ p. 14

7 Exposure compensation ............. p. 20

8 White balance .............................p. 24

9 Image size .................................. p. 23

10 File number....................................... -

11 Frame number/

Elapsed time/total recording time

........................................... p. 15/p. 16

12 Current memory.......................... p. 47

13 Compression/frame rate ............. p. 23

14 ISO.............................................. p. 24

15 Date and time ............................. p. 13

16 Shutter speed ............................. p. 14

Preparing the Camera

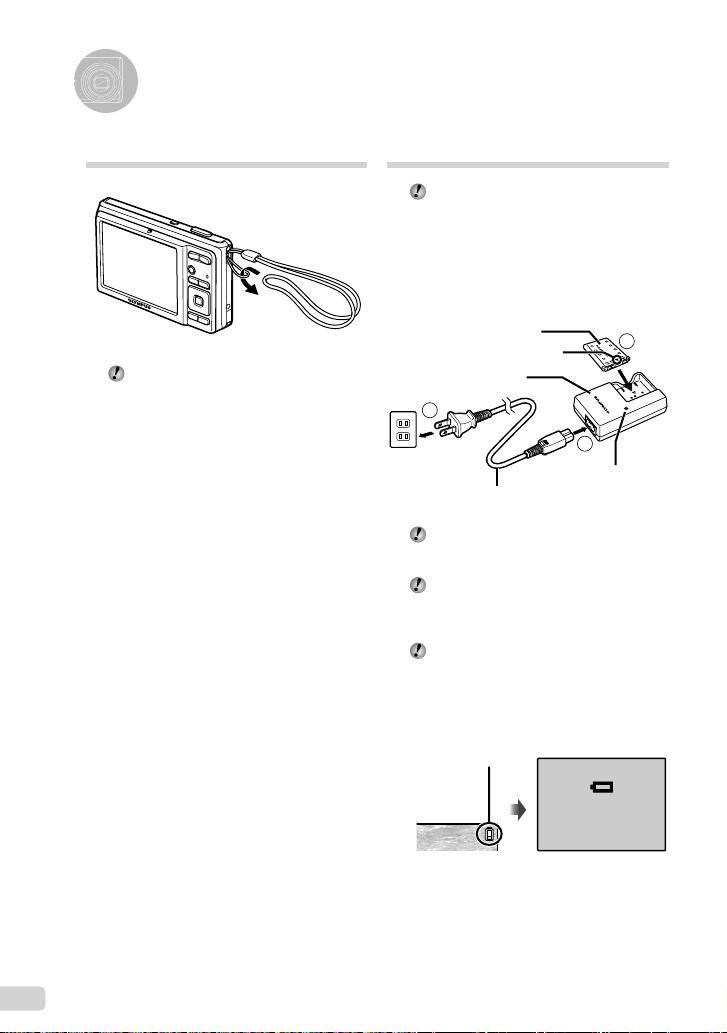

Charging the battery

The battery charger included (AC cable or

plug-in type) differs depending on the region

where you purchased the camera.

If you received a plug-in type battery

charger, plug it directly into an AC outlet.

Example: AC cable type battery

charger

AC outlet

AC cable

Lithium ion battery

Battery charger

Charging indicator

On: Charging

Off: Charged

▼

Battery comes partially charged. Before

use, be sure to charge the battery until the

charging indicator goes off (up to 2 hours).

If the charging indicator does not light or

it blinks, the battery may not be inserted

correctly or the battery or the charger may

be broken.

For details on the battery and the charger,

see “Battery and charger” (p. 46).

When to charge the batteries

Charge the battery when the error message

shown below appears.

BATTERY EMPTY

Monitor top right Error message

Flashes in red

Attaching the camera strap

Pull the strap tight so that it does not come

loose.

Autres manuels pour FE 5020 - Digital Camera - Compact

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Olympus Appareil photo numérique

Olympus

Olympus 1030SW - Stylus Digital Camera Manuel utilisateur

Olympus

Olympus LC35 Manuel utilisateur

Olympus

Olympus T-100 Manuel utilisateur

Olympus

Olympus CAMEDIA C-5060 Wide Zoom Manuel utilisateur

Olympus

Olympus FE 280 - Digital Camera - Compact Manuel utilisateur

Olympus

Olympus E-P2 - PEN 12.3 MP Micro Four Thirds Interchangeable Lens Digital... Instructions de montage

Olympus

Olympus VT1621-01 Manuel utilisateur

Olympus

Olympus E-20 - Dual Monaural Earphones Manuel utilisateur

Olympus

Olympus XA Mode d'emploi

Olympus

Olympus C-3000 - 3.2MP Digital Camera Manuel utilisateur

Olympus

Olympus CAMEDIA D-360L Manuel utilisateur

Olympus

Olympus FE 370 - Digital Camera - Compact Manuel utilisateur

Olympus

Olympus D-100/C-1 Guide d'installation

Olympus

Olympus CAMEDIA D-460ZOOM Manuel utilisateur

Olympus

Olympus E-20 - Dual Monaural Earphones Guide de démarrage rapide

Olympus

Olympus 80 - Stylus 80 Quartz Date 35mm Camera Instructions de montage

Olympus

Olympus 550WP - Stylus Digital Camera Manuel utilisateur

Olympus

Olympus CAMEDIA C-760 Ultra Zoom Guide d'installation

Olympus

Olympus Stylus 770 SW Manuel utilisateur

Olympus

Olympus CAMEDIA C-160 Manuel utilisateur

Olympus

Olympus E M1 1240 Kit Manuel utilisateur

Olympus

Olympus E-PM1 Guide de configuration

Olympus

Olympus STYLUS-p-9000 Manuel utilisateur

Olympus

Olympus CAMEDIA C-3040 Zoom Guide d'installation

Manuels Appareil photo numérique populaires d'autres marques

Mercury

Mercury 350K Manuel utilisateur

Pentax

Pentax Optio LS 465 Manuel utilisateur

Sanyo

Sanyo VPC-S1085 Manuel utilisateur

GE SMART A1255 Manuel utilisateur

Point Grey

Point Grey Gazelle Manuel utilisateur

Nikon

Nikon COOLPIX A Manuel utilisateur

Pentax

Pentax P-5 Manuel utilisateur

BlazeVideo

BlazeVideo A280 Manuel utilisateur

Sony

Sony MCA-20 Manuel utilisateur

Sony

Sony Alpha DSLR-A290 Manuel utilisateur

ATIK Cameras

ATIK Cameras One Manuel utilisateur

CohuHD Costar

CohuHD Costar 3930 Series Manuel utilisateur

Leica

Leica M10-R Manuel utilisateur

FujiFilm

FujiFilm FinePix A700 Manuel utilisateur

Lorex

Lorex LNZ81P25 Series Manuel utilisateur

GE J1470S Manuel utilisateur

Sony

Sony A6700 Guide de l'utilisateur

Canon

Canon EOS ELAN7 Manuel utilisateur
