INSTALLATION MANUAL

Multifunction Color

d-Color MF2001

d-Color MF2501

Code: Y112990-2

PUBLICATION ISSUED BY:

Olivetti S.p.A.

Gruppo Telecom Italia

Via Jervis, 77 - 10015 Ivrea (TO)

2KZ/2K0

1-1

1-2 Installation

1-1 Installation environment

1. Temperature: 10 to 32.5°C/50 to 90.5°F

2. Humidity: 15 to 80% RH

3. Power supply: 120 V AC, 12.0 A

220 - 240 V AC, 6.5 A

4. Power supply frequency: 50 Hz ±2%/60 Hz ±2%

5. Installation location

Avoid direct sunlight or bright lighting. Ensure that the photoconductor will not be exposed to direct sun-

light or other strong light when removing paper jams.

Avoid locations subject to high temperature and high humidity or low temperature and low humidity; an

abrupt change in the environmental temperature; and cool or hot, direct air.

Avoid places subject to dust and vibrations.

Choose a surface capable of supporting the weight of the machine.

Place the machine on a level surface (maximum allowance inclination: 1°).

Avoid air-borne substances that may adversely affect the machine or degrade the photoconductor, such

as mercury, acidic of alkaline vapors, inorganic gasses, NOx, SOx gases and chlorine-based organic sol-

vents.

Select a well-ventilated location.

6. Allow sufficient access for proper operation and maintenance of the machine.

Figure 1-1

100 mm

3 15/16”

100 mm

3 15/16” 450 mm

17 11/16”

1000 mm

39 3/8”

500 mm

19 11/16”

Y112990-2 Sevice Manual

Service Manual 1-2 Y112990-2

1-2 Unpacking and installation

(1) Installation procedure

Unpack

Install the optional paper feeder

Release the scanner lock lever

Load paper

Remove the tapes and spacer

Start

Install the toner container

Attaching the language label

(Excluding 240V AC)

Make test copies

Switch the cassette heater switch

Install the expansion memory (option)

Connect the power cord

Exit maintenance mode

Print out the user setting list

Install the other optional devices

Installing toner

Output an own-status report

(maintenance item U000)

Completion of the machine installation

Install the job separator tray

2KZ/2K0

1-3

Figure 1-2

*1 Excluding 230V AC model

Place the machine on a level surface.

524

13 14

Unpacking

1. Bottom case

2. Bottom pad R

3. Bottom pad L

4. Machine cover

5. Machine

6. Inner case R

7. Inner case L

8. Spacer A

9. Plastic bag (540 × 950)

10. Outer case

11. Upper pad R

12. Upper pad L

13. Toner container /YCM

14. Toner container /K

15. Plastic bag (250 × 650)

16. CD-ROM *1

17. Installation guide, etc.

18. Plastic bag

19. Job separator tray

20. Plastic bag (400 × 600)

21. Power cord

22. Hinge joints

23. Quick installation guide

24. Reinforcement parts

25. Plastic bag

26. Lower pad

27. Front pad

28. Desiccant

Y112990-2 Sevice Manual

2KZ/2K0

1-4

1. Remove four tapes.

Figure 1-3

2. Open the DP top cover.

3. Slide two DP original width guides and

then remove the pad.

4. Close the DP top cover.

Figure 1-4

Remove the tapes and spacer

Tape Tape

Tape

DP top cover Pad

DP original width guides

Service Manual 1-2 Y104350-7

Service Manual 1-2 Y112990-2Service Manual 1-2 Y112990-2

Sevice Manual Y112990-2

2KZ/2K0

1-5

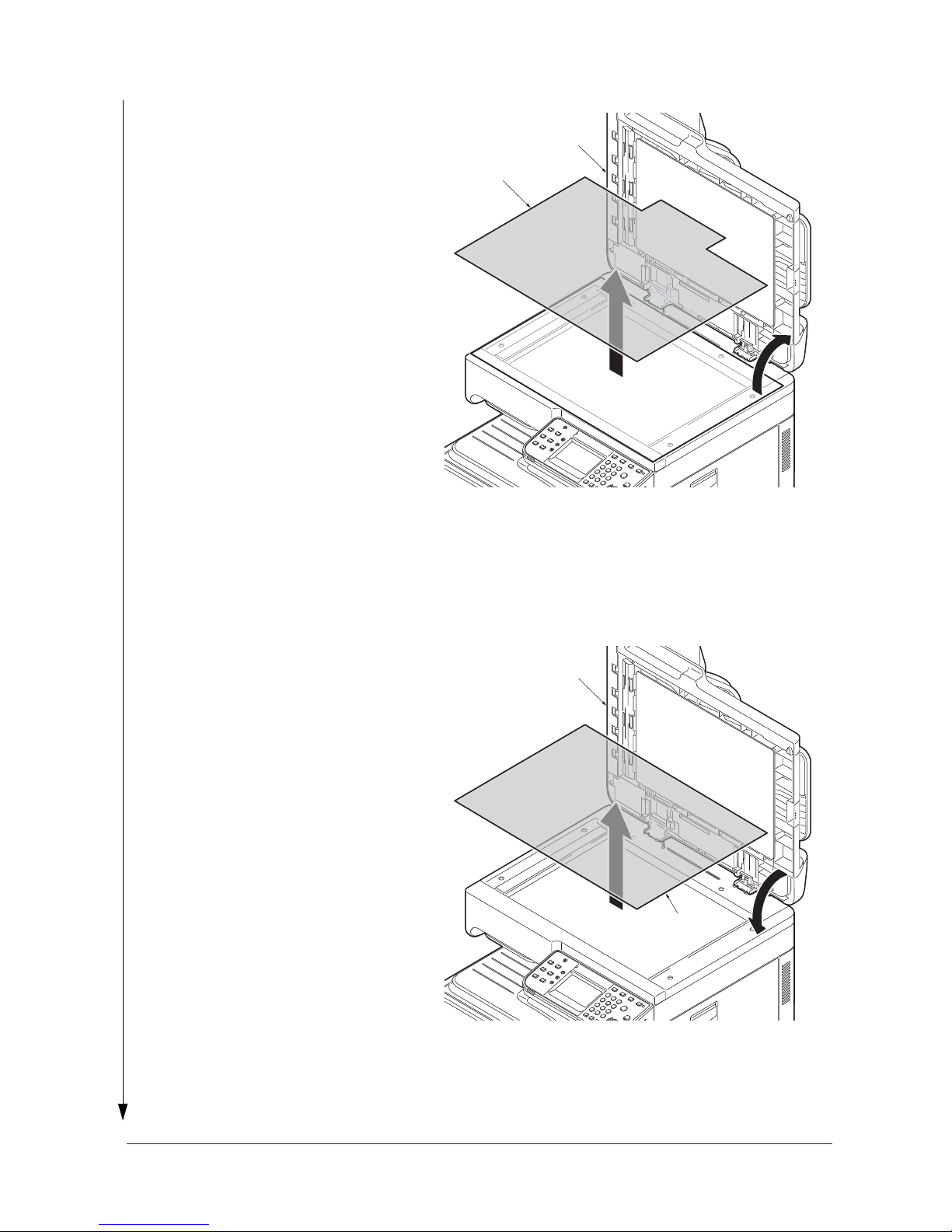

5. Open the DP.

6. Remove the protective sheet and paper.

Figure 1-5

7. Remove the paper.

8. Close the DP.

Figure 1-6

Protective sheet

Paper

Y112990-2 Sevice Manual

2KZ/2K0

1-6

9. Remove the tape.

Figure 1-7

10. Peel off two protective sheets.

11. Remove the spacer.

Figure 1-8

Tape

Spacer Protective sheets

Sevice Manual Y112990-2

2KZ/2K0

1-7

1. Gently push the job separator tray into

the machine along the guides.

Figure 1-9

1. Pull the scanner lock lever in the direc-

tion of the arrow. This will unlock the

scanner mechanism.

Figure 1-10

Install the job separator tray

Job separator tray

Right guide

Left guide

Release the scanner lock lever

Scanner

lock lever

Y112990-2 Sevice Manual

2KZ/2K0

1-8

1. Install the optional paper feeder as

required.

Figure 1-11

1. Pressing the paper width adjusting tab

as shown, move the paper width guides

to fit the paper size.

Figure 1-12

Install the optional paper feeder

Paper feeder

Load paper

Cassette

Paper width

adjusting tab

Paper width guides

Sevice Manual Y112990-2
