OLIMEX ESP32-C3-DevKit-Lipo Manuel utilisateur

ESP32-C3-DevKit-Lipo

User Manual

Rev.1.0 September 2022

olime .com

Table of Contents
What is ESP32-C3-DevKit-Lipo...............................................................................................................3
ESP32-C3-DevKit-Lipo ordering options.................................................................................................5
ESP32-C3-DevKit-Lipo Open Source Licensee........................................................................................
ESP32-C3-DevKit-Lipo software installation...........................................................................................7
ESP32-C3-DevKit-Lipo pinout description:..............................................................................................8
ESP32-C3-DevKit-Lipo power supply and consumption..........................................................................9
ESP32-C3-DevKit-Lipo dimensions........................................................................................................10
ESP32-C3-DevKit-Lipo schematic..........................................................................................................11
ESP32-C3-DevKit-Lipo schematic on GitHub........................................................................................11
Revision History......................................................................................................................................12
2

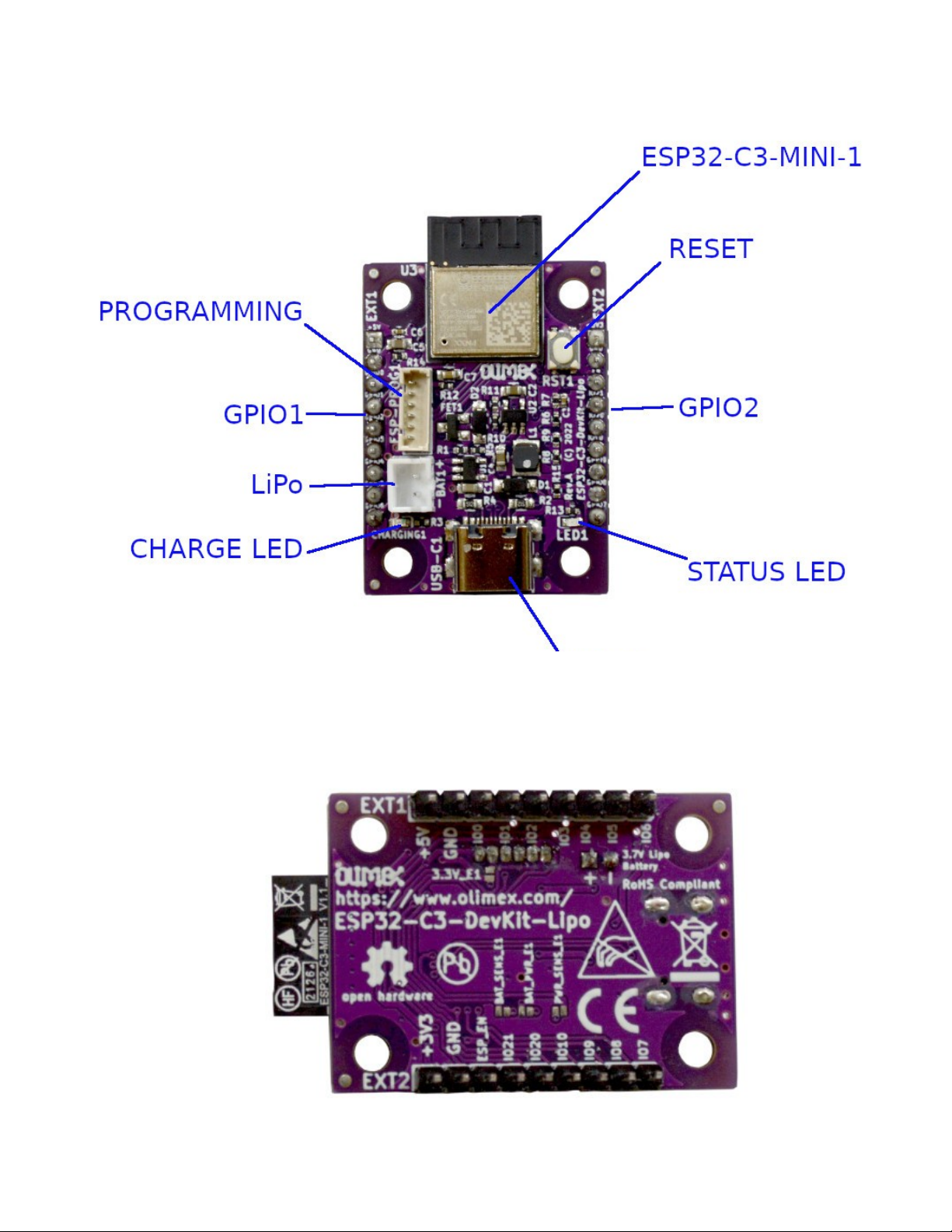

What is ESP32-C3-DevKit-Lipo

ESP32-C3-DevKit-Lipo is Open Source Hardware Industrial grade -25+85ºC development board with:

•ESP32-C3 RISC-V single core processor runninig on 1 0 Mhz

•384 KB ROM, 400 KB SRAM (1 KB for cache), 8 KB SRAM in RTC

•4 MB embedded flash

•2.4 GHz WiFi (802.11 b/g/n) 1T1R mode with data rate up to 150 Mbps

•Bluetooth® 5 module

•15 GPIOs

•Onboard antenna

•Build in LiPo battery charger with STATUS LED, for handheld operations

•Lipo battery connector for Olimex LiPo batteries

•RESET button

•STATUS LED

•ICSP programming connector for rescue with ESP-PROG-C

•4 mount holes

•USB-C connector for Debugging and Programming

•two soldered EXT headers with all signals and power supply

ESP32-C3-DevKit-Lipo ordering options

ESP32-C3-DevKit-Lipo can be ordered as:

•ESP32-C3-DevKit-Lipo

Additional accessories:

USB-C cable: CABLE-USB-A-C-1M

LiPo batteries: Olimex LiPo batteries

Breadboard: BREADBOARD1

Jumper wires: JW-200x10, JW-200x10-FM

ESP32-C3-DevKit-Lipo Open Sour e Li ensee

ESP32-C3-DevKit-Lipo is Open Source Hardware.

The Hardware files are released under CERN OSHW licensee.

The software is released under GPL 3 licensee.

The documentation is released under CC BY-SA 3.0 licensee.

ESP32-C3-DevKit-Lipo software installation

Esspresif guide for Arduino IDE installation.

Esspressif guide for PlatformIO installation.

Espressif ESP-IDF installation.

JTAG debugging installation.

ESP32-C3-DevKit-Lipo pinout des ription:

ESP32-C3-DevKit-Lipo power supply and onsumption

•0.2A @ Active operation

•22mA @ Idle

•3mA @ Sleep

•20 uA @ Power off

ESP32-C3-DevKit-Lipo dimensions
