Oldsmobile 2004 Alero Instructions de montage

Instrument Panel . . . . . . . . . . . . . . . . . . . . . . . . .2

Instrument Panel Cluster . . . . . . . . . . . . . . . . . .3

Delayed Locking . . . . . . . . . . . . . . . . . . . . . . . . .4

Remote Keyless Entry . . . . . . . . . . . . . . . . . . . .4

Remote Trunk Release Lockout . . . . . . . . . . . . .5

Programmable Automatic Power Door Locks . .6

Lockout Protection . . . . . . . . . . . . . . . . . . . . . . .7

12-Volt Accessory Power Outlets . . . . . . . . . . . .7

Automatic Light Control/

Daytime Running Lamps (DRL) . . . . . . . . . . . . .8

Removing Key from Parked Vehicle . . . . . . . . . .9

Fueling Your Vehicle . . . . . . . . . . . . . . . . . . . . .9

Audio Systems . . . . . . . . . . . . . . . . . . . . . . . . . .9

Setting the Clock . . . . . . . . . . . . . . . . . . . . . . .10

Oil Life Monitor . . . . . . . . . . . . . . . . . . . . . . . . .10

Tire Pressure Monitor . . . . . . . . . . . . . . . . . . . .10

Installing a Child Seat . . . . . . . . . . . . . . . . . . . .11

Rear Door Security Locks . . . . . . . . . . . . . . . . .11

Roadside Assistance Program . . . . . . . . . . . . .12

My GMLink . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Congratulations on your purchase of an Oldsmobile Alero. Please read this information and your

Owner Manual to ensure an outstanding ownership experience. Note that your vehicle may not

include all the features described in this booklet. Place this booklet in your Owner Manual

portfolio for easy reference.

15774 ALERO 5/22/03 11:34 AM Page 1

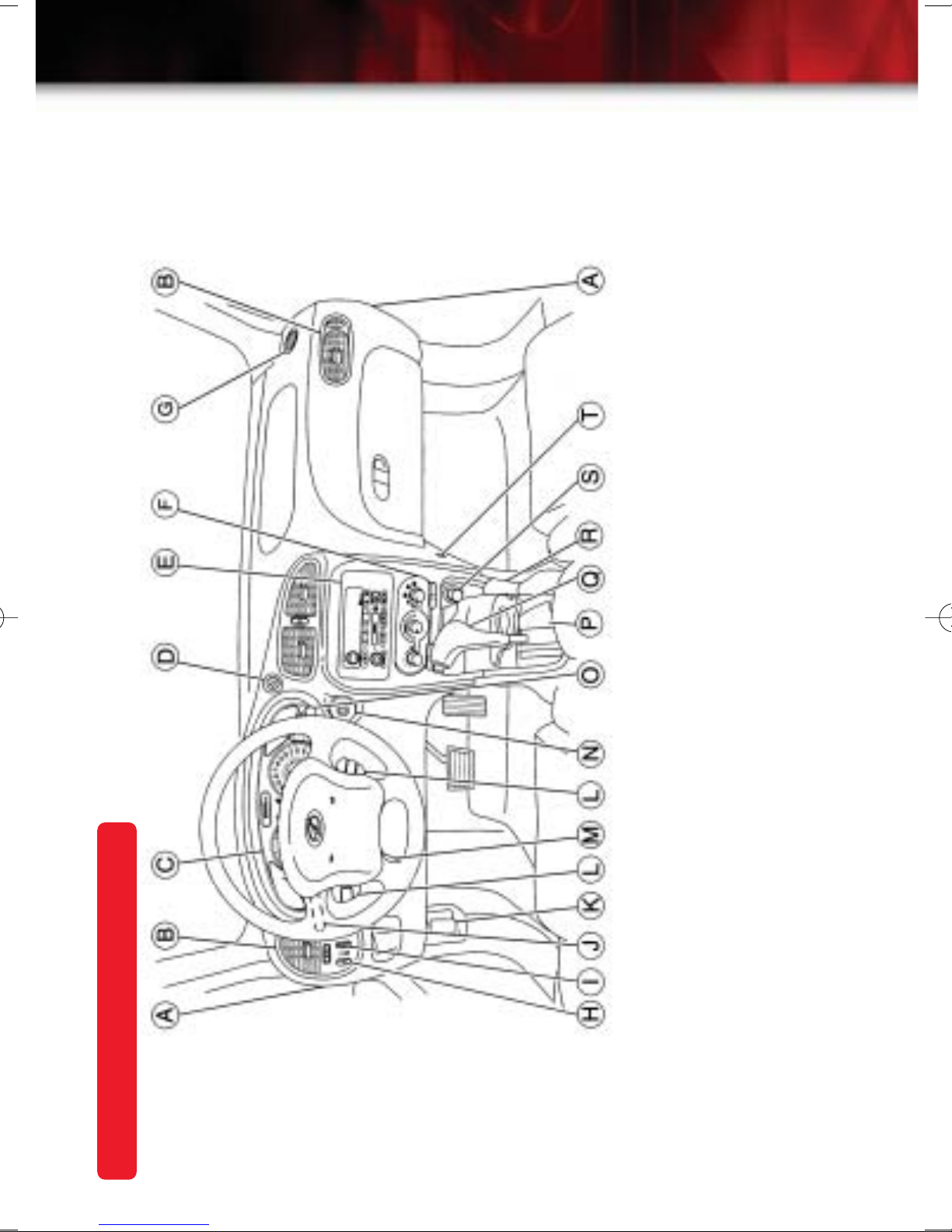

A. Instrument Panel Fuse Blocks

B. Air Outlets

C. Instrument Panel Cluster

D. Hazard Warning Flashers Button

E. Audio System

F. Climate Control System

G. Side Window Defogger Vent

H. Fog Lamp Button (if equipped)

I. Instrument Panel Brightness

Thumbwheel

J. Turn Signal/Multifunction Lever

K. Hood Release Handle

L. Cruise Control Switches

M.Tilt Wheel Lever

N. Ignition Switch

O. Windshield Wiper/Washer Lever

P. Enhanced Traction System Button

Q. Transaxle Shift Lever

R. Parking Brake

S. Cigarette Lighter/Accessory Power

Outlet

T. Accessory Power Outlet

Getting to Know Your 2004 Alero

Instrument Panel

See Section 3 of your Owner Manual.

15774 ALERO 5/22/03 11:34 AM Page 2

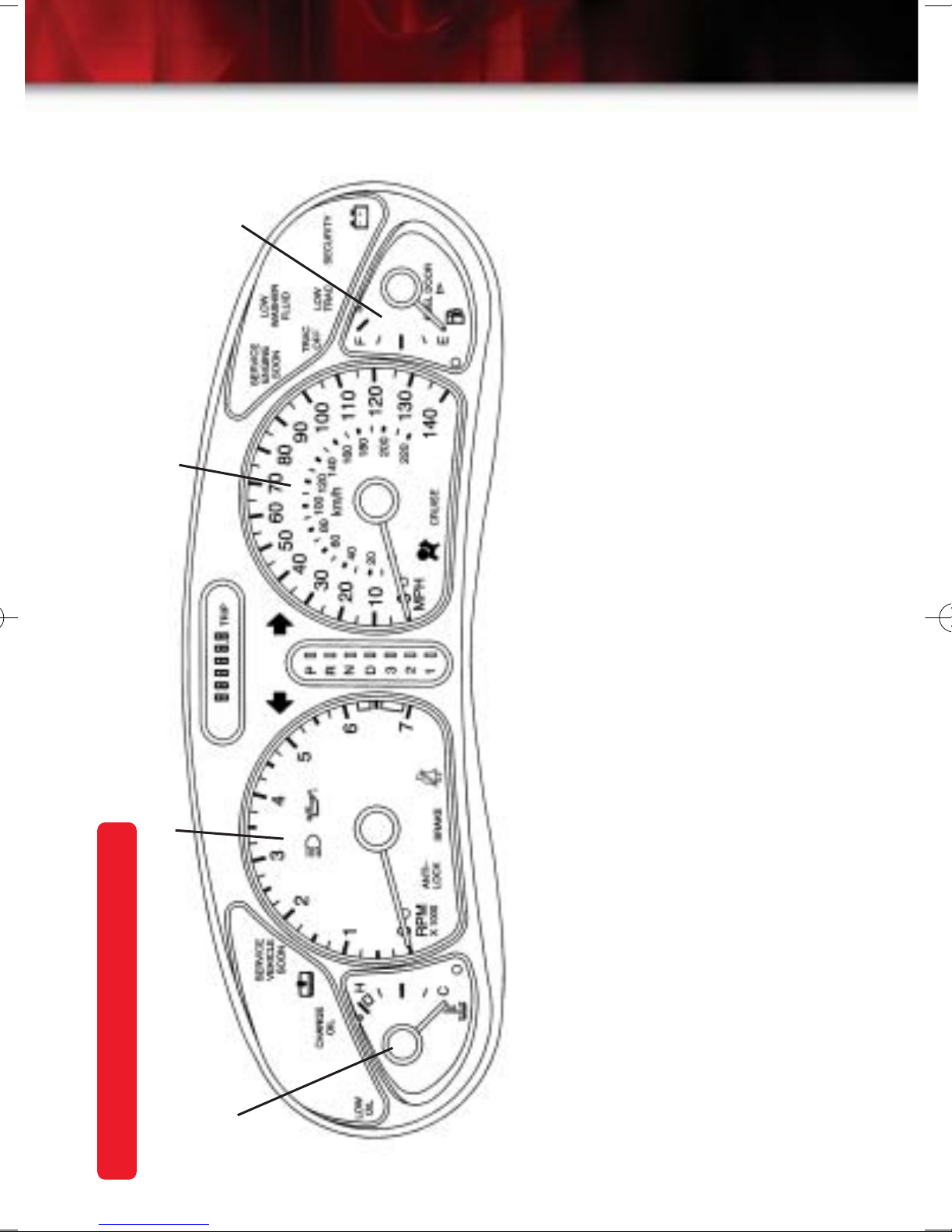

Your vehicle’s instrument panel is

equipped with this cluster or one

very similar to it. The instrument

panel cluster includes these key

features:

A. Engine Coolant Temperature

Gauge

B. Tachometer

C. Speedometer

D. Fuel Gauge

IMPORTANT: The instrument panel

cluster is designed to let you know

about many important aspects of

your vehicle’s operation. It is impor-

tant to read your Owner Manual and

become familiar with the information

being relayed to you by the lights,

gauges and indicators, and what

action can be taken to ensure safety

and to prevent damage.

See Section 3 of your Owner Manual.

Instrument Panel Cluster

15774 ALERO 5/22/03 11:34 AM Page 3

Getting to Know Your 2004 Alero

Delayed Locking

With Delayed Locking, when your keys

are removed from the ignition and a

door is opened, a chime will sound three

times after you press the Power Door

Lock switch. The chime indicates that

the doors will not lock until after all the

doors have been closed for seven

seconds.

You may cancel this feature through the

following ways:

•Press the door Unlock switch

(to unlock).

•Override it by pressing the door Lock

switch again or the Lock button on

the optional Remote Keyless Entry

transmitter to immediately lock the

doors.

Delayed Locking allows you to get back

into the vehicle to grab a package or a

small child without having to activate the

door Lock switch again.

See Section 2 of your Owner Manual.

Remote Keyless Entry

The Remote

Keyless Entry

transmitter can be

used to lock or

unlock your vehi-

cle, open the

trunk or activate

the alarm.

When you press

the Unlock or

Trunk release

button, the vehi-

cle’s interior

lamps will illumi-

nate. In addition, both audible and visual

feedback is provided when operating the

transmitter buttons while performing the

following functions:

1. Lock button: Park lamps flash twice

and horn chirps (if all doors are

closed).

2. Unlock button: Park lamps flash

twice on first button press as driver’s

door unlocks. Remaining doors

unlock on second press of button.

3. Trunk button: No park lamps flash

and no horn chirps as trunk is

released.

4. Alarm button: This feature allows

you to draw attention to your vehicle

when personal safety is in question.

Park lamps and headlamps will flash

followed by horn activation. You can

disable this feature by pressing the

Alarm button a second time or by

turning your ignition to ON. After one

minute, this feature will automatically

turn off.

15774 ALERO 5/22/03 11:34 AM Page 4

The horn chirp feature for both the

Delayed Locking and Remote Keyless

Entry is turned “on” at the factory. To

disable horn chirp for both of these fea-

tures, simply follow the Horn Chirp —

How to Program procedure below:

Horn Chirp — How to Program

Close the doors, turn the ignition to the

ON position. Keep all doors closed

throughout this procedure.

1. Press and hold down either Power

Door Lock switch in the UNLOCK

position for 10 seconds.

2. When the horn chirps, you can

release the switch. The horn chirp

feature has been disabled and will

remain in this mode unless changed

back (this does not affect the horn

activation with the Alarm button of the

Remote Keyless Entry). Re-enabling

the horn chirp feature can be done by

repeating the above procedure.

RKE Battery Replacement

Under normal use, the battery in your

Remote Keyless Entry transmitter

should last about two years. You can tell

the battery is weak if the transmitter

won’t work at the normal range in any

location. If you have to get close to your

vehicle before the transmitter works, it’s

probably time to change the battery.

See Section 2 of your Owner Manual.

Remote Trunk Release Lockout

Your vehicle is equipped with a Remote

Trunk Release Lockout feature. When

the lockout is on, the remote trunk

release button on the driver’s door (or

on the Remote Keyless Entry transmit-

ter, if equipped) will not release the trunk

lid. However, the trunk lid can still be

opened with the key.

The lockout mechanism is mounted to

the trunk lid latch on the inside of the

trunk lid. To turn the lockout off, slide the

switch all the way to the right (OFF). To

turn the lockout on, slide the switch all

the way to the left (ON).

See Section 2 of your Owner Manual.

Note: When replacing the battery, use

one three-volt CR2032 or equivalent

battery. Use care not to touch any of the

transmitter circuitry. Static from your

body transferred to these surfaces may

damage the transmitter.

15774 ALERO 5/22/03 11:34 AM Page 5

Getting to Know Your 2004 Alero

Programmable Automatic Power

Door Locks

Alero’s Power Door Locks can be pro-

grammed to fit your needs. First, close

all the doors and make sure the ignition

is in the ON position and your foot is on

the brake pedal. When you move the

gearshift out of Park, all the doors will

automatically lock. When the gearshift is

returned to Park and the ignition is

turned to OFF, all doors will automatical-

ly UNLOCK.

If someone needs to get in or out while

you’re in Park, use the manual or Power

Door Lock switch. When a door has

been opened and closed again, it will

lock automatically when the car has

reached 5 mph. Programmable

Automatic Power Door Locks can be set

to any of the following modes:

Mode 1 (Factory Setting): All doors

automatically lock when shifted out of

Park. All doors automatically unlock

when shifted into Park and the ignition is

turned to OFF.

Mode 2: All doors automatically lock

when shifted out of Park. Driver door

only unlocks when shifted into Park and

the ignition is turned to OFF.

Mode 3: All doors automatically lock

when shifted out of Park. Doors do not

lock when shifted into Park and the igni-

tion is turned to OFF (Remote Keyless

Entry only).

Mode 4: The doors do not lock or

unlock automatically.

How to Program Automatic Power

Door Locks

To change modes (settings), simply:

1. Close the doors and turn the ignition

to the ON position. Keep all doors

closed throughout this procedure.

2. Press and hold down either Power

Door Lock switch in the LOCK posi-

tion for 10 seconds.

3. When the chime sounds, you can

release the switch. The Program-

mable Door Lock feature has been

advanced to the next setting and will

remain in this mode unless changed

again. The number of chime sounds

indicates which mode you are in (for

example, three chimes sound for

Mode 3).

The modes occur in the following order:

1. Factory Setting; 2. If equipped with

Remote Keyless Entry; 3 and 4.

Functions will operate as defined above

in each mode.

See Section 2 of your Owner Manual.

15774 ALERO 5/22/03 11:34 AM Page 6

Lockout Protection

Your vehicle’s Lockout Protection feature

reduces the chances of locking the car

with the keys in the ignition. Whenever

any door is open and the Power Door

Lock switch is pressed to LOCK with the

key in the ignition, the doors WILL NOT

LOCK. If the driver’s door is open and

the ignition is OFF, the chime will sound,

reminding you that the key is in the igni-

tion. Notice, in this situation, the

absence of the three chimes associated

with the Delayed Locking. To intentional-

ly lock the keys in the car:

•Depress and hold either Power Door

Lock switch in the LOCK position for

three seconds, or

•Depress the LOCK button on the

Remote Keyless Entry transmitter.

See Section 2 of your Owner Manual.

12-Volt Accessory Power

Outlets

Two auxiliary outlets provide electrical

power for accessories operating on 15

amps or less (cellular phones, etc.).

These outlets are located ahead of the

shift lever behind a black-hinged plug,

and on the passenger side of the con-

sole. To operate the passenger side out-

let, gently press the front portion until

the back pivots into the vehicle. When

not in use, pivot the outlet back into the

console.

See Section 3 of your Owner Manual.

15774 ALERO 5/22/03 11:34 AM Page 7

Getting to Know Your 2004 Alero

Automatic Light Control/

Daytime Running Lamps (DRL)

Your Alero is equipped with Automatic

Light Control (ALC) for night driving and

Daytime Running Lamps (DRL) for day-

time driving. The ALC activates full exte-

rior lighting — including headlamps and

instrument panel lighting — the same as

activating the headlamp switch located

on the left stalk of the steering column.

The DRL system activates your head-

lamps at reduced intensity when the

ignition is ON, the headlamps switch is

OFF, the shifter is not in Park and the

park brake is released. When it’s dark

enough outside, the DRL will turn off

and the vehicle’s full intensity head-

lamps and parking lamps will activate.

When it’s bright enough outside, the full

intensity headlamps and parking lamps

will go off and the reduced intensity

headlamps (DRL) will come on.

Delayed Headlamps Off

Your vehicle’s Delayed Headlamp Off

feature provides illumination when exit-

ing your Alero. When you turn the igni-

tion to OFF (while in the Automatic Light

Control mode), the headlamps will

remain on as courtesy lighting for 20

seconds. The headlamps will turn off

automatically after 20 seconds with no

further action on your part.

Overriding the Systems

If you prefer not to use Automatic Light

Control, the DRL or Delayed Headlamps

Off feature, you can temporarily over-

ride the systems by following these

procedures:

•Automatic Light Control (ALC):

Under nighttime lighting conditions,

activate the parking brake by pulling

the hand lever before turning the igni-

tion ON. Notice that activating the

parking brake while in ALC will not

override this feature.

•Daytime Running Lamps (DRL):

Under daytime lighting conditions,

place the shifter in Park or activate

the park brake as described above.

Note that the DRL will activate

with the park brake applied and the

vehicle speed above 3 mph.

•Delayed Headlamps Off: With the

headlamps ON after the ignition is

OFF, rotate the headlamp stalk switch

from OFF to PARKLAMPS to OFF to

immediately turn off the headlamps.

See Section 3 of your Owner Manual.

Note: The Automatic Light Control

system may temporarily switch your

vehicle’s headlamps and interior lights

— including the radio display — to the

nighttime mode when you pass through

a darker ambient condition, such as

under a bridge or through a tunnel. This

should last no longer than 45 seconds.

15774 ALERO 5/22/03 11:34 AM Page 8

Removing Key from Parked

Vehicle (Manual Trans. Only)

Before getting out of your vehicle, shift

into reverse by lifting the shifter ring,

and apply the parking brake. Reverse

gear is the safest gear setting for manu-

al transmission-equipped vehicles. Once

the transmission is in reverse, the igni-

tion can be turned to OFF and the key

can be removed.

See Section 2 of your Owner Manual.

Note: Shift into reverse only after your

vehicle is stopped. Shifting into reverse

while your vehicle is moving could dam-

age your transmission.

Fueling Your Vehicle

Never fuel your vehicle while the engine

is running, and make sure to reinstall

the fuel cap securely when finished (turn

it until it clicks). Either of these situations

would allow fuel to evaporate into the

atmosphere and cause the SERVICE

ENGINE SOON lamp to illuminate.

See Section 6 of your Owner Manual.

Audio Systems

•AM/FM Stereo with Compact Disc

Player

•AM/FM Stereo with Cassette Tape

and Compact Disc Player

•8-Speaker Premium Sound System;

available with CD/Cassette Radio

Setting the Stations

The six numbered pushbuttons on your

radio return you to your favorite stations.

You can set up to 18 stations (six AM,

six FM, and six FM2) by performing the

following steps:

•Turn on the radio.

•Press BAND to select AM or FM.

•Tune in the desired station.

•Press AUTO EQ to select the equal-

ization best suited for the station.

•Press and hold one of the numbered

buttons until you hear a beep.

Whenever you press that numbered

button, the station you set will return

and the equalization you selected will

also automatically be selected for that

station.

•Repeat the steps for each

pushbutton.

Speed-Compensated Volume

Your radio is equipped with a Speed-

Compensated Volume (SCV) feature

that adjusts the radio volume automati-

cally to compensate for road and wind

noise as you drive.

See Section 3 of your Owner Manual.

15774 ALERO 5/22/03 11:34 AM Page 9

Getting to Know Your 2004 Alero

Setting the Clock

To set the time on the clock-mounted

radio, follow these instructions:

•Press and hold the HR or MIN button

for two seconds.

•Press the HR button until the correct

hour appears. AM will appear on the

display (on vehicles with RDS radios).

•Press and hold the MIN button until

the correct minute appears.

To set the clock to the time of an FM

station broadcasting Radio Data System

(RDS) information:

•Press and hold HR and MIN at the

same time for two seconds until

UPDATED and the clock symbol

appear on the display.

•If the time is not available from the

station, NO UPDATE will appear on

the display instead.

Note: The clock may be set with the

ignition on or off.

Oil Life Monitor

Your Alero is equipped with an Oil Life

Monitor that evaluates how the car is

driven and calculates what percentage

Tire Pressure Monitor

(if equipped)

The Tire Pressure Monitor alerts you to

a potential tire pressure problem before

it may disable your driving (e.g., slow

leak due to a nail in the tire).

When a difference in pressure greater

than 12 psi is detected between the

tires, a “Low Tire Pressure” warning light

in the instrument panel along with a

chime will activate, alerting you to check

your tire pressure.

of oil life remains before it needs to be

changed. When the calculated oil life

remaining reaches a certain level, a

chime will activate as well as a

“CHANGE OIL” warning light in the

instrument panel, alerting you to sched-

ule an oil change.

Resetting the Change Oil Light

Whenever you have your oil changed,

the CHANGE OIL LIGHT needs to be

reset so it can calculate when the next

oil change is required. If you change the

oil prior to the illumination of the

CHANGE OIL light, reset the system.

To reset the CHANGE OIL LIGHT:

1. With the engine off, turn the ignition

key to ON.

2. Fully press and release the accelera-

tor pedal slowly three times within

five seconds.

The reset is complete when you hear

the chimes and the CHANGE OIL light

goes out. However, if the light stays on

and no chime is heard, repeat the reset

procedure.

See Section 5 of your Owner Manual.

See Section 3 of your Owner Manual.

15774 ALERO 5/22/03 11:34 AM Page 10

Autres manuels pour 2004 Alero

Table des matières

Autres manuels Oldsmobile Automobile

Oldsmobile

Oldsmobile Cutlass Supreme 1997 Manuel utilisateur

Oldsmobile

Oldsmobile 2000 Silhouette Manuel utilisateur

Oldsmobile

Oldsmobile 1995 Achieva Manuel utilisateur

Oldsmobile

Oldsmobile Bravada 2004 Manuel utilisateur

Oldsmobile

Oldsmobile 2001 Silhouette Manuel utilisateur

Oldsmobile

Oldsmobile 2002 Alero Manuel utilisateur

Oldsmobile

Oldsmobile 1999 Cutlass Manuel utilisateur

Oldsmobile

Oldsmobile 1994 Silhouette Manuel utilisateur

Oldsmobile

Oldsmobile Cutlass 1978 Series Manuel utilisateur

Oldsmobile

Oldsmobile 2003 Alero Manuel utilisateur

Oldsmobile

Oldsmobile 1963 Manuel utilisateur

Oldsmobile

Oldsmobile Silhouette Manuel utilisateur

Oldsmobile

Oldsmobile 1993 88 Manuel utilisateur

Oldsmobile

Oldsmobile 1997 88 Manuel utilisateur

Oldsmobile

Oldsmobile 1997 Silhouette Manuel utilisateur

Oldsmobile

Oldsmobile AURORA 2001 Manuel utilisateur

Oldsmobile

Oldsmobile Cutlass Supreme 1994 Manuel utilisateur

Oldsmobile

Oldsmobile Cutlass Supreme 1997 Manuel utilisateur

Oldsmobile

Oldsmobile cutlass supreme 1996 Manuel utilisateur

Oldsmobile

Oldsmobile 2000 Alero Manuel utilisateur

Oldsmobile

Oldsmobile 1995 Cutlass Supreme Manuel utilisateur

Oldsmobile

Oldsmobile 1955 Manuel utilisateur

Oldsmobile

Oldsmobile 1997 Achieva Manuel utilisateur

Oldsmobile

Oldsmobile 1994 88 Manuel utilisateur

Manuels Automobile populaires d'autres marques

Toyota

Toyota 2000 Tundra Manuel utilisateur

CITROËN

CITROËN DS4 DSign Manuel utilisateur

Lexus

Lexus 2015 CT 200h Manuel utilisateur

Cadillac

Cadillac CTS 2008 Manuel utilisateur

Mercedes-Benz

Mercedes-Benz M-class ML 55 AMG Manuel utilisateur

Porsche

Porsche Boxster S Manuel utilisateur

GMC

GMC 2010 Savana 1500 Cargo Manuel utilisateur

KIAM

KIAM SPORTAGE 2014 Manuel de la liste des pièces

GMC

GMC 2013 Terrain Instructions de montage

GMC

GMC T-Series 1999 Manuel utilisateur

Mercury

Mercury 1998 Mystique Manuel utilisateur

Mercury

Mercury 2007 Mariner Manuel utilisateur

Mazda

Mazda 2007 Mazdaspeed 3 Mode d’emploi

Mazda

Mazda 2014 CX-5 Manuel utilisateur

GMC

GMC Chevrolet Express 2022 Manuel utilisateur

GMC

GMC 1997 Jimmy Manuel utilisateur

Chevrolet

Chevrolet 2012 Malibu Manuel utilisateur

Cadillac

Cadillac 2010 Escalade Manuel utilisateur
