OKIDATA®B6300 REMANUFACTURING INSTRUCTIONS
AbsoluteCOLOR®• AbsoluteBLACK®• UniDrums • UniRollers • UniParts • UniCoatings
OKIDATA B6300 PRINTER
TONER CARTRIDGE
WITH OEM CHIP SHOWN
REMOVING THE CHIP
1. Using a small screwdriver, push in one of
the tabs located beneath the base to
release the chip that is held in place.
2. The chip can now be lifted from the top
or pushed out through the tab holes
beneath the chip base.
3. Chip removed with tab holes shown. It
will be replaced later with a new
Smartchip.
11124 Washington Blvd., Culver City, California U.S.A. 90232 Ph: 310 280-9620 • Fx: 310 838-7294 • [email protected]
© 2005 Uninet Imaging Inc. All Trademark names are property of their respective owners. Product brand names mentioned are intended to show compatibility only. Uninet Imaging does not guarantee or warrant downloaded information.
USA
+310-280-9620
+310-838-7294
Ph:
Fx:
JAPAN
+81-3-44-55-2789
+310-838-7294
EUROPE
+34-93-757-1335
+34-93-741-4166
BRAZIL
+55-11-4822-3033
+55-11-4822-3353
ARGENTINA
+54-11-4574-3706
+54-11-4574-3706
www.uninetimaging.com
UNINET IMAGING INC. •OKIDATA®B6300 REMANUFACTURING INSTRUCTIONS
4. Remove the shutter-door arm from the
slot on the gear-side of the toner cartridge
as shown.
5. Using a hook tool, remove the shutter-
door arm on the gearless side. Remember
the spring position for re-installation.
6. Remove the shutter-door and set it
aside.
ARM
ARM
SPRING
7. Remove the plastic pin on one end by
first drilling a hole in the center of it. This
will make it more accessible.
8. Use a 2.4 mm screwdriver to turn the pin
to the “release” setting (turn counter-clock-
wise sensitively until it stops).
9. Use a 2-angle hook to access and pull
the pin from the hole.
10. Remove the plastic pin on the opposite
end by drilling a hole in the center.
11. Turn the pin counter-clockwise to the
“release” setting as usual.
12. Pull the pin out through the hole.
11124 Washington Blvd., Culver City, California U.S.A. 90232 Ph: 310 280-9620 • Fx: 310 838-7294 • [email protected]
© 2005 Uninet Imaging Inc. All Trademark names are property of their respective owners. Product brand names mentioned are intended to show compatibility only. Uninet Imaging does not guarantee or warrant downloaded information.
USA
+310-280-9620
+310-838-7294
Ph:
Fx:
JAPAN
+81-3-44-55-2789
+310-838-7294
EUROPE
+34-93-757-1335
+34-93-741-4166
BRAZIL
+55-11-4822-3033
+55-11-4822-3353
ARGENTINA
+54-11-4574-3706
+54-11-4574-3706
www.uninetimaging.com
UNINET IMAGING INC. •OKIDATA®B6300 REMANUFACTURING INSTRUCTIONS
14. Lift evenly to separate the drum unit
from the cartridge.
13. Use a hook tool to release the spring
from the gear-less side.
15. Drum unit removed.
16. You are now ready to disassemble the
drum unit.
17. Remove the top screw of the drum gear
holder.
18. Remove the bottom screw of the drum
gear holder.
19. Remove the drum gear holder by
pulling it out.
20. Remove the two drum pin screws on
the other side.
21. Remove the drum pin by pulling it out.
11124 Washington Blvd., Culver City, California U.S.A. 90232 Ph: 310 280-9620 • Fx: 310 838-7294 • [email protected]
© 2005 Uninet Imaging Inc. All Trademark names are property of their respective owners. Product brand names mentioned are intended to show compatibility only. Uninet Imaging does not guarantee or warrant downloaded information.
USA
+310-280-9620
+310-838-7294
Ph:
Fx:
JAPAN
+81-3-44-55-2789
+310-838-7294
EUROPE
+34-93-757-1335
+34-93-741-4166
BRAZIL
+55-11-4822-3033
+55-11-4822-3353
ARGENTINA
+54-11-4574-3706
+54-11-4574-3706
www.uninetimaging.com
UNINET IMAGING INC. •OKIDATA®B6300 REMANUFACTURING INSTRUCTIONS

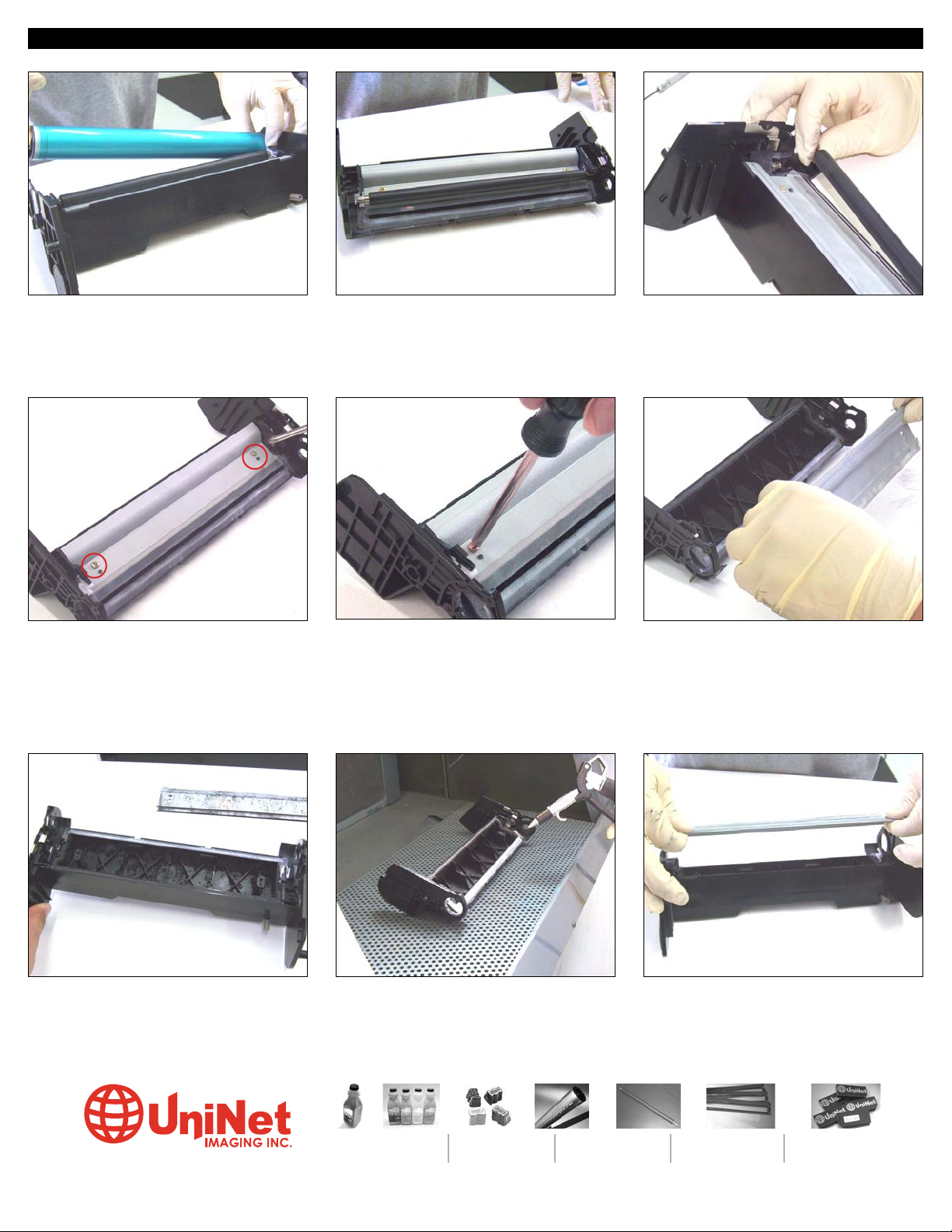

22. Carefully remove the drum. 23. You are now ready to remove the PCR. 24. Remove the PCR by un-clipping it from
