Oki OKIPAGE 24 Series Manuel utilisateur

OKIPAGE 24Tn

• Built-in 10/100 Base-T Network

Print Server

• 32 MB memory

• 2nd Paper Tray (must be installed)

OKIPAGE 24DXn

• Built-in Duplexer

• Built-in 10/100 Base-T Network

Print Server

• 32 MB memory

• 2nd Paper Tray (must be installed)

Toner Power Cord

CD(s)

2nd Paper Tray

Mechanism

(Models 24Tn &

24DXn only)

Light-Shield Bag

(Protects image

drum from light

when it is removed

from printer.)

Components

OKIPAGE 24

• Basic model

• 16 MB memory

OKIPAGE 24DX

• Built-in Duplexer

• 16 MB memory

OKIPAGE 24n

• Built-in 10/100 Base-T

Network Print Server

• 32 MB memory

Pigtail Cable

(Network models

only)

1. Unpack the printer and 2nd Paper Tray.

2. Remove any shipping materials from the 2nd Paper Tray.

3. Lower the printer onto the 2nd Paper Tray, inserting pins on tray

into holes in base of printer.

!Make sure the printer is firmly seated on the 2nd Paper Tray.

Before proceeding, install the 2nd Paper Tray.

Warning!

To avoid injury to fingers, two people should perform

the installation of the 2nd Paper Tray.

Models furnished with 2nd Paper Tray:

OKIPAGE®

24 Series

Quick Start:

Part 1

Pull out the paper.

All Models:

Remove the protective film

and any shipping tape.

Lift the cover.Press OPEN.

Lift out the image drum.

Replace the drum.

Remove tthe tape and sponge.

!Careful: the sponge will have some

loose toner on the bottom from

factory testing.

Caution!

Do not touch the image drum’s green surface!

1Preliminaries

2Prepare the Image Drum (“Type 7,” OKI P/N 40468701)

3Install the Toner (“Type 7,” OKI P/N 40468801)

4Make Connections

Place the black end under the

tab (1), then lower the gray

end into the toner well.

Push the lock lever toward

the back of the printer as far

as it will go.

Remove the tape.Shake it

back and forth.

Network Connection (Network models Only):

Pigtail (supplied with network models):

Attach to the OkiLAN port (2) and to the printer’s parallel

port (3) .

Note! Do not connect to the printer’s serial port.

Ethernet Cable, not supplied

PC: Requires Ethernet cable with two twisted wire pairs and an

RJ45 plug.

Macintosh: Requires Ethernet crossover cable with RJ45

connectors at either end.

Parallel Port (LPT) Connection

(Non-Network Models)

Requires a bidirectional parallel printer cable marked

IEEE 1284-compliant; the cable is not supplied.

!For more information, see “Interfacing with the Computer” under Printer Controls in the on-line User’s

Guide.

Close the cover.

Unwrap the toner

cartridge.

Serial Port

Power Connection

Plug in the power cord.

Pull the tray out.

Push the tray back in.

Adjust the guides (1) and load paper. Paper Gauge:

Indicates the amount of

paper left in the drawer.

Models 24Tn & 24DXn Only: Load the 2nd Paper Tray in the same manner.

1Turn the printer on.

2Press ON LINE.

!To print envelopes, transparencies,

labels, etc., use the front feeder and

the rear exit path: see “How Do I?”

in the on-line User’s Guide for more

information.

Open.

Lift.

Models Furnished with 2nd Paper

Tray

The printer is set to print from Tray 1. You

can set the printer to automatically switch

to Tray 2 when Tray 1 is empty, or to make

Tray 2 the default. See “How Do I?” in the

on-line User’s Guide.

Front Panel Display Language

To change the display language, see “Front

Panel” under Printer Controls in the

on-line User’s Guide.

Power Save Delay & Quiet Mode Settings

The printer comes with Power Save Delay on.

!For the fastest possible time to print, set the Power Save Delay

to Disabled and the Quiet Mode to Off: see “Time to Print”

under Printer Controls in the on-line User’s Guide.

Printer Emulation

The printer automatically switches emulations depending on what

driver it detects when it receives a document. To select a specific

emulation, see “Selecting an Emulation” under Printer Controls in

the on-line User’s Guide.

3Hold FORM FEED until PRINT DEMO PAGE appears on the display.

4Press ENTER, then ON LINE.

You’re now ready to install the software: see Part 2.

!The printer comes set for standard, 8½" x 11", 20-lb. paper fed from Tray 1. To change the default to

another print media, size or paper source, see “How do I?” in the on-line User’s Guide.

5Load Paper

6Open the Top Paper Exit Path.

7Print the Demo Page.

8Check the Settings.

Click.

Select.

Click.

To Install the

Windows®2000 Driver

!Have your original Microsoft®Windows 2000 CD

handy. You may be prompted for it during the

installation.

□Close any open applications.

□Make sure that the printer is connected to the PC and

turned on.

□Restart the computer and wait for the following

window to appear:

Select.

Click.

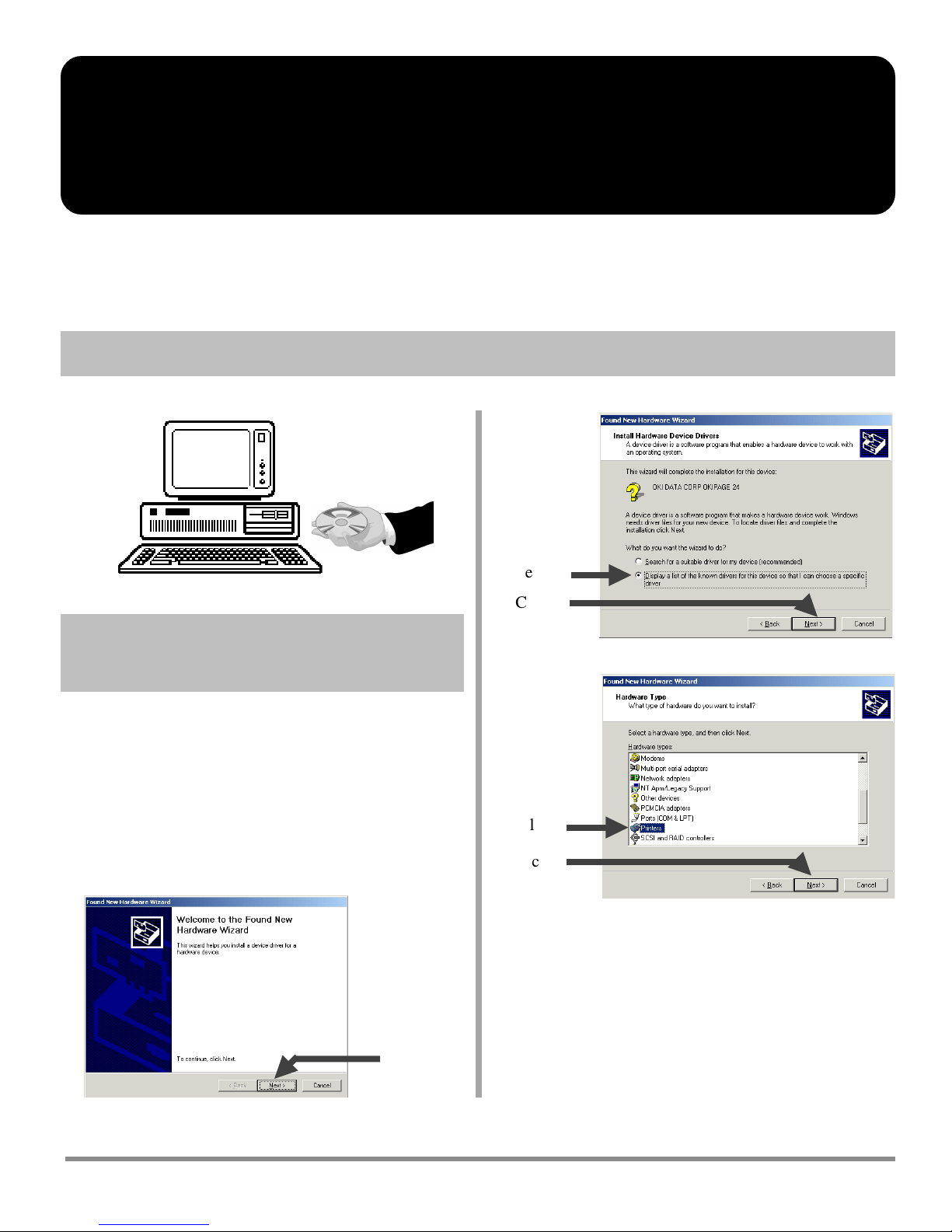

Windows Operating Systems

1Install the Driver

OKIPAGE®

24 Series

Quick Start: Part 2

Click.

□To load the Windows 2000 PCL5e driver, browse to

d:\Win2000\US_Eng\Pcl5e (assuming D is your CD-ROM

drive):

Click.

!If the Digital Signature Not Found window

appears, but does not offer you the option of

continuing, check with your System

Administrator regarding the Windows 2000

security settings.

□Finish the installation following the

instructions on your screen.

1234

□Click OK.

□Click Next.

□Follow the on-screen instructions until the

Digital Signature Not Found window

appears:

Click.

□Insert the “OKIPAGE 24 Drivers, Utilities and Publications for

Windows 2000 and Mac OS 7.0 and higher” CD in your

CD-ROM drive.

□Or, to load the Windows 2000 Adobe PostScript driver, browse to

d:\Win2000\US_Eng\AdobePs (assuming D is your CD-ROM

drive):

1234

To Install the Windows 98 Driver

!Have your original Microsoft Windows 98 CD handy.

You may be prompted for it during the installation.

□Close any open applications.

□Make sure that the printer is connected to the PC and

turned on.

□Restart the computer and wait for the following

window to appear:

Click.

1Select.

Click.

□Click OK.

□Click Next.

□Complete the installation following the instructions on

your screen.

□To load the Windows 98 PCL5e driver, browse to

d:\Win9x\English\Pcl5e (assuming D is your CD-

ROM drive):

□Or, to load the Windows 98 Adobe PostScript driver,

browse to d:\Win9x\English\Psdrv (assuming D is

your CD-ROM drive):

Click.

□Insert the “OKIPAGE 24 Drivers, Utilities and

Publications for Windows 95/98 and NT4.0” CD in

your CD-ROM drive.

To Install the Windows 95B

(OSR2) Driver

!Have your original Microsoft Windows 95 CD handy.

You may be prompted for it during the installation.

To determine if you have Windows 95B (OSR2) or

95A (Original 95):

□Click Start →Settings →Control Panel.

□Double-click System.

□On the General tab, look under System. Beneath

“Microsoft Windows 95” a version number appears.

If that number is followed by the letter “B” you have

95B, if not, you have 95A.

To install the Driver:

□Close any open applications.

□Make sure that the printer is connected to the PC and

turned on.

□Restart the computer and wait for the following

window to appear:

□To load the Windows 95B PCL5e driver, browse to

d:\Win9x\English\Pcl5e (assuming D is your CD-

ROM drive):

□Or, to load the Windows 95B Adobe PostScript driver,

browse to d:\Win9x\English\Psdrv (assuming D is

your CD-ROM drive):

□Insert the “OKIPAGE 24 Drivers, Utilities and

Publications for Windows 95/98 and NT4.0” CD in

your CD-ROM drive.

□Click OK.

□Click Finish.

□Complete the installation following the instructions on

your screen.

Click.

□Wait for the following window to appear:

234

To Install the Windows 95A

(Original 95) Driver

!Have your original Microsoft Windows 95 CD

handy. You may be prompted for it during the

installation.

!To determine if you have Windows 95 version A,

see “To Install the Windows 95B (OSR2)

Driver.”

□Close any open applications.

□Make sure that the printer is connected to the PC

and turned on.

□Restart the computer and wait for the following

window to appear:

Click.

Select.

□Or, to load the Windows 95A Adobe PostScript driver,

browse to d:\win9x\english\psdrv (assuming D is your CD-

ROM drive):

□To load the Windows 95A PCL5e driver, browse to

d:\win9x\english\pcl5e (assuming D is your CD-ROM

drive):

□Insert the “OKIPAGE 24 Drivers, Utilities and

Publications for Windows 95/98 and NT4.0” CD

in your CD-ROM drive.

Click.

□Click OK.

□Click Next.

□Complete the installation following the instructions on your

screen.

1234

234

To Install the Windows NT 4.0

Driver

!Have your original Microsoft Windows NT 4.0 CD

handy. You may be prompted for it during the

installation.

□Close any open applications.

□Make sure that the printer is connected to the PC and

turned on.

Double-click.

1Select.

2Click.

Click.

1Select

port.

2Click. 3Click.

1Click.

□To load the Windows NT 4.0 PCL5e driver, browse to

d:\WinNT40\US_Eng\Pcl5e (assuming D is your

CD-ROM drive):

□Or, to load the Windows NT 4.0 Adobe PostScript

driver, browse to d:\WinNT40\US_Eng\AdobePs

(assuming D is your CD-ROM drive):

□Complete the installation following the instructions on

your screen

2Click.

□Insert the “OKIPAGE 24 Drivers, Utilities and

Publications for Windows 95/98 and NT4.0” CD in

your CD-ROM drive.

1234
