Oki C5400 Series Manuel utilisateur

Every effort has been made to ensure that the information in this

document is complete, accurate, and up-to-date. Oki Data assumes no

responsibility for the results of errors beyond its control. Oki Data also

cannot guarantee that changes in software and equipment made by

other manufacturers and referred to in this guide will not affect the

applicability of the information in it. Mention of software products

manufactured by other companies does not necessarily constitute

endorsement by Oki Data.

Written and produced by the Oki Data Training & Publications

Department. Please address any comments on this publication to:

Training & Publications Dept.

Oki Data Americas, Inc.

2000 Bishops Gate Blvd.

Mt. Laurel, NJ 08054-4620

For the latest product information, printer drivers, manuals, special

offers, etc., go to http://my.okidata.com.

OKI is a registered trademark/marque déposée/marca registrada Oki Electric

Industry Company, Ltd. Macintosh is a trademark of Apple Computer, Inc.,

registered in the U.S. and other countries. Windows is either a registered

trademark or trademark of Microsoft Corporation in the United States and

other countries.

Overview

Your Model C5400 Upgrade Kit provides a Postscript emulation driver

for Macintosh®and Windows®systems, in addition to the PCL driver for

Windows systems. It also activates the Ethernet port so you can use your

printer on a network.

Installing the kit involves four steps:

•Step 1: Uninstall the C5400 PCL Printer Driver (Windows only) . . p. 2

•Step 2: Install the New DIMM in the Printer . . . . . . . . . . . . . . . . . . p. 3

•Step 3: Make the Network Connection, if applicable . . . . . . . . . . . p. 11

•Step 4: Configure the Network and/or Install Printer Driver(s) . . . p. 12

Caution!

To avoid damage by static electricity or rough handling, keep the DIMM

board in its packaging until you're ready to install it.

Note: You will need a Phillips bit screwdriver to install the kit.

Step 1: Uninstall the C5400 PCL Driver

Windows Operating Systems Only

Windows XP and 2000.

1. Click Start →Settings →Printers [Printers and Faxes for XP].

2. Click the C5400 PCL driver, then click File →Delete.

3. Click Ye s to confirm the deletion.

4. Click File →Server Properties.

5. On the Drivers tab, select the C5400 PCL printer driver and click

Remove.

6. Click Ye s to confirm the deletion, then click Close.

7. Close the dialog box.

8. Restart your computer.

Windows Me, 98, 95B, NT 4.0

1. Click Start →Settings →Printers.

2. Click the C5400 PCL driver, then click File →Delete.

3. Click Ye s to confirm the deletion

4. Close the Printers dialog box.

5. Restart your computer.

Step 2: Install the New DIMM

1. Use the control panel to print out the MenuMap:

a. Press +one or more times until INFORMATION MENU appears.

b. Press ENTER twice and wait for the 2-page MenuMap to print.

c. Note that C5400 shows at the top of the MenuMap.

2. Prepare the printer:

• Turn off the printer (1).

• Unplug the power cord (2).

• Detach the interface cable (3)—a= USB, b= parallel.

3. Open the top cover.

4. Open the front cover.

5. Loosen the thumbscrew holding the printer side cover in place.

6. Lift up on the ends and remove the side panel from the printer.

7. Locate the DIMM to be replaced.

8. Push out the lock tabs at either end of the DIMM and remove it.

Caution!

To avoid damage, ground yourself (touch metal) before handling DIMMs.

9. Remove the new DIMM from its shipping package.

10. Hold the DIMM with the narrower metallic contact edge (1) to the

right, and insert it straight into the socket, pushing in until you hear

the lock tabs on either side snap into place.

Caution!

Keep the DIMM at a 90° angle to the printer:

Push the DIMM in straight:

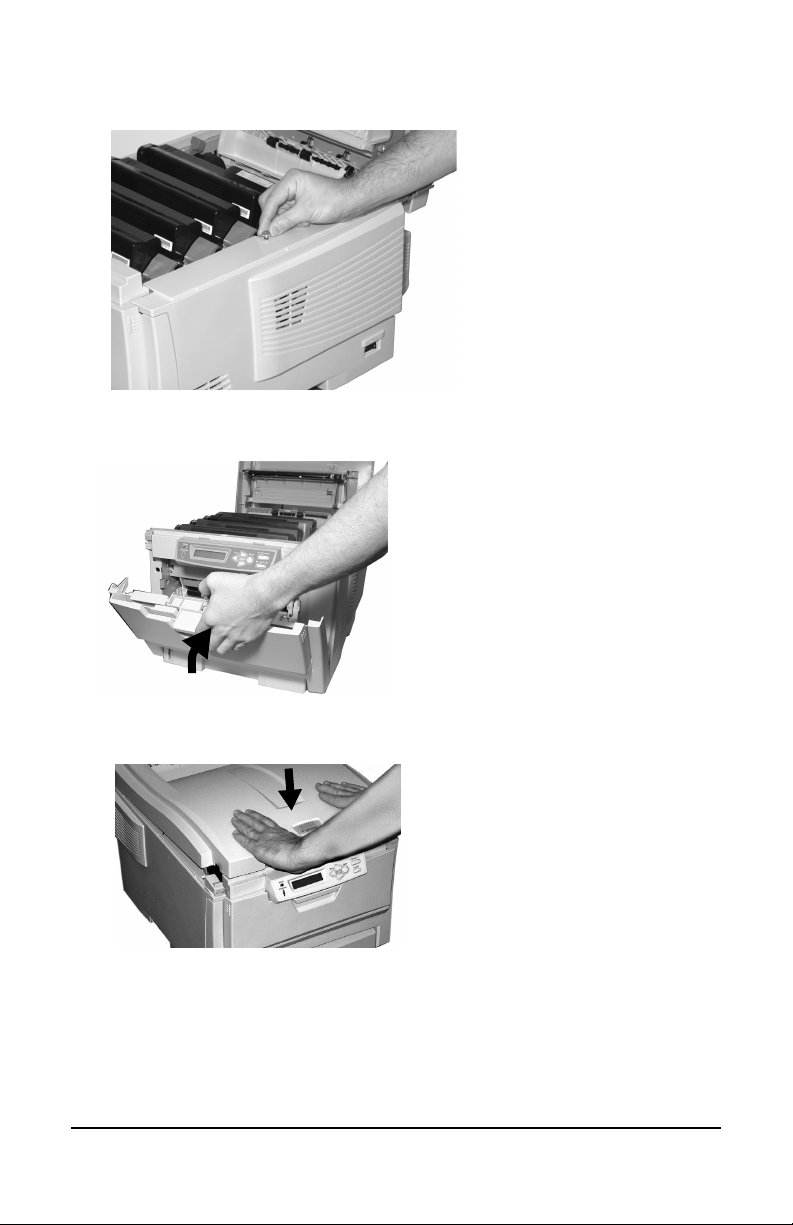

11. Replace the side panel on the printer and secure it in place with the

thumbscrew.

12. Close the front cover.

13. Close the top cover.

14. Loosen the screw and remove the cover (1) from the Ethernet port on

the back of the printer.

15. If you will be using the same computer connection rather than the

newly available Ethernet connection, reattach the computer interface

cable—USB (a) or parallel (b). Otherwise, skip this step.

Note: Making the Ethernet connection is covered on p. 11.
