English

Walk-up Operation

General Information

These instructions assume that

all necessary configurable

parameters and profiles have

been set up and, where

applicable, password-protected

by your System Administrator. If

you have any questions, consult

your System Administrator.

1. If you do not have a System

Administrator, see the SetUp

Guide supplied with your

system or consult the on-line

User’s Guide provided on the

CD supplied with the system

for more information.

Available Walk-up

Options

•

Copy

(see page 8)

•Fax

(see page 14)

•Scan

(see page 10)

Access Control

If your Administrator has enabled

access control on your machine,

it will automatically start up in

access control mode.

If the PIN screen is

displayed

1. Press

PIN No.

and use the

numeric keys to enter your

PIN.

2. Press

Enter

3. Press

If the User/Password

screen is displayed

1. Press

User Name

and use the

touch screen keyboard to enter

your user name.

1. Press

Enter

to confirm.

1. Press

Password

and use the

touch screen keyboard to enter

your password.

1. Press

Enter

to confirm.

1. Press

Logging Out

When you have finished using the

unit, select

Others

Logout

return to the access control

screen.

•

English

Walk-up Operation

General Information

Power Save Mode

Power Save sets how long the

printer waits before going into

standby mode. This saves energy,

but the printer requires time to

warm up when it receives a print

job.

The system comes from the

factory set for a 30-minute delay

before entering the Power Save

Mode.

When the system is in Power

Save mode, the Power Save

button is lit. To disengage the

Power Save mode, press the

Power Save button.

Changing the Power Save

Settings

1. Press the S

ETUP

button on the

control panel.

2. On the

Setup

screen, press

Admin Setup

3. Type in your password (the

default password is aaaaaa),

then press

Enter

4. Press

Management

5. Press

䊳

, then press

Power

Save

6. To switch Power Save on of off:

a. Press

Power Save Enable

b. Press

OFF

c. Press

Enter

7. To change the time setting:

a. Press

Power Save Time

b. Press the desired time (

15, 30, 60 , or 240

minutes)

c. Press

Enter

8. Press

9. Press the C

OPY

button.

•

English

Walk-up Operation

Loading Documents for Scanning

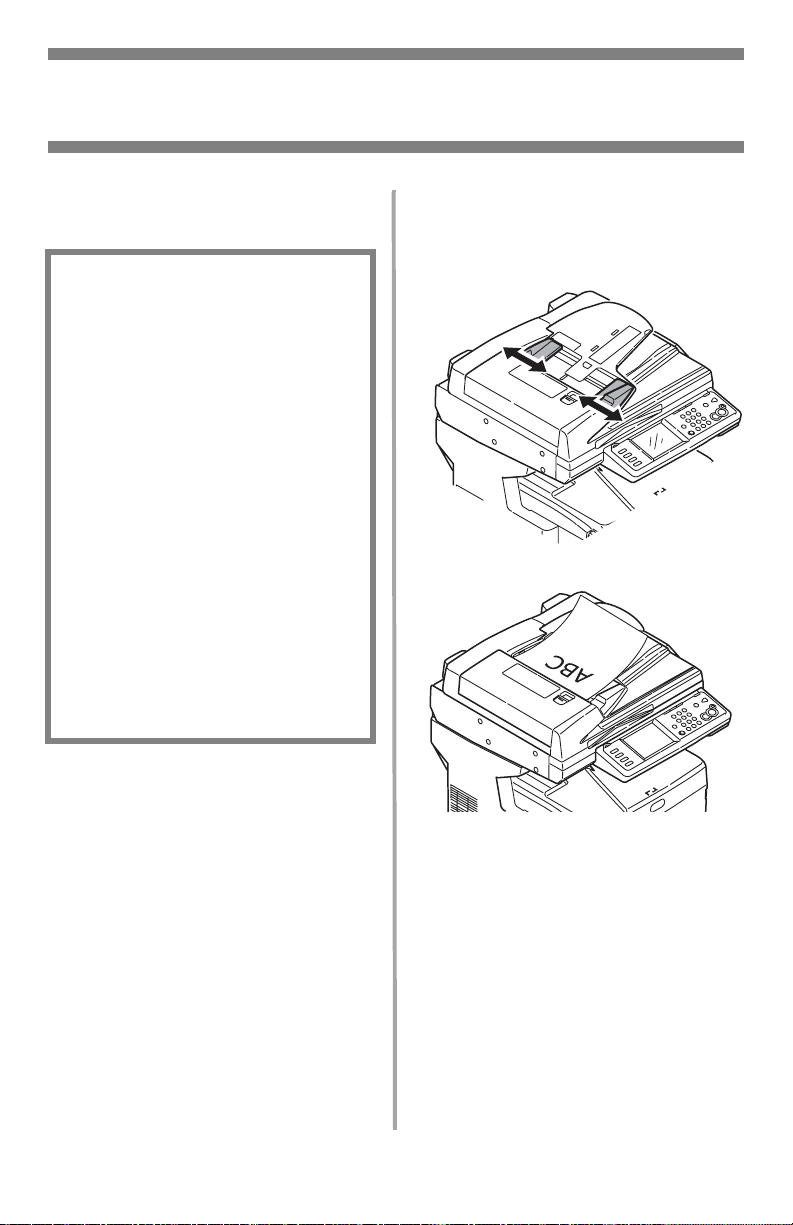

Automatic Document

Feeder (ADF)

Adjust the guides for paper size

and load documents face up, with

the top edge entering the

scanner.

• Takes up to 50 sheets 20-lb.

(75 g/m

) paper

• No staples, clips, ragged

edges, wrinkles, punch holes,

sticky notes, etc.

• Min. 5" x 5.8"

(128 x 148 mm)

• Max. 11.7" x 18"(297 x 457

mm), plus banners up to

35.4 inches (900 mm) long,

hand fed

• Weight Range:

– Single sheets: 16 to 32 lb.

US Bond (60 to 128 g/m

)

– Multiple Sheets: 16 to 28 lb.

US Bond (60 to 105 g/n

)

– Banners: 16 to 24 lb. US

Bond (60 to 90 g/m

)

•

English

Walk-up Operation

Loading Documents for Scanning

Manual Feed: The

Scanner Glass

1. Open the scanner lid.

2. Load the document face down,

with the top edge to the left.

3. Close the scanner lid.

• Maximum document size

11.7" x 16.5" (297 x 420

mm)

•Maximumthickness

approximately 0.75" (20

mm)

•

English

Walk-up Operation

Copying

For more information, check with

your System Administrator or see

the on-line User’s Guide provided

with your system.

Important

The system default is the Copy

mode and the C

OPY

button is

illuminated. If it is not, press the

OPY

button.

Using the Default

Settings

1. Load the document (see page

6).

2. Use the numeric keypad to set

the number of copies (up to

99).

3. Press the M

ONO

button or the

OLOR

button.

Using Special Settings

1. Load the document (see page

6).

2. Use the numeric keypad to set

the number of copies (up to

99).

3. Press the appropriate selection

on the left of the Copy screen

to change the settings.

Note

See the next page for a

summary of the setting tree in

the menu. For more

information, consult the on-line

Users Guide.

4. Press the M

ONO

button or the

OLOR

button.

•

English

Walk-up Operation

Copyin (cont)

*Copy Settings Tree

The default setting is in

bold italic

1 Others

EraseCenter

DuplexCopy

Mixed Size

Scan Size

Cont. Scan

Contrast

Hue

Saturation

RGB

Logout

2 Doc. Type

Doc Type

Removal for Background and Show-Through (sTHR)

3 Density

-3, -2, -1,

, +1, +2, +3

4 Tray

Auto

, MPT, Tray 1

5 Zoom

Auto

, 100%, Fit

Enlarge

Reduce

6 Sort

OFF,

•

English

Walk-up Operation

Scanning

Scanning Options

• Scan to E-mail

• Scan to USB memory

• Scan to Local PC

• Scan to Network PC

• Scan to Remote PC

• Continuous Scan

Note

These instructions assume that

all needed basic data (e.g.,

e-mail addresses) is already

programmed in the system.

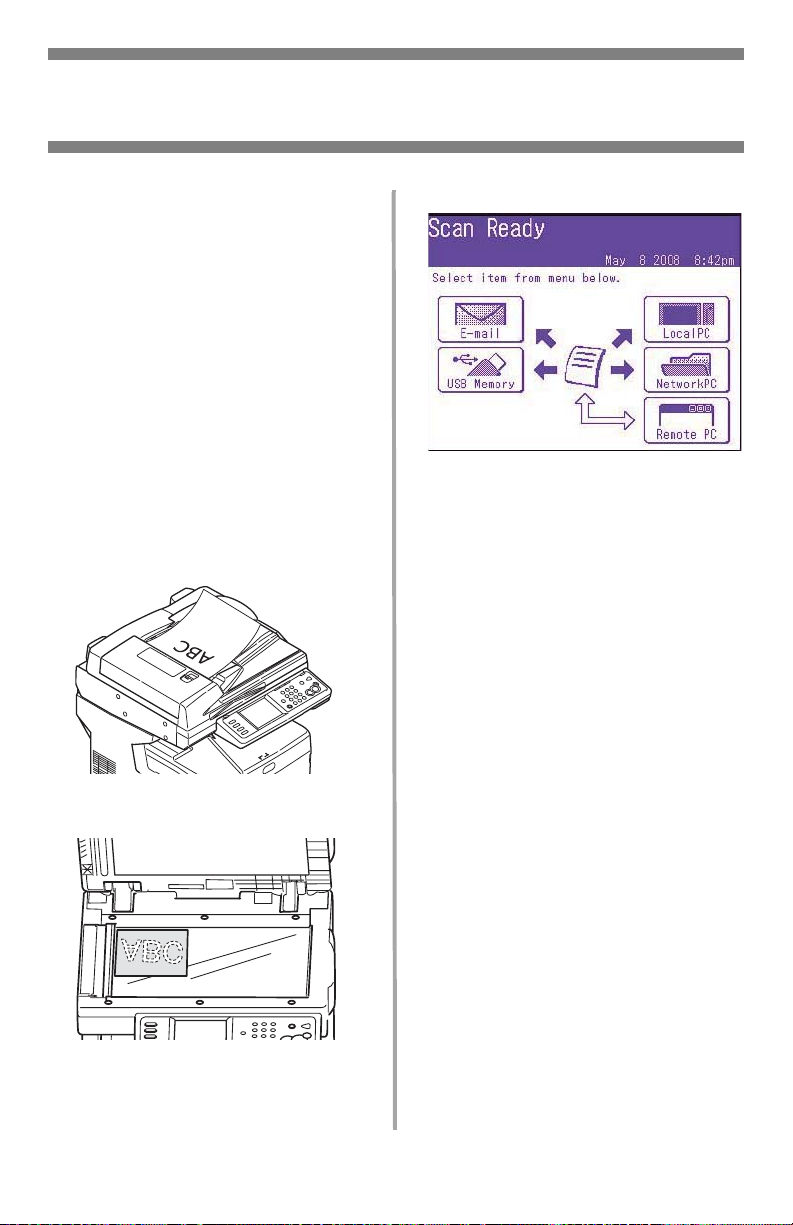

Scanning Overview

1. Load the document.

2. Press the S

CAN

button.

3. Select the scan destination:

•

(requires connection

to PSTN)

•

USB

(requires USB plug-in

device attached to the USB

port on the front of the unit)

•

Local PC

(requires USB

connection to local PC)

•

Network PC

(requires

Ethernet connection)

•

Remote PC

(“pull scan”

controlled from the PC.

requires a USB connection

and a scanning/organizing

software package such as

PaperPort

which is supplied

with your system)

4. Set your scanning options.

5. Press the M

ONO

button for

black and white scanning, or

the C

OLOR

button for color

scanning.
