Explorer®Balance

Display Tower Mount Kit

Installation Instructions

Explorer®Display Tower Mount Kit 1

1. INTRODUCTION

Please read this manual completely before installation and operation.

CAUTION:

READ ALL SAFETY WARNINGS BEFORE INSTALLING,

MAKING CONNECTIONS, OR SERVICING. FAILURE TO

COMPLY WITH THESE WARNINGS COULD RESULT IN

PERSONAL INJURY AND/OR PROPERTY DAMAGE.

RETAIN ALL INSTRUCTIONS FOR FUTURE REFERENCE.

1.1 Kit Contents

Five M5 Screws

Hex Wrench

Tower with Top

and Foot

2. INSTALLATION

2.1 Safety Precautions

For safe and dependable operation of this equipment, please comply with

all safety precautions mentioned in this manual.

Disconnect equipment from mains power supply before installation.

2 Explorer®Display Tower Mount Kit

2.2 Installation procedure

Follow the steps below. Refer to the Figures when performing these steps.

Make sure Balance is unplugged

(turned OFF).

Detach the Display:

press buttons on both sides to

disconnect. Then pull Display

away from base.

Open the Display:

press buttons (enlarged in photo),

on both sides, then lift Display until

it opens.

Open the Display to

access and release the

Display Communication Cable.

Explorer®Display Tower Mount Kit 3

Release the clip that secures the

Display Communication Cable:

press out on both sides, as shown.

Unplug the Display Communication

Cable.

Un-spool the Display Communication

Cable from the base.

Attach Tower to the Base using the

four M5 screws and wrench

(supplied).

Secure the cable as shown:

1. First, under the cable guide,

2. Then under the groove in the

tower base.

Insert the cable plug in the tower

base and feed it through the tower.

Tower mount

M5 screws

Tower mount

M5 screws

4 Explorer®Display Tower Mount Kit

Pull the Display Communication

Cable through the top of the tower.

Position the Display above the

Tower Platform.

Insert the posts in the receptacles in

the Display Base.

Slide the Display forward as shown,

to seat it in the Tower platform.

Insert one M5 screw in the Display

Base to secure it to the Tower

Platform.

Use the supplied Hex Wrench to

tighten the screw.

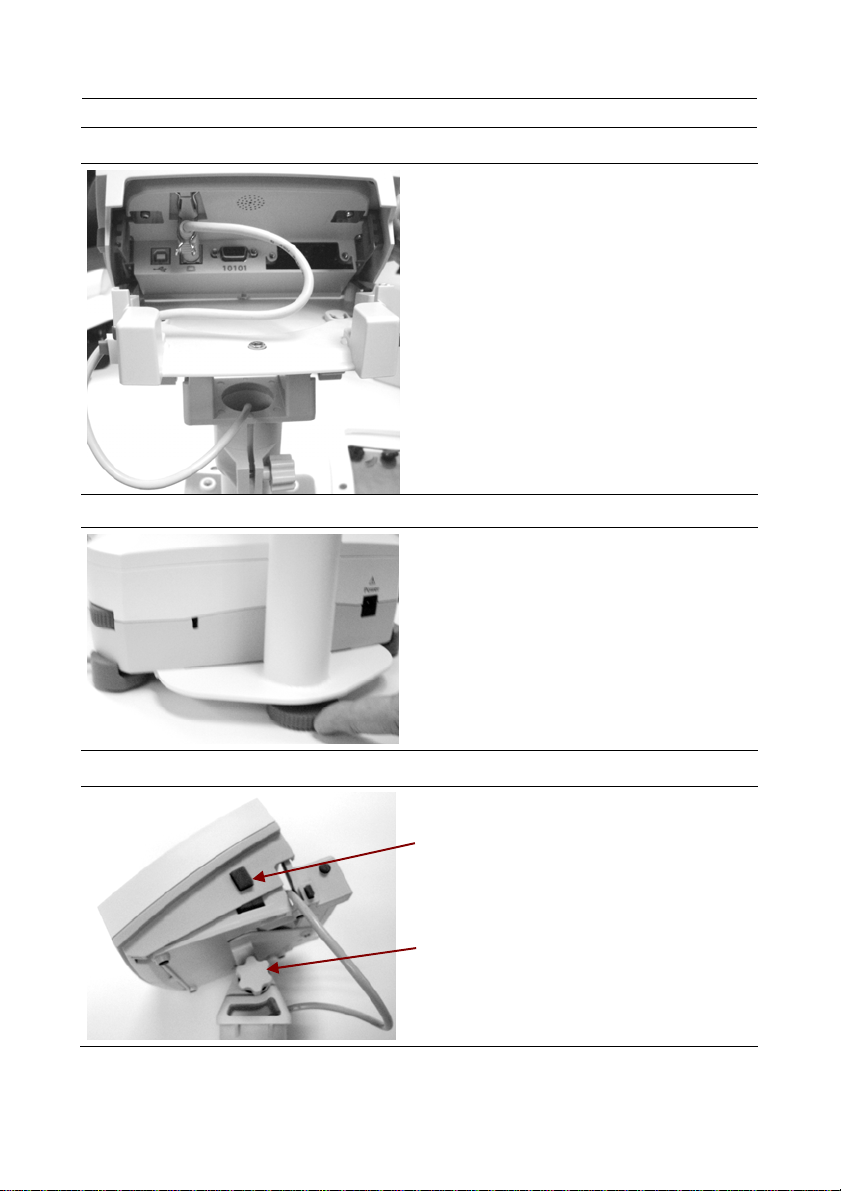

Explorer®Display Tower Mount Kit 5

Insert the cable plug with the security

clip open, then press the security clip

into position to secure the cable.

Route the cable through a groove in

either side of the Display,

or from the rear of the Display,

as preferred.

Pull excess cable down into the Tower

for safety. (Best practice: remove slack

and re-wrap cable around cable

guides on the bottom of the balance.)

Re-connect power to the Base.

Use the Level Assist feature to re-level

the Balance. (Keep the Tower foot

raised during this procedure.)

After leveling the Balance, adjust the

Tower foot so it supports the Tower

and is level with the feet of the Base.

To adjust the Display viewing angle:

•Press in the two Display Adjust

buttons and move the Display.

Or…

•Loosen the knob that secures the

Tower top and move it.

Ohaus Corporation

7 Campus Drive

Suite 310

Parsippany, NJ 07054, USA

Tel: (973) 377-9000

Fax: (973) 593-0359

With offices worldwide

www.ohaus.com

*83021181*

Printed in China
