NXP Semiconductors SofTec Microsystems DEMO908JL16 Manuel utilisateur

Distributor of NXP Semiconductors: Excellent Integrated System Limited

Datasheet of DEMO908JL16 - BOARD DEMO FOR MC908JL16

Excellent Integrated System Limited

Stocking Distributor

Click to view price, real time Inventory, Delivery & Lifecycle Information:

NXP Semiconductors

DEMO908JL16

For any questions, you can email us directly:

[email protected]

1 / 33

Distributor of NXP Semiconductors: Excellent Integrated System Limited

Datasheet of DEMO908JL16 - BOARD DEMO FOR MC908JL16

2 / 33

Distributor of NXP Semiconductors: Excellent Integrated System Limited

Datasheet of DEMO908JL16 - BOARD DEMO FOR MC908JL16

3 / 33

Distributor of NXP Semiconductors: Excellent Integrated System Limited

Datasheet of DEMO908JL16 - BOARD DEMO FOR MC908JL16

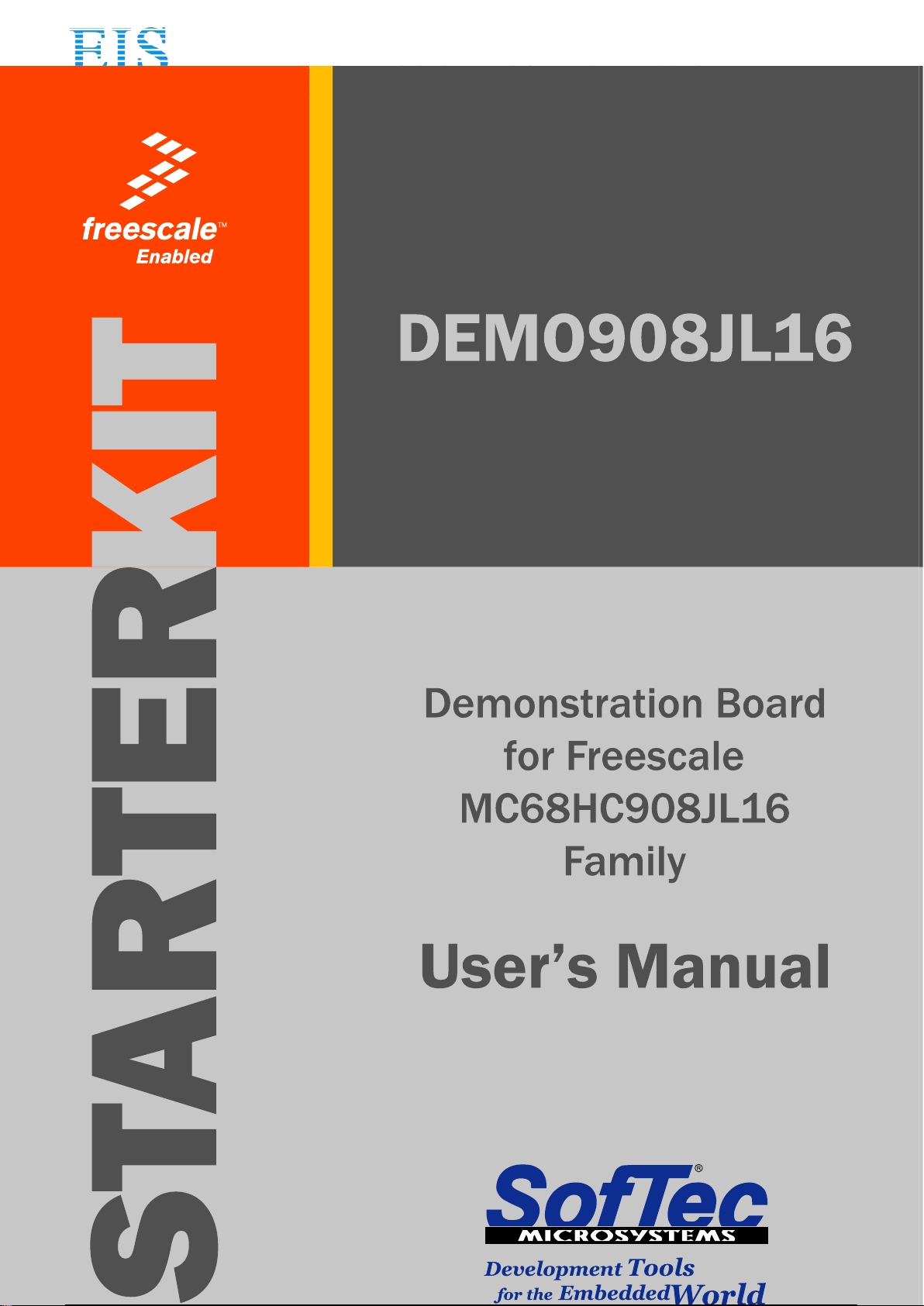

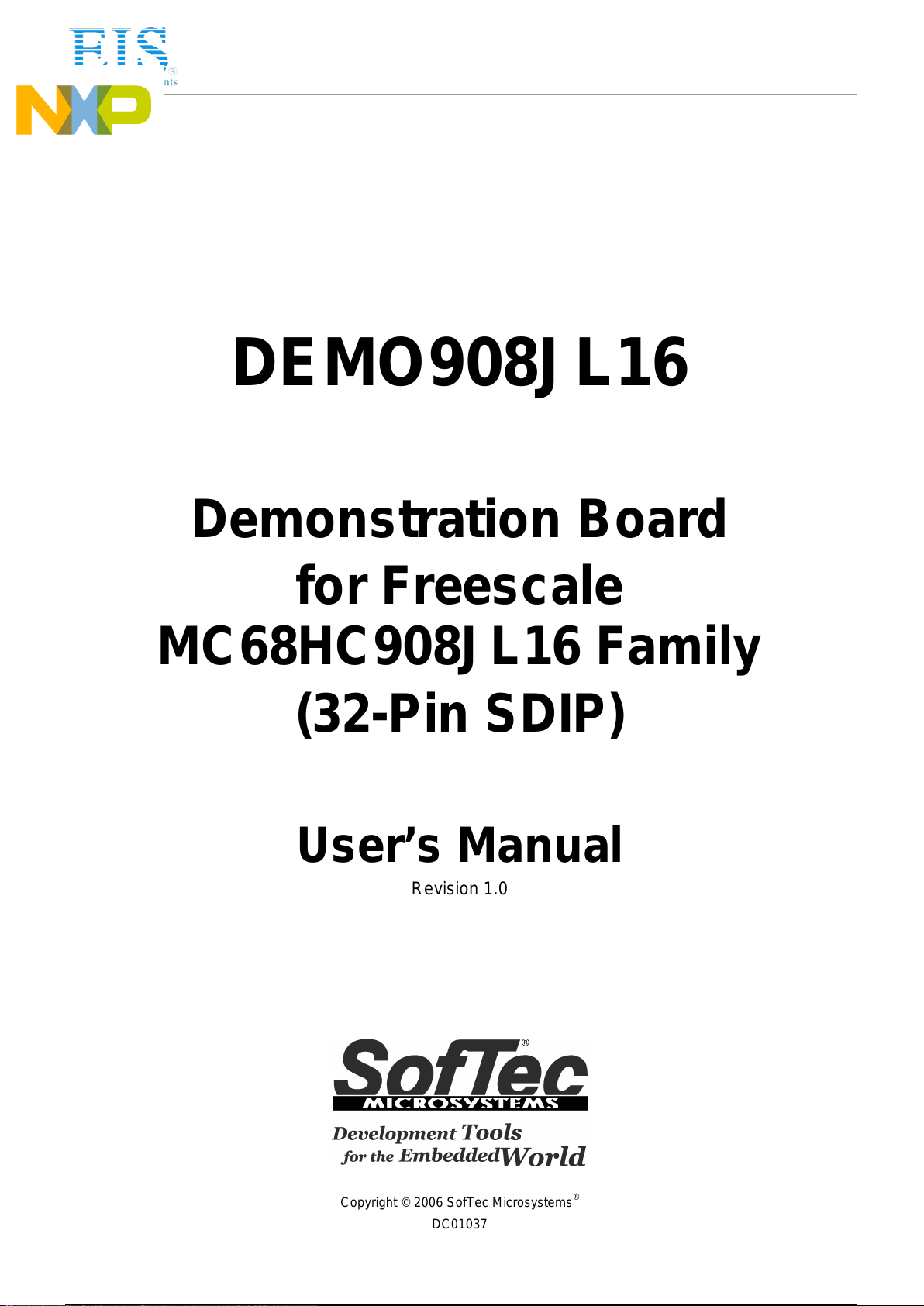

DEMO908JL16

Demonstration Board

for Freescale

MC68HC908JL16 Family

(32-Pin SDIP)

User’s Manual

Revision 1.0

DC01037

4 / 33

Distributor of NXP Semiconductors: Excellent Integrated System Limited

Datasheet of DEMO908JL16 - BOARD DEMO FOR MC908JL16

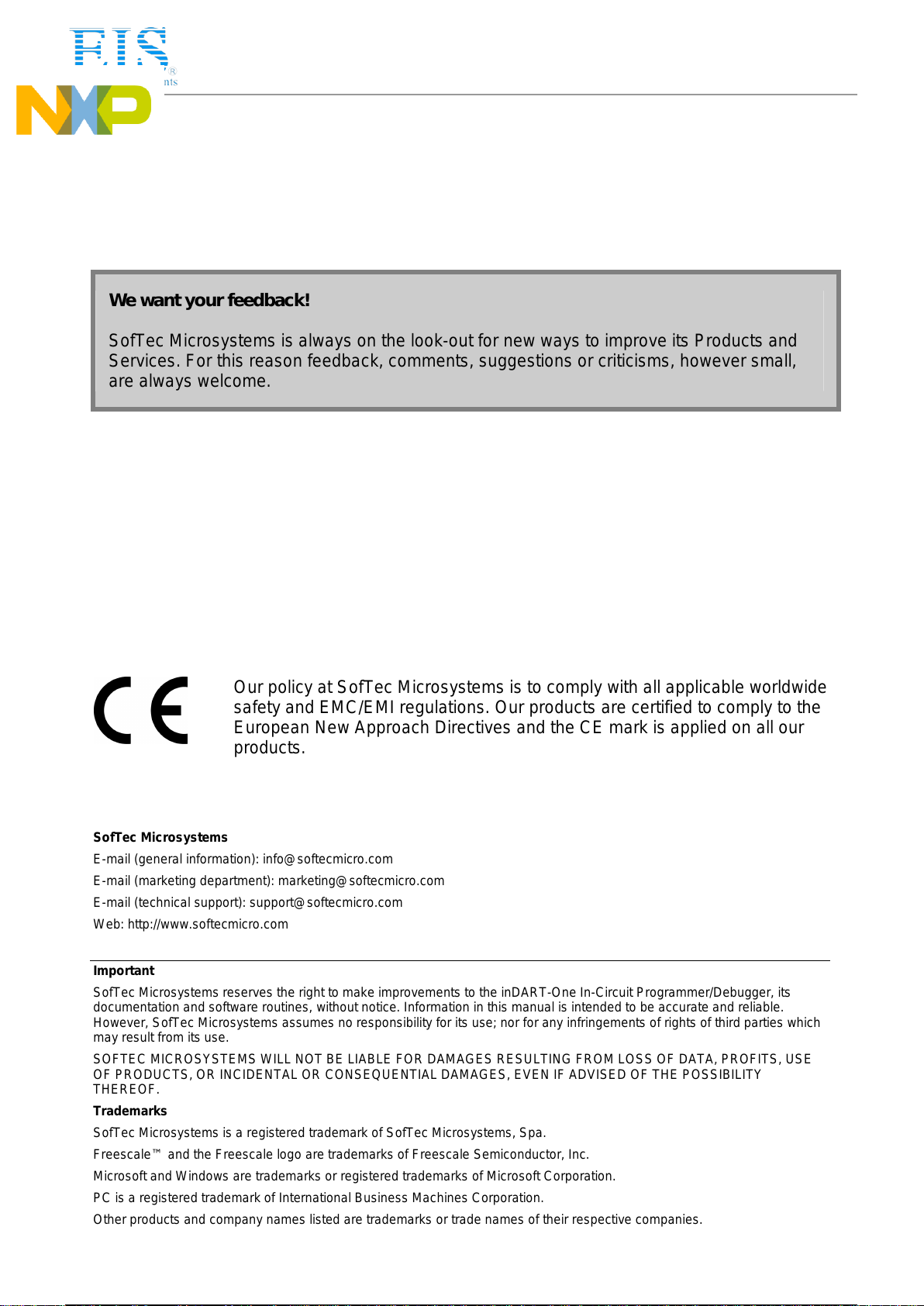

We want your feedback!

SofTec Microsystems is always on the look-out for new ways to improve its Products and

Services. For this reason feedback, comments, suggestions or criticisms, however small,

are always welcome.

Our policy at SofTec Microsystems is to comply with all applicable worldwide

safety and EMC/EMI regulations. Our products are certified to comply to the

European New Approach Directives and the CE mark is applied on all our

products.

SofTec Microsystems

E-mail (general information): info@softecmicro.com

E-mail (marketing department): marketing@softecmicro.com

E-mail (technical support): support@softecmicro.com

Web: http://www.softecmicro.com

Important

SofTec Microsystems reserves the right to make improvements to the inDART-One In-Circuit Programmer/Debugger, its

documentation and software routines, without notice. Information in this manual is intended to be accurate and reliable.

However, SofTec Microsystems assumes no responsibility for its use; nor for any infringements of rights of third parties which

may result from its use.

SOFTEC MICROSYSTEMS WILL NOT BE LIABLE FOR DAMAGES RESULTING FROM LOSS OF DATA, PROFITS, USE

OF PRODUCTS, OR INCIDENTAL OR CONSEQUENTIAL DAMAGES, EVEN IF ADVISED OF THE POSSIBILITY

THEREOF.

Trademarks

SofTec Microsystems is a registered trademark of SofTec Microsystems, Spa.

Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc.

Microsoft and Windows are trademarks or registered trademarks of Microsoft Corporation.

PC is a registered trademark of International Business Machines Corporation.

Other products and company names listed are trademarks or trade names of their respective companies.

5 / 33

Distributor of NXP Semiconductors: Excellent Integrated System Limited

Datasheet of DEMO908JL16 - BOARD DEMO FOR MC908JL16

DEMO908JL16 User's Manual

Page 3

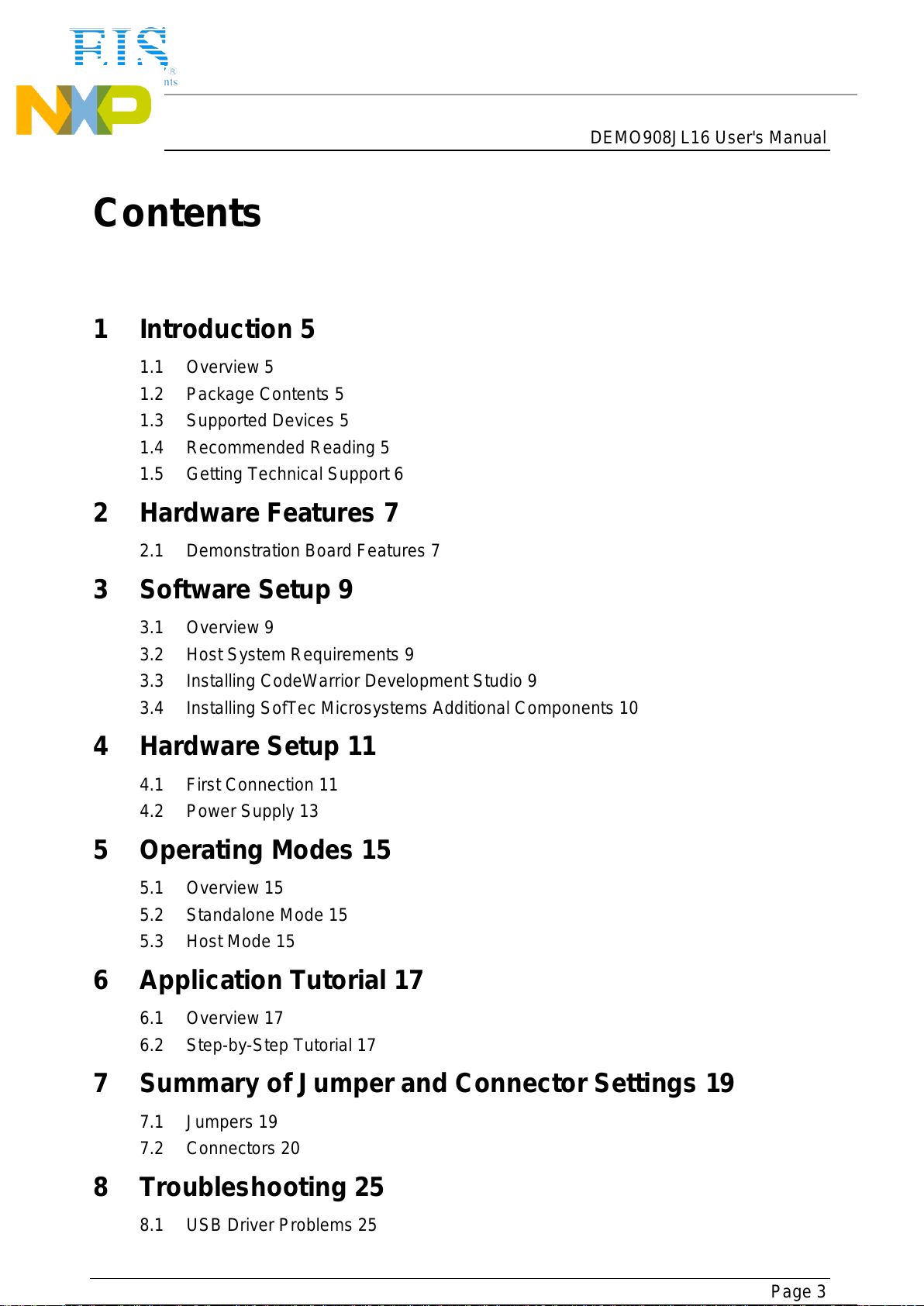

Contents

1Introduction 5

1.1 Overview 5

1.2 Package Contents 5

1.3 Supported Devices 5

1.4 Recommended Reading 5

1.5 Getting Technical Support 6

2Hardware Features 7

2.1 Demonstration Board Features 7

3Software Setup 9

3.1 Overview 9

3.2 Host System Requirements 9

3.3 Installing CodeWarrior Development Studio 9

3.4 Installing SofTec Microsystems Additional Components 10

4Hardware Setup 11

4.1 First Connection 11

4.2 Power Supply 13

5Operating Modes 15

5.1 Overview 15

5.2 Standalone Mode 15

5.3 Host Mode 15

6Application Tutorial 17

6.1 Overview 17

6.2 Step-by-Step Tutorial 17

7Summary of Jumper and Connector Settings 19

7.1 Jumpers 19

7.2 Connectors 20

8Troubleshooting 25

8.1 USB Driver Problems 25

6 / 33

Distributor of NXP Semiconductors: Excellent Integrated System Limited

Datasheet of DEMO908JL16 - BOARD DEMO FOR MC908JL16

7 / 33

Distributor of NXP Semiconductors: Excellent Integrated System Limited

Datasheet of DEMO908JL16 - BOARD DEMO FOR MC908JL16

DEMO908JL16 User's Manual

Page 5

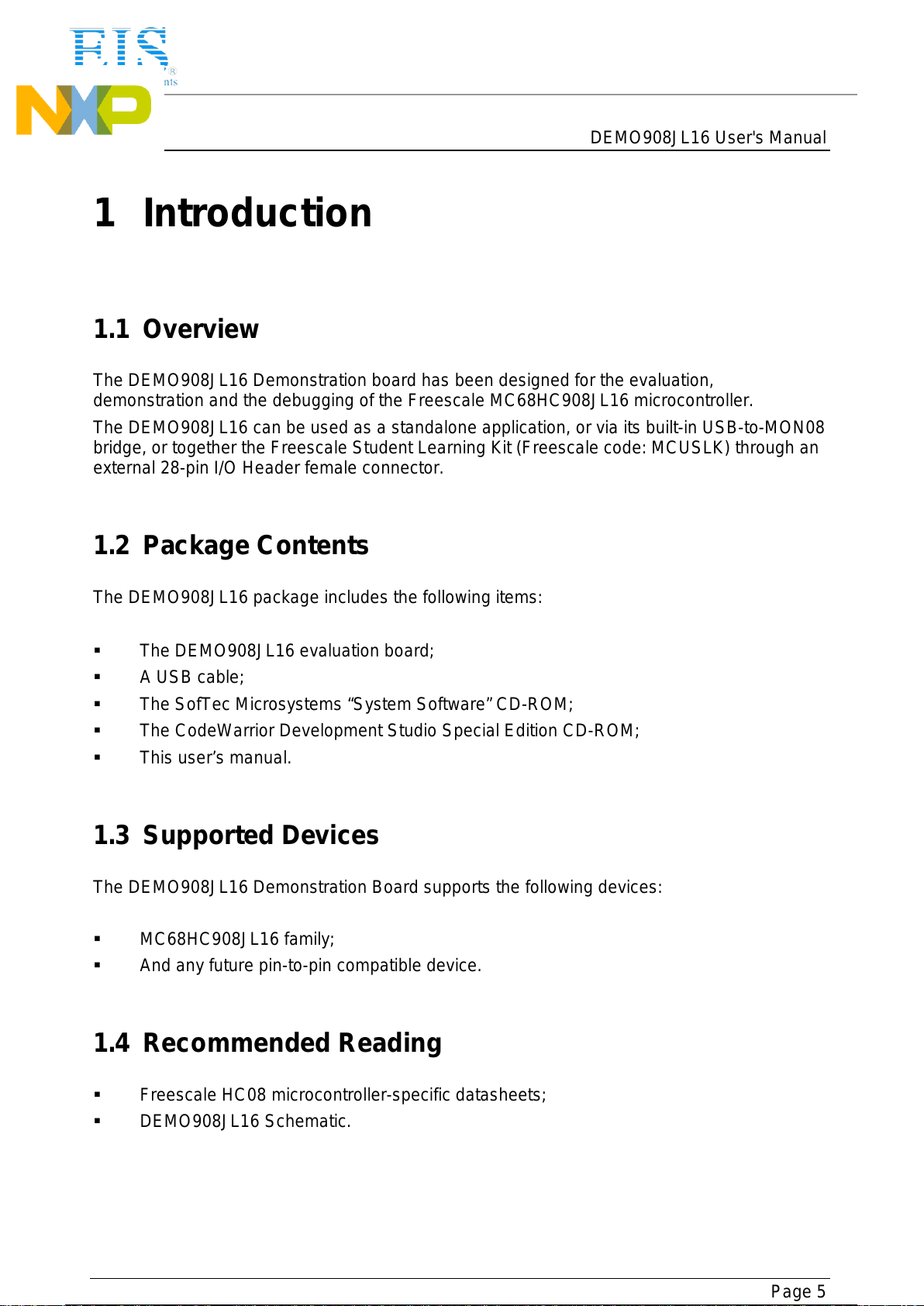

1 Introduction

1.1 Overview

The DEMO908JL16 Demonstration board has been designed for the evaluation,

demonstration and the debugging of the Freescale MC68HC908JL16 microcontroller.

The DEMO908JL16 can be used as a standalone application, or via its built-in USB-to-MON08

bridge, or together the Freescale Student Learning Kit (Freescale code: MCUSLK) through an

external 28-pin I/O Header female connector.

1.2 Package Contents

The DEMO908JL16 package includes the following items:

 The DEMO908JL16 evaluation board;

 A USB cable;

 The SofTec Microsystems “System Software” CD-ROM;

 The CodeWarrior Development Studio Special Edition CD-ROM;

 This user’s manual.

1.3 Supported Devices

The DEMO908JL16 Demonstration Board supports the following devices:

 MC68HC908JL16 family;

 And any future pin-to-pin compatible device.

1.4 Recommended Reading

 Freescale HC08 microcontroller-specific datasheets;

 DEMO908JL16 Schematic.

8 / 33

Distributor of NXP Semiconductors: Excellent Integrated System Limited

Datasheet of DEMO908JL16 - BOARD DEMO FOR MC908JL16

Introduction

Page 6

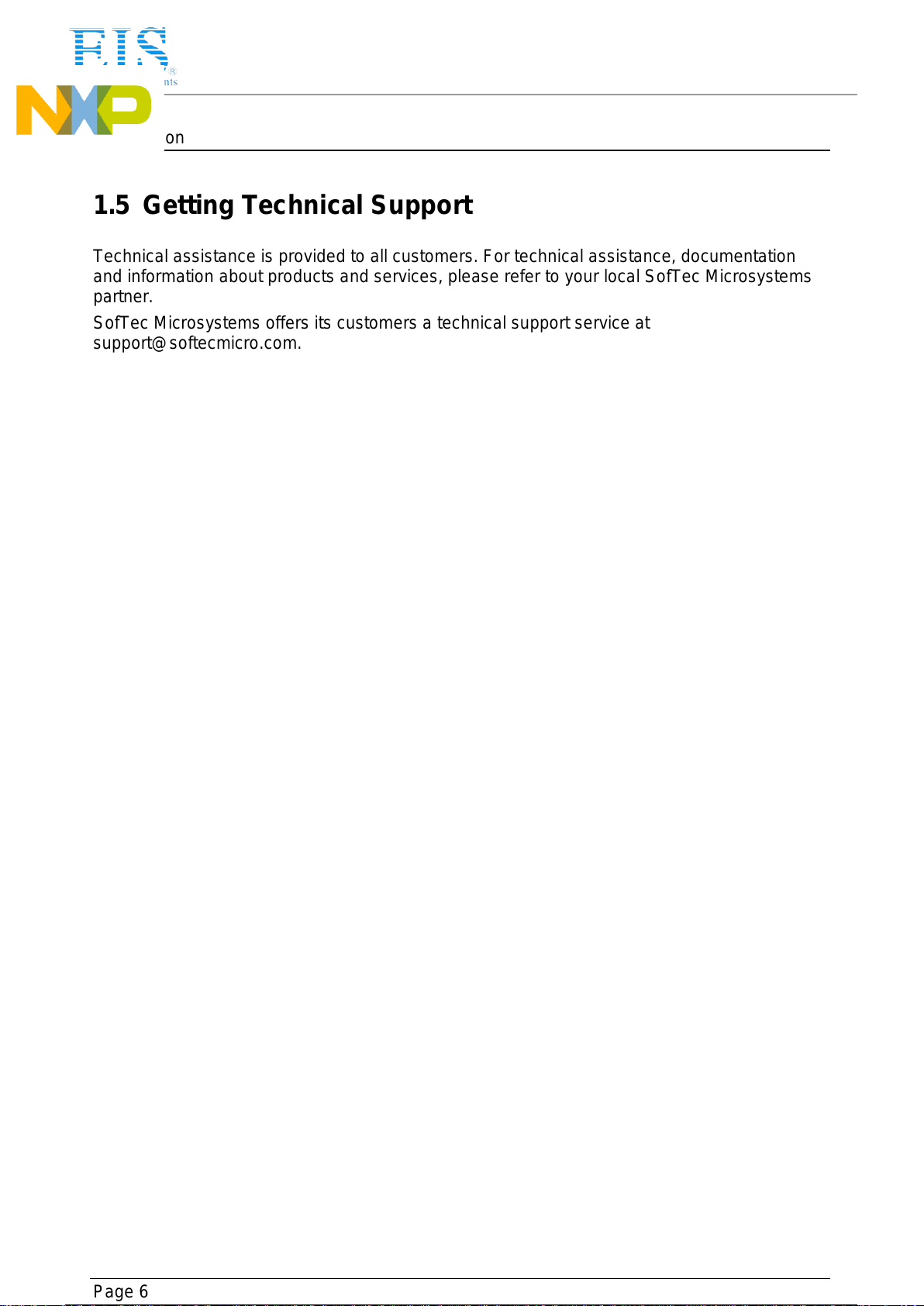

1.5 Getting Technical Support

Technical assistance is provided to all customers. For technical assistance, documentation

and information about products and services, please refer to your local SofTec Microsystems

partner.

SofTec Microsystems offers its customers a technical support service at

support@softecmicro.com.

9 / 33

Distributor of NXP Semiconductors: Excellent Integrated System Limited

Datasheet of DEMO908JL16 - BOARD DEMO FOR MC908JL16

DEMO908JL16 User's Manual

Page 7

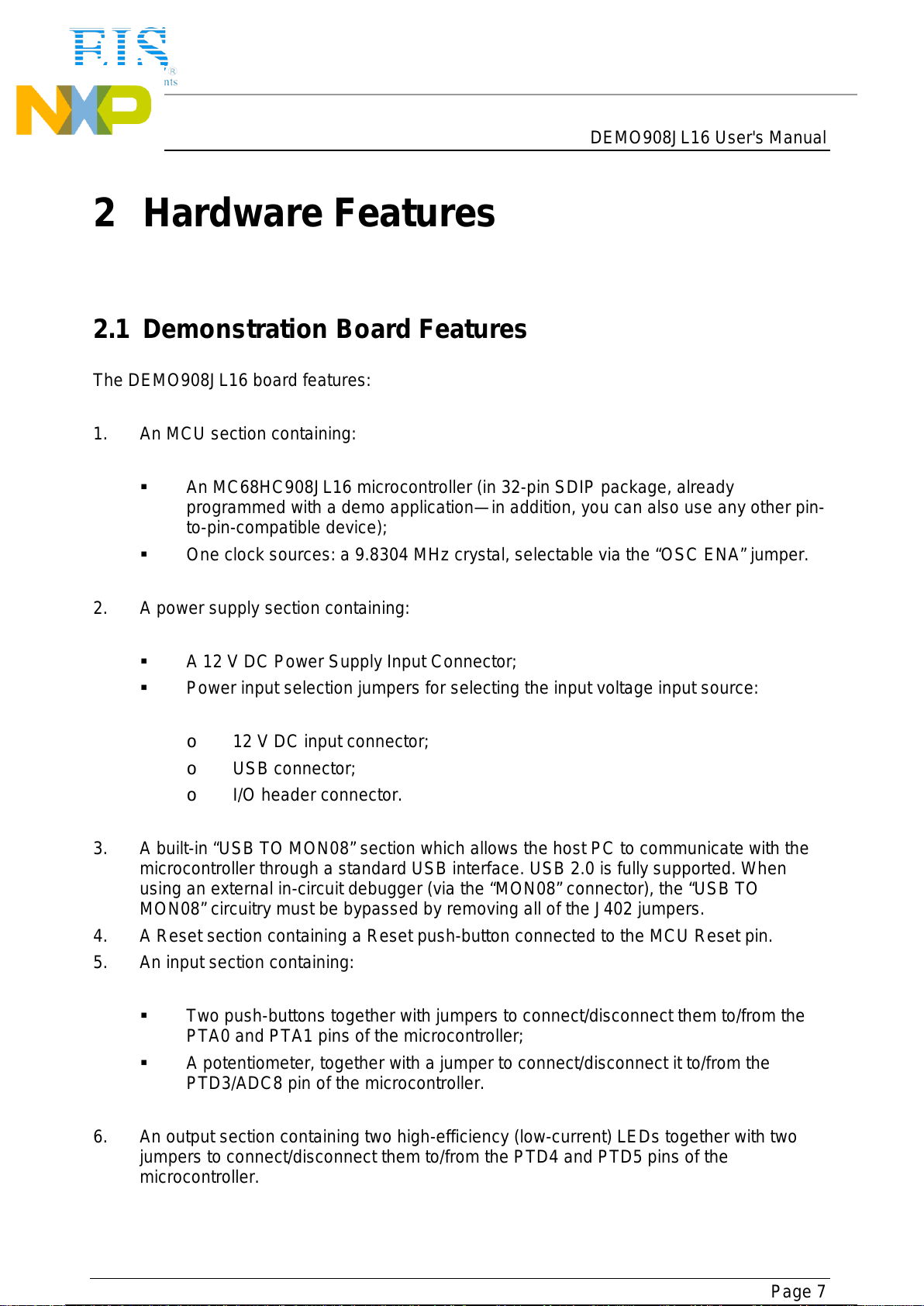

2 Hardware Features

2.1 Demonstration Board Features

The DEMO908JL16 board features:

1. An MCU section containing:

 An MC68HC908JL16 microcontroller (in 32-pin SDIP package, already

programmed with a demo application—in addition, you can also use any other pin-

to-pin-compatible device);

 One clock sources: a 9.8304 MHz crystal, selectable via the “OSC ENA” jumper.

2. A power supply section containing:

 A 12 V DC Power Supply Input Connector;

 Power input selection jumpers for selecting the input voltage input source:

o 12 V DC input connector;

o USB connector;

o I/O header connector.

3. A built-in “USB TO MON08” section which allows the host PC to communicate with the

microcontroller through a standard USB interface. USB 2.0 is fully supported. When

using an external in-circuit debugger (via the “MON08” connector), the “USB TO

MON08” circuitry must be bypassed by removing all of the J402 jumpers.

4. A Reset section containing a Reset push-button connected to the MCU Reset pin.

5. An input section containing:

 Two push-buttons together with jumpers to connect/disconnect them to/from the

PTA0 and PTA1 pins of the microcontroller;

 A potentiometer, together with a jumper to connect/disconnect it to/from the

PTD3/ADC8 pin of the microcontroller.

6. An output section containing two high-efficiency (low-current) LEDs together with two

jumpers to connect/disconnect them to/from the PTD4 and PTD5 pins of the

microcontroller.
