NXP Semiconductors MPC5777C-DEVB Manuel utilisateur

Quick Start Guide

MPC5777C-DEVB

NXP automotive system solution with the highly integrated

SPC5777C MCU as well as the advanced MC33FS6520LAE

system basis chip and the TJA1100 and TJA1145T/FD Ethernet

and CAN FD Physical interface chips

FREEDOM DEVELOPMENT PLATFORM

Quick Start Guide

eTPU A/B/C eMIOS SDADC/eQADC

User LEDs

Motor Control IF

JTAG

CANFD

SENT

Power Socket

12V

Power SWStatus LEDs

Reset SW

PS15

Ethernet

NEXUS

LIN

UART

DSPI SPC

5777C

TJA

1100

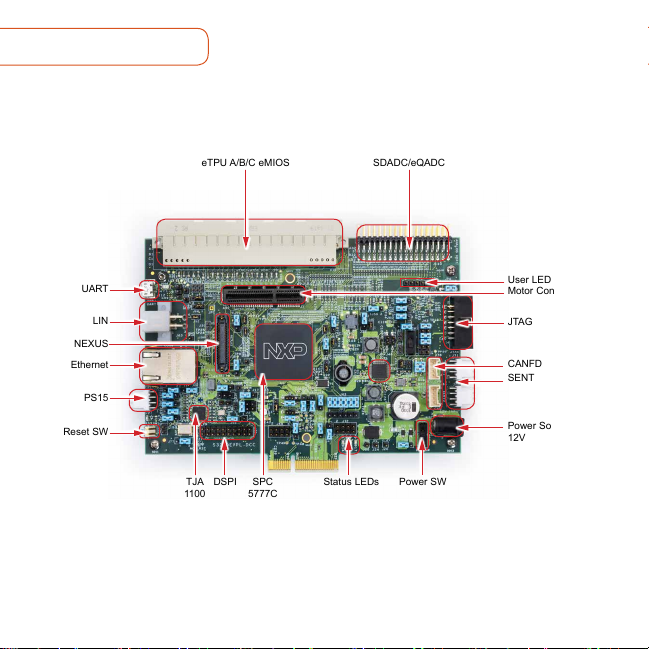

Figure 1: Top elevation of MPC5777C Development Board

GET TO KNOW THE MPC5777C-DEVB BOARD

www.nxp.com

MPC5777C-DEVB FEATURES

The standalone development board provides the following features:

• NXP MPC5777C Microcontroller (516 MAPBGA soldered)

• 40MHz onboard clock oscillator circuit for MCU Clocking

• User reset switch with reset status LEDs

• Power switch with Power Indication LEDs

• 4 user LEDs, freely connectable

• Standard 14-pin JTAG debug connector and 50-pin SAMTEC Nexus connector

• Micro USB / UART FDTI transceiver to interface with MCU

• NXP FS65xx Power SBC for standalone operation of MCU

• Single 12 V external power supply input to on-board Power SBC providing all of

the necessary MCU voltages; power supplied to the DEVB via a 2.1mm barrel style

power jack

• 1 CAN and 1 LIN connector supported by Power SBC

• 1 CAN supported via NXP CANFD transceiver TJA1145

• 1 Automotive Ethernet supported via NXP Ethernet physical interface TJA1100

• Analog/eTPU/eMIOS/DSPI/SENT/PSI5 signals available via on board connectors

• Motor Control Interface to connect with power stage board of MTRCKTSPS5744P

Development Kit

Quick Start Guide

MPC5777C-DEVB HARDWARE MPC5777C-DEVB PACKAGE

The development board includes a

complete NXP system solution. Following

table describes the NXP components

used in the DEVB.

Microcontroller

The SPC5777C offers 264MHz lockstep

cores to support ASIL-D, 8 MB of Flash,

512 KB SRAM, CAN-FD, Ethernet,

advanced complex timers and a CSE

hardware security module.

System Basis Chip

The MC33FS6520LAE is providing robust,

scalable power management to the

SPC5777C MCU with Fail Silent safety

monitoring measures that fit for ASIL D.

Ethernet PHY

The TJA1100 is a 100BASE-T1 compliant

Ethernet PHY optimized for automotive

use cases. The device provides 100 Mbit/s

transmit and receive capability over a

single Unshielded Twisted Pair cable.

CANFD PHY

The TJA1145T/FD Automotive 2Mbps

CANFD physical layer interface chip

• NXP MPC5777C Automotive

Microcontroller board

• 12V Power Supply

• Micro USB Cable

• Universal Power Adapter

www.nxp.com

STEP-BY-STEP INSTRUCTIONS

This section covers software download,

development kit setup, and application

control.

1Download

Software

Download installation software

and documentation at

nxp.com/MPC5777C-DEVB.

2Download Necessary

Drivers

Install the FT230x virtual COM port driver.

Visit ftdichip.com/drivers/vcp.htm to

download the correct driver. Select the

virtual COM port (VCP) driver based on

your operating system and processor

architecture.

3Install

FTDI Driver

Go to the Device Manager and right-

click the COM port detected and select

Update Driver Software.

Select Browse my computer for driver

software and select the FTDI driver that

has been downloaded.

Restart your machine.

4Connect the

power supply

Connect power supply to power socket

and micro USB cable to micro USB port

on the Development board. Turn on the

Power Switch. Make sure the status LEDs

D14, D15 and D16 for voltage levels 3.3V,

5V and 1.25V respectively are glowing on

the board.

Quick Start Guide

STEP-BY-STEP INSTRUCTIONS CONTINUED

5Setup Tera

Term Console

Open Tera Term on Windows PC. Select

the serial port to which the micro USB of

the Development board is connected and

click OK. Go to Setup>Serial Port and

select 19200 as the baud rate.

6Reset the

Board

Press the Reset button on the

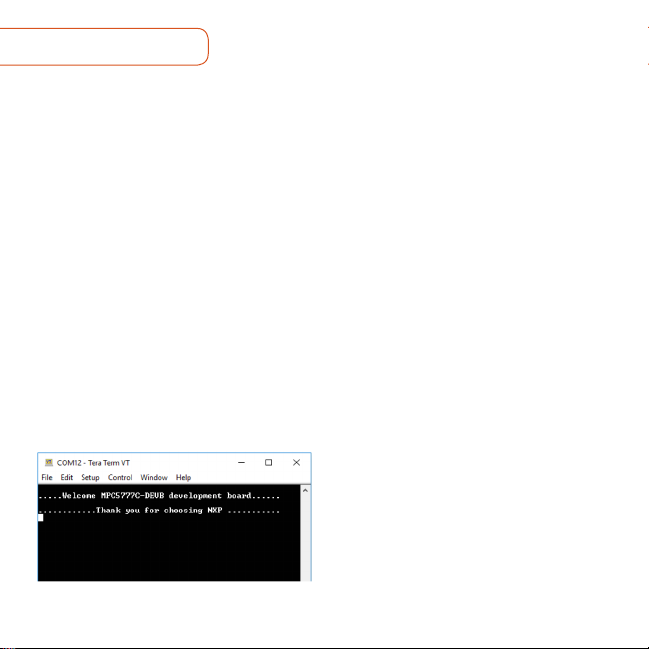

Development board. Welcome message

will be printed in the Tera Term window

as shown below.

www.nxp.com

MPC5777C-DEVB REFERENCES

• MPC5777C Reference Manual

• MPC5777C Data sheet

• MPC5777C Errata

• MPC5777C Hardware Requirements/Example Circuits

www.nxp.com

NXP and the NXP logo are trademarks of NXP B.V. All other product or service names are the property of

Document Number: MPC5777CDEVBQSG REV 0

SUPPORT

Visit www.nxp.com/support for a list of

phone numbers within your region.

WARRANTY

Visit www.nxp.com/warranty for complete

warranty information.

AUTOMOTIVE COMMUNITY:

https://community.nxp.com/community/s32

MPC57XXX COMMUNITIES:

https://community.nxp.com/community/

s32/mpc5xxx

Get Started

Download installation

software and documentation at

nxp.com/MPC5777C-DEVB.
