NXP Semiconductors OM5579 Manuel utilisateur

AN11841

PN7150 Arduino SBC kit quick start guide

Rev. 1.6 — 14 June 2021 Application note

373016 COMPANY PUBLIC

Document information

Information Content

Keywords OM5579, PN7150, Arduino, MCUXpresso, UDOO, LPC, Kinetis, NFC, P2P,

card emulation, Linux, Android, NullOS, RTOS

Abstract This document gives a description on how to get started with the OM5579

PN7150 NFC controller SBC kit on boards featuring Arduino compatible

header.

NXP Semiconductors AN11841

PN7150 Arduino SBC kit quick start guide

1 Revision history

Rev Date Description

1.6 20210614 Moved to OM5579 because of OM5578 discontinuation

1.5 20181112 Updated with MCUXpresso project reference

1.4 20180725 Updated weblinks

1.3 20170222 Updated demo images weblinks

1.2 20160819 Added Android Marshmallow demo

1.1 20160620 Added Android NFC demo on UDOO Neo

1.0 20160518 First official release

Revision history

Application note Rev. 1.6 — 14 June 2021

COMPANY PUBLIC 373016 2 / 19

NXP Semiconductors AN11841

PN7150 Arduino SBC kit quick start guide

2 Introduction

This document gives a description on how to get started with the OM5579 PN7150 NFC-

Controller SBC kit on platform featuring Arduino compatible header. This document

provides a step by step guide to the installation procedure of the hardware and the

software. Finally, it shows PN7150 NFC controller functionalities through demonstration

application.

OM5579/PN7150 demonstration kit replaces previous OM5578/PN7150 demonstration

kit now discontinued.

2.1 OM5579/PN7150ARD demo kit

OM5579/PN7150ARD kit is a high performance fully NFC-compliant expansion

board compatible with Arduino Compatible Interface platforms (refer to [1] for more

details). It meets compliance with Reader mode, P2P mode and Card emulation mode

standards. The board features an integrated high-performance RF antenna to insure high

interoperability level with NFC devices.

The demo kit is comprised of a PN7150 NFC controller board, a dedicated interface

board, and an NFC sample card.

+ +

OM5579/PN7150

PN7150 NFC controller board

OM29110ARD-B

Arduino Interface Board

NTAG216

NFC Sample Card

Figure 1. OM5579/PN7150ARD kit overview

The demo kit is fully described in UM10935 document [7].

2.2 Linux driver support

PN7150 NFC controller is supported under GNU/Linux system using the NXP Linux

libnfc-nci software stack delivered through public GitHub repository https://github.com/

NXPNFCLinux/linux_libnfc-nci (for more details, refer to AN11697 [4]).

In Section 3.4, it is described how to run an image with the already integrated driver on

your kit.

2.3 Android driver support

PN7150 NFC controller is supported from the official Android Open Source Project (refer

to [6] for more details) with the addition of dedicated patches (refer to AN11690 [5]).

Section 3.5 describes how to run an image with the already integrated driver on your kit.

Application note Rev. 1.6 — 14 June 2021

COMPANY PUBLIC 373016 3 / 19

NXP Semiconductors AN11841

PN7150 Arduino SBC kit quick start guide

2.4 RTOS and Null OS support

Since implementing NFC Forum NCI standardized API, the PN7150 NFC Controller can

be easily integrated into system based on RTOS or even without OS.

Code example is given in the scope of MCUXpresso projects and can easily be ported to

any other system.

Application note Rev. 1.6 — 14 June 2021

COMPANY PUBLIC 373016 4 / 19

NXP Semiconductors AN11841

PN7150 Arduino SBC kit quick start guide

3 Quick Startup on UDOO Neo

3.1 Required items

• UDOO Neo [2]

• Compatible MicroSD card of at least 4 Gb memory size (8 Gb for Android demo image)

• Computer (running Windows, Linux or Mac OS X) for SD/MicroSD card installation and

remote access to UDOO Neo

• Micro USB cable to connect UDOO Neo to the computer

• UDOO Neo demo image file (see [8])

• For the Android NFC demo (see Section 3.5) the following items are additionally

required:

•USB mouse

•Micro HDMI cable to connect to Monitor / TV

•UDOO 12 V power supply (Note: the 5 V generated by UDOO Neo board from the

Micro USB is not stable on the Android image. Without the 12 V power supply,

the RF discovery may suddenly stop)

3.2 Hardware preparation

First of all, assemble the PN7150 NFC controller board with the Arduino interface board.

Figure 2. OM5579/PN7150ARD demo kit assembly

Then stacked together the boards with the UDOO Neo.

Application note Rev. 1.6 — 14 June 2021

COMPANY PUBLIC 373016 5 / 19

NXP Semiconductors AN11841

PN7150 Arduino SBC kit quick start guide

Figure 3. OM5579/PN7150ARD and UDOO Neo stacked together

Note: The UDOO Neo feature a “two rows” connectors, the demo kit must be plugged in

the inner ones as show in below picture:

Figure 4. OM5579/PN7150ARD and UDOO Neo stacked together - zoom

3.3 Software preparation

The MicroSD needs to store an image specific for the OM5579 Linux or Android NFC

demo. This demo image can be downloaded from [8] and loaded to the MicroSD card,

following the installation guidelines provided here: http://www.udoo.org/docs-neo/

Getting_Started/Create_a_bootable_MicroSD_card_for_UDOO_Neo.html

Application note Rev. 1.6 — 14 June 2021

COMPANY PUBLIC 373016 6 / 19

NXP Semiconductors AN11841

PN7150 Arduino SBC kit quick start guide

3.4 Linux NFC demo application

3.4.1 Application details

The demo application uses a part of the Linux libnfc-nci stack available on public GitHub

repository https://github.com/NXPNFCLinux/linux_libnfc-nci. The related source code can

then be found there (more details in document AN11697 [4]).

3.4.2 Starting the application

Start the UDOO Neo board as “USB Headless IoT Device”, by just inserting the Micro-

SD card in the related slot and connect the micro-USB cable to your PC. Be sure to have

installed the right driver specific for the USB connection, refer to http://www.udoo.org/

docs-neo/Basic_Setup/Usb_Direct_Connection.html.

Open a remote session through “Web Control Panel” by browsing to “192.168.7.2” in a

web browser, it should display the UDOO Neo platform dashboard:

Figure 5. UDOO dashboard

Then open a terminal session by clicking on “>_ REMOTE TERMINAL” button.

Note: there is other way to open a remote terminal allowing to run the demo application.

Refer to http://www.udoo.org/docs-neo/Getting_Started/Use_as_a_Computer.html and

http://www.udoo.org/docs-neo/Getting_Started/Use_as_a_headless_IoT_Device.html for

more details.

•Login: udooer

•Password: udooer

Application note Rev. 1.6 — 14 June 2021

COMPANY PUBLIC 373016 7 / 19

NXP Semiconductors AN11841

PN7150 Arduino SBC kit quick start guide

Figure 6. UDOO Remote Terminal

Then browse to the Linux libnfc-nci stack directory (refer to Section 2.2 for more details

about the Linux NFC software stack).

$ cd ~/linux_libnfc-nci

The application requires parameters to run:

$ ./nfcDemoApp <OPTIONS>

You can get the parameters details by launching the application help menu:

$ ./nfcDemoApp –-help

Figure 7. Linux demo application parameters

The demo application offers 3 modes of operation:

• Polling: continuously waiting for a remote NFC device (tag or peer device) and

displays related information

• Tag writing: allows writing NDEF content to an NFC tag

• Tag emulation: allows sharing NDEF content to an NFC reader device

Application note Rev. 1.6 — 14 June 2021

COMPANY PUBLIC 373016 8 / 19

NXP Semiconductors AN11841

PN7150 Arduino SBC kit quick start guide

• Device push: allows pushing NDEF content to a remote NFC peer device

3.4.2.1 Polling mode

When in this mode, the application displays information of any discovered NFC tags or

remote NFC device. It is reached starting the application with “poll” parameter:

$ ./nfcDemoApp poll

Figure 8. Linux demo application polling mode

3.4.2.2 Device push mode

This mode allows pushing data to a remote NFC device (e.g. an NFC phone). It is

reached using “push” parameter:

$ ./nfcDemoApp push <OPTIONS>

Linux demo application device push mode

You can get more information about the message format using “-h” or “--help” parameter:

$ ./nfcDemoApp push –-help

Application note Rev. 1.6 — 14 June 2021

COMPANY PUBLIC 373016 9 / 19

NXP Semiconductors AN11841

PN7150 Arduino SBC kit quick start guide

3.4.2.3 Tag emulation mode

This mode allows emulating an NFC tag (NFC Forum T4T) to share data to a remote

NFC reader (e.g. an NFC phone). It is reached using “share” parameter:

$ ./nfcDemoApp share <OPTIONS>

Figure 9. Linux demo application Tag emulation mode

You can get more information about the message format using “-h” or “--help” parameter:

$ ./nfcDemoApp share –-help

3.4.2.4 Tag writing mode

This mode allows writing data to an NFC tag. It is reached using “write” parameter:

$ ./nfcDemoApp write <OPTIONS>

Application note Rev. 1.6 — 14 June 2021

COMPANY PUBLIC 373016 10 / 19

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels NXP Semiconductors Contrôleurs

NXP Semiconductors

NXP Semiconductors MPC560xB Manuel utilisateur

NXP Semiconductors

NXP Semiconductors TWR-K60N512 Manuel utilisateur

NXP Semiconductors

NXP Semiconductors PXN2020 Manuel utilisateur

NXP Semiconductors

NXP Semiconductors ISP1183 Manuel utilisateur

NXP Semiconductors

NXP Semiconductors PCA9665 Manuel d'exploitation

NXP Semiconductors

NXP Semiconductors PT2001 Mode d'emploi

NXP Semiconductors

NXP Semiconductors DSP56800E Manuel utilisateur

NXP Semiconductors

NXP Semiconductors PN7150 Mode d’emploi

NXP Semiconductors

NXP Semiconductors 56800E Manuel utilisateur

NXP Semiconductors

NXP Semiconductors BLDC Manuel utilisateur

NXP Semiconductors

NXP Semiconductors freescale 56F8014 Manuel utilisateur

NXP Semiconductors

NXP Semiconductors PN7120 Manuel utilisateur

NXP Semiconductors

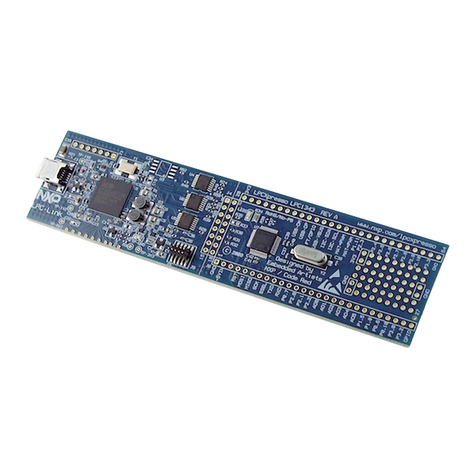

NXP Semiconductors LPC1311 Manuel utilisateur

NXP Semiconductors

NXP Semiconductors PN7150X Manuel utilisateur

NXP Semiconductors

NXP Semiconductors MC9S12ZVH64 Manuel utilisateur

NXP Semiconductors

NXP Semiconductors 56F8300 Series Manuel utilisateur

NXP Semiconductors

NXP Semiconductors K22F series Manuel utilisateur

NXP Semiconductors

NXP Semiconductors MPC560xP Mode d’emploi

NXP Semiconductors

NXP Semiconductors MK30DX64VMC7 Manuel utilisateur

NXP Semiconductors

NXP Semiconductors MPC5644A Manuel utilisateur

NXP Semiconductors

NXP Semiconductors PD3DB1548 PD3.0 type-C Manuel utilisateur

NXP Semiconductors

NXP Semiconductors MC13224V Manuel utilisateur

NXP Semiconductors

NXP Semiconductors LPC1768 Manuel utilisateur

NXP Semiconductors

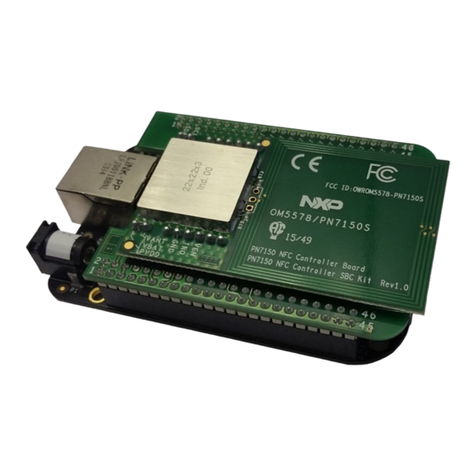

NXP Semiconductors PN7150 Manuel utilisateur
