Nvidia Tegra 250 Manuel de référence

- 1 -

January 2010

NVIDIA Tegra 250 Developer Kit

Hardware Introduction and Setup

Ver ion 100113.01

January 2010 - 2 -

Contents

INTRODUCTION 3

GETTING STARTED: OVERVIEW 4

UNBOXING 5

HOST PC CONFIGURATION 9

CONNECTING THE DEVKIT HW 9

“FLASHING” INSTALLING) OPERATING SYSTEM IMAGES ONTO THE DEVKIT 12

USING YOUR BOOTED DEVKIT 18

CONNECTING THE MINI SATELLITE BOARD 19

January 2010 - 3 -

Introduction

This manual describes the basic, initial setup of an NVIDIA Tegra 250 developer kit devkit),

and is designed to assist a new user in understanding the hardware, selecting an operating

system to install to the devkit, and connect and configure the hardware to boot that operating

system. Very little operating system-specific information will be found in this manual, as each

operating system supported by the Tegra 250 devkit includes its own support pack with

software and documentation. This manual covers the details that tend to cross over all

supported operating systems.

What is “The Devkit”?

The NVIDIA Tegra 250-based devkit is a compact, Smartbook-motherboard form factor

computer-on-a-board with the following specifications:

-Dual ARM Cortex A9 CPU @1GHz

-1GB of RAM

-High-performance, shader-based 3D acceleration

-HD video encode and decode

-512MB of Flash memory

-Onboard wired Ethernet

-WiFi

-Bluetooth

-Analog stereo audio in/out

-USB keyboard/mouse/storage support

-HDMI/DVI-D and VGA/CRT display support

-Onboard SD HC) slot

January 2010 - 4 -

Getting Started: Overview

There are a few basic steps required to begin developing for the devkit:

Unboxing:

1) Unpack the devkit components

2) Familiarize yourself with the components

Host PC Configuration:

1) Select your desired devkit operating system

2) Download the support pack for that operating system from the NVIDIA Tegra

developers website

3) Read the documentation provided with that support pack and install it to the

appropriate host PC

4) Download and install any host PC support SW as required by the platform support

pack’s documentation

Connecting the Devkit HW:

1) Locate/procure the required hardware accessories for the devkit somewhat dependent

upon the selected devkit operating system image)

2) Select the desired video output based on your available display devices and the

operating system image

Installing the Operating Syste to the Devkit:

1) Follow the operating system image installation instructions provided with the support

pack

2) Boot the devkit

January 2010 - 5 -

Unbo ing

Devkit Contents and Hardware Requirements

As shipped, your devkit should contain the following items:

•Devkit main board rectangular circuit board containing the Tegra chip and connectors

for networking, USB peripherals, storage and display devices)

•15V power adapter USA 120V mains power connection)

•Adjustable, folding, threaded WiFi antenna

•Expansion board smaller, square circuit board containing a serial port, LEDs and a few

buttons)

Also required to use the devkit, but not supplied developer must provide these):

•Host PC with USB ports. The exact OS that this host PC must be running may differ

depending upon the devkit OS to be used, but is most frequently Microsoft Windows.

•USB mini NOT micro, as with previous Tegra devkits) to USB cable for device setup

and connectivity)

•External display supporting VGA 15-pin D-Sub), HDMI or DVI via HDMI-to-DVI

adapter)

•SD card or USB-based “thumb drive” for additional storage

•USB mouse

•USB keyboard

Strongly recommended to use the devkit, but not supplied developer should provide these):

•Powered USB hub

January 2010 - 6 -

Getting Familiar with the Devkit

Main Board

The following diagram shows a Tegra 250 devkit main board with power connected. Important

connectors are annotated:

The annotated items include:

•15V Power jack. Supplies the main power to the devkit the devkit as shipped to

developers does not directly support battery power)

•VGA (CRT) jack. Support for 15-pin D-Sub analog display output

•HDMI jack. Support for digital display output

•WiFi antenna jack. Connection point for supplied or 3

-party) WiFi antenna

•Tegra 250 chip. The heart and soul of the Tegra 250 devkit

“ACOK”

configuration switch

Power

LEDs

Tegra chip

WiFi Antenna

jack

15V power

jack

HDMI

jack

Expansion board

connectors

Reset

button

Recovery

button

Power

button

USB-A

jack

VGA

CRT) jack

Microphone

jack

Headphone

jack

SD Card

slot

Ethernet

jack

Dual USB-

A jacks

USB mini

jack

January 2010 - 7 -

•USB-A jacks (3). Support for common peripherals use of a powered USB hub is

strongly recommended)

•Expansion board connectors. “Header” connections for an expansion board supplied)

that adds status LEDs, copies of the power, reset and recovery buttons, and a serial port.

•“ACOK” configuration switch. A configuration micro-switch that is used to adjust the

power behavior of the devkit. In the left BATT) position, the AC adapter simulates a

battery, and the soft power button functions normally. In the right NORM) position,

applying power causes the device to turn on, without pressing the power button. The

left BATT) position is preferred for developers.

•Power button. Pressing this switch will toggle the power to the device on and off

•Recovery (flashing) button. Used to place the devkit in a special mode that leaves it

ready to receive a new operating system image via USB “recovery” mode)

•Reset button. Soft reset

•Microphone jack. Stereo microphone input as a 1/8” phone jack

•Headphone jack. Stereo headphone output as a 1/8” phone jack

•Ethernet jack. Wired networking if supported by the OS

•SD card slot. Supports normal and high-capacity SD card storage

•USB- ini jack. USB jack for flashing the device updating OS images) and connecting

the device to a host PC.

January 2010 - 8 -

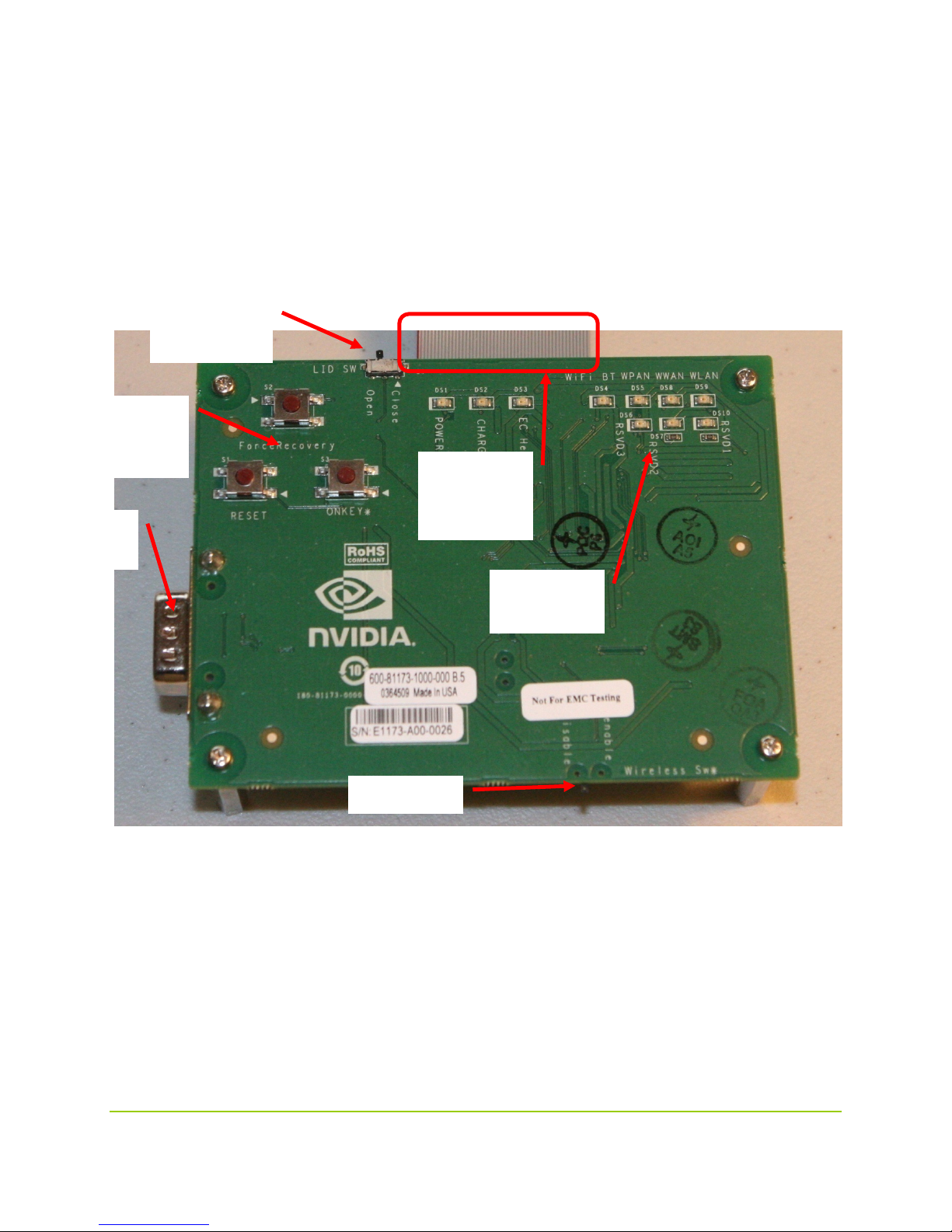

Mini Satellite Board

In addition, most Tegra 250 devkits include the “mini satellite board”, which replicates the main

power, reset and recovery buttons, adds a UART serial port for low-level debugging on some

OSes, and switches and LEDs for common “smartbook” features like lid close, wifi on/off, etc.

An appendix at the end of this document provides connection instructions. The board is

pictured below:

•UART serial port. Standard serial port for use with some OS images for low-level

logging and debugging

•Power, reset, recovery buttons. Replicated from the main board so that all controls may

be found on the satellite board. Useful if the main board is somehow packaged

•Si ulated lid switch. On some OS images, setting this switch causes the device to sleep

•Dual ribbon cables. Connection to the main board

•Wifi, BT, etc status LEDs. Provides activity status of major peripherals

•WiFi switch. Enables/disables WiFi radio

Simulated lid

switch

WiFi switch

Power, reset,

recovery

buttons

Wifi, BT, etc

status LEDs

Dual ribbon

cables to

main board

UART

serial port

January 2010 - 9 -

Host PC Configuration

Selecting and Downloading a Platform Support Pack

Currently, there are several packs available for use with the devkit, including OS support packs

and sample application SDKs. An OS support pack must be installed or “flashed”) to the

devkit in order to boot it and use it. The set of supported packs include:

•An Android Éclair OS support pack. This includes scripts to install the Android OS

image and associated “getting started” documentation.

•A Windows CE 6.0 OS support pack. This includes a script to install the CE 6.0

operating system image onto a recovery-mode devkit as well as Khronos headers and

libraries to allow developers to use Microsoft Visual Studio 2005 and 2008 to develop

and debug applications on Tegra using OpenGL ES, OpenMAX, OpenKODE, etc.

•An Ubuntu-based Linux OS support pack.

These and other packs may be found on the Tegra developers’ website. Developers should

select the target operating system that best matches their intended market, feature set and

development environment requirements, as each of these operating systems differ significantly

on all of these fronts. The developer website information for each OS support pack can assist in

the decision. However, OS images may be re-flashed to the devkit at will, so a single devkit can

change between operating systems in minutes.

Download the desired platform support pack for the OS you wish to use. At this point, you

should transition away from this documentation temporarily and into the documentation

supplied with the selected OS image. That documentation will, as needed, provide pointers

back to this manual when it is time to connect and “flash” the device. Ensure that all of the

selected OS image’s host PC prerequisites are satisfied by your selected host PC before

continuing.

Connecting the Devkit HW

While use-cases will differ, there are a few basic items that must be connected to the devkit to

install an operating system and boot the device. Items common to all operating systems are

included in this documentation. Additional items such as serial connections, network

connections, and storage devices may be required to install and boot some operating systems.

These will be documented along with the particular operating system. The common

requirements include:

January 2010 - 10 -

1) Display connection. One of the following display devices should be connected. For

best results, do not connect more than one of these options at a time unless directed to

do so by a particular operating system pack. Be sure to check the documentation for

your selected OS support pack, as some OSes may not support all of these display

connections:

a. Analog “VGA” display LCD or CRT monitor) connected via the devkit’s VGA

15-pin D-sub connector.

b. HDMI display LCD screen or compatible television) via the devkit’s HDMI port

and an HDMI cable. Note that on many OS images, using HDMI as the display

connection will route audio to the HDMI port as well, disabling the headphone

jack.

c. Digital DVI-D display connected via the devkit’s HDMI port and an HDMI-to-

DVI cable or cable-adapter pair.

2) “Recovery” (or flashing) USB connection. A USB cable must connect the USB-mini jack

on the left-rear corner of the devkit to a USB jack on the host PC. The OS that the host

PC must be running will depend on the OS being installed on the devkit, and will be

documented in the platform pack for that particular OS.

3) Power. The supplied 15V power supply should be connected to the power jack on the

rear edge of the devkit main board. Depending on the setting of the “ACOK” switch

described previously, applying power to the board may cause it to switch on

automatically. Earlier Tegra devkits used a 12V power supply with a similar connector:

this 12V power supply is not compatible with the Tegra 250 devkit and must not be

used.

Additional items that should be connected to the devkit for general post-install interaction with

the devkit include

1) Powered USB hub. As a mobile development kit, the devkit is not designed to provide

large amounts of power to external devices. Thus, external devices other than the most

basic mice and keyboards should be connected to a powered USB hub. This powered

hub should be connected to one of the two stacked USB jacks on the left-front edge of

the devkit main board.

2) USB keyboard and ouse: both of these should be connected to the powered USB hub.

If required, a basic USB keyboard and mouse pair can be connected to the two stacked

USB jacks, but if possible, a powered hub is recommended.

3) WiFi Antenna. The threaded end of the WiFi antenna should be firmly screwed onto

the WiFi antenna connector on the rear edge of the devkit main board.

Autres manuels pour Tegra 250

Autres manuels Nvidia Matériel informatique

Nvidia

Nvidia Quadro Manuel utilisateur

Nvidia

Nvidia Tesla S2050 Manuel utilisateur

Nvidia

Nvidia Mellanox ConnectX-5 Manuel

Nvidia

Nvidia Tesla C870 Manuel utilisateur

Nvidia

Nvidia TURING GPU Manuel utilisateur

Nvidia

Nvidia Mellanox ConnectX-5 Manuel utilisateur

Nvidia

Nvidia TESLA C2050 Manuel utilisateur

Nvidia

Nvidia UFM 4.0 Instructions d'utilisation

Nvidia

Nvidia DGX A100 Manuel utilisateur

Nvidia

Nvidia Geforce PCI-Express Series Manuel utilisateur

Nvidia

Nvidia BlueField-2 BF2500 Manuel utilisateur

Nvidia

Nvidia JETSON DEVELOPER KIT Instructions d'installation

Nvidia

Nvidia PCI Express Series Manuel utilisateur

Nvidia

Nvidia Jetson Orin NX Mode d’emploi

Nvidia

Nvidia TESLA M2050 Manuel utilisateur

Nvidia

Nvidia DGX-2 SYSTEM Manuel utilisateur

Nvidia

Nvidia DGX A100 Manuel utilisateur

Nvidia

Nvidia Mellanox ConnectX-6 Dx Series Manuel utilisateur

Nvidia

Nvidia AVerMedia D133 Series Manuel utilisateur

Nvidia

Nvidia DGX A100 Manuel utilisateur

Nvidia

Nvidia ConnectX-6 Dx MCX623432AE-ADAB Manuel utilisateur

Nvidia

Nvidia Clara AGX Manuel utilisateur

Nvidia

Nvidia JETSON AGX XAVIER Manuel utilisateur

Nvidia

Nvidia DGX H100 Manuel utilisateur

Manuels Matériel informatique populaires d'autres marques

EMC2

EMC2 VNX Series Manuel du propriétaire

Panasonic

Panasonic DV0PM20105 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuel utilisateur

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuel utilisateur

Raidon

Raidon iT2300 Manuel utilisateur

National Instruments

National Instruments PXI-8186 Manuel utilisateur

Hauppauge

Hauppauge WinTV-HVR-2250 Manuel utilisateur

Kontron

Kontron CP6002 Manuel utilisateur

Manhattan

Manhattan 702843 Manuel utilisateur

Aphex

Aphex 230 Manuel utilisateur

AMD

AMD Phenom II Manuel d'exploitation

Intel

Intel NUC 12 Pro Manuel utilisateur

dbx

dbx Zone Pro 1260 Manuel utilisateur

Galaxy

Galaxy GHDX2-2430S-24F4D Manuel utilisateur

Intel

Intel AXXRMFBU4 Manuel utilisateur

Kontron

Kontron DIMM-PC/MD Manuel utilisateur

ST X-NUCLEO-SAFEA1B Mode d'emploi

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuel utilisateur
