Nuvoton NuMicro series Manuel utilisateur

NuMaker-IOT-M487

Feb 22, 2019 Page 1of 15 Rev 1.00

ALIOS THINGS ON NUMAKER-IOT-M487 QUICK START GUIDE

Arm®Cortex®-M

32-bit Microcontroller

NuMicro®Family

AliOS Things On

NuMaker-IOT-M487

Quick Start Guide

The information described in this document is the exclusive intellectual property of

Nuvoton Technology Corporation and shall not be reproduced without permission from Nuvoton.

Nuvoton is providing this document only for reference purposes of NuMicro microcontroller based system

design. Nuvoton assumes no responsibility for errors or omissions.

All data and specifications are subject to change without notice.

For additional information or questions, please contact: Nuvoton Technology Corporation.

www.nuvoton.com

NuMaker-IOT-M487

Feb 22, 2019 Page 2of 15 Rev 1.00

ALIOS THINGS ON NUMAKER-IOT-M487 QUICK START GUIDE

Table of Contents

1OVERVIEW .........................................................................................3

2REQUIREMENTS..................................................................................4

Software Requirements............................................................................... 4

Hardware Requirements.............................................................................. 4

3GET ALIOS THINGS SDK........................................................................5

Use Git Software....................................................................................... 5

Download from Github Website ..................................................................... 5

4ALIOS THINGS MQTTAPP SAMPLE ..........................................................6

Build mqttapp Project ................................................................................. 6

Burn Firmware.......................................................................................... 7

4.2.1 NuMicro MCU Virtual Disk.....................................................................................7

4.2.2 Drag and Drop...................................................................................................8

Test Wi-Fi Local Connectivity........................................................................ 9

Test Ali-Cloud Service ...............................................................................10

5CONCLUSION.................................................................................... 13

6REVISION HISTORY............................................................................ 14

NuMaker-IOT-M487

Feb 22, 2019 Page 3of 15 Rev 1.00

ALIOS THINGS ON NUMAKER-IOT-M487 QUICK START GUIDE

1 OVERVIEW

NuMaker-IoT-M487 board provides multiple networking, interfaces, image sensing, audio

recording, playback functions, and flexible extended data storage. The front and rear side of

NuMaker-IOT-M487 board are shown in Figure 1‑1. Whether you need a sensor node or a light-

weight gateway, the NuMaker-IoT-M487 board is an ideal choice for IoT applications. In this

guide, some steps will help you use AliOS Things on the NuMaker-IOT-M487 board. This guide

includes how to get AliOS things SDK, mqttapp sample, firmware burning, and connective test.

Figure 1‑1 NuMaker-IOT-M487 board - Front/Rear side

NuMaker-IOT-M487

Feb 22, 2019 Page 4of 15 Rev 1.00

ALIOS THINGS ON NUMAKER-IOT-M487 QUICK START GUIDE

2 REQUIREMENTS

Software Requirements

1. Window 7/8/10 operating system

2. Arm®Keil MDK v5 –IDE

3. Tera Term –a terminal emulator

4. Alibaba AliOS Things Software development kit

Hardware Requirements

1. NuMaker-IOT-M487 board x 1

2. USB Micro cable x 1

3. Internet-accessible Wi-Fi Router x 1.

NuMaker-IOT-M487

Feb 22, 2019 Page 5of 15 Rev 1.00

ALIOS THINGS ON NUMAKER-IOT-M487 QUICK START GUIDE

3 GET ALIOS THINGS SDK

You can get AliOS Things SDK using Git software or download from Github website.

Use Git Software

You can type the following commands to clone remote repository into your storage on PC.

# git clone https://github.com/wosayttn/AliOS-Things

# cd AliOS-Things

# git checkout numicro

Download from Github Website

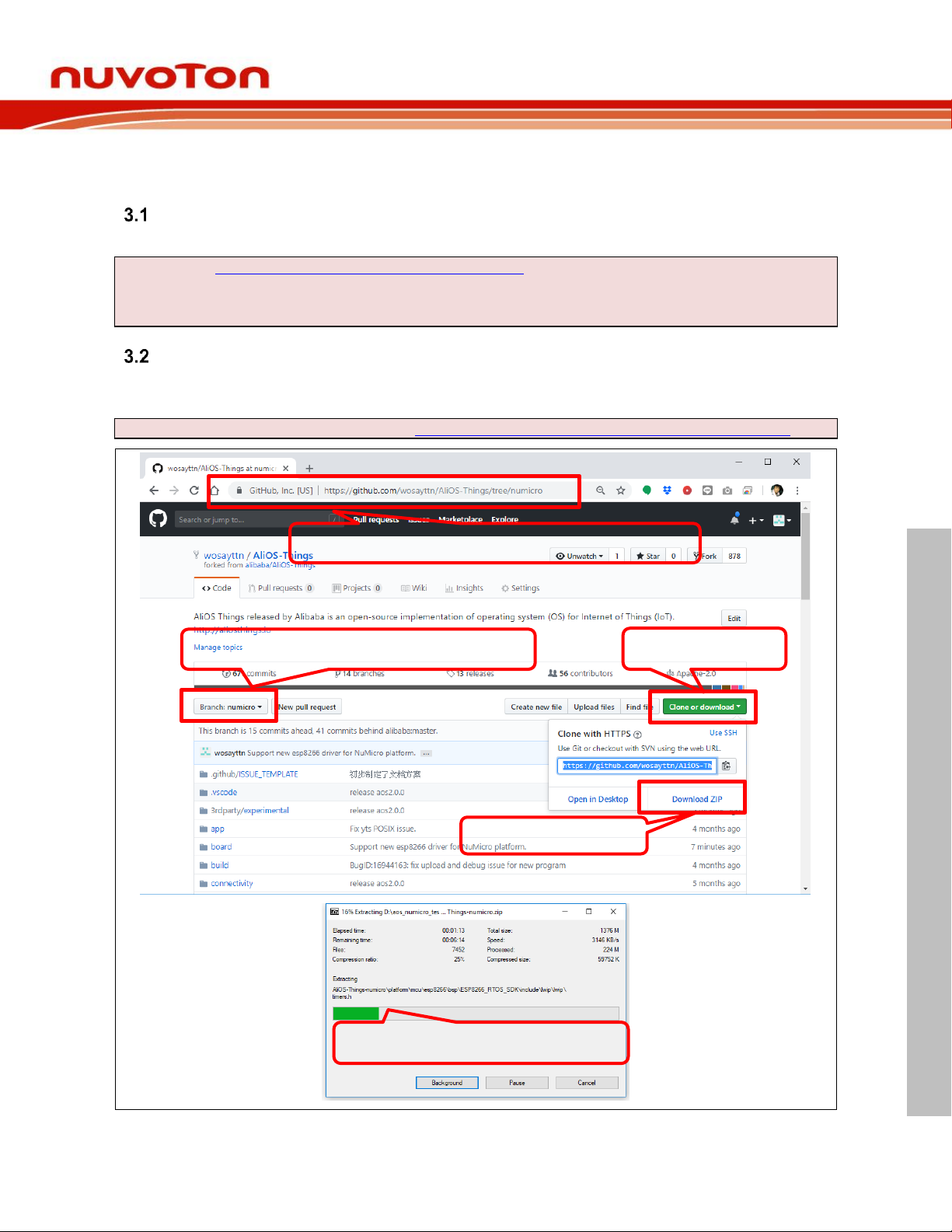

Please open AliOS Things repository webpage on Github and follow steps as Figure 3‑1. Finally,

uncompress the downloaded file.

The URL of AliOS Things SDK repository: https://github.com/wosayttn/AliOS-Things/tree/numicro

Figure 3‑1 Download from Github Website

Step1: Enter URL of AliOS Things SDK repository

Step2: Make sure the branch is numicro.

Step3: Click it.

Step4: Download ZIP

Step5: Uncompress the .zip file.

NuMaker-IOT-M487

Feb 22, 2019 Page 6of 15 Rev 1.00

ALIOS THINGS ON NUMAKER-IOT-M487 QUICK START GUIDE

4 ALIOS THINGS MQTTAPP SAMPLE

Build mqttapp Project

Open mqttapp@numaker-iot-m487 Keil project in the uncompressed folder and click rebuild

button to build mqttapp project. All steps are shown in Figure 4‑1.

The file path of Keil project: <Path-to-AliOS-Things folder>\AliOS-

Things\projects\Keil\mqttapp@numicro-iot-m487\keil_project

Figure 4‑1 Path of Keil Project File and Rebuild Project

After building is done, it will output a binary image as shown in Figure 4‑2 and its path as below.

<Path-to-AliOS-Things folder>\AliOS-Things\projects\Keil\mqttapp@numicro-iot-

m487\keil_project\Objects\mattapp@numaker-iot-m487.bin

Step1: Open project

Step2: Click it to rebuild project

Building..

NuMaker-IOT-M487

Feb 22, 2019 Page 7of 15 Rev 1.00

ALIOS THINGS ON NUMAKER-IOT-M487 QUICK START GUIDE

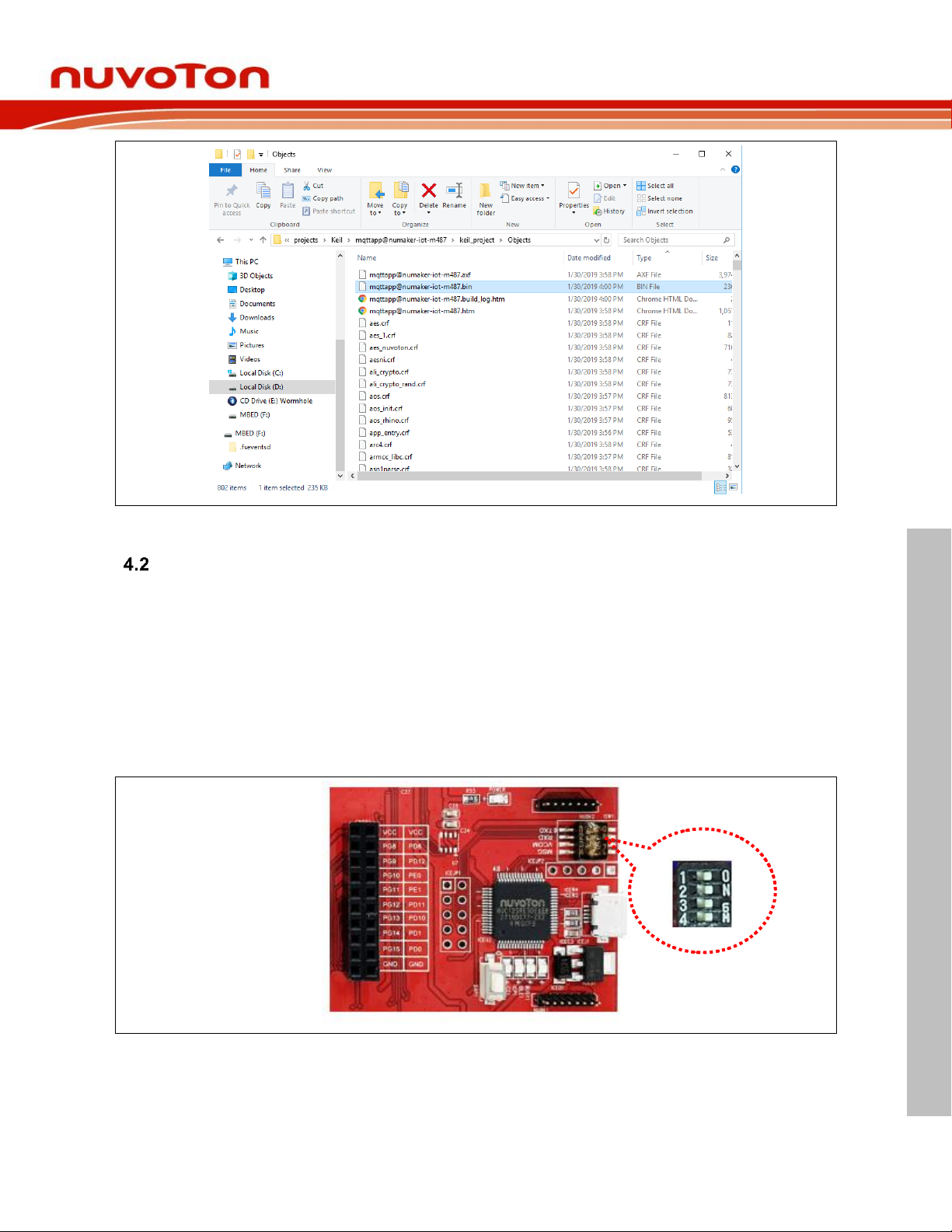

Figure 4‑2 File Path of Binary Image

Burn Firmware

A simple firmware burning method is that you can drag and drop the binary image file to NuMicro

MCU virtual disk to burn firmware.

4.2.1 NuMicro MCU Virtual Disk

First, you need to configure LSW1 switch on the NuMaker-IOT-M487 board. Set the four switches

to ‘ON’ position as shown in Figure 4‑3. After the configuration is done, connect the NuMaker-

IOT-M487 board and your computer using the USB Micro cable as Figure 4‑4. After that, window

manager will show a ‘NuMicro MCU’virtual disk as Figure 4‑5. Finally, you will use this virtual

disk to burn firmware.

Figure 4‑3 ISW1 Configuration on NuMaker-IOT-M487 board

NuMaker-IOT-M487

Feb 22, 2019 Page 8of 15 Rev 1.00

ALIOS THINGS ON NUMAKER-IOT-M487 QUICK START GUIDE

Figure 4‑4 Connect NuMaker-IOT-M487 board and PC Using Micro USB Cable

Figure 4‑5 NuMicro MCU Virtual Disk

4.2.2 Drag and Drop

You can drag and drop a binary image file into the NuMicro MCU virtual disk to burn firmware as

Figure 4‑6. The path of mqttapp binary image file is below:

<Path-to-AliOS-Things folder>\AliOS-Things\projects\Keil\mqttapp@numicro-iot-

m487\keil_project\Objects\mattapp@numaker-iot-m487.bin

NuMaker-IOT-M487

Feb 22, 2019 Page 9of 15 Rev 1.00

ALIOS THINGS ON NUMAKER-IOT-M487 QUICK START GUIDE

Drag and drop binary image file to here.

Figure 4‑6 Simple Firmware Burning Method

Test Wi-Fi Local Connectivity

You can use Tera Term terminate emulator to type commands of AliOS Things OS. All

parameters of serial communication are shown in Figure 4‑7. Here, you can find out the

corresponding port number of Nuvoton Virtual Com Port in window device manager. For

example, the serial port is COM30.

Figure 4‑7 Nuvoton Virtual Serial Port Number and Serial Communication Configuration in Tera Term

NuMaker-IOT-M487

Feb 22, 2019 Page 10 of 15 Rev 1.00

ALIOS THINGS ON NUMAKER-IOT-M487 QUICK START GUIDE

Open serial communication and press Reset button on board. After system reset, Tera term

terminate emulator will print messages on screen as Figure 4‑8.

Figure 4‑8 Serial Communication Using Tera Term and Boot-up Messages

First, you must set Wi-Fi SSID and password manually as Figure 4‑9. Once it is associated with

Wi-Fi router, these Wi-Fi SSID and password will be stored in internal Flash. The network

managing command is shown below:

netmgr connect ssid password open|wep|wpa|wpa2

ex: ssid: NT_ZY_BUFFALO, password: 12345678

Figure 4‑9 Wi-Fi Local Connectivity and get IP Address

Test Ali-Cloud Service

Before testing Ali-Cloud MQTT server, you need to get three-parameters obtained from the Ali-

Cloud and update three-parameters to mqtt_example.c source code as shown in Figure 4‑10.

Please note the three-parameters in mqttapp source code are for demo by default. After leased

an IP address from DHCP server of Wi-Fi router, mqttapp routing will connect to Ali-Cloud MQTT

server automatically as shown in Figure 4‑11. Please remember, the three-parameters in source

code are for product development and test, do not apply it in your any product. For application

and configuration of Ali-Cloud three-parameters, you can refer to AliOS Things official document.

You can find it in https://github.com/alibaba/AliOS-Things/wiki/stm32-networking.zh.

Type netmgr connect <ssid> <password>

Leased an IP address from DHCP server.
