VirtualDJ 8 –Numark NV

Table of Contents

INSTALLATION.........................................................................................................................3

Firmware & Drivers ................................................................................................................3

VirtualDJ 8 Setup ...................................................................................................................3

Advanced Setup.....................................................................................................................4

A. Front Side - Headphones ...................................................................................................5

B. Rear side - Connections.....................................................................................................6

C. MIXER ...................................................................................................................................6

D. DECK CONTROLS...............................................................................................................9

E. EFFECTS ............................................................................................................................10

F. OTHER CONTROLS & DISPLAY ......................................................................................12

Display..................................................................................................................................14

Pads.........................................................................................................................................16

HotCues mode .....................................................................................................................16

HotCues Loop mode............................................................................................................16

Auto Loop mode...................................................................................................................17

Loop Roll mode....................................................................................................................17

Manual Loop mode ..............................................................................................................18

Saved Loops mode ..............................................................................................................18

Sampler mode......................................................................................................................19

Sampler Velocity mode........................................................................................................20

Slicer mode...........................................................................................................................20

Slicer Hold mode..................................................................................................................21

Inputs & Recording................................................................................................................21

VirtualDJ 8 –Numark NV

INSTALLATION

Firmware & Drivers

Windows & Mac

No drivers are required to be installed and no firmware update is currently available. Numark

NV is a USB Class compliant device, however always check the Numark website for any

updated notifications http://www.numark.com/product/nv

Simply connect the unit’s USB socket with a USB port of your computer, power on and let

your Operating system to install the necessary drivers.

VirtualDJ 8 Setup

Download and install VirtualDJ 8 from

http://www.virtualdj.com/download/index.html

(in case you have not done already)

Once VirtualDJ 8 is launched, a Login Window

will appear. Login with your virtualdj.com

account’s credentials.

A Pro Infinity, a PLUS or a Pro Subscription

License is required to use the Numark NV.

Without any of the above Licenses, the

controller will operate for 10 minutes each time

you restart VirtualDJ.

http://www.virtualdj.com/buy/index.html

A detection window will appear next asking

to use or not the pre-defined audio setup

with the built-in sound card of the NV. You

can still change that from Settings->AUDIO

tab.

2 more detection windows will appear to

verify the proper connection of the 2

available LCD Screens.

Click to OK for both.

The unit is now ready to operate.

VirtualDJ 8 –Numark NV

Advanced Setup

MIDI Operation

The unit should be visible in the

CONTROLLERS tab of Config as 3 devices

(Numark NV for the main unit and 2 more for

the Left and Right LCD Displays) and the

“factory default” available/selected from the

Mappings drop-down list for all 3 of them.

The factory default Mapping offers the

functions described in this Manual, however

those can be adjusted to your needs via VDJ

Script actions.

Find more details at

http://www.virtualdj.com/wiki/VDJscript.html

AUDIO Setup

The unit has a pre-defined Audio setup and

a special button in the AUDIO tab of Config

to provide that.

See also Inputs & Recording.

Please read the manual of the unit for further connections/capabilities.

http://www.numark.com/images/product_downloads/NV_-_User_Guide_-_v1.1.pdf

For further software settings please refer to the User Guides of VirtualDJ 8.

http://www.virtualdj.com/wiki/PDFManuals.html

VirtualDJ 8 –Numark NV

S. SHIFT. Press and hold this button to access secondary functions (in red lettering)

of other controls on the NV.

A. Front Side - Headphones

1. HEADPHONES SOCKET. Connect your 1/4" or 1/8" headphones to this output for

cueing and mix monitoring.

2. HEADPHONES MIX: Turn to mix between Cue and Program in the Headphone

channel. When all the way to the left, only channels routed to Cue will be heard.

When all the way to the right, only the Program mix will be heard.

3. HEADPHONES SPLIT. When this switch is in the ON position, the headphone audio

will be "split" such that all channels sent to Cue are mixed to mono and applied to the

left headphone channel and the Program mix is mixed to mono and applied to the

right channel. When the switch is in the OFF position, Cue and Program audio will be

"blended" together.

4. HEADPHONES VOLUME. Adjusts the volume level of the headphone output.

VirtualDJ 8 –Numark NV

B. Rear side - Connections

5. POWER: Use included power adapter (12 V DC, 2 A, center-positive) to connect NV

to a power outlet. While the power is switched off, plug the cable into NV first, and

then plug the other end into a power outlet. Use the Power Switch to turn the NV on

and off. Turn on the NV after all input devices have been connected and before you

turn on amplifiers. Turn off amplifiers before you turn off the unit

6. CABLE RESTRAINT. You can secure cables to this restraint to help avoid

disconnecting them accidentally.

7. USB. This USB connection sends and receives audio and control information from a

connected computer.

8. LINE INPUT. Connect your audio sources to this stereo input.

9. MIC INPUT. Connect a 1/4" microphone to this input. Microphone controls are

located on the top panel of the NV

10. BOOTH OUTPUT (RCA): Use standard RCA cables to connect this output to a booth

monitoring system. The level of this output is controlled by the Booth knob on the top

panel.

11. MASTER OUTPUT (RCA): Use standard RCA cables to connect this output to a

speaker or amplifier system. The level of this output is controlled by the Master knob

on the top panel.

12. MASTER OUTPUT (XLR): Connect this low-impedance XLR output to a PA system

or powered monitors. The level of this output is controlled with the Master knob on

the top panel.

C. MIXER

13. CROSSFADER. Blends audio between the channels assigned to the left and right

side of the crossfader.

14. FADER START. Turn these switchers to ON to enable Fader Start for the left and/or

right assigned channels/decks. If enabled, the corresponding decks will automatically

start playing if the Crossfader starts moving from the other side towards the side

assigned to these decks (same behavior is applied for the Volume faders).

VirtualDJ 8 –Numark NV

You may also get a Fader Start-Stop behavior (track will stop at the last Cue

position if crossfader moves to the other side or the Volume fader reaches minimum

position) if the FaderStartStop setting is enabled from VirtualDJ Options.

15. CROSSFADER CONTOUR.

Selects the slope of the crossfader

curve. Set the switcher to the left

for a smooth fade (mixing) or to the

right for a sharp cut (scratching).

16. VOLUME. Volume Faders (mixer

channel order is 3-1-2-4 decks).

17. PFL. Press these buttons to send

this channel's pre-fader signal to the

Cue Channel for monitoring. When

engaged, the button will be lit. By

pressing one PFL button at a time,

you will cue that channel alone (and

deactivate PFL monitoring for the

other channels). To cue to multiple

channels simultaneously, press the

PFL buttons for those channels at

the same time.

18. XFADER ASSIGN: Routes the

audio playing on the corresponding

channel to either side of the

crossfader (A or B), or bypasses

the crossfader and sends the audio

directly to the Program Mix (center,

THRU).

19. FILTER. Applies a resonance Filter

on the software decks. Depending

on the FILTER MODE (45) The

Filter knob also offers 2 additional

functions.

On FILTER ROLL Mode, the knob applies a Loop Roll as well. The size of the loop

roll starts from 1/2 beat and ends to 1/16 beat (left or right end position)

On FILTER FX Mode the knob also controls the 1st parameter of the selected effect.

On zero position the effect slider gets value 0%, and at the right/left end positions the

parameter gets value 100%.

20. EQ LOW. Adjusts the low (bass) frequencies of each mixer channel/deck. When

Touch EQ Mode is activated, touching the knob will mute the corresponding

channel's low frequencies (aka "EQ kill").*

21. EQ MID. Adjusts the middle (mid) frequencies of each mixer channel/deck. When

Touch EQ Mode is activated, touching the knob will mute the corresponding

channel's mid frequencies (aka "EQ kill").*

VirtualDJ 8 –Numark NV

22. EQ TREBBLE. Adjusts the high (treble) frequencies of each mixer channel/deck.

When Touch EQ Mode is activated, touching the knob will mute the corresponding

channel's high frequencies (aka "EQ kill").*

*Note: The used/killed frequencies depend on the selected EQ mode. Set the equalizerMode

setting to Kill mode (from Conifg->OPTIONS tab) if you wish to get a complete cut of sound

when knobs are at 0% or touched on EQ Kill mode.

23. GAIN. Adjusts the audio level (gain) of the corresponding channel in the software or

hardware Input. When Touch EQ Mode is activated, touching the knob will mute the

sound of the corresponding mixer channel/deck (MUTE text will be visible on the

Track’s Title/Artist on the GUI)

24. VIDEO CF ASSIGN. These buttons are used to force a specific deck/channel to be

assigned as left or right side of the Video Crossfader. By default decks 1 and 3 are

assigned as left side and decks 2 and 4 as right. All Leds will be Off on default status.

Press A or B for a channel to assign that differently (Led will turn on). Press again to

set back to default status.

25. BEATDIFF BAR. This meter is an aid for matching the CBG of both decks. When the

white center LED is lit, the CBGs of the left and right selected decks are matched.

Otherwise, the meter will tend towards the faster deck. The further from center, the

greater the difference between the two BPMs.

26. AUX/MIC/OFF. When set to MIC or AUX, the audio signal from the Microphone or

Auxiliary Input will be routed directly to the Program Mix and Cue Mix. When set to

OFF, both Inputs are muted from the Output.

27. MIC TONE. Adjust the tone level of the Microphone Input channel.

28. MIC/AUX GAIN. Adjust the gain (input level), of both the Microphone and Auxiliary

Input channels.

29. BOOTH VOLUME. Adjusts the Booth Output Volume (Hardware operation.

Movement will not be visible on the VirtualDJ GUI)

30. MASTER VOLUME : Adjusts the Master Output Volume (Hardware operation but

movement will be visible on the VirtualDJ GUI)

31. MASTER FX A/B : Use these buttons to display and control the Master Effects

(Audio, Video and Video Transition) with the left (A) or/and right (B) Effects side of

the NV (see Effects)

VirtualDJ 8 –Numark NV

D. DECK CONTROLS

32. PLAY. Plays / Pauses the

track. Press and hold

SHIFT and then press this

button to "stutter-play" the

track from the last set Cue

Point.

33. CUE. When the Deck is

paused, you can set a

Cue Point by moving the

Platter to place the Audio

Pointer at the desired

location and then pressing

the Cue Button.

During playback, you can

press the Cue Button to

return the track to this

Cue Point. (If you did not

set a Cue Point, then it

will return to the beginning

of the track.).

If the Deck is paused, you can press and hold the Cue Button to play the track from

the Temporary Cue Point. Releasing the Cue Button will return the track to the

temporary Cue Point and pause it.

To continue playback without returning to the Temporary Cue Point, press and hold

the Cue Button, then press and hold the Play Button, and then release both buttons.

Press and hold SHIFT and then press this button to return to the beginning of the

track.

34. SYNC. Press this button to automatically match the corresponding Deck's tempo

and phase with the opposite Deck's (or the Master Deck’s if using a 4 decks Skin)

tempo and phase. Hold SHIFT down and then press this button to set this deck as

Master Deck (for 4 decks skins).

35. PADS. Offer various operations, depending on the PADs Mode. See Pads.

36. PAD MODES. 10 different PAD Modes are offered (see Pads).

37. PITCH BEND. Press and hold down to temporary speed up/slow down the song

while pressed. When released, the track playback will return to the speed designated

by the Pitch Fader

38. PADS PARAMETER. Offer different functions depending on the selected PADs

Mode. See Pads.

VirtualDJ 8 –Numark NV

39. SCRATCH. Press this button to set the Jogwheel to Vinyl (Scratch) or CD (Bend)

mode. In Vinyl mode, use the outer part of the Jogwheel to bend (temporary speed

up –slow down the tempo of the track).

40. JOG. Touch sensitive jogwheel. Use the jogwheel to scratch (if Vinyl mode is

selected) or pitch bend. The Jogwheel also offers Loop In and Loop Out point

adjustment (see Manual Loop Pads mode)

41. PITCH. Adjust the track's playback speed (tempo). The white LED next to the fader

will light up when the unit’s fader is set at 0%. The Red Up and Down Arrow LEDs

will lit if the pitch position of the unit and the actual pitch of the software do not match,

to indicate the direction you need to move the hardware fader in order to catch the

software one.

42. REVERSE/BLEEP. While this button is held, the playback of the track will be

reversed. When released the track will resume normal playback from where it would

have been if you had never engaged the Bleep function (i.e., as if the track had been

playing forward the whole time).

Hold SHIFT down and then use this button to reverse the playback of the track.

Repeat to resume normal playback from wherever the Audio Pointer stops.

43. SLIP MODE. Press this button to activate the Slip mode. Several software functions

(such as Jogwheel movements, HotCues and Loops) will apply temporary on the

track, and the track will return to the position it would have been when those

functions are not triggered.

44. BEATS ENC. This knob moves forward/backwards the track by 1 beat.

Hold SHIFT down and then use this knob to adjust the Key of the loaded track. Hold

SHIFT and then push the knob to reset the Key of the track to its original value.

45. TOUCH EQ/FX (Left side).

Press this button to enable the FX TOUCH Mode. On this Mode the Touch

Capacitors of the FX knobs trigger the Effects while touched.

Press and hold SHIFT and then this button to enable the EQ/FX TOUCH Mode. Led

will blink to indicate this mode. On this Mode, the Touch Capacitors of the FX knobs

(35) trigger the Effects while touched (same as FX TOUCH Mode), and additionally

the EQ Touch Capacitors will kill the corresponding frequencies while touched.

45. FILTER MODE (Right side). Press this button to enable the FILTER ROLL Mode

(LED lights on). Holding SHIFT down, the button enables the FILTER FX Mode (LED

Flashes). See FILTER (24)

E. EFFECTS

Both Effect units (on the left and right side) offer 3 different modes and control for the

Effects applied on the corresponding deck or Master.

Hold SHIFT down and then press the BEAT (46) button to toggle between the Single FX

and Multi FX effects mode. Use the MASTER FX A and B buttons (31) to assign the left (A)

or right (B) Effect unit to Master FX Effect mode.

Autres manuels pour NV

Table des matières

Autres manuels Numark Matériel de DJ

Numark

Numark Mixtrack Manuel utilisateur

Numark

Numark MIXTRACK NKC4 Manuel utilisateur

Numark

Numark NuVJ Manuel utilisateur

Numark

Numark MIXDECK EXPRESS Manuel utilisateur

Numark

Numark IDJ PRO Manuel utilisateur

Numark

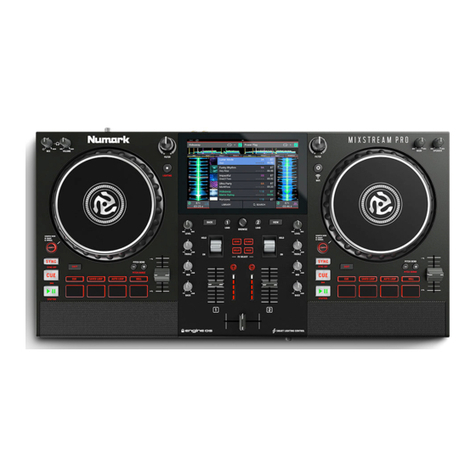

Numark MIXSTREAM PRO Manuel utilisateur

Numark

Numark Mixtrack Quad Manuel utilisateur

Numark

Numark iCDMIX 2 Manuel utilisateur

Numark

Numark Mixtrack Pro Manuel utilisateur

Numark

Numark Party Mix Pro Manuel utilisateur

Numark

Numark MIXDECK EXPRESS BLACK Manuel utilisateur

Numark

Numark MIXTRACK PLATINUM FX Manuel utilisateur

Numark

Numark iDJ Live II Manuel utilisateur

Numark

Numark iM9 Manuel utilisateur

Numark

Numark NS4 FX Manuel utilisateur

Numark

Numark PARTY MIX Manuel utilisateur

Numark

Numark NS4 FX Manuel utilisateur

Numark

Numark DJ2Go2 Manuel utilisateur

Numark

Numark AXIS 9 Manuel de service

Numark

Numark PARTY MIX Manuel utilisateur

Numark

Numark Party Mix Pro Manuel utilisateur

Numark

Numark Mixtrack Quad Manuel utilisateur

Numark

Numark DJ2Go2 Manuel utilisateur

Numark

Numark PARTY MIX LIVE Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
