NTI SPLITMUX Series Manuel utilisateur

SPLITMUX-4K6GB-4LC

HDMI 4x1 Multi-Viewer

Installation and Operating Manual

SPLITMUX®Series

INTRODUCTION

The SPLITMUX-4K6GB-4LC HDMI 4x1 Multi-viewer supports four UHD individual screen segments with seamless

switching. The multi-viewer can display 4 UHD digital video signals on the same screen in a variety of viewing formats with

seamless switching. The multi-viewer can be controlled using a panel button or IR control.

Features



Supports 4 x HDMI input, 1 x HDMI output



Supports 4-channel HDMI signal screen segmentation; Four frames can be displayed using thirteen

different modes



Supports 4-channel seamless HDMI signal switching



Supports Audio Switching



Supports maximum audio sampling rate of 48kHZ



Resolutions up to 4K30Hz YUV4:4:4



Supports IR control and Panel Button Control

Materials Supplied



HDMI 4x1 Multi-viewer



12VDC AC Adapter



Remote Controller



URL Slip with path to this manual



Mounting ears- 1 pair.

FEATURES AND FUNCTIONS

IR Receiver

Power LED light

Input LED light

Audio Switch button

Mode Switch button

HDMI Inputs(1-4)

HDMI Output

DC/12V Power Jack

REMOTE CONTROL

Functions:

1- Power/Standby

2- 4K30/1080PSwitch

3- Outputs 1-4

4- Audio Switch

5- Mute

6-Video Mode Buttons

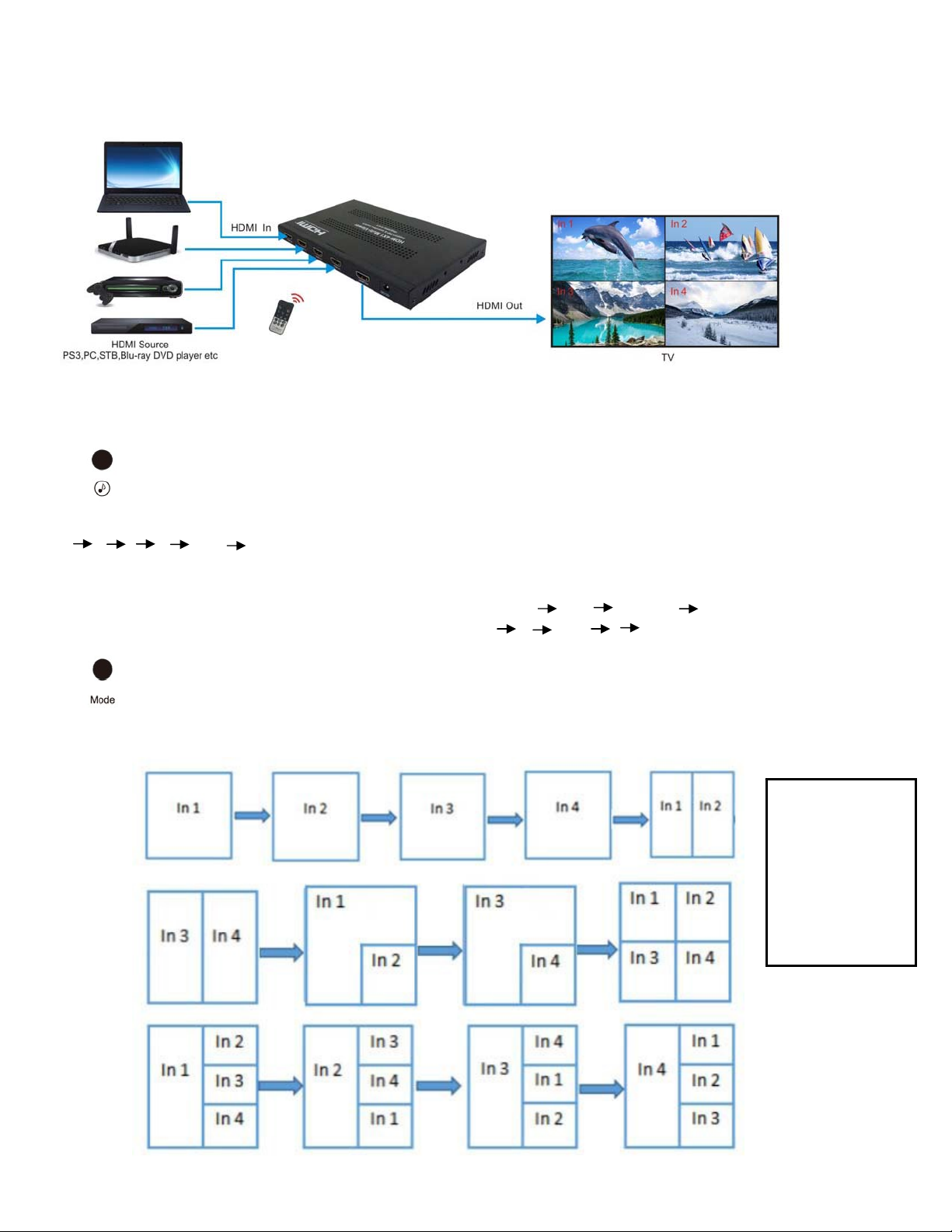

CONNECTIONDIAGRAM

Panel Buttons

---Audiomodeswitching

Press the audio switch button on the front panel and switch between the audio channels as follows:

1 2 3 4 mute 1... ...

Note: The audio will only switch between the channels being displayed.

For example:

If only one channel is displayed, the button will switch Channelx mute Channelx mute

If Channels 3 and 4 are displayed, audio will switch from 3 4 mute 3 4 mute, etc.

---Videomodeswitching

There are 13 different screen segmentation modes supported, switched in the following order :

ote: If the

SPLITMUX is

powered-OFF,

the last mode

selected will be

the mode the

SPLITMUX is in

when powered-

ON again.

SPECIFICATIONS

Operating Temperature Range 0 to 40˚C (32 to 104˚F)

Operating Humidity Range 5 to 90% RH (Non-Condensing)

Bandwidth frequency 6.75Gbps

Input ports 4xHDMI(female)

Output ports 1xHDMI outputs(female)

50Hz 576i; 576P; 720P; 1080i; 1080P

60Hz /59.94Hz 480P; 720P; 1080P

resolution

30/29.97/24/25Hz 720P; 1080P; 4K/3840x2160

Dimensions (WxDxH) (In.) 7.5x4.45x0.67 (190.4x113x17mm)

Power consumption 12VDC, 8W(MAX)

Transmission Distance See Chart on next page for NTI cables that can be used

Net Weight 484g

VESAResolutions

Rate Resolution Supported

640x480 √

800x600 √

1024x768 √

1280x768 √

1280x1024 √

1680x1050 √

1920x1080 √

1280x720 √

1360x768 √

1920x1200 √

60Hz

1280x1024 √

30Hz 3840

2160P √

Use NTI HDMI Cables for Input and Output cables

Available Cables Supported Resolution

1080p@60Hz 3840x2160@30Hz

HD-xx-MM

Where x=3,6,10,15,20, 30 and 50 ft

Up to 50 ft Max. 20 ft-Input

Max. 30 ft- Output

HD-xx-MM (Active)

Where xx- 75 and 100ft

75 & 100 ft on Output

only No

HD-ACT-50-MM Yes Yes

HD-ACT-100-MM Yes 100 ft on Output only

HD4K18GB-FO-100M-MM Yes Yes

WARRANTY INFORMATION

The warranty period on this product (parts and labor) is two (2) years from the date of purchase. Please contact

Network Technologies Inc at (800) 742-8324 (800-RGB-TECH) or (330) 562-7070 or visit our website at

http://www.networktechinc.com for information regarding repairs and/or returns. A return authorization number is

required for all repairs/returns.

MAN360 11/29/19
