Norton BBL547 Manuel utilisateur

OWNERS

MANUAL

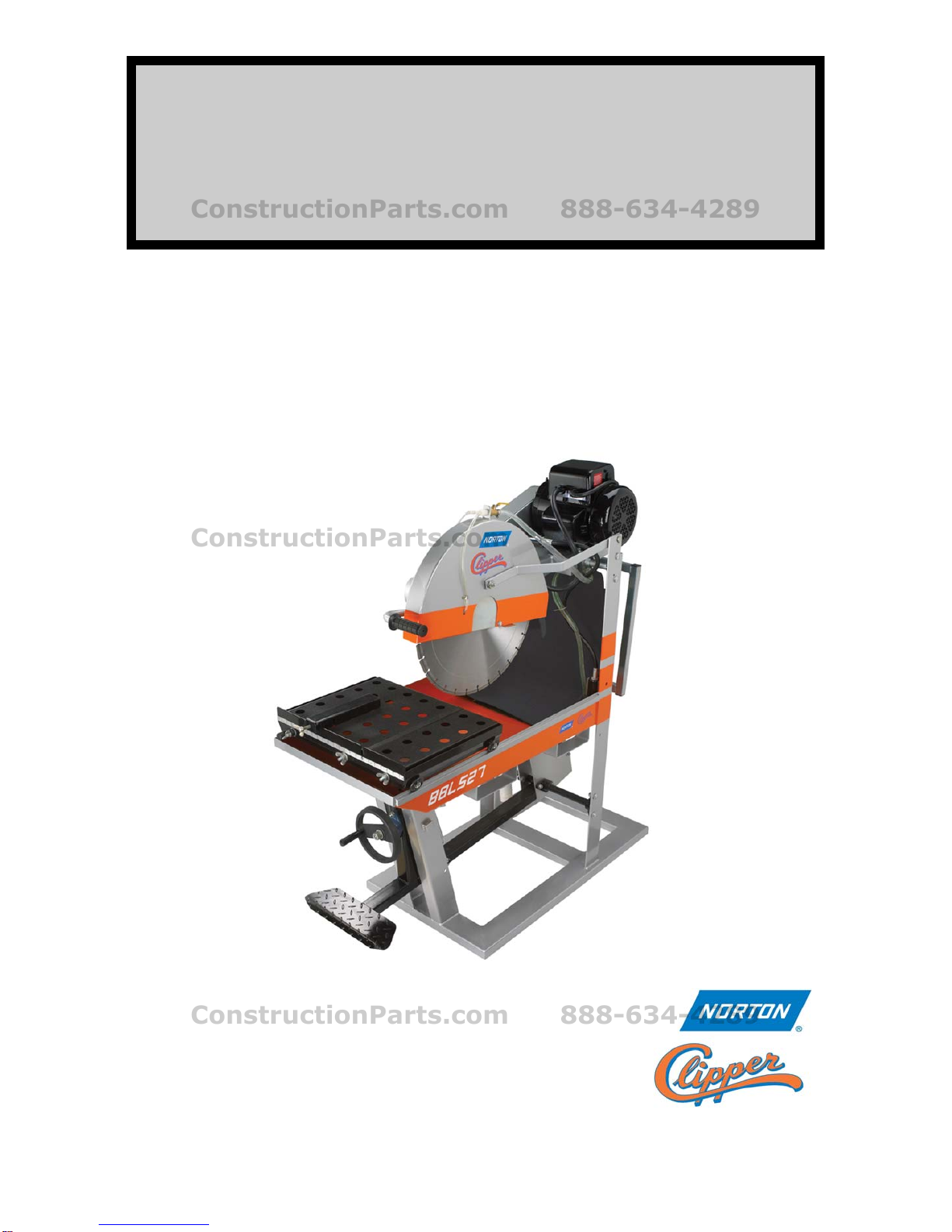

Clipper Masonry Saw

Models:

BBL547 BBL527

BBL5247 BBL7247

BBL1347 BBL1327 BBL13247

<<BBL527-1327 Manual Rev 6-2010

ConstructionParts.com 888-634-4289

ConstructionParts.com

ConstructionParts.com 888-634-4289

V. PARTS LIST SECTION

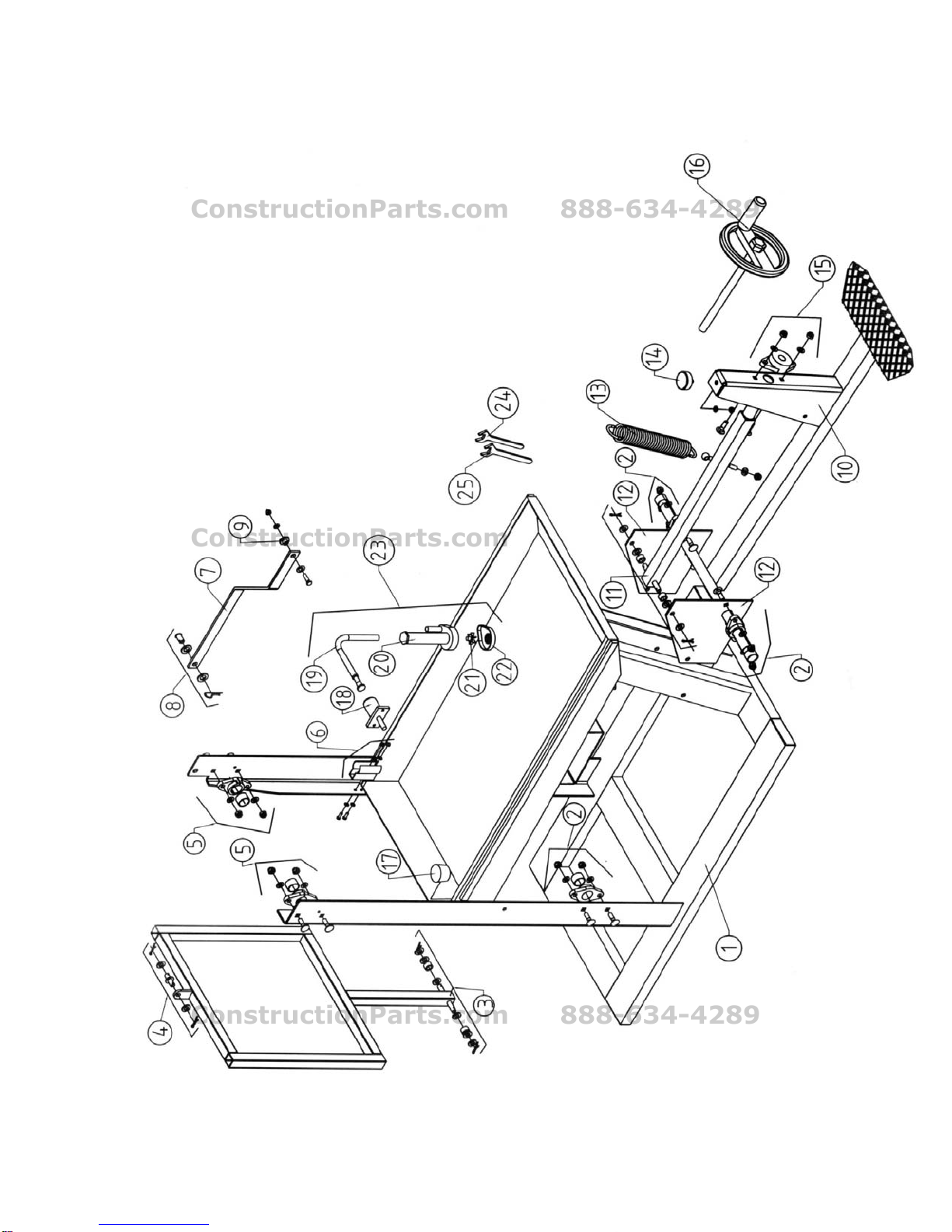

Frame All Models

ConstructionParts.com 888-634-4289

ConstructionParts.com

ConstructionParts.com 888-634-4289

IV. Part List Section

Frame All Models

Item Part Number Description

1 76146 Frame BBL

2 73276 Bearing with bushing

3 83830 Connecting bar

4 76548 Pin kit, connecting bar

5 83728 Split bearing

6 76097 Water pump fixation spring

7 73266 Stay-level arm

8 76039 Kit stay-level arm pin

9 76597 Cam kit, stay-level arm

76545

232195 Foot Pedal 14” & 20” Models Only (400mm High)

Foot Pedal 24” Models Only (362mm High)

11 76549 Adjustment bar kit

12 83861 Pivot plates (set of 2)

13 72467 Spring

14 72351 Rubber stop

15 72475 Bearing, Foot pedal lever

16 83831 Hand wheel

17 76095 Drain plug

18 72297 Drive end complete For water pump

19 72285 Flexible shaft complete For mech. Water pump

20 72284 Body of the pump

21 72862 Propeller water pump

22 72186 Plastic sieve for water pump

23 73279 Water pump complete

24 70807 Wrench 19mm

25 72143 Wrench 22mm

-NA- 75128 Water Curtain

ConstructionParts.com 888-634-4289

ConstructionParts.com

ConstructionParts.com 888-634-4289

IV. Part List Section

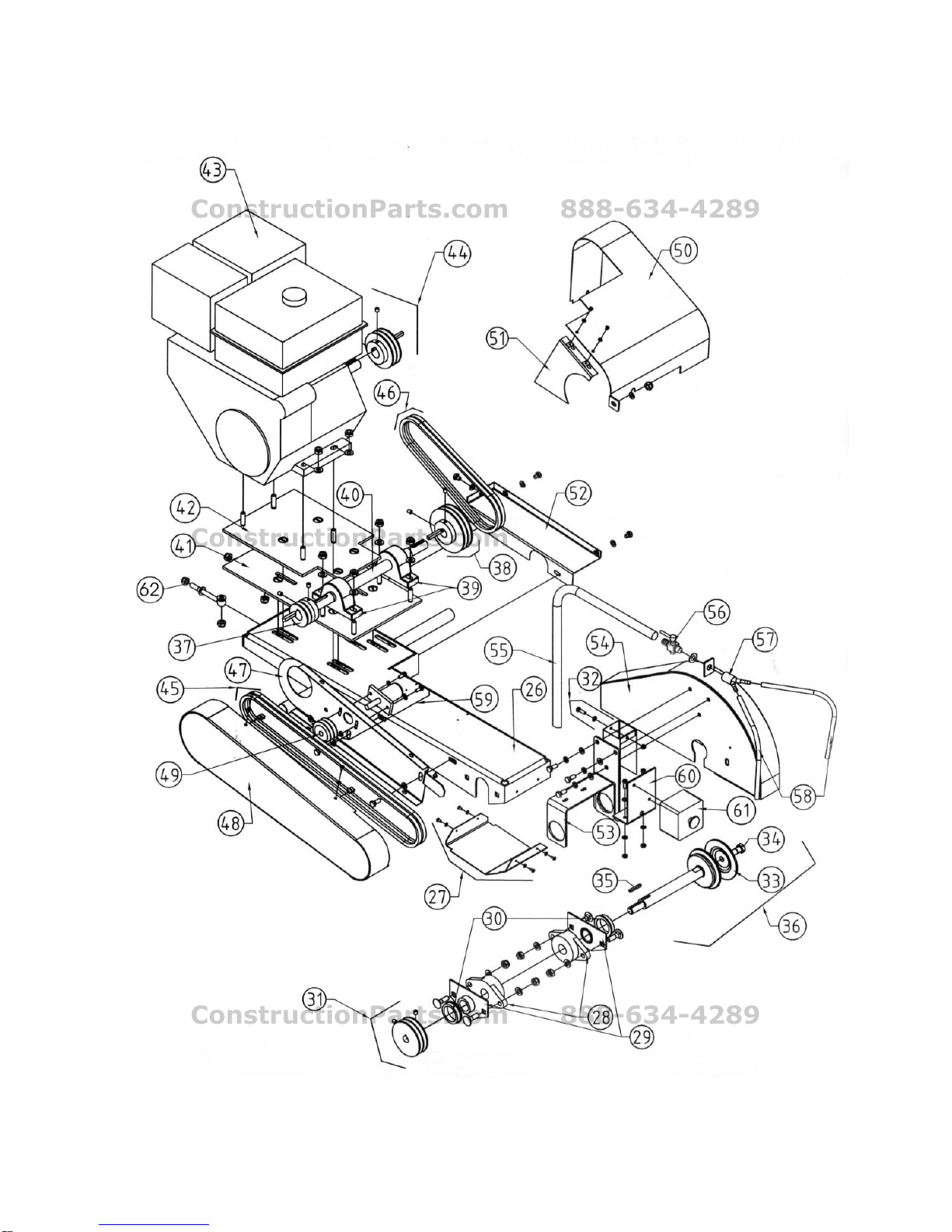

Cutting Head Gasoline Powered Models

ConstructionParts.com 888-634-4289

ConstructionParts.com

ConstructionParts.com 888-634-4289

IV. Part List Section

Cutting Head Gasoline Powered Models

Item Part Number Description

26 76124 Cutting head BBL 20” Models Only

232182 Cutting Head BBL 24" Models Only

27 76111 Protection for bearings and shaft

28 73418 Bearings (set of 2)

29 76060 Support for blade shaft bearing (set of 2)

30 73220 Bushings, bearing - Nylon (set of 2)

31 76557 Blade shaft pulley

32 73221 Splash guard

33 73281 Loose collar

34 73217 Screw for loose collar

35 9201081 Key for blade shaft

36 76556 Blade shaft assembly

37 83859 Jackshaft pulley Output (14" blade guard)

Ø81mm (3.188”) x 24mm Bore 2 Groove

76570 Jackshaft pulley Output (20" blade guard)

Ø58mm (2.283”) x 24mm Bore 2 Groove

38 76833 Jackshaft pulley Input (All Gasoline Powered Units)

Ø112mm (4.409”) x 22mm (0.866”) Bore 2 Groove

39 70599 Bearing

40 83832 Jackshaft BBL

41 83833 Jackshaft fixation plate

42 83834 Motor fixation plate

43 83835 Honda motor GX390

44 83836 Motor pulley Ø90mm (3.54”) x 1” Bore

45 83837 Belts XPZ 1250 LW (set of 2) for 14" blade guard

83472 Belts XPZ 1212 LW (set of 2) for 20" blade guard

46 83838 Belts XPZ 780 LW (set of 2)

47 83839 Support plate for belt guard 20” Gas Powered Only

232184 Support plate for belt guard 24” Gas Powered Only

48 83840 Belt guard 20” Gas Powered Only

49 76552 Water pump pulley

50 83841 Guard for the jackshaft

51 83842 Jackshaft protection plate

52 83843 Guard support plate

53 76113 Leveling support

54 76037 Blade guard 14"

76126 Blade guard 20"

232178 Blade guard 24”

55 72411 Water hose

56 72357 Water tap

57 72286 Y distributor

ConstructionParts.com 888-634-4289

ConstructionParts.com

ConstructionParts.com 888-634-4289

Item Part Number Description

58 80568 Spray nozzle (set of 2)

59 75280 Water pump fixing screw

60 83746 Switch support

61 83745 Emergency stop switch

62 76015 Eyebolt With Hardware (1)

ConstructionParts.com 888-634-4289

ConstructionParts.com

ConstructionParts.com 888-634-4289

IV. Part List Section

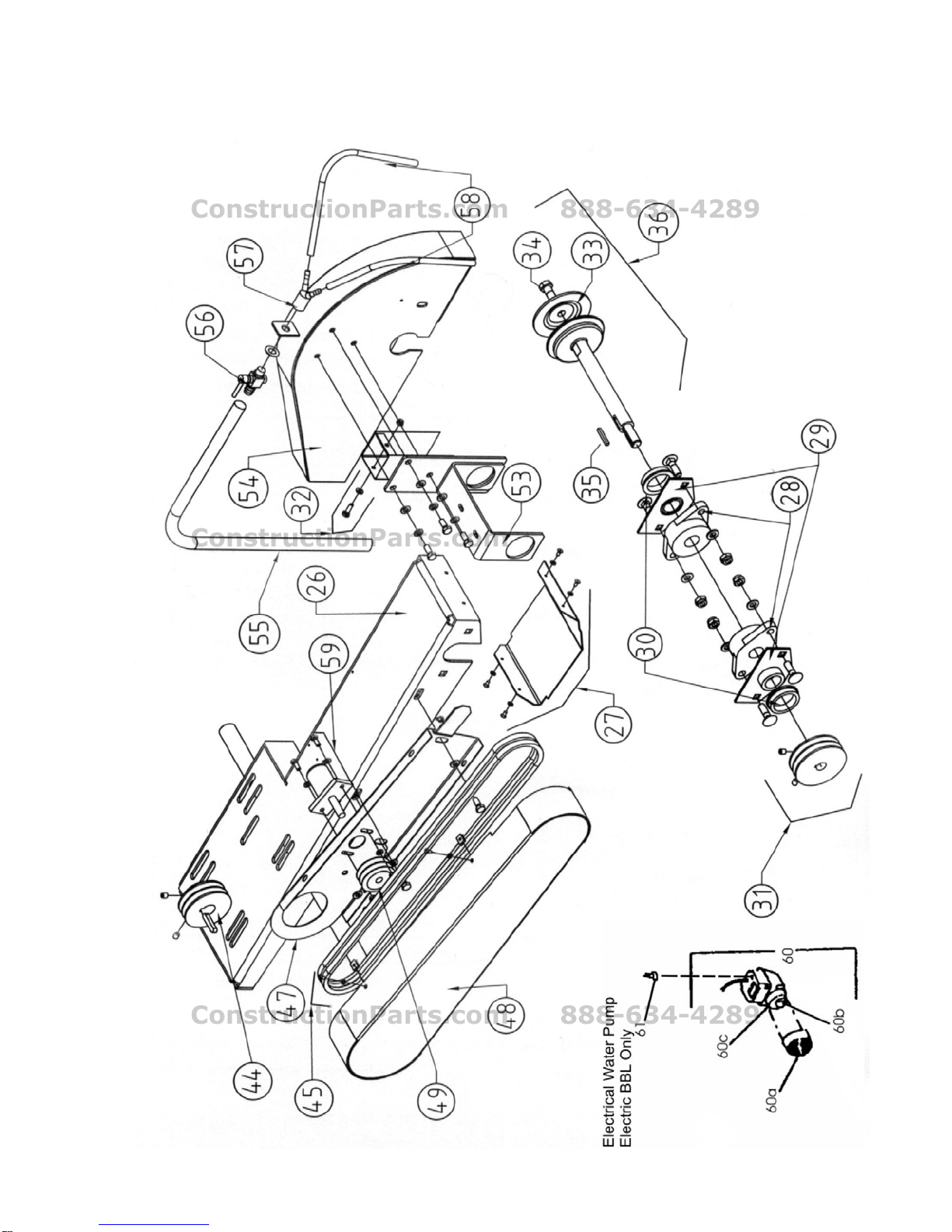

Cutting Head Electric Models

ConstructionParts.com 888-634-4289

ConstructionParts.com

ConstructionParts.com 888-634-4289

IV. Part List Section

Cutting Head Electric Models

Item Part Number Description

26 76124 Cutting head BBL 20” Models Only

232182 Cutting Head BBL 24" Models Only

27 76111 Protection for bearings and shaft

28 73418 Bearings (set of 2)

29 76060 Support for blade shaft bearing (set of 2)

30 73220 Bushings, bearing - Nylon (set of 2)

31 76557 Blade shaft pulley Ø89mm (3.50”) x 17mm (0.67”) Bore

32 73221 Splash guard

33 73281 Loose collar

34 73217 Screw for loose collar

35 9201081 Key for blade shaft

36 76556 Blade shaft assembly

44 83859 Motor pulley for 14" blade guard Ø82mm (3.23”) x 7/8 Bore 2G

83860 Motor pulley for 20" blade guard Ø62mm (2.44”) x 7/8” Bore 2G

232186 Motor pulley for 24” blade guard Ø50mm x 7/8” mm Bore 2G

45 73282 Belts XPZ 1480 LW (set of 2) for 20" blade guard

72926

Belts XPZ 1500 LW (set of 1) for 14" blade guard

NOTE: Order Two (2) of 72926 for a complete set.

232179 Belts XPZ 1850 LW (set of 2) for 24" blade guard

47 73298 Support plate for belt guard

232180 Support plate for belt guard 24” Electric Only

48 76129 Belt guard 14” & 20” Electric Only

232181 Belt guard 24” Electric Only

49 76552 Water pump pulley for Mechanical Pumps Only

53 76113 Leveling support

54 76037 Blade guard 14"

76126 Blade guard 20"

232178 Blade guard 24”

55 72411 Water hose

56 72357 Water tap

57 72286 Y distributor

58 80568 Spray nozzle (set of 2)

59 75280 Water pump fixing screw – Mechanical Water Pump Only

60 214169 Water Pump PE1 – Electric Powered Units Only

60a 155775 Screen Water Pump PE1

60b 155774 Impeller Water Pump PE1

60c 101375 Volute Water Pump PE1

61 9602010 Fitting Barb Hose ¼” FPT X ½ MALE BARB

ConstructionParts.com 888-634-4289

ConstructionParts.com

ConstructionParts.com 888-634-4289

IV. Part List Section

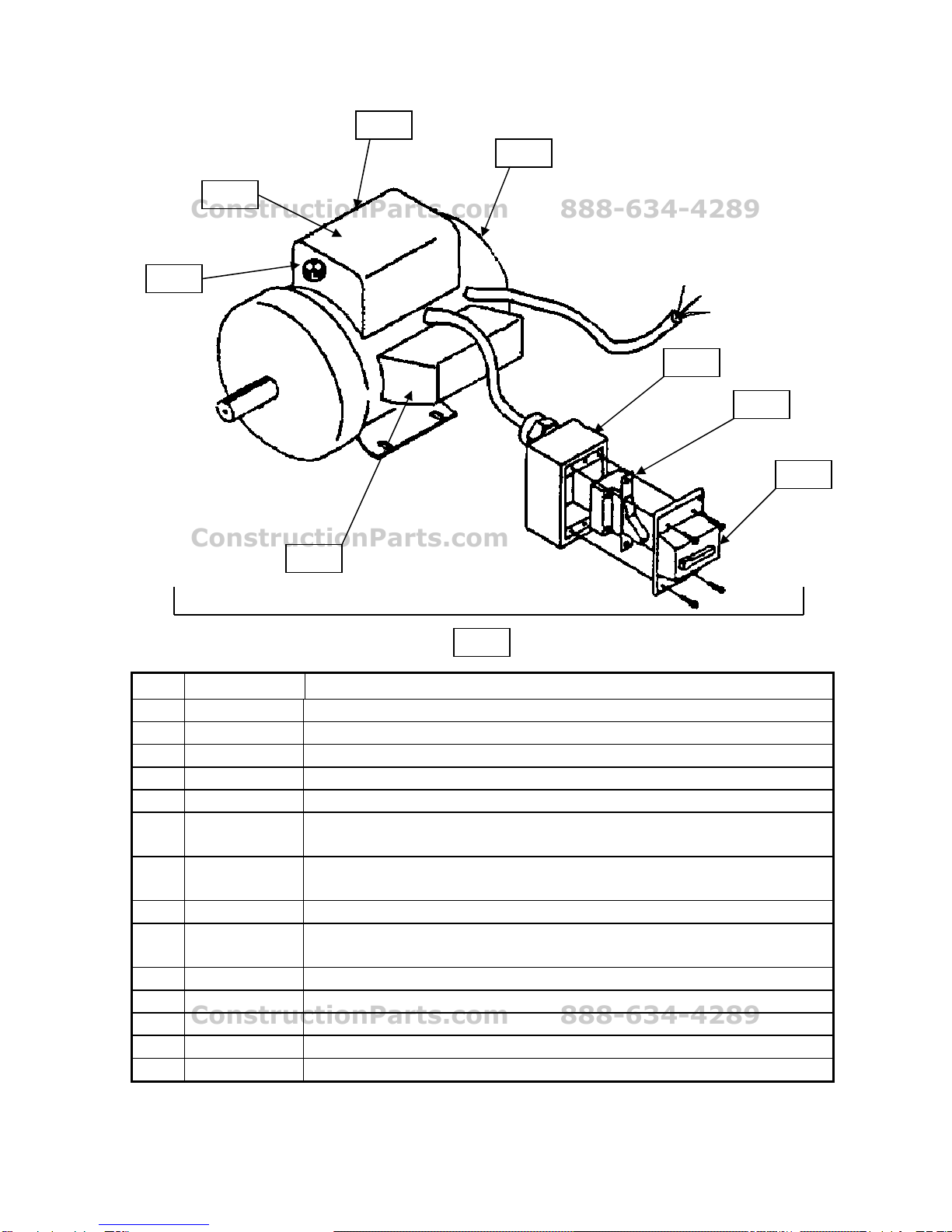

Electric Motor

Item Part Number Description

62 232088 Motor Assembly w/Switch 5HP 230v/60/1 Phase

232099 Motor Assembly w/Switch 5HP 230-460v/60/3 Phase

232100 Motor Assembly w/Switch 7-1/2HP 230-460v/60/3 Phase

63 232092 Receptacle

64 232090 Terminal Box Large

-NA- 232091 Capacitor Start EC1145C06

NOTE: Located Inside Of Large Terminal Box On Top Of Motor

-NA- 232095 Thermal Protector (Reset) 5HP 230/60/1 TPBRJ35DB

NOTE: Located On The Back of The Large Terminal Box

65 232093 Fan Cover

-NA- 232094 Fan

NOTE: Located Inside Of Fan Cover

66 231037 Switch Box Rear

67 232096 Switch On/Off

68 231089 Switch Box Cover

69 232097 Capacitor Box Small

-NA- 232098 Capacitor Run OC3030F11

ConstructionParts.com 888-634-4289

ConstructionParts.com

ConstructionParts.com 888-634-4289

IV. Part List Section

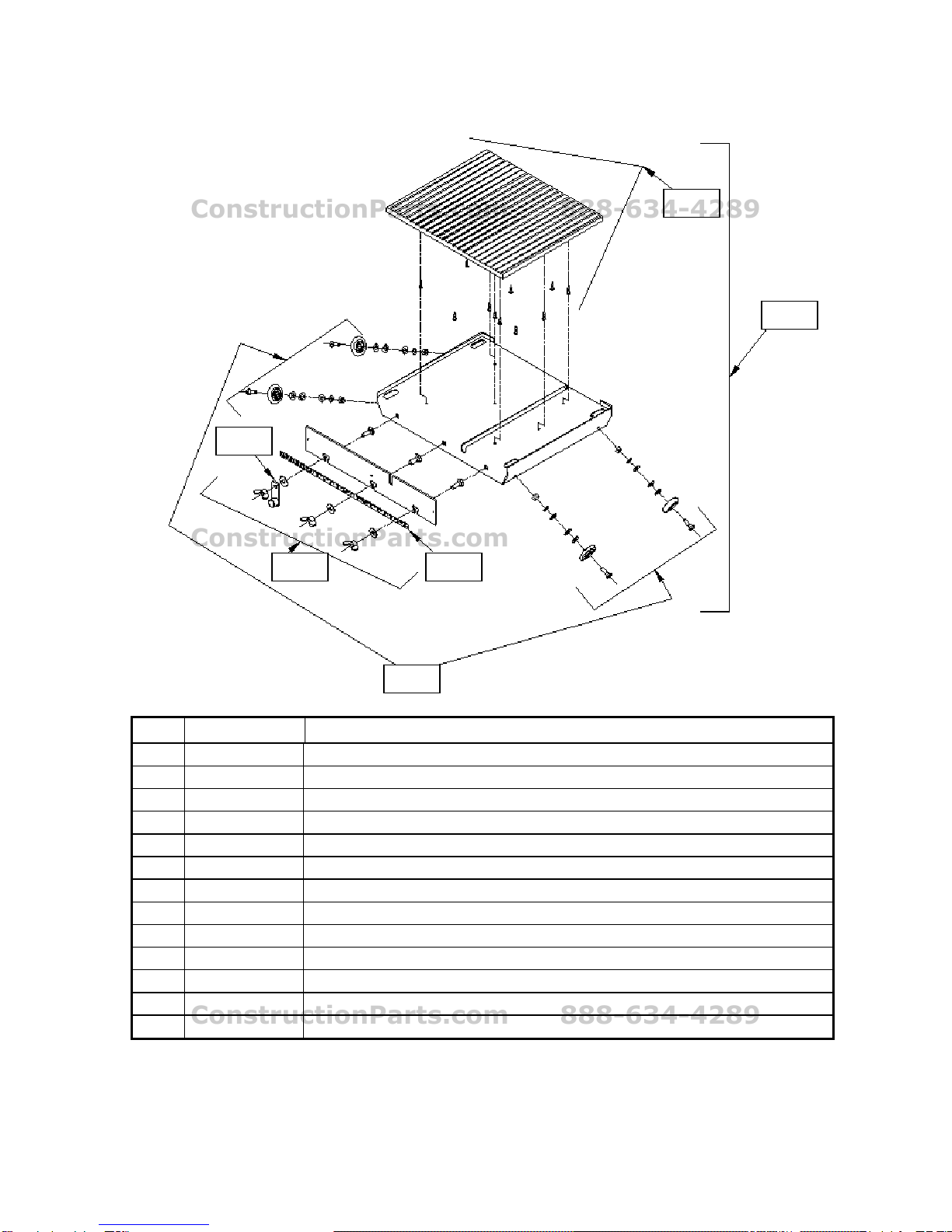

Cutting Table (Common All BBL)

Item Part Number Description

70 83777 Conveyor cart complete

71 75333 Wheel Kit, Conveyor Cart (Set Of 4) w/Hardware

27282 Carriage Bolt M10 x 30 DIN 603 (sold each, 3 required)

27508 Washer 10.5 DIN 9021 (sold each, 3 required)

27040 Wing Nut M10 DIN 315 (sold each, 3 required)

72 83895 Backstop

73 76147 Scale Kit

74 82856 Stop Assembly for Conveyor Cart (Complete)

-NA- Rubber Stop Part of 82856

27003 Nut M6 DIN 439

27539 Washer M6 DIN 125

75 83907 Top For Cutting Table (Wood & Rubber) w/Hardware

30373 Screw 4x 12mm DIN 7976 (sold each, 11 required)

ConstructionParts.com 888-634-4289

ConstructionParts.com

ConstructionParts.com 888-634-4289
