Quick Reference for the
Versalar Switch Router 15000
Carrier Networking Services V15K_2.0.0.0
The BCC is case-sensitive. Enter all commands using lowercase letters.
To recall any command from the history list, press the up arrow (or Control-p) or down
arrow (or Control-n).
To display online Help, enter the help commands after either the bcc> prompt (indicating
operations mode) or the box# prompt (indicating configuration mode), as Table 1 shows.
Configuring the Versalar 15000
When you enter configuration commands, they immediately modify the configuration.
The Versalar™15000 uses a hierarchical tree configuration model similar to the DOS
hierarchy of directories and files. The configuration tree for the Versalar 15000 contains:
•Objects:An Ethernet interface or a protocol is an object (a physical or logical entity
you can configure).
•Parameters:Characteristics of an object; slot and connector are parameters of the
object mct3. Parameters have values; for example, slot 4 is a parameter-value pair.
Starting at the root level, you build a BCC™configuration by adding objects to the tree.
Every object occupies a specific level, or context, within the tree. Figure 1 shows the BCC
commands you enter to create a sample portion of the tree.
Figure 1. Using BCC Commands to Create a Configuration
Table 1. Displaying BCC Help
Task Command
List the online Help features. help
List all system commands. help commands
List all system commands with terse descriptions. help commands -more
Display help for a specific command. help
<command>
2 302771-E Rev 00
Quick Reference for the Versalar Switch Router 15000
The mct3 object stands for multichannel T3.(Figure 1 does not show the configurable
objects under the ppp object.)
The following example shows how to configure these services:
box# ethernet slot 9 connector 1
ethernet/9/1# ip 11.23.13.14/8
ip/11.23.13.14/255.0.0.0# rip
rip/11.23.13.14# box
box# mct3 slot 1 connector 1
mct3/1/1# t3
t3/1/1# ppp
ppp/1/1#
The BCC creates a unique identifier for each object that you add to the tree. The ID
consists typically of the object name plus any parameter values required for configuration,
such as in the example above, ethernet/9/1.Theslash(/) characters are part of the ID.
When the BCC is in configuration mode, you can go to any configured object by entering
its unique ID after any prompt, regardless of your current position in the configuration
tree. For example, enter ip/11.23.13.14/255.0.0.0 to go to the IP interface configured on
ethernet/9/1.
As you navigate between levels of the tree, the BCC prompt changes to show the unique
ID of the object configured at your current location. (Refer to the previous configuration
example to see how the prompt changes.)
The lso command displays the unique identifiers of branch objects configured
immediately below your current location in the tree. If you do not know the unique ID of
an object, enter lso -r after the box# prompt to display the configuration object IDs
recursively.
When you add IP to an interface, the BCC accepts the subnet mask value in either
dotted-decimal notation (for example, 255.255.255.0) or in standard decimal notation (for
example, 24, representing the number of contiguous bits reserved for the network portion
of the IP interface address). For example, enter any of the following commands to create
an object with the unique ID ip/11.23.13.14/255.0.0.0:
ip address 11.23.13.14 mask 255.0.0.0
ip address 11.23.13.14 mask 8
ip 11.23.13.14/255.0.0.0
ip 11.23.13.14/8
When you use BCC to create a configuration, the BCC prompts you for parameter values
that it cannot automatically assign. To change a parameter value, you enter the name of the
parameter, a space, and the new value.
Table 2 shows each help configuration task, the associated command, and examples.
302771-E Rev 00 3
Configuring the Versalar 15000
Table 3 shows how to enter configuration mode, display your current context and the
contexts of other objects, and change your current context.
Table 4 shows each basic configuration task, the associated command, and examples.
Table 2. Displaying Configuration Help
Task Command Examples
Display Help for an object or parameter. help
<item>
help snmp
help bofl
Show all objects configurable from your current location in the tree. help tree help tree
Show the entire tree of configurable objects. help tree -all help tree -all
List the names of all objects, parameters, and commands thatyou can enter at
this level. (The BCC immediately displays output upon detecting the ?character,
which it does not display.)
??
Show the configuration syntax and list the parameters of an object that you can
configure from your current location in the tree.
<object>
?ip?
Display the supported values for this parameter of the current object.
<parameter>
? bofl ?
List the values assigned to parameters of the current object. info info
Table 3. Navigating the Configuration Tree
Task Command Examples
Enter configuration mode from the system prompt. config config
Show the full context, starting from the root level. pwc pwc
Show objects configured at thenext (branch) level. lso lso
Show objects configured at all branch levels descending from the
current object, and the paths to those objects. If at the box# prompt,
show all objects in the configuration and the paths to those objects.
lso -r lso -r
List only the configured objects that match the specified pattern. lso [-r |
<pattern>
]lso *o*
lso “ip/1.2.?.?/*”
Show the total device configuration in BCC syntax. show config [-all]show config -all
Go back one level. back back
Return to the root level of the router configuration. box box
Go to a configured object from any location in the tree.
<unique_id>
bgp
ethernet/9/1
ip/1.2.3.4/255.0.0.0
4 302771-E Rev 00
Quick Reference for the Versalar Switch Router 15000
Configuration Tree
The following figures show the complete hierarchy of objects that you can configure on a
Versalar 15000:
•Miscellaneous Configuration Objects (Figure 2)
•Ethernet Configuration Objects (Figure 3)
•Global IP Configuration Objects (Figure 4)
•Global BGP Configuration Objects (Figure 5)
•Global OSPF Configuration Objects (Figure 6)
•Global Multicast Configuration Objects (Figure 7)
•Global RIP Configuration Objects (Figure 8)
•ATM Configuration Objects (Figure 9)
•MCOC3 Configuration Objects (Figure 10)
•MCT3 Configuration Objects (Figure 11)
Table 4. Entering Configuration Commands
Task Command Examples
Configure a
physical
interface.
Go to the box# prompt, and enter either of the following:
<interface_type>
slot
<slot>
connector
<connector>
<interface_type> <slot>
/
<connector>
mct3 slot 2 connector 1
mc 3/1
Configure a
protocol with
default
values.
<protocol> <required_parameter> <value> ...
ip address 1.2.3.4 mask 255.0.0.0
ip 1.2.3.4/255.0.0.0
ip address 1.2.3.4 mask 8
ip 1.2.3.4/8
Modify
parameter
values.
<parameter> <new_value> ...
cache-size 64
Disable,
enable, or
delete the
current object.
{disable |enable |delete}disable
enable
delete
Disable
enable, or
delete an
object
anywhere in
the
configuration
tree.
{disable |enable |delete}
<object_id>
disable t1/3/4/15
enable t1/3/4/15
delete t1/3/4/15
Save the total
device
configuration
toafileonthe
default
volume.
show config -all -file
<filename>
show config -all -file regular.cfg
302771-E Rev 00 5
Configuration Tree
•STM1 Configuration Objects (Figure 12)
•PPP Configuration Objects (Figure 13)
•Frame Relay Objects in an MCOC3 Configuration (Figure 14)
•Frame Relay Objects in an MCT3 Configuration (Figure 15)
•Frame Relay Objects in an STM1/E1 Configuration (Figure 16)

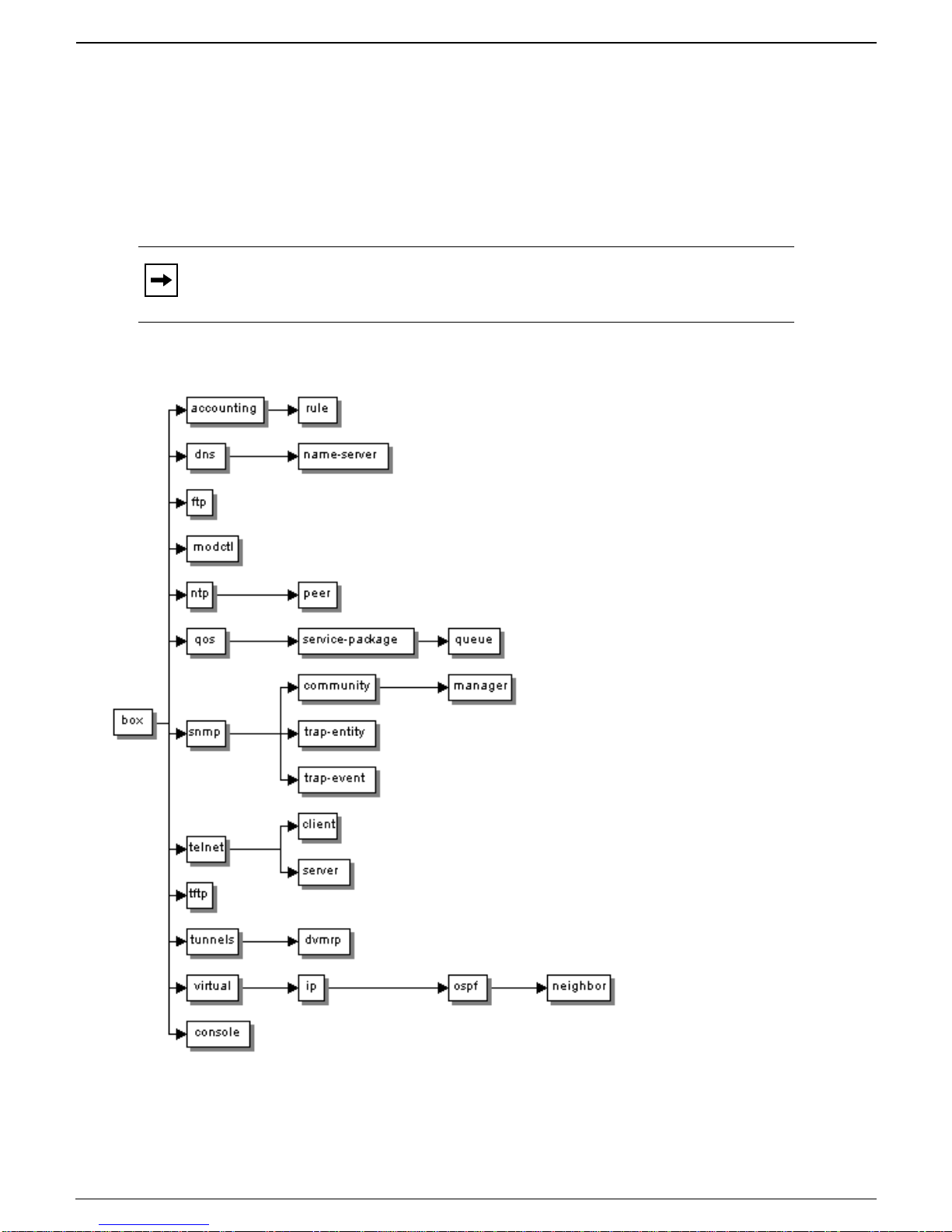

Figure 2. Miscellaneous Configuration Objects
Note: To fit all the objects on a single page, some figures show the objects from left to
right while other figures show them from top to bottom.
6 302771-E Rev 00
Quick Reference for the Versalar Switch Router 15000
Figure 3. Ethernet Configuration Objects
Figure 4. Global IP Configuration Objects
302771-E Rev 00 7
Configuration Tree
Figure 5. Global BGP Configuration Objects
8 302771-E Rev 00
Quick Reference for the Versalar Switch Router 15000
Figure 6. Global OSPF Configuration Objects
302771-E Rev 00 9
Configuration Tree
Figure 7. Global Multicast Configuration Objects
10 302771-E Rev 00
Quick Reference for the Versalar Switch Router 15000

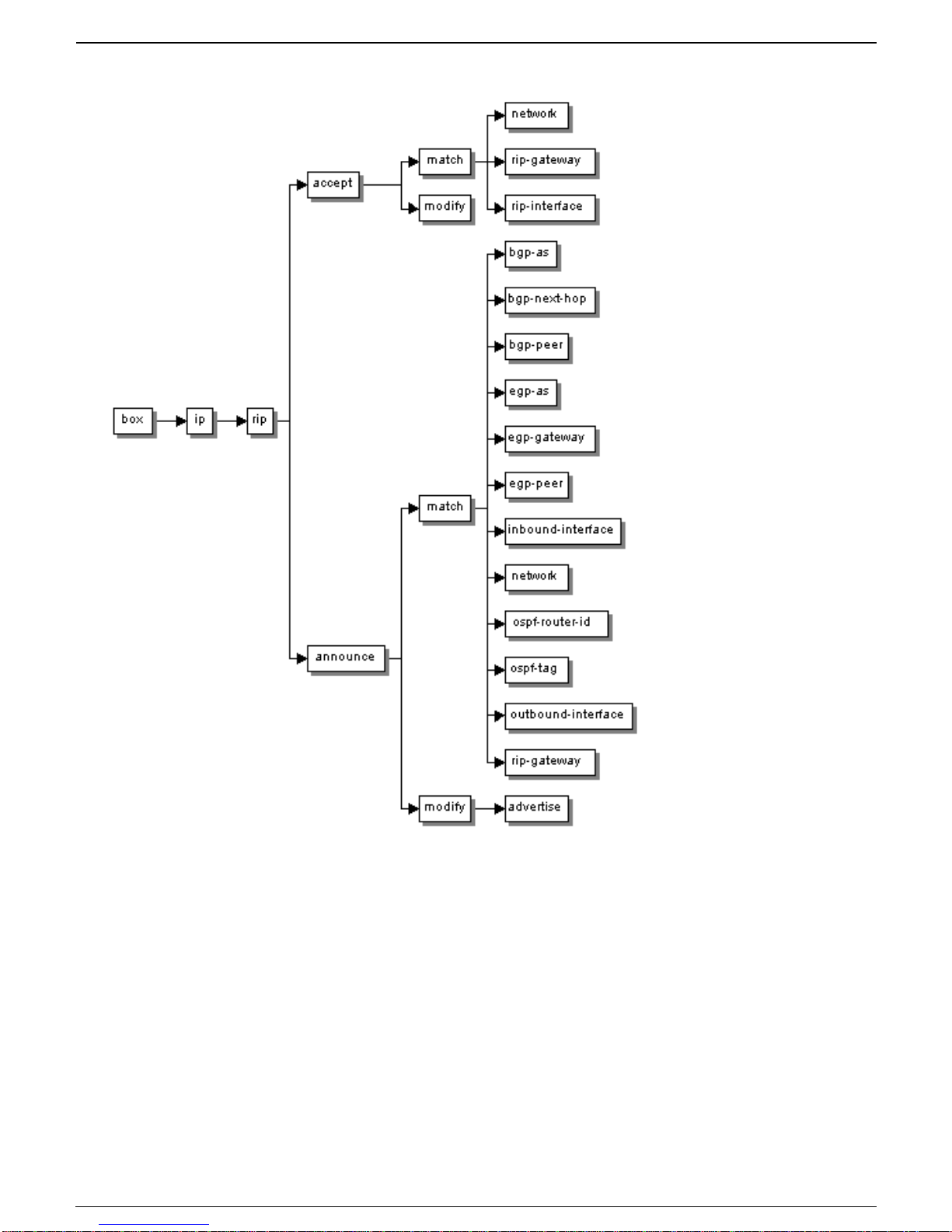

Figure 8. Global RIP Configuration Objects
