USER'S MANUAL

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

Serial Number Decal

Model No. NTTL09992

Serial No.

Find the serial number in the location

shown below. Write the serial number

in the space above for reference.

Visit our website at

www.nordictrack.com

new products, prizes,

fitness tips, and much more!

QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete

customer satisfaction. If you

have questions, or if there are

missing parts, we will guarantee

complete satisfaction through di-

rect assistance from our factory.

TO AVOID UNNECESSARY DE-

LAYS, PLEASE CALL DIRECT TO

OUR TOLL-FREE CUSTOMER

HOT LINE. The trained techni-

cians on our Customer Hot Line

will provide immediate assis-

tance, free of charge to you.

CUSTOMER HOT LINE:

1-888-825-2588

Mon.ÐFri., 6 a.m.Ð6 p.m. MST

Patent Pending

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

TROUBLE-SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

Note: An EXPLODED DRAWING is attached in the center of this manual.

1. It is the responsibility of the owner to ensure

that all users of this treadmill are adequately

informed of all warnings and precautions.

2. Use the treadmill only as described in this

manual.

3. Place the treadmill on a level surface, with at

least eight feet of clearance behind it. Do not

place the treadmill on any surface that blocks

air openings. To protect the floor or carpet

from damage, place a mat under the treadmill.

4. Keep the treadmill indoors, away from mois-

ture and dust. Do not put the treadmill in a

garage or covered patio, or near water.

5. Do not operate the treadmill where aerosol

products are used or where oxygen is being

administered.

6. Keep children under the age of 12 and pets

away from the treadmill at all times.

7. The treadmill should not be used by persons

weighing more than 250 pounds.

8. Never allow more than one person on the

treadmill at a time.

9. Wear appropriate exercise clothing when

using the treadmill. Do not wear loose cloth-

ing that could become caught in the treadmill.

Athletic support clothes are recommended for

both men and women. Always wear athletic

shoes. Never use the treadmill with bare feet,

wearing only stockings, or in sandals.

10. When connecting the power cord (see page 8),

plug the power cord into a surge protector (not

included) and plug the surge protector into a

grounded circuit capable of carrying 15 or

more amps. No other appliance should be on

the same circuit. Do not use an extension cord.

11. Use only a UL-listed surge protector, rated at

15 amps, with a 14-gauge cord of five feet or

less in length. Do not use an extension cord.

12. Keep the power cord and the surge protector

away from heated surfaces.

13. Never move the walking belt while the power

is turned off. Do not operate the treadmill if

the power cord or plug is damaged, or if the

treadmill is not working properly. (See

BEFORE YOU BEGIN on page 5 if the tread-

mill is not working properly.)

14. Never start the treadmill while you are stand-

ing on the walking belt. Always hold the

handrails while using the treadmill.

15. The treadmill is capable of high speeds.

Adjust the speed in small increments to avoid

sudden jumps in speed.

16. The pulse sensor is not a medical device.

Various factors, including the user's move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

17. Never leave the treadmill unattended while it

is running. Always remove the key, unplug

the power cord and move the on/off switch to

the off position when the treadmill is not in

use. (See the drawing on page 5 for the loca-

tion of the on/off switch.)

18. Do not attempt to raise, lower, or move the

treadmill until it is properly assembled. (See

ASSEMBLY on page 6, and HOW TO FOLD

AND MOVE THE TREADMILL on page 22.) You

must be able to safely lift 45 pounds (20 kg) in

order to raise, lower, or move the treadmill.

19. Do not change the incline of the treadmill by

placing objects under the treadmill.

20. When folding or moving the treadmill, make

sure that the storage latch is fully closed.

WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the

following important precautions and information before operating the treadmill.

IMPORTANT PRECAUTIONS

21. When using iFit.com CDÕs and videos, an

electronic ÒchirpingÓ sound will alert you

when the speed and/or incline of the treadmill

is about to change. Always listen for the

ÒchirpÓ and be prepared for speed and/or in-

cline changes. In some instances, the speed

and/or incline may change before the per-

sonal trainer describes the change.

22. When using iFit.com CDÕs and videos, you

can manually override the speed and incline

settings at any time by pressing the speed

and incline buttons. However, when the next

ÒchirpÓ is heard, the speed and/or incline will

change to the next settings of the CD or video

program.

23. Always remove iFit.com CDÕs and videos from

your CD player or VCR when you are not

using them.

24. Inspect and tighten all parts of the treadmill

regularly.

25. Never insert or drop any object into any

opening.

26. DANGER: Always unplug the power

cord immediately after use, before cleaning

the treadmill, and before performing the main-

tenance and adjustment procedures de-

scribed in this manual. Never remove the

motor hood unless instructed to do so by an

authorized service representative. Servicing

other than the procedures in this manual

should be performed by an authorized service

representative only.

27. This treadmill is intended for in-home use

only. Do not use this treadmill in any commer-

cial, rental, or institutional setting.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. ICON assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

SAVE THESE INSTRUCTIONS

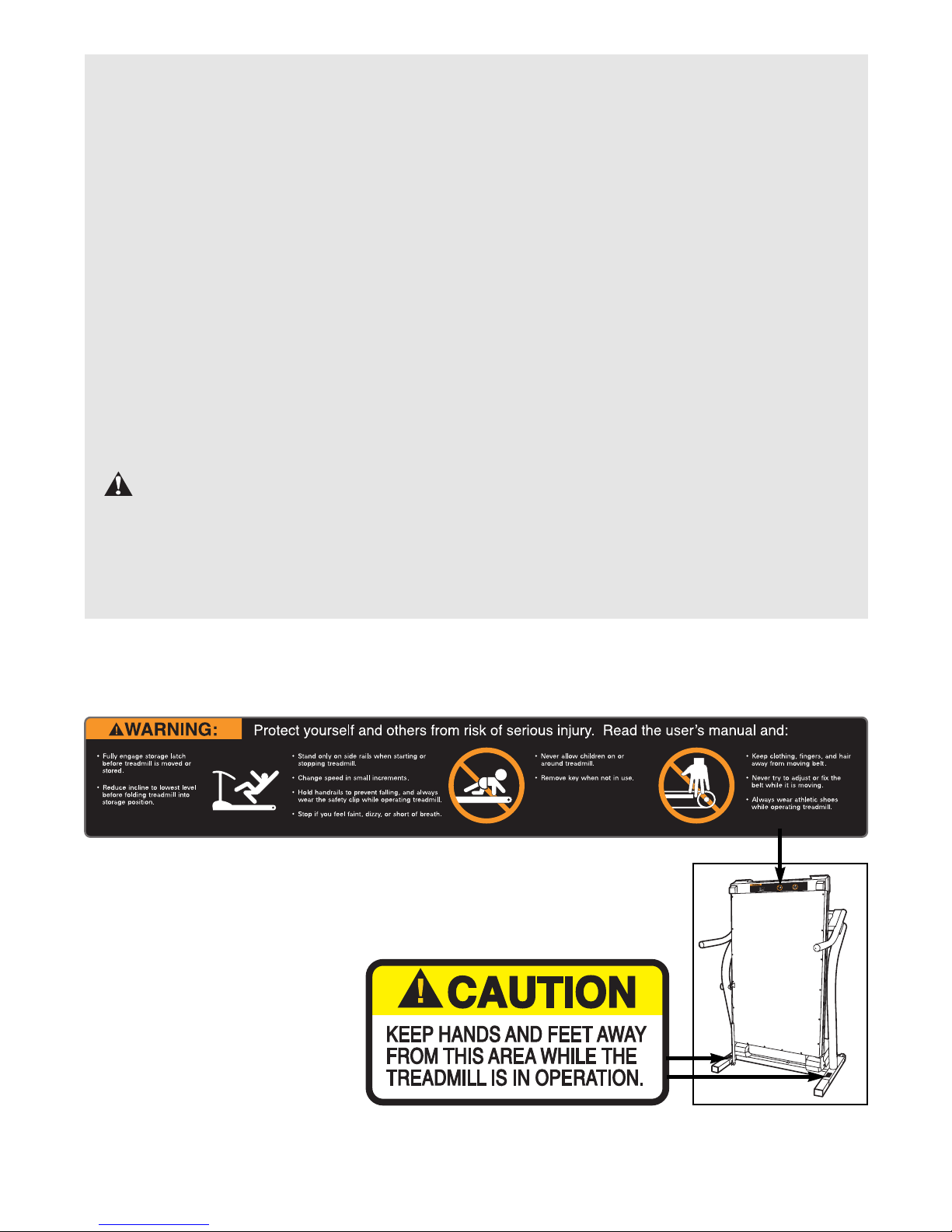

The decals shown below have been placed on your treadmill. If the decal is missing or illegible, please

call our Customer Service Department, toll-free, to order a free replacement decal (see ORDERING RE-

PLACEMENT PARTS on page 27). Apply the decal in the location shown.

Note: This decal is shown at 38% of actual size.

Thank you for selecting the revolutionary NordicTrack¨

EXP1000 treadmill. The EXP1000 treadmill combines

advanced technology with innovative design to help

you get the most from your exercise program in the

convenience of your home. And when youÕre not exer-

cising, the unique EXP1000 can be folded up, requiring

less than half the floor space of other treadmills.

For your benefit, read this manual carefully before

using the treadmill. If you have additional questions,

please call our Customer Service Department toll-free

at 1-888-825-2588, Monday through Friday, 6 a.m.

until 6 p.m. Mountain Time (excluding holidays). To

help us assist you, please note the product model

number and serial number before calling. The model

number of the treadmill is NTTL09992. The serial num-

ber can be found on a decal attached to the treadmill

(see the front cover of this manual for the location).

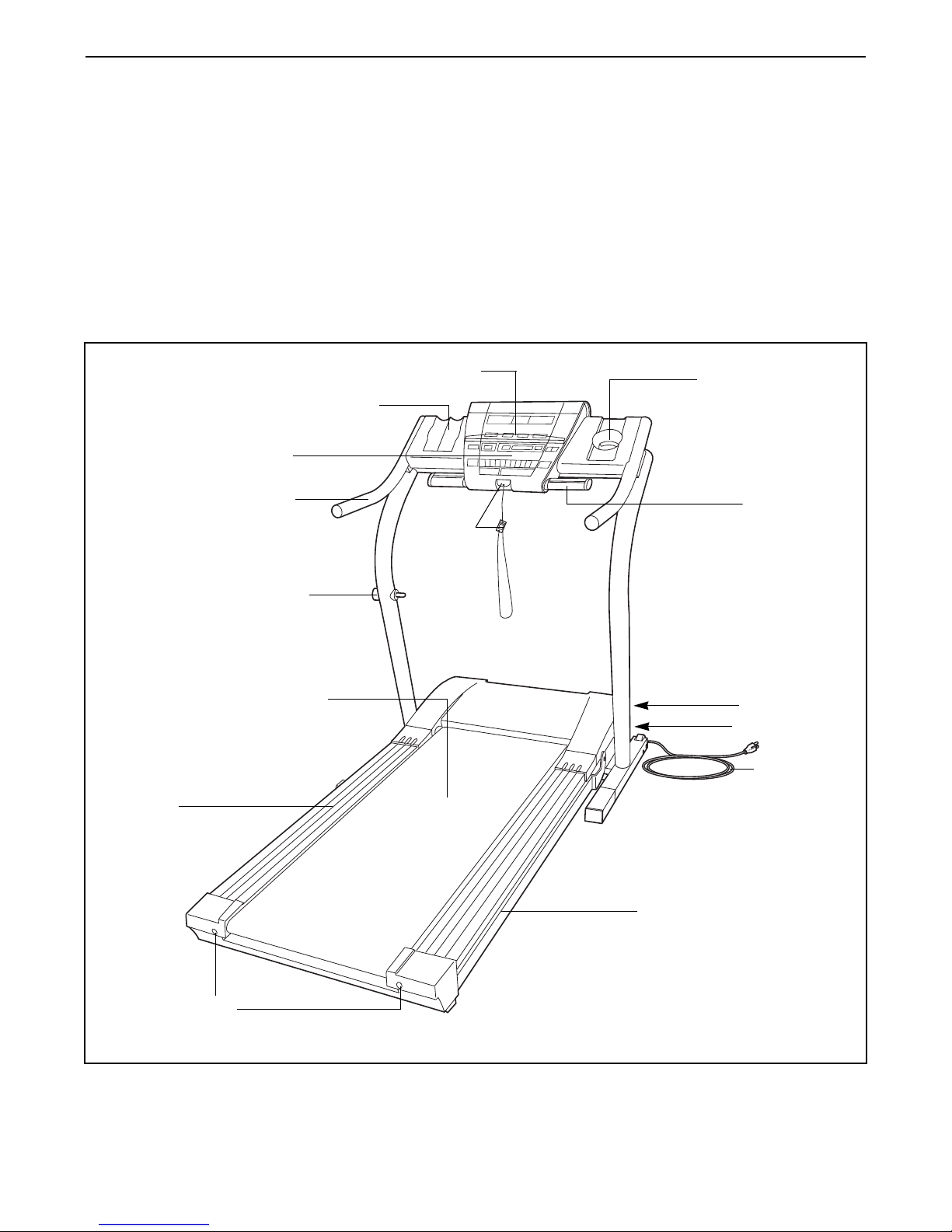

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

BEFORE YOU BEGIN

Handrail

Console

Hand Weight Holder*

Lock Knob

Book Holder

Key/Clip

Circuit Breaker

On/Off Switch

Walking Belt

Cushioned Walking Platform

Foot Rail

Power Cord

Rear Roller

Adjustment Bolts

Water Bottle Holder

Pulse Sensor

RIGHT SIDE

LEFT SIDE

*For information about optional hand

weights, see page 21.

No water bottle is included.

ASSEMBLY

Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not

dispose of the packing materials until assembly is completed. Assembly requires the included allen wrench

and your own phillips screwdriver and wire cutters .

Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a

small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal

condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off

the lubricant with a soft cloth and a mild, non-abrasive cleaner.

1. With the help of a second person, carefully raise the

treadmill to the upright position.

While a second person tips the treadmill to one side

and holds it, insert one of the Extension Legs (102) into

the treadmill as shown. Make sure that the Extension

Leg is turned so the Base Pad (99) is on the bottom.

Next, tip the treadmill to the other side and insert the

other Extension Leg (not shown) in the same way. Lower

the side of the treadmill so that both Extension Legs

(102) are resting flat on the floor.

With the help of a second person, carefully lower the

treadmill frame.

Frame

102

2. Press the Lock Knob Sleeve (70) into the left Upright (69).

Make sure that the Lock Pin Collar (72) and the Spring

(71) are on the Lock Pin. Insert the Lock Pin into the Lock

Knob Sleeve (70) and the left Upright (69). Next, press

the Lock Knob Spacer (117) onto the left Upright. Tighten

the Lock Knob (68) onto the Lock Pin. 69

117

3. With the help of a second person, carefully tip the

Uprights (69) down as shown. Make sure that the

Extension Legs (102) remain in the Uprights.

Attach each Extension Leg (102) with two Screws (80) as

shown.

With the help of a second person, carefully tip the

Uprights (69) back to the vertical position.

Note: One replacement Base Pad (99) may be included.

Use the Base Pad to replace any Base Pad that becomes

worn. 80

102

7. Make sure that all parts are tightened before you use the treadmill. Note: If there is a thin sheet of clear

plastic on the hood decal or the ÒComforTrackÓ decal, remove it. Keep the included allen wrench in a secure

place. The allen wrench is used to adjust the walking belt (see page 24). To protect the floor or carpet from

damage, place a mat under the treadmill.

5. Insert two Handrail Bushings (75) into the right Upright

(69). Turn the Handrail Bushings so they fit against the

Upright with the thick sides of the Bushings facing the

center of the treadmill as shown in the inset drawing.

Insert two Handrail Bolts (78) with Handrail Washers

(77) into the Handrail Bushings (75), the right Upright

(69), and the right Handrail Spacer (65). Lift up the right

Handrail (66) to align the Bolts with the holes in the

Handrail. Next, thread the Bolts into the Handrail (66).

Do not tighten the Bolts yet.

Attach the left Handrail (not shown) in the same way.

Tighten all four Handrail Bolts (78).

Thick

Side

6. Look at the Endcap (58). If the left or right foot on the

Endcap does not touch the floor, the included thick

base pads should be attached to the treadmill as de-

scribed below.

Refer to assembly step 3. Lower the treadmill frame

and the Uprights (69) as shown. If the left foot of the

Endcap (58) was off the ground, remove the two Base

Pads (99) from the right Upright (69). Attach the in-

cluded thick base pads to the Upright. If the right side

of the Endcap was off the ground, attach the thick base

pads to the left Upright.

Note: If either side of the Endcap (58) lifts off the floor

when the treadmill is used, attach the thick base pads

as described.

Right

Foot

Left

Foot

4. Place one of the Handrail Spacers (65) on the right

Upright (69) as shown, with the cutout turned toward the

treadmill (see inset drawing A). Pull the Upright Wire

Harness (98) up through the Handrail Spacer. Place the

other Handrail Spacer on the left Upright (not shown).

Have a second person hold the Handrails (66) near the

Uprights (69) as shown. Connect the Upright Wire

Harness (98) to the wires extending from the right

Handrail. Insert the connectors and the Wire Harness

(98) into the hole in the Console Base (81) (see inset

drawing B).

Be careful not to pinch the Wire Harness (98) as you set

the Handrails (66) on the Spacers (65).

98 69

Cutout

OPERATION AND ADJUSTMENT

THE PERFORMANT LUBETM WALKING BELT

Your treadmill features a walking belt coated with

PERFORMANT LUBETM, a high-performance lubricant.

IMPORTANT: Never apply silicone spray or other

substances to the walking belt or the walking plat-

form. They will deteriorate the walking belt and

cause excessive wear.

HOW TO PLUG IN THE POWER CORD

Your treadmill, like any other type of sophisticated

electronic equipment, can be seriously damaged by

sudden voltage changes in your homeÕs power.

Voltage surges, spikes, and noise interference can re-

sult from weather conditions or from other appliances

being turned on or off.

To decrease the pos-

sibility of your tread-

mill being damaged,

always use a surge

protector (not in-

cluded) with your

treadmill.

Surge protectors are

sold at most hardware

stores and department

stores. Use only a UL-

listed surge protector,

rated at 15 amps, with a

14-gauge cord of five

feet or less in length.

This product must be

grounded. If it should

malfunction or break

down, grounding pro-

vides a path of least re-

sistance for electric cur-

rent to reduce the risk of

electric shock. This product is equipped with a cord

having an equipment-grounding conductor and a

grounding plug. Plug the power cord into a surge

protector, and plug the surge protector into an ap-

propriate outlet that is properly installed and

grounded in accordance with all local codes and

ordinances. Important: The treadmill is not com-

patible with GFCI-equipped outlets.

This product is for use on a nominal 120-volt circuit,

and has a grounding plug that looks like the plug illus-

trated in drawing 1 below. A temporary adapter that

looks like the adapter illustrated in drawing 2 may be

used to connect the surge protector to a 2-pole recep-

tacle as shown in drawing 2 if a properly grounded out-

let is not available.

The temporary adapter should be used only until a

properly grounded outlet (drawing 1) can be installed

by a qualified electrician.

The green-colored rigid ear, lug, or the like extending

from the adapter must be connected to a permanent

ground such as a properly grounded outlet box cover.

Whenever the adapter is used it must be held in place

by a metal screw. Some 2-pole receptacle outlet box

covers are not grounded. Contact a qualified elec-

trician to determine if the outlet box cover is

grounded before using an adapter.

DANGER: Improper connection

of the equipment-grounding conductor can

result in an increased risk of electric shock.

Check with a qualified electrician or service-

man if you are in doubt as to whether the

product is properly grounded. Do not modify

the plug provided with the productÑif it will

not fit the outlet, have a proper outlet in-

stalled by a qualified electrician.

Grounded Outlet Box

Grounding Plug

Treadmill Power Cord

Grounding Plug

Grounding Pin

Surge Protector

Grounding Pin

Adapter

Lug

Metal Screw

Grounded Outlet

FEATURES OF THE CONSOLE

The advanced console offers an impressive array of

features to help you get the most from your exercise.

When the console is in the manual mode, the speed

and incline of the treadmill can be changed with a touch

of a button. As you exercise, the console will provide

continuous exercise feedback. You can even measure

your heart rate using the built-in pulse sensor.

Three preset workout programs are also offered. Each

program automatically controls the speed and incline

of the treadmill to give you an effective workout. You

can even create your own custom workout programs

and store them in memory for future use.

The console also features new iFit.com interactive tech-

nology. IFit.com technology is like having a personal

trainer right in your home. Using the included audio

cable, you can connect the treadmill to your home

stereo, portable stereo, or computer and play special

iFit.com CD programs (CDÕs are available separately).

IFit.com CD programs automatically control the speed

and incline of the treadmill as a personal trainer guides

you through every step of your workout. High-energy

music provides added motivation. Each CD features

two programs designed by certified personal trainers.

In addition, you can connect the treadmill to your VCR

and TV and play iFit.com video programs (videocas-

settes are available separately). Video programs offer

the same benefits as iFit.com CD programs, but add

the excitement of working out with a class and an

instructorÑthe hottest new trend at health clubs.

With the treadmill connected to your computer, you

can also go to our new internet site at www.iFit.com

and access basic programs, audio programs, and

video programs directly from the internet. And by

adding an optional upgrade module to the treadmill,

you can use virtually endless features from our internet

site. See www.iFit.com for complete details.

To purchase iFit.com CDÕs or videocassettes or an

optional upgrade module, call toll-free 1-800-735-0768.

See page 21 for information about other accessories

that will help you get even more from your exercise.

To use the manual mode of the console, follow the

steps beginning on page 11. To use a preset program,

see page 12. To create and use a custom program,

see pages 14 and 15. To use an iFit.com CD or

video program, refer to page 18. To use an iFit.com

program directly from our internet site, see page 20.

Program

Display

Pulse

Sensor

Pulse

Sensor

Clip

Key

Note: If there is a thin sheet

of clear plastic on the face

of the console, remove it.

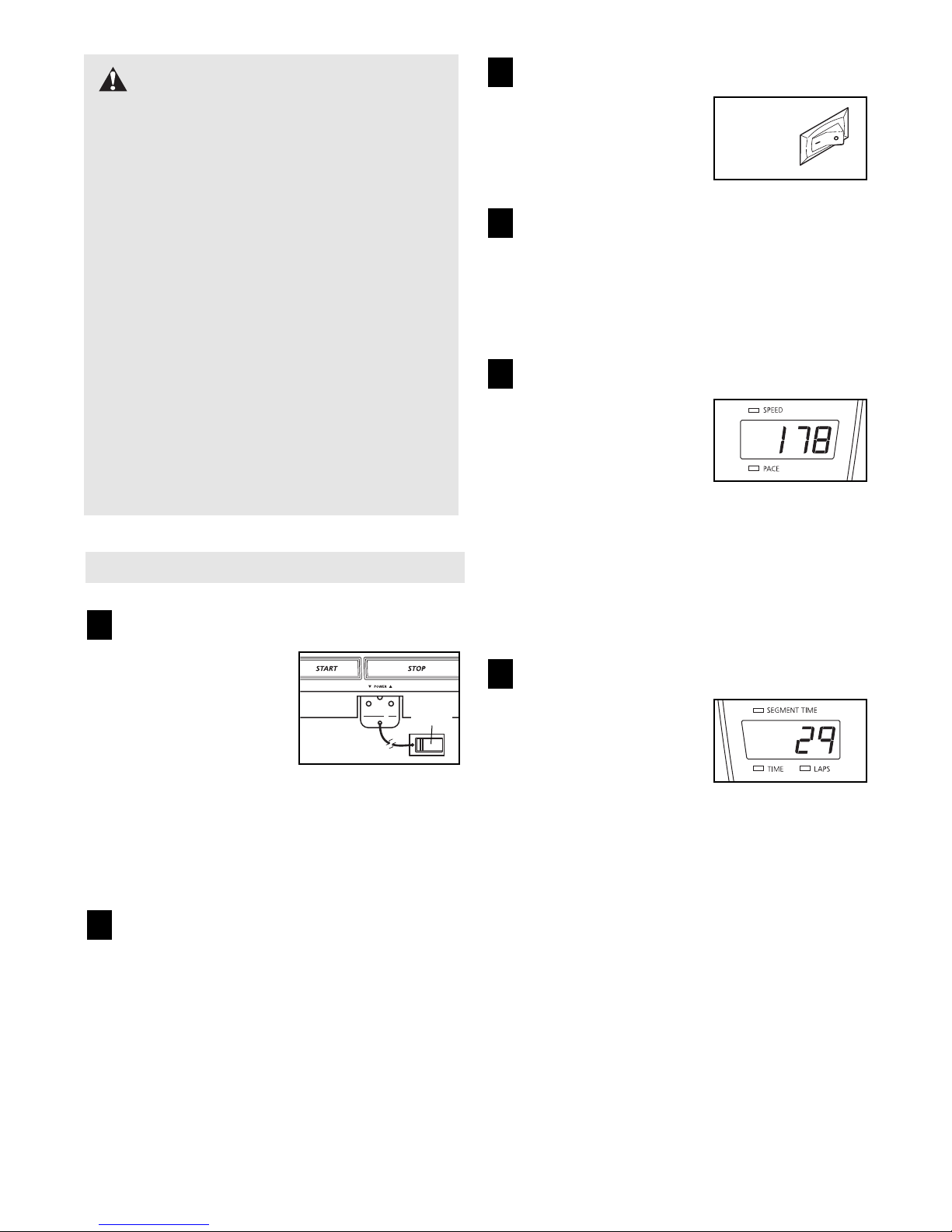

GETTING STARTED

Attach the clip to the waistband of your clothes.

Stand on the foot rails

of the treadmill. Find

the clip attached to the

key and slide the clip

onto the waistband of

your clothes. Next, in-

sert the key into the

console. Test the clip

by carefully taking a few steps backward until

the key is pulled from the console. If the key is

not pulled from the console, adjust the posi-

tion of the clip as needed. Then, remove the key

from the console.

Plug in the power cord.

See HOW TO PLUG IN THE POWER CORD on

page 8.

Move the on/off switch to the on position.

Locate the on/off switch

on the treadmill near the

power cord. Move the

on/off switch to the on

position.

Insert the key fully into the console.

Stand on the foot rails of the treadmill. Make sure

that the clip is securely attached to the waistband

of your clothes. Next, insert the key into the con-

sole. After a moment, various displays and indica-

tors on the console will light.

Enter your weight.

Although you can use

the console without

entering your weight, the

console will display your

calorie expenditure more

accurately if you enter

your weight. To enter your weight, press either of

the Enter Weight buttons. The current weight set-

ting will appear in the Speed/Pace display. Press

the Enter Weight buttons again to enter your

weight. Four seconds after the buttons are

pressed, the weight setting will disappear from the

display. Your weight will then be saved in memory.

Enter your age, if necessary.

Although you can use

the console without en-

tering your age, some

features on our internet

site may require you to

enter your age (see

page 20). To enter your age, press either of the

Enter Age buttons. The current age setting will

appear in the Time/Laps display. Press the Enter

Age buttons again to enter your age. Four sec-

onds after the buttons are pressed, the age setting

will disappear from the display. Your age will then

be saved in memory.

CAUTION: Before operating the

console, read the following precautions.

¥ Do not stand on the walking belt when turn-

ing on the power.

¥ Always wear the clip (see the drawing below)

while operating the treadmill.

¥ Adjust the speed in small increments to

avoid sudden jumps in speed.

¥ The pulse sensor is not a medical device.

Various factors, including the userÕs move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

¥ To reduce the possibility of electric shock,

keep the console dry. Avoid spilling liquids

on the console and place only a sealed water

bottle in the water bottle holder.

Position

Clip

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels NordicTrack tapis roulant

NordicTrack

NordicTrack C3000 Treadmill Manuel d'utilisation et d'entretien

NordicTrack

NordicTrack NTL16950 Manuel utilisateur

NordicTrack

NordicTrack ViewPoint NTL14905.2 Manuel utilisateur

NordicTrack

NordicTrack C2250 Treadmill Manuel utilisateur

NordicTrack

NordicTrack T16.0 Treadmill Guide de démarrage rapide

NordicTrack

NordicTrack 27 Xi Treadmill Manuel utilisateur

NordicTrack

NordicTrack T18.0 Treadmill Manuel d'utilisation et d'entretien

NordicTrack

NordicTrack 831.25044.0 Manuel utilisateur

NordicTrack

NordicTrack C 1800i NTL99030 Manuel utilisateur

NordicTrack

NordicTrack WalkFit Classic Manuel utilisateur

NordicTrack

NordicTrack CTL8250 Manuel utilisateur

NordicTrack

NordicTrack C4000 Treadmill Manuel d'utilisation et d'entretien

NordicTrack

NordicTrack T12 Si Cwl Treadmill Manuel du système

NordicTrack

NordicTrack NTTL24080 Manuel utilisateur

NordicTrack

NordicTrack COMMERCIAL X 22 i Manuel utilisateur

NordicTrack

NordicTrack NTL99520-INT.1 Manuel utilisateur

NordicTrack

NordicTrack NTL08009.1 Manuel utilisateur

NordicTrack

NordicTrack NTTL09710 Manuel utilisateur

NordicTrack

NordicTrack A2105 Treadmill Manuel utilisateur

NordicTrack

NordicTrack C900 24959.0 Manuel utilisateur

NordicTrack

NordicTrack T 9.2 Treadmill Manuel utilisateur

NordicTrack

NordicTrack T14vt Treadmill Manuel utilisateur

NordicTrack

NordicTrack C 22520 Manuel utilisateur

NordicTrack

NordicTrack E 3700 Treadmill Manuel utilisateur

Manuels tapis roulant populaires d'autres marques

Treadly

Treadly TREADLY 2 Manuel utilisateur

HEALTH ONE

HEALTH ONE Walk Ro Manuel utilisateur

Gold's Gym

Gold's Gym ADVANTAGE GGTL12920 Manuel utilisateur

Merax

Merax MS282992 Manuel utilisateur

FYTTER

FYTTER RU-2SX Manuel utilisateur

Precor

Precor 903 Manuel utilisateur

FitLogic

FitLogic freewill d225 Manuel utilisateur

HOP-SPORT

HOP-SPORT ESTIMA HS-3200LB Manuel utilisateur

Horizon Fitness

Horizon Fitness Adventure 5 Plus Manuel utilisateur

Stamia

Stamia InMotion II Manuel utilisateur

Smooth Fitness

Smooth Fitness EVO 3i Manuel utilisateur

Schwinn

Schwinn 830/Journey 8.0 Manuel utilisateur

Keys Fitness

Keys Fitness HealthTrainer HT-740T Manuel utilisateur

Spirit

Spirit XT8 Manuel utilisateur

Master

Master F22 Manuel utilisateur

Precor

Precor PRECISION SERIES Manuel technique

Horizon Fitness

Horizon Fitness DT680 Manuel utilisateur

Matrix

Matrix T130 XI Manuel utilisateur
