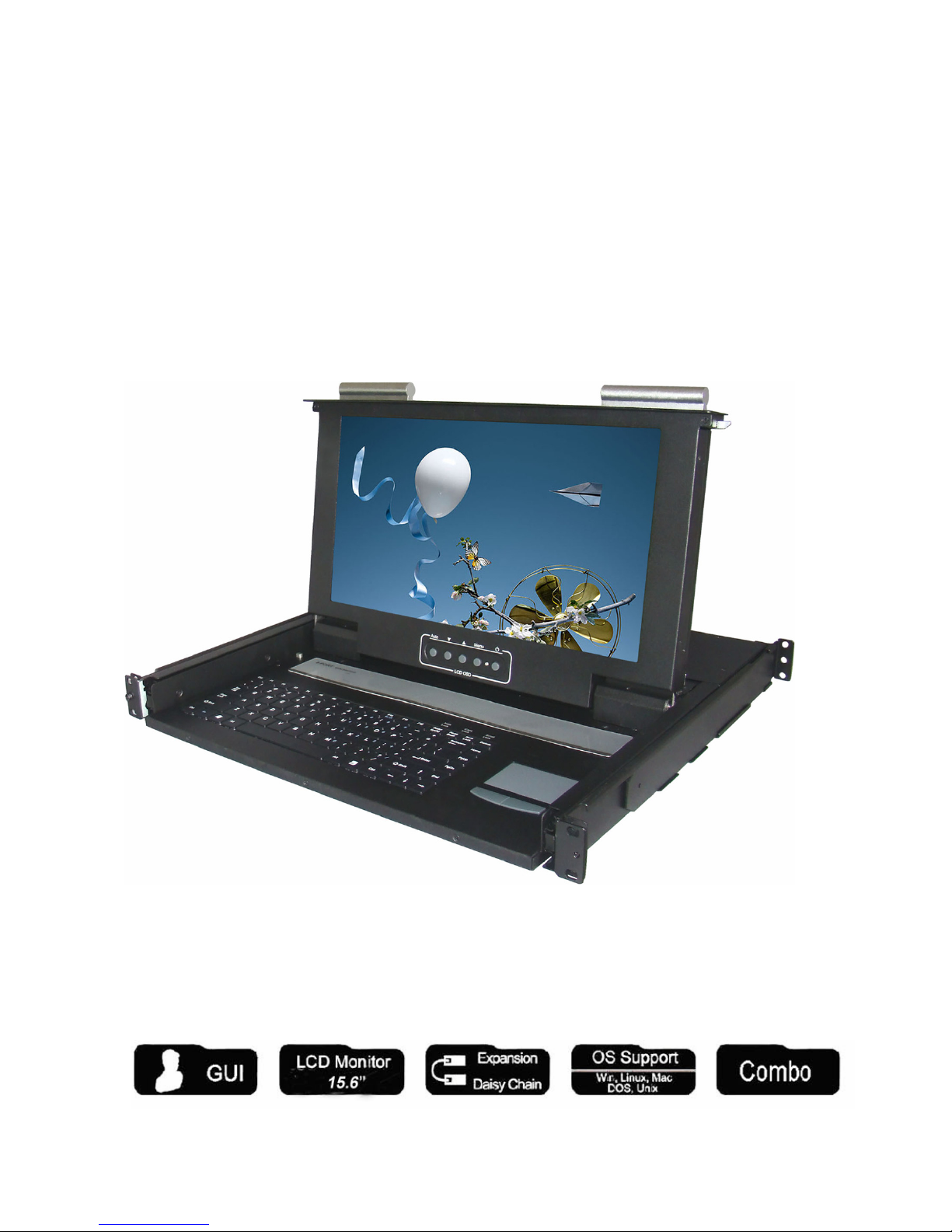

LCD Drawer User Manual

- 2 -

This manual, covering various aspects of the equipment such as installation, setup and

cascade, will help you make full use of this widescreen LCD KVM Drawer. Please read this

manual carefully and install and operate the equipment according to the manual to avoid

damage to this product its accessories.

Product package includes following items:

1 * 15.6” LCD KVM Drawer;

1 * AC Power Cord

1 * Rack installation bracket ( one pair )

1 * CD （USER’S manual）

Please check items above. If any item is missing or damaged, please contact your dealer

promptly.

- 3 -

Table of Contents

1 Introduction …………………………………………………………………………-4-

1.1Overview…………………………………………………………………...…. -4-

1.2 Functions & Features…………………………………… ……………...…..-4-

1.3 Hardware Requirement……………………………………………..….……-4-

1.3.1 Host Requirement………………………………………………....… -4-

1.3.2 Cables…………………………………………………………...….… -4-

1.4 Product Specifications………………………………………………..….…..-5-

1.5 LCD Specifications………………………………………………….…..……-5-

1.6 Front View………………………………………………………….…..……. -6-

1.7 Rear View……………………………………………………………..….…...-7-

2 Installation……………………………………………………………………...……-8-

2.1 Rack Installation……………………………………………………………… -8-

2.2 Standard Installation………………. ………………………………….…… -9-

2.3 LCD KVM Console and KVM Cascade Installation…………… …….…. -10-

2.4 LCD OSD Menu Setup………………………………………………..….… -11-

3 Certificates………………………………………………………………..….….… -14-

- 4 -

1 Introduction

1.1 Overview

KVM-1501WS LCD KVM console integrates keyboard, Widescreen LCD display and

touch pad in a drawer type worktable and provides a convenient space-saving operation

mode for KVM switch technology. The cover is an widescreen LCD display, while the base

is keyboard and touchpad. Metal Buckles on the left and right are moved aside to open the

cover. It can be operated once the KVM module is pulled out. Once the operation is

completed, push the KVM module back to the rack.

KVM-1501WS LCD console is a control device integrating 15.6” widescreen LCD. ,86-

key keyboard and touchpad mouse. You can access multiple hosts using the LCD console

while saving money and efforts.

LCD KVM console is the best choice to save time and efforts. Since all hosts can be

controlled from a single main control terminal, using the widescreen LCD KVM

Console:(1)avoids the cost of keyboard, mouse and monitor of each host; (2) saves work

space; (3) saves power; (4) saves the trouble of moving from one computer to another.

* For Mac and Sun hosts, USB cable must be used for connection.

1.2 Function & Features

KVM-1501WS LCD KVM display is integrated to a drawer type worktable of 1U height to

facilitate rack installation. Supported resolution up to 1366 x 768, 75Hz. It meets the 1U

height of rack specifications and can be installed into19 inch rack cabinet . No need to

install additional software or hardware.

1.3 Hardware Requirement

1.3.1 Hosts Requirement:

(1) VGA, SVGA or Multisync card

Note: the max. resolution of the integrated widescreen LCD display is 1366x768. Make

sure the resolution of any connected computer does note exceed this resolution.

(2) PS/2 or USB keyboard and mouse port.

1.3.2 Cables

The switch can be connected to hosts using PS/2 or USB connector depending on the

different KVM cable.

- 5 -

1.4 Product Specifications

Model KVM-1501WS

Keyboard 86-key Keyboard

Mouse Touchpad

Keyboard PS/2

Mouse PS/2

Monitor HD-15 female connector

Local Control

Terminal

USB For USB KB/Mouse

VGA resolution 1366 x 768 @75Hz

Power supply AC100~240V 50~60Hz

Housing Metal housing

Weight 13.5Kg 15.5Kg

Dimension(W x H x D) 446.4 x 44 x 406.4 (mm)

1.5 LCD Specifications

Model KVM-1501WS

Size 15.6”

Screen type TFT

Contrast 500:1

Brightness 250cd/m

Angle of visibility 110°(H), 85°(V)

Resolution 1024 x 768 @75HZ

Color display 16.7M

- 6 -

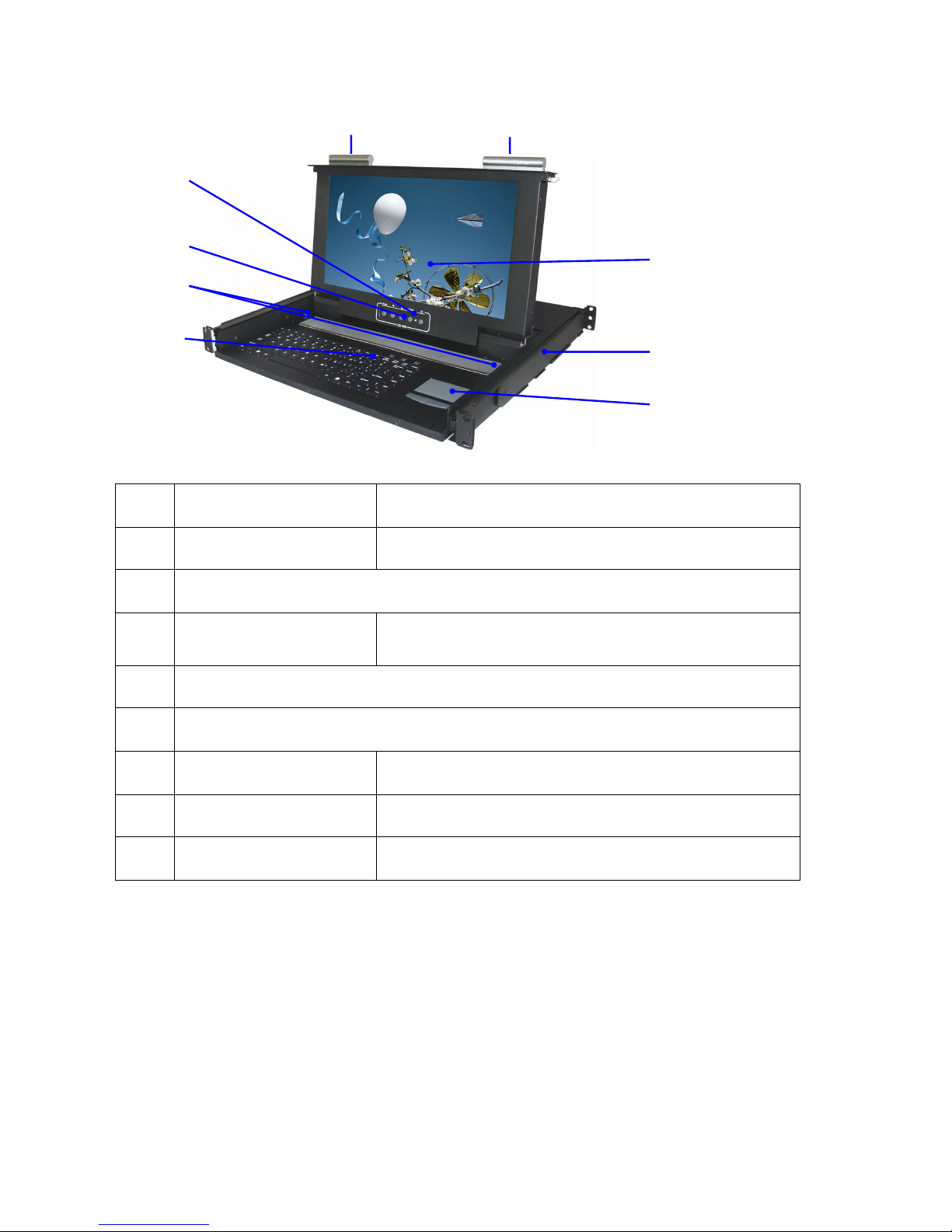

1.6 Front View

NO Part Function Description

1 Handle Moving toward inside direction unlock then pull out

2 LCD display

3 LCD OSD button LCD button to control Screen Display position and

image setting.

4 Keyboard

5 Touchpad

6 LED LCD Power indicator

7 Mounting bracket Install into rack cabinet.

8 Lock button Auto lock / release when lcd pull up and down

1 1

- 7 -

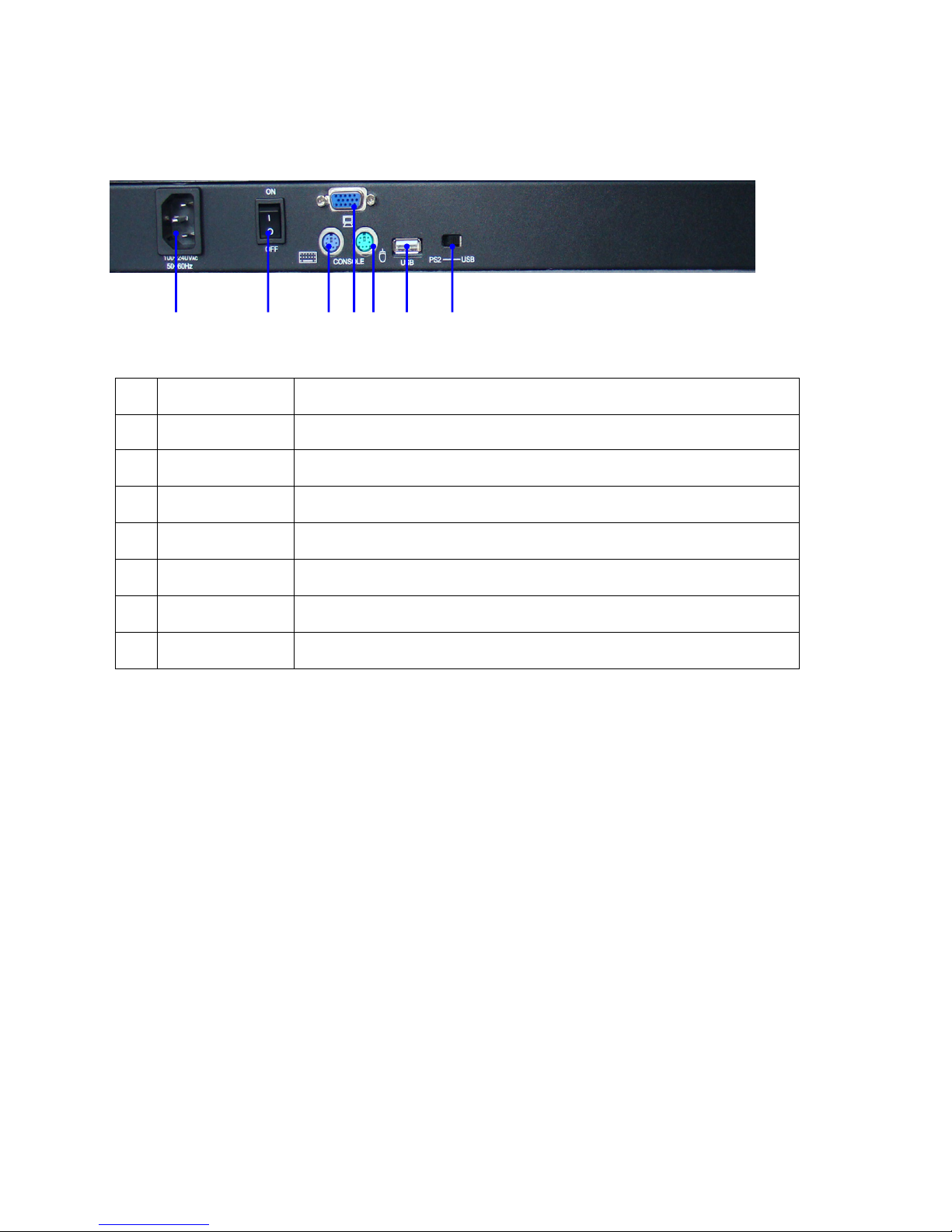

1.7 Rear View

No Component Function Description

1 AC Power port Standard IEC Type AC Inlet

2 Power Switch Rock switch, turn on/off equipment main power.

3 PS2 Keyboard Connect to server or KVM.

4 DB15 VGA PORT Connect to server or KVM.

5 PS2 Keyboard Connect to server or KVM.

6 USB Port Connect to server or KVM.

7 PS2-USB Switch Factory default PS2

Note: Please don't plug PS/2 and USB cables at the same time

1 2 3 4 5 6 7

- 8 -

2 Installation

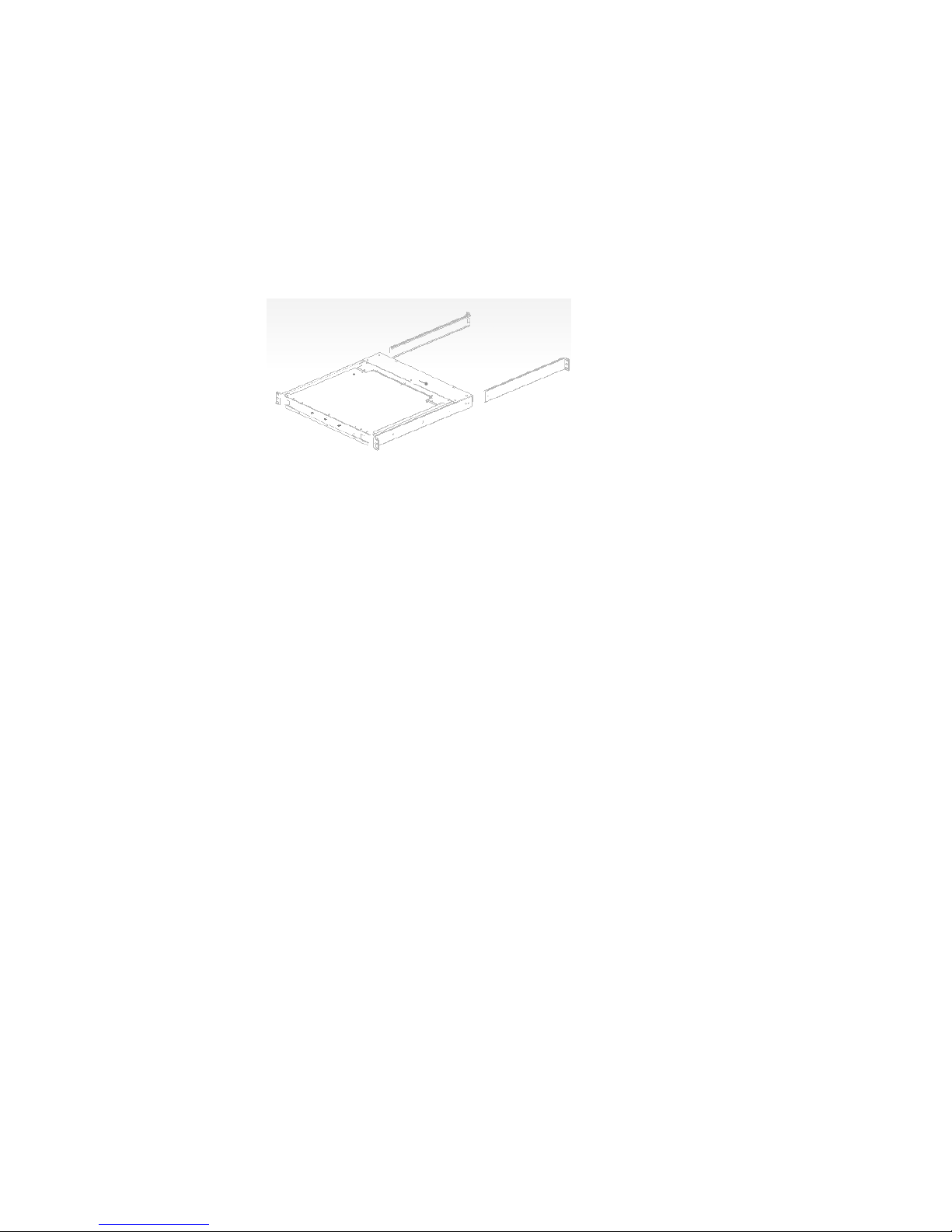

2.1 Rack Installation

Please carry out rack installation according to following procedures:

1.Please switch on your rack and use screws which contain in the package to fix into the

rack.

2.Adjust the rear mounting bracket ( L type ) to fit your rack ,then use screws to fix

Note: 1. Locking nuts provided are used on rack without screw thread.

2. Leave a space of at least 5.1cm wide for ventilation at both sides and 12.7cm at the

back to leave enough sapce for cables.

- 9 -

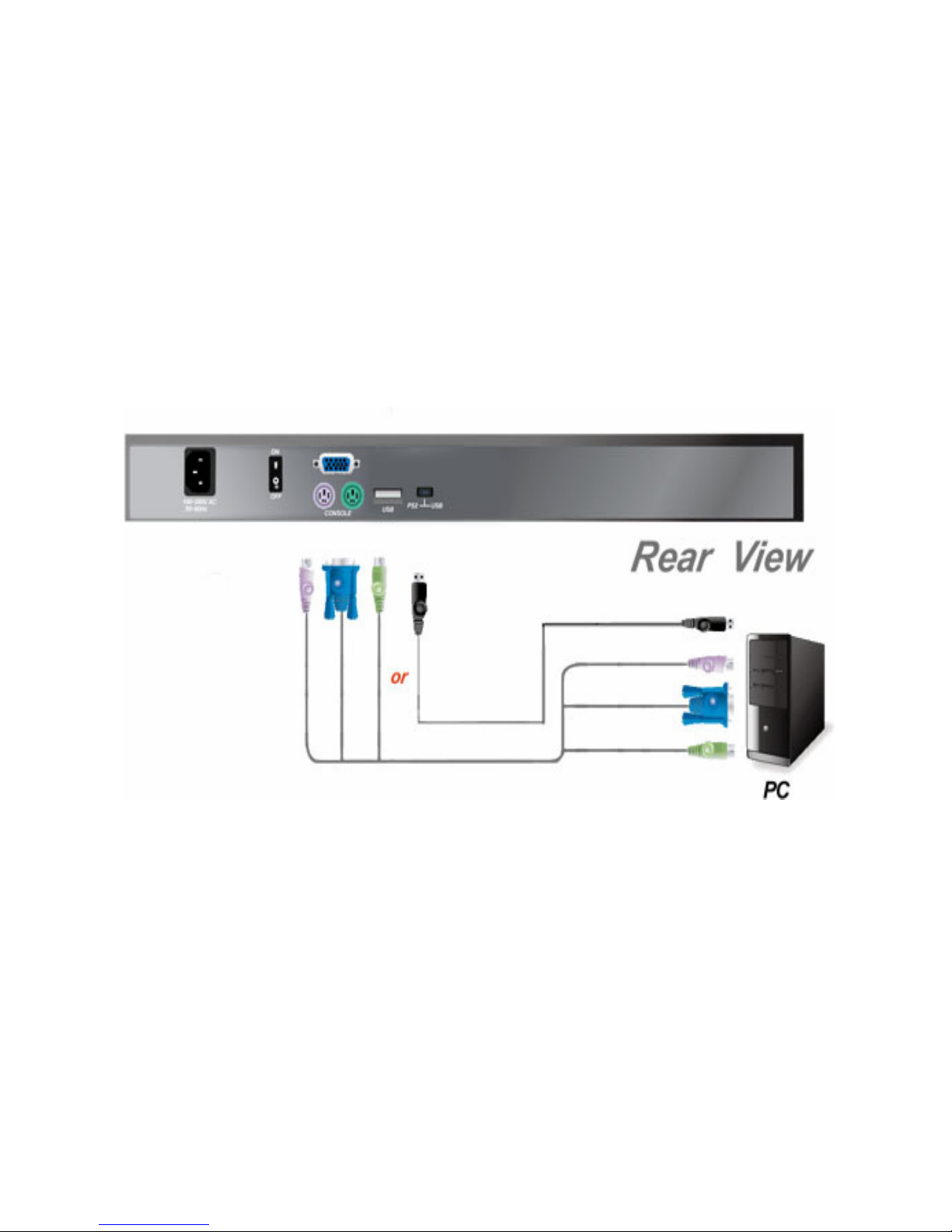

2.2 Standard Installation

Please follow the installation drawing and instructions below for standard installation:

* Please Shutdown the Power of Equipment Needs to be Connected

* Please Pay Attention to Earthing of Equipment

A) Plug the VGA , PS/2 or USB port in corresponding ports between the host and KVM

B) Plug AC power Cord

The standard installation is completed, and LCD KVM console can be powered on. Then

power on connected hosts.

- 10 -

2.3 LCD KVM Console and KVM Cascade Installation

LCD KVM console port can be directly connector to another KVM Switch as cascade to

Perform unified management all connected hosts. Please follow the installation drawing

and instructions for standard installation:

(1) Make sure to power off all equipment to be connected and existing equipment.

(2) Switching slide switch on USB position

(3) Use an USB / VGA cable to connected the LCD and KVM switch console port.

(4) Turn on the KVM and LCD KVM power first and then power on hosts to prevent loss of

any keyboard or mouse.

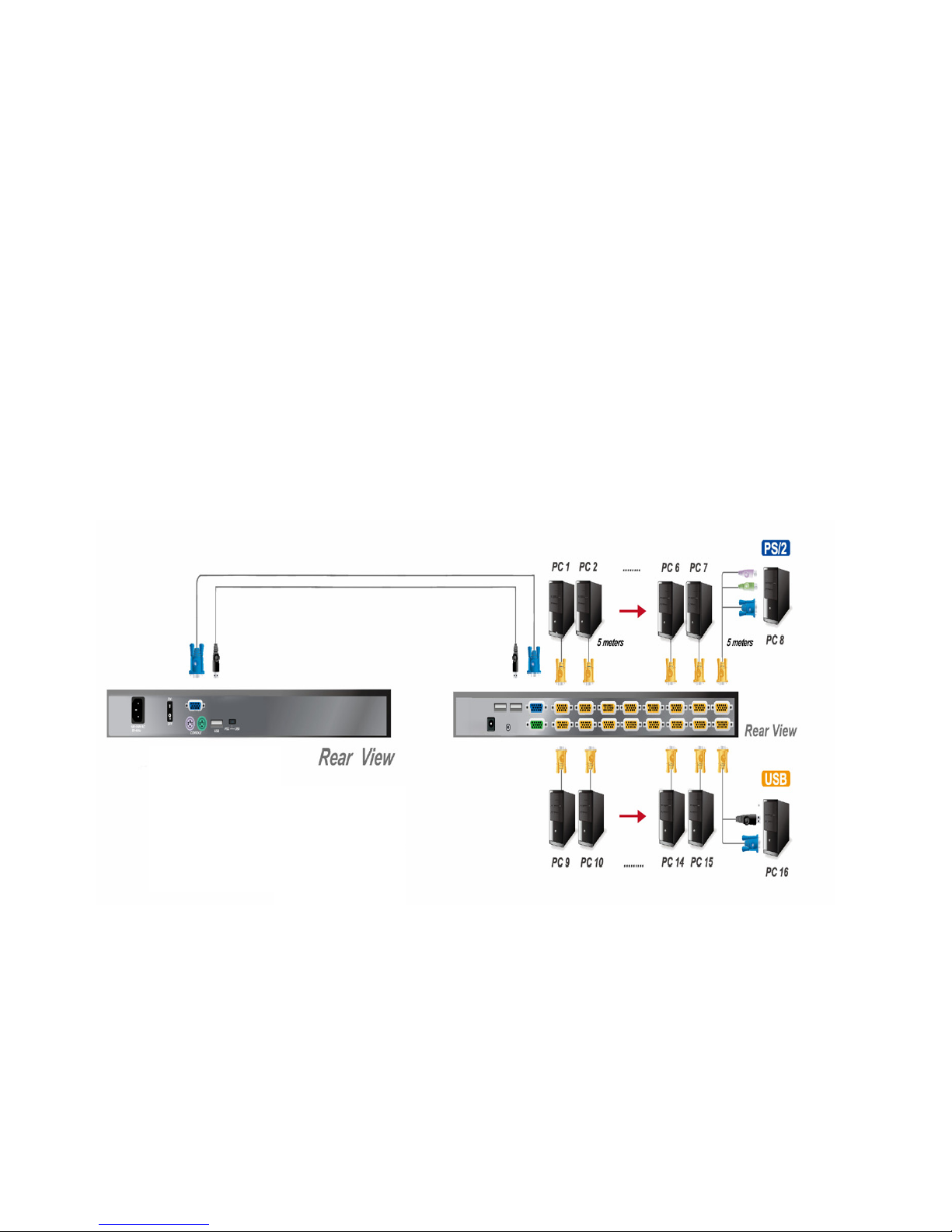

Cascade connection drawing:
