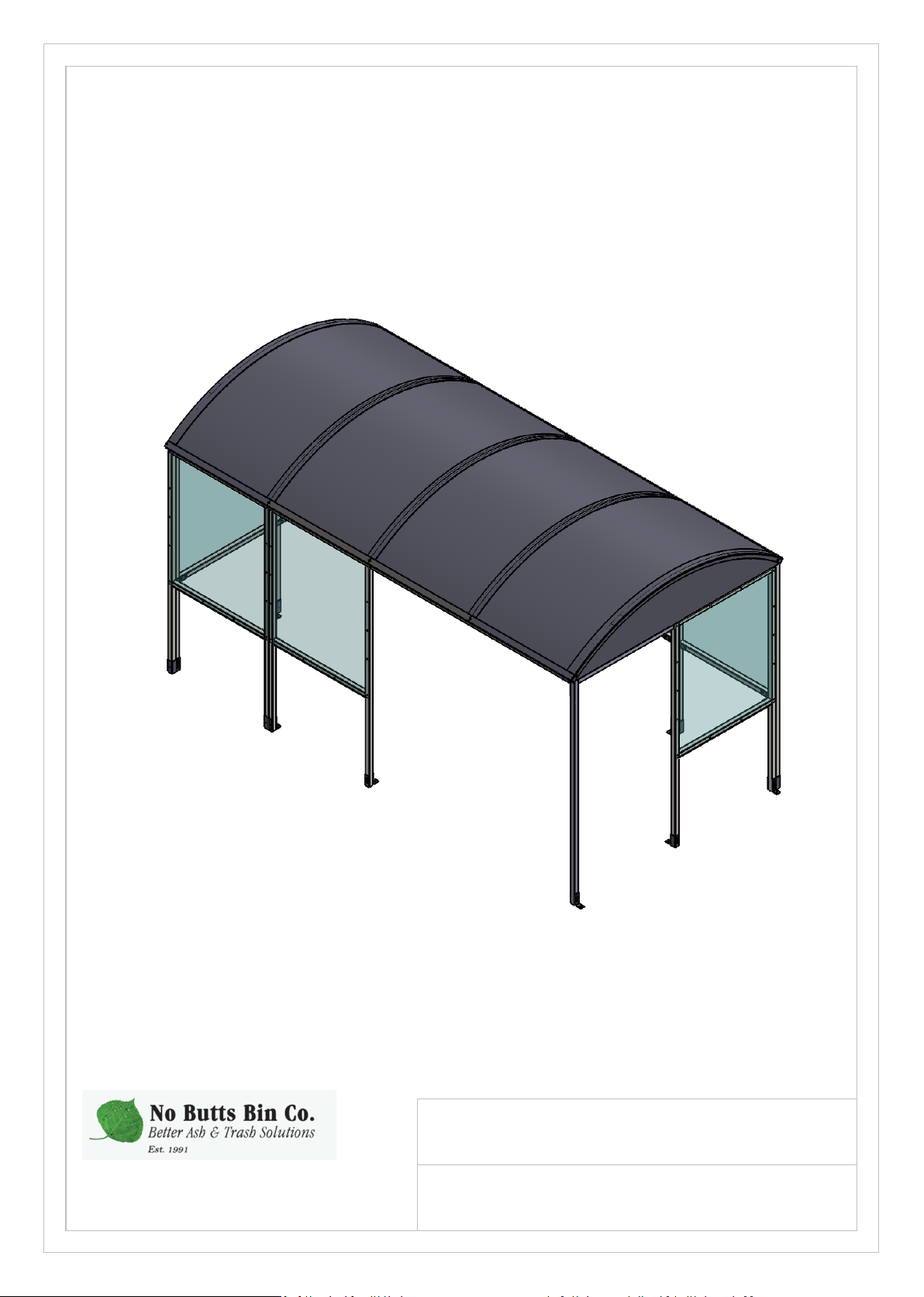

No Butts Bin SR7902 Manuel utilisateur

Assembly Instructions

Product Code: SR7902

Doc. No.: SR7902-01-01112021-USA

Email : [email protected]

Web : www.nobutts.com

Tel : 1-888-662-8887

15 14

2 2

Exploded view

ITEM

NO.

PART

NO.

DESCRIPTION

DIMENSION


QTY.

Full Frame

2000 x 1035

CB1

Corner Bracket - CB1

110 x 110 x

40 8

JF1

Joint Flat - JF1

110 x 40

FT1

FT1 BRACKET

40X40X100

FT3

FT3 Bracket

40 x 80 x 106

Rafter Bracket

110 x 40 x 52

ST3

Roof Tie - ST3

40 x 40 x

2060 1

Post

2000 1

DR2R

DR2R Rafter

2345 5

DR2I

DR2 infill panel

2160 x 400

DR2P

DR2 Roof Panel Outer

2345 x 1055

DR2PI

DR2 Roof Panel Inner

1035 x 2345

DR2T

DR2 Roof Trim

2345 x 80

DRAT

DR Ally-Angle Trim

Outer

50 x 50 x

1055 4

DRATI

DR Ally-Angle Trim

Inner

50 x 50 x

1035 4

EC40

Plastic end cap

STD. STOCK

ITEM

Parts List

ITEM

NO.

PART

NO.

DESCRIPTION

Size (inch)


QTY.

Full Frame

78.74 x 40.74

Rafter Bracket

4.3 x 1.6 x 2

FT3

FT3 Bracket

1.57 x 3.15 x 4.17

CB1

Corner Bracket - CB1

4.3 x 4.3 x 1.57

JF1

Joint Flat - JF1

4.33 x 1.57

FT1

FT1 BRACKET

1.57 x 1.57 x 3.94

ST3

Roof Tie - ST3

81.1 1

Post

78.75 x 40.5

DR2R

DR2R Rafter

92.32 5

DR2I

DR2 infill panel

85 x 15.75

DR2PO

DR2 Roof Panel

Outer

92.32 x 41.54

DR2PI

DR2 Roof Panel Inner

40.75 x 92.30

DR2T

DR2 Roof Trim

92.32 x 3.15

DRATO

DR Ally-Angle Trim

Outer

2 x 2 x 41.5

DRATI

DR Ally-Angle Trim

Inner

2 x 2 x 40.75

EC40

Plastic end cap

1.6 x 1.6

Tools required:

Drill/Screwdriver

Mallet

Tools included:

WRENCH

Torx bit

NOTE:

THE 1 1/2 inch TECH SCREWS ARE FOR FIXING ROOF COMPONENTS ONLY

Fittings and tools

Type

Bolt set M10

T25

T38

BTANCM12100

M10 x 60

Nut

Washer

Black

Caps

1" Tech

screw

1 1/2"

Tech

screw

M10/12 x 100 mm

Concrete Bolt

Pack A

30 30 60 60 72 30 8


IMPORTANT:

Make sure side frames are aligned as detailed below.

CB1

JF1

83.07

164.57

S1C

JF1

Step

Assemble back and side frames

S1C

as shown below. Using

JF1

brackets for the

straight joints and

CB1

brackets for the corners.

Check the dimension

of the shelter to

ensure correct alignment

JF1

CB1

ST3

Step 2

Attach front

frame and

ST3

tie bar using

CB1

and

JF1

brackets.

DR1R RafterDR1R RafterDR1R Rafter

DRDR

DR1I

DR1R RafterDR1R Rafter

DR1I

40.75 40.75 40.75 40.75

Front View

Step

Secure the

DR1R

roof rafters into place using the

Brackets. The

DR1I

infill panels

are screwed into place using 1" tech screws but must be placed into position at

the same time as the end rafters.

DR2PI

DR2PO

DRATO

DRATIDRATI

DRATO

DRATIDRATI

DRATO

Step

Line up the roof sheets

DR2PO/DR2PI

as shown below. Install the

DRAT2

Angle

trims to the bottom of the roof panels and using the 1.5" Tech screws, this will

secure the roof sheets.

DR2T

FT3

FT1

Step

Seal the central gaps and edges with the

DR1T

strips. Once the shelter is in its

final position and squared up, attach the

FT1

and

FT3

foot brackets and use

anchor bolts to secure everything to the ground.

Finally fit the black plastic caps on exposed nuts and bolts.

79.92

163.31

81.81

39.17 42.64

40.75 39.17

42.64 40.75 40.75 39.17

85.91

164.57

Plan View

Suggested size for concrete base: 8 inch oversized on all 4 sides.
