No Butts Bin SR7900 Manuel utilisateur

Assembly Instructions

Shelter type: SR7900

SR7900-01-211021-USA

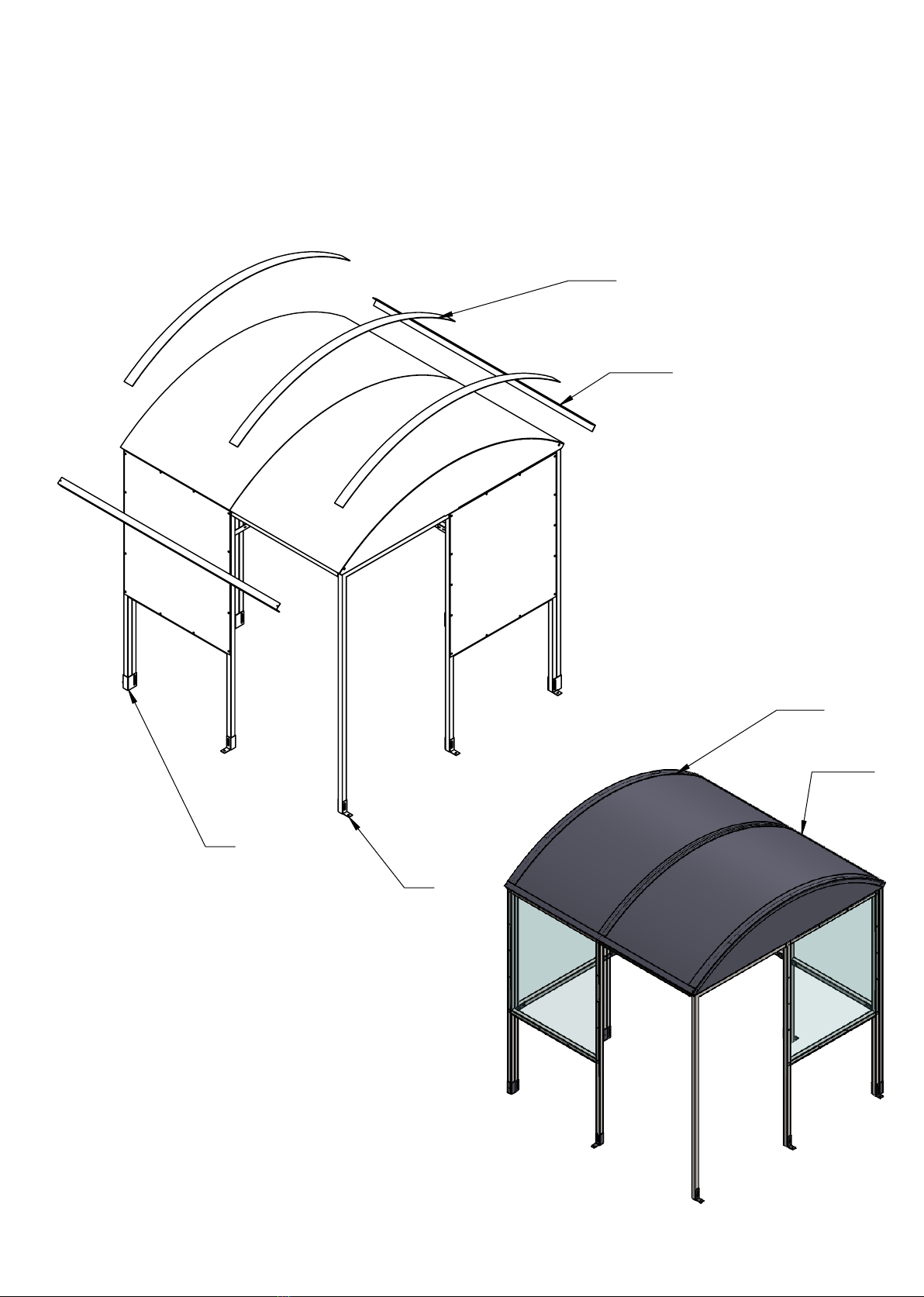

Exploded View of Shelter

ITEM

NO. PART NAME

DRG NUMBER

LENGTH

QTY.

S1 Frame

P1 Post

Default

CB1 Bracket

CB1

Default

JF1 Bracket

JF1

Default

40x40 End cap

EC40

40 x 40 x

20 3

ST1 Roof Tie

ST1

Default

DR Bracket

Default

FT1 Bracket

FT1

Default

FT3 Bracket

FT3

Default

DR2I Infill Panel

DR2I

Default

DR2PO Roof Panel

DR2PO

Default

DR2R DR2R

Default

DR2T Roof Trim

DR2T

Default

DRAT2 Roof Trim

DRAT2

Default

PARTS LIST

ITEM

NO.

PART

NO.

DESCRIPTION

Size (inch)


QTY.

Full Frame

78.74 x 40.74

Post Frame - P1

78.74 x 40.74

CB1

Corner Bracket -

CB1

4.3 x 4.3 x 1.57

JF1

Joint Flat - JF1

4.33 x 1.57

EC40

40x40 PLASTIC END

CAP

1.57 x 1.57

ST1

Roof Tie - ST1

40.35 1

Rafter Bracket

4.3 x 1.6 x 2

FT1

FT1 BRACKET

1.57 x 1.57 x 3.94

FT3

FT3 Bracket

1.57 x 3.15 x 4.17

DR2I

DR2 infill panel

85 x 15.75

DR2PO

DR2 Roof Panel

Outer

92.32 x 41.54

DR2R

DR2R Rafter

92.32 3

DR2T

DR2 Roof Trim

92.32 x 3.15

DRAT2

Ally-Angle Trim 2M

2 x 2 x 83

FIXINGS

Drill/Screwdriver

Mallet

Wrench

Torx bit

TOOLS REQUIRED

Fittings

Bolt set M10

T25 T38

BTANCM12100

M10 x 60mm

Nut

Washer

1" Tech

screw

1.5"

Tech

screw

Black

Caps

M10/12 x 100 mm

Concrete Bolt

Pack A

30 30 60 72 30 60 13

Required

14 14 28 68 64 56 8


IMPORTANT:

Check overall dimensions

to ensure corrct alignment

ST1

JF1

CF1

NOTE: Insert

EC40

into

ST1

and

before installation.

JF1

CB1

CB1CB1

Ensure corners are aligned

correctly

Step 1

Assemble

frames to make up the main structure using

CB1

brackets

in the corners and

JF1

brackets on straight joints. Then attach

post using

one

JF1

bracket. Then attach

ST1

Tie bar using a

JF1

bracket and one

CB1

bracket.

40.75 40.75

FRONT VIEW

DR2R

DR2I

Step 2

Attach

Brackets to the top of the frames, and bolt the

DR2R

rafters in

place through the brackets. The

DR2I

infill panels have to be placed in

position at the same time at the end rafters.

DR2PO

DRPO

Step 3

Align the

DR2PO

roof panels with the outer roof rafters but don't screw into

place at this stage.

DRAT2

DR2T

DRAT2

FT3

FT1

Step 4

Screw down the

DR2T

directly into the rafters as shown below,

using

2" Tech screws. Then attach the

DRAT2

angles on both sides and

secure all the roof components with 2" Tech screws.

Attache the

FT1

and

FT3

foot brackets and use anchor bolts to sucure the

shelter to the ground. FT1 brackets are used where there is only a single

leg and FT3 for double legs.

85.87

40.75 41.12

40.75

39.17

40.75 41.12

85.87

41.12 44.74

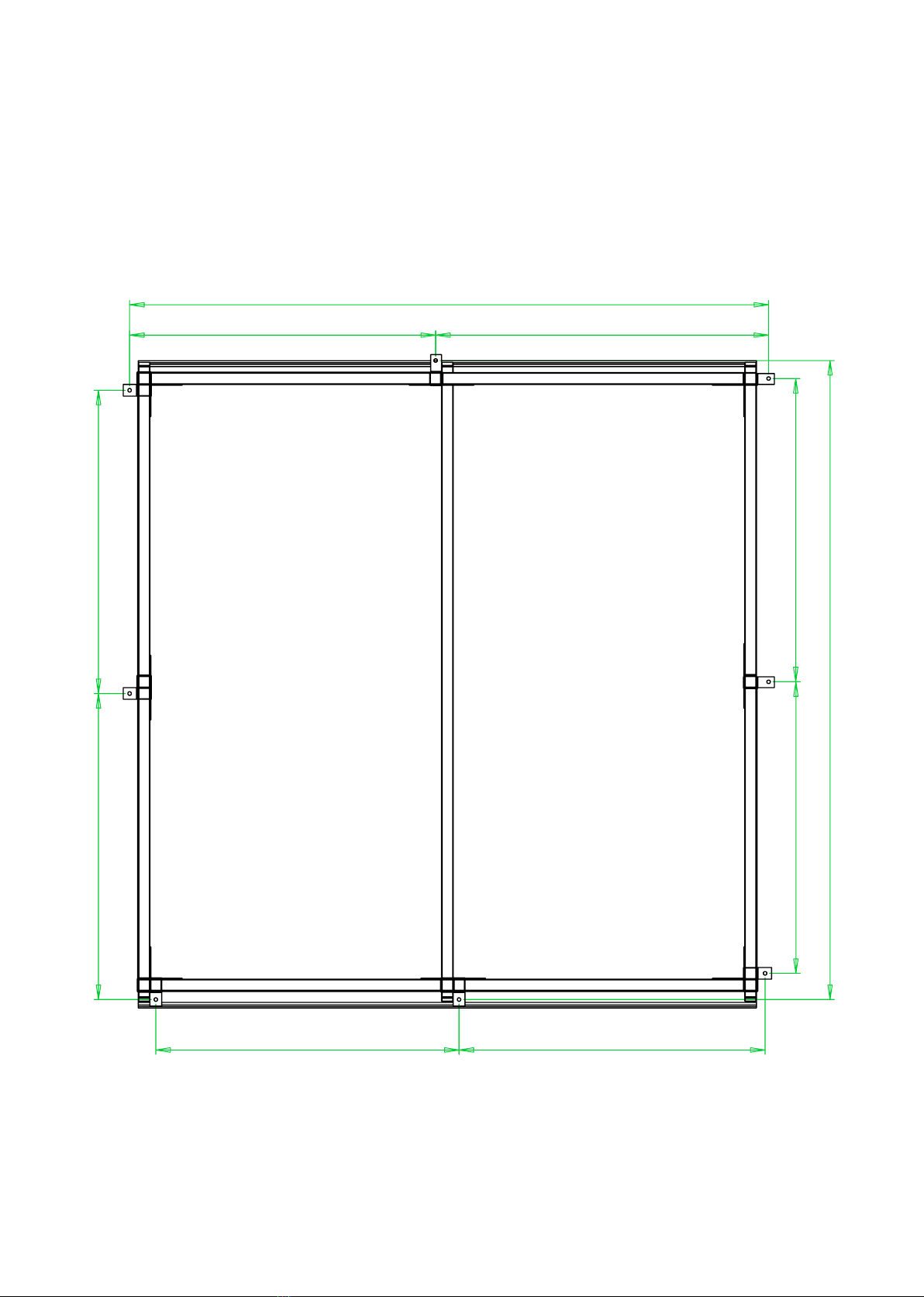

Ground anchor positions and overall size

Suggested concrete base size: 8 inch oversized on all four sides

Scale 1:15

MAINTENANCE:

To ensure your products give you many years of use we recommend that you:

THANK YOU

FOR PURCHASING THIS PRODUCT

Clean panels regularly with soapy water

•

Ensure all fittings are tight (for example after a big storm)

•

Touch up any exposed metal should it get scratched

•

CONTACT DETAILS:

No Butts Bin Company, Inc.

16 Birch Lane, Madison, CT 06443

Email: [email protected]

Web: www.nobutts.com

Tel: 1-888-662-8887

All Parts and Fixings checked by:

Print Name:

Signature:
