No Butts Bin SR1584 Manuel utilisateur

Assembly Instructions

Shelter type: SR1584

SR1584-01-240219-USA

Email : [email protected]

Web : www.nobutts.com

Tel : 1-888-662-8887

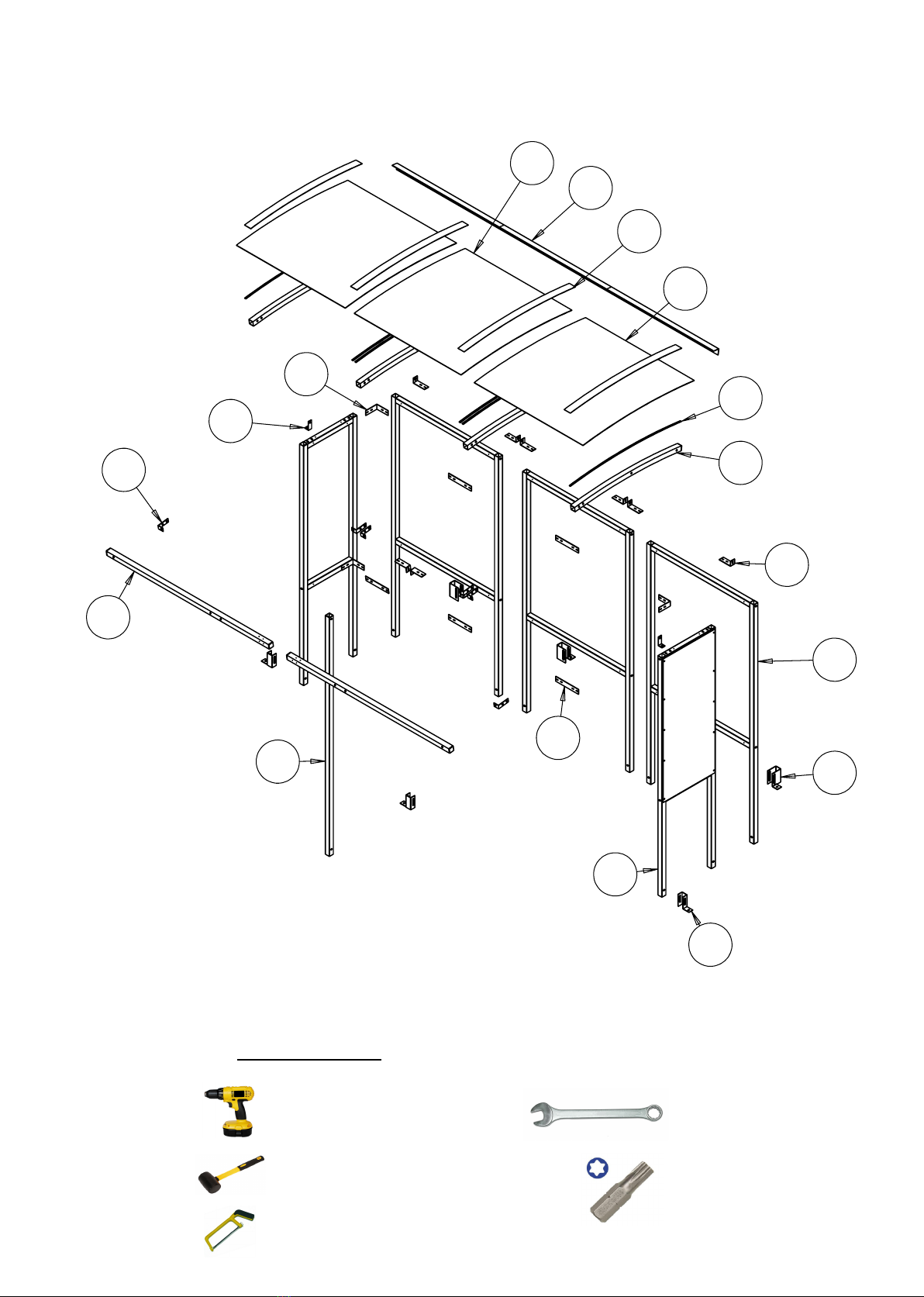

EXPLODED VIEW

Spanner

Torx bit

Tools required:

Drill/Screwdriver

Mallet

Hack saw

ITEM

NO. PART NAME

DRG NUMBER

LENGTH

Default/QT

S1 Frame

S3 Frame

CB1 Bracket

CB1

Default

JF1 Bracket

JF1

Default

RB1 Bracket

RB1

Default

Rafter

L3 Bracket

Default

P4 Post

B3 Beam

L1 Bracket

Default

FT1 Bracket

FT1

Default

FT3 Bracket

FT3

Default

Sealing Strip

ACE3 Roof Panel

ACE3

Default

ACC3 Roof Panel

ACC3

Default

RC3 Roof Strip

RC3

Default

A2 Angle

Default

40x40 End cap

BOUGHT IN ITEM

40 x 40 x

20 8

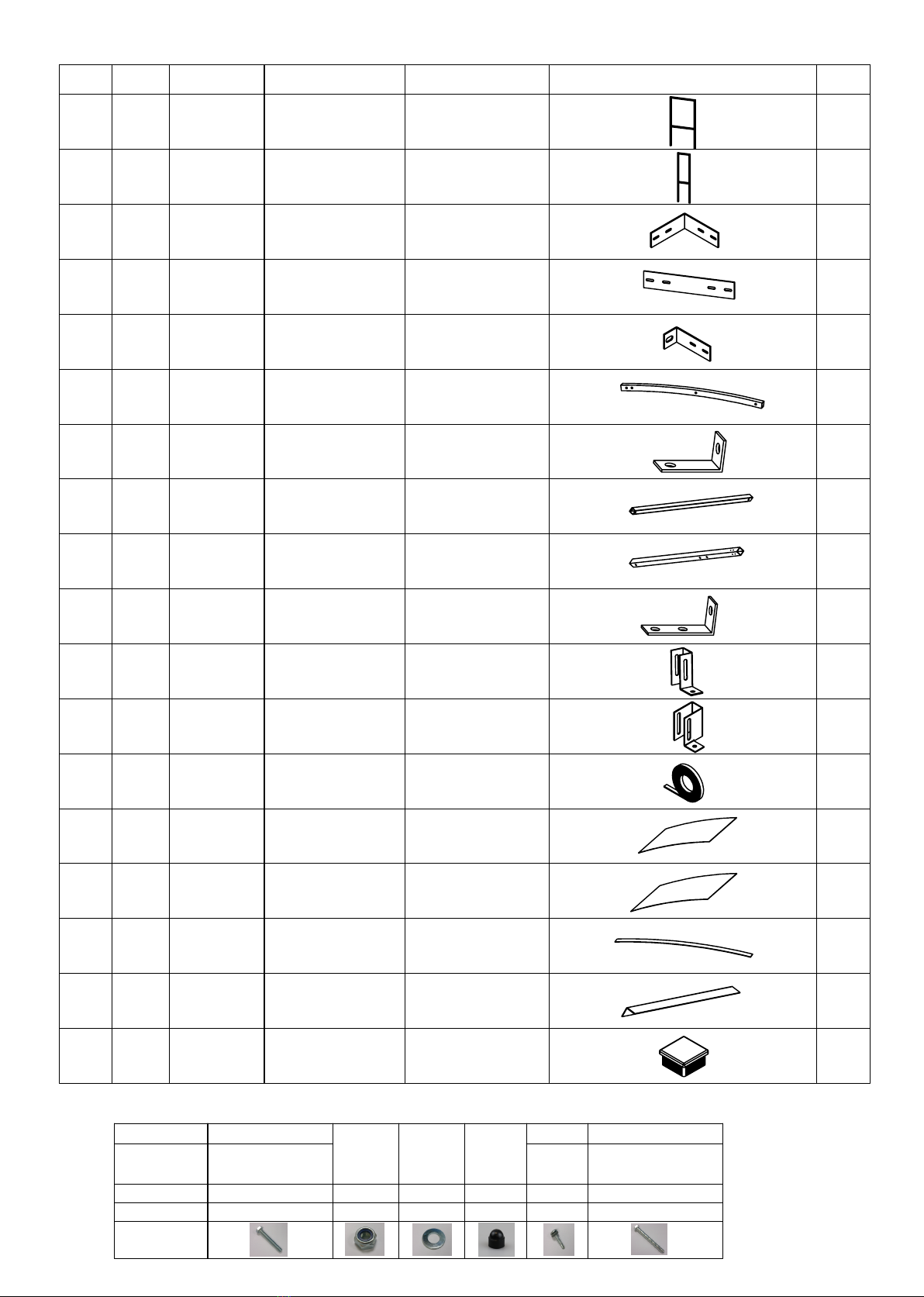

PARTS LIST

Fittings

Bolt set M10

Nut

Washer

Black

Cap

T25 AB1210

M10 x 60mm

25mm

Tech

screw

M10 X 100mm

Concrete Bolt

Pack C

30 30 60 60 102 8

Required

30 30 60 60 72 7


ITEM

NO.

PART NO.

DESCRIPTION

DIMENSION (MM)

DIMENSION (INCH)


QTY.

Frame

2000x1035 78.74x40.55

Frame

2000x517 78.74x20.35

CB1

Bracket

110x110x40

4.33x4.33x1.57

JF1

Bracket

220x40

8.66x1.57

RB1

Bracket

110x42x40

4.33x1.81x1.57

Rafter

1035x40x40

40.75x1.57x1.57

Bracket

73x38

2.87x1.50

Post

1995x40x40

78.54x1.57x1.57

Beam

1562x40x40

61.50x1.57x1.57

Bracket

95x45

3.74x1.77

FT1

Bracket

109x100x40

4.29x3.93x1.57

FT3

Bracket

109x100x80

4.29x3.93x3.15

Sealing Strip

Trim To 1035

Trim To 40.75

2 ROLLS

ACE3

Roof Panel

1070x1050 42.13x41.34

ACC3

Roof Panel

1070x1030 42.13x40.55

RC3

Roof Strip

1070 42.13 4

Roof Edge

1035 40.75 3

EC40

End Cap

40x40

1.57x1.57

517

3145

557

20.35

123.82

21.93

USE DIMENSIONS TO CHECK

ALIGNMENT OF THE SHELTER

JF1

CB1

CB1 CB1

Ensure correct alignment

on corners

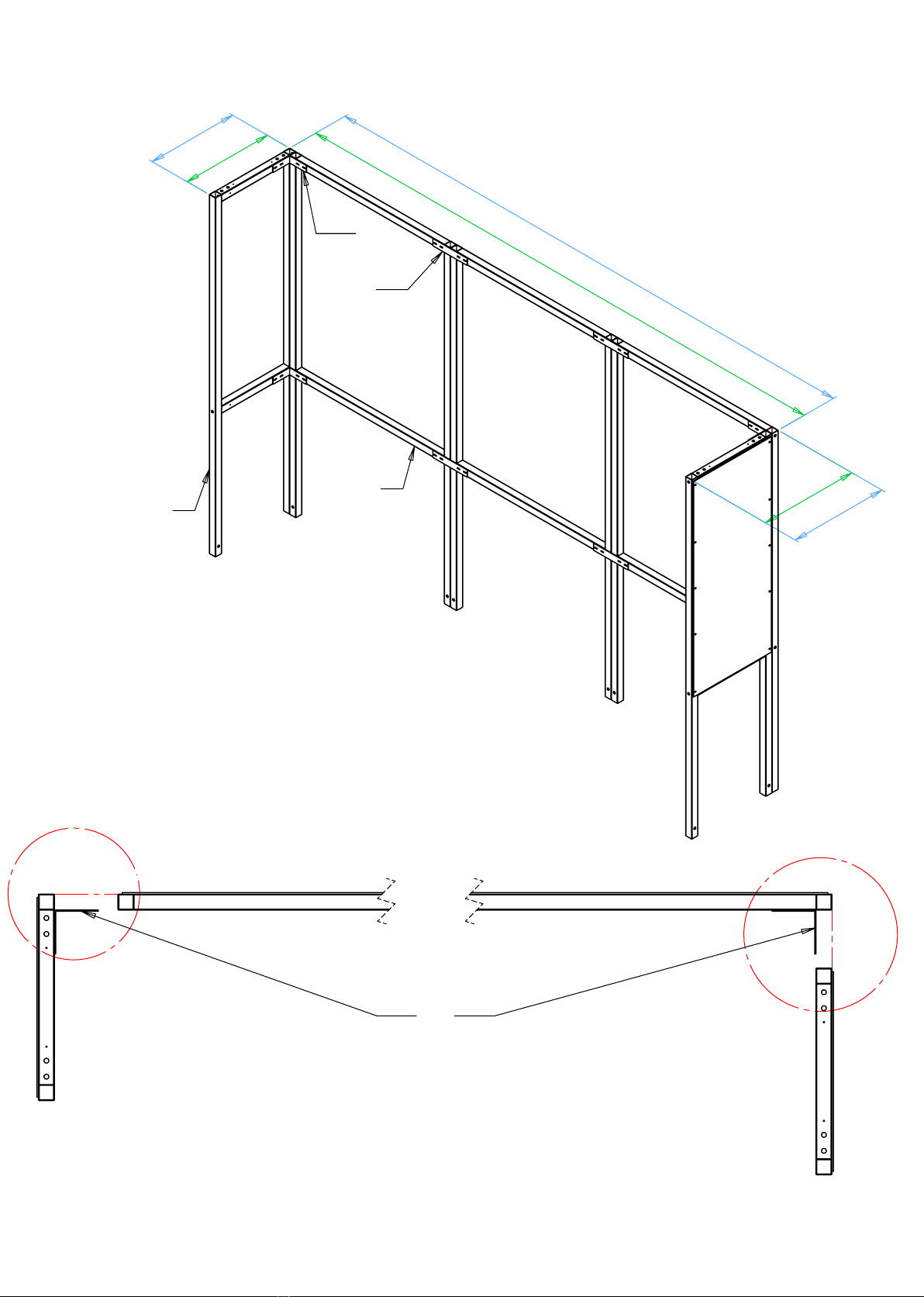

Step 1

Assemble

and

frames to make up the main structure using

CB1

brackets in the corners and

JF1

brackets on the straight joints.

MEASUREMENTS IN BLUE - MM

MEASUREMENTS IN GREEN - INCHES

RB1

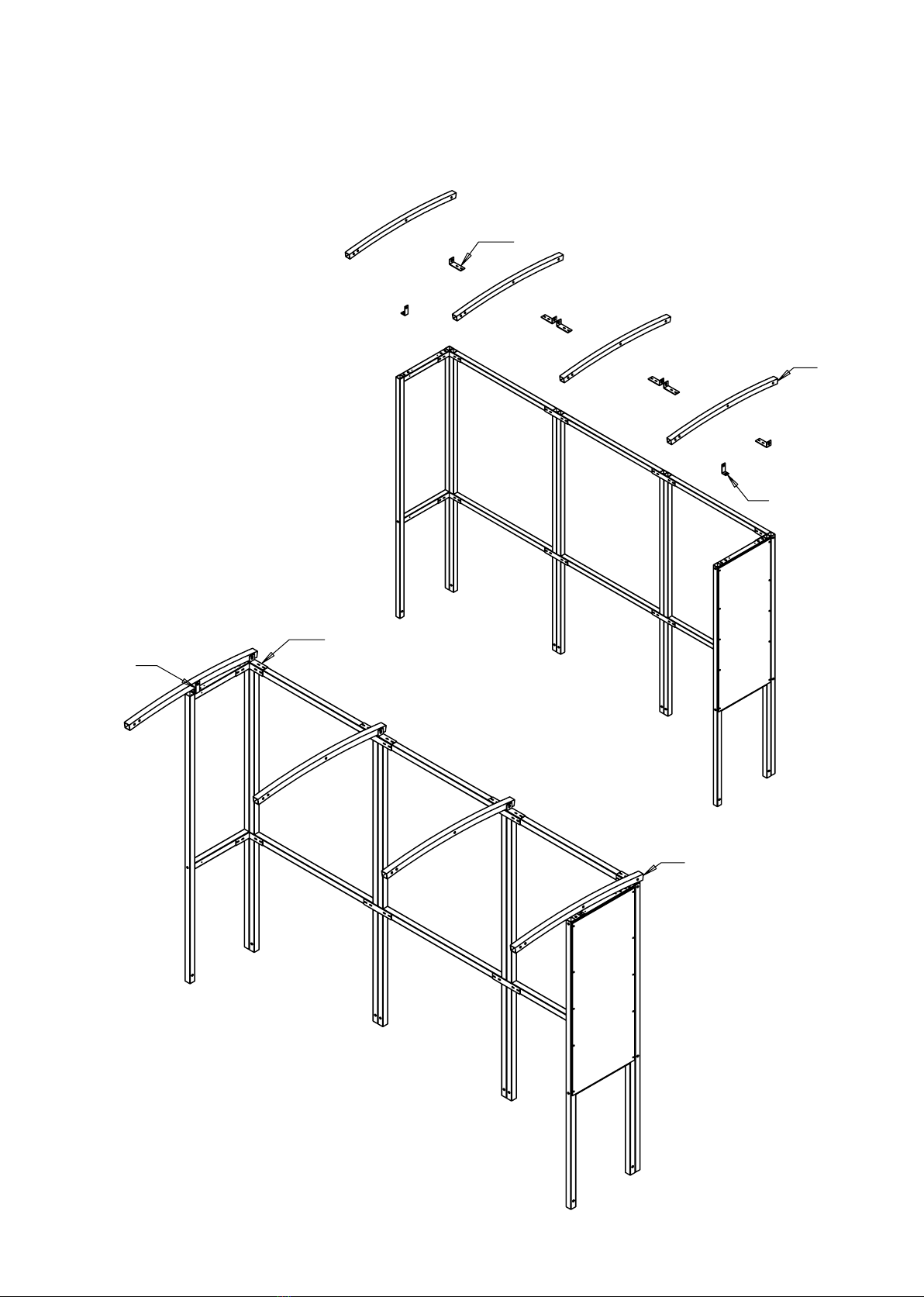

Step 2

Attach

rafters using

RB1

brackets on the back of the shelter and

brackets in the middle.

RB1

JF1

DETAIL A

SCALE 1 : 5

JF1

RB1

DETAIL B

SCALE 1 : 4

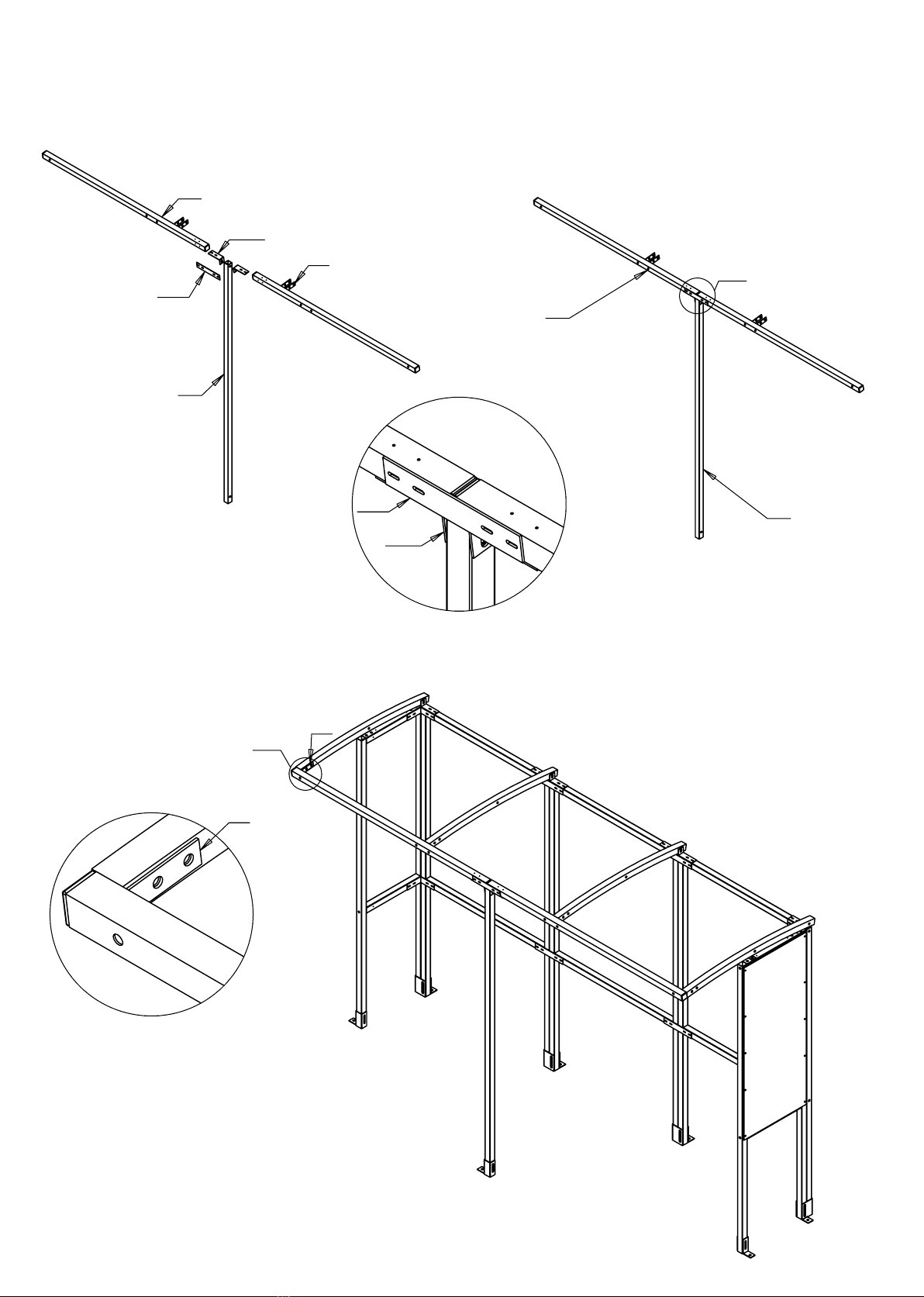

Step 3

Assemble the

's and

using the JF1 and RB1 brackets as

shown below.

Attach front beams

(B3)

and centre post

(P4)

to the

rafters using the

L1 brackets

FT1

FT3

FT1

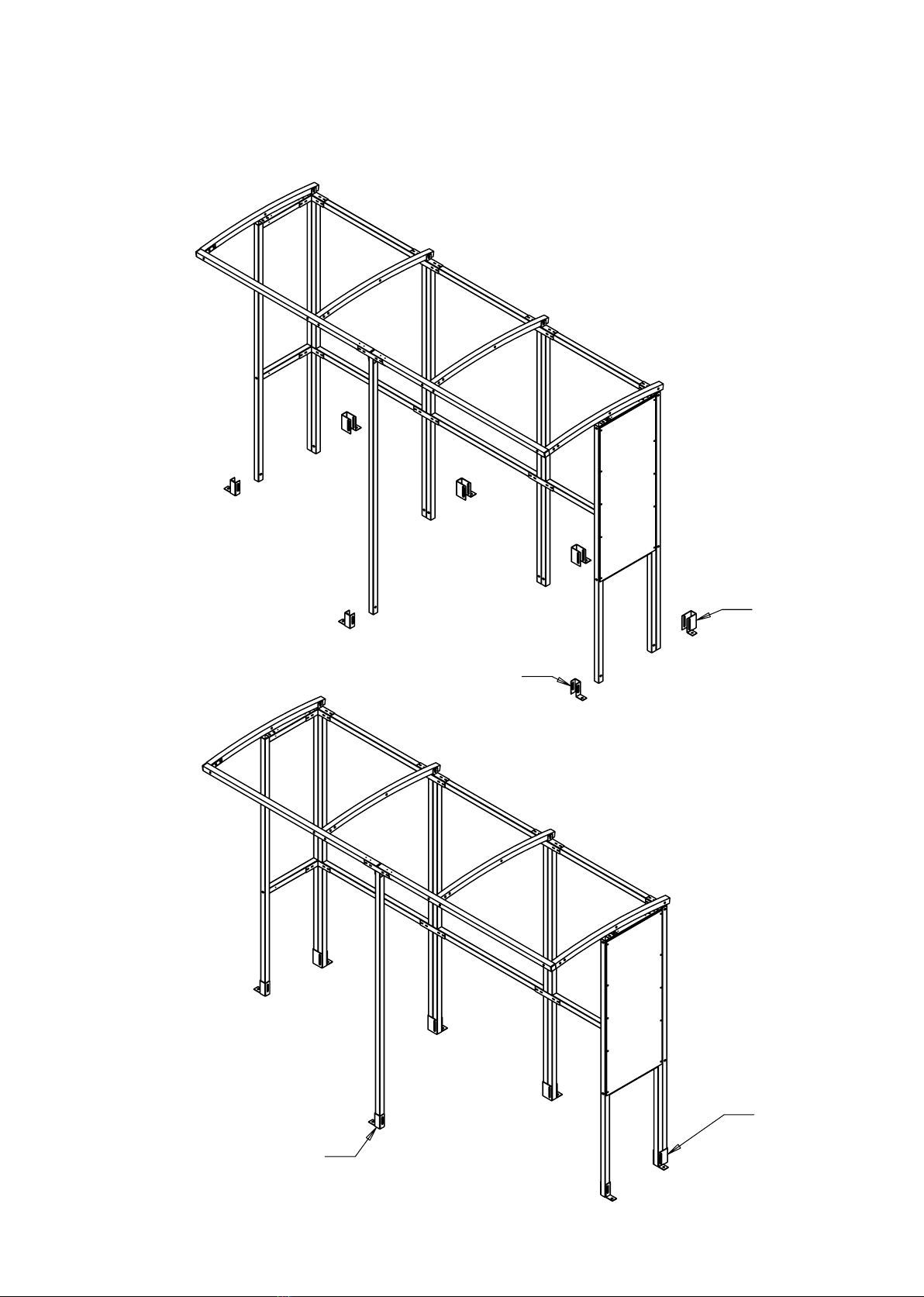

Step 4

Attach the

FT1

and

FT3

foot brackets, Move the Shelter into its final

position and make sure its square. Then use concrete anchor bolts to

secure it to the the ground.

ACE1

ACC1

ACE1

RC3

ACE3

ACC3

ACE3

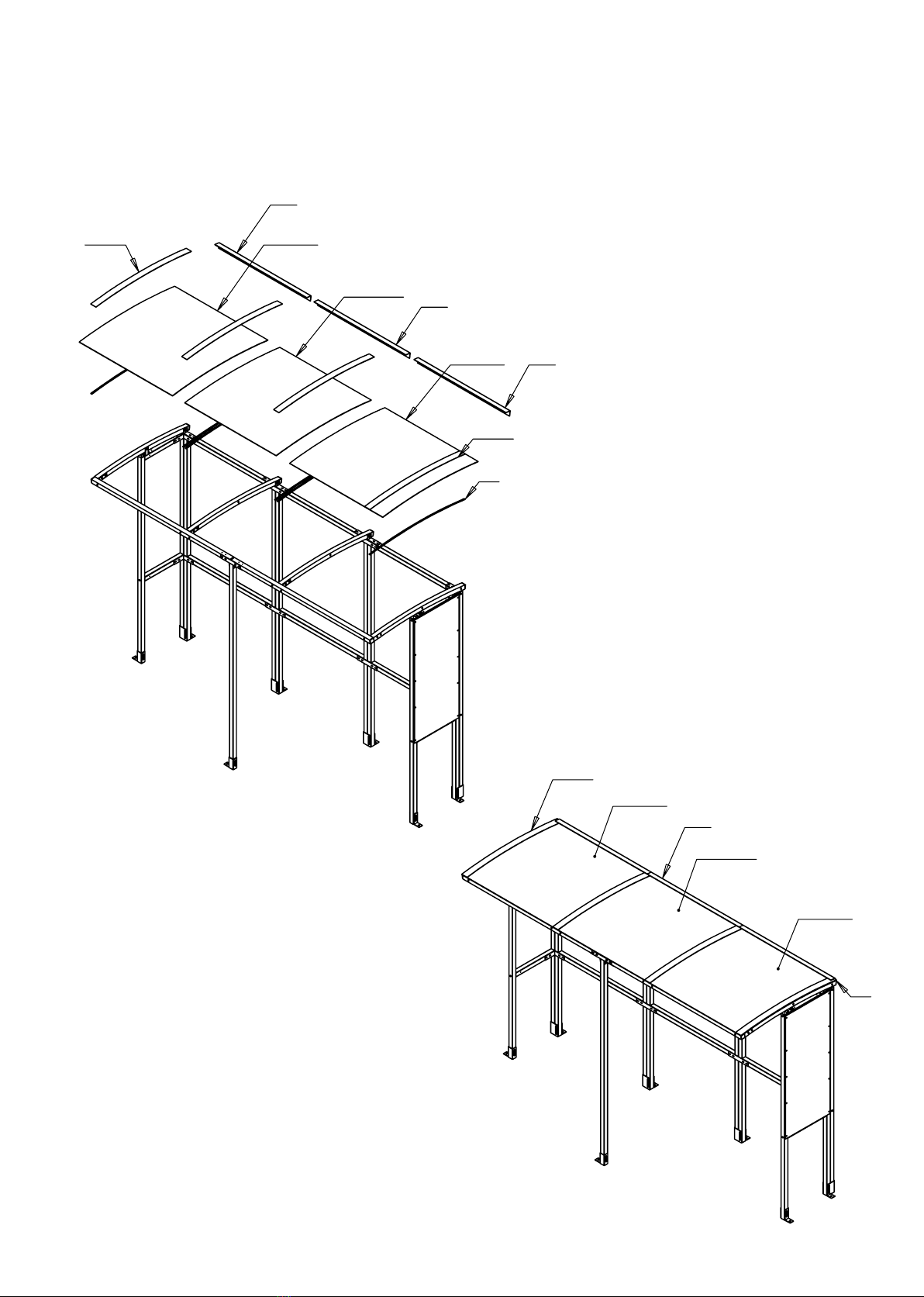

Step 5

Apply the sealing strips

(SS)

to the top of the R3 rafters as shown.

Place

ACE3

and the

ACC3 roof panels with a small gap on sealing strips

use

RC3

strips and screws supplied to secure panels in place. Finally

screw

angles to the rear of the shelter.

477

1044.50

1035 1035

20.73

3228 HOLE CENTERS ON FEET

3145

127.09

18.78

41.12 40.75 40.75

526.50

123.82

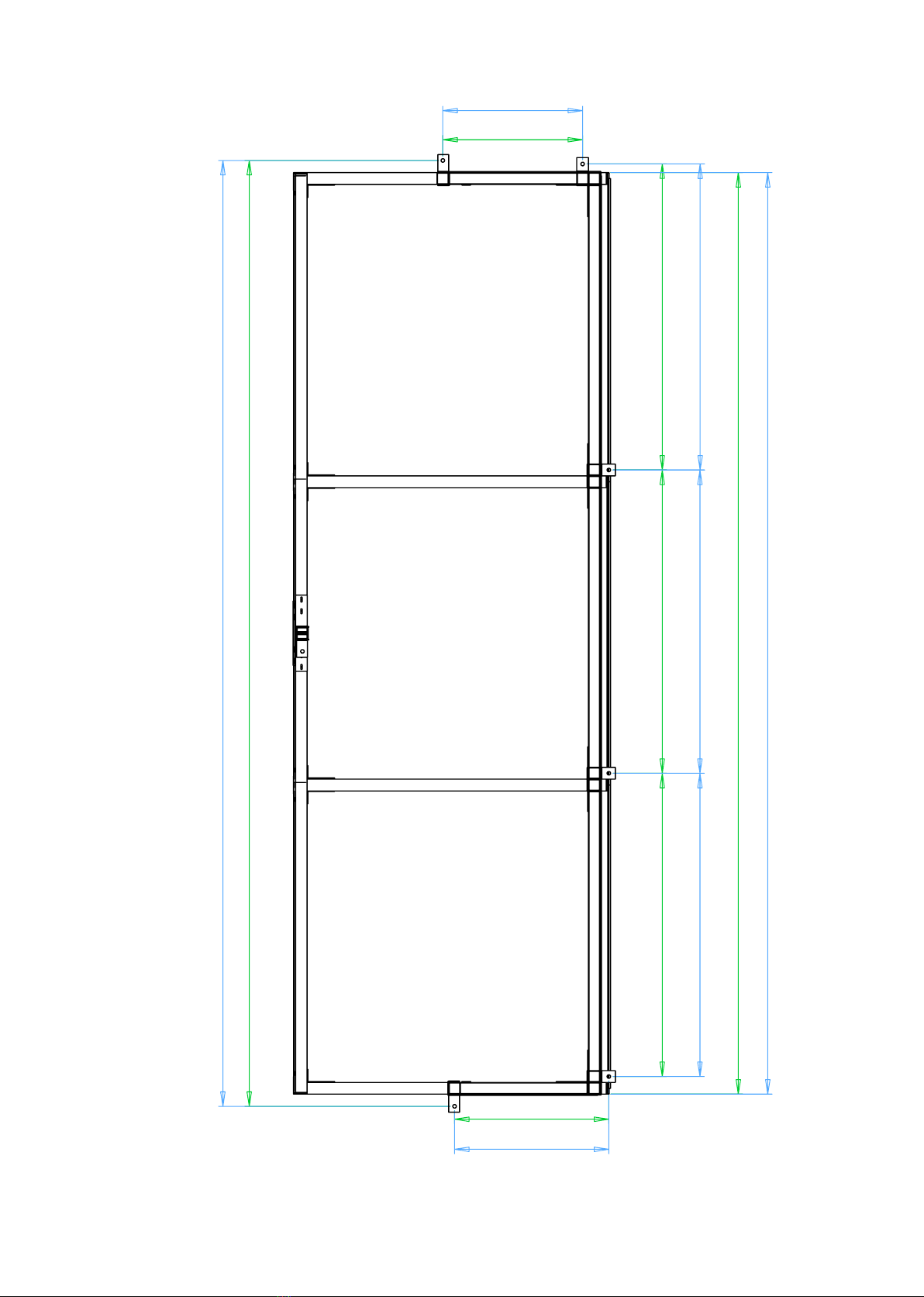

PLAN VIEW

OVERALL DIMENSIONS AND GROUND FIXING POSITIONS

Suggested size for concrete base:

200mm or 7.87in oversized on all

four sides.

NOTES
